Safety and Troubleshooting Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than

those specified in this documentation may result in exposure to shock,

electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Operation:

●Keep the monitor out of direct sunlight and away from stoves or any other heat source.

●Remove any object that could fall into ventilation holes or prevent proper cooling of the

monitor’s electronics.

●Do not block the ventilation holes on the cabinet.

●When positioning the monitor, make sure the power plug and outlet are easily accessible.

●If turning off the monitor by detaching the power cable or DC power cord, wait for 6

seconds before attaching the power cable or DC power cord for normal operation.

●Please use approved power cord provided by Philips all the time. If your power cord is

missing, please contact with your local service center. (Please refer to Customer Care

Consumer Information Center)

●Do not subject the LCD monitor to severe vibration or high impact conditions during

operation.

●Do not knock or drop the monitor during operation or transportation.

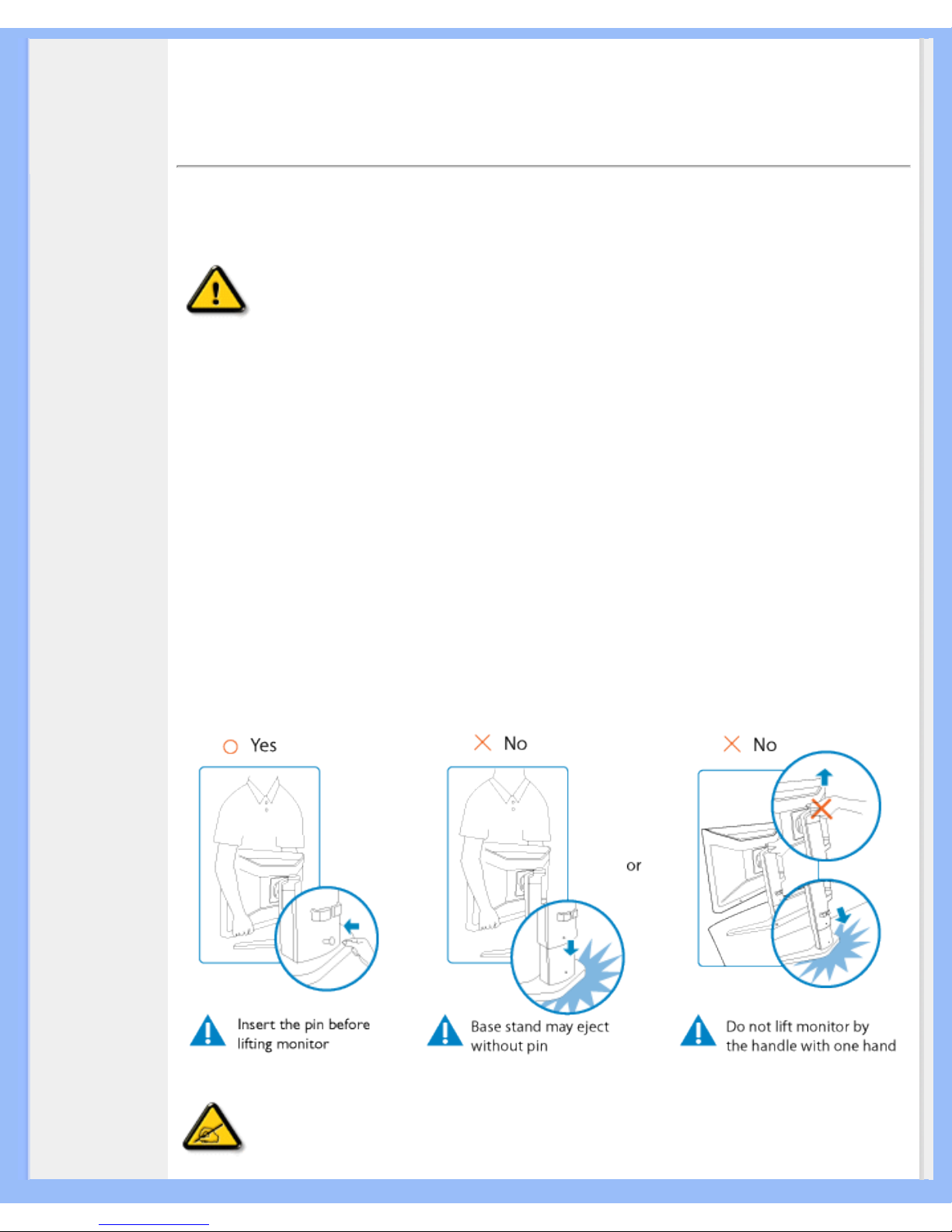

●Please note the above pictures if you lift your monitor, not following the

recommended way may cause injury.

●Using two hands to lift your monitor is strongly recommended.

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/safety/safety.htm (1 of 2)2006-01-10 3:34:35 PM

Safety and Troubleshooting Information

Maintenance:

●To protect your display from possible damage, do not put excessive pressure on the LCD

panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by

placing your hand or fingers on the LCD panel.

●Unplug the monitor if you are not going to use it for an extensive period of time.

●Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be

wiped with a dry cloth when the power is off. However, never use organic solvent, such

as, alcohol, or ammonia-based liquids to clean your monitor.

●To avoid the risk of shock or permanent damage to the set, do not expose the monitor to

dust, rain, water, or excessive moisture environment.

●If your monitor gets wet, wipe it with dry cloth as soon as possible.

●If foreign substance or water gets in your monitor, please turn the power off immediately

and disconnect the power cord. Then, remove the foreign substance or water, and send

it to the maintenance center.

●Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or

extreme cold.

●In order to maintain the best performance of your monitor and use it for a longer lifetime,

please use the monitor in a location that falls within the following temperature and

humidity ranges.

❍Temperature: 5-35°C 41-95°F

❍Humidity: 20-80% RH

Service:

●The casing cover should be opened only by qualified service personnel.

●If there is any need for any document for repair or integration, please contact with your

local service center. (please refer to the chapter of "Consumer Information Center")

●For transportation information, please refer to "Physical Specifications".

●Do not leave your monitor in a car/trunk under direct sun light.

Consult a service technician if the monitor does not operate normally, or you are

not sure what procedure to take when the operating instructions given in this

manual have been followed.

RETURN TO TOP OF THE PAGE

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/safety/safety.htm (2 of 2)2006-01-10 3:34:35 PM

About This Manual

• About This

Guide

• Notational

Descriptions

About This Manual

About This Guide

This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It

describes the LCD monitor's features, setup, operation and other important information. Its

contents are identical to the information in our printed version.

It includes the following sections:

●Safety and Troubleshooting Information provides tips and solutions for common problems

as well as other related information you may need.

●About This Electronic User's Manual gives an overview of information included, along with

notation icon descriptions and other documentation for your reference.

●Product Information gives an overview of the monitor's features as well as the technical

specifications for this monitor.

●Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

●On-Screen Display provides information on adjusting the settings on your monitor.

●Customer Care and Warranty contains a list of worldwide Philips Consumer Information

Centers along with help desk phone numbers and information on the warranty applicable

to your product.

●Glossary defines technical terms.

●Download and Print Option transfers this entire manual to your hard drive for easy

reference.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic

type. These blocks contain notes, cautions or warnings. They are used as follows:

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/about/about.htm (1 of 2)2006-01-10 3:34:35 PM

About This Manual

NOTE: This icon indicates important information and tips that help you make

better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either

potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how

to avoid the problem.

Some warnings may appear in alternate formats and may not be accompanied by an icon. In

such cases, the specific presentation of the warning is mandated by the relevant regulatory

authority.

RETURN TO TOP OF THE PAGE

broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/about/about.htm (2 of 2)2006-01-10 3:34:35 PM

Product Information

• Product

Features

• Technical

Specifications

• Resolution &

Preset Modes

• Philips Pixel

Defect Policy

• Automatic

Power Saving

• Physical

Specification

• Pin

Assignment

• Product

Views

• Physical

Function

• Rotating the

Monitor

Product Information

Product Features

230WP7NS

●Designed for maximum productivity

❍Big, widescreen ideal for viewing two A4 pages side-by-side

❍90 degree screen rotation and smart cable management

❍Designed for 'just-right' height and angle adjustment

●Best total cost of ownership solution

❍SmartManage compatibility enables LAN-based asset management

❍Power consumption below the industry average

●Outstanding front of screen performance

❍WUXGA, wide format 1920x1200 resolution for sharper display

❍Widest viewing angle up to 178 degrees

❍Dual input accepts both analog VGA and digital DVI signals

●Great convenience

❍Built-in High-speed USB 2.0 solution for easy connections

❍Easy to adjust display settings with Philips SmartControl

❍Embedded power supply eliminates external power adaptors

RETURN TO TOP OF THE PAGE

Lead-free Product

Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health

and promotes environmentally sound recovery and disposal of waste from electrical and electronic

equipment.Philips complies with the European Community stringent RoHS Directive mandating

restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be

confident that your display device does not harm the environment.

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 23.0" / 58.4cm

• Pixel Pitch 0.258 x 0.258mm

• LCD Panel type 1920 x 1200pixels

R.G.B. vertical stripe

Anti-glare polarizer, hard coated

• Effective viewing area 495.36 x 309.6mm

• Display Colors 8 bits interface (16M colors)

SCANNING

Vertical refresh rate 56Hz-85Hz (Analog / Digital input)

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (1 of 9)2006-01-10 3:34:36 PM

Product Information

Horizontal Frequency 30kHz-94kHz (Analog input)

VIDEO

• Video dot rate 205 MHz

• Input impedance

- Video 75 ohm

- Sync 2K2 ohm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

Composite sync

Sync on green

• Sync polarities Positive and negative

Optical characteristics

• Peak contrast angle 6 o'clock

• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)

x: 0.313 y: 0.329 (at 6500°K)

* This data is subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

• Maximum 1600 x 1200 at 75Hz(analog input)

1600 x 1200 at 60Hz(digital input)

•

Recommended 1920 x 1200 at 60Hz * at DVI digital input

16 user definable modes

20 factory preset modes:

H. freq (kHz) Resolution V. freq (Hz)

31.5 640*350 70 (IBM VGA 10h)

31.5 720*400 70

31.5 640*480 60

35 640*480 67

37.5 640*480 75

35.2 800*600 56

37.9 800*600 60

46.9 800*600 75

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (2 of 9)2006-01-10 3:34:36 PM

Product Information

49.7 832*624 75

48.4 1024*768 60

60 1024*768 75

68.7 1152*870 75

71.8 1152*900 76

64 1280*1024 60

80 1280*1024 75

91.1 1280*1024 85

75 1600*1200 60

67.1 1920*1080 60

74.6 1920*1200 60

75.0 1600*1200 60

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically

reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected,

the monitor will be waken up automatically by your PC. The following table shows the power consumption and signaling

of this automatic power saving feature:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

Active ON Yes Yes < 90W Green

Sleep OFF No No < 2W Amber

Switch Off OFF - - < 2W OFF

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimension (WxHxD) 548 x 422.6 x 234.6 mm (incl. Pedestal) (in lowest position)

• Weight 11.8 Kg

• Tilt / Swivel -5° ~ 25° / ± 45°

• Height adjustment rang 130 mm

• Power supply 100— 240 VAC, 60 - 50 Hz

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (3 of 9)2006-01-10 3:34:36 PM

Product Information

• Power consumption 80 W* (typ.)

• Temperature 5° C to 35° C (operating)

-20° C to 60° C (storage)

• Relative humidity 20% to 80%

• System MTBF 50K hrs (excluding CCFL 40K hrs)

• Cabinet color Black/Silver

•Altitude

- storage/shipment

- operating 0 - 40,000 feet (12,192m)

0 - 12,000 feet (3657.6m)

* This data is subject to change without notice.

* Resolution 1920 x 1200, standard size, contrast max., brightness 50%, 6500° K, full white pattern.

RETURN TO TOP OF THE PAGE

Pin Assignment

1. The DVI connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are

listed in the following table:

No. Signal Assignment

1T.M.D.S. Data2- 9T.M.D.S. Data1- 17 T.M.D.S. Data0- C1 * Analog R

2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ C2 * Analog G

3T.M.D.S. Data2

Shield 11 T.M.D.S. Data1

Shield 19 T.M.D.S. Data0

Shield C3 * Analog B

4NC 12 NC 20 NC C4 * Analog H-sync

5NC 13 NC 21 NC C5 * Analog GND

(Analog R, G, B

return)

6DDC Clock 14 +5V 22 T.M.D.S. Clock

Shield

7DDC Data 15 Ground (return for

+5V and H/V-sync) 23 T.M.D.S. Clock+

8* Analog V-sync 16 Hot Plug Detect 24 T.M.D.S. Clock-

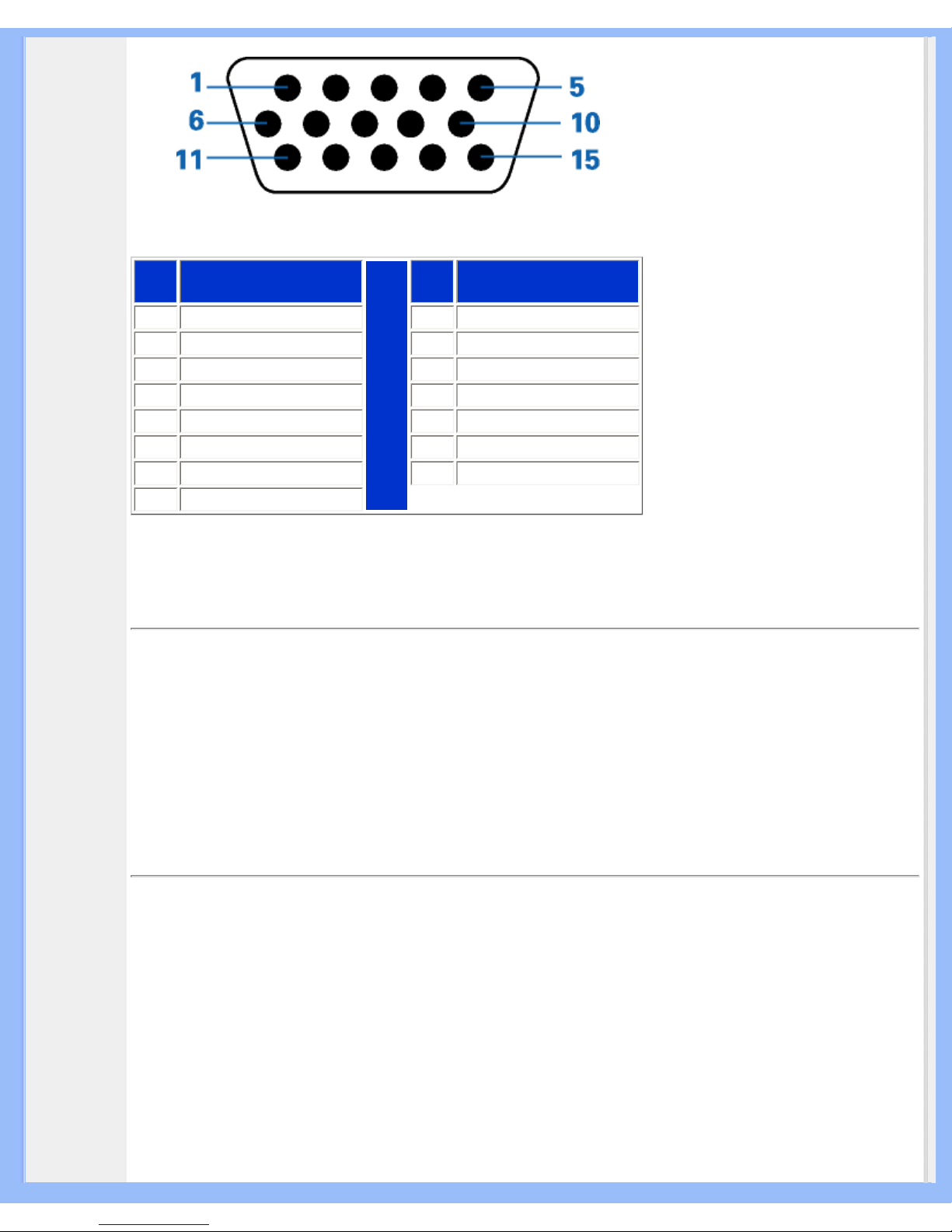

2. The 15-pin D-sub connector (male) of the signal cable:

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (4 of 9)2006-01-10 3:34:36 PM

Product Information

No. Assignment Pin

No. Assignment

1Red video input 9+5V

2Green video input/SOG 10 Ground

3Blue video input 11 Ground

4Ground 12 Serial data line (SDA)

5Cable detect 13 H. Sync / H+V

6Red video ground 14 V. Sync (VCLK for DDC)

7Green video ground 15 Data clock line (SCL)

8Blue video ground

RETURN TO TOP OF THE PAGE

Product Views

Follow the links to see various views of the monitor and its components.

Front View Product Description

RETURN TO TOP OF THE PAGE

Physical Function

file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (5 of 9)2006-01-10 3:34:36 PM

Altri manuali per Brilliance 230WP7NS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Philips Monitor

Philips

Philips 30PW8402 Manuale utente

Philips

Philips EVNIA 32M1N5500Z Manuale utente

Philips

Philips 223V5QSB6 Manuale utente

Philips

Philips 220BW8 Manuale utente

Philips

Philips 6214U Series Manuale utente

Philips

Philips 17C2322ES Manuale utente

Philips

Philips 222EL2SB Manuale utente

Philips

Philips 243S5LJMB/75 Manuale utente

Philips

Philips 107T4174 Istruzioni per l'installazione e il funzionamento

Philips

Philips 196E3LSB Manuale utente

Philips

Philips 243E2SB/00 Manuale utente

Philips

Philips 105B21-35H Istruzioni per l'installazione e il funzionamento

Philips

Philips Brilliance 272B7QPTKEB/75 Manuale utente

Philips

Philips 273E3LSW/93 Manuale utente

Philips

Philips 190SW8 Manuale utente

Philips

Philips 220S2CB/00 Manuale utente

Philips

Philips Momentum 5000 27M1N5200P Manuale utente

Philips

Philips 231S4LS Manuale utente

Philips

Philips Brilliance 271P4 Manuale utente

Philips

Philips 222EL1SB Manuale utente

Philips

Philips Brilliance BDM3470 Manuale utente

Philips

Philips 192E1 Istruzioni per l'installazione e il funzionamento

Philips

Philips Signage Solutions BDL4677XL Manuale utente

Philips

Philips 230E1HSB Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione

LG M1950D-PZ Manuale utente

Sceptre

Sceptre D40 Manuale utente
