Philips L line 22BDL7224L Manuale utente

* Dierences according to regions.

Display design and accessories may dier from those illustrated above.

Quick start guide: 1 pcs

Unpacking

Connecting the cabinets

Rear/top/side/bottom views

Notes:

1. After unpacking, ensure that the modules are in good

condition. If anything is damaged or broken, please

contact your local service center immediately.

2. Use a pair of scissors to cut vacuum packaging, then

take the modules out of the package. Be extremely

careful not to damage the module when using the

scissors.

3. It is required to wear anti-static gloves before han-

dling the cabinet.

4. Do not place the display vertically on the oor, as it

may fall down and get damaged. (The damage will

not be covered by warranty)

Removing the

opening

Before breaking the opening,

determine the number of

displays to install and the

installation layout to form a

large video wall array.

POWER IN connector

POWER OUT connector

Mounting holes for screw bolt

CHECK button

DATA connector

Not included:

Power cable

(daisy chain): 2 pcs

LAN cable

(RJ45, CAT-5): 1 pcs

Optional accessory

CTN: BM907006

Not included

T style inner hexagon

wrench, size 7

Optional accessory

CTN: BM907000

Optional accessory

CTN: BM907005

Q41G22MD81301B

Please check out the website below for more product information.

Quick

Start

Professional

Display Solutions

L line

22BDL7224L

This product has been manufactured by and is sold under

the responsibility of Top Victory Investments Ltd., and Top

Victory Investments Ltd. is the warrantor in relation to this

product. Philips and the Philips Shield Emblem are regis-

tered trademarks of Koninklijke Philips N.V. and are used

under license.

Specications are subject to change without notice.

Version: V1.01 2020-11-16

https://www.philips.co.uk/p-m-pr/signage-solutions/latest#filters=L_LINE_SERIES_SU

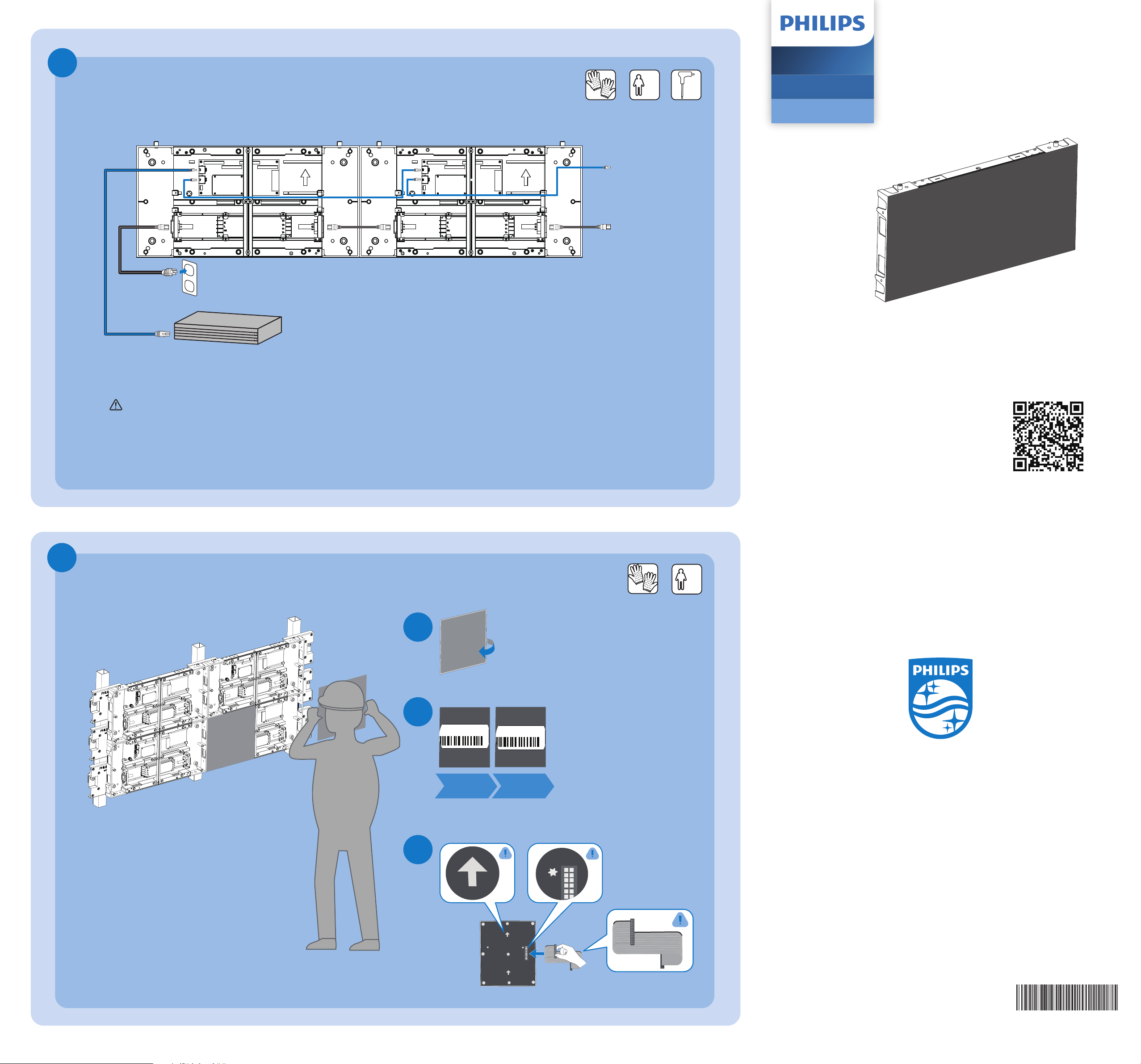

Installing the LED modules

Connecting the data and power cables

optional accessories

Power plug types vary by country/region.

Plug the power plug into the electric outlet only when the cables are properly wired.

LAN cable

Power cable

(daisy chain)

LED display controller

Note: More cable wiring scheme and mounting scheme can be found in the User’s Manual.

Envision Peripherals Inc.

490 N McCarthy Blvd, Suite #120

Milpitas, CA 95035

USA

MMD Monitors & Displays Nederland B.V.

Prins Bernhardplein 200

1097 JB Amsterdam

The Netherlands

1 2

Module No.: xxxxxxxxxxxxxxxAxxxxxxx

Module No.: xxxxxxxxxxxxxxxBxxxxxxx

5-1

5-2

5-3
