Philips SA167/00 Manuale utente

user manual

manuel d’utilisation | benutzerhandbuch | manual del usuario

gebruikershandleiding | manuale per l'utente | manual do usuário

användar-handbok

Digital Audio Player

Lecteur audio numérique | Digitaler Audio-Player | Reproductor de audio digital

Digitale audiospeler | Lettore audio digitale | Leitor Áudio Digital

Digital ljudspelare

SA160 COVER 1 3/6/05 12:49 Page 1

We hope you enjoy your product

Please visit www.philips.com/support and enter your product name to view:

- FAQ, Frequently Asked Questions

- Latest user manuals

- Latest PC software downloads

- Firmware upgrade files

Since it is possible for you to upgrade your product,

we recommend that you register your product on

www.philips.com/register

so we can inform you as soon as new free upgrades become available.

The model and production numbers can be found on the label close to the USB connector.

About your new product

With your newly purchased product, you can enjoy the following:

- MP3 and WMA playback (see MUSIC MODE section)

- FM radio*** (see RADIO MODE section)

- Recording: FM*** and voice (see MAKING RECORDINGS section)

***FM radio is only available to some regional versions. FM radio is currently not available in Europe.

Included accessories

Headphones USB cable

Neck-strap CDROM with user manual, drivers,

FAQ, music management softwares

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 1

MIC

16/18

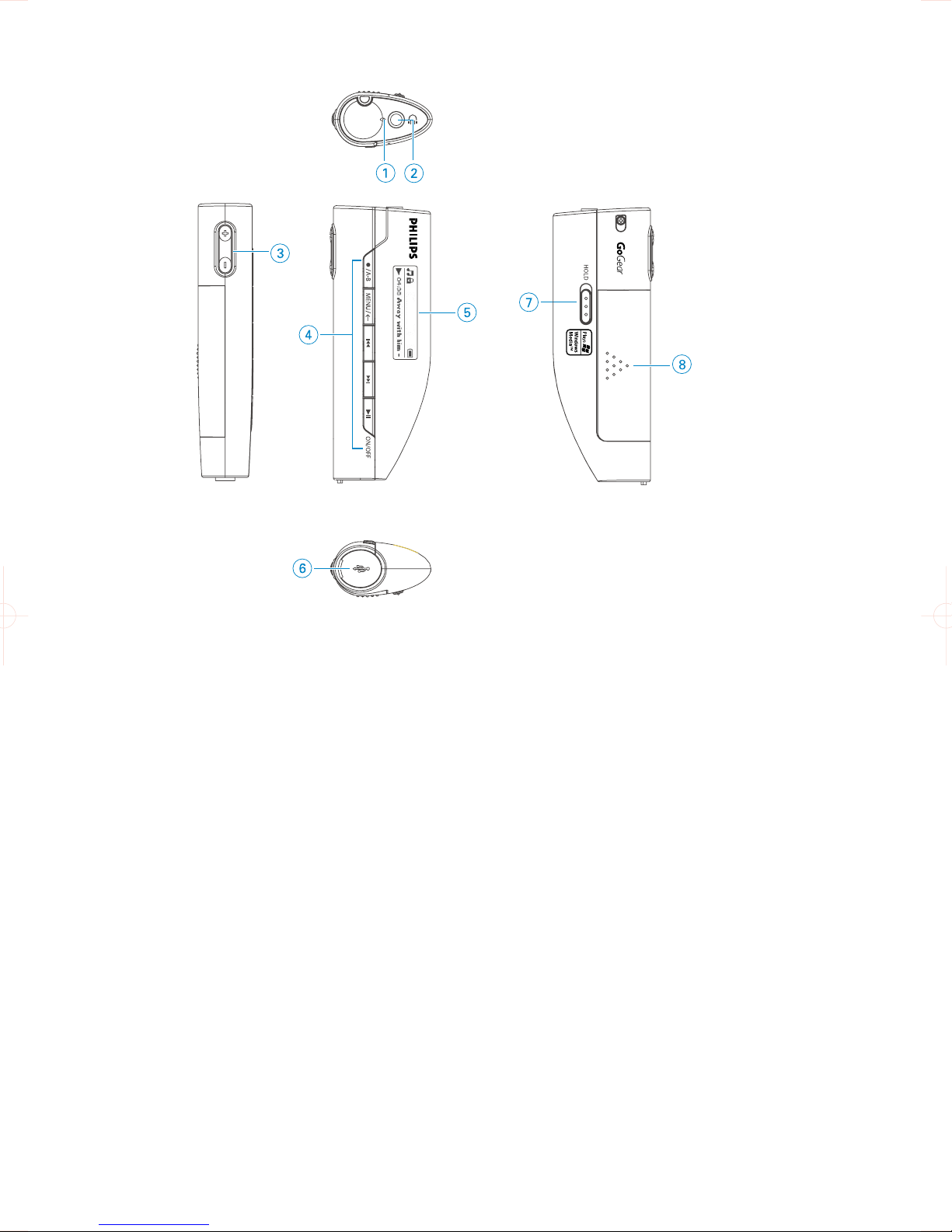

Overview of controls and connections

1MIC Microphone

2pHeadphones jack

3+ / - Volume control

4A-B /0Start or Stop Voice / FM recording***; Repeat or loop a sequence

MENU For menu options

J( / )K Rewind / Fast forward; Up / Down to 1 level

2; Power on / off and Play / Pause; confirms a menu setting

5Display Dynamically displays menu, options and track information

6USB USB cable connector

7HOLD Disable key press

8Battery door Open to insert battery

***FM radio is only available to some regional versions. FM radio is currently not available in Europe.

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 2

Preparations

Install software

1Insert the supplied CD into your computer's CD-ROM drive.

If the CD does not autorun, please click the .exe file from the root directory of the CD.

2Select your language and follow screen instructions to complete installation of

MusicmatchRJukebox and Firmware Manager.

Organize and transfer your music

Your player will appear as a new USB mass storage in Windows Explorer.

You can organize files and transfer music to your device during USB connection.

1Click and highlight one or more music track to transfer between your player and your computer.

2Use drag and drop actions to complete your transfer.

3You can also transfer your digital music collection from your computer to your device through

MusicmatchRJukebox.

Safely disconnect your device

Exit any active application working with your player. Safely remove your device by clicking from

your task tray.

WINDOWS98SE USERS:There is no icon.

Simply disconnect your device after file transfer completes.

(File transfer completes when stops animating.)

ATTENTION!

WINDOWS 98SE USERS:

To avoid installation problems, DO NOT CONNECT your device to the computer

until AFTER installation completes.

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 3

About Batteries

You can use the following batteries with your device:

- normal batteries type LR03, UM4 or AAA (preferably Philips); or

- alkaline batteries type LR03, UM4 or AAA (preferably Philips); or

- rechargeable batteries type LR03, UM4 or AAA (preferably Philips)

Note: Remove batteries if they are empty or if the player is not going to be used for a long time.

Inserting batteries

Open the battery compartment. Insert batteries with correct polarity.

Powering on / off

Power on: Press and hold 2; until the PHILIPS splash screen appears.

Power off: Press and hold 2; again until there is no display on the screen.

TIP

Your device automatically powers down if there is no operation and no music played for

the duration defined in SETTINGS > TIME OUT.

✔

Indication of power level

You can see the approximate power level of your batteries on the display.

Battery full Battery two-thirds full

Battery half full Battery low

Battery empty

TIP

When the batteries are nearly empty, the battery low screen blinks.

Your device will power down in less than 60 seconds.

Your device will save all settings and un-finished recordings before it powers down.

✔

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 4

Root menu

When your device powers up, you will see the Root menu. Otherwise, press MENU, select 'source' to go

to the root menu.

Navigation

Your device has an intuitive menu navigation system to guide you through various settings

and operations. Use J(,)K to browse through menus. Press 2; to confirm your selection.

Music enter to play your digital music tracks

Radio*** enter to listen to your radio presets

Recordings enter to play and manage recordings

Settings enter to customize settings for your device

***FM radio is only available to some regional versions. FM radio is currently not available in Europe.

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 5

MUSIC mode: Playback (also applicable to playback

of recordings)

From the root menu, select M to enter the MUSIC library. Your device will play all your music alpha-

betically in the music library as you press 2;.

Go to next track Press )K

Go to previous track Press J(

Pause music Press 2; during playback

Forward search Press and hold )K

Backward search Press and hold J(

Volume control + / -

Basic Operation Controls to press

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 6

A-B REPEAT

To repeat or loop a sequence in a track:

1During playback mode, press A-B /0at your chosen starting point;

➔appears on the screen.

2Press A-B /0again at your chosen end point;

➔appears on the screen, and the repeat sequence begins.

Advanced features in playback

PLAY MODES

Changing play modes

1Press MENU . Select Play modes.

2Use scroll controls to select the following options.

Off Normal playback

Repeat 1 Play one track repeatedly

Repeat all Play all tracks repeatedly

Shuffle Play all tracks randomly

Shuffle repeat Play all tracks randomly and repeatedly

Icon Meaning

Source Go to root menu

Playmodes Off / Repeat 1 / Repeat all / Shuffle / Shuffle repeat

Equalizer Rock / Funk / Jazz / Classic / Hip Hop / Dance / Off

Scroll speed Normal / Slow / Fast / Off

Delete

Setting Options

EQUALIZERS

You can set your device to play music tracks with different EQ (equalizers).

Changing equalizers

1Press MENU . Select EQUALIZER.

2Use scroll controls to select Rock,Funk,Jazz,Classic,Hip Hop, Dance or Off.

Press MENU. Use scroll controls to select the following options:

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 7

Radio mode***

***FM radio is only available to some regional versions. FM radio is currently not available in Europe.

From the root menu, select to enter the radio mode.

Manual tune

1Press MENU . Select Manual Tune. Press 2; to confirm.

2Press J( and )K to search the station or press and hold )K to search for the

next available station.

3Press 2; to save your preset.

Auto tune

1Press MENU. Select Autotune. Press 2; to confirm.

➔Your device will automatically select up to 30 strongest available stations.

Playing a preset station

1From the root menu, select RADIO to enter the radio mode

and tune to your preferred station.

2Press J( to scroll up or )K to scroll down for your preset.

3The preset will be automatically played.

2/30

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 8

Making recordings

When your device is not connected to the computer, you can make voice or radio recordings.

Making voice recording

1Make sure you are not in the radio mode and music or recordings is in stop or pause status.

2Press A-B /0to start voice recording.

➔Device shows the recording state.

3Press A-B /0again to stop voice recording.

➔Device shows the saving state. Your voice recording will be saved on your device

(filename = VOICE REC > MIC-xxx.wav; xxx = track number).

Making FM recording***

1In the radio mode, tune to your preset station.

2Press A-B /0to start FM recording.

➔Device shows the recording state.

3Press A-B /0again to stop FM recording.

➔Device shows the saving state. Your FM recording will be saved on your device

(filename = FM REC > FM-xxx.wav; xxx = track number).

***FM radio is only available to some regional versions. FM radio is currently not available in Europe.

Playing recordings

Searching for your desired recording

1From the root menu, select to enter the recording library.

Your device will play all your recordings alphabetically in the recording library as you press 2;.

2Press 2; to pause the currently playing recording.

3Press )K for next or J( for previous recordings.

TIP

Playback of recordings functions the same way as in the MUSIC library.

See MUSIC library: Playback for more information.

✔

SA160_ENGLISH_00.qxd 7/6/05 16:51 Page 9
