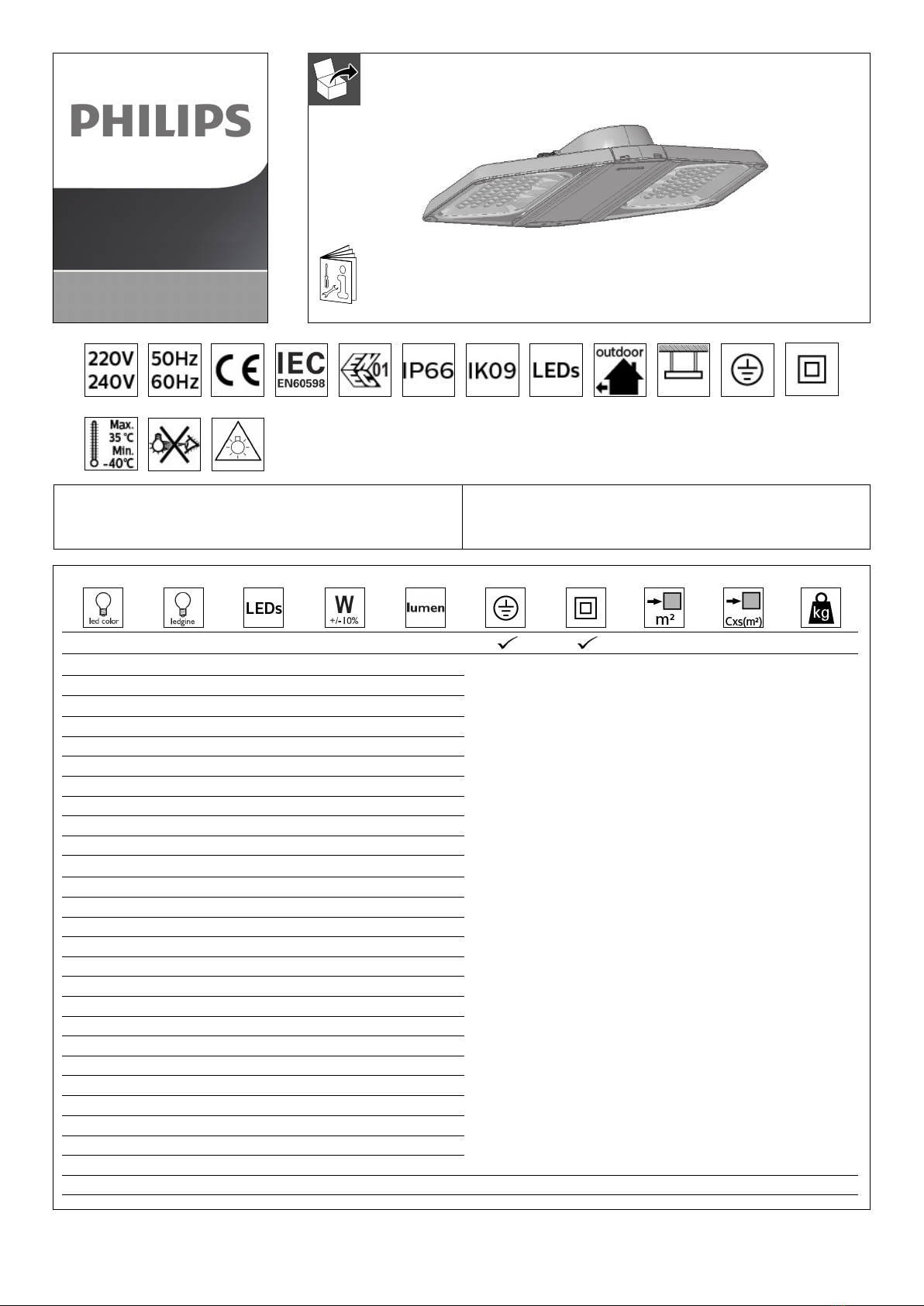

Philips Digistreet BTP760 Manuale utente

BGP221/231

Digistreet

1/12

443000020861_D

Photobiological Risk

Luminaire Surge Protection

Luminaire Surge Protection with SPD *optional

RG1

DM/CM 6/8KV (C-I/C-II)

DM/CM 10/10KV (C-I) - 10/8KV (C-II)

Printed in Spain

Data subject to change without notice

Keep for future reference: www.philips.com/lighting

BTP760 0,035 0,0180 8,3kg*

740/757 LED14 12 10 1400

740/757 LED16 12 11 1600

740/757 LED18

12 13

1800

740/757 LED20

12 14

2000

740/757 LED22

12 15

2200

740/757 LED24

12 17

2400

740/757 LED27

12 19

2700

740/757 LED30

12 21

3000

740/757 LED34

12 24

3400

740/757 LED35

20 23

3500

740/757 LED39

20 26

3900

740/757 LED40

20 27

4000

740/757 LED44

20 29

4400

740/757 LED49

20 33

4900

740/757 LED55

24 36

5600

740/757 LED59

24 39

6000

740/757 LED64

24 43

6400

740/757 LED69

24 47

7000

740/757 LED74

28 49

7400

740/757 LED79

28 53

8000

740/757 LED84

40 53

8400

740/757 LED90

40 57

9000

740/757 LED94

40 60

9400

740/757 LED110

48 70

11000

740/757 LED120

48 78

12000

740/757 LED129

48 84

13000

* Weight without mounting devices

BTP760

2/16

Temperature protection:

Driver has a temperature protection.

If the driver is too warm it switches o. Power will return automatically when the temperature has dropped again.

BTP760 0,035 0,0180 8,3kg*

740/757 LED139 56 89 14000

740/757 LED149 56 96 15000

740/757 LED159

56 104

16000

740/757 LED169

80 105

17000

740/757 LED170

80 105

17000

740/757 LED180

80 112

18000

740/757 LED190

80 119

19000

740/757 LED200

80 126

20000

740/757 LED210

80 134

21000

740/757 LED220

80 142

22600

830 LED14

12 12

1400

830 LED16

12 14

1600

830 LED18

12 15

1800

830 LED20

12 17

2000

830 LED22

12 19

2200

830 LED24

12 21

2400

830 LED27

12 23

2700

830 LED30

20 24

3000

830 LED34

20 28

3400

830 LED35

20 29

3500

830 LED39

20 32

3900

830 LED40

20 33

4000

830 LED44

20 37

4400

830 LED49

24 40

4900

830 LED55

28 44

5600

830 LED59

28 48

6000

830 LED64

28 53

6400

830 LED69

40 54

7000

830 LED74

40 58

7400

830 LED79

40 63

8000

830 LED84

40 67

8400

830 LED90

40 73

9000

830 LED94

40 77

9400

830 LED110

56 87

11000

830 LED120

56 96

12000

830 LED129

56 104

13000

830 LED139

80 108

14000

830 LED149

80 116

15000

830 LED159

80 124

16000

830 LED169

80 134

17000

830 LED170

80 134

17000

830 LED180

80 144

18000

830 LED190

80 154

19000

* Weight without mounting devices

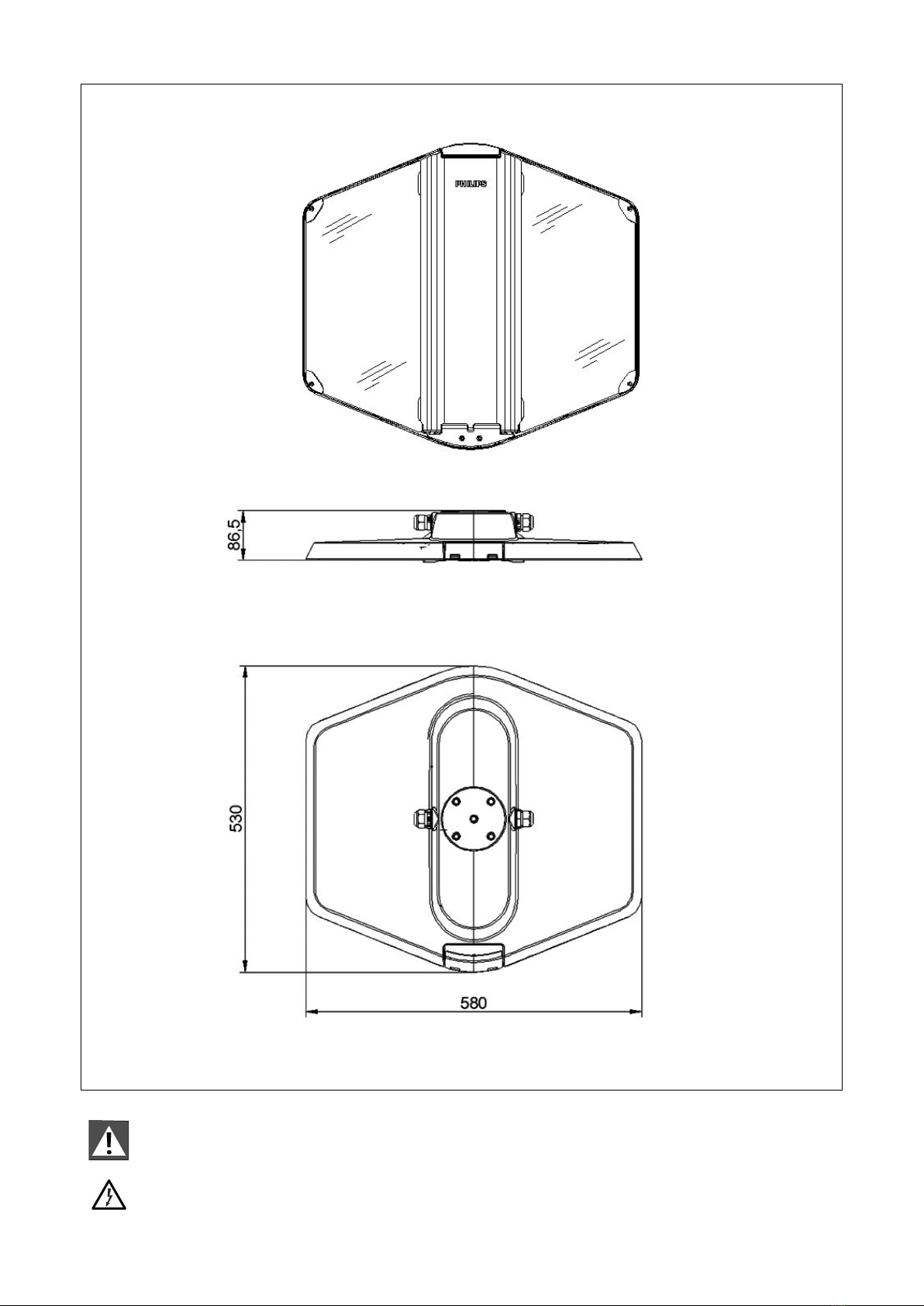

This luminaire must be installed by qualied

personnel only

Disconnect before servicing

3/16

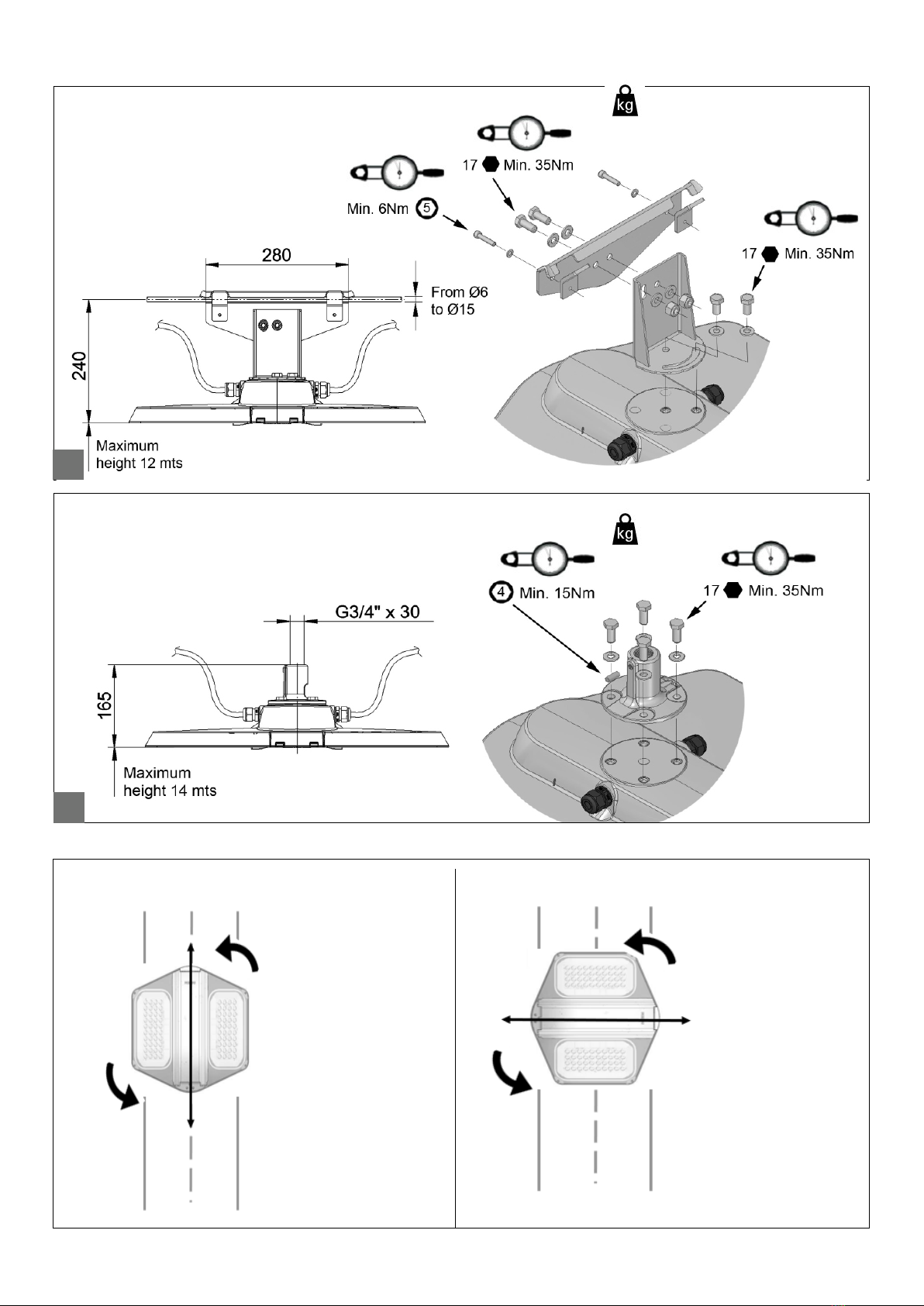

MOUNTING DEVICES

CATENARY VERSION

SUSPENDED VERSION

9,7kg

8,8kg

LUMINAIRE ORIENTATION

DRIVER COMPARTMENT PERPENDICULAR TO ROAD AXISDRIVER COMPARTMENT PARALLEL TO ROAD AXIS

Optics range:

DSM2

DS50

DS51

DSN09

DSN10

DSN10 BL1

DSN11

DSM11

DSM12

DSM31

DSM70

DSW10

DSN50

DSM35

Optics range:

DSM1

DSW1

4/16

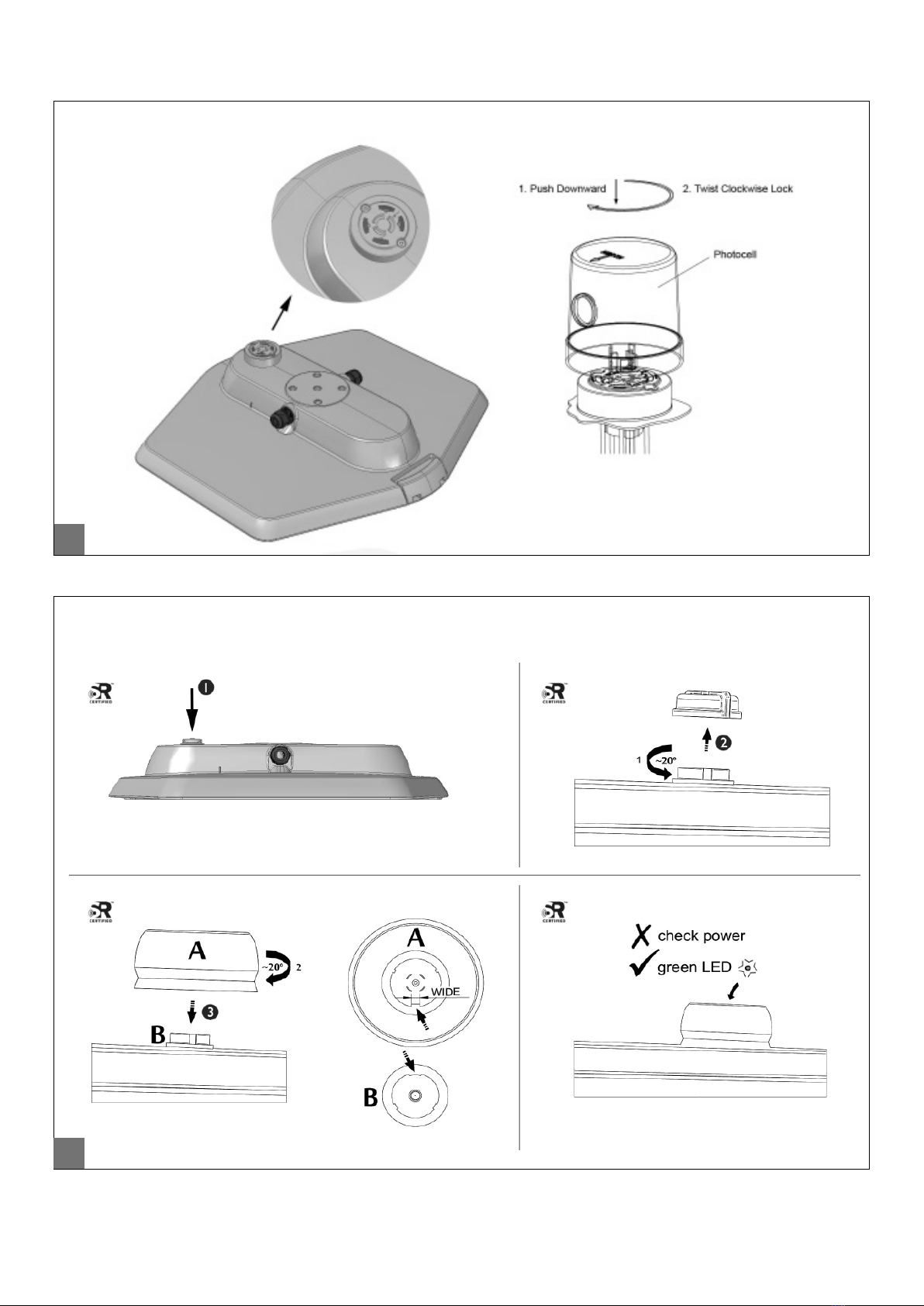

MOUNTING OF PHOTOCELLS

Citytouch OLC NEMA SR

Citytouch OLC COM SR

5/16

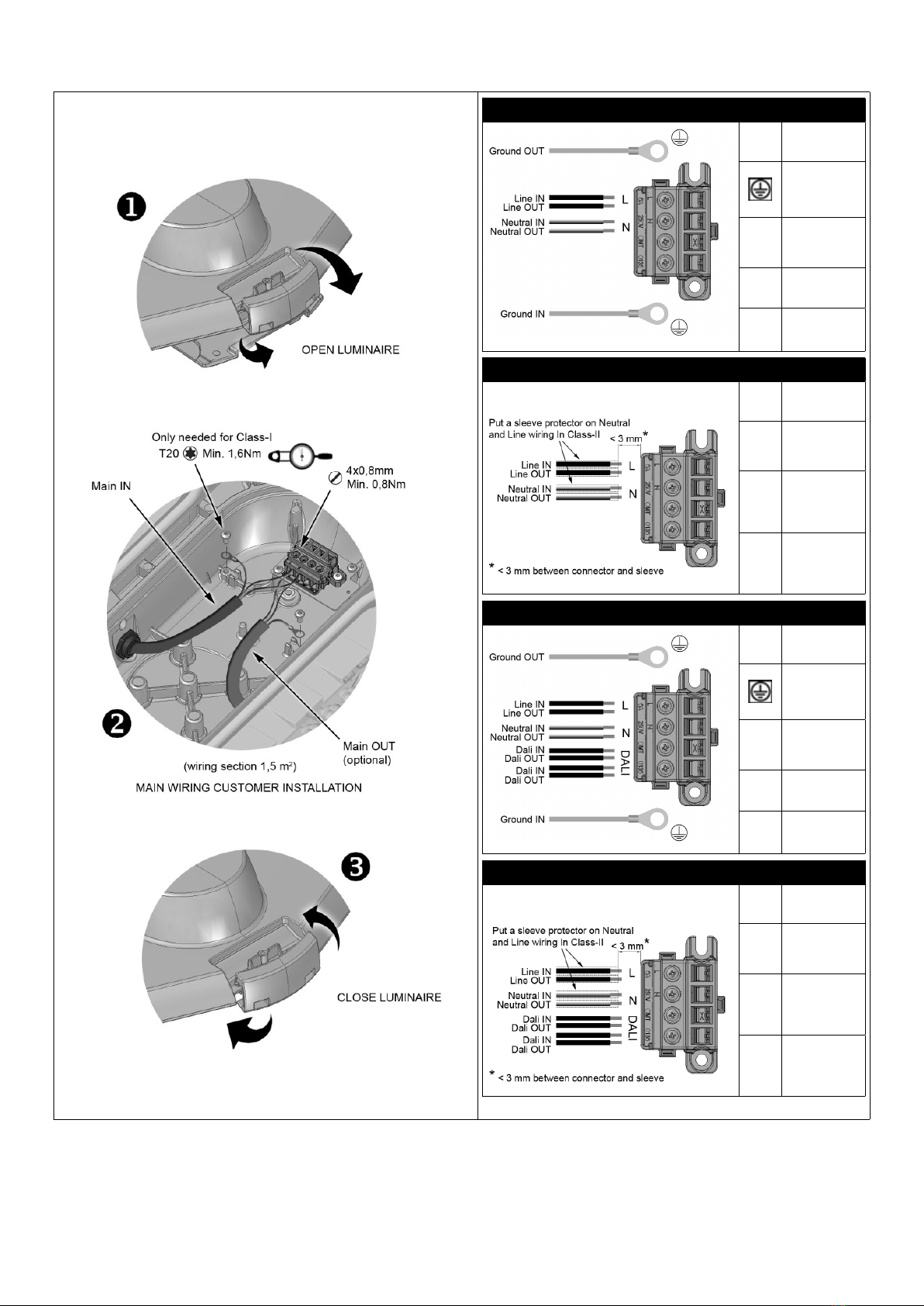

Main connection (PSU) (PSA) (PSDD) Class-I

LLINE

(Brown)

GROUND

(Yellow &

Green)

NNEUTRAL

(Blue)

L1 -

L2 -

Main connection (PSU) (PSA) (PSDD) Class-II

LLINE

(Brown)

NNEUTRAL

(Blue)

L1 -

L2 -

Main & DALI control connection (PSD) Class-I

LLINE

(Brown)

GROUND

(Yellow &

Green)

NNEUTRAL

(Blue)

L1 DALI

L2 DALI

Main & DALI control connection (PSD) Class-II

LLINE

(Brown)

NNEUTRAL

(Blue)

L1 DALI

L2 DALI

TYPES OF MAIN CONNECTION

CABLE FROM Ø6 to Ø12mm

6/16

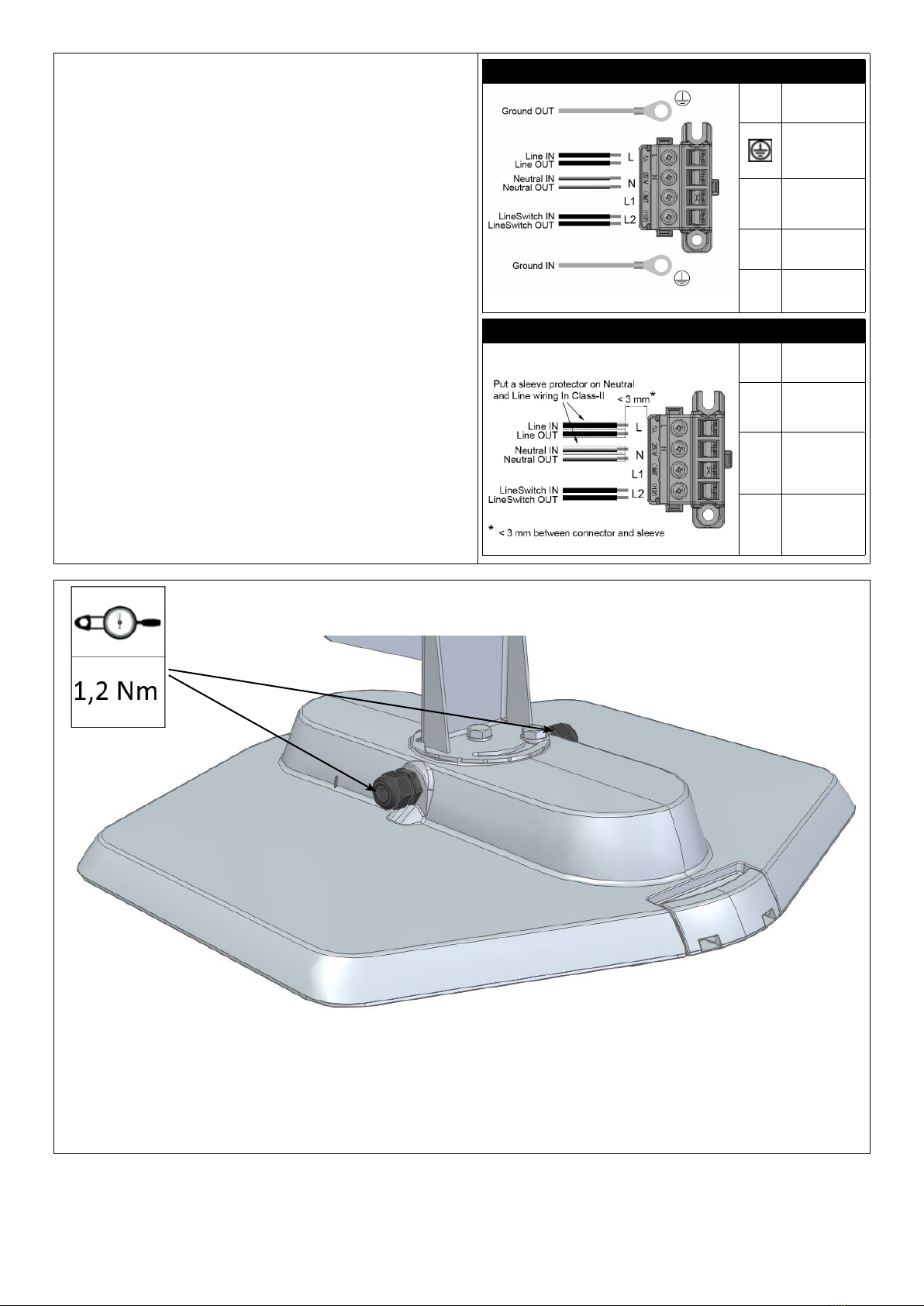

Main & LineSwitch control connection (PSR) Class-I

LLINE

(Brown)

GROUND

(Yellow &

Green)

NNEUTRAL

(Blue)

L1 -

L2 LineSwitch

Main & LineSwitch control connection (PSR) Class-II

LLINE

(Brown)

NNEUTRAL

(Blue)

L1 -

L2 LineSwitch

7/16

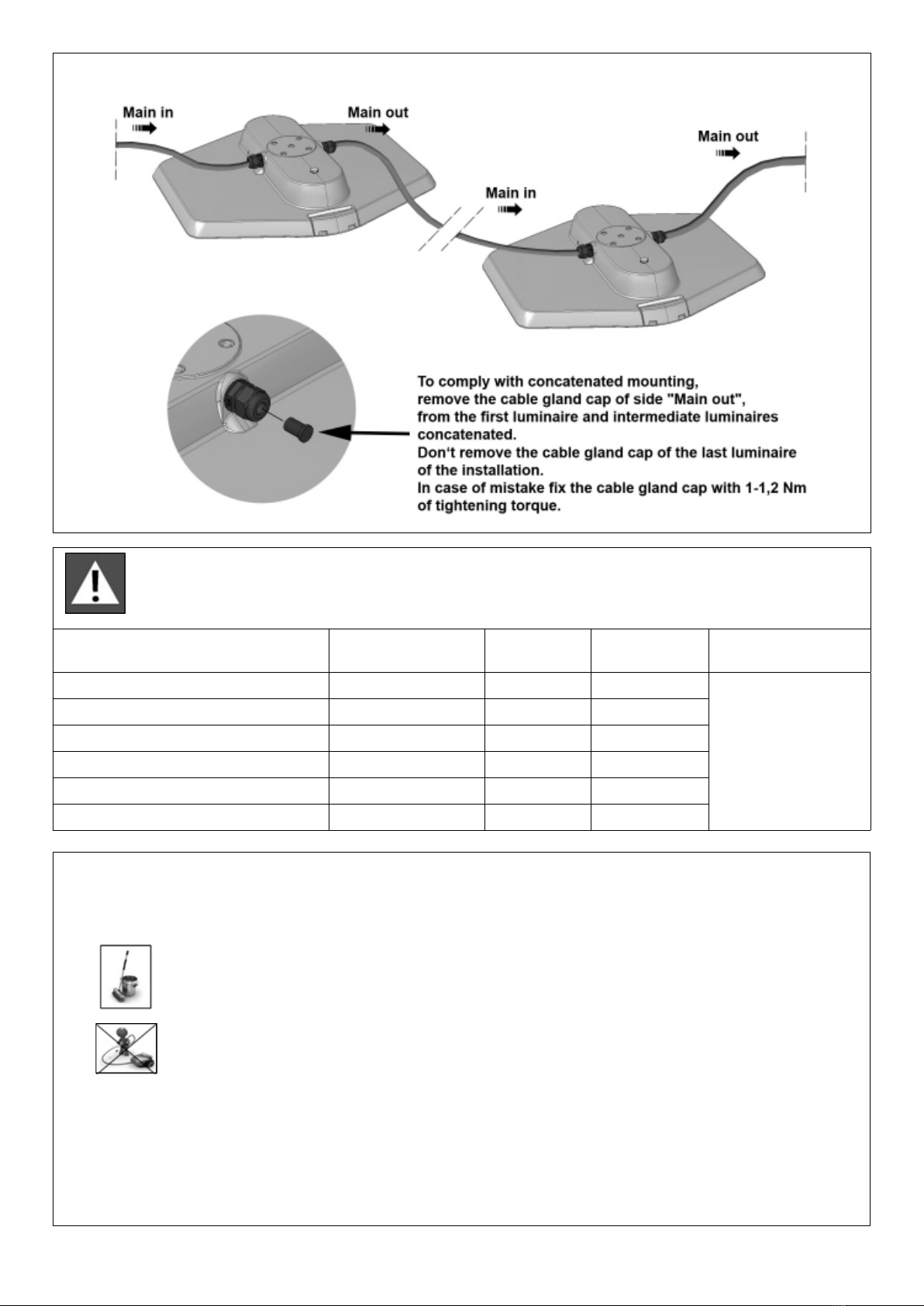

CONCATENATED MOUNTING

Driver Power (W) Maximun number of

luminaires to install

Inrush

current Apk

Inrush

current ms

Type of electrical

protection installation

Xi FP 40W 0.2-0.7A SNLDAE S175 230V sXt 20 22 290

MCB 16A B

Xi FP 75W 0.2-0.7A SNLDAE 230V S240 sXt 11 46 250

Xi FP 150W 0.2-0.7A SNLDAE 230V S240 sXt 8 53 300

Xi SR 40W 0.2-0.7A SNEMP 230V S133 sXt 21 21 300

Xi SR 75W 0.2-0.7A SNEMP 230V S240 sXt 6 65 330

Xi SR 150W 0.2-0.7A SNEMP 230V S240 sXt 6 65 330

The maximum number of luminaires to connect depends on the driver power

and electrical protection type in concatenated mounting.

8/16

CLEANING

The luminaire is protected against water ingress up to IP66. Sealed design ensures that this rating

will be maintained over the full lifetime of the product.

The luminaire may be cleaned by brush with short&soft bristles.

Extra care must be taken when cleaning around the external cables and

connector in order to prevent damage.

Do not use high pressure water jet or high pressure cleaners.

If clear water is not sucent for cleaning, use a neutral, synthetic, not-scratching and non-abrasive

subtances.

Never use alkaline and/or acetous cleaning substances. Make sure that cleaning substance is fully

removed by rinsing with clean water.

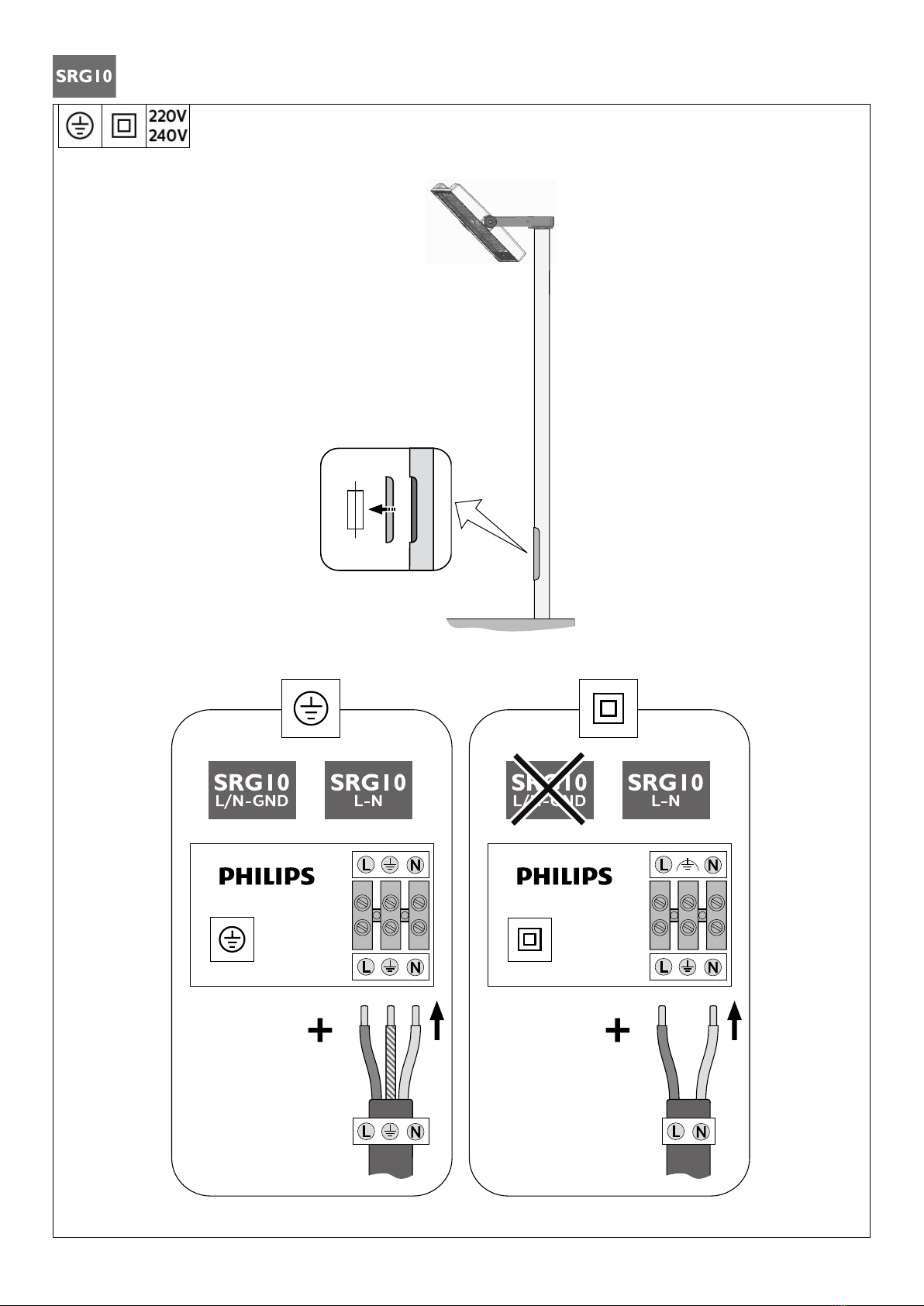

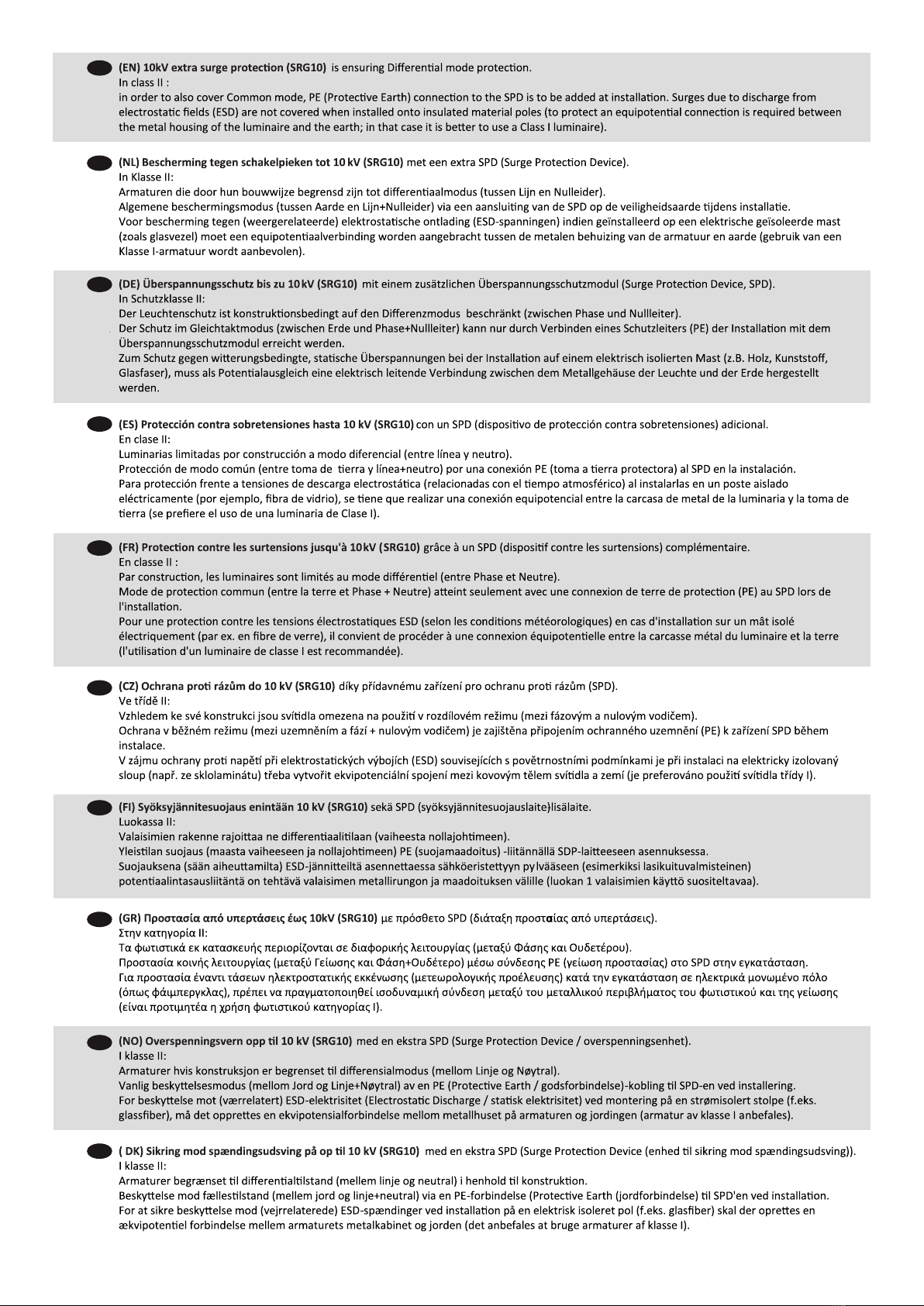

10 KV PROTECTION

10A m ax .

9/16

10/16
