Philips PET1035/00 Manuale utente

PET1035

Portable DVD player

www.philips.com/welcome

User manual

PET1035_CCR_Eng 2007.10.12 10:38 Page 1

PET1035_CCR_Eng 2007.10.12 10:38 Page 2

PET1035_CCR_Eng 2007.10.12 10:38 Page 3

PET1035_CCR_Eng 2007.10.12 10:38 Page 4

English

1Control elements and

functional components

1.1 Main unit controls

1.2 Disc door

1.3 Front of player

1.4 Bottom of the player

1.5 Right of player

1.6 Remote Control

2 Introduction

2.1 Your portable DVD player

2.2 Unpacking

2.3 Placement

2.4 Playable disc formats

2.4.1 DVD-Video

2.4.2 Video CD

2.4.3 Audio CD/MP3 CD/ WMA CD

2.4.4 CD with JPEG files

2.4.5 DivX video discs

2.4.6 About SD Memory Card

2.5 Zero Bright DotTM

2.6 Compatibility of the USB

connection on this

portable DVD player:

2.6.1 Music:

2.6.2 Picture:

2.6.3 Video (vary with models):

3General information

4Charging the units

4.1 Charge the DVD player

4.2 Powering your remote

control

5Start up

5.1 Setup

5.2 Playback DVD

5.3 Playback VCD

5.4 Playback Super (S)-VCD

5.5 Playback Music CD

5.6 Playback Music

MP3/WMA-CD

5.7 Playback Picture-CD

5.8 Playback from

USB/SD(MMC)

5.9 TV & Radio

5.9.1 Antenna connection

5.9.2 Setup TV & Radio channels

5.9.3 Enjoy TV programs

5.9.4 Settings

5.9.5 Manage channels

5.9.6 Electronic program guide

(EPG)

5.9.7 List

6Addition Functions

6.1 DISPLAY Menu

Content

PET1035_CCR_Eng 2007.10.12 10:38 Page 5

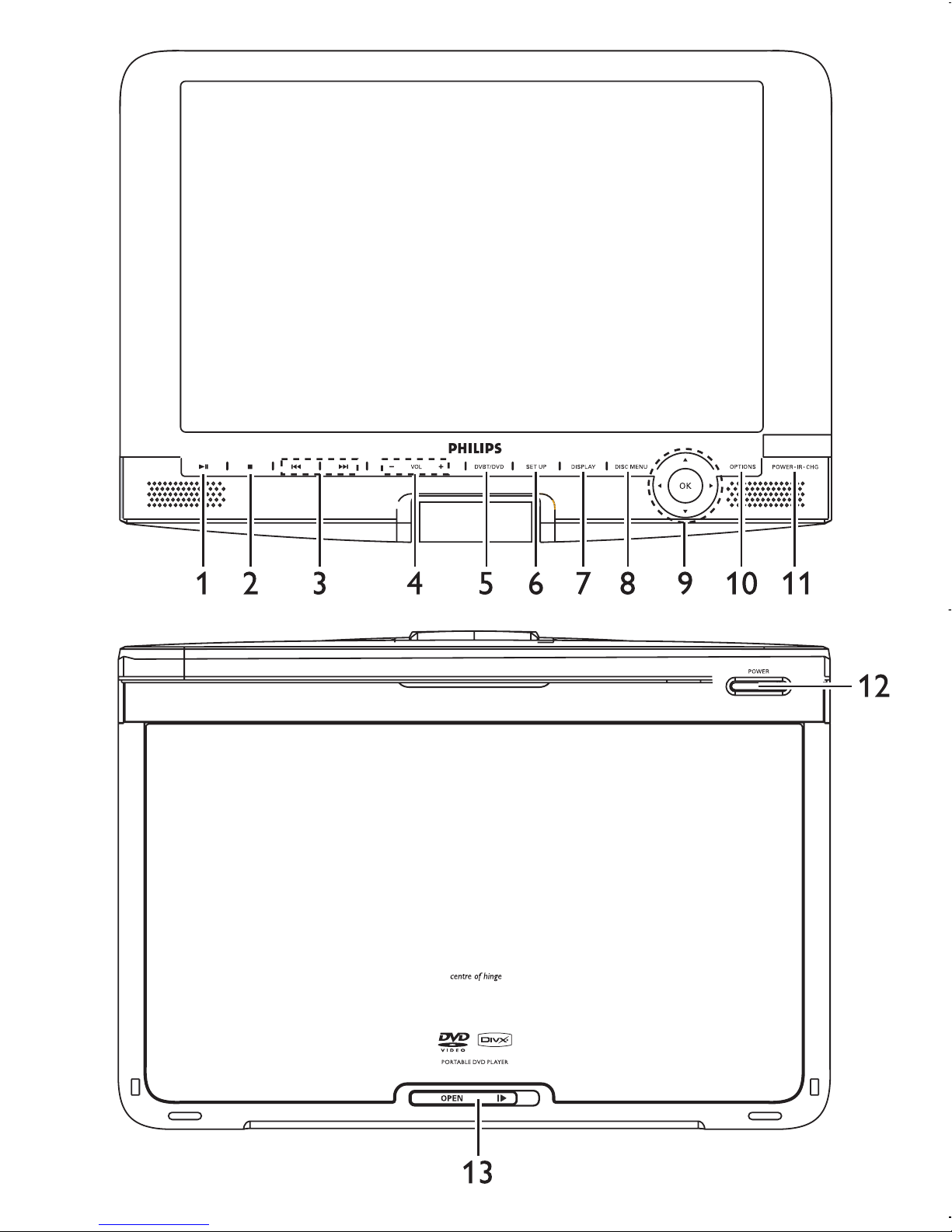

1.1 Main unit controls (see figure 1)

12; Start / pause / resume playback

29Press once to stop playback and store the stop

position. Press twice to stop playback completely.

3J( / )K previous/next track or fast search backward/forward

- VOL +

Volume control

5 SOURCE Switch among TV, DVD and other sources.

6 SETUP Enter SETUP menu

7 DISPLAY Adjust the display value of the system

8 DISC MENU Display MENU page

93,4,1,2Up / down / left / right cursor

OK Confirm selection

10 OPTIONS Access additional functions

11 POWER•IR•CHR

Power / Remote sensor / charging indicator

1.2 Disc door (see figure 1)

12 POWER Switch the player on / off

13 OPEN Open disc door to insert or remove disc

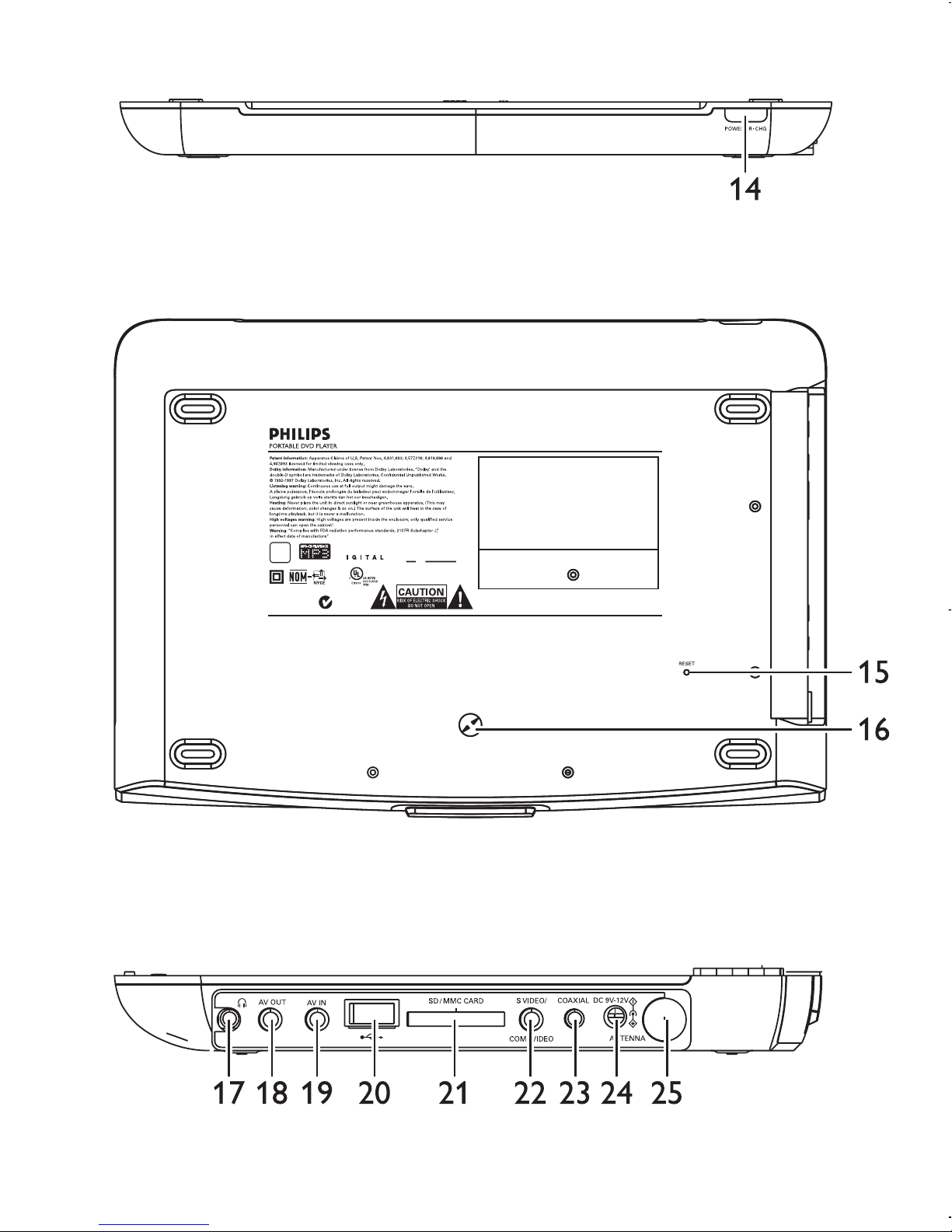

1.3 Front of player (see figure 1)

14 POWER•IR•CHG

Power / Remote sensor / charging indicator

1.4 Bottom of the player (see figure 1)

15 RESET Reset the player when it is hanged up

16 Car mounting screw hole

6.2 Connection

6.2.1 Headphone

6.2.2 TV

6.2.3 AV input

6.2.4 USB

6.2.5 Coaxial

6.2.6 SD/MMC card slot

6.2.7 Component Video and S Video

6.2.8 TV antenna

7Troubleshooting

8Technical data

1Control elements and functional components

PET1035_CCR_Eng 2007.10.12 10:38 Page 6

1.5 Right of player (see figure 1)

17 pHeadphones jack

18 AV OUT Audio/Video output

19 AV IN Audio video input

20 USB USB connector

21 SD/MMC CARD

Insert SD/MMC card

22 S VIDEO/COMP.VIDEO

S video output or component video output

23 COAXIAL Digital audio output

24 DC IN 9V Power supply socket

25 ANTENNA Connection to antenna plug

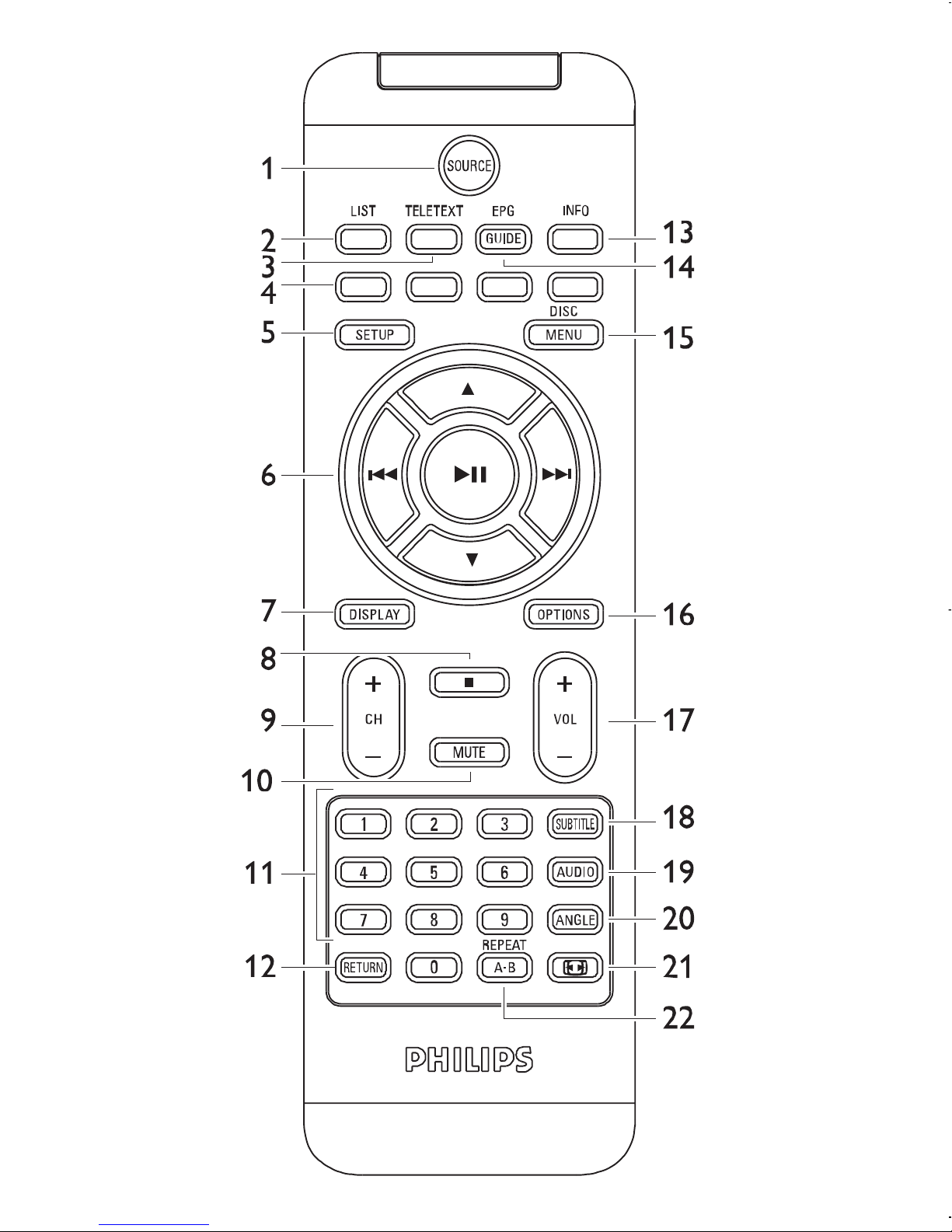

1.6 Remote Control (see figure 2)

1 SOURCE Switch between DVD > Component > TV > Radio

> USB > AV-in

2 LIST View channels

3 TELETEXT Activate TELETEXT

4Direct access to the items

Coloured areas are displayed at the bottom of the

screen.The 4 coloured keys are used to access the

items or corresponding pages.The coloured areas

flash when the item or the page is not yet available.

5 SETUP Enter SETUP menu

62; OK or play/pause

3/ 4Up/down navigation key / Channel control

J( / )K Left/right navigation key or previous/next track

or fast search backward/forward

7 DISPLAY Adjust the display value of the system

89Press once to stop playback

9+CH- Channel control

10 MUTE Muting player volume

11 0 - 9Numeric keypad

PET1035_CCR_Eng 2007.10.12 10:38 Page 7

12 RETURN For VCD menu page

13 INFO List program information

14 EPG Activate Electronic program guide

15 DISC MENU Display the DVD disc menu

16 OPTIONS Access additional functions

17 + VOL - Volume control

18 SUBTITLE Subtitle language selector

19 AUDIO Audio language selector

20 ANGLE Selects DVD camera angle

21 To adjust the screen of 16:9 or 4:3

22 A - B To r epeat or loop a sequence in a title

2.1 Your portable DVD player

Your portable DVD player plays digital video discs conforming to

the universal DVD Video standard.With it, you will be able to enjoy

full-length movies with true cinema picture quality, and stereo or

multichannel sound (depending on the disc and on your playback

set-up).

The unique features of DVD-Video, such as selection of soundtrack

and subtitle languages, and of different camera angles (again depend-

ing on the disc), are all included.

What’s more, parental lock lets you decide which discs your chil-

dren will be able to see.You will find your player remarkably easy

to use with the On-Screen Display and player display in combina-

tion with the remote control.

CAUTION Use of controls or adjustments or performance

of procedures other than herein may result in hazardous radia-

tion exposure or other unsafe operation.

2 Introduction

PET1035_CCR_Eng 2007.10.12 10:38 Page 8

2.2 Unpacking

First check and identify the contents of your package, as listed below:

•Portable DVD player • Remote Control (AY5506)

•Car adaptor (12V) • User manual

•AC power adaptor • Audio/video cable

•Antenna • Component cable

•Svideo cable • Travel bag

2.3 Placement

•Place the player on a firm, flat surface.

•Keep away from domestic heating equipment and direct sunlight.

•If the player cannot read CDs/DVDs correctly, try using a commonly

available cleaning CD/DVD to clean the lens before taking the player

to be repaired. Other cleaning methods may destroy the lens.

•Always keep the disc door closed to avoid dust on the lens.

•The lens may cloud over when the player is suddenly moved

from cold to warm surroundings. It is then not possible to play a

CD/DVD. Leave the player in a warm environment until the

moisture evaporates.

2.4 Playable disc formats

In addition to DVD-Video disc, you will also be able to play all

Video CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.

2.4.1 DVD-Video

Depending on the material on the disc (a movie, video

clips, a drama series, etc.) these discs may have one or

more Titles, and each Title may have one or more

Chapters.To make access easy and convenient, your player lets you

move between Titles, and also between Chapters.

2.4.2 Video CD

Depending on the material on the disc (a movie, video

clips, a drama series, etc.) these discs may have one or

more Tracks, and tracks may have one or more indexes,

as indicated on the disc case.To make access easy and convenient,

your player lets you move between tracks and between indexes.

PET1035_CCR_Eng 2007.10.12 10:38 Page 9

2.4.3 Audio CD / MP3 CD / WMA CD

Audio CDs / MP3 CD / WMA CD contain music tracks

only.You can play them in the conventional way

through a stereo system using the keys on the

remote control and/or main unit, or via the TV

using the On Screen Display (OSD).

2.4.4 CD with JPEG files

You can also view JPEG still photos on this player.

2.4.5 DivX video discs

DivX is a popular media technology created by DivX, Inc.

DivX media files contain highly compressed video with

high visual quality that maintains a relatively samll file size. DivX

files can also include advanced media features like menus, subtitles,

and alternate audio tracks. Many DivX media files are available for

download online, and you can create your own using your personal

content and easy-to-use tools from DivX.com.

Offical DivX® Certified product. Plays all versions of DivX® video

(including DivX® 6) with standard playback of DivX® media files.

2.4.6 About SD Memory Card

SD Memory Card is a slim and compact bridge media link-

ing various kinds of digital equipment through its easy con-

nectivity.The card's control circuitry allows data to be read and

written (in its protection area) only when appropriate external

devices are detected. Using decoder software, an SD Memory

Card-compatible device can play music, video clips and more with-

out a drive mechanism like those in CD and DVD players.

2.5 Zero Bright DotTM

Enjoy highest-quality images that are free from annoying

blank spots on the LCD screen. LCD displays commonly

have imperfections, termed as 'bright dots' by the LCD industry.A

limited number of bright dots were once considered an inevitable

side

PET1035_CCR_Eng 2007.10.12 10:38 Page 10
