Philips PET831/12 Manuale utente

www.philips.com/welcome

User manual

PET831

Portable DVD player

ENG 5/21/08 16:59 Page 1

2345 6 78

ENG 5/21/08 16:59 Page 2

ENG 5/21/08 16:59 Page 3

ENG 5/21/08 16:59 Page 4

English

1Control elements

and functional

components

1.1 Top of the player

1.2 Left side of the player

1.3 Front side of the player

1.4 Right side of the player

1.5 Rear of the player

1.6 Remote Control

1.7 Desk stand of the player

2 Introduction

2.1 Your portable DVD player

2.2 Unpacking

2.3 Placement

2.4 Playable disc formats

2.4.1 DVD-Video

2.4.2 Video CD

2.4.3 Audio CD / MP3 CD /

WMA CD

2.4.4 CD with JPEG files

2.4.5 DivX video discs

2.5 Zero Bright DotTM

3General information

4Charging the units

4.1 Charge the DVD player

4.2 Powering your remote

control

5Start up

5.1 Setup

5.2 Playback DVD

5.3 Playback VCD

5.4 Playback Super (S)-VCD

5.5 Playback Music CD

5.6 Playback Music

MP3/WMA-CD

5.7 Playback Picture-CD

6Addition Functions

6.1 DISPLAY Menu

6.2 Connection

6.2.1 Headphone

6.2.2 TV

7Troubleshooting

8Technical data

Content

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers,

ENG 5/21/08 16:59 Page 5

1.1 Top of the player (see figure 1)

1POWER ON/OFF

Switch the player on / off

2 RESET Reset the player when it hangs

3 DISPLAY Adjust the display value of the system

4 OPTIONS Access additional functions

5 MENU Display the DVD disc menu

1.2 Left side of the player (see figure 1)

9Headphone jack

10 AV OUT Audio/video output

11 COMP. OUT for better video quality

12 SD SD card slot

13 DC IN Charger / Adapter connection for power supply

1.3 Front side of the player (see figure 1)

62; OK or play/pause

3/ 4Up/down navigation key or up/down volume

control during playback

J( / )K Left/right navigation key or previous/next track

or fast search backward/forward

14 POWER•IR•CHG

POWER Power LED in green

IR IR sensor

Charging Charging LED appears in RED during charging

and goes off when fully charged.

1.4 Right side of the player (see figure 1)

79 / Press once to stop playback. Press twice to eject

the disc

8Disc slot

1.5 Rear of the player (see figure 1)

15 Car mounting screw hole

16 Stand

1Control elements and functional components

ENG 5/21/08 16:59 Page 6

1.6 Remote Control (see figure 2)

1 MENU Display MENU page

23,4,1,2Up / down / left / right navigation key

OK Confirm selection

VOL+ / -Volume control

3 DISPLAY Adjust the display value of the system

4J( Skip to previous chapter, track or title

52; Start / pause / resume playback

69Press twice to stop playback

70- 9Numeric keypad

SUBTITLE

Subtitle language selector

9 RETURN For VCD menu page

10 A - B To r epeat or loop a sequence in a title

11 SETUP Enter SETUP menu

12 OPTION Access additional functions

13 )K Skip to next chapter, track or title

14 sMute player volume

15 AUDIO Audio language selector

16 ZOOM Enlarge video image

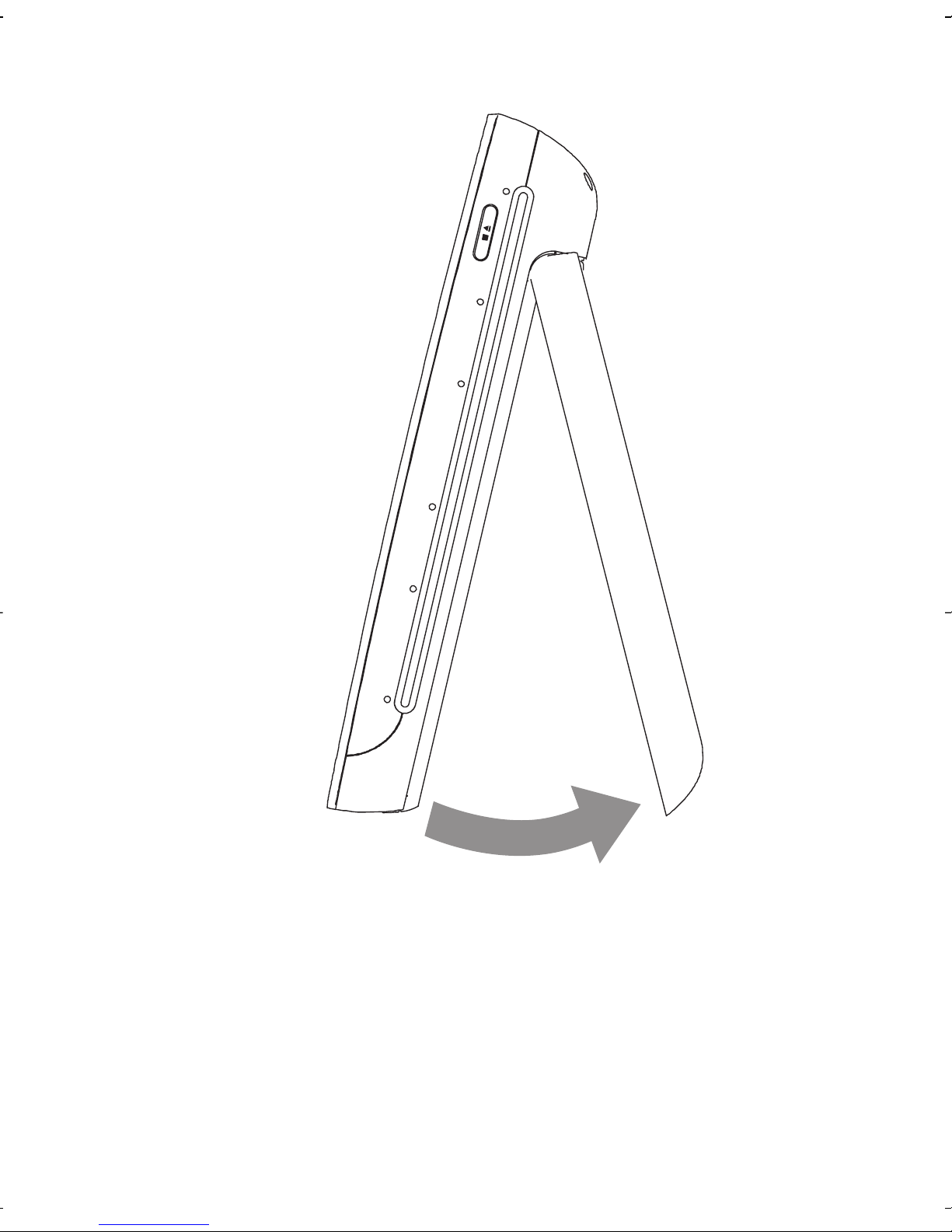

1.7 Desk stand of the player (see figure 3)

You can prop up the DVD player on your table for movie watching.

Pull out the stand at the rear of the player.

2 Introduction

2.1 Your portable DVD player

Your portable DVD player plays digital video discs conforming to the

universal DVD Video standard.With it, you will be able to enjoy

full-length movies with true cinema picture quality, and stereo or multi-

channel sound (depending on the disc and on your playback set-up).

The unique features of DVD-Video, such as selection of soundtrack

and subtitle languages, and of different camera angles

(again depending on the disc), are all included.

What’s more, parental lock lets you decide which discs your chil-

dren will be able to see.You will find your player remarkably easy

to use with the On-Screen Display and player display in combina-

tion with the remote control.

ENG 5/21/08 16:59 Page 7

2.2 Unpacking

First check and identify the contents of your package, as listed

below:

•Portable DVD player • Remote Control

•Car adaptor (12V) • AC power adaptor

•Protective pouch • Car headrest mounting kit

•User manual • AV out cable

•COMP. OUT cable

2.3 Placement

•Place the player on a firm, flat surface.

•Keep away from domestic heating equipment and direct sunlight.

•If the player cannot read CDs/DVDs correctly, try using a com-

monly available cleaning CD/DVD to clean the lens before taking

the player to be repaired. Other cleaning methods may destroy

the lens.

•Always keep the disc door closed to avoid dust on the lens.

•The lens may cloud over when the player is suddenly moved

from cold to warm surroundings. It is then not possible to play

a CD/DVD. Leave the player in a warm environment until the

moisture evaporates.

2.4 Playable disc formats

In addition to DVD-Video disc, you will also be able to play all

Video CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.

2.4.1 DVD-Video

Depending on the material on the disc (a movie, video

clips, a drama series, etc.) these discs may have one or

more Titles, and each Title may have one or more Chapters.To

make access easy and convenient, your player lets you move

between Titles, and also between Chapters.

2.4.2 Video CD

Depending on the material on the disc (a movie, video

clips, a drama series, etc.) these discs may have one or

more Tracks, and tracks may have one or more indexes,

as indicated on the disc case.To make access easy and convenient,

your player lets you move between tracks and between indexes.

ENG 5/21/08 16:59 Page 8

2.4.3 Audio CD / MP3 CD / WMA CD

Audio CDs / MP3 CD / WMA CD contain music tracks

only.You can play them in the conventional way

through a stereo system using the keys on the

remote control and/or main unit, or via the TV

using the On Screen Display (OSD).

2.4.4 CD with JPEG files

You can also view JPEG still photos on this player.

2.4.5 DivX video discs

DivX is a popular media technology created by DivX, Inc.

DivX media files contain highly compressed video with high visual

quality that maintains a relatively samll file size. DivX files can also

include advanced media features like menus, subtitles, and alternate

audio tracks. Many DivX media files are available for download

online, and you can create your own using your personal content

and easy-to-use tools from DivX.com.

2.5 Zero Bright DotTM

Enjoy highest-quality images that are free from annoying

blank spots on the LCD screen. LCD displays commonly

have imperfections, termed as 'bright dots' by the LCD industry.A

limited number of bright dots were once considered an inevitable

side effect of LCD mass production.With Philips' strict quality con-

trol procedures used in our Portable DVD Players, our LCD dis-

plays are produced with zero tolerance for bright dots. Select

Portable DVD Players come with Philips Zero Bright DotTM Policy

to guarantee optimal screen quality.

Warranty service varies from region to region. Contact your local

Philips representative for more detailed information.

ENG 5/21/08 16:59 Page 9

Power Sources

This unit operates on a supplied AC adaptor, car adapter, or a

rechargeable battery pack.

•Make sure that the input voltage of the AC adaptor is in line

with the local voltage. Otherwise, the AC adaptor and unit may

be damaged.

•Do not touch the AC adaptor with wet hands to prevent

electric shock.

•When connecting with car power (cigarette lighter) adaptor, be

sure the input voltage of the adaptor is identical with car voltage.

•Unplug the AC adaptor from the outlet when the unit is not

used for long periods of time.

•Hold the plug to disconnect the AC adaptor. Do not pull the

power cord.

Safety and maintenance

•Do not disassemble the unit for laser rays are dangerous to eyes.

Any service should be done by qualified service personnel.

•Unplug the AC adaptor to cut the power if liquid or objects get

inside the unit.

•Take care not to drop the unit or subject it to strong shocks,

which may cause malfunction.

Hearing Safety

Listen at a moderate volume.

•Using headphones at a high volume can impair your

hearing.This product can produce sounds in decibel ranges that

may cause hearing loss for a normal person, even for exposure

less than a minute.The higher decibel ranges are offered for

those that may have already experienced some hearing loss.

3General information

Please always use supplied AC/DC adaptor (AY4129)

ENG 5/21/08 16:59 Page 10
