Philips DA1102 Manuale utente

DA1102Portable DAB Radio

www.philips.com/welcome

User manual

DA1102_05_Eng 2007.9.10 2:11 PM Page 1

CAUTION

Use of controls or adjustments or performance of procedures other than herein

may result in unsafe operation.

The type plate is located on the rear of the set

DA1102_05_Eng 2007.9.10 2:11 PM Page 2

DAB RADIO DA1102

8 5

DA1102_05_Eng 2007.9.10 2:11 PM Page 3

DA1102_05_Eng 2007.9.10 2:11 PM Page 4

English

Contents

Controls ––––––––––––––––––––––––––––––––––––––––––––––––––––– 6

General Information

Safety instructions ––––––––––––––––––––––––––––––––––––––––––– 7

Environmental information –––––––––––––––––––––––––––––––––––– 7

Hearing safety ––––––––––––––––––––––––––––––––––––––––––––– 7-8

About Digital Audio Broadcasting (DAB) ––––––––––––––––––––––––––9

Getting started

Power supply –––––––––––––––––––––––––––––––––––––––––––––– 10

Transfer –––––––––––––––––––––––––––––––––––––––––––––––––– 10

Headphones ––––––––––––––––––––––––––––––––––––––––––––––– 11

Adjusting the volume –––––––––––––––––––––––––––––––––––––––– 11

HOLD: Locking buttons –––––––––––––––––––––––––––––––––––––––11

DAB radio

Radio reception –––––––––––––––––––––––––––––––––––––––––––– 12

Switching off, Tuning/retuning ––––––––––––––––––––––––––––––––– 13

Selecting a station –––––––––––––––––––––––––––––––––––––––––– 14

Saving & recalling presets ––––––––––––––––––––––––––––––––––––– 14

Deleting a preset–––––––––––––––––––––––––––––––––––––––––––– 15

Viewing the service info (DAB only) –––––––––––––––––––––––––––– 15

Music mode

Playing stored music ––––––––––––––––––––––––––––––––––––––––– 16

Setting play mode ––––––––––––––––––––––––––––––––––––––––––– 16

Recordings

Make recordings –––––––––––––––––––––––––––––––––––––––––––– 17

Play back recordings –––––––––––––––––––––––––––––––––––––––– 17

Upload recordings to PC ––––––––––––––––––––––––––––––––––––– 17

Delete recordings –––––––––––––––––––––––––––––––––––––––––– 17

Settings ––––––––––––––––––––––––––––––––––––––––––––––––––––– 18

Technical Specifications –––––––––––––––––––––––––––––––––––– 19

Troubleshooting –––––––––––––––––––––––––––––––––––––––––––– 20

DA1102_05_Eng 2007.9.10 2:11 PM Page 5

This set complies with the radio interference requirements of the European Union.

PHILIPS reserves the right to make design and specification changes for product

improvement without prior notice.

English

Controls (see Figure 1)

– 3.5mm headphone socket.

2Display

– shows menu, options, tack information

and station information.

3REC/SCAN

– searches and stores DAB stations (Local

Scan/Full Scan/Manu Tune).

– press and hold to record voices in record-

ing mode.

41/2/3/4

– navigation controls (left, right, up, down)

for scrolling through the option lists.

1/2

– scrolls radio stations.

3/4

– increases / decreases the volume.

– confirms selection.

– starts playback.

– press and hold to switch on/off the set.

5INFO (for DAB only)

– displays station information in seven types.

6HOLD

– adjusts slider to select lock function on/off.

7MENU

– enters the main menu or returns to

previous menu.

– enables access to advanced setup

options.

8PRESET

– saves 20 stations for quick access.

9MIC

– Microphone.

– USB jack.

Supplied accessories

1 x USB cable

2 x AAA batteries

1 x headphones

DA1102_05_Eng 2007.9.10 2:11 PM Page 6

English

General information

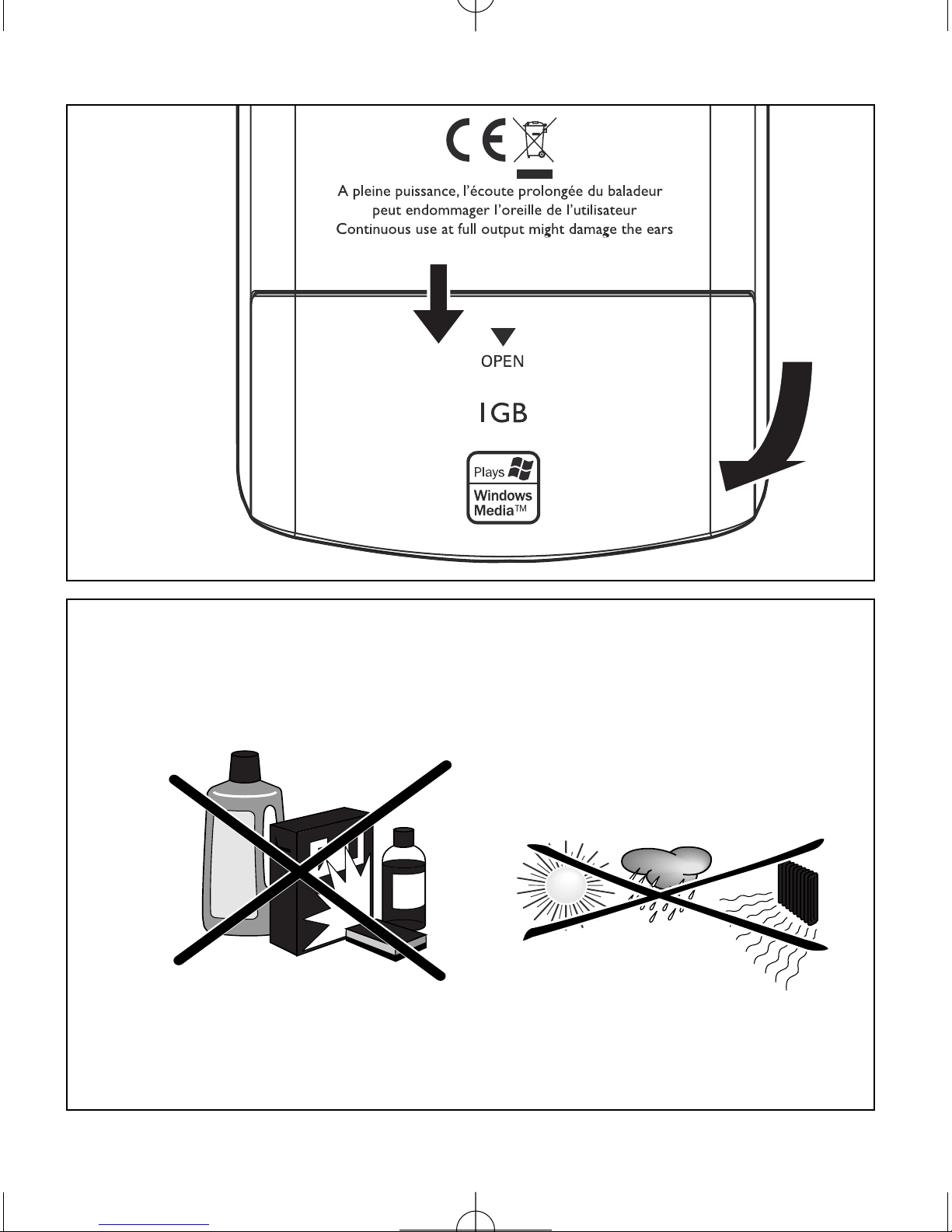

Safety instructions (see Figure 3)

•Do not expose the unit or batteries to humidity, rain, sand or excessive heat (caused

by heating equipment or direct sunlight).

•You can clean the radio with a soft, slightly dampened, lint-free cloth. Do not use any

cleaning agents as they may have a corrosive effect.

•Active mobile phones in the vicinity of the radio may cause malfunctions.

•Avoid dropping the radio as this may cause damage.

•Apparatus shall not be exposed to dripping or splashing.

Environmental information

•All redundant packing material has been omitted.We have done our utmost to make

the packaging easily separable into two mono materials: cardboard and polyethylene.

•Your set consists of materials which can be recycled if disassembled by a specialized

company. Please observe the local regulations regarding the disposal of packingmaterials,

exhausted batteries and old equipment.

Hearing Safety

Listen at a moderate volume:

•Using headphones at a high volume can impair your hearing. This product can produce

sounds in decibel ranges that may cause hearing loss for a normal person, even for

exposure less than a minute. The higher decibel ranges are offered for those that may

have already experienced some hearing loss.

•Sound can be deceiving. Over time your hearing “comfort level” adapts to higher vol-

umes of sound. So after prolonged listening, what sounds “normal” can actually be loud

and harmful to your hearing. To guard against this, set your volume to a safe level

before your hearing adapts and leave it there.

DA1102_05_Eng 2007.9.10 2:11 PM Page 7

English

General information

To establish a safe volume level:

•Set your volume control at a low setting.

•Slowly increase the sound until you can hear it comfortably and clearly, without distor-

tion.

Listen for reasonable periods of time:

•Prolonged exposure to sound, even at normally “safe” levels, can also cause hearing loss.

•Be sure to use your equipment reasonably and take appropriate breaks.

Be sure to observe the following guidelines when using your headphones:

•Listen at reasonable volumes for reasonable periods of time.

•Be careful not to adjust the volume as your hearing adapts.

•Do not turn up the volume so high that you can't hear what's around you.

•You should use caution or temporarily discontinue use in potentially hazardous situa-

tions.

•Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.;

it may create a traffic hazard and is illegal in many areas

Disposal of your old product

Your product is designed and manufactured with high quality materials

and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it

means the product is covered by the European Directive 2002/96/EC

Please inform yourself about the local separate collection system for electrical and elec-

tronic products. Please act according to your local rules and do not dispose of your old

products with your normal household waste.The correct disposal of your old product

will help prevent potential negative consequences for the environment and human

health.

DA1102_05_Eng 2007.9.10 2:11 PM Page 8

English

General information

About Digital Audio Broadcasting (DAB)

DAB digital radio is a new way of broadcasting radio via a network of terrestrial

transmitters. It provides listeners with more choice and information delivered in crystal

clear, crackle-free sound quality.

–The technology allows the receiver to lock on to the strongest signal it can find.

–With DAB digital stations there are no frequencies to remember, and sets are tuned

by station name, so there's no retuning on the move.

What is a multiplex?

Digital radio operation is made up of a single block of frequencies called a multiplex. Each

multiplex works within a frequency spectrum, such as Band III for DAB broadcasts.

Helpful Hints:

– You will receive only those stations within your transmission area.

DAB BROADCASTERS AND DLS

Each DAB broadcaster (or multiplex operator) also provides text and audio data services.

Some programmes are supported by Dynamic Label Segments (DLS).This is data which you

can read as scrolling text on your DAB radio display. Some stations transmit the latest news,

travel, and weather, what's on now and next, website addresses and phone numbers.

For more information on digital radio coverage and services, please visit: www.drdb.org.

DA1102_05_Eng 2007.9.10 2:11 PM Page 9

English

Getting started

POWER SUPPLY

Inserting batteries (see Figure 2)

•Open the battery door and insert 2 x AAA batteries with the correct polarity as indi-

cated.

Battery power level indication

Batteries contain chemical substances, so they should be disposed of properly.

Please ensure that used batteries are disposed of in accordance with local/national

legislation. Do not short circuit. Do not dispose of in a fire.

POWER ON/OFF

Press and hold

/Bto switch on/off the set.

TRANSFER

Your player appears as a USB mass storage device on your computer.You can manage files

and transfer music to your player during USB connection.

1Use the supplied USB cable to connect your player to a computer.

2Click and highlight one or more songs to transfer between your player and your computer.

3Use drag and drop actions to complete your transfer.

Disconnect your player safely

Exit any active application working with your player. Remove your player safely by clicking

in the task tray in your PC.

Full Two-thirds full Half full Low Empty

DA1102_05_Eng 2007.9.10 2:11 PM Page 10
