1. General description

The PNX2000 is a companion IC for use with the Nexperia™ 1digital video home

entertainment engines such as PNX8526 and PNX8550.

The PNX2000 is always used in combination with the PNX3000.

PNX2000 is intended for mid to high-end analog and hybrid TV sets, performing input

decoding of single stream analog audio and single stream analog video signals. In

addition, the PNX2000 is used for decoding and presentation of all audio output streams

in the system. Figure 1 shows a block diagram of the device.

2. Features

■Detection of PAL, NTSC or SECAM, and various 1fHand 2fHcomponent video input

sources.

■Full support for 1fHand 2fHvideo sources; progressive and interlaced.

■Decoding for global VBI Standards (WST, WSS, VPS, CC, VITC).

■ITU-656 output interface.

■Global multi-standard audio demodulation and decoding.

■Dolby Pro Logic II™ 2multi-channel audio decoding and post-processing.

■Advanced fully programmable audio post-processing functions, including

psychoacoustic spatial algorithms for optimal loudspeaker matching.

3. Applications

■Analog TV receivers.

■Hybrid TV receivers.

■DVD recorders.

■VCRs.

PNX2000

Audio video input processor

Rev. 03 – 23 August 2004 Product data

1. Nexperia is a trademark of Koninklijke Philips Electronics N.V.

2. Dolby is a trademark of Dolby Laboratories

Product data Rev. 03 – 23 August 2004 2 of 31

Philips Semiconductors PNX2000

Audio video input processor

4. Ordering information

5. Block diagram

Table 1: Ordering information

Type number Package

name Description Version

PNX2000HL LQFP144 plastic low profile quad flat package; 144 leads; body 20 ×20 ×1.4 mm SOT486-1

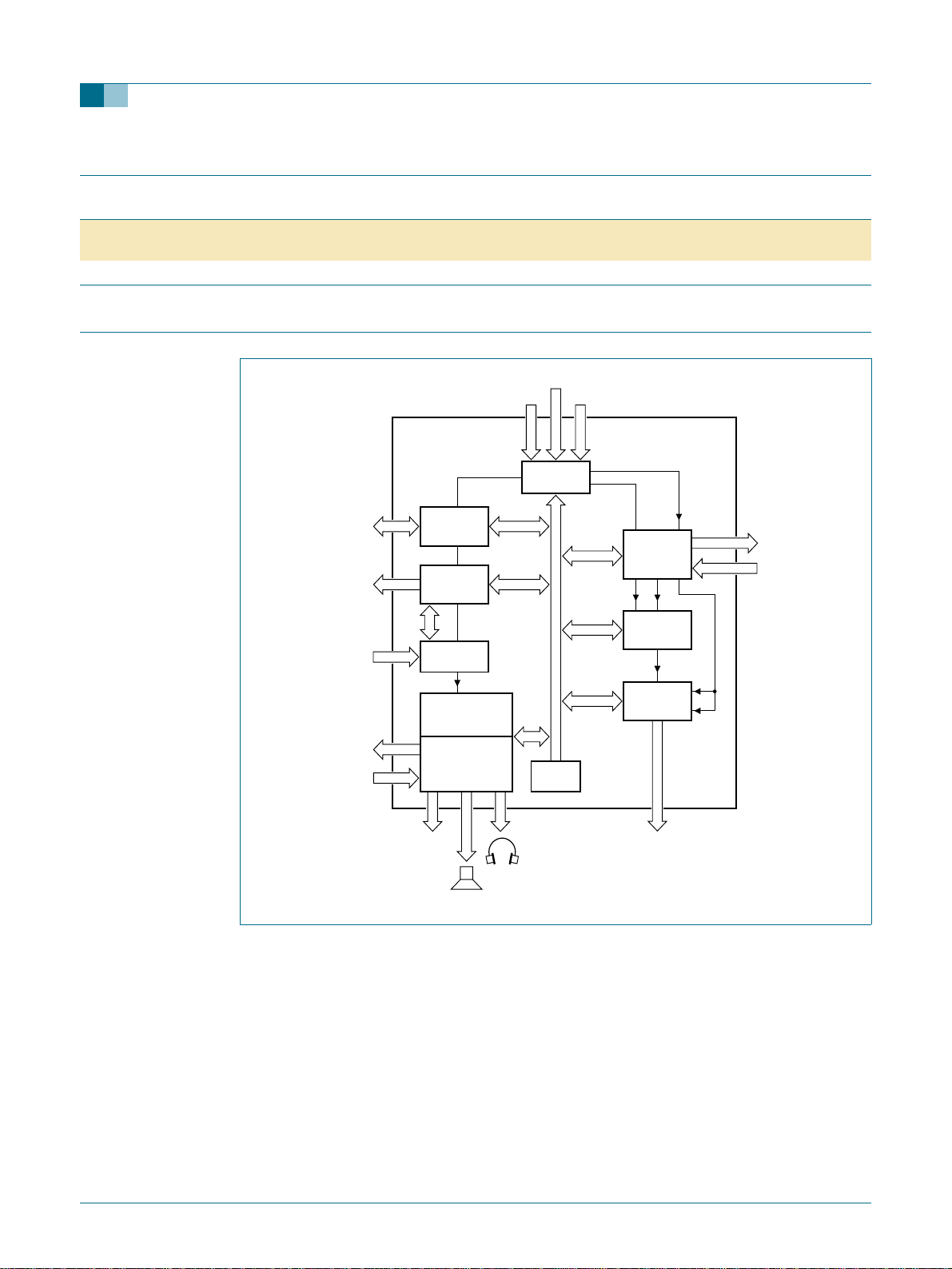

Fig 1. Block diagram

mce559

C-BUS

C-bus

audio data SIF or L/R

video data CVBS, Y/C, YUV

54 MHz clock

27 Msps or 54 Msps

VIDDEC HSYNC

HSYNC/



VSYNC

DLINK1 DLINK3

DLINK2

GTU

INT

13.5 MHz or

27 MHz

Xtal

6×I

S-bus

outputs

6×I

S-bus

inputs

DCU

ITU-656

ITU-656

or 2f

H

10-bit data

BCU

PNX2000

PI-bus

CLOCKS

DEMDEC DSP

AUDIO DSP

×4

PNX3000

interface

(2 stereo

or 4 mono)

×2×6

Product data Rev. 03 – 23 August 2004 3 of 31

Philips Semiconductors PNX2000

Audio video input processor

6. Pinning information

6.1 Pinning

6.1.1 Pin description

Table 2 describes acronyms used in the pin tables:

Fig 2. Pin configuration

PNX2000HL

108

144

109

001aaa28

Table 2: Acronym description

Acronym Description

3V 3.3 V LVCMOS

5VT 5 V tolerant inputs

Z3-state

TTL TTL logic

TTL-H TTL with hysteresis

CMOS CMOS logic

IA Input Analog

ID Input Digital

OD Output Digital

OA Output Analog

IOA I/O Analog

IOD I/O Digital

GA Ground Analog

SA Supply Analog

SD Supply Digital

OSCIN Crystal Oscillator Input

OSCOUT Crystal Oscillator Output

OSCGND Crystal Oscillator Ground

Product data Rev. 03 – 23 August 2004 4 of 31

Philips Semiconductors PNX2000

Audio video input processor

Table 3: Pins in numerical sequence

Pin Symbol Type Description

SSD(I2D) GD I2D digital ground

2 DLINK1DP IA analog differential data link 1 positive termination

3 DLINK1DN IA analog differential data link 1 negative termination

4 DLINK1SP IA analog differential strobe link 1 positive termination

5 DLINK1SN IA analog differential strobe link 1 negative termination

7 DLINK2DP IA analog differential data link 2 positive termination

8 DLINK2DN IA analog differential data link 2 negative termination

9 DLINK2SP IA analog differential strobe link 2 positive termination

10 DLINK2SN IA analog differential strobe link 2 negative termination

12 DLINK3DP IA analog differential data link 3 positive termination

13 DLINK3DN IA analog differential data link 3 negative termination

14 DLINK3SP IA analog differential strobe link 3 positive termination

15 DLINK3SN IA analog differential strobe link 3 negative termination

16 VDDD(I2D) SD I2D digital 1.8 V supply voltage

17 I2C_ADR ID I2C-bus address select (internal pull-down); TTL; 5VT

18 HSYNCFBL1 IA horizontal sync (external); fastblanking signal from

SCART

19 HSYNCFBL2 IA horizontal sync (external); fastblanking signal from

SCART

20 HVINFO OD horizontal and vertical sync information to PNX3000;

CMOS

21 VSYNC1 ID vertical sync (external); TTL; 5VT

22 VSYNC2 ID vertical sync (external); TTL; 5VT

23 VDD3(DTC) SD DTC 3.3 V supply voltage

24 VDDD(DTC) SD DTC 1.8 V supply voltage

25 VSS(DTC) GA DTC analog ground

26 I2C_SCL IOD I2C-bus clock; TTL; Z; 5VT

27 I2C_SDA IOD I2C-bus data; TTL; Z; 5VT

28 VSSE - 3.3 V ground

29 VSS - 1.8 V ground

30 VDDI - 1.8 V supply voltage

31 MPIFCLK OD 13.5 MHz or 27 MHz to PNX3000; CMOS

32 VDDE - 3.3 V supply voltage

33 VDDA(PLL) - phase locked loop 1.8 V supply voltage

34 - n.c. not connected

35 VDDI - 1.8 V supply voltage

36 VSS - 1.8 V ground

37 VDDA(XTAL) OSCVDD 1.8 V crystal oscillator supply voltage

38 XIN OSCIN crystal oscillator input

39 XOUT OSCOUT crystal oscillator output

40 XGND OSCGND crystal oscillator ground

Product data Rev. 03 – 23 August 2004 5 of 31

Philips Semiconductors PNX2000

Audio video input processor

41 VSSE - 3.3 V ground

42 VDDI - 1.8 V supply voltage

43 VSS - 1.8 V ground

44 VDDM - 1.8 V supply voltage for KSFRAMs and KROMs

45 RESET_N IA external reset input

46 RESET_SEL ID selects between using an external reset input or using

internal POR; TTL; 5VT

47 DCLK OD reserved; CMOS

48 INTOUT OD interrupt line output; Z; 5VT

49 VDDE - 3.3 V supply voltage

50 LL_CLK ID reserved; TTL; 5VT

51 DVO_CLK OD digital video output clock; CMOS; Z

52 DVO_VALID OD digital video data valid; CMOS; Z

53 VDDI - 1.8 V supply voltage

54 VSS - 1.8 V ground

55 DVO_DATA_0 OD digital video output state 0; CMOS; Z

56 DVO_DATA_1 OD digital video output state 1; CMOS; Z

57 DVO_DATA_2 OD digital video output state 2; CMOS; Z

58 DVO_DATA_3 OD digital video output state 3; CMOS; Z

59 VSSE - 3.3 V ground

60 DVO_DATA_4 OD digital video output state 4; CMOS; Z

61 DVO_DATA_5 OD digital video output state 5; CMOS; Z

62 DVO_DATA_6 OD digital video output state 6; CMOS; Z

63 DVO_DATA_7 OD digital video output state 7; CMOS; Z

64 DVO_DATA_8 OD digital video output state 8; CMOS; Z

65 DVO_DATA_9 OD digital video output state 9; CMOS; Z

66 VDDE - 3.3 V supply voltage

67 VDDI - 1.8 V supply voltage

68 VSS - 1.8 V ground

69 I2S_OUT_SD3 OD I2S-bus data-out channel 3; CMOS

70 I2S_OUT_SD3_WS OD I2S-bus word select channel 3; CMOS

71 I2S_OUT_SD3_SCK OD I2S-bus bit clock channel 3; CMOS

72 VSSE - 3.3 V ground

73 I2S_OUT_SD6 OD I2S-bus data out channel 6; CMOS

74 I2S_OUT_SD5 OD I2S-bus data out channel 5; CMOS

75 I2S_OUT_SD4 OD I2S-bus data out channel 4; CMOS

76 I2S_OUT_SD2 OD I2S-bus data out channel 2; CMOS

77 I2S_OUT_SD1 OD I2S-bus data out channel 1; CMOS

78 I2S_WS_SYS IOD I2S-bus system word select; TTL-H; CMOS

79 I2S_SCK_SYS IOD I2S-bus system bit clock; TTL-H; CMOS

80 VDDI - 1.8 V supply voltage

Table 3: Pins in numerical sequence…continued

Pin Symbol Type Description

Product data Rev. 03 – 23 August 2004 6 of 31

Philips Semiconductors PNX2000

Audio video input processor

81 VSS - 1.8 V ground

82 VDDE - 3.3 V supply voltage

83 I2S_IN_SD6 ID I2S-bus data in channel 6; TTL; 5VT

84 I2S_IN_SD5 ID I2S-bus data in channel 5; TTL; 5VT

85 I2S_IN_SD4 ID I2S-bus data in channel 4; TTL; 5VT

86 I2S_IN_SD3 ID I2S-bus data in channel 3; TTL; 5VT

87 I2S_IN_SD2 ID I2S-bus data in channel 2; TTL; 5VT

88 I2S_IN_SD1 ID I2S-bus data in channel 1; TTL; 5VT

89 ADAC_CLK OD Used for 128 fsor 256 fsclock output to external audio

DAC; CMOS.

90 - n.c. not connected

91 VDDE - 3.3 V supply voltage

92 TDI ID JTAG test data in; TTL-H; 5VT

93 TDO OD JTAG test data out; CMOS

94 TCK ID JTAG test clock; TTL-H; 5VT

95 TMS ID JTAG test mode select; TTL-H; 5VT

96 TRST_N ID JTAG reset (active low); TTL-H; 5VT

97 VDDI - 1.8 V supply voltage

98 VSS - 1.8 V ground

99 VSSE - 3.3 V ground

100 VSS(ADAC) GD audio DAC 1.8 V digital ground

101 VDDD(ADAC) SD audio DAC 1.8 V digital supply voltage

102 VDDA(ADAC) SA audio DAC 3.3 V supply voltage

103 ADAC1_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

104 ADAC1 OA analog audio output 1

105 ADAC1_N GA Negative analog reference star connected at

PNX3000.

106 ADAC2_N GA Negative analog reference star connected at

PNX3000.

107 ADAC2 OA analog audio output 2

108 ADAC2_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

109 ADAC3_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

110 ADAC3 OA analog audio output 3

111 ADAC3_N GA Negative analog reference star connected at

PNX3000.

112 ADAC4_N GA Negative analog reference star connected at

PNX3000.

113 ADAC4 OA analog audio output 4

114 ADAC4_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

Table 3: Pins in numerical sequence…continued

Pin Symbol Type Description

Product data Rev. 03 – 23 August 2004 7 of 31

Philips Semiconductors PNX2000

Audio video input processor

115 ADAC5_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

116 ADAC5 OA analog audio output 5

117 ADAC5_N GA Negative analog reference star connected at

PNX3000.

118 ADAC6_N GA Negative analog reference star connected at

PNX3000.

119 ADAC6 OA analog audio output 6

120 ADAC6_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

121 ADAC7_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

122 ADAC7 OA analog audio output 7

123 ADAC7_N GA Negative analog reference star connected at

PNX3000.

124 ADAC8_N GA Negative analog reference star connected at

PNX3000.

125 ADAC8 OA analog audio output 8

126 ADAC8_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

127 ADAC9_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

128 ADAC9 OA analog audio output 9

129 ADAC9_N GA Negative analog reference star connected at

PNX3000.

130 ADAC10_N GA Negative analog reference star connected at

PNX3000.

131 ADAC10 OA analog audio output 10

132 ADAC10_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

133 ADAC11_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

134 ADAC11 OA analog audio output 11

135 ADAC11_N GA Negative analog reference star connected at

PNX3000.

136 ADAC12_N GA Negative analog reference star connected at

PNX3000.

137 ADAC12 OA analog audio output 12

138 ADAC12_P SA Positive analog reference derived via emitter follower

from PNX3000 V_SND pin.

139 VSS - 1.8 V ground

140 VDDM - 1.8 V supply voltage for KSFRAMs and KROMs

141 VDDE - 3.3 V supply voltage

Table 3: Pins in numerical sequence…continued

Pin Symbol Type Description

Product data Rev. 03 – 23 August 2004 8 of 31

Philips Semiconductors PNX2000

Audio video input processor

In the tables that follow, signals of the PNX2000 have been sorted by functional group. For

quick reference Table 4 identifies each functional group and associated table.

142 VSSE - 3.3 V ground

143 VDDE - 3.3 V supply voltage

144 VSSE - 3.3 V ground

Table 4: Signal groups

Functional group Table number

I2D-bus Table 5

AUDIO Table 6

I2S-bus Table 7

VIDDEC Table 8

ITU-656 Table 9

JTAG Table 10

I2C-bus Table 11

CLOCK Table 12

GTU Table 13

RESET Table 14

DIGITAL SUPPLY Table 15

ANALOG SUPPLY Table 16

Table 5: I2D pins

Symbol Pin Type Description

DLINK1DP 2 IA analog differential data link 1 positive termination

DLINK1DN 3 IA analog differential data link 1 negative termination

DLINK1SP 4 IA analog differential strobe link 1 positive termination

DLINK1SN 5 IA analog differential strobe link 1 negative termination

DLINK2DP 7 IA analog differential data link 2 positive termination

DLINK2DN 8 IA analog differential data link 2 negative termination

DLINK2SP 9 IA analog differential strobe link 2 positive termination

DLINK2SN 10 IA analog differential strobe link 2 negative termination

DLINK3DP 12 IA analog differential data link 3 positive termination

DLINK3DN 13 IA analog differential data link 3 negative termination

DLINK3SP 14 IA analog differential strobe link 3 positive termination

DLINK3SN 15 IA analog differential strobe link 3 negative termination

Table 6: Audio pins

Symbol Pin Type Description

ADAC1 104 OA analog audio output 1

ADAC2 107 OA analog audio output 2

ADAC3 110 OA analog audio output 3

ADAC4 113 OA analog audio output 4

Table 3: Pins in numerical sequence…continued

Pin Symbol Type Description

Product data Rev. 03 – 23 August 2004 9 of 31

Philips Semiconductors PNX2000

Audio video input processor

ADAC5 116 OA analog audio output 5

ADAC6 119 OA analog audio output 6

ADAC7 122 OA analog audio output 7

ADAC8 125 OA analog audio output 8

ADAC9 128 OA analog audio output 9

ADAC10 131 OA analog audio output 10

ADAC11 134 OA analog audio output 11

ADAC12 137 OA analog audio output 12

ADAC1_P 103 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC1_N 105 GA Negative analog reference star connected at PNX3000.

ADAC2_P 108 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC2_N 106 GA Negative analog reference star connected at PNX3000.

ADAC3_P 109 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC3_N 111 GA Negative analog reference star connected at PNX3000.

ADAC4_P 114 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC4_N 112 GA Negative analog reference star connected at PNX3000.

ADAC5_P 115 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC5_N 117 GA Negative analog reference star connected at PNX3000.

ADAC6_P 120 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC6_N 118 GA Negative analog reference star connected at PNX3000.

ADAC7_P 121 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC7_N 123 GA Negative analog reference star connected at PNX3000.

ADAC8_P 126 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC8_N 124 GA Negative analog reference star connected at PNX3000.

ADAC9_P 127 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC9_N 129 GA Negative analog reference star connected at PNX3000.

ADAC10_P 132 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC10_N 130 GA Negative analog reference star connected at PNX3000.

ADAC11_P 133 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC11_N 135 GA Negative analog reference star connected at PNX3000.

ADAC12_P 138 SA Positive analog reference derived via emitter follower from

PNX3000 V_SND pin.

ADAC12_N 136 GA Negative analog reference star connected at PNX3000.

Table 6: Audio pins…continued

Symbol Pin Type Description

Product data Rev. 03 – 23 August 2004 10 of 31

Philips Semiconductors PNX2000

Audio video input processor

Table 7: I2S-bus pins

Symbol Pin Type Description

I2S_IN_SD1 88 ID I2S-bus data in channel 1; TTL; 5VT

I2S_IN_SD2 87 ID I2S-bus data in channel 2; TTL; 5VT

I2S_IN_SD3 86 ID I2S-bus data in channel 3; TTL; 5VT

I2S_IN_SD4 85 ID I2S-bus data in channel 4; TTL; 5VT

I2S_IN_SD5 84 ID I2S-bus data in channel 5; TTL; 5VT

I2S_IN_SD6 83 ID I2S-bus data in channel 6; TTL; 5VT

I2S_OUT_SD1 77 OD I2S-bus data out channel 1; CMOS

I2S_OUT_SD2 76 OD I2S-bus data out channel 2; CMOS

I2S_OUT_SD4 75 OD I2S-bus data out channel 4; CMOS

I2S_OUT_SD5 74 OD I2S-bus data out channel 5; CMOS

I2S_OUT_SD6 73 OD I2S-bus data out channel 6; CMOS

I2S_OUT_SD3_SCK 71 OD I2S-bus bit clock channel 3; CMOS

I2S_OUT_SD3_WS 70 OD I2S-bus word select channel 3; CMOS

I2S_OUT_SD3 69 OD I2S-bus data-out channel 3; CMOS

I2S_SCK_SYS 79 IOD I2S-bus system bit clock; TTL-H; CMOS

I2S_WS_SYS 78 IOD I2S-bus system word select; TTL-H; CMOS

ADAC_CLK 89 OD Used for 128 fsor 256 fsclock output to external audio

DAC; CMOS.

Table 8: VIDDEC pins

Symbol Pin Type Description

HVINFO 20 OD horizontal and vertical sync information to PNX3000; CMOS

HSYNCFBL1 18 IA horizontal sync (external); fastblanking signal from SCART

HSYNCFBL2 19 IA horizontal sync (external); fastblanking signal from SCART

VSYNC1 21 ID vertical sync (external); TTL; 5VT

VSYNC2 22 ID vertical sync (external); TTL; 5VT

Table 9: ITU-656 pins

Symbol Pin Type Description

DVO_DATA_0 55 OD digital video output state 0; CMOS; Z

DVO_DATA_1 56 OD digital video output state 1; CMOS; Z

DVO_DATA_2 57 OD digital video output state 2; CMOS; Z

DVO_DATA_3 58 OD digital video output state 3; CMOS; Z

DVO_DATA_4 60 OD digital video output state 4; CMOS; Z

DVO_DATA_5 61 OD digital video output state 5; CMOS; Z

DVO_DATA_6 62 OD digital video output state 6; CMOS; Z

DVO_DATA_7 63 OD digital video output state 7; CMOS; Z

DVO_DATA_8 64 OD digital video output state 8; CMOS; Z

DVO_DATA_9 65 OD digital video output state 9; CMOS; Z

Indice

Altri manuali Philips Processore

Philips

Philips VidQuad LTC 2372 Manuale utente

Manuali Processore popolari di altre marche

FALCON THREE

FALCON THREE TV SDI Manuale utente

Vdwall

Vdwall LVP8601 Manuale utente

Pro ceed

Pro ceed PDP 3 Manuale utente

Intel

Intel ARCHITECTURE IA-32 Manuale utente

Fastwel

Fastwel CPC310 Manuale utente

Usl

Usl JSD-60 Manuale utente

ALLEN & HEATH

ALLEN & HEATH DR128 Manuale utente

QSC

QSC DSP-3' Manuale di riferimento

Harman Kardon

Harman Kardon AVP-2 Manuale utente

dbx

dbx Zone Pro 640 Manuale utente

Fastwel

Fastwel CPC309 Manuale utente

BBE

BBE 822 Manuale utente

NAIM

NAIM AV2 Manuale utente

GrandTec

GrandTec Grand Magic Guard III Manuale utente

Intel

Intel 80386 Guida rapida per l'utente

TECshow

TECshow DSP-2600 W Manuale utente

Topp Music Gear

Topp Music Gear RT-DRIVE DLM-206 Manuale utente

NEC

NEC IPS-4000 Manuale utente
