DU-PH-0050-03 Rev D 3/27/12 GCX Corp. Page 1 of 3

Installation Guide

Philips Heartstart MRx and Heartstart XL+ Defibrillator –Flush Wall Mount Kit

The purpose of this guide is to:

1. Describe installation of the Mounting Assembly (page 2).

2. Describe mounting of defibrillator on the Mounting Assembly (page 2).

Parts Reference

The following parts and hardware are included with this installation kit (see photo for part; hardware not shown):

Tools Required

• 1/8'' hex wrench (provided)

Item #

Description

Qty

Wall Mount

Channel Cover (includes instructions)

1/8'' Hex Wrench

DU-PH-0050-03 Rev D 3/27/12 GCX Corp. Page 2 of 3

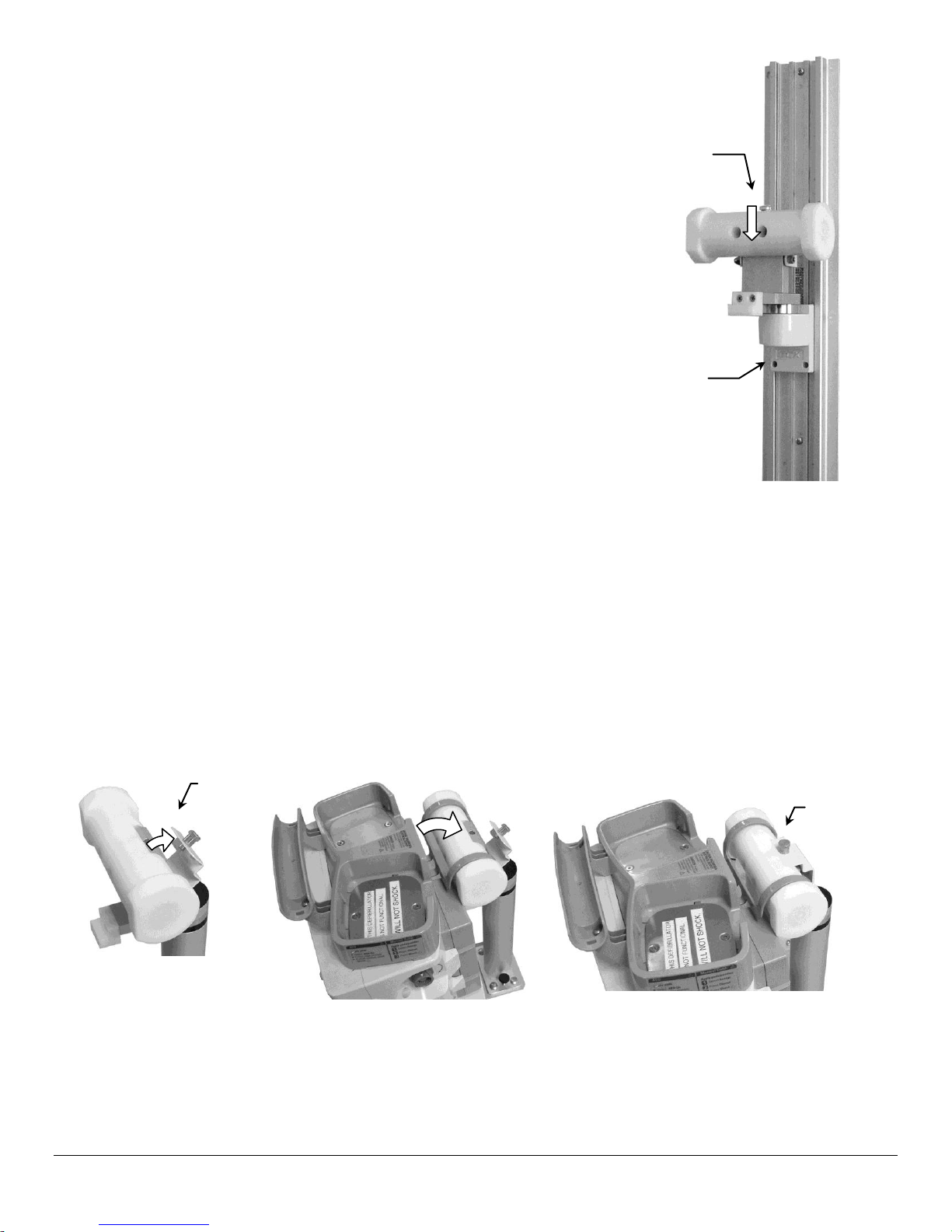

Installing Mounting Assembly in Channel

1. Insert channel slide (rear of Mounting Assembly) in Channel. Slide Mount to

desired position in channel and tighten two (2) set screws (right) with 1/8'' hex

wrench provided.

Mounting the Heartstart MRx

1. Pull Plunger and open the Bed Hook Latch (below left).

2. Hook the bed hook (rear of Heartstart MRx) over the Mounting Bar (below center).

3. Close the Bed Hook Latch over the bed hook, ensuring that the Plunger snaps snaps into clearance hole (below right).

Insert Slide

Set Screws (2)

Plunger/Latch Open

Latch Closed

DU-PH-0050-03 Rev D 3/27/12 GCX Corp. Page 3 of 3

Periodic Maintenance

Periodically inspect all fasteners associated with the mounting system. Tighten or adjust fasteners as necessary for

optimal operation and safety.

Cleaning the Mounting Assembly

1. The mounting assembly may be cleaned with most mild, non-abrasive solutions commonly used in the hospital

environment (e.g. diluted bleach, ammonia, or alcohol solutions).

2. The surface finish will be permanently damaged by strong chemicals and solvents such as acetone or

trichloroethylene.

3. Do not use Steel wool or other abrasive material.

4. Damage caused by the use of unapproved substances or processes will not be warranted. We recommend testing of

any cleaning solution on a small area of the mounting assembly that is not visible to verify compatibility.

5. Never submerge or allow liquids to enter the mounting assembly. Wipe any cleaning agents off of the mounting

assembly immediately using a water-dampened cloth. Dry the mounting assembly thoroughly after cleaning.

CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for controlling

infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted devices or

accessory equipment, refer to the specific instructions delivered with those products.

BaseColumn#10-32 x 9/16''

FHMS (3)

Manual Tilt

Clamp

#10-32 x 5/8''

FHSCS (3)

#10 x 1-1/2''

FHSMS (3)

Pic 6Pic 5Pic 4#10 x 1-1/2

FHSMS (3)

#10-32 x 5/8''

FHSCS (3)

#10-32 x 9/16''

FHMS (3)

Pic 2Pic 3Pic 1Swivel HeadRoll Stand Post
