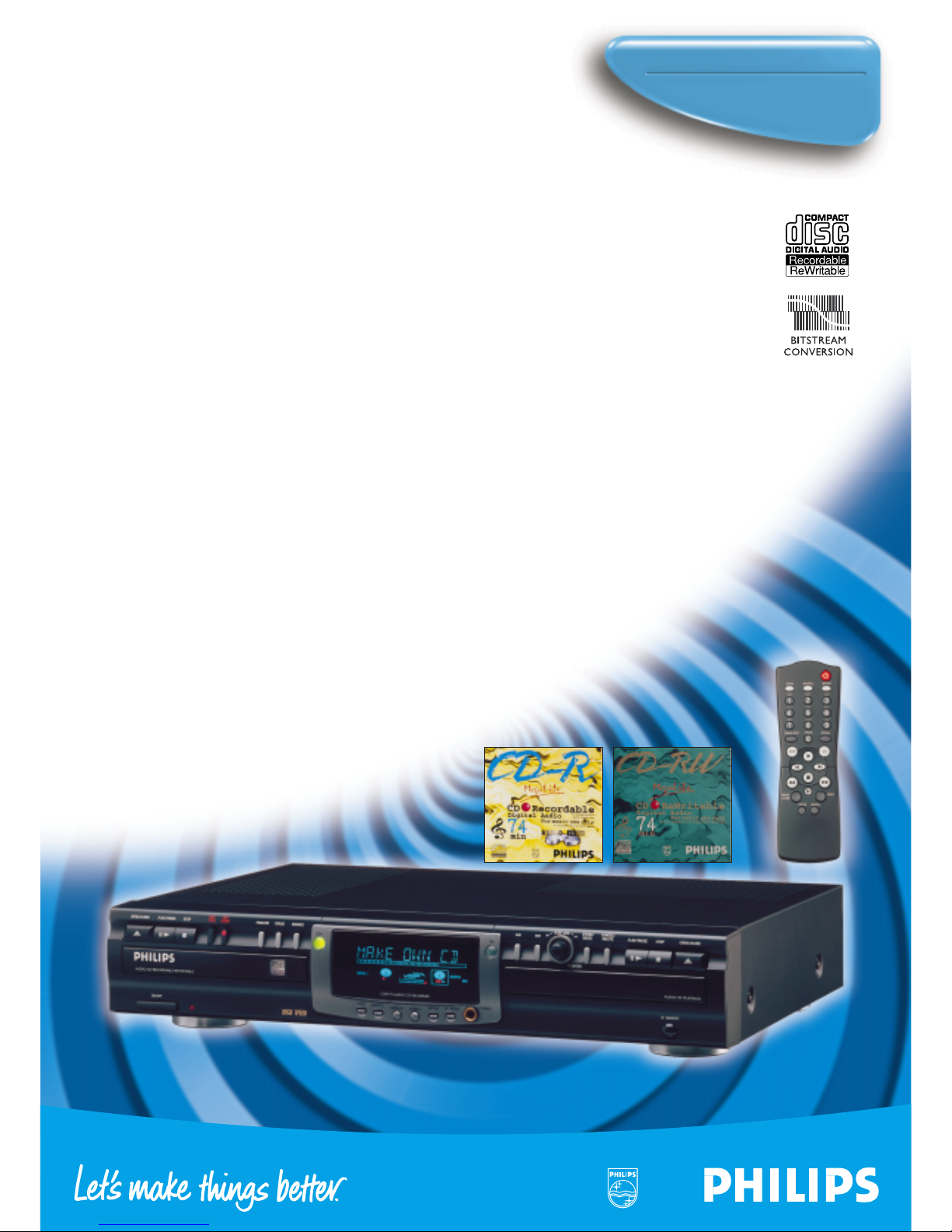

Audio CD-Recorder

CDR 775B

Dual deck CD-Recorder CDR 775B

• Two separate CD decks (Recording and playback)

• Double speed & Listen mode recording (disc)

• 2-disc simultaneously playback / 2-disc random playback

• Separate outputs for CDR and CD (digital/analogue)

• 3x CD text features (recording, input & editing for max. 60 characters)

• CD deck plays unfinalised RW discs

• AD - DA convertor UDA1341TS (CODEC)

• Sample Rate Conversion (12-56 kHz)

• Direct Line Recording (DLR)

• Records HQ-CD format (Via DLR only)

• Analogue + digital (separate channel) record level control (64 steps)

• Continuous calibration (Running OPC)

• Max. 99-track program on both CDR and CD deck

• CD Synchronised auto start recording from

all analogue and digital sources (disc)

• Text scrolling

• Standby (via RC) + hard on/off

• Music calendar

• Easy jog (Menu controlled user interface)

• High quality starbust FTD (display)

• Auto (un) finalise

• Erasing per track, selection of last tracks & whole disc

(takes max. 2 min.)

• Introscan

• Tray blocking (dealer function)

• Gold plated headphone connection

• Remote control

Audio CD-Recorder

CDR 775B

700+ series CD player

Technical Specifications CDR 775B

General

• System Compact disc digital Audio

(Dual deck CD-recorder + CD-player)

• Number of channels 2 (stereo)

• Applicable supply Multi voltage 100V - 240V 50-60 Hz (/00 only) 117V (/17)

• Power consumption 19W (<=6W in standby)

• Operating temperature 5-35°C

• Weight 4 kg

• Dimensions 435 x 305 x 88 mm (w x d x h)

Audio

• Digital frequency range 2 Hz - 22,05 kHz

• Playback S/N (CDR &CD) 100 dB (A-weighted)

• Playback dynamic range (CDR &CD) 95 dB 90 dB

• Play back total harmonic distortion

+ Noise (CDR &CD) 88 dB (0,0039%) & 85 dB (0,0056%)

• Recording S/N (Analogue) 98 dB (A-weighted)

• Recording S/N (Digital) Recording quality equal to Source

• Recording dynamic range 92 dB

• Recording total harmonic distortion 85 dB (0,0079%)

• Headphones 3Vrms / 8-2000Ω

Output

• 1x Analogue line output CDR (+ CD) 2Vrms +/- 2 dB / 0.2 kΩ

• 1x Analogue line output CD 2Vrms +/- 2 dB / 0.2 kΩ

• 1x Digital coaxial output CDR (+CD) 0.5V(pp) / 75Ω

• 1x Digital coaxial output CD 0.5V(pp) / 75Ω

Input (level adjustment)

• Direct line recording (bypass SRC) for 44.1 kHz +/- 100 ppm

• 1x Digital coaxial input (SRC) 12 - 56 kHz / 0.5Vrms / 75Ω

• 1x Digital optical input (SRC) 12 - 56 kHz

• 1x Analogue input 500 mVrms / 50 kΩ= 0 dB

Recording functions

• Recording on CD-R & CD-RW disc

• Records from all home stereo analogue and digital sources

• Recording from internal & external source

• Single & double speed recording (disc, track)

• Auto start recording

• Multi track erase (CD-RW disc)

• Soft mute insert function

• Erase disc (CD-RW disc)

• Auto finalise / unfinalise disc (CD-RW disc)

• Manual / Auto track increment

• Remaining recording time display

• Double speed finalising (make disc compatible to CD-player)

• SCMS (Serial Copy management system)

• Auto switch over to analogue recording in case of

copy protected track or disc

• RID code (Recorder Unique identifier)

Playback functions

• Plays all Audio CD’s

(120 mm + 80 mm discs)

• Simultaneously playback

(recorder + player)

• Introscan - Pause - Stop

• Random playback from 2 discs

• Direct track selection

• Track selection with easy jog

• Search forward / reverse

• Repeat (all / per track)

• Program play (99 tracks)

• Time display switching

• Permanent text option

The products and services described here are not necessarily to become available in the market. This document contains preliminary information. Due to continuous improvements this specification is subject to changes without notice. Printed in the Netherlands. 2/99

Accessories

• Remote control (+batteries)

• Audio cable (x2)

• Digital coaxial cable (x1)

• AC mains cord

DISPLAY SCROLL DJ MODE

REPEATSHUFFLE

PROG

Recordable

IR SENSOR

OPEN / CLOSE

REC

TYPE

REC

START

OPEN / CLOSE PLAY/ PAUSE STOP

ENTER

PLAY/ PAUSE STOP FINALIZE ERASE SOURCE

CDR CD

PHONES

CDR775AUDIO CD RECORDER

AUDIO CD PLAYBACK

CANCEL/

DELETE

STORE/

EASY JOG

AUDIO CD RECORDABLE/REWRITABLE

ON/OFF

TRACK

REC

DIGITAL

PROG

SHUFFLE

REPEAT

CHANGER

SYNC MANUAL RECORD

TRACK

FADE

123456789

10 11 12 13 14 15 16 17 18 19 20 +

DOUBLE SPEED

SCAN

ABC

GHI

DEF

JKL OPQ

RST XYZ

UVW

SPACE

ENTER CANCEL

TRACK INCR.

MENU/

STORE

PROG.

CDR CD

SCROLL

SHUFFLE REPEAT
