TABLE OF CONTENTS

Page

Service Manual

. Mechanical and Dismantling Instructions…………........................3-1

. Software Upgrades ........................................................................4-1

. Trouble Shooting Chart……………………………………………….5-1

. Wiring Diagram………………………………………..………..….….6-1

. Electrical Diagrams and Print-layouts..….…………………....….…7-1

. Set Mechanical Exploded view & Part list.…………………..….…10-1

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise

without the prior permission of Philips.

CLASS 1

LASER PRODUCT

PHILIPS

. DFU Instruction..............................................................................2-1

. Revision List.................................................................................11-1

Home Theater Soundbar

. Technical Specifications…………....………………………..............1-

. Safety Instruction, Warning & Notes….……………………....….....1-

. Location of PCB Boards ,Version Variation and Repair Scenario Matrix....1-2

Published by Arya & Stephen - 1234BU AVM Printed in The Netherlands Subject to modification

3141 785 38360

Version 1.1

Service

HTB5150D/12

. Votages and Waveforms for Connection Pins..….………………...8-1

. Pin Description & Block Diagrams of ICs..….………………..........9-1

. Votages and Waveforms for Connection Pins..….………………...8-1

VERSION VARIATIONS FOR SOUNDBAR

Type / Versions HTB5150D

Service Police

MAIN BOARD M +C

POWER BOARD M +C

AMPLIFER BOARD M +C

KEY BOARD M

LOADER M

VFD BOARD M

IN BOARD M

WIRELESS BOARD M

WIFI BOARD M

＊Tips：

Board in used

C -- Component Lever Repair

M -- Module Lever Repair

X -- Used

/12

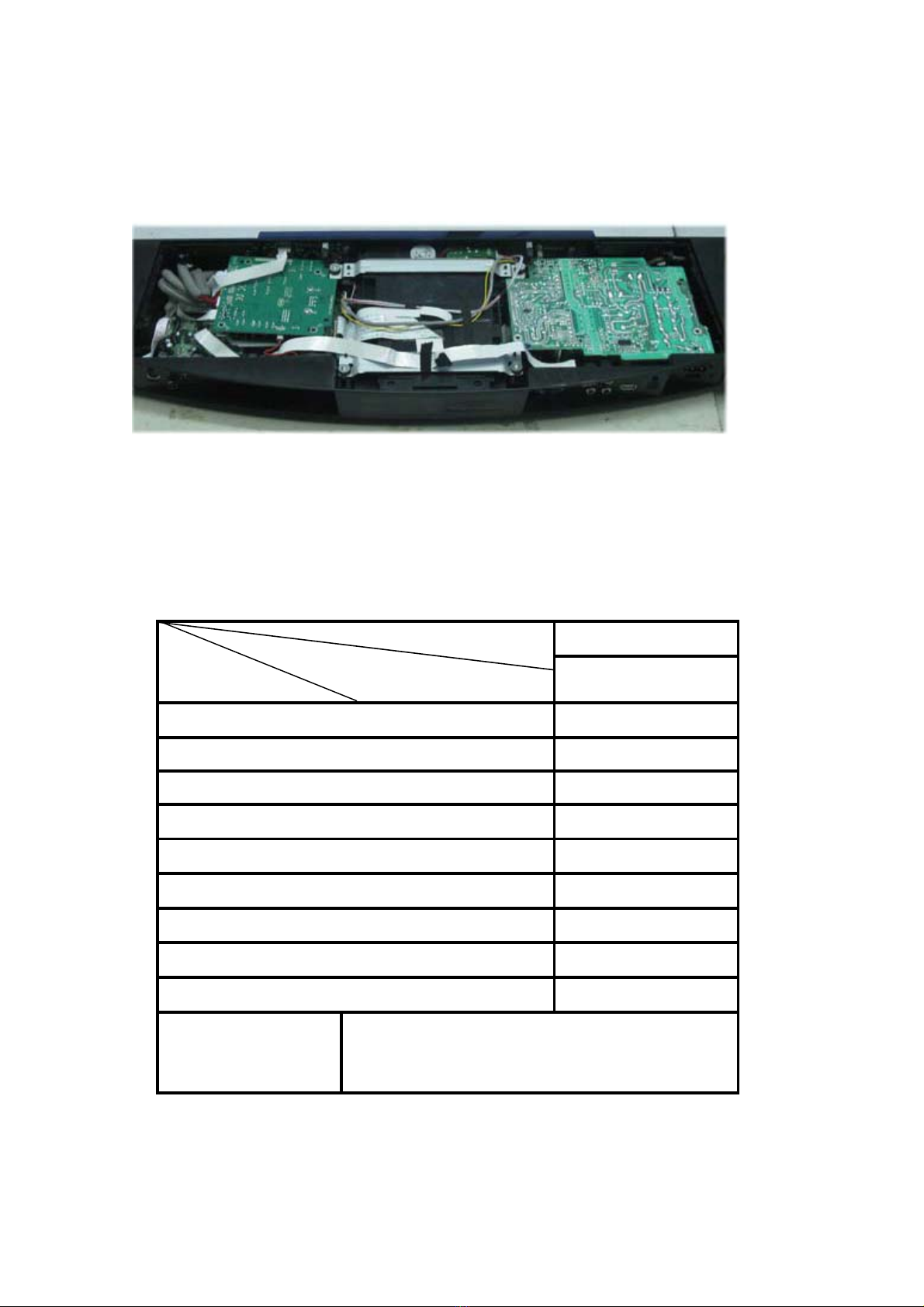

PCB BOARD LOCATION OF SOUNDBAR:

MAIN BOARD

AMPLIFIER BOARD

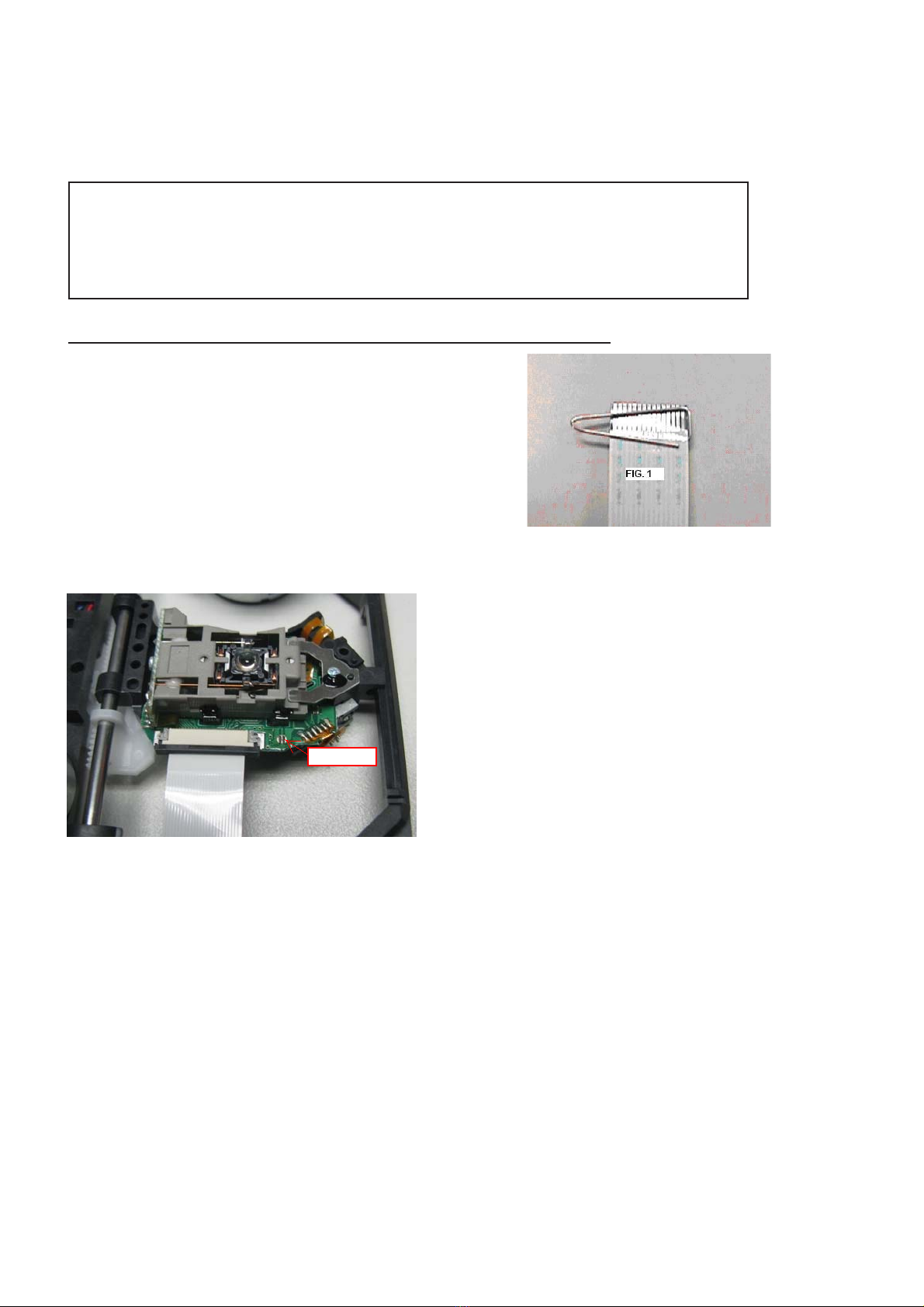

LOADER

POWER BOARD

IN BOARD

1-2

KEY BOARD

VFD BOARD

WIRELESS

BOARD(UNDER

MAIN BOARD)

WIFI BOARD

Board in used

VERSION VARIATIONS FOR SUBWOOFER

Type / Versions HTB5150D

Service Police

POWER BOARD M

AMPLIFER BOARD M

WIRELESS BOARD M

WIFI BOARD M

＊Tips：

Board in used

C -- Component Lever Repair

M -- Module Lever Repair

X -- Used

/12

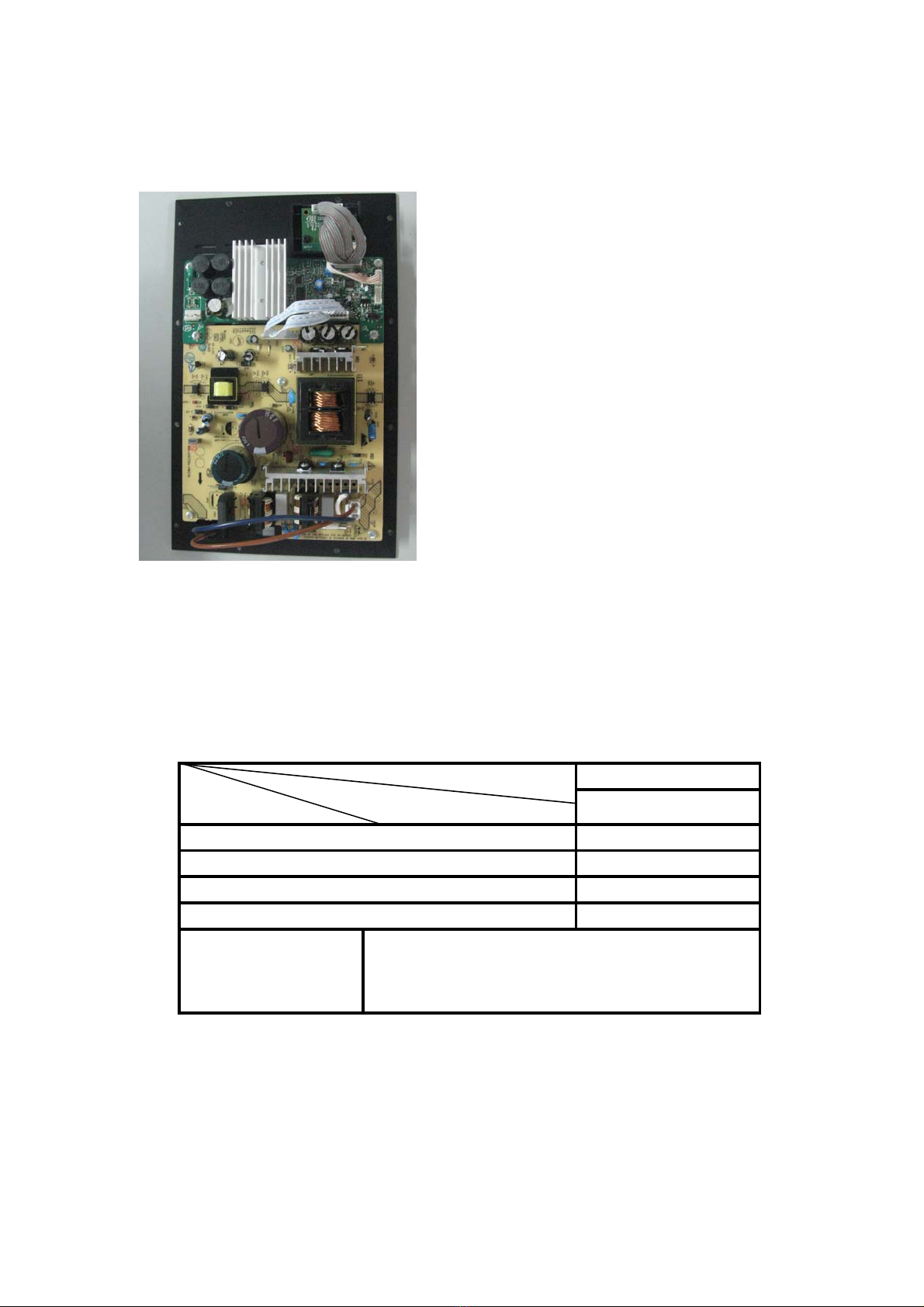

PCB BOARD LOCATION Of SUBWOOFER:

AMPLIFIER BOARD

POWER BOARD

1-2

WIRELESS BOARD

WIFI BOARD（UNDER

WIRELESS BOARD)

Product

specifications

Note

6SHFLÀFDWLRQVDQGGHVLJQDUHVXEMHFWWRFKDQJHZLWKRXW

notice.

Region codes

The type plate on the back or bottom of the

home theater shows which regions it supports.

Media formats

 AVCHD, BD, BD-R/ BD-RE, BD-Video,

DVD-Video, DVD+R/+RW, DVD-R/-RW,

DVD+R/-R DL, CD-R/CD-RW,Audio CD,

9LGHR&'69&'3LFWXUHÀOHV03PHGLD

WMA media, DivX Plus HD media, USB

storage device

Country DVD BD

Europe,

United Kingdom

Korea

Latin America

Australia,

New Zealand

Russia, India

China

Asia Pacific, Taiwan,

File formats

 Audio: .aac, .mka, .mp3, .wma, .wav, .mp4,

PDUDÁDFRJJ

 Video:

 .avi, .divx, .mp4, .m4v, .mov, .mkv, .m2ts,

DVIZPYPSJPSHJÁYJSJ

 .rmvb, .rm, .rv (Available only in Asia

3DFLÀFDQG&KLQD

 3LFWXUHMSJMSHJMSHMLIMÀIMÀJLISQJ

Audio formats

Your home theater supports the following

DXGLRÀOHV

Extension Con-

tainer

Audio

codec

Bit rate

.mp3 MP3 MP3 Upto 320 kbps

.wma ASF WMA Upto 192 kbps

WMA Pro Upto 768 kbps

.aac AAC AAC, HE-

AAC

Upto 192 kbps

.wav WAV PCM 27.648 Mbps

.m4a MKV AAC 192 kbps

.mka MKA PCM 27.648 Mbps

Dolby

Digital

640 kbps

DTS core 1.54 Mbps

MPEG 912 kbps

MP3 Upto 320 kbps

WMA Upto 192 kbps

WMA Pro Upto 768 kbps

AAC, HE-

AAC

Upto 192 kbps

.ra RM AAC, HE-

AAC

Upto 192 kbps

Cook 96469 bps

ÁDF FLAC FLAC Upto 24 bps

.ogg OGG Vorbis Variable bit rate,

maximum block

size 4096

FLAC Upto 24 bps

OGGPCM No limit

MP3 Upto 320 kbps

1-3

Video formats

,I\RXKDYHDKLJKGHÀQLWLRQ79\RXUKRPH

theater allows you to play your:

 YLGHRÀOHVZLWKDUHVROXWLRQRI[

1080 pixels (except DivX, which has a

resolution of 77220 x 576) and frame rate

of 6 ~ 30 frames per second.

 SKRWRÀOHVZLWKDUHVROXWLRQRI0SL[HOV

DYLÀOHVLQ$9,FRQWDLQHU

Audio

codec

Video codec Bit rate

PCM,

Dolby

Digital,

DTS core,

MP3,

WMA

DivX 3.11, DivX 4.x,

DivX 5.x, DivX 6.x

10 Mbps

max

MPEG 1, MPEG 2 40 Mbps

MPEG 4 SP / ASP 38.4

Mbps

H.264/AVC upto

[email protected]

25 Mbps

WMV9 45 Mbps

GLY[ÀOHVLQ$9,FRQWDLQHU

Audio codec Video codec Bit rate

PCM, Dolby

Digital, MP3,

WMA

DivX 3.11,

DivX 4.x, DivX 5.x,

DivX 6.x

Mbps

max

PSRUPYÀOHVLQ03FRQWDLQHU

Audio codec Video codec Bit rate

Dolby Digital,

MPEG, MP3,

AAC, HE-AAC,

DD+

MPEG 1,

MPEG 2

40 Mbps

MPEG 4 ASP 38.4

Mbps

H.264/AVC

[email protected]

25 Mbps

PRYÀOHVLQ029FRQWDLQHU

Audio codec Video codec Bit rate

Dolby Digital,

MPEG, MP3,

AAC, HE-AAC

MPEG 1, MPEG

40 Mbps

MPEG 4 ASP 38.4

Mbps

H.264/AVC

[email protected]

25 Mbps

PNYÀOHVLQ0.9FRQWDLQHU

Audio codec Video codec Bit rate

PCM, Dolby

Digital, DTS core,

MPEG, MP3,

WMA, AAC, HE-

AAC, DD+

DivX Plus HD 30 Mbps

MPEG 1, MPEG

40 Mbps

MPEG 4 ASP 38.4

Mbps

H.264/AVC

[email protected]

25 Mbps

WMV9 45 Mbps

PWVÀOHVLQ0.9FRQWDLQHU

Audio codec Video codec Bit rate

PCM, Dolby Digital,

DTS core, MPEG,

MP3,WMA, AAC,

HE-AAC, DD+

MPEG 1,

MPEG 2

40 Mbps

MPEG 4 ASP 38.4

Mbps

H.264/AVC

[email protected]

25 Mbps

WMV9 45 Mbps

DVIDQGZPYÀOHVLQ$6)FRQWDLQHU

Audio codec Video codec Bit rate

Dolby Digital,

MP3,WMA,

DD+

MPEG 4 ASP 38.4 Mbps

H.264/AVC

[email protected]

25 Mbps

1-4

Audio codec Video codec Bit rate

WMV9 45 Mbps

PSJDQGPSHJÀOHVLQ36FRQWDLQHU

Audio codec Video codec Bit rate

PCM, DTS core,

MPEG, MP3

MPEG 1,

MPEG 2

Mbps

ÁYÀOHVLQ)/9FRQWDLQHU

Audio

codec

Video codec Bit rate

MP3,

AAC

H.264/AVC upto

[email protected]

25 Mbps

H.263 38.4 Mbps

On2 VP6 40 Mbps

JSÀOHVLQ*3FRQWDLQHU

Audio

codec

Video codec Bit rate

AAC, HE-

AAC

MPEG 4 ASP 38.4 Mbps

H.264/AVC upto

[email protected]

25 Mbps

max

UPUYDQGUPYEÀOHVLQ50FRQWDLQHU

$YDLODEOHRQO\LQ$VLD3DFLÀFDQG&KLQD

Audio codec Video codec Bit rate

AAC, COOK RV30, RV40 40 Mbps

$PSOLÀHU

 Total output power:

 550W RMS (+/- 0.5 dB, 30% THD) /

440W RMS (+/- 0.5 dB, 10% THD)

 Frequency response: 20 Hz-20 kHz / ±3

 Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

 Input sensitivity:

 AUX: 2 V

 Music iLink: 300 mV

Video

 Signal system: PAL / NTSC

 HDMI output: 480i/576i, 480p/576p, 720p,

1080i, 1080p, 1080p24

Audio

 S/PDIF Digital audio input:

 Optical:TOSLINK

 Sampling frequency:

 MP3: 32 kHz, 44.1 kHz, 48 kHz

 WMA: 44.1 kHz, 48 kHz

 Constant bit rate:

 MP3: 32 kbps - 320 kbps

 WMA: 48 kbps - 192 kbps

Radio

 Tuning range:

 Europe/Russia/China: FM 87.5-108

MHz (50 kHz)

 $VLD3DFLÀF/DWLQ$PHULFD)0

MHz (50/100 kHz)

 Signal-to-noise ratio: FM 50 dB

 Frequency response: FM 180 Hz-12.5 kHz

/ ±3 dB

USB

 Compatibility: Hi-Speed USB (2.0)

 Class support: USB Mass Storage Class

(MSC)

 File system: FAT16, FAT32, NTFS

Main unit

 Power supply:

 Europe/China: 220-240 V~, 50 Hz

 /DWLQ$PHULFD$VLD3DFLÀF

V/220-240 V~, 50-60 Hz

 Russia/India: 220-240 V~, 50 Hz

 Satellite speakers: 4 x 2.5" speakers

 Power consumption: 60 W

 Standby power consumption: 0.5 W

 Dimensions (WxHxD): 1060 x 83.1 x

194.8 mm

1-5

 Weight: 4.9 KG

Subwoofer

 Impedance: 3 ohm

 Speaker drivers: 1 x 6.5" woofer

 Power consumption: 50 W

 Standby power consumption: 0.5 W

 Dimensions (WxHxD): 195 x 298 x 410

 Weight: 7.2 KG

Remote control batteries

 2 x AAA-R03-1.5 V

Laser

 Laser Type (Diode): InGaN/AIGaN (BD),

AIGaInP (DVD/CD)

 Wave length: 405 +7 nm/-7 nm (BD), 655

+10 nm/-10 nm (DVD), 790 +10 nm/-20

nm (CD)

 Output power (Max. ratings): 20 mW

(BD), 6 mW (DVD), 7 mW (CD)

1-6

Safety instruction

1. General safety

Safety regulations require that during a repair:

. Connect the unit to the mains via an isolation transformer.

. Replace safety components indicated by the symbol ,

only by components identical to the original ones. Any

other component substitution (other than original type)

may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, you must

return the unit in its original condition. Pay, in particular,

attention to the following points:

. Route the wires/cables correctly, and fix them with the

mounted cable clamps.

. Check the insulation of the mains lead for external

damage.

. Check the electrical DC resistance between the mains

plug and the secondary side:

1) Unplug the mains cord, and connect a wire between

the two pins of the mains plug.

2) Set the mains switch the “on” position (keep the

mains cord unplug).

3) Measure the resistance value between the mains

plug and the front panel, controls, and chassis

bottom.

4) Repair or correct unit when the resistance

measurement is less than 1M

5) Verify this, before you return the unit to the

customer/user (ref. UL-standard no. 1492).

6) Switch the unit “off”, and remove the wire between

the two pins of the mains plug.

2.Laser safety

This unit employs a laser. Only qualified service personnel

may remove the cover, or attempt to service this device

(due to possible eye injury).

Laser device unit

Type :SemiconductorlaserGaAlAs

Wavelength : 650nm (DVD)

: 780nm (VCD/CD)

Output power : 7mW (DVD)

:10mW(DVD/CD)

Beam divergence: 60 degree

Note: Use of controls or adjustments or performance of

procedure other than those specified herein, may result in

hazardous radiation exposure. Avoid direct exposure to

beam.

Safet

instruction, Warnin

& Notes

1-7

Warning

1.General

. All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD). Careless handing during

repair can reduce life drastically. Make sure that, during

repair, you are at the same potential as the mass of the

set by a wristband with resistance. Keep components and

tools at this same potential. Available ESD protection

equipment:

1) Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable)

4822 310 10671.

2) Wristband tester 4822 344 13999.

. Be careful during measurements in the live voltage

section. The primary side of the power supply , including

the heat sink, carries live mains voltage when you

connect the player to the mains (even when the player is

“off”!). It is possible to touch copper tracks and/or

components in this unshielded primary area, when you

service the player. Service personnel must take

precautions to prevent touching this area or components

in this area. A “lighting stroke” and a stripe-marked

printing on the printed wiring board, indicate the primary

side of the power supply.

. Never replace modules, or components, while the unit is

“on”.

2. Laser

. The use of optical instruments with this product, will

increase eye hazard.

. Only qualified service personnel may remove the cover

or attempt to service this device, due to possible eye

injury.

. Repair handing should take place as much as possible

with a disc loaded inside the player.

. Text below is placed inside the unit, on the laser cover

shield:

Notes: Manufactured under licence from Dolby

Laboratories. The double-D symbol is trademarks of Dolby

CAUTION: VISIBLE AND INVISIBLE LASER

RADIATION WHEN OPEN, AVOID EXPOSURE

TO BEAM.

1-8

 6HUYLFH+LQWV

 &$87,21

&+$5*('&$3$&,7256217+(6(592%2$5'0$<'$0$*(7+('5,9(

(/(&7521,&6:+(1&211(&7,1*$1(:'5,9(7+$7¶6:+<%(6,'(67+(6$)(7<

0($685(6/,.(

  6:,7&+2))32:(56833/<

  (6'3527(&7,21

$'',7,21$/$&7,2160867%(7$.(1%<7+(5(3$,57(&+1,&,$1

 7KHIROORZLQJVWHSVKDYHWREHGRQHZKHQUHSODFLQJWKHGHIHFWLYHORDGHU



  'LVPDQWOLQJRIWKHORDGHUWRDFFHVVWKH(6'SURWHFWLRQSRLQWLIQHFHVVDU\

   6ROGHUWKH(6'SURWHFWLRQSRLQW    

  'LVFRQQHFWÀH[IRLOFDEOHIURPWKHGHIHFWLYHORDGHU

  3XWDSDSHUFOLSRQWKHÀH[IRLOWRVKRUWFLUFXLWWKHFRQWDFWV¿J

  5HSODFHWKHGHIHFWLYHORDGHUZLWKDQHZORDGHU

  5HPRYHSDSHUFOLSIURPWKHÀH[IRLODQGFRQQHFWLWWRWKHQHZORDGHU

  5HPRYHVROGHUMRLQWRQWKH(6'SURWHFWLRQSRLQW



$77(17,217KHODVHUGLRGHRIWKLVORDGHULVSURWHFWHGDJDLQVW(6'E\DVROGHUMRLQWZKLFKVKRUWFLUFXLWVWKHODVHUGLRGHWRJURXQG

)RUSURSHUIXQFWLRQDOLW\RIWKHORDGHUWKLVVROGHUMRLQWPXVWEHUHPRYHDIWHUFRQQHFWLRQORDGHUWRWKHVHW







 2QO\DSSOLFDEOHIRUGHIHFWLYHORDGHUQHHGHGWREHVHQWEDFNWRVXSSOLHUIRUIDLOXUHDQDO\VLVDQGWRVXSSRUWEDFNFKDUJLQJ 

 HYLGHQFH

 7KLVLVDOVRDSSOLFDEOHIRUDOOSDUWQHUVKLSZRUNVKRSV

(6'SURWHFWLRQSRLQWLVDFFHVVLEOHIURPWRSRIORDGHU

SolderJoint

1-9

Altri manuali per HTB5150D/12

Indice

Altri manuali Philips Sistema di altoparlanti

Philips

Philips HTL3110B Manuale utente

Philips

Philips htl1193b Manuale utente

Philips

Philips HTL2110 Manuale utente

Philips

Philips A 3.300 Acoustic Power Manuale utente

Philips

Philips SBCBC730/00 Manuale utente

Philips

Philips MMS222/00 Guida di riferimento

Philips

Philips SGC5101BD/27 Manuale utente

Philips

Philips HTL2183B/12 Manuale utente

Philips

Philips TAB8405 Manuale utente

Philips

Philips HTL5160B/12 Manuale utente

Philips

Philips HTL4110B Manuale utente

Philips

Philips everplay BT6900 Manuale utente

Philips

Philips MMS 101 Manuale utente

Philips

Philips HTL3160S Manuale utente

Philips

Philips HTL5140B Manuale utente

Philips

Philips SPA4355/37 Manuale utente

Philips

Philips SPA2300 Manuale utente

Philips

Philips 6000 Series Manuale utente

Philips

Philips RH567 Manuale utente

Philips

Philips NTX400 Scheda informativa del prodotto

Philips

Philips MMS 430 Manuale utente

Philips

Philips BT6000 Scheda informativa del prodotto

Philips

Philips Fidelio B97/98 Manuale utente

Philips

Philips HTL3160B Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
