Philips 7000 series Manuale utente
User manual
Soundbar Speaker
7000 Series
TAB7305
：

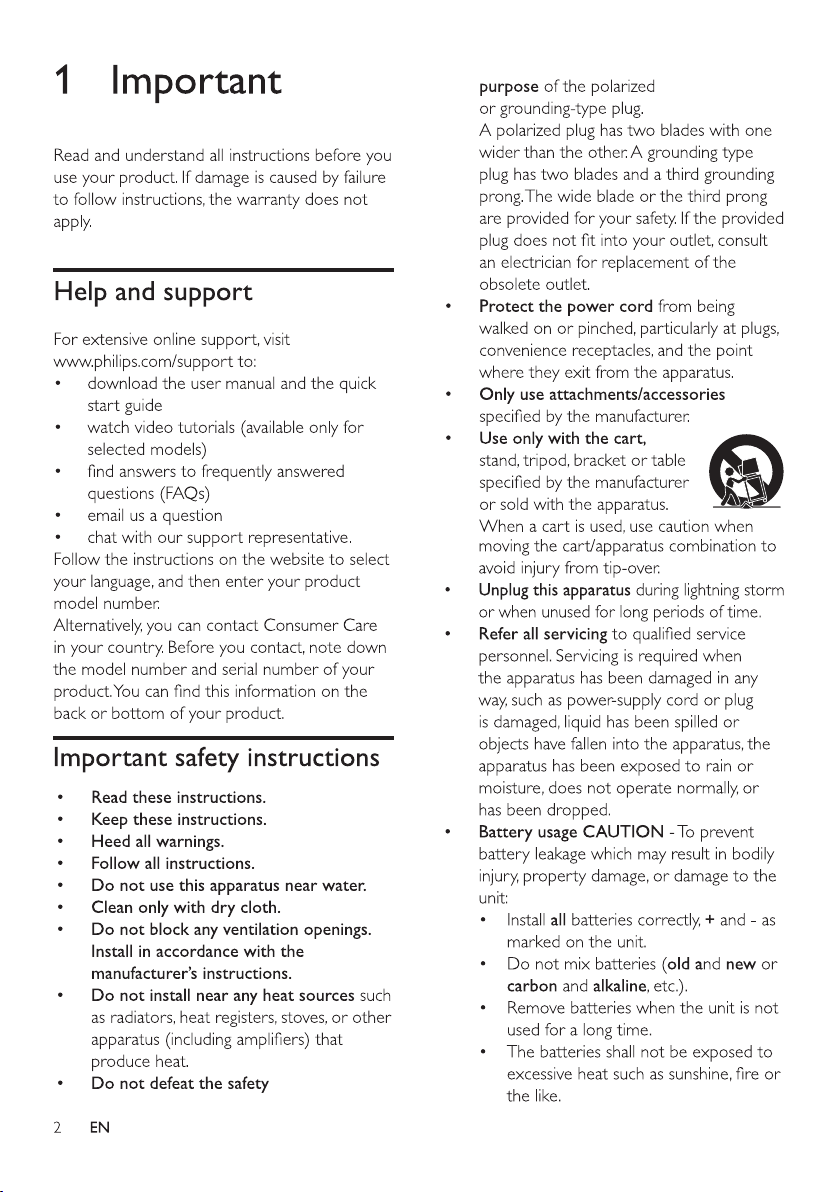

Help and support
Important Safety instructions
Care for your product
Care of the environment
Compliance
What’s in the Box
Placement
Connect audio from TV and other
devices
Connect to HDMI (ARC) Socket
Connect to Optical Socket
Connect to AUX Socket
Connect to Power
Pair up with the subwoofer
Automatic pairing
Manual pairing
2
2
2
3
4
3
6
6
6
7
9
9
10
10
10
10
11
11
11
12
12
12
12
13
13
14
15
16
5
Main unit
Wireless subwoofer
Connectors
Remote control
Prepare the remote control
Turn ON and OFF
Select Modes
Select Equalizer (EQ) Effect
Adjust the Volume
Bluetooth Operation
USB Operation
7
8
11
14
This product complies with the radio
interference requirements of the European
Community.
Hereby,TP Vision Europe B.V. declares that
this product is in compliance with the essential
requirements and other relevant provisions of
Directive 2014/53/EU.You can find the
Declaration of Conformity on
www.p4c.philips.com
POWER
Switch the Soundbar on or off.
SOURCE
Selects an input source for the Soundbar.
VOL +/-
Increase/Decrease the volume.
LED indicators
4
4
Wireless subwoofer
This section includes an overview of the
wireless subwoofer.
AC~Socket
Connect to the power supply.
Pair Button
Press to enter the pairing mode for the
subwoofer.
Subwoofer Indicator
When the power is turned on,the
indicator lights up.
During wireless pairing between
the subwoofer and the main unit,
the LED indicator blinks amber slowly.
When the pairing succeeds,the
indicator grows solid.
When the pairing fails,the indicator
blinks amber quickly.
When the main unit shut down or
enter standby mode,the LED
indicator is off.
HDMI
ARC AUX BT
EQ
USB
OPTICAL
Pair
1 2
9
35
4
6
7
8
10
11 12
HDMI OUT
(ARC)
USB OPTICAL IN AUX IN AC IN
USB
Audio input from a USB storage device .
HDMI OUT (ARC)
Connect to the HDMI input on the TV .
OPTICAL
Connect to an optical audio output on the
TV or a digital device .
AUX
Audio input from external device such
as TV, MP3 player, mobile phone, tablet,
etc .
AC~Socket
Connect to the power supply .
other products which generate infra-red
remote control operation maybe
using infra-red rays are used near the unit,
it may operate incorrectly. Conversely, the
First-time use :
The unit has a pre-installed lithium battery.
Remove the protective tab to activate the
remote control battery.
impossible if there are any obstacles
rays, or if other remote control devices
other products may operate incorrectly.
within the effective range 19.7 feet (6m),
between the unit and the remote control.
• If the Remote Control is operated near
• The provided Remote Control allows the
unit to be operated from a distance.
• Even if the Remote Control is operated
Prepare the Remote control
Replace the Remote Control Battery
The remote control requires a 3V CR2025
(+/-).
3 Use the tools to catch the groove of the
battery compartment cover and turn
to catch the groove of the battery box
Lithium battery.
cover and turn counter-clockwise to
and pay attention to the correct polarity
clockwise to (lock), secure it into the
remote control.
in the lid, place the new Cr2025 battery
1 Use tools (such as coin batteries/coins)
(unlock).
2 Remove the old battery, which is located
1 (POWER)
Switch the Soundbar on or off.
2 (MUTE)
Mute or restore volume.
3 HDMI ARC
Switch your source to HDMI ARC
connection.
4 AUX
Switch your audio source to the AUX
connection (3.5mm jack).
5 Pair/BT
Switch to Bluetooth mode. Press and
hold to activate the pairing function in
Bluetooth mode or disconnect the
existing paired Bluetooth device.
6 OPTICAL
Switch your audio source to the optical
connection.
7 USB
Switch to USB mode.
8 EQ
Select Equalizer (EQ) effect.
9 (PLAY/PAUSE)
Start, pause or resume play in BT/USB
mode.
10 (PREVIOUS/NEXT)
Skip to the previous or next track in
BT/USB mode.
11 VOL +/- (Soundbar’s Volume)
Increase or decrease volume.
12 +/- (Subwoofer’s Volume)
Increase or decrease the subwoofer's
volume.
confirmed to be a rechargeable type.
the batteries with new ones.
• Do not use any batteries other than those
Control to prevent it from leaking.
• If the batteries leak, wipe away the leakage
inside the battery compartment and replace
metallic objects. Doing so could cause
batteries to short circuit, leak or explode.
• Never recharge a battery unless it is
specified.
• Do not heat or disassemble batteries.
• Never throw them in fire or water.
• Do not carry or store batteries with other
Precautions Concerning Battery
• When the Remote Control is not to be used
for a long time (more than a month),
remove the battery from the Remote
21 3
9

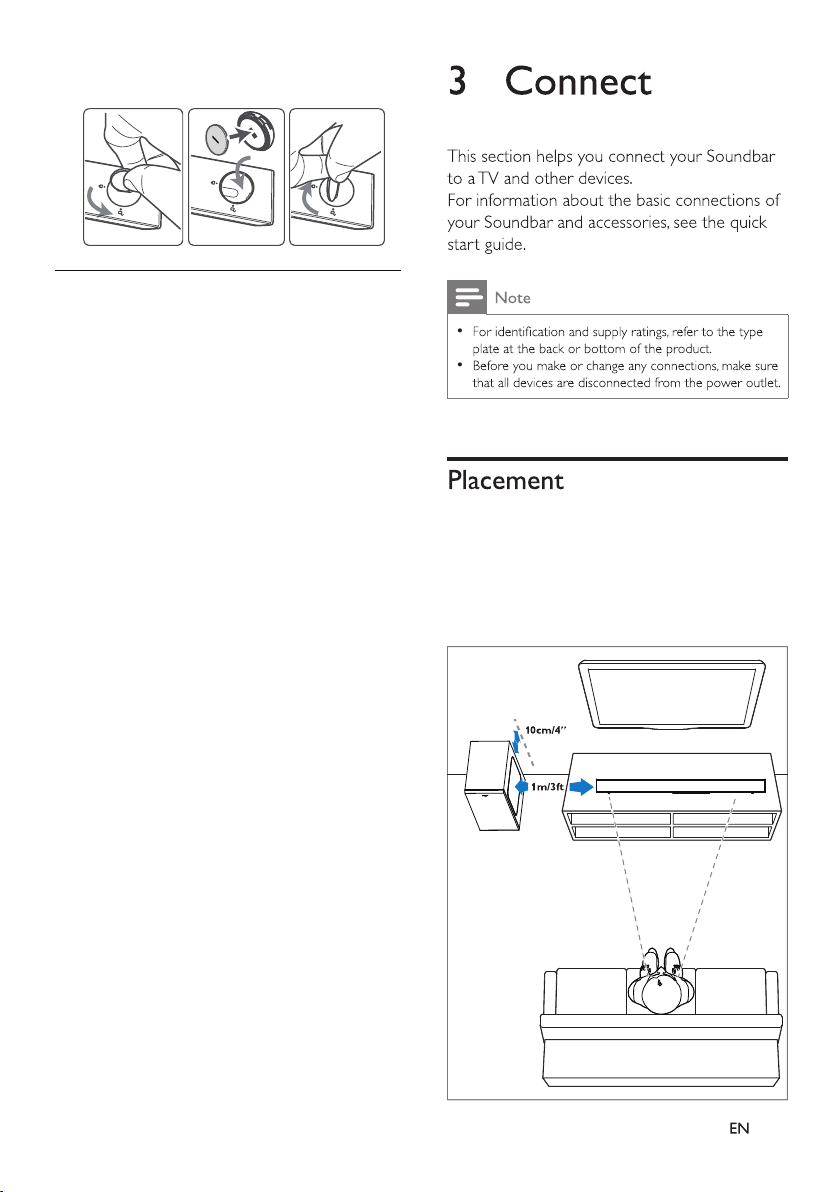

Place the subwoofer at least 1 meter (3 feet)
away from your Soundbar, and ten centimeters
away from the wall.
For best results, place your subwoofer as shown
below.
