Philips FWD197/98 Manuale utente

Quick start guide

FWD197/98

Connect

Setup

Enjoy

DVD Mini Hi-Fi System

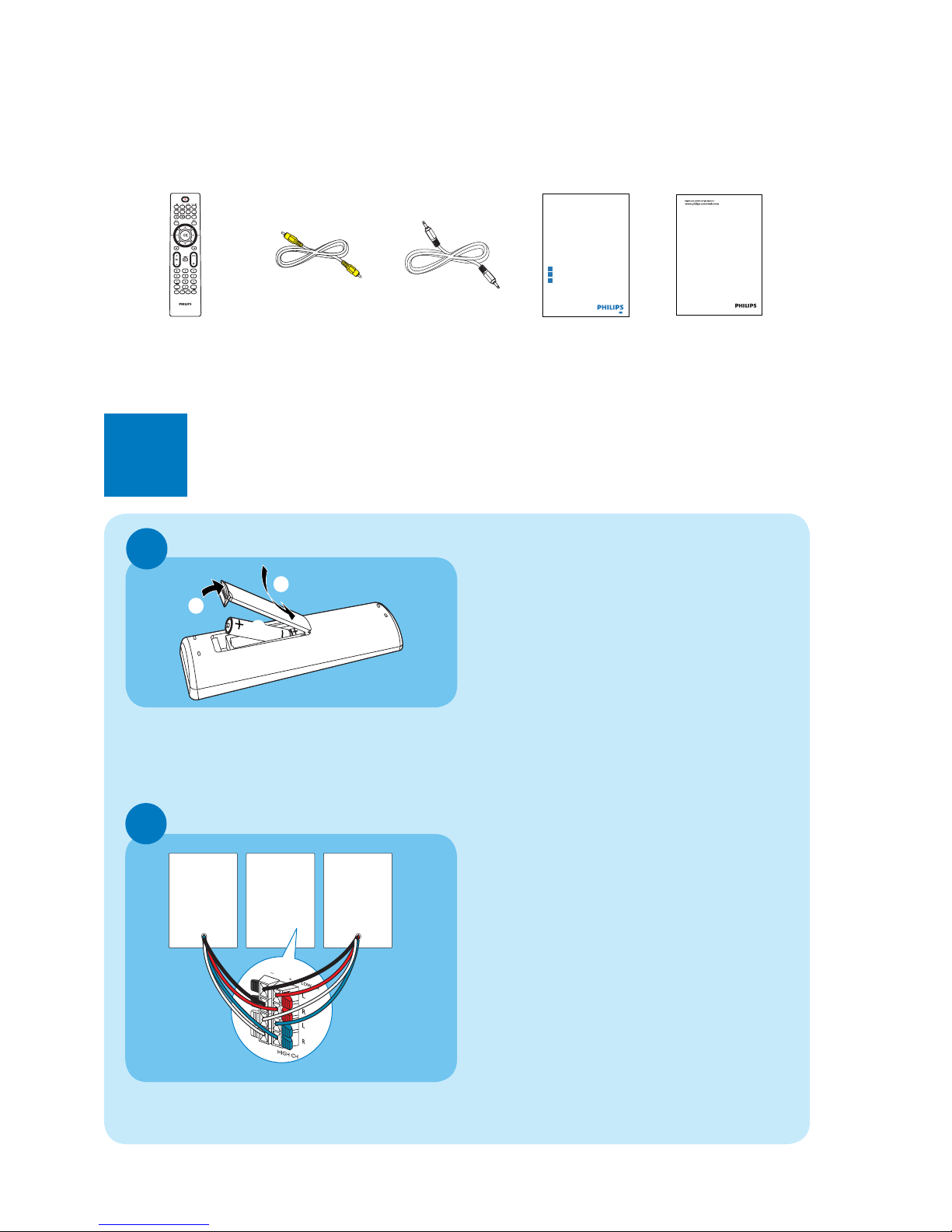

What’s in the box

Quick start guide

XXXXXX

Connect

Setup

2Enjoy

Eng

XXXXXXX

XXXXXX

Remote control Quick start guide User manual

Connect

Install remote control batteries

1Open the battery compartment.

2Insert 2 AAA batteries with correct

polarity (+/-) as indicated.

3Close the battery compartment.

Composite

video cable

(yellow)

Connect speakers

BDNote

•Ensure that the colors of the speaker

wires and terminals are matched.

1Hold down the socket ﬂap.

2Insert the stripped part of the wire com-

pletely.

Insert the right speaker wires to “•HIGH

CH R/LOW CH R”, left speaker wires to

“HIGH CH L/LOW CH L”.

Insert the red/blue wires to “•+”, black/grey

wires to “-”.

3Release the socket ﬂap.

MP3 link cable

HIGH CH

Speaker

(Right)

Speaker

(Left)

Connect

Connect power

HIGH CH

S-VIDEOVIDEO

AUDIO OUT COAXIAL

Pb Pr

Connect TV

HIGH CH

S-VIDEOVIDEO

AUDIOOUT COAXIAL

Pb Pr

VIDEO

ETip

•See the User Manual for how to connect

other devices to this system.

1Connect the supplied composite video

cable to:

• the VIDEO socket on this unit.

• the video input socket on the TV.

CCaution

•Risk of product damage! Ensure that the

power supply voltage corresponds to

the voltage printed on the back or the

underside of the unit.

•Risk of electric shock! When you unplug

the AC power cord, always pull the plug

from the socket. Never pull the cord.

• Before connecting the AC power cord,

ensure you have completed all other

connections.

1Switch the voltage selector to the local

power line voltage.

2Connect the AC power cord to the wall

socket.

HIGH CH

S-VIDEOVIDEO

AUDIO OUT COAXIAL

Pb Pr

110-

127V

220-

240V

Play disc

1Press DISC to select the disc source.

2Press OPEN/CLOSE to open the disc

compartment.

3Insert a disc with the printed side facing

up, then close the disc compartment.

Play starts automatically.

To pause/resume play, press•.

To stop play, press•9.

Enjoy

Setup

Set the clock

1In standby mode, press and hold OSD/

DISPLAY on the remote control.

The hour digits are displayed and begin to

blink.

2Press VOL +/- on the remote control to

set the hours.

3Press OSD/DISPLAY.

The minute digits are displayed and begin to

blink.

4Press VOL +/- to set the minutes.

5Press OSD/DISPLAY to conﬁrm the time.

Play from USB

1Insert the USB plug of a USB device into

the USB socket.

2Press USB to select the USB source.

Play starts automatically.

To pause/resume play, press•.

To stop play, press•9.

Enjoy

Program and tune to radio

stations

1In tuner mode, press and hold PROG for

2 seconds to activate automatic program

mode.

»[AUTO] (auto) is displayed and begins to

blink.

All available stations are programmed in the

order of waveband reception strength.

The ﬁrst programmed radio station is

broadcast automatically.

2In tuner mode, press J/Kto select a

preset number.

ETip

• Detailed features and additional functions are

described in the user manual.

Speciﬁcations are subject to change without notice.

Trademarks are the property of Koninklijke Philips

Electronics N.V. or their respective owners.

Printed in China PDCC-2009

ETip

•For optimal FM reception, fully extend and adjust

the position of the FM antenna.

•For optimal MW reception, adjust the position of

the main unit.
