Philips FWM377/05 Manuale utente

Quick Start Guide

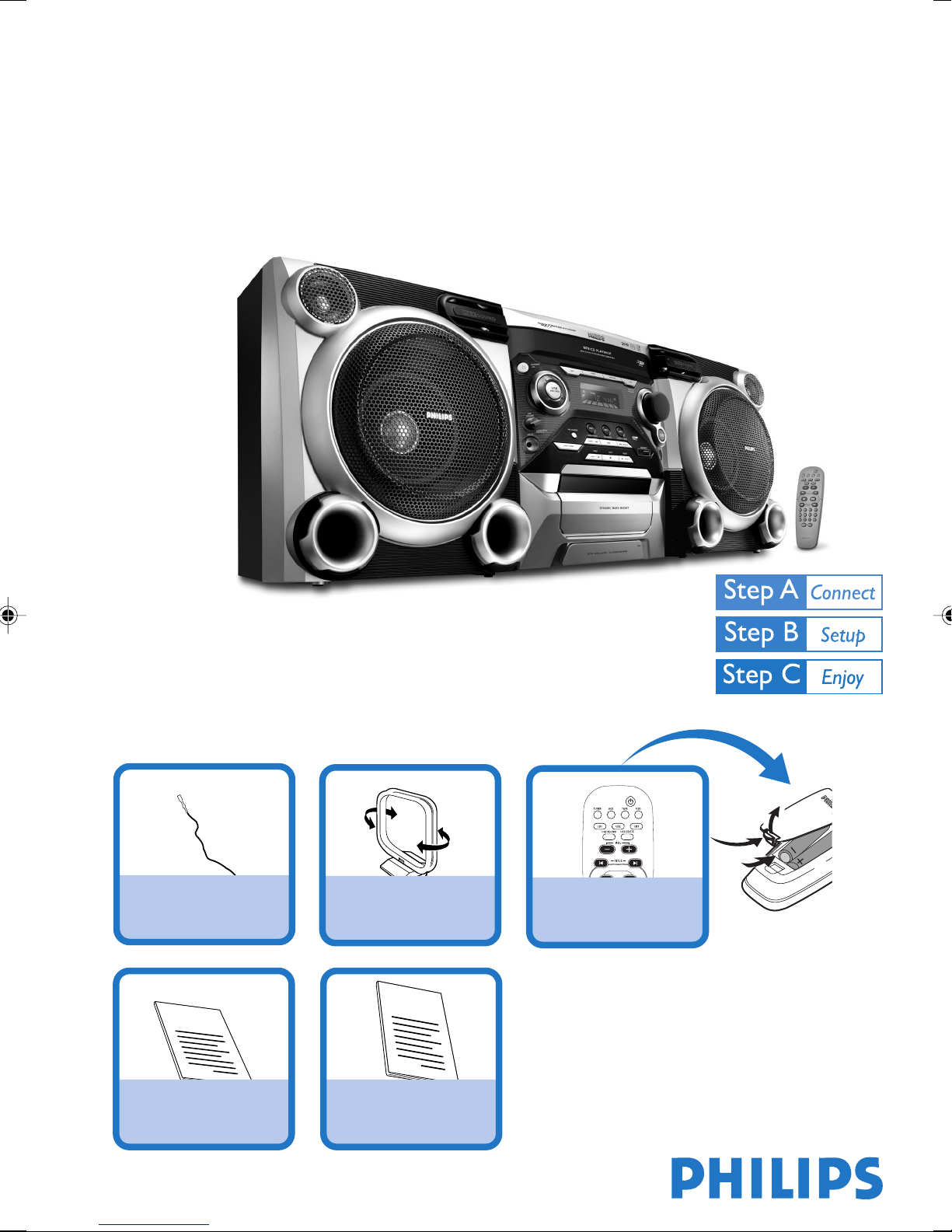

What’s in the Box?

You should find these items upon opening the box.

User Manual

FM antenna MW antenna Remote control with two

AA batteries

Quick Start Guide

Quick start guide

User manual

FWM377

FWM377 QUG_05_Eng 2007.2.11, 15:471

SetupSetup

Setting the clock

In standby or view clock mode, press CLOCK•TIMER once. In other

source mode, press CLOCK•TIMER twice.

Press àor árepeatedly to set the hour.

Press íor ërepeatedly to set the minute.

Press CLOCK•TIMER again to store the setting.

Connect the speaker cables.

Connect the MW and FM antennas.

Connect the power cable of the system.

Tip

See the User Manual for how to

connect other equipment to this

system.

AM ANTENNA

FM ANTENNA

AUX/CDR

R L

SPEAKERS 6Ω

LOW CH

– +

HIGH CH

AC power cord

Speaker

(right)

Speaker

(left)

FM antenna

MW antenna

IMPORTANT!

– To set clock in the Eco Power mode, press and hold STANDBY-ON/ECO

POWER

on the set for 3 seconds or more to switch to normal standby mode

first before proceeding with the procedures below.

FWM377 QUG_05_Eng 2007.2.11, 15:472

Enjoy

Playing a disc

Press OPEN•CLOSE to open the disc tray and load up to two

discs on the individual disc trays.To load the third disc, press DISC

CHANGE.

➜Make sure the label side of each loaded disc is facing up.

Press OPEN•CLOSE again to close the disc tray.

Use DSC 1/2/3 (or CD 1/2/3 on the remote control) to select a

disc for playback and then press ÉÅ to start playback.

To stop playback, press STOP9.

Programming and tuning to

radio stations

Press TUNER to select the tuner source.

Press PROG for more than two seconds to program all available

stations in order of waveband.

Press íor ëuntil the desired preset station is displayed.

FWM377 QUG_05_Eng 2007.2.11, 15:473

PDCC-JS/JW-0704

Enjoy

Insert the USB device’s USB plug into the socket on the set.

Press USB to select the USB source.

Play the USB’s audio files as you do with the albums/tracks on a CD,

Playing a USB mass storage device

With the Hi-Fi system, you can use USB flash memory (USB 2.0 or USB1.1),

USB flash players (USB 2.0 or USB1.1), memory cards (requires an additional card reader to

work with this Hi-Fi system).

Tip

Detailed playback features and additional functions are described in the

accompany owner's manual.

CRoyal Philips Electronics N.V. 2007

http://www.philips.com

Ripping function

Insert a USB mass device with sufficient free space to the USB DIRECT socket on

the set.

Prepare the source to record from.

Press USB RECORD to start ripping.

At any moment, simply press STOP9to stop ripping.

FWM377 QUG_05_Eng 2007.2.11, 15:474
