Philips FWM613/55 Manuale utente

Quick Start Guide

User Manual

FWM613

What’s in the Box?

You should ﬁnd these items upon opening the box.

Quick Start Guide

User Manual

1 x MP3 link cable

Remote Control with 2

AAA batteries

1 x FM wire antenna 1 x AM loop antenna

1 x AC power cable

1 x power plug adaptor

FWM613_55_QSG_Eng.indd 1FWM613_55_QSG_Eng.indd 1 12/19/2008 11:06:08 AM12/19/2008 11:06:08 AM

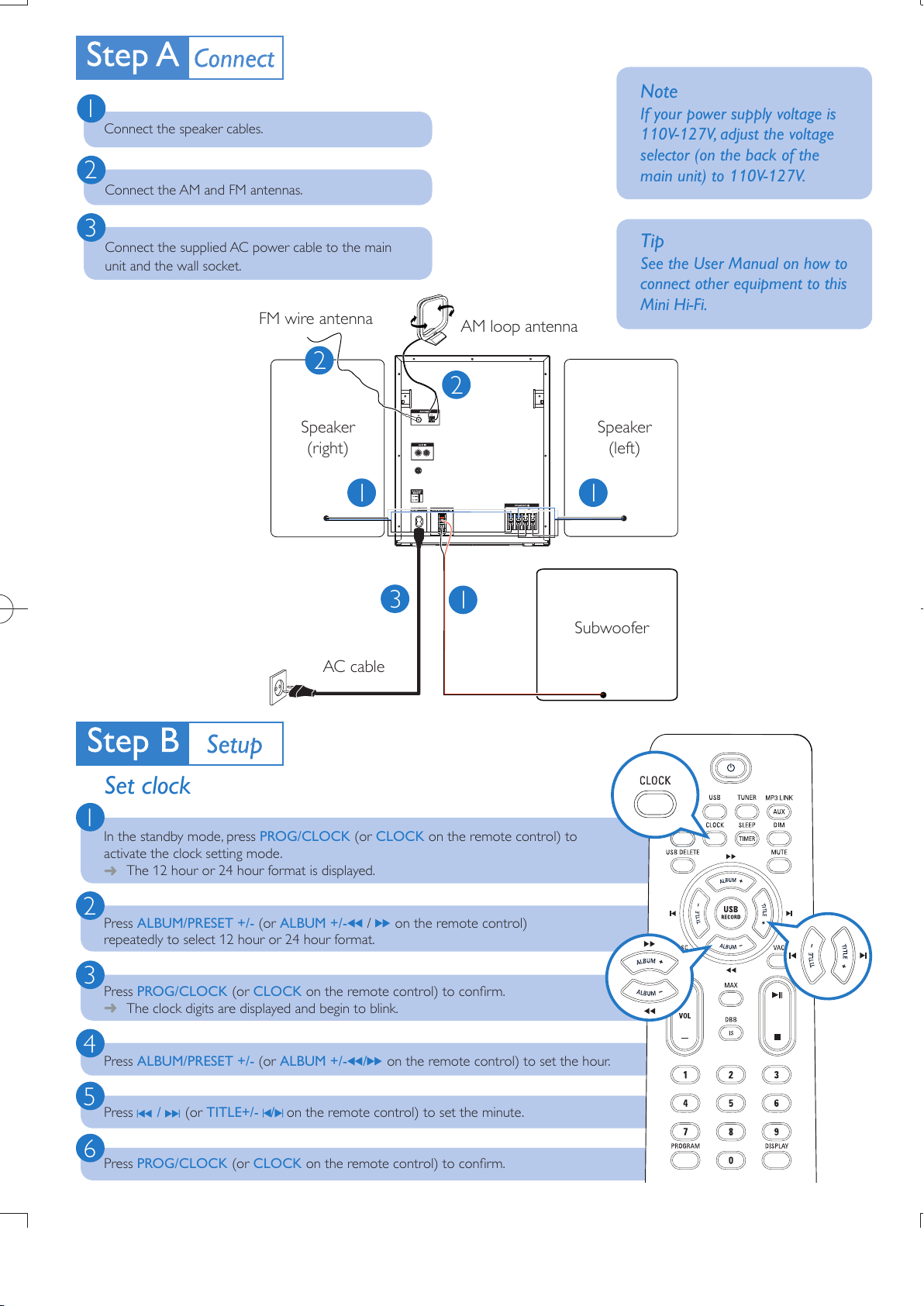

Connect the speaker cables.

Speaker

(right)

Speaker

(left)

AM loop antenna

AC cable

Tip

See the User Manual on how to

connect other equipment to this

Mini Hi-Fi.

Note

If your power supply voltage is

110V-127V, adjust the voltage

selector (on the back of the

main unit) to 110V-127V.

Set clock

In the standby mode, press PROG/CLOCK (or CLOCK on the remote control) to

activate the clock setting mode.

The 12 hour or 24 hour format is displayed.

Press ALBUM/PRESET +/- (or ALBUM +/-5/ 6on the remote control)

repeatedly to select 12 hour or 24 hour format.

Press PROG/CLOCK (or CLOCK on the remote control) to conﬁrm.

The clock digits are displayed and begin to blink.

Press ALBUM/PRESET +/- (or ALBUM +/-5/6on the remote control) to set the hour.

Press ∞/

§(or TITLE+/- J/Kon the remote control) to set the minute.

Press PROG/CLOCK (or CLOCK on the remote control) to conﬁrm.

Connect the AM and FM antennas.

Subwoofer

FM wire antenna

Connect the supplied AC power cable to the main

unit and the wall socket.

1 1

FWM613_55_QSG_Eng.indd 2FWM613_55_QSG_Eng.indd 2 12/19/2008 11:06:13 AM12/19/2008 11:06:13 AM

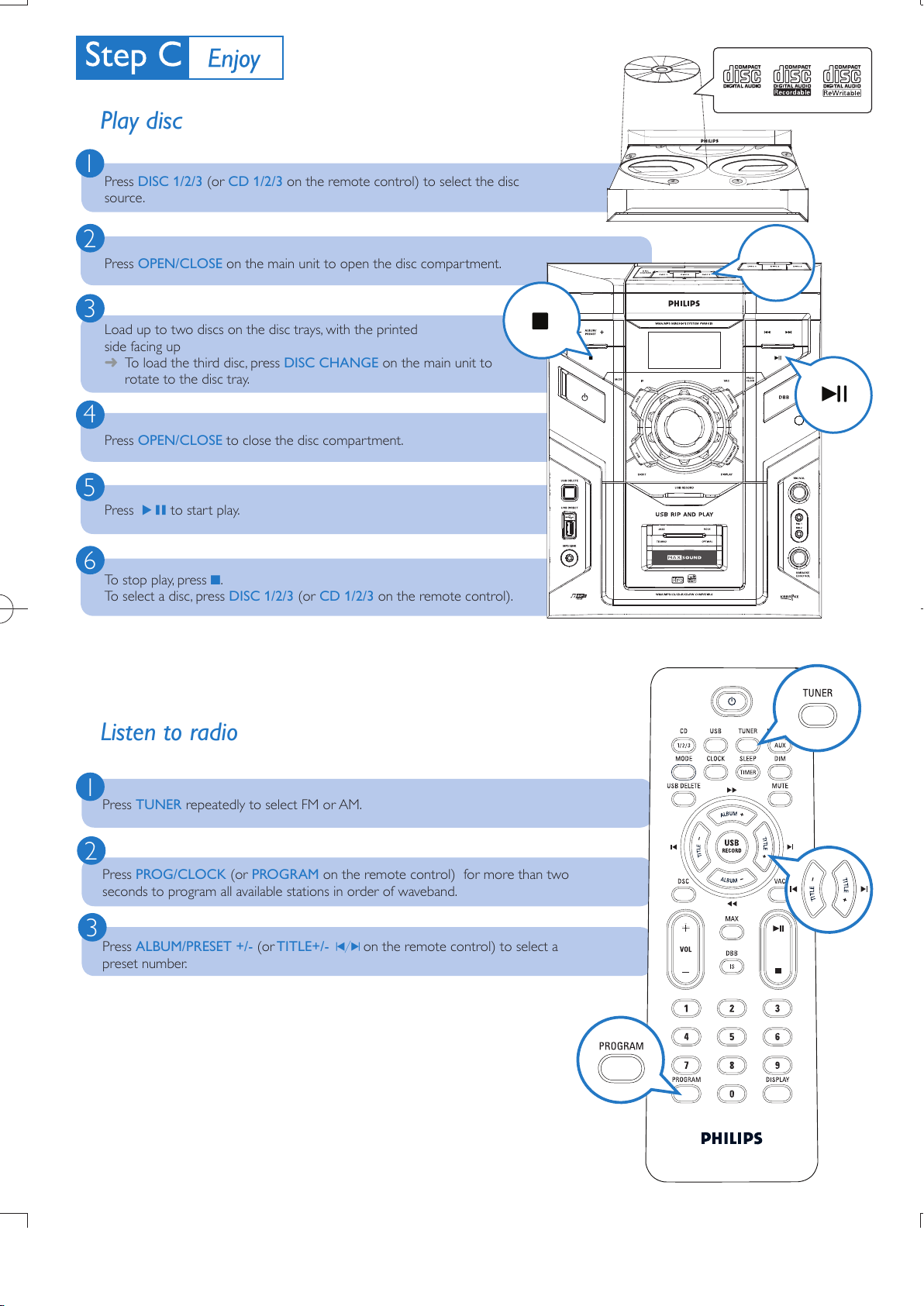

Play disc

Press DISC 1/2/3 (or CD 1/2/3 on the remote control) to select the disc

source.

Press

OPEN/CLOSE on the main unit to open the disc compartment.

Load up to two discs on the disc trays, with the printed

side facing up

To load the third disc, press

«DISC CHANGE on the main unit to

rotate to the disc tray.

Press OPEN/CLOSE to close the disc compartment.

Press

ÉÅ to start play.

To stop play, press

To select a disc, press DISC 1/2/3 (or CD 1/2/3 on the remote control).

Press TUNER repeatedly to select FM or AM.

Press PROG/CLOCK (or PROGRAM on the remote control) for more than two

seconds to program all available stations in order of waveband.

Press ALBUM/PRESET +/- (or TITLE+/- J/Kon the remote control) to select a

preset number.

Listen to radio

FWM613_55_QSG_Eng.indd 3FWM613_55_QSG_Eng.indd 3 12/19/2008 11:06:14 AM12/19/2008 11:06:14 AM

PDCC-JH/ZYL-0851

CRoyal Philips Electronics N.V. 2008

http://www.philips.com

Tip

Detailed play features and additional functions are described in the supplied user

manual.

Insert the USB device’s USB plug into the socket on the main unit.

Press USB to select the USB source.

Play the USB’s audio ﬁles as you do with the albums/tracks on a CD.

Play USB

With this Mini Hi-Fi, you can use USB ﬂash memory (USB 2.0 or USB1.1),

USB ﬂash players (USB 2.0 or USB1.1), memory cards (requires an additional card reader to

work with this Mini Hi-Fi).

USB record

Insert the USB device’s USB plug into the socket on the main unit.

Prepare the source to record from.

Press USB RECORD to start recording.

To stop recording, press 9.

FWM613_55_QSG_Eng.indd 4FWM613_55_QSG_Eng.indd 4 12/19/2008 11:06:19 AM12/19/2008 11:06:19 AM
