Quick Start Guide
SWW1810
1
2
Connect
Enjoy

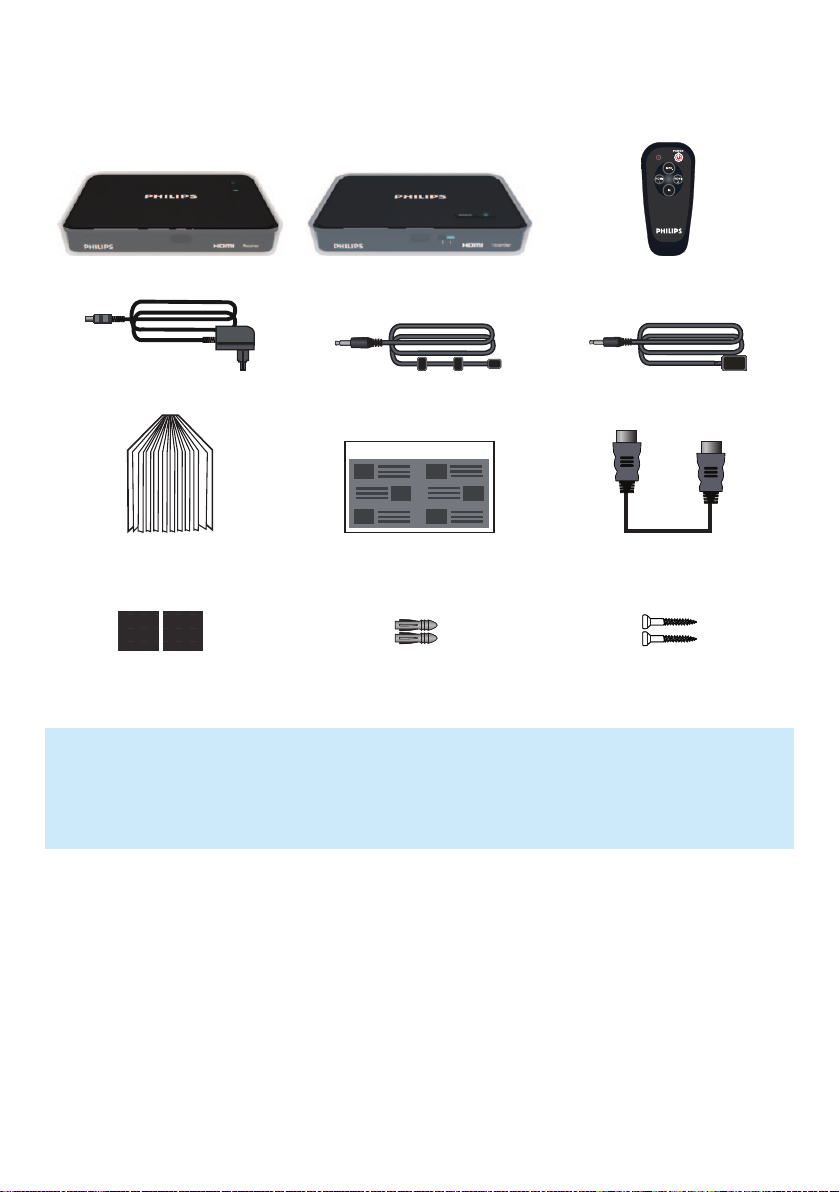

What’s in the box
Receiver Transmitter Remote control
Power adapter x 2 IR blaster extender cable IR sensor extender cable
Quick Installation Guide
User manual Quick start guide HDMI cable
Adhesive tape x 2 Anchors x 2 Screws x 2
Note
•Make sure you have all these items in the box. Contact your dealer for any missing or
damaged items.

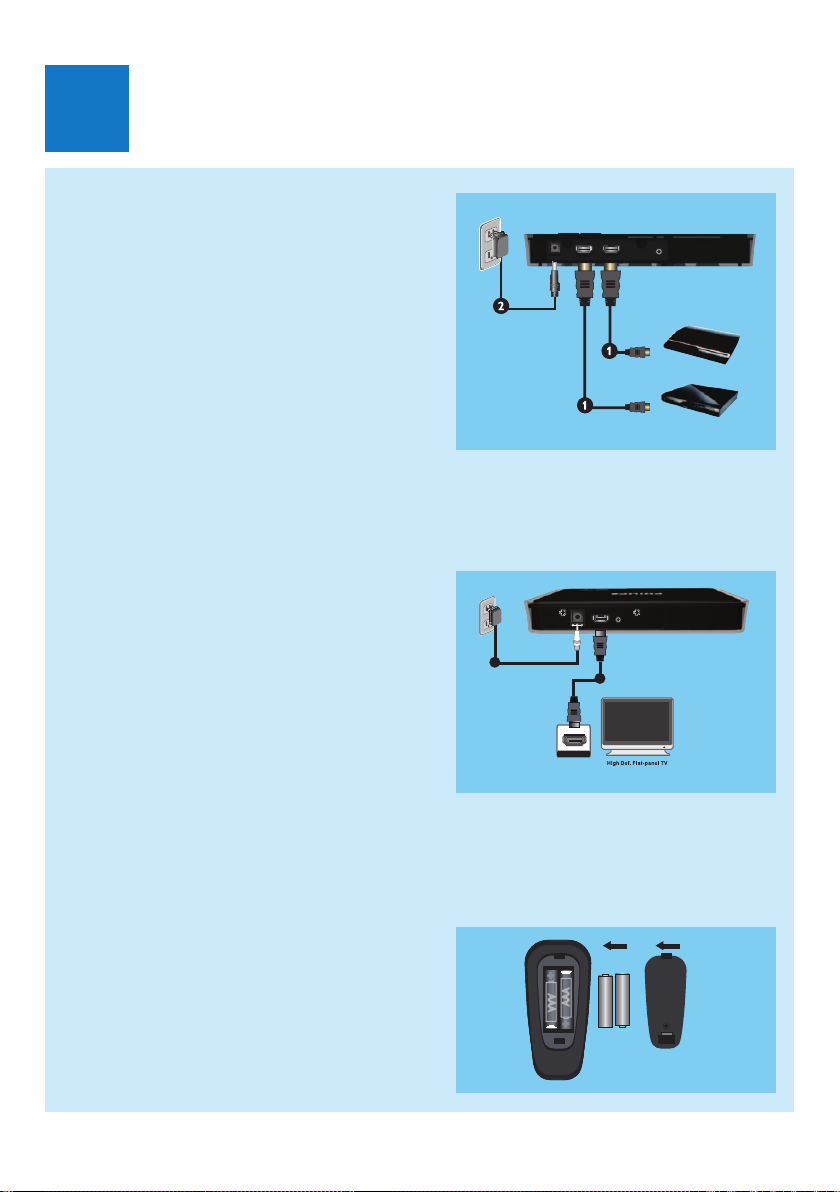

Connect the transmitter to your HD devices
1 Connect the audio/video source to the
transmitter using the supplied HDMI cable.
•Connect one end of the HDMI cable to the
HDMI IN connector of the transmitter.
•Connect the other end of the HDMI cable
to the HDMI OUT connector of the video
source.
2 Connect the supplied power adapter to the
transmitter.
•Connect one end of the power adapter to the
DC IN jack of the transmitter.
•Connect the other end of the power adapter
to a power outlet.
•The power button of the transmitter is lit in
solid blue and turns red in standby mode.
HDMI IN
DC IN HDMI IN IR OUT
Game console
Blu-ray Player
Connect the receiver to the HDTV set
1 Connect the receiver with an additional HDMI
cable (not supplied):
•Connect one end of the HDMI cable to the
receiver.
•Connect the other end to the HDMI IN
connector of your HDTV.
2 Connect the supplied power adapter to the
receiver:
•Connect one end of the power adapter to the
DC IN jack of the receiver.
•Connect the other end of the power adapter
to a power outlet.
•The power button of the receiver is lit in solid
blue and turns red in standby mode.
DC 5V
HDMI OUT IR IN
1
2
HDMI IN
Install remote control batteries
1 Open the battery compartment.
2 Insert two AAA batteries with correct polarity
(+/-) as indicated.
3 Close the battery compartment.
AAA
AAA
1Connect
Turn on the power of your HDTV
1 Go to the source menu under the settings
menu of your HDTV.
2 Select the HDMI input to which the receiver is
connected.
HDMI
HDMI

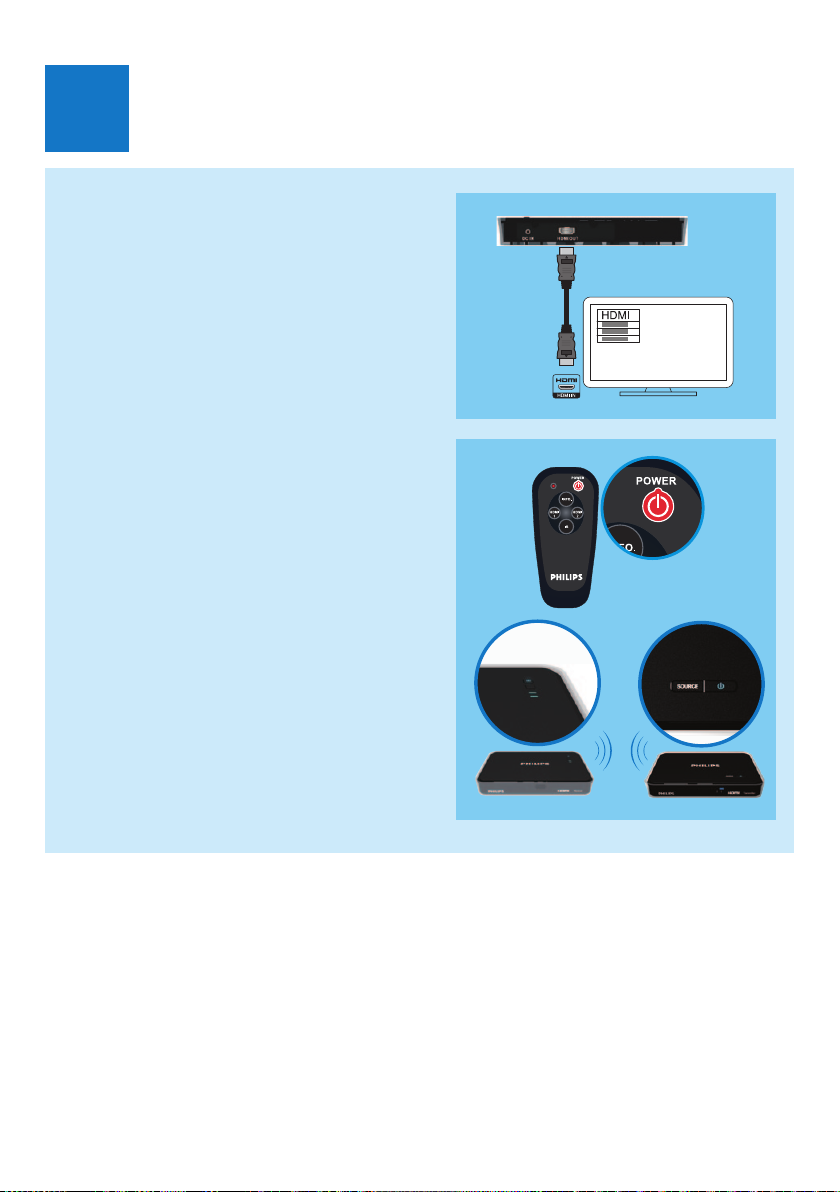

Activate the wireless link
Switch on the transmitter and receiver.
Press yon the remote control or the transmitter
and receiver in standby mode to turn it on.
Select the source on the transmitter
Press the source buttons on the remote control,
transmitter or receiver until you see the available
video from your device.
2Enjoy
Mount your receiver
You can either mount the receiver on the wall or
on the back of the HDTV.
Mount your receiver on the wall
1 Select a spot near the HDTV.
2 Drill two holes in the wall. Make sure that the
distance between the two holes is 125/32” (45mm)
and the diameter of the hole is 5/16” (5mm).
3 Punch the supplied two anchors into the two
holes on the wall.
4 Put the two screws into the anchors and leave
1/8” (3mm) to mount the receiver on.
5 Hook the key holes at the back of the receiver
on the screws.
Mount your receiver on the back of the
HDTV
1 Remove the white protective lm from one of
the supplied adhesive tapes.
2 Secure the glued side of the adhesive tape
and attach it to the central bottom area of the
receiver.
3 Select a at location on the rear side of the
HDT V.
4 Remove the white protective lm from the
other adhesive tape.
5 Secure the glued side of the adhesive tape and
attach it to the selected rear side of the HDTV.
6 Align the adhesive tape on the receiver with
the one on the HDTV until both the receiver
and HDTV are mounted together rmly.
SWW1810_27_EN_QSG_V2.0
WK11485
There is no video displayed on my TV screen.
•Make sure that the appropriate cables are selected and inserted to the transmitter, receiver, and
HDT V.
•Make sure that you select HDMI as the input source on your HDTV.
•Check the power LED and status LED on the receiver.
I cannot hear any sound or the sound is poor, what do I do?
•Make sure that the TV volume is adjusted correctly.
•Make sure that the TV volume is not set to minimum or the sound is not muted.
•Make sure that the audio bit rate is supported.
•Make sure the HDMI cable of the transmitter is connected correctly.
The laptop screen image is not full screen on my TV.
1 Right-click on an open space on your desktop.
2 Select Graphics Options > Output to > Digital Television (Now the laptop image will only
appear on your TV).
3 Once again, right-click on an open space on your desktop.
4 Select Screen Resolution.
5 On the pop-up box increase the resolution settings till the laptop image better ts your TV
screen.
6 Select OK and KEEP CHANGES when you are satised with your image size.
Troubleshooting
Welcome to Philips
Register your product at www.philips.com/welcome
Need help?
User manual
Refer to the user manual that came with your SWW1810.
Online help
www.philips.com/support
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
Reproduction in whole or in part is prohibited without the
written consent of the copyright owner.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
