Philips FC8146/71 Manuale utente

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC8146/71

11/09

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Color : Oyster Metallic

- Power consumption : 1400 W

(IEC) 230 V

- Maximum Air displacement : 34 l/s

- Dust storage capacity : 1.7 L

- Cord length (depending on type) : 7 m

- Filter system : Pleated cyclone-

filtration system

: HEPA 10

exhaust filter

- Noise : < 82 dB

ACCESSORIES

- Nozzle : All purpose floor nozzle

- Additional Nozzle : Parquet nozzle nylon hair

- Tubes : Metal Telescopic tube

- Accessories : Crevice nozzle, small nozzle and

brush nozzle

- Accessory Storage : Tube clip

- Coupling : Conical coupling

OPTIONAL (accessories)

- HEPA exhaust filter : FC8070 (8838 070 01010)

- Motor filter incl. foam : FC8071 (8838 071 01010)

FC8146/71

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- First remove the dust container.

- Remove the dustcover using a screwdriver (see picture).

- When the dustcover has been removed, 3 of the 7 screws D

that need to be unscrewed to disassemble the upper

housing, are accessible (see picture).

- The 4th screw Dis hidden under the 0/I button, to remove

the button use a screwdriver (see picture)

- Finally the last 3 screws Dthat need to be removed are

situated at the bottom side of the appliance (see picture).

- During re-assembling, take care all the wires are positioned

in the guides correctly.

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

-Item 36, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

2-7

FC8146/71

PARTS LIST

ELECTRICAL DIAGRAM

Blue

Red

White

Cord

Winder

Main PCB

220 V CCC

LED PCB

Sensor

PCB

Switch

Blue

Red

Brown

Cord

Winder

Main PCB

230 V

LED PCB

Sensor

PCB

Switch

230 V

3-7

Pos Service code Description

4222 459 46681

4222 459 46691

4222 459 46241

4222 459 46661

4222 459 46651

4222 459 46191

4222 459 46161

4222 459 46171

4222 459 46441

4222 459 46751

4222 459 46361

4222 459 46271

4222 459 46701

4222 459 46341

4222 459 52091

4222 459 46351

4222 459 46721

4222 459 46581

4222 459 46711

4222 459 46731

4222 459 46451

4222 459 46671

4222 459 46221

4222 459 53601

4222 459 46391

4222 459 46401

4222 459 46741

Dustcover assy Oyster transp.

Dustcover latch kit Oyster met.

Seal for suction

Dustcup assy Oyster transp.

Cone assy Greige

Dustcup bottom seal

Air inlet HEPA assy

Air inlet sponge

Anti missing protector kit

Front wheel kit Oyster metalic

Right side panel

Inlet ﬁlter

Inlet ﬁlter frame Greige

Dustchamber seal

Safety valve kit

Left side panel

Button on/off Orange metalic

Button spring

Mid frame assy Oyster metalic

Button CW Orange metalic

Sealing Motor front cover

Filter panel Oyster metalic

Outlet HEPA assy

Cordwinder complete Australian

Cordwinder complete Europe

Cordwinder complete PRC

Back wheel assy Oyster/Orange

Pos Service code Description

4222 459 46541

4222 459 46481

4222 459 46321

4222 459 46331

4222 459 46471

4222 459 46411

4222 459 46371

4222 459 46521

4322 006 99061

4222 459 46781

4222 459 46491

4222 459 46501

4222 459 46761

4222 459 46311

4222 459 46511

4222 459 46531

4222 459 46551

4222 459 46561

4222 459 46571

4222 459 46591

4222 459 46621

4222 459 46641

4222 459 46631

4222 459 46141

4222 459 46601

4322 004 23831

4222 459 49031

4222 459 49161

4222 459 54631

Motor inner cov. assy (incl sil. pad)

Sealing motor inner cover

LED PCB assy

Sensor PCB assy

Front cover motor

Rubber piston

Switch

Outer motor cov. assy (incl silenc.)

Motor 240 V / 50 - 60 Hz

Motor 220 - 240 V Europe

Front seal motor

Protector kit motorcompartment

Main PCB assy 220 V CCC

Main PCB assy 230 V

Fixation outer motor cover

Fixation inner motor cover

Motor back plate

Motor adjustment ring

Noise red. around outer mot. cov.

Hose assy

Small nozzle

Crevice nozzle

Brush nozzle

Floor nozzle

Telescopic tube (2TT)

Accessory holder

Parquet nozzle nylon hair

Cord outlet Ink Black

Nozzle holder Oyster metallic

FC8146/71

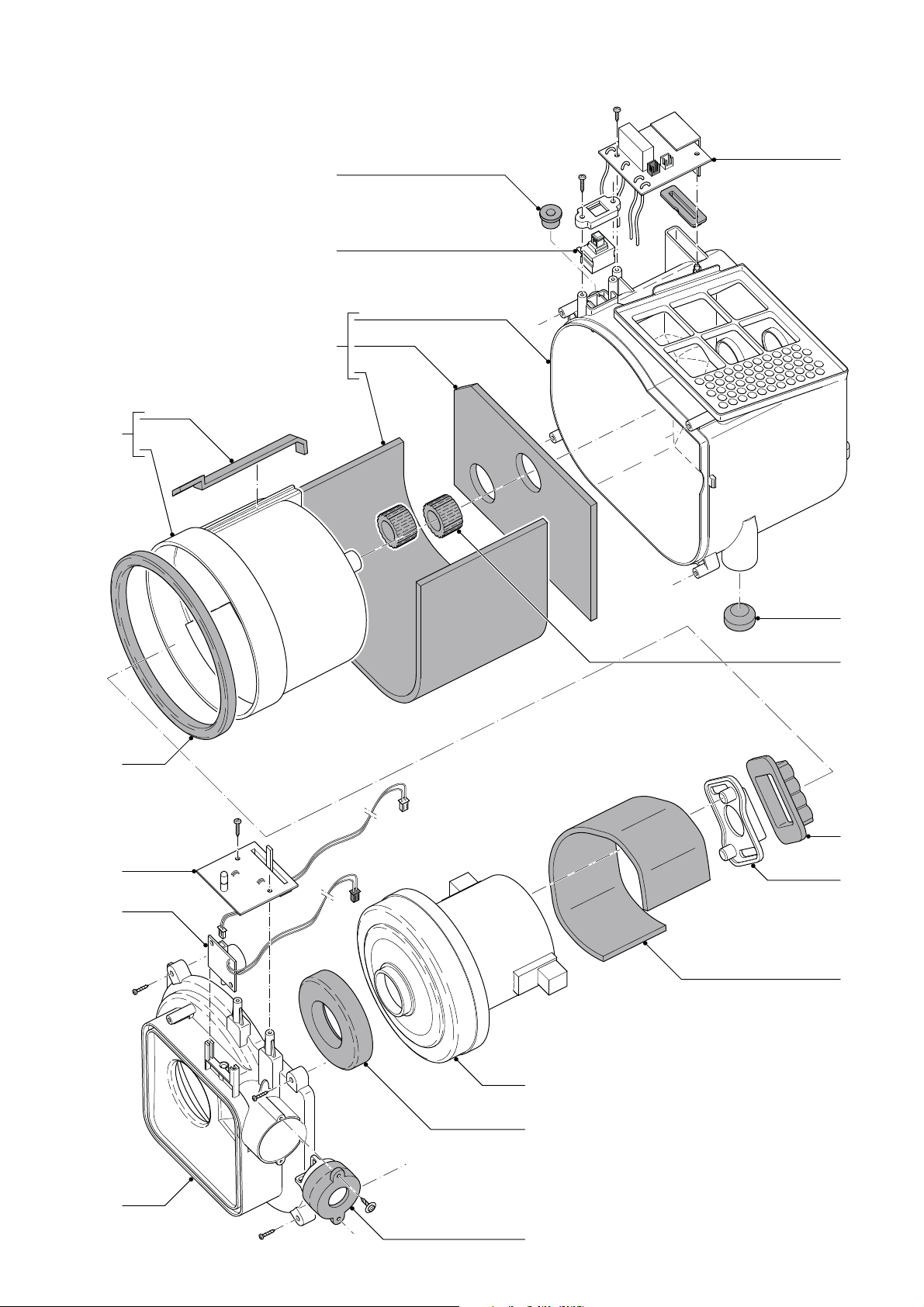

EXPLODED VIEW

1 2

4-7

FC8146/71

EXPLODED VIEW

5-7

FC8146/71

EXPLODED VIEW

6-7

FC8146/71

EXPLODED VIEW

7-7
