Philips FC8322/09 Manuale utente

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

Vacuum cleaner

FC8322/09

16/06 Version 1.4

PRODUCT INFORMATION

•This product meets the requirements regarding

interference suppression on radio and TV.

•After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

•Colour : Full red

•Input power : 750 W

•Suction Power : 190 W

•Noise level : 84 dB

•Dustcapacity : 3 L

•Filtration system : Micro filter

S-bag

Usability

•Action Radius : 8 m

•Cord length : 5 m

•Handgrip : Extra long ergonomic grip

•Accessory storage : Accessory holder on

telescopic tube

Weight and dimensions (L x W x H):

•Dimensions of product : 406 x 282 x 220 mm

•Dimensions packaging : 520 x 300 x 290 mm

•Weight : 4.2 kg

ACCESSORIES

•Standard nozzle : TriActive+ nozzle

•Additional nozzle : Mini Turbo brush and

Alma HF nozzle

•Tubes : Aluminium 2-P telescopic tube

•Accessories : Crevice tool, Small nozzle

REPAIR INSTRUCTION

•No specific issues

OPTIONAL (accessories)

•FC8021/03 : Philips Disposable S-bag

FC8322/09

2-9

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

•First remove the dust bag.

•To replace the wheels (10), first turn the appliance

upside down. To remove the wheel on the left side (seen

from the backside), push with a screwdriver the nocks

from the inside out, and pull the wheel out (see picture).

•To remove the wheel on the cordwinder side, pull the

wheel with great force from the lower housing.

•To place a wheel, click the wheel into the lower housing.

•To reach te inner parts for repair, the top housing (15)

has to be removed.

•Remove the dustcover assy (1) using a screwdriver

(see picture).

•When the dustcover has been removed, 2 of the 4

screws Bthat need to be unscrewed to disassemble the

tophousing (15) are accessible (see picture).

•The 3th screw Bis hidden under the On/Off pedal (12),

to remove the pedal use a screwdriver (see picture).

•Finally the last screw Bthat need to be removed is

situated at the bottom side of the appliance (see picture).

•To separate the top housing from the bottom housing

release the snap connection behind the wheel at the

cordwinder side (see picture).

FC8322/09

3-9

MMotor

TMP

220 - 240 V

50/60 Hz

0.22F

275VAC

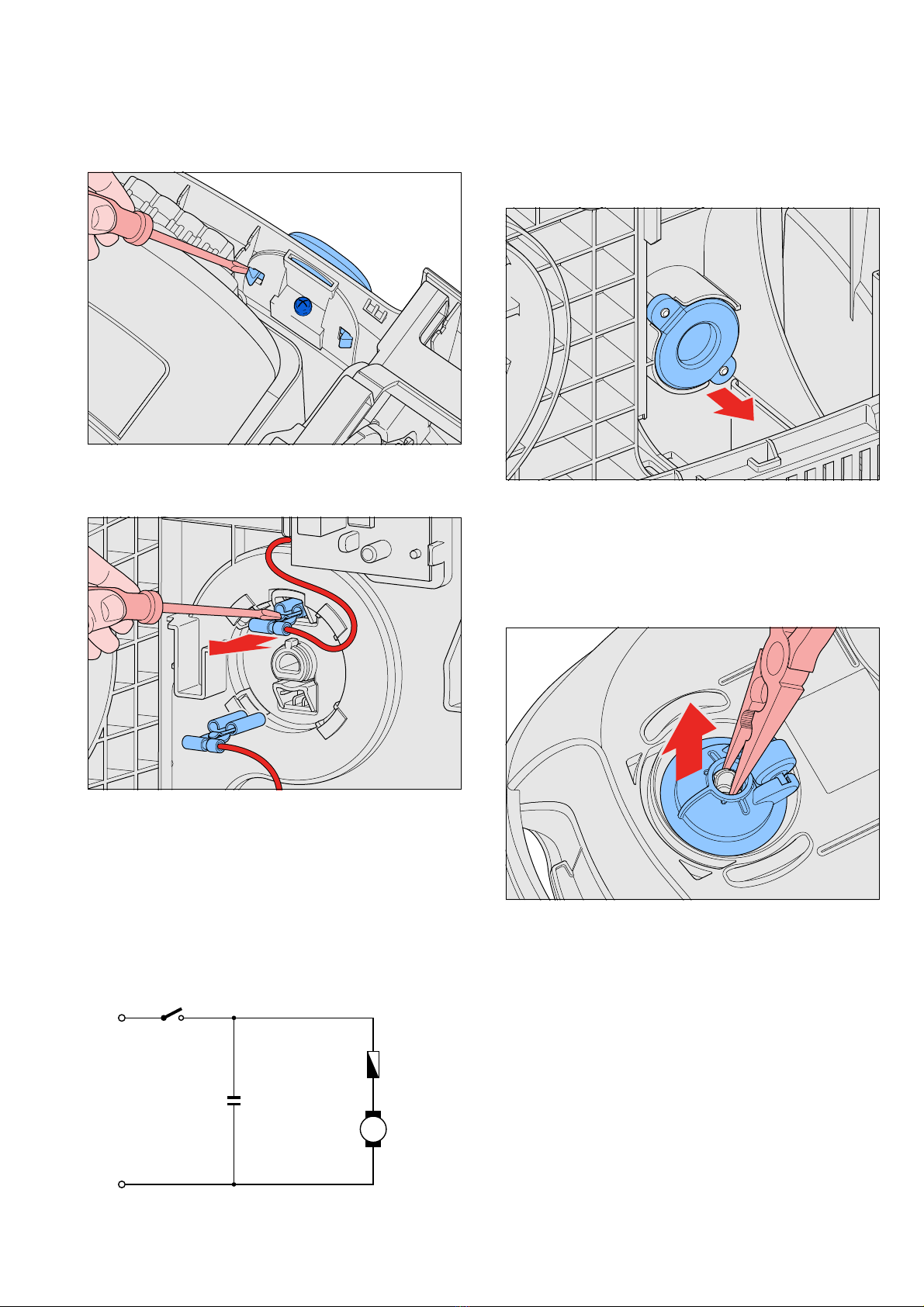

•To replace the parkhook (13), first remove Screw C, then

by pushing the two lips with a screwdriver the parkhook

can be removed (see picture).

•To replace the cordwinder (20), first remove the

wires, the locks can be unlocked with a screw driver

(see picture).

•The safety valve assy (21) can be clogged with dust,

it can be easily taken out and replaced after the

tophousing has been removed, it must be done from

inside the bottom housing where the cordwinder is

situated (see picture).

•When replacing the motor, make sure that the two red

wires are placed underneath the motor.

•To replace the caster assy (11), squeeze the 2 dividers

in the middle of the hole of the caster arm together

with pliers, at the same time pull the caster assy off

(see picture). The new caster assy can be snapped on in

one single move.

ELECTRICAL DIAGRAM

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

FC8322/09

4-9

PARTS LIST

Pos Service code Description Remark

9965 100 71385

4322 004 93701

9965 100 52011

9965 100 71384

4322 005 26061

Dustcover assy

Reusable dustbag

Dustbag holder

Cover for handle

Dustbag full indicator (Yellow)

Full red

Hare low power

4322 004 93671

9965 100 52003

9965 100 51985

9965 100 71383

9965 100 52004

Motor protector lter

Inlet lter frame

Cordwinder pedal

Top housing insert

Wheel assy

Hare

Deep black

Full red

Deep black

9965 100 52008

9965 100 51981

9965 100 71382

9965 100 69356

9965 100 71386

Caster assy

On/O pedal

Park hook

Switch

Top housing

Deep black

Full red

9965 100 52001

9965 100 52005

4322 004 93681

9965 100 52014

4322 005 36251

Potmeter PCBA

Outlet grille

Exhaust micro lter

Cordwinder lever

Cordwinder PowerLife

Hare

0.75 / 5 m / Euro / Black

9965 100 52929

9965 100 54028

4322 006 24691

9965 100 75721

9965 100 74442

Safety valve

Bottom housing

PCBA 220 - 230 V

Motorsealing

Set of motorpart

Deep black

Hare

4322 006 99611

4322 004 25071

4322 004 25181

4322 004 25121

4322 004 25111

Kingclean motor 230 V / 50- 60 Hz

2-P telescopic tube Conical 35 mm

Hose assy PowerLive

Small nozzle Conical 35 mm

Crevice nozzle Conical 35 mm

MH2-G 800 W IEC

Aluminum

Deep black 80231

4322 004 25431

9965 100 62293

4322 004 24501

4322 004 25201

4322 004 26061

Tri-Active nozzle+ Conical 35 mm

Spring for buttons

Mini Turbo brush

Accessorie holder Easylive

Alma HF nozzle Conical 35 mm KC

Deep black 80231

Dark raven 80236

Deep black 80231

Deep black

FC8322/09

5-9

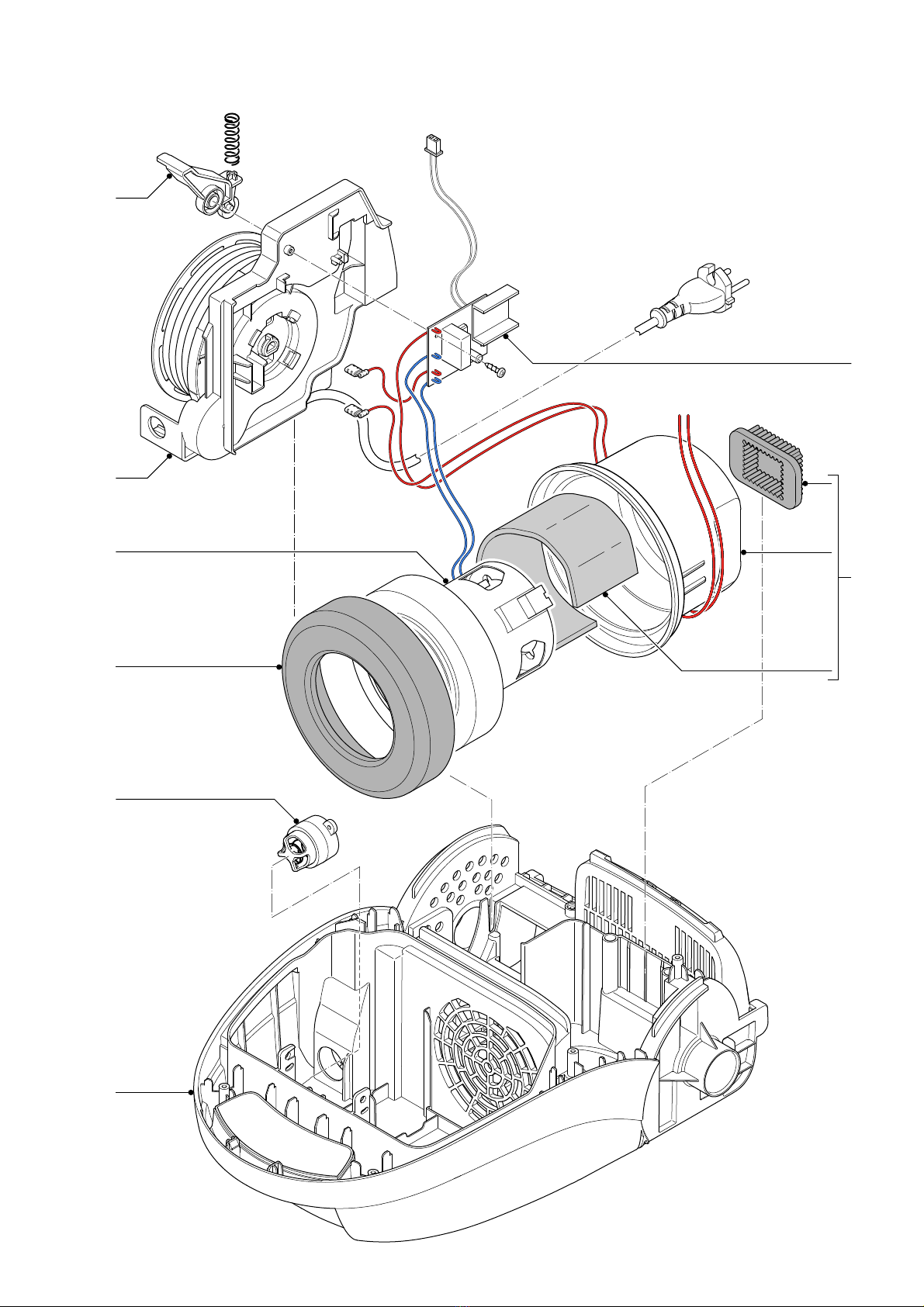

EXPLODED VIEW

FC8322/09

6-9

EXPLODED VIEW

FC8322/09

7-9

EXPLODED VIEW

FC8322/09

8-9

EXPLODED VIEW

FC8322/09

9-9

Version history

14/09 Version 1.1 : FC8322/09 initial release.

15/02 Version 1.2 : On page 1 under Accessories Added Alma HF nozzle.

In Parts List and Exploded view: Added Pos. 36:

4322 004 26061 Alma HF nozzle Conical 35 mm KC Deep black.

16/05 Version 1.3 : In Exploded view: Changed Pos. 26.

In Parts List and Exploded view: Added Pos. 25: 9965 100 74442 Set of 4 motorparts.

16/06 Version 1.4 : In Parts List and Exploded view: Changed Pos. 25: 9965 100 74442 Set of 4 motorparts into

Set of motorparts.

In Parts List and Exploded view: Added Pos. 24: 9965 100 75721 Motorsealing.
