Philips FC8334 Manuale utente

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC8334

04/06

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

ofﬁcially laid down at this moment.

TECHNICAL INFORMATION

- Maximum air displacement : 25 l/sec

- Max. vacuum water column : 195 cm

- Power consumption (IEC) 230V : 1200 W

- Dust storage capacity : 2 litres

- Cord length : 5 m

- Filter system : 5 ﬁlters

- Dimension F - Box : 43 x 28 x 28 cm

- Weight F - Box : 6 kg

- Colour : Chinese Red

- Dustbag- full indicator in dustcover

- Cordwinder build-in

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- No speciﬁc issues

REPAIR IN STRUCTION

- Cotton dustbag is used in those countries where paper

dustbags are not available

- Cordwinder spring has to be tensioned till maximum

minus approx. 1.5 revolution.

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

OPTIONAL (accessories)

- Paper dustbag : FC8046 (8838 046 01010)

FC8334

2-4

Pos Service code Description

9965 000 16013

9965 000 16014

8838 046 01010

9965 000 16015

9965 000 16016

9965 000 25248

9965 000 16017

9965 000 16018

9965 000 16304

9965 000 16019

4322 006 50580

9965 000 16020

9965 000 16021

9965 000 16022

9965 000 16023

9965 000 16024

9965 000 16025

9965 000 16026

4322 000 35360

9965 000 16028

9965 000 16303

9965 000 16029

handle chinese red

sealing ring dust compartment

set paper dustbags with ﬁlters

cotton dustbag (opt.)

lower housing assy

dustbag lock

push button chinese red

dust cover assy chinese red

pcb 110 V

pcb 230 V

switch (stand.)

motor cover

motor inlet grill and ﬁlter

rear cover assy chinese red

cord winder brake assy

brake tyre

air outlet grille

distance piece

ﬁlter standard

motor buffer ring

motor 110 V

motor 230 V

Pos Service code Description

22A

22B

22C

22D

22E

9965 000 16030

9965 000 16031

4322 006 01770

4322 006 01370

4322 006 01400

4322 006 01480

4322 006 01430

9965 000 16032

9965 000 16033

9965 000 18112

9965 000 16034

4341 004 20190

4341 004 20100

4341 004 20170

9965 000 16035

4822 530 10511

4822 479 20039

4822 479 20038

4322 004 21180

motor buffer

cord winder (excl ﬂex)

Japan / Taiwan L = 5.3 m

H.K. / U.K. L = 6.3 m

Euro 4.8 mm L = 6.3 m

Swiss L = 6.3 m

Italy L = 6.3 m

cord out let

nose piece

ﬁlter set

bend and hose

plumeau (opt.)

small nozzle (opt.)

crevice nozzle

tube clip assy

synth. tube (stand.)

nozzle brush

nozzle strip

nozzle D272

PARTS LIST

FC8334

22A÷22E

11A

3-4

EXPLODED VIEW

FC8334

55 55

Japan / Taiwan 22A Europe Ø 4.8 mm 22C

Swiss 22D

Italy 22E

22BU.K. / H.K.

4-4

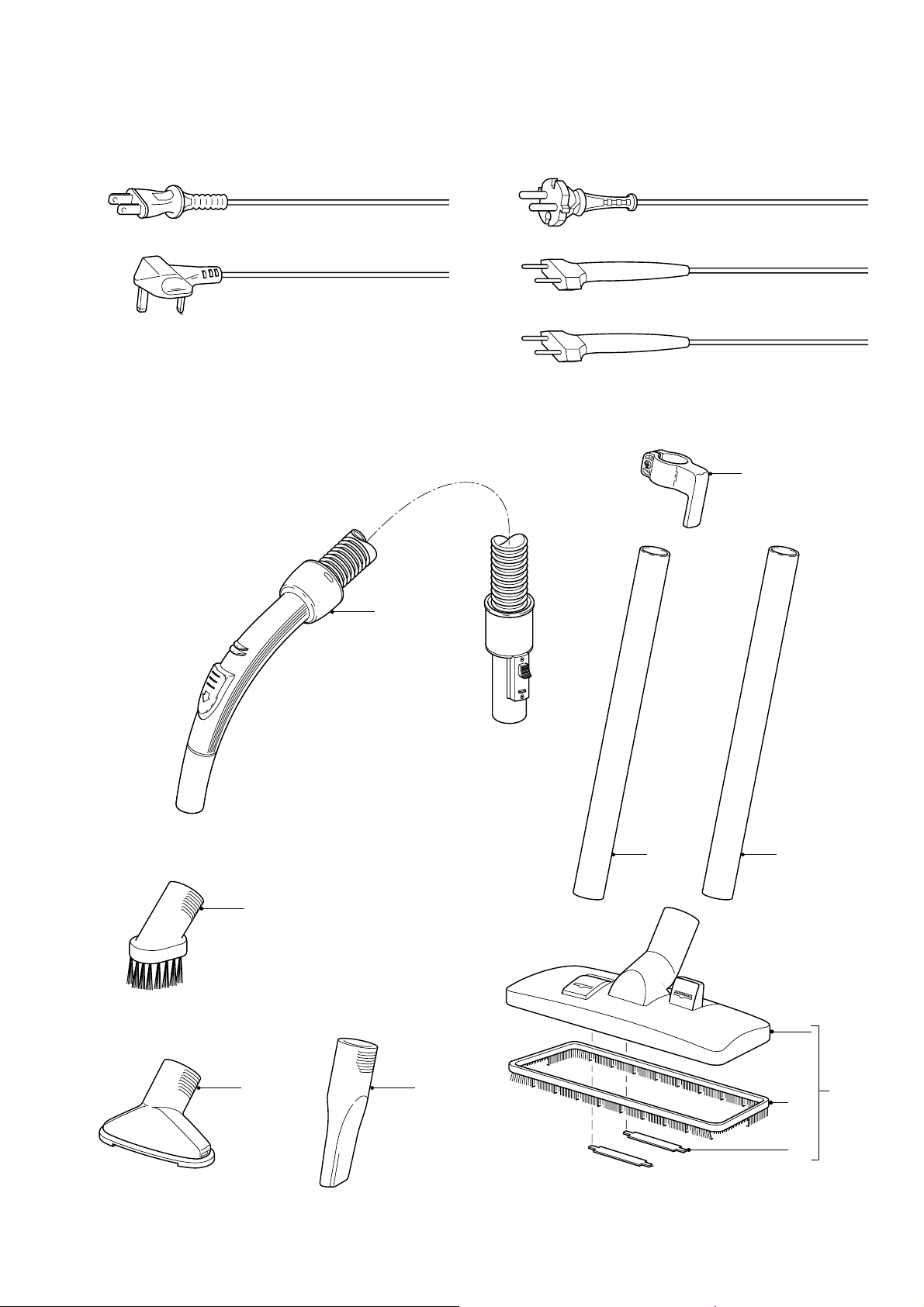

EXPLODED VIEW ACCESSORIES
