Philips FC9170/01 Manuale utente

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Vacuum cleaner

FC9170/01

FC9170/08

14/04 Version 1.2

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Slate Grey

- Power consumption : 2000 W

(IEC) 230V

- Maximum Air displacement : 47 l/s

- Vacuum : 340 mbar / 34.0 kPa

- Type number dustbag : FC8021

- Duststorage capacity : 4 L

- Cord length : 9 m

- Fiter system : Classic S-Bag

long performance

: 3 layer permanent motor

protection filter

: Ultra clean air washable

HEPA13 exhaust filter

- Dimensions of cleaner : 472 x 324 x 276 mm

- Dimensions of packaging : 593 x 393 x 296 mm

- Net weight : 6.3 kg

- SAP coding : FC9170/01

ACCESSORIES

- Nozzle : Tri-Active all purpose nozzle

- Tubes : Metal lacquered 3-piece telescopic tube

- Accessories : Brush, crevice nozzle and small nozzle

- Accessory storage : Active accessory storage bridge in

handgrip

- Coupling : Button coupling

OPTIONAL (accessories)

- FC8021 : S-bag Classic

- FC8022 : S-bag Clinic

- FC8023 : S-bag Anti-Odour

- FC8031 : Super Clean Air HEPA filter,

HEPA12 exhaust filter

- FC8038 : Ultra clean air washable HEPA13

exhaust filter

FC9170/01 / FC9170/08

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- Open the appliance, first remove the filter cover (item 22)

and then remove the 2 screws (A) of the button assy

(item 10).

- The button assy can be removed by lifting up the back of

the assy and then pull the assy out of the appliance.

- When the dustcover and the handle have been removed, the

electronics, DBFI valve assy, CW-lever and the switch lever

can be removed.

- The dustchamber and the backpanel can be removed from

the appliance by removing 15 screws (Band C).

- You will require a screwdriver with a 14.5 cm long shrank

for this. Screwdriver 4322 009 08490 for T15 can be used.

- When the cordwinder has been taken out, the final screw

(D) for releasing the lower front from the appliance can be

removed.

- When the repair is finished, check whether all functions of

the appliance work properly.

REPAIR INSTRUCTION

- Cotton dustbags, are used in countries in which paper

dustbags are not available.

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx. 1.5 turn.

- Item 14, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

- If the function of the electronic control unit is not required,

the Triac must be short-circuited in the manner shown in

the circuit diagram.

- When the vacuum cleaner is used to suck up fine dust the

pores of the dustbag may become clogged, causing the

passage of air through the dustbag to become obstructed.

As a result, the dustbag-full indicator will indicate that the

dustbag needs to be replaced, eventhough the dustbag is not

full at all.

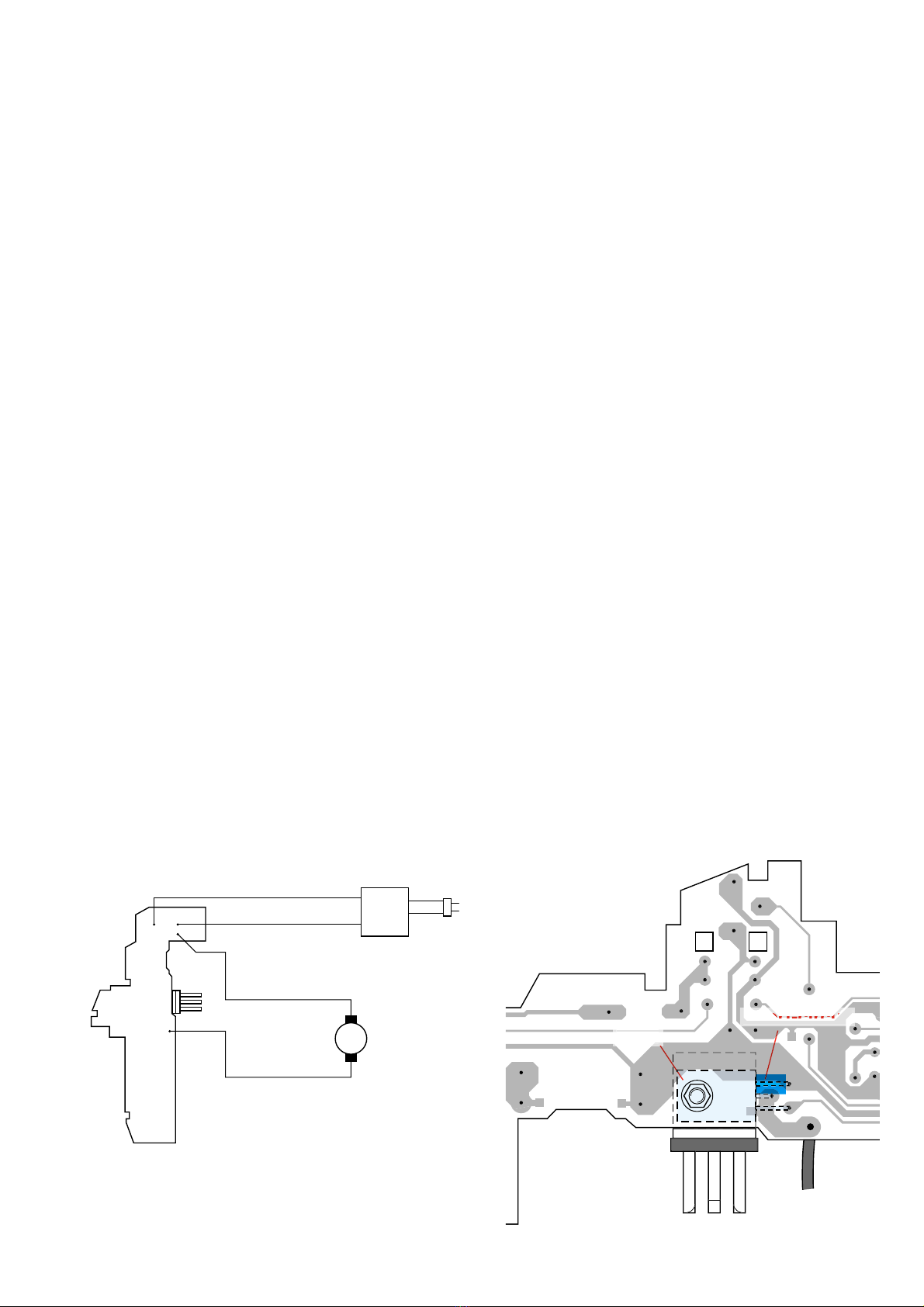

ELECTRICAL DIAGRAM

Triac

Short-circuit

ort-circu

Short-circuit

MOTOR

POWER

MODULE

Blue

Brown

CORD WINDER

Black

Black/White

2-8

FC9170/01 / FC9170/08

PARTS LIST

3-8

Pos Service code Description

42a

4322 005 24490

4322 005 17600

4322 000 67810

4322 003 24790

4322 003 24780

4322 000 37300

4322 003 33280

4322 003 24650

4322 009 09560

4322 009 09600

4322 003 24810

4322 003 27910

4322 006 22750

4322 005 20580

4341 003 02390

4322 003 24620

4322 003 24720

4322 003 24600

4322 003 27850

4322 005 17010

4322 003 24690

4322 003 20030

4322 004 93340

4322 001 74110

4322 000 38790

4322 003 25460

4322 000 38670

4322 000 38770

4322 003 23880

4322 001 73400

4322 009 09430

4322 000 38820

4322 001 73520

4322 003 23870

4322 005 34171

4322 003 18850

4322 005 12760

4322 005 23060

4322 004 23360

4322 007 16000

4322 004 23890

4322 001 99120

4322 007 31650

4322 004 22570

4322 003 18870

4322 005 12530

4322 004 22560

4341 004 20840

4322 003 26030

Dustcover / Pr / Slate Grey

Dustcover lock assy

DB detector spring

DB detector / LB / Cool grey

CCC (DB holder)

Triple inletﬁlter

Inlet grille / Blue

Dustchamber / Black

Handle performer / Slate Grey

Button panel assy / Pr / Slate Grey

Cord winder lever

Control wheel / Select Grey

PCB assy 220-240 V 50/60 Hz

DBFI/Valve assy / Sp.v.

Switch lever

Back panel / Black

Cord outlet / Black

Lower / LB / Back

Lower front / Slate grey

Caster assy / Select grey

Filter cover lock / Select grey

Filter cover / Slate grey

HEPA13 washable exhaust ﬁlter

Exhaust sealing / Blue

Silencer 4 wall backpanel

S-Class H-sealing

Silencer 1 wall

Silencer 2 bottom

Motorhousing top inside

Bufferring front ANS-Atlas

Motor Domel 1761 220 - 240 V

Silencer 3 compas

Motor buffer back green

Motor housing bottom ANS

Cordwinder FS SP 100 / 7.3 / 4.8 / FL

C. Bend B1

LC Swivel assy

C. Bend B1 / Hose / Swivel assy / Silver steel Nickelfree

Hose assy / Silver Steel

Leaf spring assy

3-Piece Telescopic tube assy Nickelfree

Coupling bush

Coupling spring

Plumeau assy

Crevicle nozzle

Accessory bridge assy

Small nozzle

Tri-Active nozzle, stand.

Motor bracket

FC9170/01 / FC9170/08

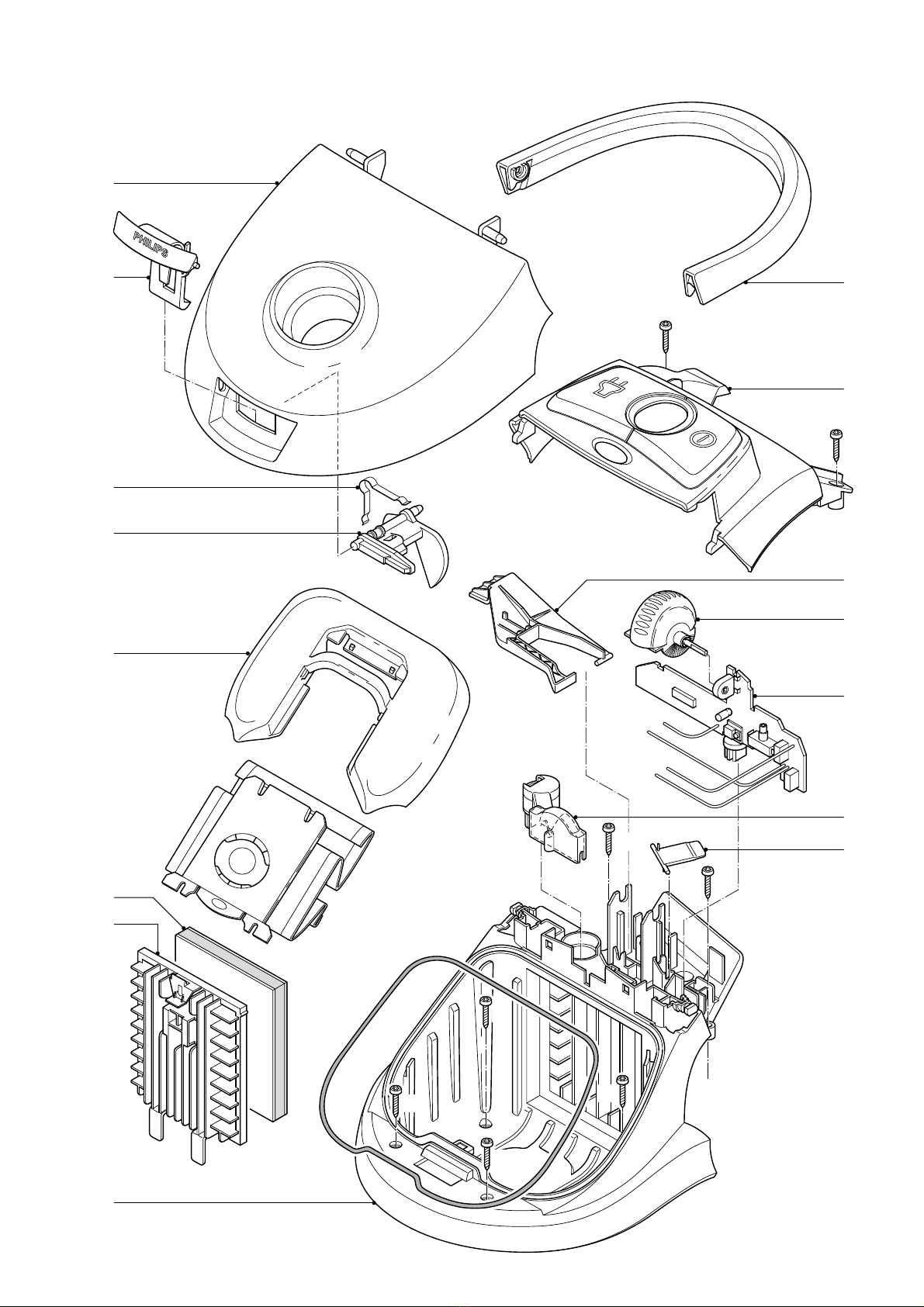

EXPLODED VIEW

YBlack/

White

Black

brown

blue

4-8

FC9170/01 / FC9170/08

EXPLODED VIEW

5-8

FC9170/01 / FC9170/08

EXPLODED VIEW

brown

blue

Black/

White

Black

6-8

FC9170/01 / FC9170/08

EXPLODED VIEW

40 42a

4947

7-8

FC9170/01 / FC9170/08

Version history

Version 1.1 : FC9170/01 / FC9170/08 initial release.

Version 1.2 : Updated picture on front page.

In Disassembly- and re-assembly advise: Removed the description concerning disassembling the cordwinder.

In Repair Instruction: Removed the description concerning lubrication of the shaft, if the reel half spring unit is

replaced.

In Parts List and Exploded view: Deleted Pos. 35, 4322 009 09440 Reel half spring unit (L = 9 m).

In Parts List and Exploded view: Deleted Pos. 36, 4322 009 09450 Reel half contact unit.

In Parts List and Exploded view: Deleted Pos. 37, 4322 009 09460 Contact ring plate.

In Parts List and Exploded view: Deleted Pos. 38, 4322 006 07410 Cord U.K. / H.K. L = 9.3 m.

In Parts List and Exploded view: Deleted Pos. 39, 4322 006 07390 Cord Euro 4.8 mm pins L = 9.3 m.

In Parts List and Exploded view: Deleted Pos. 53, 4322 006 02140 Cord AUS / NZ L = 7.3 m.

In Parts List and Exploded view: Deleted Pos. 54, 4322 006 07400 Cord Swiss L = 9.3 m.

In Parts List and Exploded view: New Pos. 35, 4322 005 34171 Cordwinder FS SP 100 / 7.3 / 4.8 / FL.

8-8
