Philips FC9238/01 Manuale utente

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC9238/01

13/08

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Emperor red

- Power consumption : 2000 W

(IEC) 230V

- Maximum Air displacement : 37 l/s

- Vacuum : 33 kPa

- Duststorage capacity : 2 L

- Cord length : 9 m

- Fiter system : HEPA Cyclone-filtration

auto clean system

: Permanent motor

protection filter

: Ultra clean air washable

HEPA13 exhaust filter

- Dimensions of cleaner : 470 x 320 x 340 mm

- Dimensions of packaging : 590 x 390 x 380 mm

- Net weight : 7.2 kg

ACCESSORIES

- Nozzle : Tri-Active all purpose nozzle

- Additional Nozzle : Turbo Brush nozzle

- Tubes : Metal lacquered telescopic tubes

- Accessories : Crevice nozzle and small nozzle

- Accessory storage : Active accessory storage bridge in

handgrip

- Coupling : Button coupling

OPTIONAL (accessories)

- FC8031 : Super Clean Air HEPA filter,

HEPA12 exhaust filter

FC9238/01

- To open the appliance, first remove the filter cover

(item 33).

- Then remove the hinge;

first remove the end caps

(item 17) this can be done

with a screwdriver, see

picture.

When the end caps are removed, the hinging pin can be

removed and the hinge can be taken off the appliance.

- Remove the can with the filters.

- Now remove the drive coupling (item 13) by turning it

clockwise.

- To remove the housing (10 screws), for some screws you

will require a screwdriver with 14.5 cm long shrank.

Screwdriver 4322 009 08490 for T15 can be used.

- When the repair is finished, check whether all functions of

the appliance work properly.

- To disassemble the cord winder, use TORX screwdriver no.

T10, which is one of a set consisting of T20; T15; T10; T9;

T8; T7 and T6 (code number 4822 395 50145)

Further disassembly advise for the hinge:

- First remove the 2 screws (A) underneath the handle to

remove the hinge back (item 2)

- The user panel can be removed after removing the screw (B)

in the middle of the hinge on the inside.

- PCB can be removed.

- Choke valve can be taken out.

- To remove the sealing disk and the detector with the spring

you have to remove the 2 screws (C) next to the sealing

disk.

REPAIR INSTRUCTION

- Due to precisely pre-adjusted belt-tension, rattle drive unit

(item 27) may only be replaced as a complete unit.

Do not disassemble this unit in any way!

- Item 9, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

ELECTRICAL DIAGRAM

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

Blue

Black

Red

Brown

Blue

Black

Red

Brown

RATTLE

DRIVE

MOTOR

Black

Brown

CORD

WINDER

TRANSMITTER

MOTOR

POWER

MODULE

2-8

FC9238/01

PARTS LIST

3-8

Pos Service code Description

4322 009 00841

4322 005 34681

4322 005 32741

4322 003 27010

4322 006 23250

4322 003 28120

4322 005 19690

4322 005 32671

4322 001 73370

4322 005 23030

4322 005 19600

4322 005 32651

4322 005 32621

4322 005 32581

4322 003 45821

4322 005 29761

4322 000 38800

4322 003 27060

4322 003 45941

4822 492 11407

4322 006 07540

4322 001 73550

4322 003 45931

4322 003 28920

4322 005 19570

4322 003 45551

4322 003 45951

4322 003 45961

Handle assy Emperor red

Hinge assy IR RMC Emp. red pr

User panel assy

Light guide

PCB 220 - 240 V 50 / 60 Hz

Choke valve cap

Choke valve

Hinge front Deep black pr

Bucket sealing

Detector assy

Drive coupling

Tower dim grey pr

Tower assy dim Grey

Bucket assy Silver metall. 10827

End cap Deep black 80231

Upperhousing Emp. red 20701

Motor inlet ﬁlter

Inlet sealing air channel

Air chanel Deep black 80231

Spring switch-knob

Wire beam assy

Rubber bump

Back panel Deep black 80231

PCB lock

Rattle drive unit assy

Bumper Deep black 80231

Bucket hook L Deep Bl. 80231

Bucket hook R Deep Bl. 80231

Pos Service code Description

4322 003 45531

4322 005 17510

4322 005 34721

4322 004 93350

4322 001 74110

4322 000 38790

4322 003 25460

4322 000 38670

4322 000 38770

4322 003 45561

4322 003 25390

4322 003 27580

4322 001 73440

4322 006 97931

4322 000 38820

4322 003 26030

4322 001 73520

4322 003 25370

4322 005 25734

4322 005 34771

4322 005 34791

4322 003 25560

4322 005 28632

4322 003 46171

4322 004 25392

4322 003 45541

Lowerhousing Deep black 80231

Caster assy

Filter assy Emperor red

HEPA 13 ﬁlter washable.

Exhaust sealing Blue

Silencer 4 wall backpanel

S-Class h. Sealing

Silencer 1 wall

Silencer 2 bottom.

Cord outlet Deep black 80231

Inlet sealing 1

Motor housing top Dark raven

Motor buffer front bl.

Motor 1761 230 V 50 Hz

Silencer 3 compas

Motor bracket

Buffer back Green

Motor housing bottom

CW FS SP 100/83M/4.8/F

Capoeira handle/hose Deep black

3p T.T. assy Marathon Silv. grey

Crevicle nozzle 140 mm.

Acc. Bridge assy

Sealing disk Deep black 80231

Turbo br. Deep bl. actuator 32 SR

Spoke whl. 2k Deep bl./Silv. grey

FC9238/01

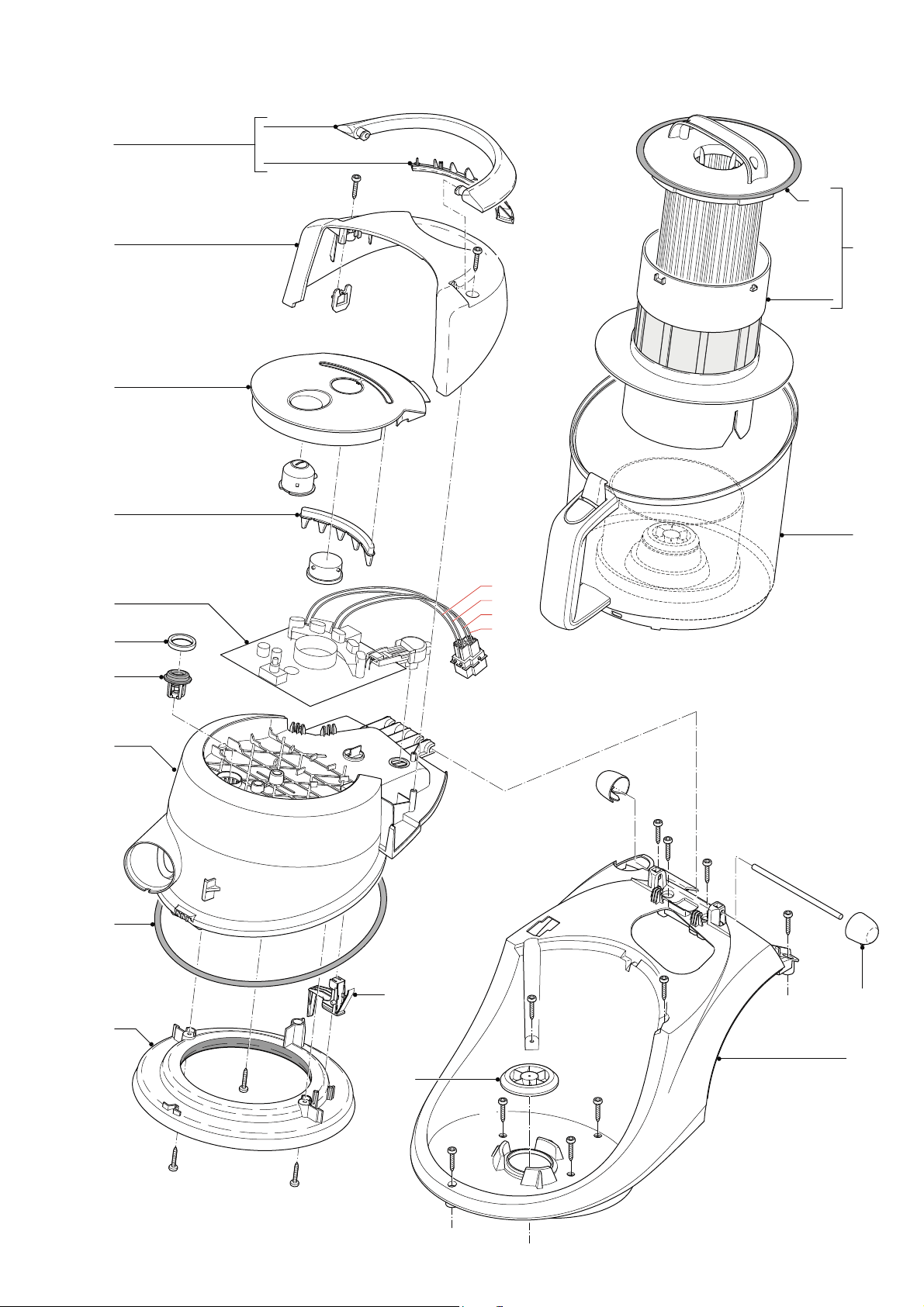

EXPLODED VIEW

Brown

Black

Blue

Red

4-8

FC9238/01

EXPLODED VIEW

Red

Black

Brown

Red

Brown

Blue

Brown

5-8

FC9238/01

EXPLODED VIEW

Black

Blue

Brown

6-8

FC9238/01

EXPLODED VIEW

7-8

FC9238/01

EXPLODED VIEW

8-8
