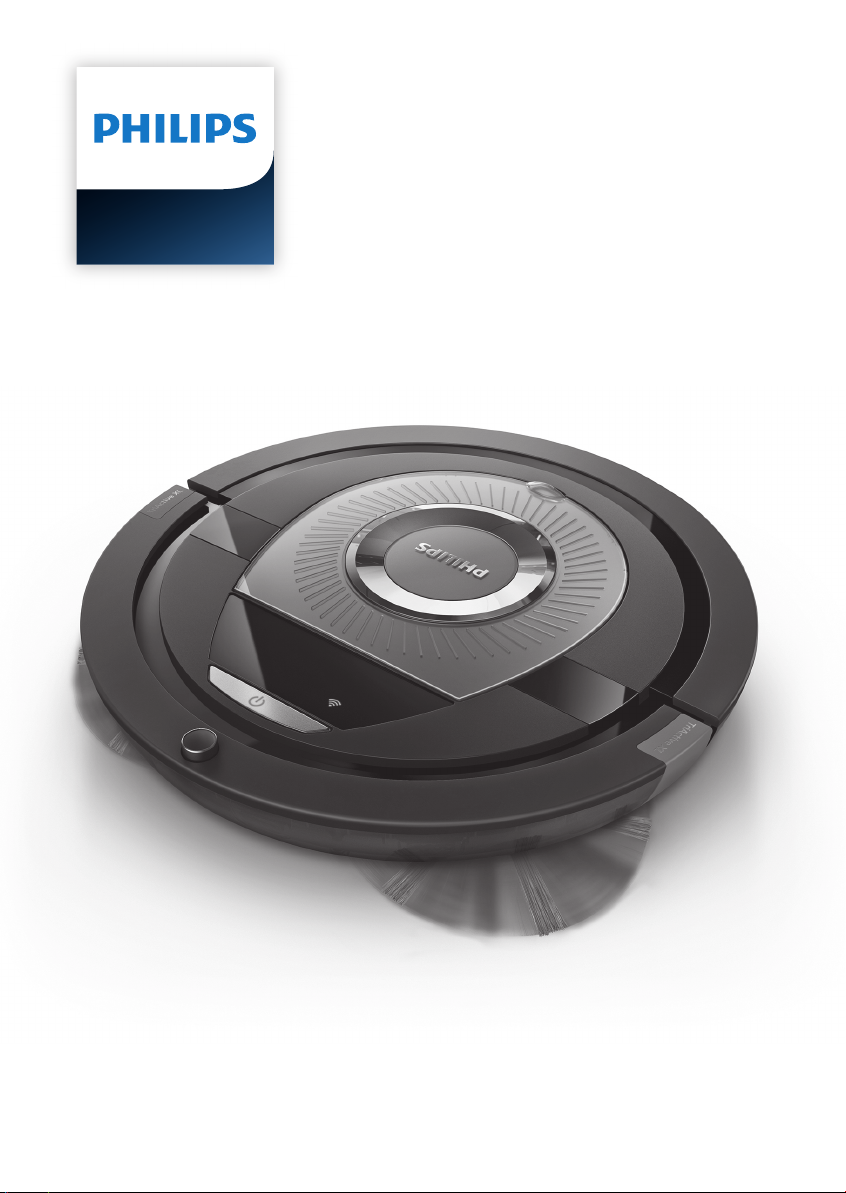

Philips SmartPro Compact Manuale utente

FC8778

English 7

Magyar 24

Polski 42

Slovenščina 61

300001532021

1 sec.

1 x

3 sec.

10 sec.

20 sec.

10 11

2122

English

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit

from the support that Philips offers, register your product at

www.philips.com/welcome.

General description (Fig. 1)

1 Top cover

2 Handle of dust container lid

3 Dust container lid

4 Filter

5 Spare filter

6 Dust container

7 Fan

8 Bumper

9 Docking station sensor

10 Start/stop button

11 Display

12 TriActive XL nozzle

13 Front wheel

14 Side brush shafts

15 Drop-off sensors

16 Battery compartment

17 Wheels

18 Suction opening

19 Side brushes

20 Small plug

21 Adapter

22 Docking station

Display

1 2

1Warning indicator

2WiFi connection indicator

How your robot works

What your robot cleans

This robot is equipped with features that make it a suitable cleaner to help

you clean the floors in your home.

The robot is especially suitable for cleaning hard floors, such as wooden,

tiled or linoleum floors. It may experience problems cleaning soft floors,

English

such as carpet or rugs. If you use the robot on a carpet or rug, please stay

close by the first time to see if the robot can deal with this type of floor.

Because the robot uses infrared sensors to navigate, it may run into

difficulties on very dark and shiny floors. If you use the robot on such

surfaces, please stay close by the first time to see if the robot can deal with

such a dark and shiny floor.

How your robot cleans

Cleaning system

The robot has a 2-stage cleaning system to clean your floors efficiently.

-The two side brushes help the robot clean in corners and along walls.

They also help to remove dirt from the floor and move it towards the

suction opening.

-The suction power of the robot picks up loose dirt and transports it

through the suction opening into the dust container.

Cleaning patterns

In its auto cleaning mode, the robot uses an automatic sequence of cleaning

patterns to clean each area of the room optimally. The cleaning patterns it

uses are:

1 Z-pattern or zigzag pattern

2 Random pattern

8English

3 Wall-following pattern

4 Spiral pattern

In its auto cleaning mode, the robot uses these patterns in a fixed sequence:

z-pattern, random pattern, wall-following pattern, and spiral pattern.

When the robot has completed this sequence of patterns, it starts moving in

Z-pattern again. The robot continues to use this sequence of patterns to

clean the room until the rechargeable battery runs low, or until it is switched

off manually.

Note: You can also select each mode individually in the app.

How your robot avoids height differences

The robot has three drop-off sensors in its bottom. It uses these drop-off

sensors to detect and avoid height differences such as staircases.

Note: It is normal for the robot to move slightly over the edge of a height

difference, as its front drop-off sensor is located behind the bumper.

Caution: In some cases, the drop-off sensors may not detect a staircase or

other height difference in time. Therefore monitor the robot carefully the

first few times you use it, and when you operate it near a staircase or

another height difference. It is important that you clean the drop-off

sensors regularly to ensure the robot continues to detect height

differences properly (see chapter ' Cleaning and maintenance' for

instructions).

Before first use

Mounting the side brushes

1Unpack the side brushes and place the robot upside down on a table or

on the floor.

English

2Push the side brushes onto the shafts on the bottom of the robot.

Note: Make sure you attach the side brushes properly. Press them onto

the shaft until you hear them lock into position with a click.

Preparing for use

Installing the docking station

1Insert the small plug of the adapter into the socket on the docking station

(1) and insert the adapter into the wall socket (2).

2Place the docking station on a horizontal, level floor against a wall.

100cm 30cm

80cm

Note: Make sure that there are no obstacles or height differences 80 cm

in front, 30 cm to the right and 100 cm to the left of the docking station.

Important note: deep sleep mode

In deep sleep mode, the robot does not respond at all when you press a

button. To reactivate the robot when it is in deep sleep mode:

1 sec. 3 sec.

1Press the start/stop button on the robot for one second to switch the

robot from deep sleep mode to standby mode.

2Press the start/stop button on the robot briefly or press the start button

in the app to start cleaning.

3If the robot does not start cleaning, place it on the plugged-in docking

station to recharge its rechargeable battery.

The robot enters deep sleep mode when you press the start/stop button for

3 seconds. It may also enter the deep sleep mode when its battery is empty.

10 English

The battery may, for instance, run empty if the robot is unable to find its

docking station.

Note: You cannot get the robot out of its deep sleep mode with the

start/stop button in the app, press the start/button on the robot.

Charging

-When charging for the first time and when the rechargeable battery of

the robot is empty, the charging time is four hours.

-When the rechargeable battery is fully charged, your robot can clean for

up to 120 minutes.

-Your robot can only be charged on the docking station.

Charging automatically during use

1When the robot has finished cleaning or when only 15% of the battery

power remains, it automatically searches for the docking station to

recharge. When the robot searches for the docking station, the start/stop

button flashes quickly.

2When the rechargeable battery is fully charged, the start/stop button

lights up continuously.

Note: The robot only searches for the docking station automatically when it

started cleaning from the docking station.

Charging on the docking station

1Press the start/stop button on the robot.

2Place the robot on the plugged-in docking station.

3The start/stop button starts flashing slowly.

English

4When the rechargeable battery is fully charged, the start/stop button

lights up continuously.

WiFi connection and app

Operating system requirements

Minimum requirements regarding operating systems:

-iOS: 11 or higher

-Android: 5.0 or higher

WiFi specifications

-The robot is designed to be connected to standard consumer routers

that use WEP, WPA-PSK, WPA2-PSK encryption keys, or no encryption

(open WiFi network).

-Connecting the robot to public hotspots, office networks or hotel

networks is not possible in most cases.

-The robot will not work with 5 GHz routers. If you encounter problems

with connecting the robot to the router, please check if your router can

also be changed to the 2.4 GHz setting.

Connecting WiFi router and robot

1When you take the robot out of the box, the WiFi icon starts to flash blue.

-When the WiFi icon turns solid blue, the robot is connected to the WiFi

router.

2If there is no connection between the robot and the WiFi router, check if

there is an active WiFi signal. If not, check if the WiFi router is working. If

there is a WiFi signal, start downloading the app and then connect app

and robot.

12 English

Downloading app and connecting app and robot

1Search for 'Clean Home+' in the Apple App Store or in the Google Play

Store.

2Download and install the Clean Home+ app.

3Open the app and press the 'Connect a New Device' button or press the

'+' button.

4Select 'SmartPro Robot Vacuum Cleaner' and follow the instructions in

the app.

5The app tells you when the robot is connected and ready to use.

6Press 'OK' to open the app.

7Press 'Start cleaning' to start the robot. You can press 'Return to charging

base' to make the robot return to its docking station.

What to do if connecting app to robot fails

The app will tell you what to do if connection fails.

If you are still unable to connect the app to the robot with the instructions in

the app, start all over again with pressing the 'Connect a New Device' button

or pressing the '+' button.

If you continue to have problems with connecting the robot to the app,

contact the Philips Consumer Care Center in your country or go to

www.philips.com/support.

English
