Philips Micro Pure WP3811 Manuale utente
WP3811
2
3
1
4
6
17
29
6
Congratulations on your purchase and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.
You have made an excellent choice. The Philips Micro Pure is a compact
and easy-to-install water purier that gives you pure water by removing
bacteria, harmful organic compounds and chlorine while keeping all the
good minerals in your water. Pure water made easy, by Philips.

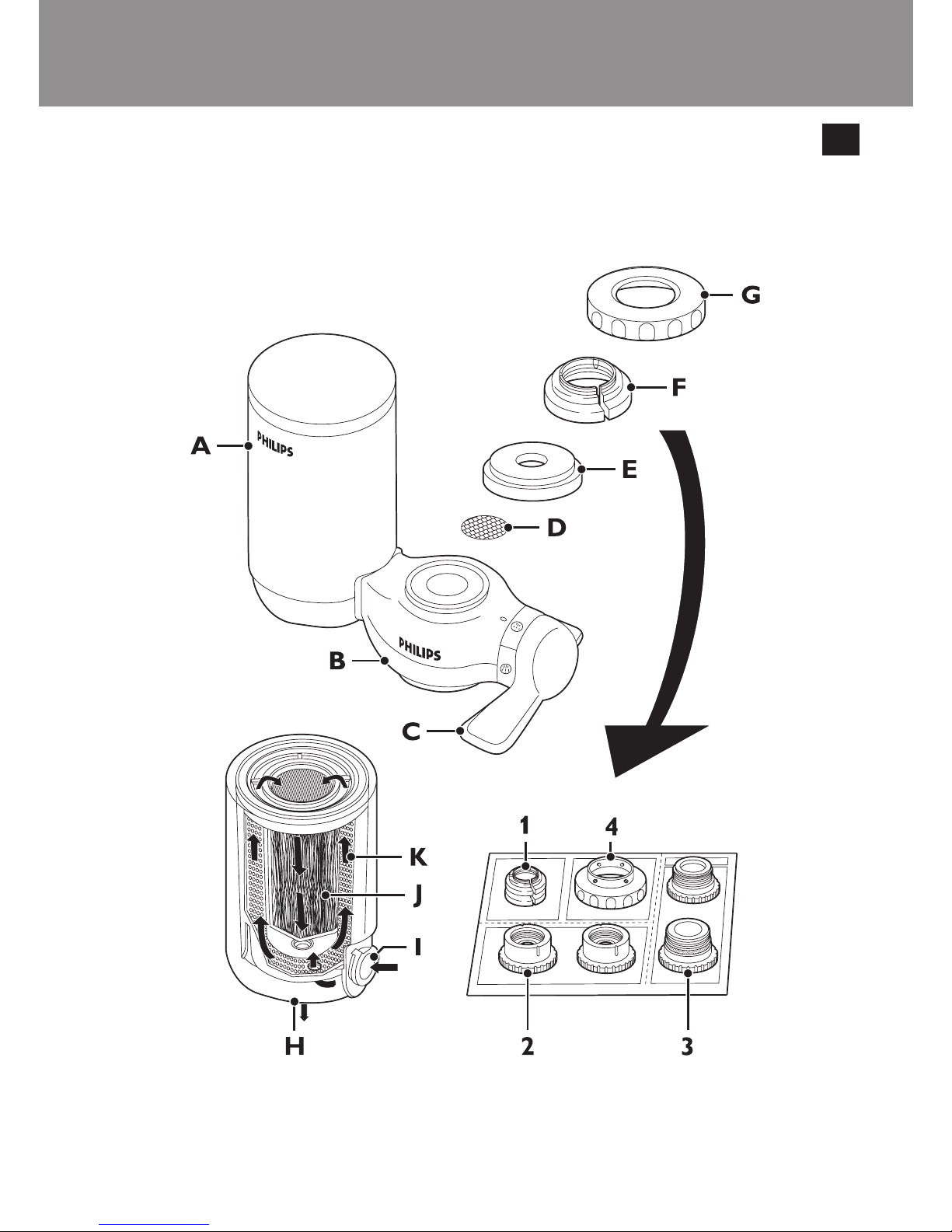

Filter cartridge
Water purier housing
Water selection lever
Stainless steel screen
Rubber washer
Adapter
A-type
B-type
C type
D-type
Attachment nut
Filtered water outlet
Unltered water inlet
Hollow bre
Granular activated carbon
Read this user manual carefully before you use the water purier and
save it for future reference.
- This water purier is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the water purier by a
person responsible for their safety.
- Children should be supervised to ensure that they do not play with
the water purier.
- To prevent quick clogging of the lter cartridge, let the water run at
the unltered setting for around 5 seconds before every use.
- If the water is highly coloured or turbid due to work on your water
network, do not let the water run at the ltered setting until the
water is clear.
- Cautions:
1 Let the water run at the ltered setting for 10 seconds before use
each day.
2 Let the water run at the ltered setting for 60 seconds before use if
you have not used the water purier for more than two days.
3 If you have not used the water purier for more than two weeks, let
the water run at the ltered setting for 2-3 minutes before use. If the
lter cartridge emits an unpleasant smell, replace it with a new one.
- Do not let water hotter than 65°C run through the water purier at
the unltered setting or hotter than 50°C at the ltered setting.
This may damage the water purier.
- Do not let the water purier freeze.
- Only use the water purier to lter water that meets drinking water
standards.
- Do not use this water purier in combination with electric taps.
- Do not block the ltered water outlet or connect other devices to it.
- If the water pressure is very high, reduce the water ow of the tap to
prevent damage to the cartridge.
- Keep the water purier away from heat to avoid distortion or
breakage.
- Do not tamper with the water purier.
7
- Do not remove the lter cartridge while you use the water purier.
- Do not install the water purier near a window where it is exposed
to direct sunlight.
- Do not use the water purier without a lter cartridge.
- This water purier does not soften water.
- Do not use ltered water in aquariums. Tap water, ltered or
unltered, can be harmful to sh.
- This water purier is intended for household use only.
- Do not store puried water to avoid contamination. Air contact
contaminates puried water quickly. If you want to store puried
water, use a clean container and keep it in the refrigerator. Do not
keep it in the refrigerator longer than 1 day to avoid contamination.
- Philips’ multi-ltration system consists of a primary lter, a secondary
lter, a high-tech hollow-bre membrane lter and a granular
activated carbon lter.
- The hollow bre membrane contains more than 520 billion
micropores that are small enough to remove particles down to
0.1µm. It eliminates 99.99%* of bacteria, rust and other particles
larger than the micropore size from your tap water without removing
calcium, magnesium and other minerals that are vital to your body. (*
tested according to Japanese Water Purier Association (JWPA)
standard).
- The granular activated carbon removes the unpleasant chlorine smell
and taste from your tap water.
- Apart from the recommended cartridge lifetime, Philips’ unique
cartridge replacement indicator helps you determine when to replace
the lter cartridge.
- The 2ltrs/min high-speed initial ow rate gives you a plenty of clean
water instantly.
- The water selection lever offers you a choice of three water ow
types: unltered spray, unltered stream or ltered spray.
- The eight tap-mounting adapters supplied with the water purier
allow easy installation on almost any type of tap.
8
- The bayonet-type mount ensures quick, easy and secure lter
cartridge replacement.
- Before you install the water purier, make sure all tap-mounting
adapters you require are present.
- The tap must have a diameter of 13mm-25mm.
- Determine what type of tap you have and select the appropriate
adapter.
- The adapters supplied make the water purier suitable for almost
any kitchen tap. However, the water purier may not t some
uncommon types of taps.
- The tap water pressure has to be between 0.7kgf/cm² (7 metres of
water column) and 3.5kgf/cm² (35 metres of water column). If you
use the water purier at a water pressure outside this range, either
the ltered water ow will be extremely low or the water purier
will get damaged.
- For taps with a round spout with a diameter of 16mm, 17.5mm or
19mm (Fig. 2).
1 Remove the attachment nut and the adapter from the water
purier housing (Fig. 3).
2 Pass the attachment nut over the tap spout (Fig. 4).
3 Place the matching adapter (A-type) over the tip of the spout. The
16mm adapter is packed with the water purier. Replace it with
the 17.5mm adapter or 19mm adapter to t the diameter of your
tap (Fig. 5).
4 Screw the attachment nut rmly onto the water purier
housing (Fig. 6).
- For taps with an aerator (threaded outside) (Fig. 7).
9
1 Remove the attachment nut and the adapter from the water
purier (Fig. 8).
2 Remove the aerator cap from the tap and pass the attachment nut
over the spout. Take out the original adapter and screw the
matching adapter (B-type) onto the tap (Fig. 9).
3 Tighten the adapter further with a coin (Fig. 10).
4 Firmly screw the attachment nut onto the water purier
housing (Fig. 11).
- For taps with an aerator (threaded inside) (Fig. 12).
1 Remove the attachment nut and the adapter from the water
purier housing (Fig. 13).
2 Remove the aerator cap from the tap. Take out the original adapter
and screw the matching adapter (C-type) onto the tap through the
attachment nut. (Fig. 14)
3 Tighten the adapter further with a coin (Fig. 15).
4 Firmly screw the attachment nut onto the water purier
housing (Fig. 16).
- For taps other than A, B or C. (Fig. 17)
1 Remove the attachment nut and the adapter from the water
purier housing (Fig. 18).
2 Take out the original adapter and screw the D-type adapter onto
the water purier housing. (Fig. 19)
3 Push the water purier housing onto the tap from below and
tighten the 4 screws evenly (Fig. 20).
4 Screw the attachment nut rmly onto the water purier
housing (Fig. 21).
Make sure the rubber washer is rmly pushed against the tap to prevent
water leakage.
