User manual

Configuration and setup of

FB-DP… and FB-HS... with

ProfiTrace

2015-07-13

PHOENIX CONTACT 3389_en_A

Configuration and setup of FB-DP… and FB-HS... with ProfiTrace

Designation Version Order No.

FB-HS... 2316370

FB-HSB 2316379

FB-HSC 2316371

FB-DP-RPTR 2316373

FB-DP-RPTR/SC 2316374

FB-PA/SC 2316375

User manual

Revision:

This user manual is valid for:

PHOENIX CONTACT

Please observe the following notes

User group of this manual

The use of products described in this manual is oriented exclusively to:

– Qualified electricians or persons instructed by them, who are familiar with applicable

standards and other regulations regarding electrical engineering and, in particular, the

relevant safety concepts.

– Qualified application programmers and software engineers, who are familiar with the

safety concepts of automation technology and applicable standards.

Explanation of symbols used and signal words

How to contact us

Internet Up-to-date information on Phoenix Contact products and our Terms and Conditions can be

found on the Internet at:

phoenixcontact.com

Make sure you always use the latest documentation.

It can be downloaded at:

phoenixcontact.net/products

Subsidiaries If there are any problems that cannot be solved using the documentation, please contact

your Phoenix Contact subsidiary.

Subsidiary contact information is available at phoenixcontact.com.

Published by PHOENIX CONTACT GmbH & Co. KG

Flachsmarktstraße 8

32825 Blomberg

GERMANY

Should you have any suggestions or recommendations for improvement of the contents and

layout of our manuals, please send your comments to:

tecdoc@phoenixcontact.com

This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety measures that follow this symbol to avoid possible in-

jury or death.

There are three different categories of personal injury that are indicated with a

signal word.

DANGER This indicates a hazardous situation which, if not avoided, will re-

sult in death or serious injury.

WARNING This indicates a hazardous situation which, if not avoided, could

result in death or serious injury.

CAUTION This indicates a hazardous situation which, if not avoided, could

result in minor or moderate injury.

This symbol together with the signal word NOTE and the accompanying text

alert the reader to a situation which may cause damage or malfunction to the

device, hardware/software, or surrounding property.

This symbol and the accompanying text provide the reader with additional in-

formation or refer to detailed sources of information.

Please observe the following notes

PHOENIX CONTACT

General terms and conditions of use for technical documentation

Phoenix Contact reserves the right to alter, correct, and/or improve the technical documen-

tation and the products described in the technical documentation at its own discretion and

without giving prior notice, insofar as this is reasonable for the user. The same applies to any

technical changes that serve the purpose of technical progress.

The receipt of technical documentation (in particular user documentation) does not consti-

tute any further duty on the part of Phoenix Contact to furnish information on modifications

to products and/or technical documentation. You are responsible to verify the suitability and

intended use of the products in your specific application, in particular with regard to observ-

ing the applicable standards and regulations. All information made available in the technical

data is supplied without any accompanying guarantee, whether expressly mentioned, im-

plied or tacitly assumed.

In general, the provisions of the current standard Terms and Conditions of Phoenix Contact

apply exclusively, in particular as concerns any warranty liability.

This manual, including all illustrations contained herein, is copyright protected. Any

changes to the contents or the publication of extracts of this document is prohibited.

Phoenix Contact reserves the right to register its own intellectual property rights for the

product identifications of Phoenix Contact products that are used here. Registration of such

intellectual property rights by third parties is prohibited.

Other product identifications may be afforded legal protection, even where they may not be

indicated as such.

3389_en_A PHOENIX CONTACT 1

Table of contents

1 FB-HS... system..........................................................................................................................3

1.1 Introduction............................................................................................................ 3

1.2 Connecting a PROFIBUS/PA segment.................................................................. 3

1.2.1 Cable specifications ............................................................................... 4

1.3 Connecting a PROFIBUS/DP segment.................................................................. 5

1.3.1 Screw terminals ..................................................................................... 6

1.3.2 D-SUB 9 connector ................................................................................ 6

1.3.3 Termination switch ................................................................................. 7

1.4 Modes ................................................................................................................... 8

1.4.1 Link mode .............................................................................................. 8

1.4.2 Coupler mode ........................................................................................ 9

1.5 Configuring repeater modules ............................................................................... 9

1.5.1 Customizing the PROFIBUS network (NW0/NW1) ................................ 9

1.5.2 Redundancy (RED) ................................................................................ 9

1.5.3 Hardware or software settings (H/S) .................................................... 10

1.5.4 Testing and commissioning ................................................................. 10

2 Web server ...............................................................................................................................11

2.1 Login ................................................................................................................... 11

2.2 Status .................................................................................................................. 12

2.2.1 System status ...................................................................................... 12

2.2.2 Module status ...................................................................................... 13

2.3 System log........................................................................................................... 14

3 Configuration ............................................................................................................................15

3.1 General configuration .......................................................................................... 15

3.2 Network ............................................................................................................... 16

3.3 IP address ........................................................................................................... 17

3.4 Password ............................................................................................................ 17

3.5 E-mail account..................................................................................................... 19

3.6 Device management............................................................................................ 21

3.7 Output control...................................................................................................... 22

3.8 User message ..................................................................................................... 23

FB-HS...

2PHOENIX CONTACT 3389_en_A

4 ProfiTrace OE ...........................................................................................................................25

4.1 Live list ................................................................................................................ 25

4.1.1 GSD library .......................................................................................... 26

4.2 Statistics.............................................................................................................. 26

4.3 Channel list.......................................................................................................... 27

4.4 Message recording.............................................................................................. 27

4.5 Network events.................................................................................................... 29

4.6 Events ................................................................................................................. 30

4.7 Tagging devices .................................................................................................. 31

5 PROFIBUS modules.................................................................................................................33

5.1 Oscilloscope images ........................................................................................... 33

5.2 Oscilloscope errors.............................................................................................. 35

5.3 Bar graphs........................................................................................................... 36

5.4 PA measurements ............................................................................................... 37

5.5 Oscilloscope configuration .................................................................................. 38

5.6 ProfiTrace statistics summary.............................................................................. 39

6 CommDTM ...............................................................................................................................41

6.1 Setting up the PCD server ................................................................................... 41

6.2 Creating a project using FdtCONTAINER............................................................ 42

A Technical appendix...................................................................................................................47

A 1 Bus parameters .................................................................................................. 47

A 2 Current consumption calculations ...................................................................... 47

A 3 Voltage at the end of the segment ...................................................................... 48

A 4 Directories and files............................................................................................ 48

B Appendixes...............................................................................................................................49

B 1 List of figures ...................................................................................................... 49

B 2 List of tables ....................................................................................................... 51

FB-HS... system

3389_en_A PHOENIX CONTACT 3

1 FB-HS... system

1.1 Introduction

PROFIBUS coupler/link products transparently convert PROFIBUS DP to PROFIBUS PA

while providing detailed network diagnostics. Advanced configuration and diagnostics of

these products is accomplished through an onboard web server.

Different levels of monitoring capability are provided through the different head stations.

– The FB-HSA does not provide any monitoring capability.

– The FB-HSB provides diagnostic monitoring of one network.

– The FB-HSC provides diagnostic monitoring of up to four networks simultaneously.

Configuration of modules other than the FB-HS... can be accomplished through the

FB-HS..., including other devices on the PROFIBUS network that use compatible FDT/DTM

protocols.

1.2 Connecting a PROFIBUS/PA segment

The bottom of the FB-PA/SC module has two identical connections for the PROFIBUS/PA

trunk. These are connected one-to-one. The integrated termination is activated when power

is connected to the PA module, which means that the FB-PA/SC is always the start of a

segment. The automatic termination cannot be disabled. Most installations will use only one

connector. In that case it does not matter which connector is chosen.

Basic configuration can be accomplished using DIP switches without the need to connect

to the web server.

FB-HS...

4PHOENIX CONTACT 3389_en_A

1.2.1 Cable specifications

Use the correct cable for your project. The table below shows the cable specifications for

PROFIBUS PA. If a cable is not compliant with these specifications, the reliability of the

installation may become unstable.

Spur lines

The trunk line on the PA module can have up to 32 spur lines with the following lengths:

Table 1-1 PROFIBUS cable specifications

Characteristic Specification

Cable design Twisted pair, shielded

Maximum conductor cross section (nominal) 0.8 mm² (AWG 18)

Loop resistance (direct current) 44 Ω/km

Impedance (31,25 kHz) 100 Ω±20%

Attenuation (39 kHz) 3 dB/km

Capacitive asymmetry 2 nF/km

Max. propagation delay change (7.9 to 39 kHz) 1.7 µs/km

Max. shield coverage 90%

Cable length 1900 m

Table 1-2 Spur lines

Number of spur lines Length of the spur (Non-Ex)

25 to 32 Max 1 meter

19 to 24 30 meter

15 to 18 60 meter

13 to 14 90 meter

1 to 12 120 meter

FB-HS... system

3389_en_A PHOENIX CONTACT 5

1.3 Connecting a PROFIBUS/DP segment

The PROFIBUS cable should be wired to the repeaters according to the PROFIBUS

guidelines with suitable cable for the application.

Regular and SCOPE repeater modules are equipped with both a screw terminal connector

and a D-SUB 9 connector for the bus connection. The connectors are linked with each

other, but it is not recommended to use them both.

Figure 1-1 Repeater connection topologies

NW0

NW1

RED

H/S

FB-DP-RPTR

RDY

NW0

NW1

RED

H/S

FB-DP-RPTR/SC

RDY

TERM

HWE

MIN

SCOPE

FB-HSB

RDY

USB

ETH

IOF

MENU NAV.

SD CARD

RDY

POW

AMP

HWE

NWER

FB-PA/SC

NW0

NW1

LINK

H/S

SCOPE

FB-HS...

6PHOENIX CONTACT 3389_en_A

1.3.1 Screw terminals

Pin layout of the screw terminals:

1.3.2 D-SUB 9 connector

The D-SUB 9 connector offers an alternative connector for standard 9-pin PROFIBUS plugs

(one-to-one with the screw terminals).

When the D-SUB 9 connector is utilized and located at the end of the segment, it is

recommended to use the termination on the D-SUB 9 connector rather than on the repeater

module.

A Green wire

BRedwire

SH Cable shielding (direct)1

1Direct shielding is recommended when connecting all shields

I Cable shielding (capacitive)2

2Capacitive shielding connects the shields through a capacitor in cases where not

all shields are connected to separate the different potential levels

Use a 2.5 mm (0.4 mm maximum) screwdriver to connect the PROFIBUS cable to the

repeater modules.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Phoenix Contact Alimentazione elettrica

Phoenix Contact

Phoenix Contact AXL SE PSDI8/3 Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/24DC/40 Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/24DC/1.3/PT Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/3AC/24DC/10 Manuale utente

Phoenix Contact

Phoenix Contact QUINT-PS-100-240AC/12DC/10 Manuale utente

Phoenix Contact

Phoenix Contact QUINT UPS-IQ Manuale utente

Phoenix Contact

Phoenix Contact EV-T2M3SO12-3P-P-SET Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/24DC/20 Manuale utente

Phoenix Contact

Phoenix Contact FL MGUARD 1102 Guida rapida

Phoenix Contact

Phoenix Contact TRIO-PS-2G/1AC/24DC/10/B+D Manuale utente

Phoenix Contact

Phoenix Contact PC WORX SRT Manuale utente

Phoenix Contact

Phoenix Contact MINI MCR-2-RPSS-I-I Guida rapida

Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/24DC/10 Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/48DC/20 Manuale utente

Phoenix Contact

Phoenix Contact QUINT-PS-100-240AC/24DC/10 Guida rapida

Phoenix Contact

Phoenix Contact UNO POWER UNO-PS/1AC/24DC/30W Guida rapida

Phoenix Contact

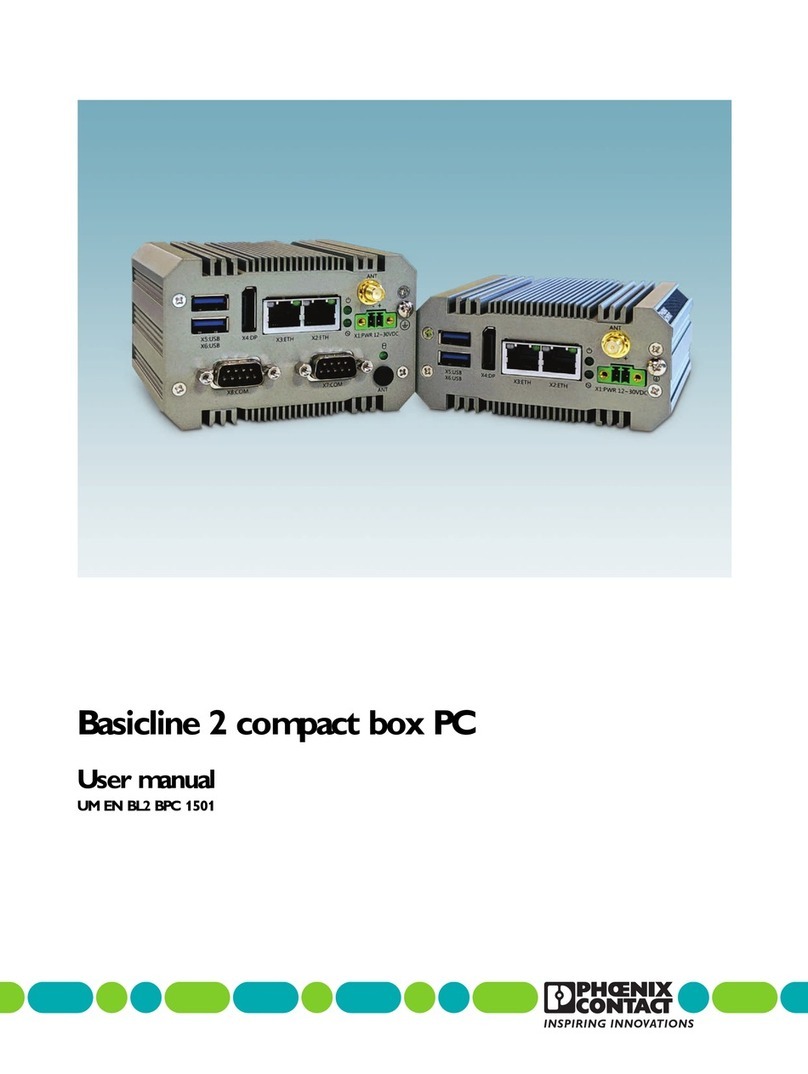

Phoenix Contact Basicline 2 Series Manuale utente

Phoenix Contact

Phoenix Contact Axioline F SBT V3 Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/3AC/24DC/20 Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/24DC/20/+ Manuale utente

Phoenix Contact

Phoenix Contact TRIO-PS-2G/3AC/24DC/40 Manuale utente

Phoenix Contact

Phoenix Contact SHDSL-PROFIBUS Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/48DC/5 Manuale utente

Phoenix Contact

Phoenix Contact QUINT4-PS/1AC/48DC/10 Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Agilent Technologies

Agilent Technologies 6032A Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente
