Piazzetta G963 Guida utente

040714 PZPE.G963BODYA 5055.963-A

INSTALER:

Leave this manual with the appliance.

CONSUMER:

Retain this manual for future reference.

WARNING: If the information in these

instructions is not followed exactly a fire or

explosion may result causing property

damage, personal injury or death.

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable vapours and liquids in the vicinity

of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Do not touch any electrical switch.

Do not use any phone in your building.

Immediately call your gas supplier

from a neighbour’s phone. Follow the

gas supplier’s instructions.

If you cannot reach your gas supplier

call the fire department.

Installation and service must be performed

by a qualified installer, service agency or the

gas supplier.

This appliance may be installed in an

aftermarket permanently located,

manufacture home (USA only) or mobile

home, where not prohibited by local codes.

This appliance is only for use with the type of

gas indicated on the rating plate. This

appliance is not convertible for use with

other gases unless a certified kit is used.

This appliance is suitable for installation in a

bedroom or bed sitting room.

G963

INSTALLATION AND

OPERATING INSTRUCTIONS

MODEL: G963

SERIES: A

DIRECT VENT GAS FIREPLACE

HEATER

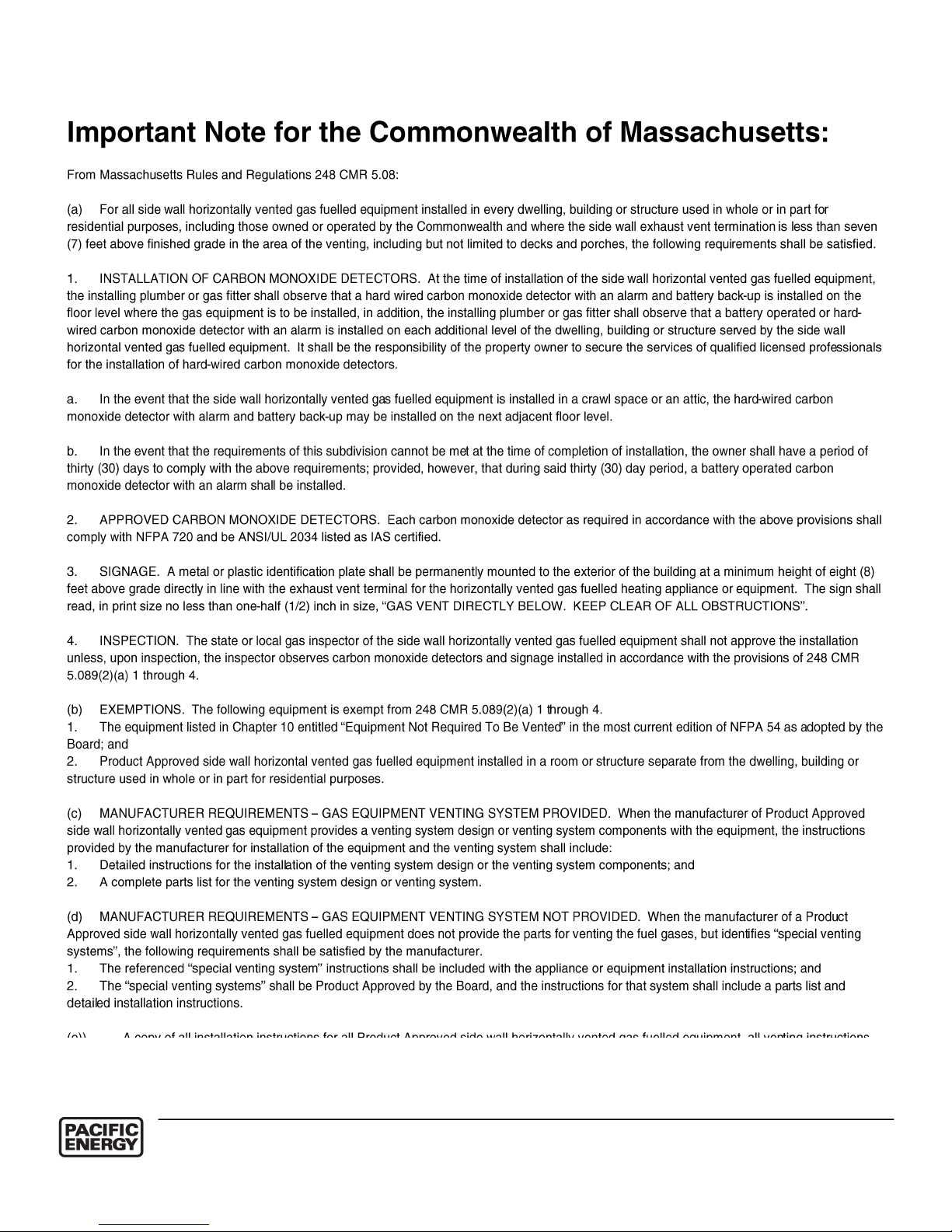

Table of Contents

Caution 4

Safety 5

Owners Information

First Fire 6

Remote Control Operation 7

Maintenance 15

Lighting Instructions 16

Installer information

Fireplace Dimensions 17

Clearances to Combustibles 18

Locating the Fireplace 18

Venting 19

Plumbing and Electrical 21

Gas Supply 22

Gas Pressure Check 22

Gas Pressure Testing Procedure 23

Pilot Adjustment 23

Propane Conversion 24

Door Installation / Removal 25

Fan Installation/ Removal 25

Panel Installation/Removal 26

Burner Kit Installation/Removal 27

Glass Kit Installation 27

Log Set Installation 27

Cladding Installation/Removal 28

Venturi Adjustment 29

Replacement Parts 30

Aesthetic Options 30

Venting Components 31

Wiring Diagram 32

Installation Notes 33

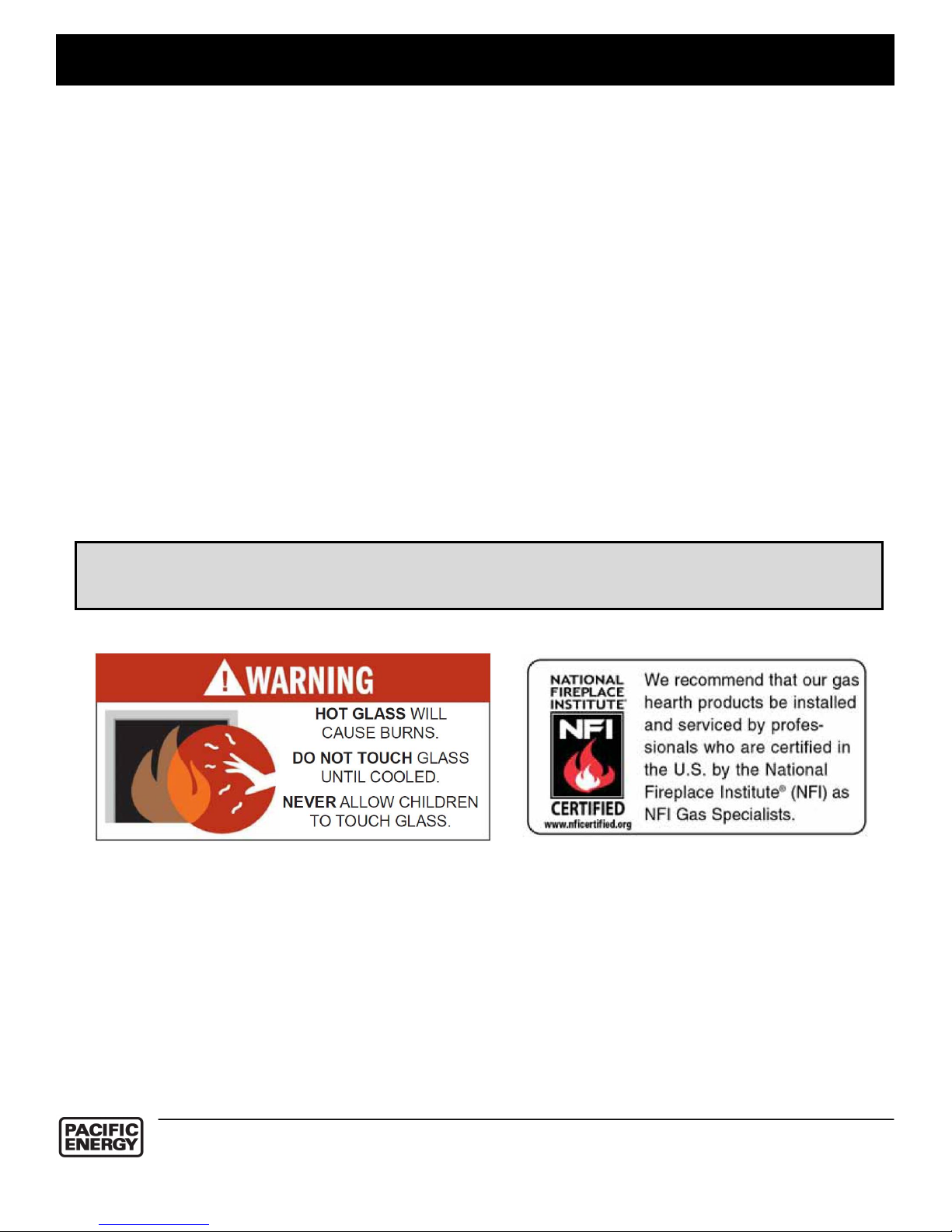

FOR YOUR SAFETY - Do not install or operate your Pacific Energy gas fireplace without first

reading and understanding this manual. Any installation or operational deviation from the

following instructions voids the Pacific Energy Fireplace Products Warranty and may prove

hazardous.

This appliance and its individual shut off valve must be disconnected from gas supply piping

system during any pressure testing of that system at test pressures in excess of 1/2 psi

(3.5 kPa).

This appliance must be isolated from the gas supply piping system by closing its individual

manual shut off valve during any pressure testing of the gas supply piping system at test

pressures equal to or less than 1/2 psi (3.5 kPa).

Do not use the fireplace if any part has been under water. Immediately call a qualified service

technician to inspect the fireplace and to replace any part of the control system and / or any gas

control which has been under water.

This fireplace is equipped with a micro mesh safety screen for your protection and must

be installed with the unit. Removal of the safety screen will cause the fireplace to

become a burn hazard.

Caution

Due to high temperatures, this gas appliance should be located out of traffic and away

from furniture and draperies.

Children and adults should be alerted to the hazards of high surface temperatures and

should stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they are in the same room as the

appliance. Toddlers, young children and others may be susceptible to accidental contact

burns. A physical barrier is recommended if there are at risk individuals in the house. To

restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers,

young children and other at risk individuals out of the room and away from hot surfaces.

Clothing or other flammable material should not be placed on or near the appliance.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with

the appliance and shall be installed.

If the barrier becomes damaged, the barrier shall be replaced with the manufacturers

barrier for this appliance.

Any grill, panel or door removed for servicing the unit must be replaced prior to operating.

Installation and repair should be done by a qualified service person. The appliance should

be inspected before use and at least annually by a professional service person. More

frequent cleaning may be required due to excessive lint from carpeting, bedding material,

etc. It is imperative that control compartments, burners and circulating air passageways of

the appliance be kept clean.

This appliance must not be connected to a chimney flue serving a separate solid fuel

burning appliance.

It is our policy that no responsibility is assumed by the Company or by any of its

employees or representatives for any damages caused by an inoperable, inadequate, or

unsafe condition which is the result, either directly or indirectly, of any improper operation

or installation procedures.

Safety

OWNER’S

INFORMATION

Congratulations on your purchase of a Pacific Energy Gas Fireplace.

Your fireplace has been professionally installed by:

Dealer name: ___________________

Phone Number: _________________

If you discover any problems with your gas fireplace contact your dealer immediately to have the

unit repaired.

Caution: Do not attempt to repair the fireplace because you may cause injury to yourself or others,

and risk causing damage to the unit.

Before operating your fireplace carefully read this manual and pay close attention to all Safety

Warnings. The manual contains important information on the unit’s safe operation and

maintenance.

When lit for the first time, the fireplace will emit a slight odour for a couple of hours. This is due to

the curing of paints, sealants, gaskets, and lubricants used in the manufacturing process. This

condition is temporary. Open doors and windows to ventilate the area. Odour caused by the curing

process may cause discomfort to some individuals.

It is normal for fireplaces fabricated from steel to give off some expansion and/or contraction

noises during the start up or cool down cycle. Similar noises are found with your furnace heat

exchanger or cook stove oven.

First Fire

OWNER’S

INFORMATION

Remote Control Operation

Important

The Proflame Transmitter is an integrated part of the Proflame System, which consists of:

• Proflame Transmitter, to be used in conjunction with

• Integrated Fireplaces Control (Proflame IFC)

The Proflame Transmitter provides for controlling the following hearth appliance functions:

1. Main Burner On/Off

2. Main Burner flame modulation (6 levels)

3. Choice of standing or intermittent pilot (CPI/IPI)

4. Thermostat and Smart thermostat functions

5. Accent light modulation (6 levels)

6. Split flow valve

7. Comfort Fan speed modulation (6 levels)

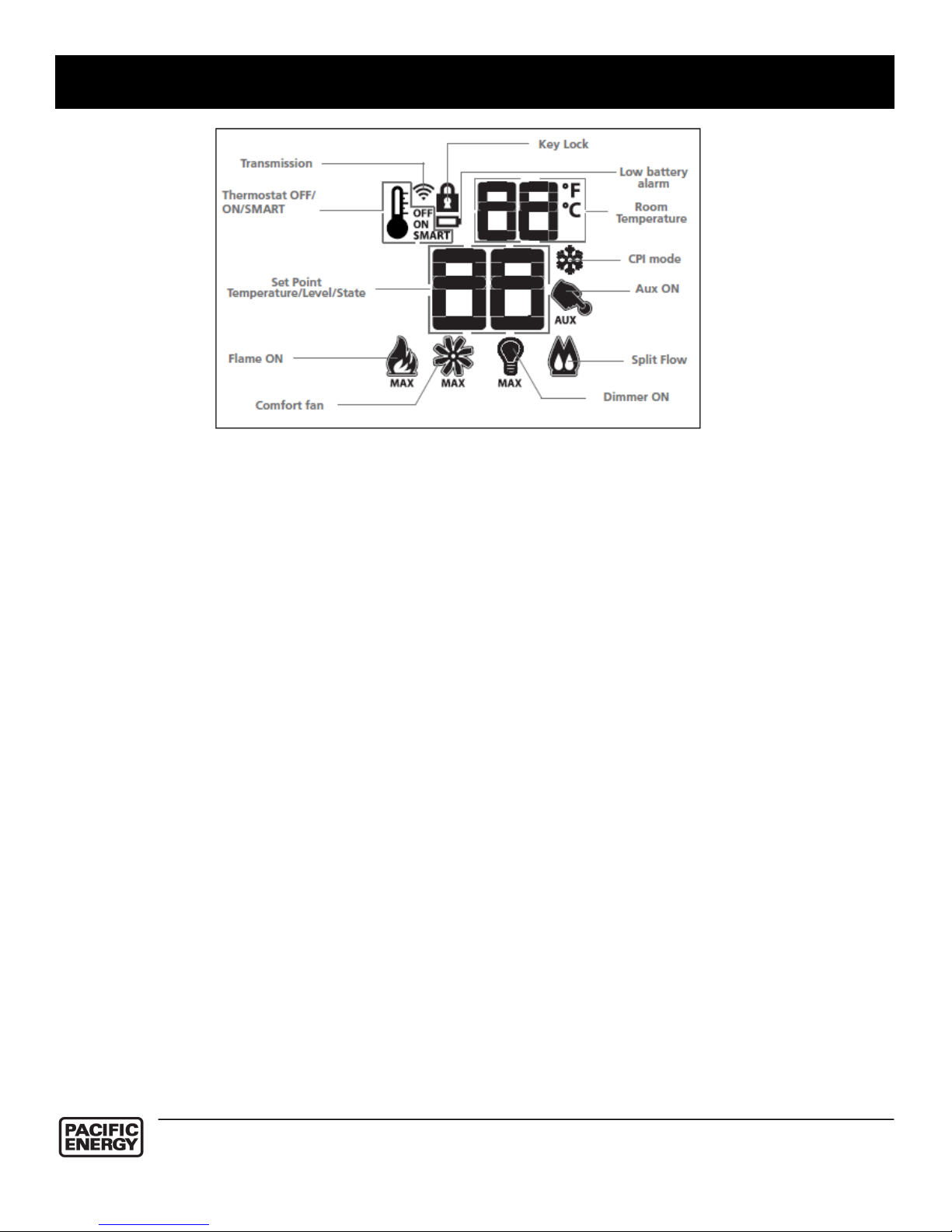

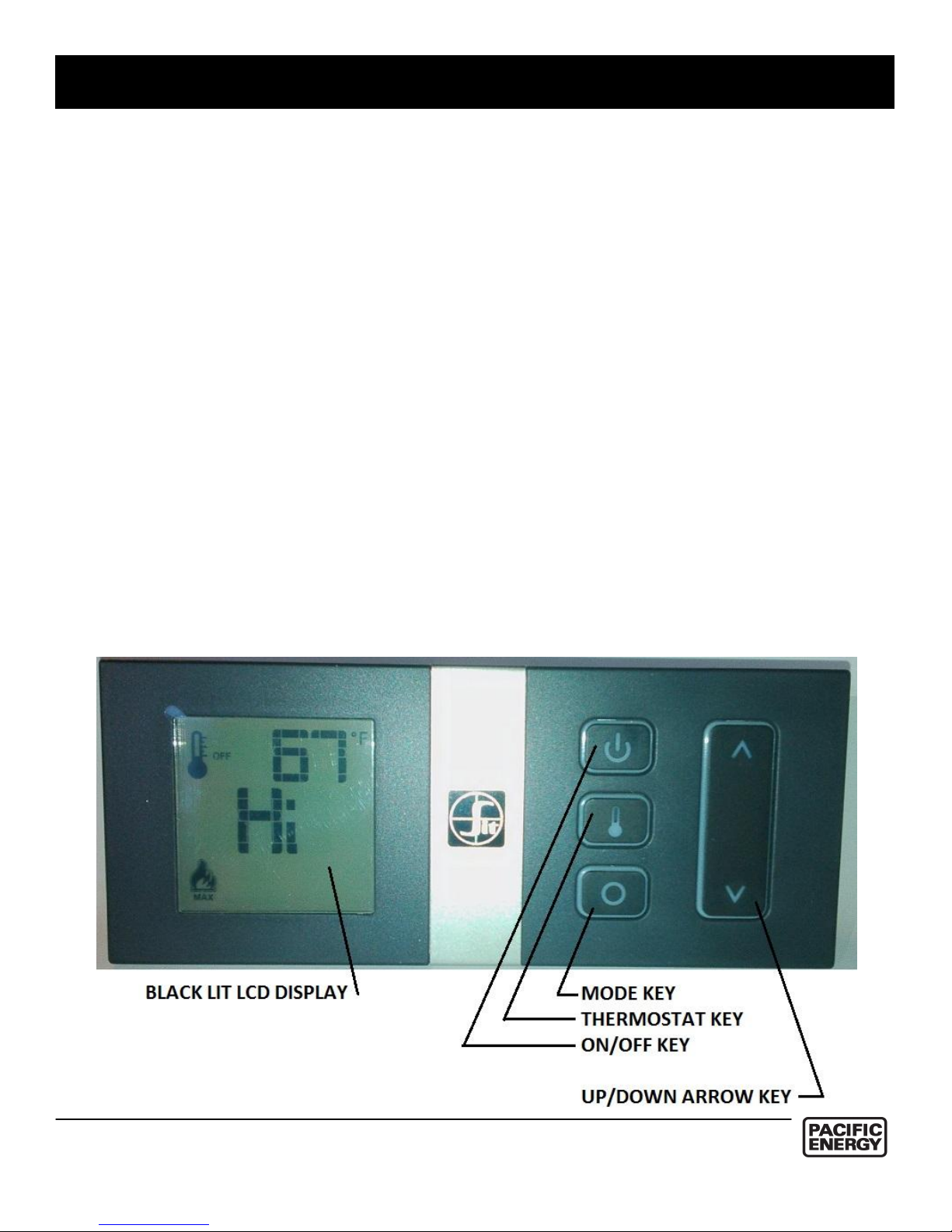

Transmitter (Remote Control with LCD Display)

The Proflame Transmitter uses a streamline design with a simple button layout and informative

LCD display (Fig. 1). A Mode Key is provided to index between the features and a Thermostat Key

is used to turn on/off or index through Thermostat functions (Fig. 1 & 2). Additionally, a Key Lock

feature is provided (Fig. 20).

Figure 1

OWNER’S

INFORMATION

Technical Data

Remote Control

Supply voltage 4.5 V (three AAA LR03 1.5 V batteries)

Ambient temperature ratings 0 - 50 °C (32 - 122 °F)

Typical operative distance in free air 12 m

Radio frequency 315 MHz ( FCC version )

433.92 MHz ( CE version )

WARNING

THE TRANSMITTER AND RECEIVER ARE RADIO FREQUENCY DEVICES.

PLACING THE TRANSMITTER IN OR NEAR METAL MAY SEVERELY REDUCE THE

SIGNAL RANGE.

METALLIC STRUCTURES OR RADIO INTERFERENCES CAN REDUCE THE OPERATIVE DISTANCE

OF THE DEVICE DEPENDING ON TYPE OF FIREPLACE, INSTALLATION AND ENVIROMENT.

ATTENTION!

- TURN “OFF” THE MAIN GAS SUPPLY OF THE APPLIANCE DURING INSTALLATION OR

MAINTENANCE OF THE RECEIVER DEVICE.

- TURN “OFF” MAIN GAS SUPPLY TO THE APPLIANCE PRIOR TO REMOVING OR

REINSERTING THE BATTERIES.

- IN CASE OF REMOTE CONTROL MALFUNCTION TURN OFF THE IFC DEVICE USING

THE “ON/OFF” MAIN SWITCH.

- FOR INSTALLATION/MAINTENANCE SWITCH OFF THE IFC DEVICE REMOVING MAIN

POWER SUPPLY PLUG.

- THE DEVICE IS NOT SUITABLE FOR THE USE OF RECHARGABLE BATTERIES AND ITS

OPERATIVE DISTANCE IS REDUCED WITH LOW BATTERY LEVEL.

Figure 2

OWNER’S

INFORMATION

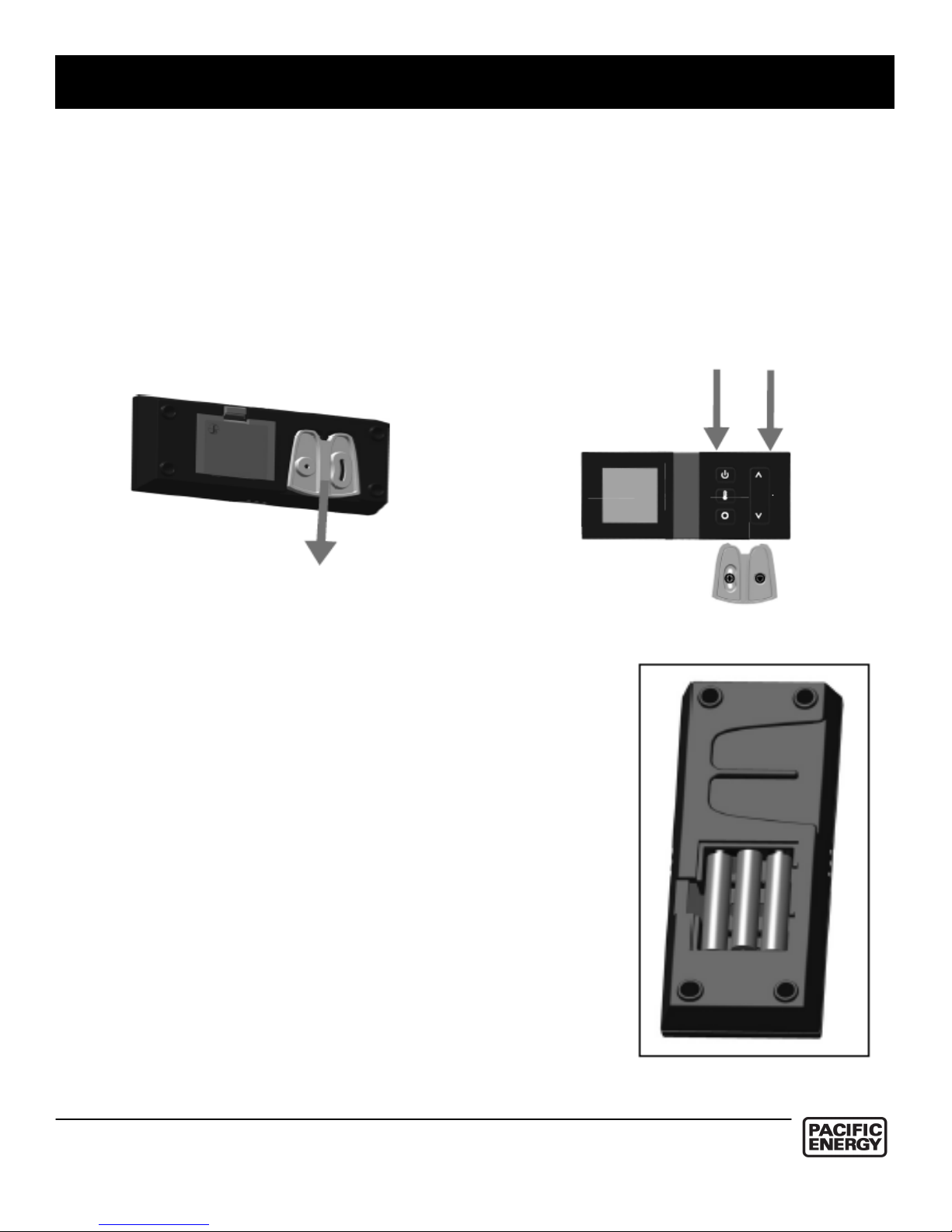

Wall mounting

The Proflame remote control is supplied with an adapter for wall mounting.

Install the controller 1.5 m above floor level, well away from heat sources, kitchens, doors or

windows.

Metallic structures or radio interferences can reduce the operative distance of the device.

Make sure to attach the adapter in a level plane without any distortion. Proceed as follows:

• Detach the adapter from the body of the remote control; see Fig. A.

• Position the adapter on the wall, mark the points for the fixing holes and drill the wall.

• Fix the adapter on the wall using the mounting hardware supplied with the remote control.

• Insert the remote control onto the adapter as shown in Fig. B.

Figure A: Detach the adapter from the body

Figue B: Adapter and remote control

OPERATING PROCEDURE

Initializing the System for the first time

Power the receiver. Activate the procedure of the receiver

address programming, see the receiver instruction (*).

The Receiver will “beep” three (3) times to indicate that

it is ready to synchronize with a Transmitter. Install the

3 AAA type batteries in the Transmitter battery bay, located

on the base of the Transmitter. (Fig. 3) With the batteries

already installed in the Transmitter, push the On button.

The Receiver will “beep” four times to indicate the

Transmitter’s command is accepted and sets to the particular

code of that Transmitter. The system is now initialized.

(*) The receiver may be independent or integrated to the IFC hearth

appliance control module. The receiver instruction may not be

independent when part of the IFC.

Figure 3

OWNER’S

INFORMATION

Remote Flame Control

The Proflame has six (6) flame levels. With the

system on, and the flame level at the maximum in

the appliance, pressing the down arrow key once

will reduce the flame height by one step until the

flame is turned off.

The Up Arrow Key will increase the flame height

each time it is pressed. If the Up Arrow Key is

pressed while the system is on but the flame is off,

the flame will come on in the high position. (Fig. 7)

A single “beep” will confirm reception of the

command.

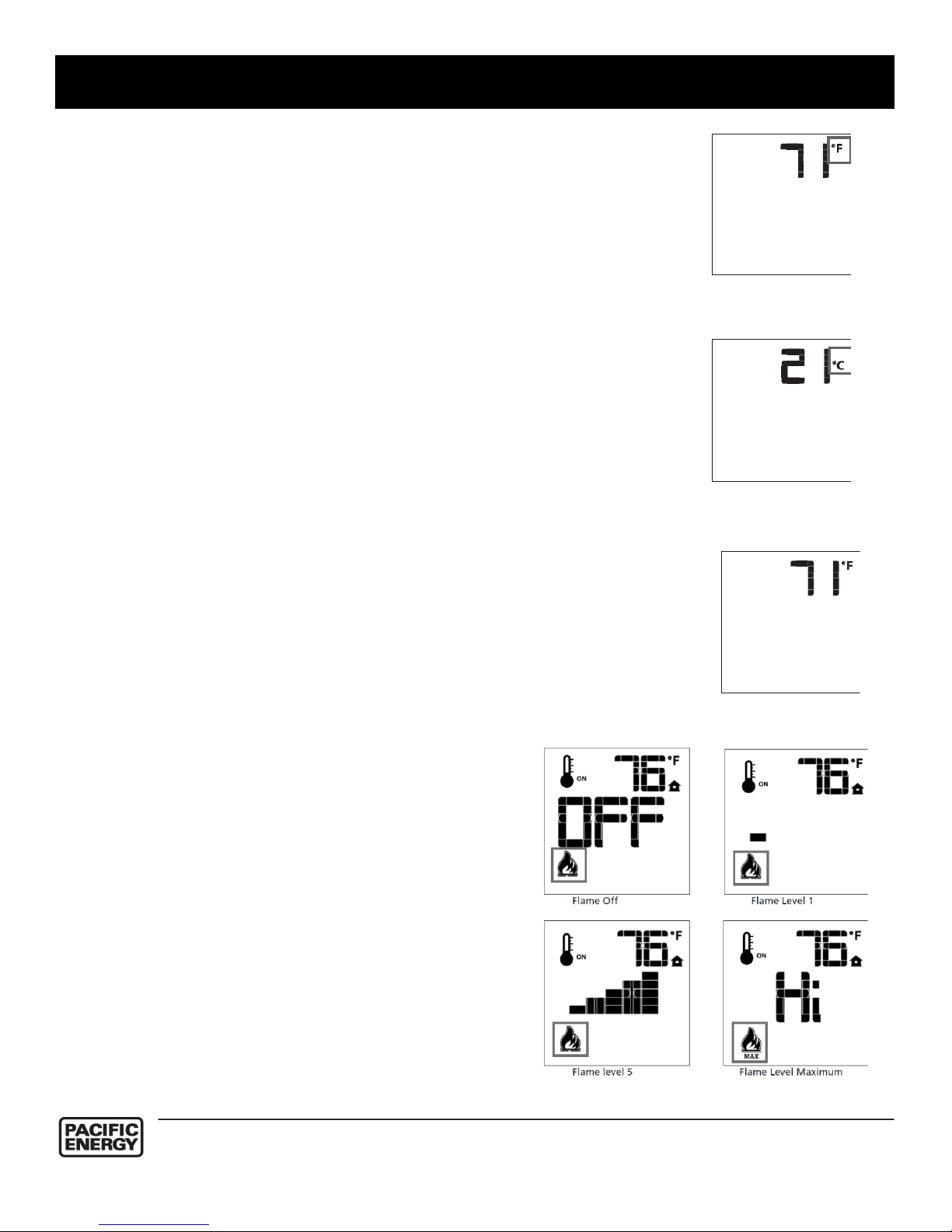

Temperature indication Display

With the system in the “OFF” position, press the Thermostat Key and the

Mode Key at the same time. Look at the LCD screen on the transmitter to

verify that a C or F is visible to the right of the Room Temperature

display. (Fig. 4 & 5)

Turn on the Appliance

With the system OFF, press the ON/OFF Key on the

Transmitter. The Transmitter display will show some other

active Icons on the screen. At the same time the Receiver

will activate the appliance. A single “beep” from the

Receiver will confirm reception of the command.

Turn off the Appliance

With the system ON, press the ON/OFF Key on the

Transmitter. The Transmitter LCD display will only show

the room temperature (Fig. 6). At the same time the

Receiver will turn off the appliance. A single “beep” from

the Receiver confirms reception of the command.

Figure 7:

Figure 4: Display in Fahrenheit

Figure 5: Display in Celsius

Figure 6: Remote Control Display

Altri manuali per G963

Indice

Altri manuali Piazzetta Camino da interno

Piazzetta

Piazzetta MA 260 Guida utente

Piazzetta

Piazzetta 2010 HT/B Manuale elenco delle parti

Piazzetta

Piazzetta 760T HT/C Guida

Piazzetta

Piazzetta MA-270 Guida

Piazzetta

Piazzetta MC 120/48 Manuale elenco delle parti

Piazzetta

Piazzetta MA271 SL Manuale utente

Piazzetta

Piazzetta IL 65/54 Guida rapida

Piazzetta

Piazzetta covering e920 Manuale utente

Piazzetta

Piazzetta IP 78/58 Manuale elenco delle parti

Piazzetta

Piazzetta IP 78/58 Manuale di servizio

Piazzetta

Piazzetta P943 M Manuale utente

Piazzetta

Piazzetta IG120B Guida

Piazzetta

Piazzetta M 360 Manuale elenco delle parti

Piazzetta

Piazzetta ME 90/44 D Manuale elenco delle parti

Piazzetta

Piazzetta 600 HT Guida rapida

Piazzetta

Piazzetta 2010 HT/B Manuale elenco delle parti

Piazzetta

Piazzetta MP 973 Manuale elenco delle parti

Piazzetta

Piazzetta Robeys 600HTv Manuale elenco delle parti

Piazzetta

Piazzetta MA 262 SL Manuale elenco delle parti

Piazzetta

Piazzetta 600 HT Manuale utente

Piazzetta

Piazzetta 2010 HT/B Manuale elenco delle parti

Piazzetta

Piazzetta M360 Q Manuale elenco delle parti

Manuali Camino da interno popolari di altre marche

Brigantia

Brigantia 35-DVRS31N-2 Manuale del proprietario

Nordpeis

Nordpeis Bergen Manuale utente

Superior

Superior BCT2536TMN Manuale utente

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuale utente

Renaissance

Renaissance RUMFORD 1000 Manuale utente

Lacunza

Lacunza IV-800 Manuale utente

Baxi

Baxi 940 Istruzioni per l’uso

Dru

Dru Maestro 60/2 Tall RCH Manuale utente

Diamond Fireglass

Diamond Fireglass SS-O22 Manuale utente

HearthStone

HearthStone Windsor Bay 8830 Manuale di programmazione

Napoleon

Napoleon ASCENT B42 Manuale utente

Enviro

Enviro E33GI Manuale utente

Smeg

Smeg L30 FABE Istruzioni di montaggio

KEDDY

KEDDY K700 Manuale utente

Godin

Godin 3451 Manuale utente

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuale utente

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuale utente

Desa

Desa CCFPDFT Manuale operativo
