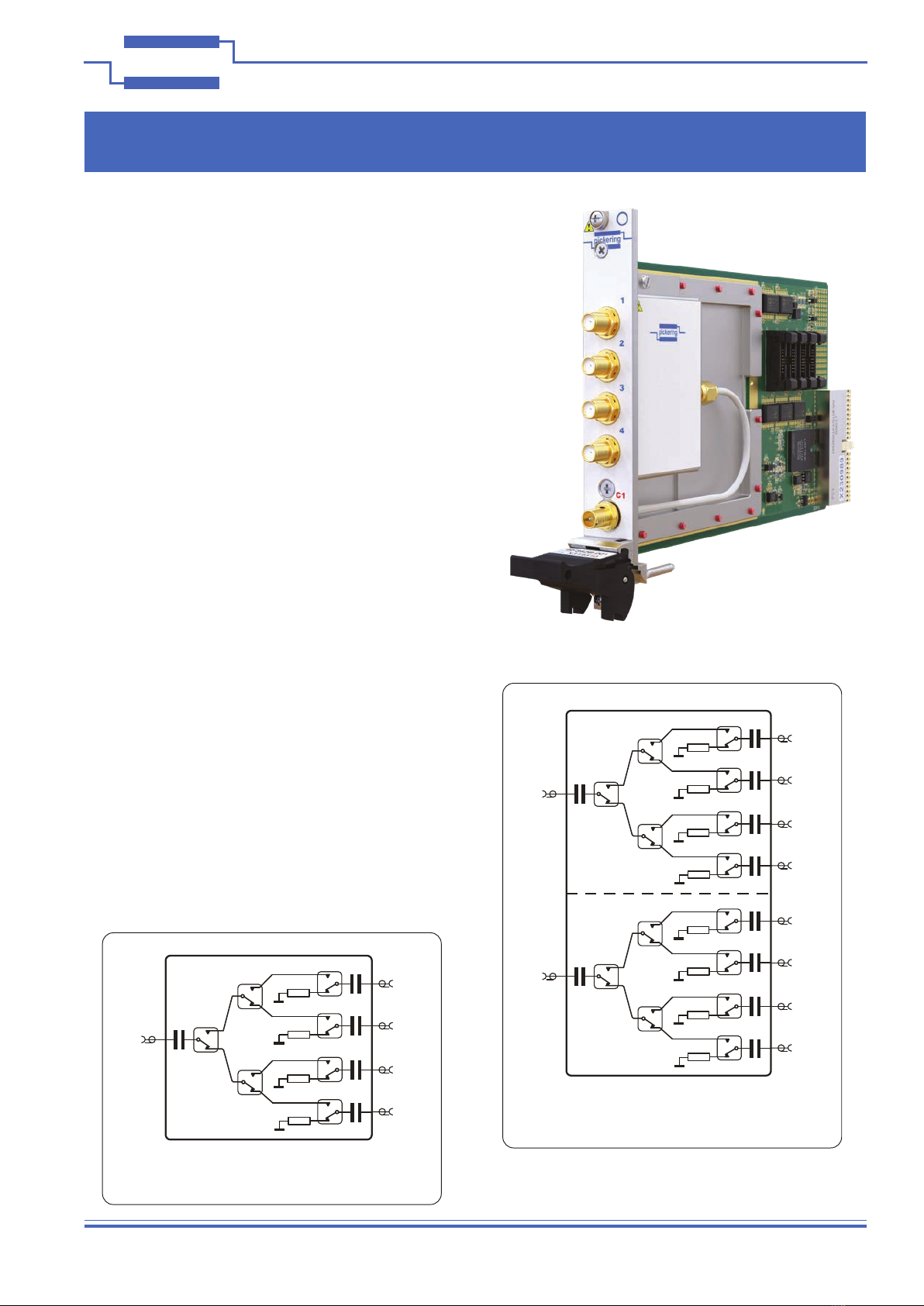

Page 1.1

PXI/PXIe 50Ω SP4T Terminated 8GHz RF Multiplexer 40/42-882B

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI/PXIe 50 Ω SP4T Terminated 8 GHz Multiplexers 40/42-882B

ISSUE 1.2 APR 2023

yAvailable as PXI or PXIe Modules

yWide Frequency Range 10 MHz to 8 GHz

yHigh Performance Solid State Switch

y4 Channel Multiplexer

ySingle, Dual, Triple and Quad Versions

yAutomatic Termination of Unused MUX Channels

y+36 dBm Input Power Handling

yExcellent Crosstalk & Isolation

ySMA Coaxial Connectors

yVISA, IVI & Kernel Drivers Supplied for Windows

ySupported by PXI or LXI Chassis

y3 Year Warranty

The 40-882B (PXI) and 42-882B (PXIe) are 50Ω SP4T

multiplexers which can operate beyond 8 GHz. They are

available as single format in one PXI or PXIe slot, dual format

in two slots, or triple and quad formats in three slots.

The 40/42-882B has low VSWR over the full frequency range

and consistent insertion loss. The use of solid state switches

ensures a long service life with no wear out mechanism,

making the module ideal for ATE systems requiring frequent

and fast operating RF switching. The multiplexer can handle

RF power up to +36 dBm CW and +38 dBm pulsed and is

able to sustain frequent hot switching without performance

degradation.

The module is ﬁtted with SMA connectors, ensuring

compatibility with commonly used cables.

The 40/42-882B is supplied with drivers that allow support

in all popular software environments. The PXI version can

also be supported in all Pickering’s LXI Modular Switching

chassis, allowing the use of a PXI or LAN controlled switching

solution with the same high levels of performance.

R.F. Terminated MUX

1.1

1.2

1.3

1.4

50Ω

40/42-882B-001 Single SP4T Terminated

8 GHz MUX Switching Diagram

R.F. Terminated MUX

Bank 1

Bank 2

1.1

1.2

1.3

1.4

50Ω

2.1

2.2

2.3

2.4

50Ω

40/42-882B-002 Dual SP4T Terminated

8 GHz MUX Switching Diagram

Page 1.2 PXI/PXIe 50Ω SP4T Terminated 8GHz RF Multiplexer 40/42-882B

pickering

SECTION 1 - TECHNICAL SPECIFICATION

50 Ω SP4T Terminated 6 GHz MUX, 40/42-882B

pickeringtest.com

Overview

R.F. Terminated MUX

Bank 1

Bank 2

1.1

1.2

1.3

1.4

50Ω

2.1

2.2

2.3

2.4

50Ω

Bank 3

3.1

3.2

3.3

3.4

50Ω

40/42-882B-003 Triple SP4T Terminated

8 GHz MUX Switching Diagram

R.F. Terminated MUX

BANK 1

BANK 2

1.1

1.2

1.3

1.4

50Ω

2 .1

2.2

2.3

2.4

50Ω

BANK 3

3 .1

3.2

3.3

3.4

50Ω

BANK 4

4 .1

4.2

4.3

4.4

50Ω

40/42-882B-004 Quad SP4T Terminated

8 GHz MUX Switching Diagram
