Broadband 54-1000MHz frequen-

cy range (Channels CATV 2-135)

30dB gain for optimal carrier-to-

noise ratio and superior picture

quality

±0.5dB flatness across band

provides low distortion and

excellent frequency response

Employs state-of-the art hybrid

push-pull technology for distor-

tion-free audio-video quality

Adjustable slope and gain con-

trols for easy system balancing

Front panel controls and test

point enable easy setup and

monitoring

Double shielded enclosure pro-

vides over 95dB RFI shielding

performance reducing leakage

and ingress

Built-in lightning and line volt-

age surge protection protects

the unit from damage

Also available in a wall mount

version as CA30-1000

Distribution Amplifier

The Pico Macom CA30RK1000 is a professional re-broadcast grade push-pull

amplifier producing signals with extremely low noise and harmonic distortion.

The amplifier is capable of 135 channel operation over the 54-1000MHz range.

This rack-mounted amplifier makes an excellent headend launch amplifier and is

frequently used in conjunction with Pico Macom’s passive headend combiners

(PHC12G or PHC24G) to overcome losses associated with signal combining in

broadband CATV systems. Also, the CA30RK1000 is ideally suited for amplify-

ing the cable input prior to Pico Macom’s CEF channel elimination filter in

applications requiring “mix-and-match” channel applications or those requiring

local insertion. Pico Macom backs up this product with its industry leading

5-year limited warranty.

CA30RK1000

1GHz Broadband Push-Pull Headend Amplifier

www.picomacom.com

Headend & Electronics

355 Parkside Drive San Fernando, CA 91340

Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433 A-57

Rev. 12/02

CA30RK1000

Bandwidth: 54-1000 MHz

Gain: 30 dB

Gain Adjust Range: 12 dB

Slope: 9 dB

Flatness: ±1.5 dB (54-1000 MHz)

Max. Output (@ Max. Slope) 45 dB (54 channels, -57 dB

cross modulation)

Noise Figure: 7.5 dB

Second Order Beats: -60 dB (129 channels @

13 dBmV input level)

Composite Triple Beat: -58 dB (129 channels @

13 dBmV input level)

Cross Modulation: -62 dB (129 channels @

13 dBmV input level)

Return Loss In: >20 dB to 800 MHz

Return Loss Out: >12 dB to 800-1000 MHz

Product Specifications

1GHz Broadband Push-Pull Headend Amplifier

Power Input: 115 VAC, 60 Hz, 4 W

Operating Temperature: -10° to +50° C

Dimensions: 19˝ (L) x 3˝(D) x 13/4˝ (H)

Weight: 3.8 lbs.

Test Points: -20 dB

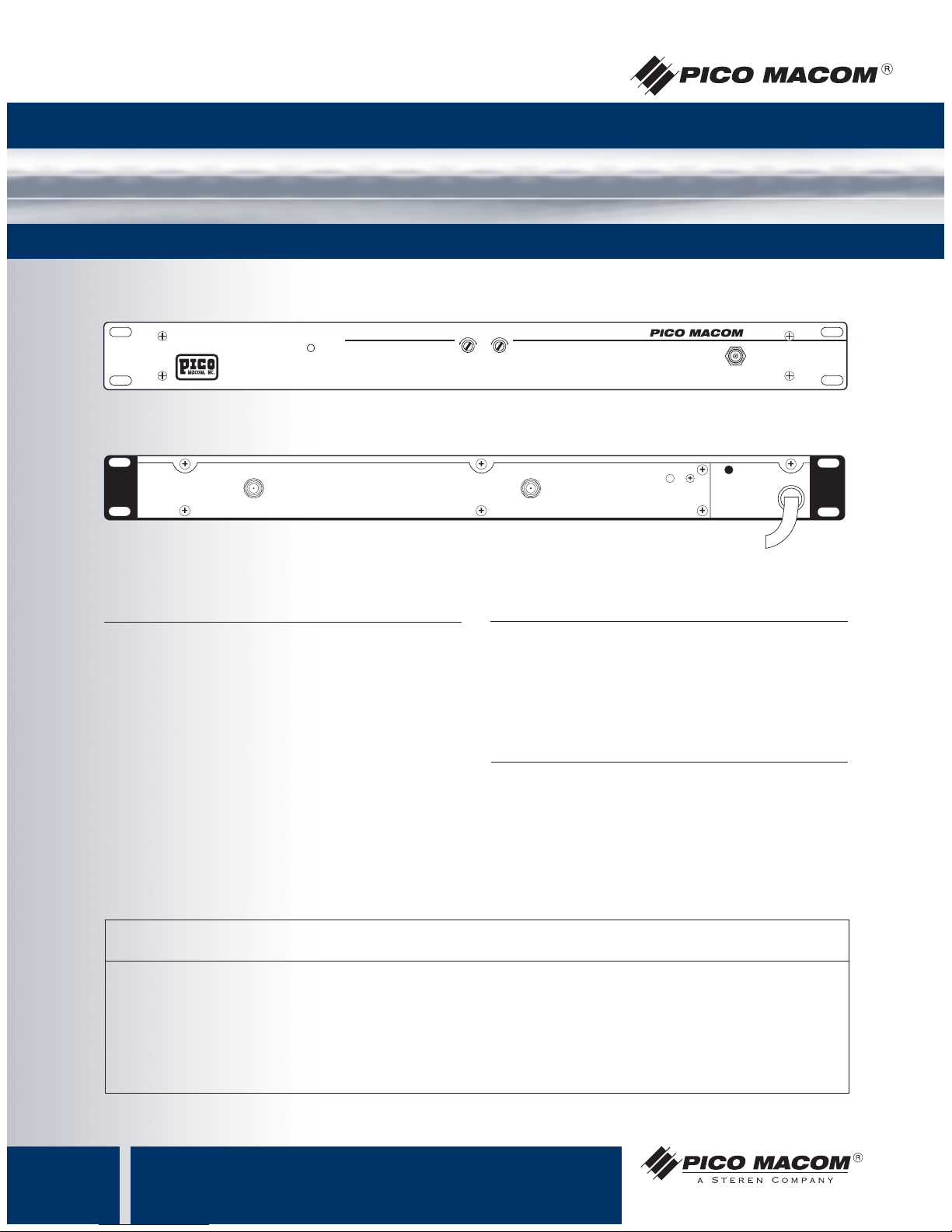

CA-30RK1000 DISTRIBUTION AMPLIFIER

-30 dB

TEST

MAX MAX

R.F.

GAIN TILT

OUT IN 120VAC

60Hz 40W

Front View

Rear View

744 dBmV 66 dBmV

12 41 dBmV 63 dBmV

36 32 dBmV 54 dBmV

54 23 dBmV 45 dBmV

78 18 dBmV 40 dBmV

108 14 dBmV 36 dBmV

125 11 dBmV 32 dBmV

158 8 dBmV 30 dBmV

Total # of

Channels Max. Input

Level Max. Output Level

@ Max Slope

Channel Loading Specifications

Ordering Information

CA-30RK1000

General

www.picomacom.com

A-58

Rev. 12/02 355 Parkside Drive San Fernando, CA 91340

Ph: 818-493-4300 Toll Free: 800-421-6511 Fax: 818-493-4433
