Piezel 5130 Manuale utente

Model 5130

FOUR CHANNEL DIGITAL VIDEO RECORDER

Owner’s Manual

15540 Herriman Blvd. * Noblesville, IN 46060 * Customer Service 1-800-774-0284

ALL ABOUT IMAGE RECOGNITION & PROCESSING

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC

SHOCK. DO NOT OPEN!

CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS.

NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

This label may appear on the bottom of the unit due to space limitations.

The lightning flash with an arrowhead symbol within an equilateral triangle is intended

to alert the user to the presence of uninsulated “ dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

presence of important operating and maintenance (Servicing) instructions in the

literature accompanying the appliance.

WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE UNITS NOT

SPECIFICALLY DESIGNED FOR OUTDOOR USE TO RAIN OR MOISTURE.

Attention: installation should be performed by qualified service Personnel only in

accordance with the National Electrical Code or applicable local codes.

Power Disconnect. Units with or without ON-OFF switches have power supplied to

the unit whenever the power cord is inserted into the power source ; however, the unit

is operational only when the ON-OFF switch is in the ON position. The power cord is

the main power disconnect for all unites.

ALL ABOUT IMAGE RECOGNITION & PROCESSING

1.OVERVIEW......................................................................................................................... 4

(1)ABOUT THIS MANUAL.......................................................................................................... 4

(3)FEATURES..................................................................................................................................... 5

2.INSTALLATION.......................................................................................................... 6

(1) CAMERA & MONITOR CONNECTION......................................................................... 6

(2) SENSOR CONNECTION......................................................................................................... 7

(3) POWER CONNECTION........................................................................................................... 7

3.UNIT DESCRIPTION:........................................................................................ 8

(1) FRONT PANEL........................................................................................................................... 8

(2) REAR PANEL............................................................................................................................. 9

4.MAIN SCREEN............................................................................................................10

5.MAIN MENU....................................................................................................................11

(1) CAMERA SELECT .........................................................................................................12

(2) RECORD SELECT..........................................................................................................12

(3) RECORD MODE ..............................................................................................................12

(5) VIDEO QUALITY...........................................................................................................13

(6) RECORD SCHEDULE.................................................................................................13

(7) SUB MENU...........................................................................................................................14

(8) HARD DRIVE SETUP .................................................................................................16

(9) ALARM SENSOR SETUP ........................................................................................17

6.PLAY.............................................................................................................................................18

7.SPECIFICATIONS AND RECORD TIME.......................19

ALL ABOUT IMAGE RECOGNITION & PROCESSING

1.OVERVIEW

(1)About this Manual

This manual describes the procedures for operating the four-channel di

gital video

recorder (DVR). This manual describes each function using text instruction and

Graphic User Interface (GUI).

(2)The Menu System

The menu system is used to configure the DVR and gives control over recording

resolution, camera sequencing, tim

er settings and alarm triggering and alarm

triggered recording. There is also access to monitor options and password functions

along with many other parameters. A menu can contain the following types of entry:

? Sub-menu heading -press the ENTER/SELECT key and the sub-

menu is entered.

? Function -press the ENTER/SELECT key and the function is performed

(e.g. Reset System).

? Selection -press the left and right menu keys to cycle through the choices.

Any changes made to the menu system have immed

iate effect on the operation of

the system. Any changes to a menu are stored after 3 seconds of no keys being

pressed. The menu is stored on the hard disk. To reset press ”PAUSE”

button 5

times in the normal view mode. Beware that all the information will be lost. After

reset,the password will be the default value (111111).

All of the menus listed are shown in their factory default state.

ALL ABOUT IMAGE RECOGNITION & PROCESSING

(3) Features

Your four-channel color DVR provides real-

time live playback monitoring, and

recording features, with quad-mode processing or each-

mode recording. The

following features are also included:

·NTSC/PAL Compatible (Selector Switch).

·Cost effective Digital Video Solution.

·Compact Size.

·User-friendly Menu System.

·Flexible Recording Rate:

-Quad Mode

Max.: 30fps (NTSC); 25fps (PAL)

-Each Mode (for 4CH video input)

Max.: 7.5field/ each; 6.25field/ each.

·Supported Functions:

Non-stop Auto Recording, Sensor Recording and No Recording Functions.

·Watch-Dog Function:

Auto Returns to the Original Operation when Power Recovers from a Failure.

·4-Channel Alarm Input, 1-channel Alarm output, and an Internal Buzzer.

ALL ABOUT IMAGE RECOGNITION & PROCESSING

2.INSTALLATION

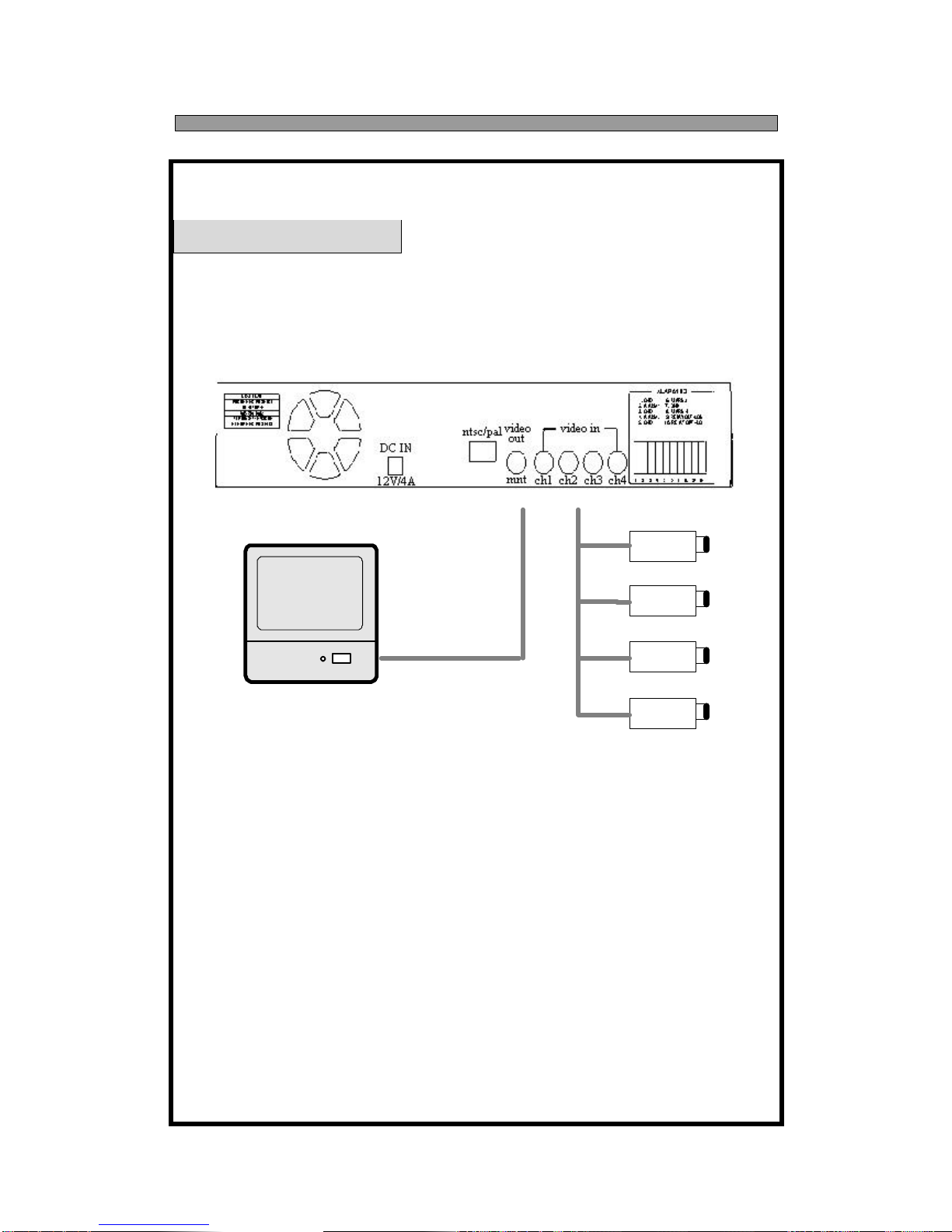

(1) Camera &Monitor Connection

Connect camera(s) CAMERA INPUT(1~4)and Monitor on the rear panel of unit.

ALL ABOUT IMAGE RECOGNITION & PROCESSING

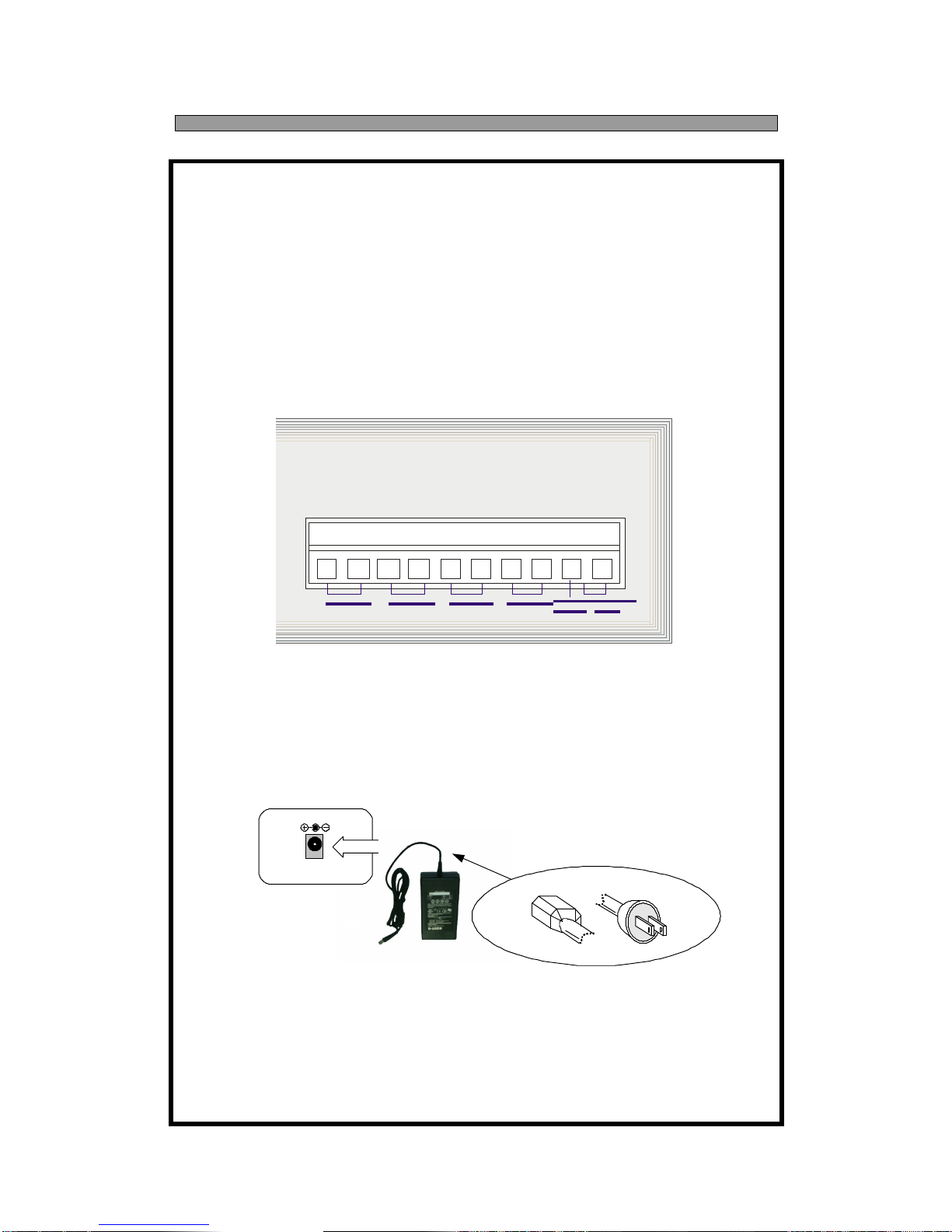

(2) Sensor connection

Connect sensors to the 10 Pin Terminal as specified below.

Connecting dry-contact type sensors (switches) are recommended. In case of

sensors with a voltage output (5V system),GND of sensor must be connected to

GND of DVR unit and the signal line to an alarm input as shown in following

figure.

_ _ _ _ _

+ + + + +

1 4 92 75 103 86

(3) Power connection

Only connect the included DC 12V/4A power supply

to the power connection on the

rear panel of DVR unit.

DC 12V

ALL ABOUT IMAGE RECOGNITION & PROCESSING

3.Unit Description:

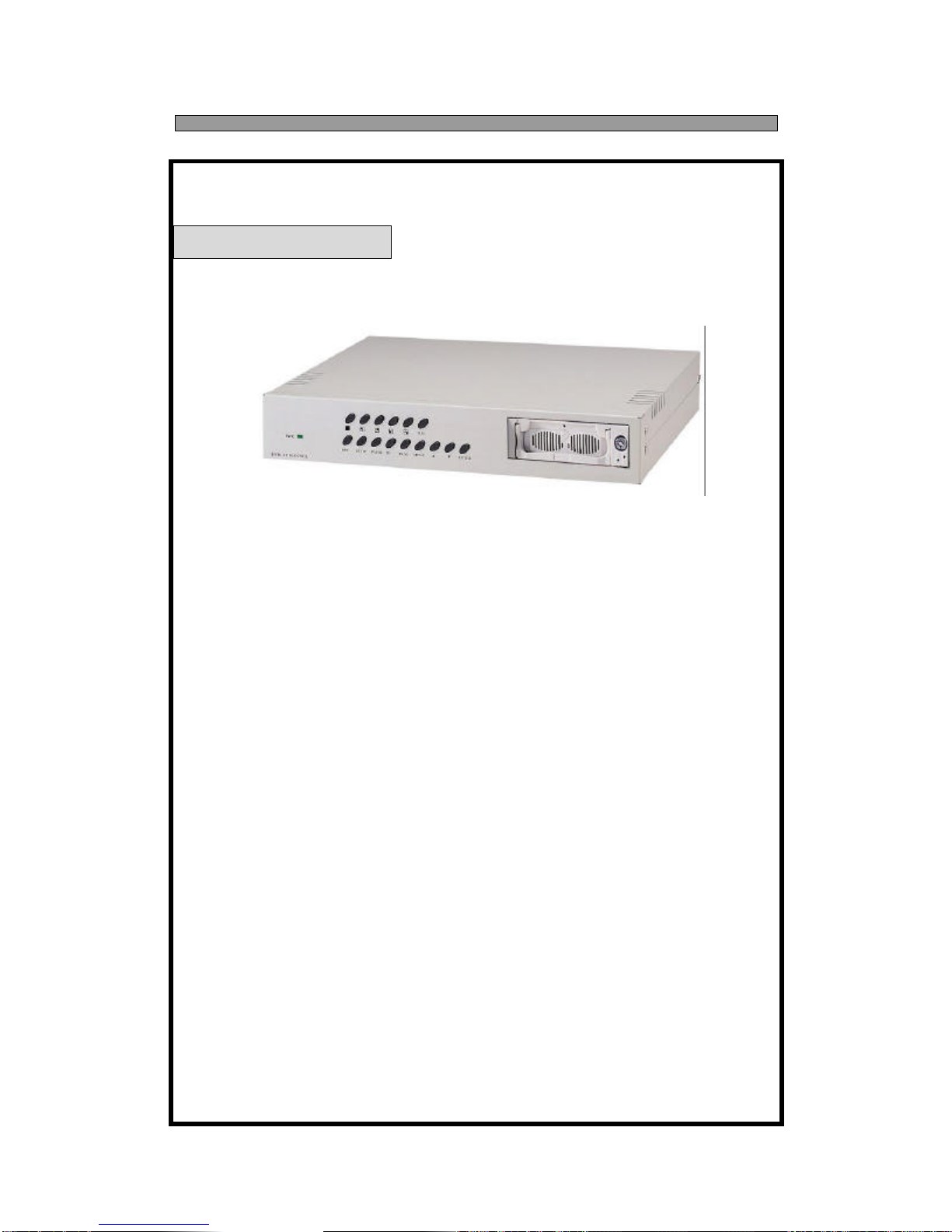

(1)Front Panel

POWER LED

·The power LED is lit when the DVR is ON.

?.CAMERA Number Button (1-4)

·Selectthe camera (1-4) image in live recording and playback mode.

?.QUAD

·Changes to (4) quarter split screen or full display screen.

?.REC

·Press this button to begin video recording.

The recording channel indicator next

to CH1,CH2,CH3 and CH4 will appear in the center of the screen notifying the

user which camera is running during recording period.

?.REV.

·Plays video back inreverse if pressed during playback.

?.STOP

·Stops recording in the recording mode or playback in the playback mode.

?.PAUSE

·Pauses video on a single frame during playback.

?.F.F

·Plays video back at 2x, 3x, or 4x the normal speed if pressed during playback.

?.MENU

·Displays the Main menu.

·Begins the menu mode.

·Exits or closes the current menu.

?.Up-Arrow Button

·Navigates through menus, up direction button of O.S.D.

?.Down-Arrow Button

·Navigates through menus, down direction button of O.S.D.

ALL ABOUT IMAGE RECOGNITION & PROCESSING

?.PLAY :

·To playback recorded images.

·When the Playback

key is pressed, you will be asked to input the time period

(time of previous recorded video) for searching purpose, the

n press the Playback

key again to view theselected video.

?.ENTER/SELECT

·To Select the item.

·To confirm a selection in the menu system.

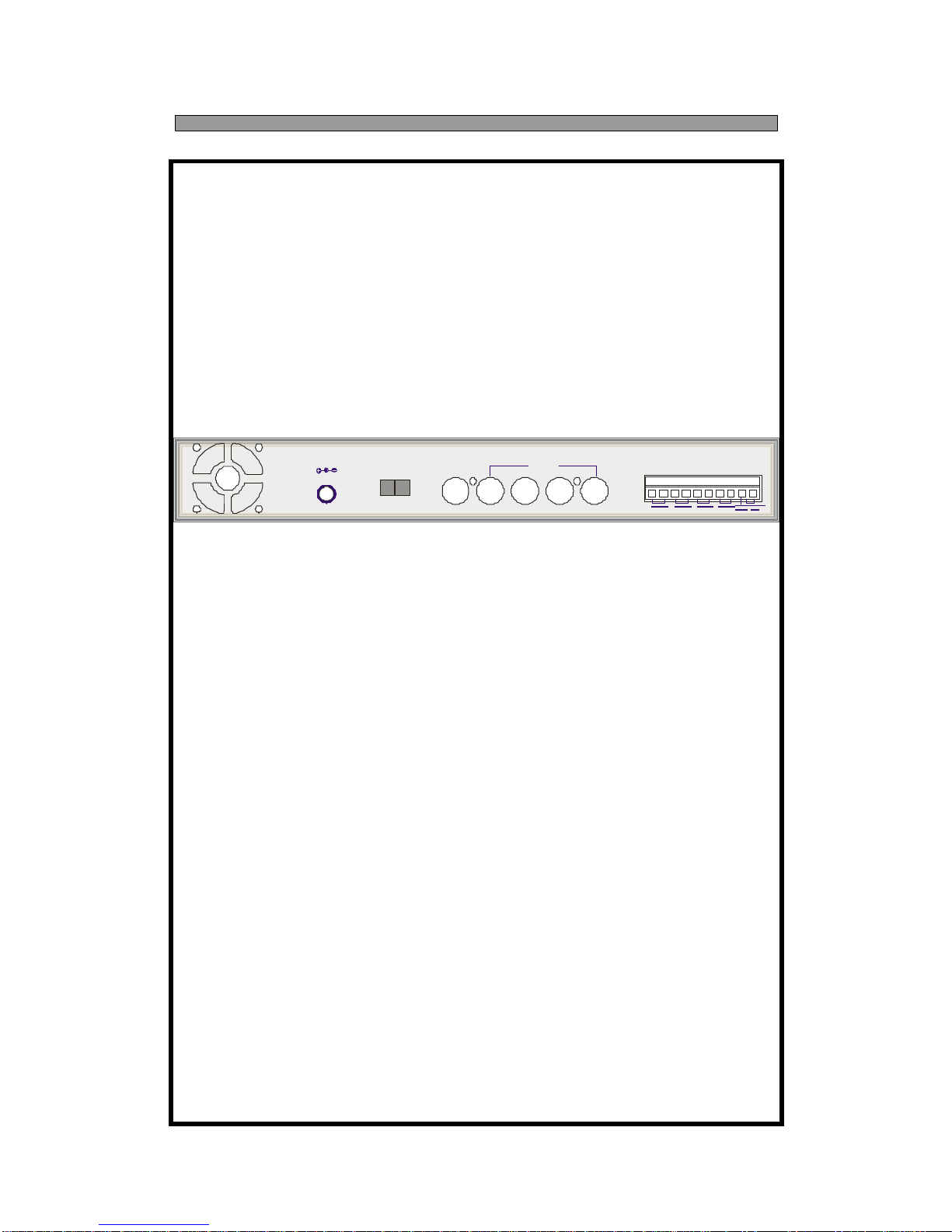

(2)Rear Panel

VIDEO IN

VIDEO

OUT

DC IN

12V/4A

_ _ _ _ _

+ + + + +

1 4 92 75 103 86

??????

?.D/C Power Connection

·The unit is furnished with a DC 12V/ 4A highly regulated power supply.

Do not use any other power supply with the unit. The manufacturer accepts no

responsibility for damage caused by an inappropriate power supply.

?.VIDEO OUT

A composite video output is provided on the Video Out BNC for connection to

a B/W or color video monitor (also supports VCR connection).

?.VIDEO IN

Four video inputs are provided for video source connections using standard BNC

connectors.

·The video inputs accept monochrome (B/W) or color composite video signals.

?.NTSC/PAL

·NTSC/PAL Compatible (Selector Switch).

?.Alarm In

·Four ALARM/ SENSOR trigger inputs.

?.Alarm Out

·One

external alarm output (Normally Open contacts) and one internal buzzer for

alarm indication is provided.

--10

¼v¹³³B²z¤Î¿ý¼vªº¥ýÁÍ

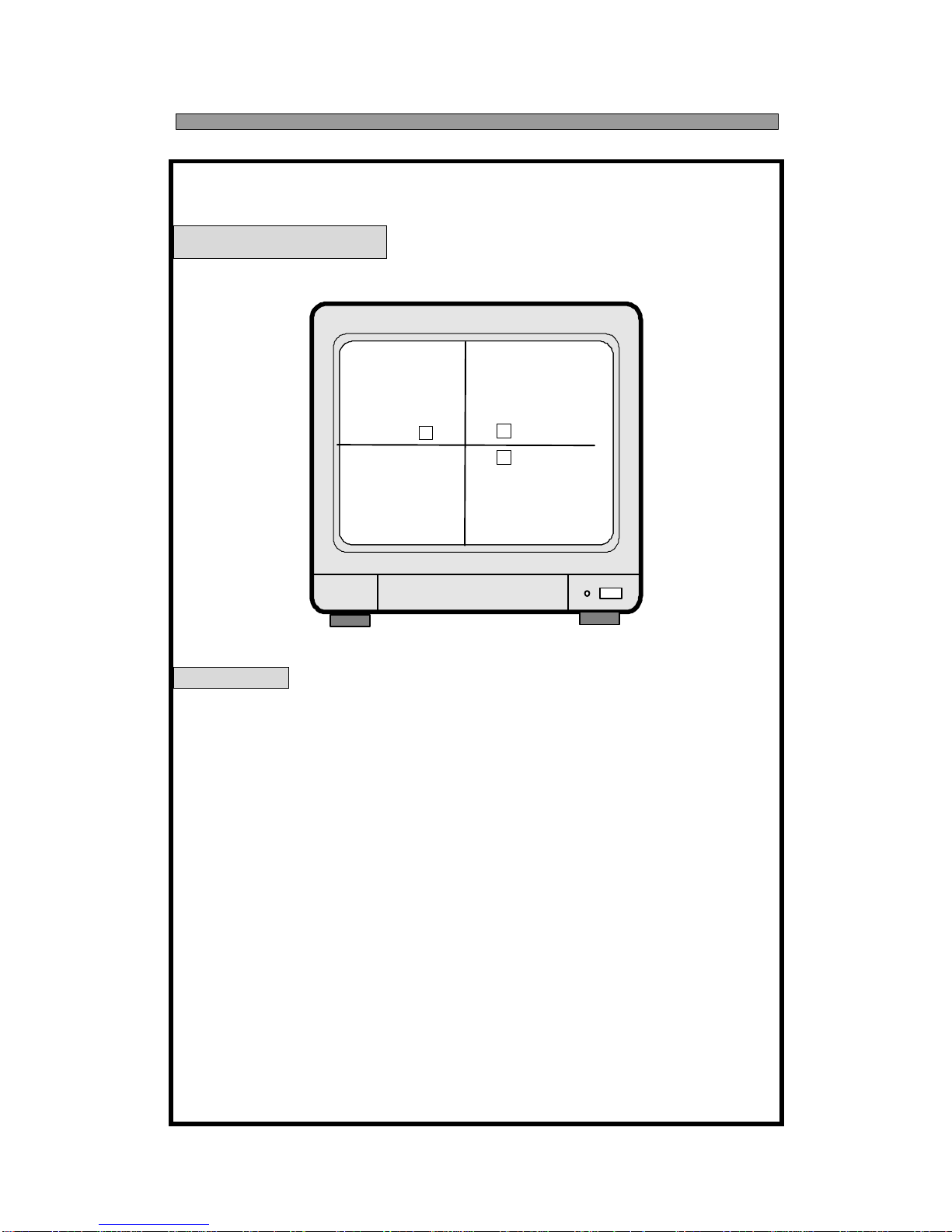

4.MAIN SCREEN

CH1 CH2

CH3 CH4

EACH REC (M) (T)

OFF

Example Note:

The above picture shows:

CH2:Not Recording

EACH REC: Each Record Mode

(T): Record Schedule

(M): Master HDD in use
