Pinguino PAC 210 U Manuale utente

OWNERS’ MANUAL

PAC 210 U Portable Windowless

Air-Conditioner

IMPORTANT INFORMATION

When using electrical appliances, basic safety precautions should

always be followed, including the following:

- Read all instructions.

- To protect against fire, electrical shock and personal injury, do not

immerse cord, plug or appliance in water or other liquid.

- Close supervision is necessary when any appliance is used by or

near children.

- Do not operate with a damaged cord or plug, or after the appliance

malfunctions, or has been damaged in any manner. Return the

appliance to the nearest authorized service facility for examination,

repair or adjustment.

- The use of accessory attachments or spare parts not recommended

by the appliance manufacturer may result in fire, electrical shock or

personal injury.

- Do not use outdoors.

- Do not use the appliance for other than the intended use.

- Do not place any strain on the power cord. Avoid twisting and/or

tangling.

- Ensure that outlet vent of exhaust hose is kept debris-clear and

obstruction free.

- Ensure that ventilation holes on the rear of the machine and front

louvers are not blocked.

- The Pinguino should not be installed where the atmosphere could

contain combustible gases.

- Avoid using Pinguino in oily or sulphurous atmospheres or near

sources of heat.

- Wait at least 3 minutes before restarting, after the air-conditioner has

been switched off or the thermostat setting changed.

- Before moving the air-conditioner, empty water from collecting tray

(see instructions for drainage at page 13).

- Do not place hot or heavy objects on the appliance.

- Clean air filter every week (see instructions at page 13).

-Important: If you need to use an extension cord, please be sure to

use a heavy duty extension cord (minimum 14 gauge).

SAVE THESE INSTRUCTIONS

Dear user,

We thank you for purchasing the

Pinguino air-conditioner and

congratulate you on your wise choice.

For optimal results please read this

manual carefully before installing or

operating.

We know that the Pinguino will

maintain your environment pleasingly

comfortable at all times.

With best wishes

De Longhi S.p.A.

If you have any questions about the operation

or service of your Pinguino, please call our

toll-free service number 1-800-322-3848.

or visit our internet site:

www.delonghiusa.com

for general overlook of DeLonghi group visit:

www.delonghi.com

OPTIMUM OPERATING RANGE

ROOM TEMPERATURE 70°F - 90°F

ROOM HUMIDITY FACTOR

FREQUENCY

VOLTAGE

50% - 80% RH

POWER

SUPPLY

60 HZ

115V

see rating label

Dehumidification quotient (*)

SPECIFICATIONS

Power supply voltage V see rating label

see rating label

360 cu.m/h

97 (44)

221/31 (560)

30 (735)

159/16 (390)

Frequency Hz

Cooling capacity: (*)

Max. air flow capacity

Dimensions: width in. (mm)

height in. (mm)

depth in. (mm)

Net weight lb. (kg)

Fan speeds

A HE (High efficiency) system with low energy consumption has been installed on this appliance.

Such system needs about 4 minutes, once the appliance has been started, to produce cold air.

*Data according to pending standard testing procedures subject to review by the U.S. Dept. of

Energy.

Air outlet grid

Air filter

Air intake grid

Exhaust hose

Power cable comp.

Manually resettable red button

Castor

Castor stops

Water collecting tray

Timer cover

(to adjust the timer slide cover

sideways)

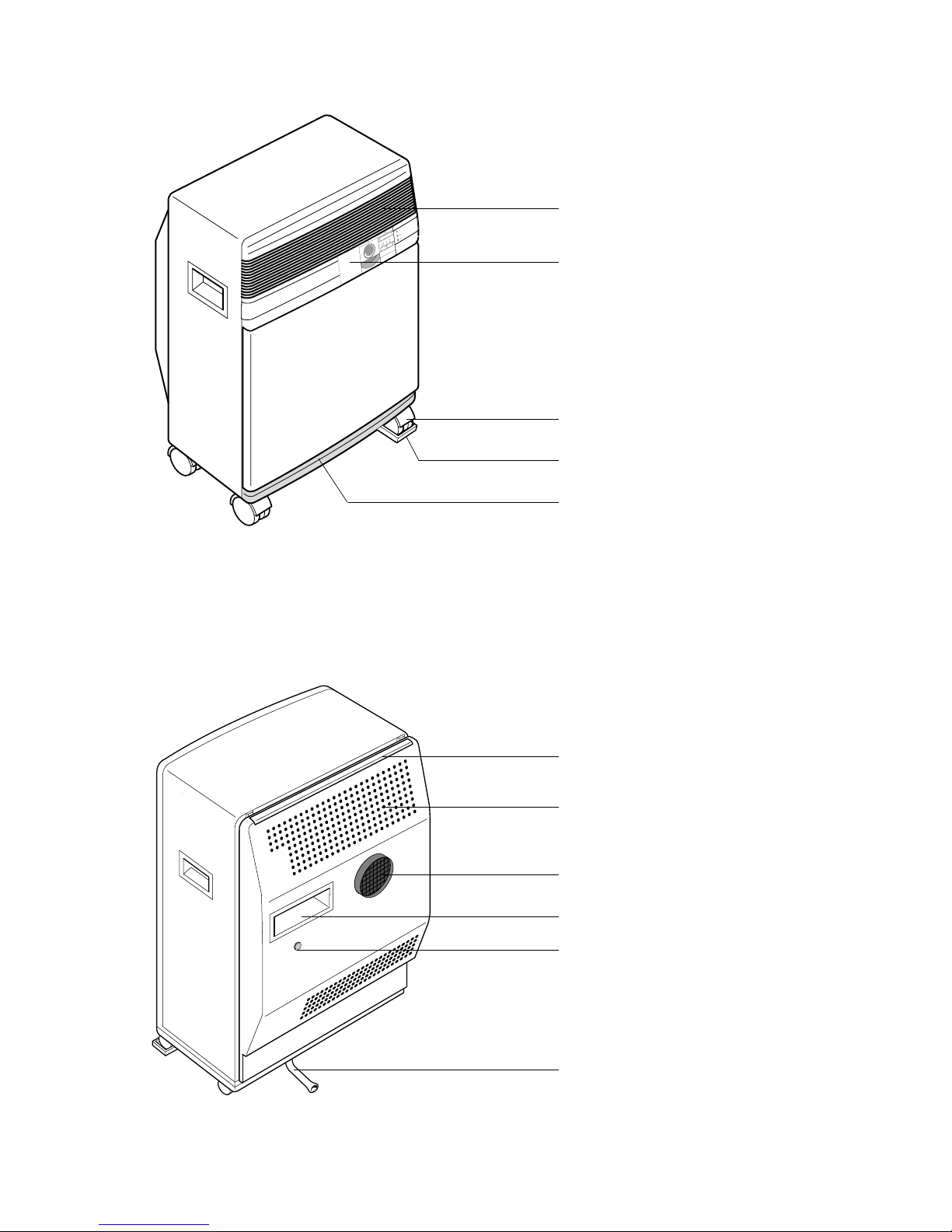

ILLUSTRATED MAIN FEATURES LIST

Water collecting tray drainage tube

ILLUSTRATED ACCESSORY LIST Table 1

DESCRIPTION SUPPLIED

Exhaust hose 1

Stopper + flange 1

Caster stop 2

Window nozzle 1

Adjustable window bracket 1

Suction disc 2

ACCESSORY CHECK

Check that all parts listed in Table 1 are included.

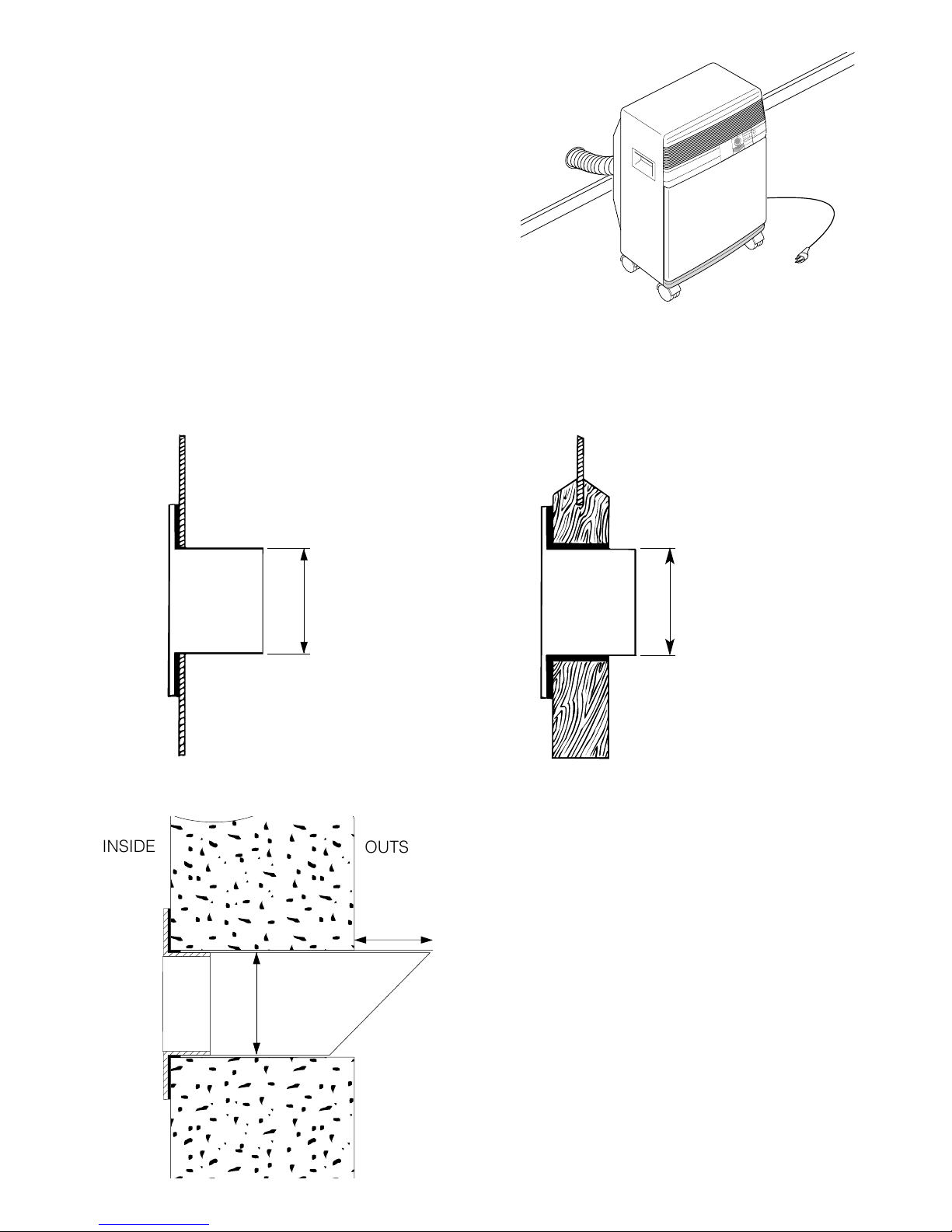

PERMANENT INSTALLATION

The Pinguino accessories include two sets of

flanges and stoppers, to be mounted in different

locations (two different rooms). Once installed,

these vents (flanges) are the only items needed for

using Pinguino.

Permanent installation outlet holes must be in an

exterior wall and opening diameter should not

exceed 3”1/2.

INSIDE OUTSIDE

3”1/2

in a window pane

INSIDE OUTSIDE

3”1/2

through the wooden base-

section of a door or window

;;

INSIDE OUTSIDE

through the wall

3”1/2

1”

fig. 1

fig. 2 fig. 3

fig. 4

In case of fixed installation, air discharged

from rear hose has been extracted from the

room where the appliance is installed.

Check that the room (especially if small) is

not “air-tight”; a drop in pressure would

cause irregular functioning, which could

consequently activate reset switch. Air

entering through door and window cracks

is normally sufficient. If deemed, necessary

leave a door ajar (approx. 1 cm is enough).

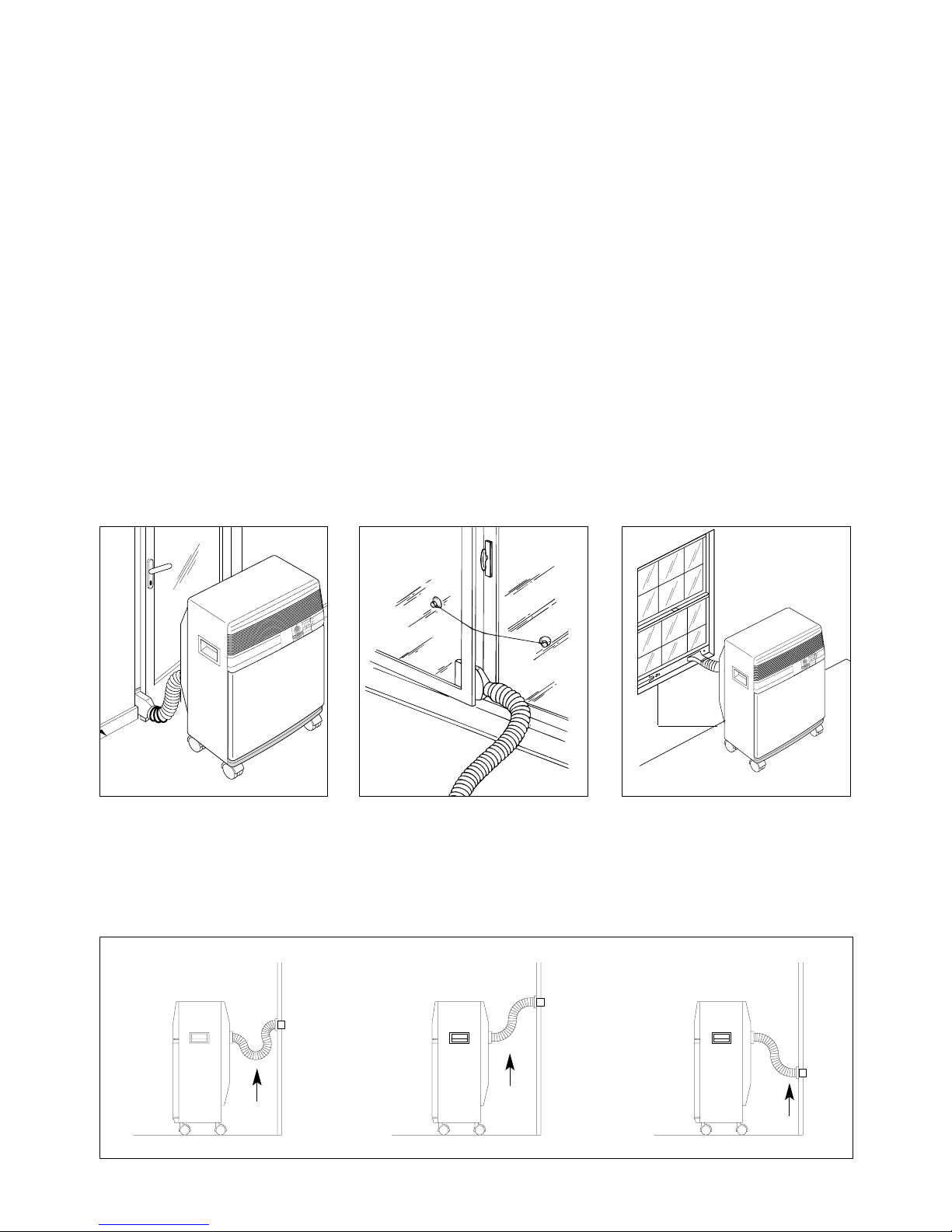

TEMPORARY INSTALLATION

Note: In both cases (permanent and temporary installations) make sure that the Pinguino is

positioned on level ground. If necessary use the two caster stops for the front casters

This installation makes it easy

to use Pinguino in any room,

provided there is a window or

a door: it allows you to use the

Pinguino immediately.

Suction discs may be used to

keep window or door closed.

Pinguino is equipped with an

adjustable window bracket. If

you have a sash window,

place the bracket on the

window sill, extend the

bracket fully within the window

frame and lower the window

onto the bracket. Insert the

nozzle of the exhaust hose

into the slot, then connect the

hose to the air conditioner

(fig.7). Thanks to the wing nut,

it’s possible to use the window

bracket also for sliding

windows. Position the hole of the

bracket so to allow a correct

installation of the exhaust hose

(see the following instructions).

30 cm

SET UP INSTRUCTION

For permanent installation place the Pinguino near the outlet opening in wall or window (where it is

meant to be used). The diagram below shows the correct way to install the exhaust hose.

1) Water collects at this point 2) Bend this section 3) Bend this section

NO YES YES

fig. 5 fig. 6 fig. 7

fig. 8

window

bracket

- Doors and windows of room to be air-

conditioned are closed (with the

exception of temporary installation where

a partially opened window is necessary).

- Shade the room as far as possible from

direct sunlight by drawing curtains and/or

lowering blinds or shutters, for economical

and efficient air-cooling.

- Ensure that intake and outlet vents (fig. 2

and 3) are not blocked.

- Make sure there are no sources of heat in

the room.

FINAL CHECK

In order to obtain the maximum performance from your air-conditioner make sure that:

ELECTRICAL CONNECTION

Check that the power supply voltage is 115 V ~ 60 Hz.

Important: if you need to use and extension cord, please be sure to

use a heavy duty extension cord (minimum 14 gauge).

Before connecting the Pinguino to power supply, make sure that all

switches on the front control panel are in the OFF position.

Connect power cord found in storage compartment at rear of the

Pinguino. fig. 9

fig. 10

fig. 11

fig. 12 fig. 13

- Close the door.

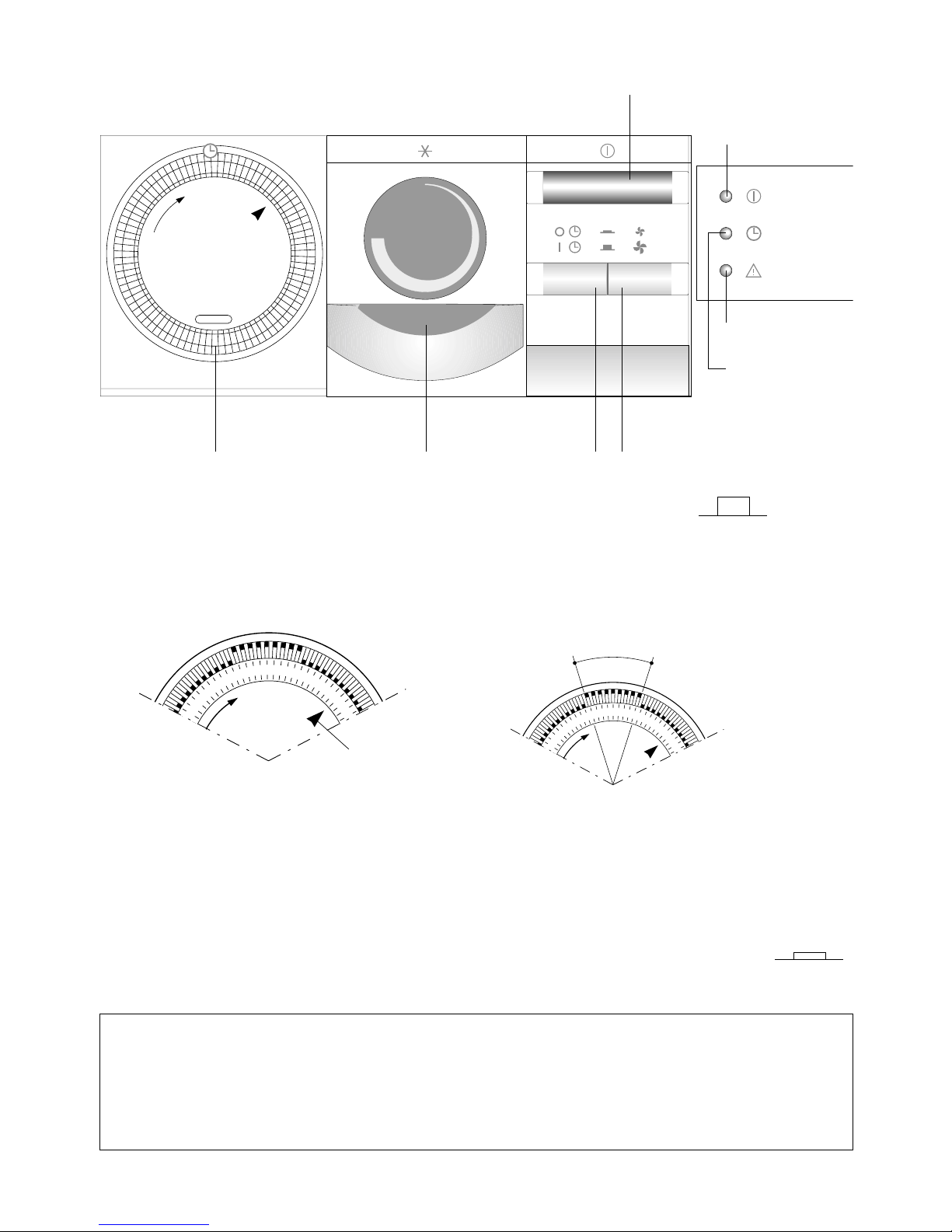

DESCRIPTION OF PINGUINO PAC 210 U CONTROLS

ON/OFF button

ON/OFF pilot light

“Alarm”pilot light

Timer ON/OFF

pilot light

Selecting fan

speed button

Timer ON/OFF

buttonThermostatTimer notches

SETTING THE TIMER

The programmer/timer, like all clocks, must be

set to the exact time. If for example it is 4.00

p.m., turn the dial in a clockwise direction

(following the direction of the arrow) until the

number 4 is lined up with the arrow pointer (the

arrows indicates 4:00 p.m. approximately).

Note:Never turn the dial in an anti-clockwise

direction!

The timer is in effect, an electric clock and

works only if the plug is connected to the

power supply. Whenever the plug is

disconnected or there is a power failure, the

programmer stops (the clock is then “slow”)

and must be re-set.

The unit can be used in either programmed or

non-programmed mode.

PROGRAMMED MODE

1) Release B timer button.

2) Set the operating times by pushing out the

notches on the dial corresponding to the

period required (each notch represents 15

mins.).

3) Check that the timer indicates the correct

time (see instructions on setting).

4) Select the desired function as shown in the

chart overleaf.

The unit will now switch on and off each

day at the selected times.

Note: To override the programmed operating

times, simply press the ON/OFF key.

NON-PROGRAMMED MODE

1) B TIMER button must be pressed

2) Select the desired function as shown in the

chart on the following page.

arrow pointer

Funzionamento

Operating time

N.B: For technical reasons, the temperature is not expressed in degrees but by a line increasing

in thickness. We therefore recommend that when starting up the appliance, the thermostat

be turned to maximum (thick green line = maximum cold). When the desired temperature

has been reached, turn the thermostat slowly away from the maximum cooling position until

the appliance switches off. Leave the thermostat in this position. The air-conditioner is now

programmed to maintain the exact temperature at all times.

After switching the appliance off, wait at least 3 min. before switching on again.

eg. from 9 to 11 a.m.
