Pioneer AVIC-9DVD Manuale utente

MANUEL D’INSTALLATION

AVIC-9DVD

INSTALLATION MANUAL

ENGLISH FRANÇAIS DEUTSCH ITALIANO NEDERLANDS

This product conforms to CEMA cord colors.

Le code de couleur des câbles utilisé pour ce produit est

conforme à CEMA.

IMPORTANT INFORMATION

ABOUT YOUR NEW DVD NAVIGATION UNIT AND THIS MANUAL

• The Pioneer DVD Navigation Unit is intended solely as an aid to you in the oper-

ation of your car. It is not a substitute for your attentiveness, judgement and care

while driving.

• Do not use your navigation system to route you to emergency services such as

hospitals or police stations. Not all emergency service facilities are contained in

the map data.

•Do not operate the DVD Navigation Unit if doing so will divert your attention

from the safe operation of your car. Always observe safe driving rules and follow

all existing traffic regulations.

•Certain state laws may restrict the placement and use of navigation systems in

your car. Please comply with all applicable laws and regulations in the installa-

tion and operation of your navigation system.

•This manual explains how to install this DVD Navigation Unit in your car.

Operation of this DVD Navigation Unit is explained in the separate Operation

Manual that also came with this unit.

IMPORTANT SAFEGUARDS .................... 3

PLEASE READ ALL OF THESE

INSTRUCTIONS REGARDING

YOUR DVD NAVIGATION

UNIT AND RETAIN THEM

FOR FUTURE REFERENCE .................... 3

Connecting the System ............................ 5

CAUTION ........................................................ 5

-Before installing the unit

-To prevent damage

-Parts supplied

Connecting the system (To Pioneer Display) .... 7

Connecting the System (In case of a display

sold in the market) ...................................... 9

Connecting the power cord (1) ........................ 11

Connecting the power cord (2) ........................ 13

Installation ................................................ 14

CAUTION ...................................................... 14

To guard against electromagnetic

interference ................................................15

Before installing and fixing ............................ 15

Before using the adhesive tape ........................ 15

Installing the main unit .................................... 16

-Installation notes

-Parts supplied

-CAUTION

-If you install with the left and right sides

of the DVD Navigation Unit parallel to

your car’s forward / art direction

-When installing the main unit inside the

trunk, on the floor under a seat, etc., using

tapping screws

-CAUTION

-DIN Rear-mount: Installation using the screw

holes on the side of the unit

Installing the GPS antenna .............................. 22

-CAUTION

-Installation notes

-Parts supplied

-When installing the antenna inside the

car (on the dashboard or rear shelf)

-When installing the antenna outside the

car (on the body)

Installing the Remote controller ...................... 25

-Parts supplied

-Loading the batteries

-CAUTION

-Remote controller handling notes

-When Installing with double-sided tape

Installing the microphone ................................ 27

-Installation notes

-Parts supplied

-When installing the microphone on the

sun visor

-When installing the microphone on the

steering column

-CAUTION

After installing the unit .......................... 30

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

Contents

IMPORTANT SAFEGUARDS

PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR DVD

NAVIGATION UNIT AND RETAIN THEM FOR FUTURE REFERENCE

1. Read this manual fully and carefully before installing your DVD Navigation Unit.

2. Keep this manual handy for future reference.

3. Pay close attention to all warnings in this manual and follow the instructions care-

fully.

4. This unit is intended solely as an aid to you in the operation of your car. It is not a

substitute for your attentiveness, judgement and care while driving. Do not oper-

ate your DVD Navigation Unit if doing so will divert your attention from the safe

operation of your car. Always observe safe driving rules and follow all existing

traffic regulations.

5. Certain state laws may restrict the placement and use of this system in your car.

Please comply with all applicable laws and regulations in the installation and

operation of your navigation system.

6. This DVD Navigation Unit may in certain circumstances display erroneous infor-

mation regarding the position of your car, the distance of objects shown on the

screen, and compass directions. In addition, the system has certain limitations,

including the inability to identify one-way streets, temporary traffic restrictions

and potentially unsafe driving areas. Please exercise your own judgement in light

of actual driving conditions.

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

7. As with any accessory in your car’s interior, the DVD Navigation Unit should not

divert your attention from the safe operation of your car. If you experience diffi-

culty in operating the system or reading the display, please make adjustments

while safely parked.

8. Do not attempt to install or service your DVD Navigation Unit by yourself.

Installation or servicing of the DVD Navigation Unit by persons without training

and experience in electronic equipment and automotive accessories may be dan-

gerous and could expose you to the risk of electric shock or other hazards.

9. Please remember to wear your seat belt at all times while operating your car. If

you are ever in an accident, your injuries can be considerably more severe if your

seat belt is not properly buckled.

Connecting the System

CAUTION

• Pioneer does not recommend that you install or service your DVD navigation

unit yourself. Installing or servicing of the product may expose you to risk of

electric shock or other hazards. Refer all installation and servicing of your

navigation unit to authorised Pioneer service personnel.

• Secure all wiring with cable clamps or electrical tape. Do not allow any bare

wiring to remain exposed.

• Do not drill a hole into the engine compartment to connect the yellow lead of

the unit to the car battery. Engine vibration may eventually cause the insula-

tion to fail at the point where the wire passes from the passenger compart-

ment into the engine compartment. Take extra care in securing the wire at

this point.

• It is extremely dangerous to allow the GPS antenna lead or microphone lead

to become wound around the steering column or shift lever. Be sure to install

the unit in such a way that it will not obstruct driving.

• Make sure that wires will not interfere with moving parts of the car, such as

the shift lever, parking brake or seat sliding mechanism.

• Do not route wires where they will be exposed to high temperatures. If the

insulation heats up, wires may become damaged, resulting in a short circuit

or malfunction.

• Do not cut the GPS antenna lead to shorten it or use an extension to make it

longer. Altering the antenna cable could result in a short circuit or malfunc-

tion.

• Do not shorten any leads. If you do, the protection circuit may fail to work

properly.

• Never feed power to other electronic products by cutting the insulation of the

power supply lead of the DVD navigation unit and tapping into the lead. The

current capacity of the lead will be exceeded, causing overheating.

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

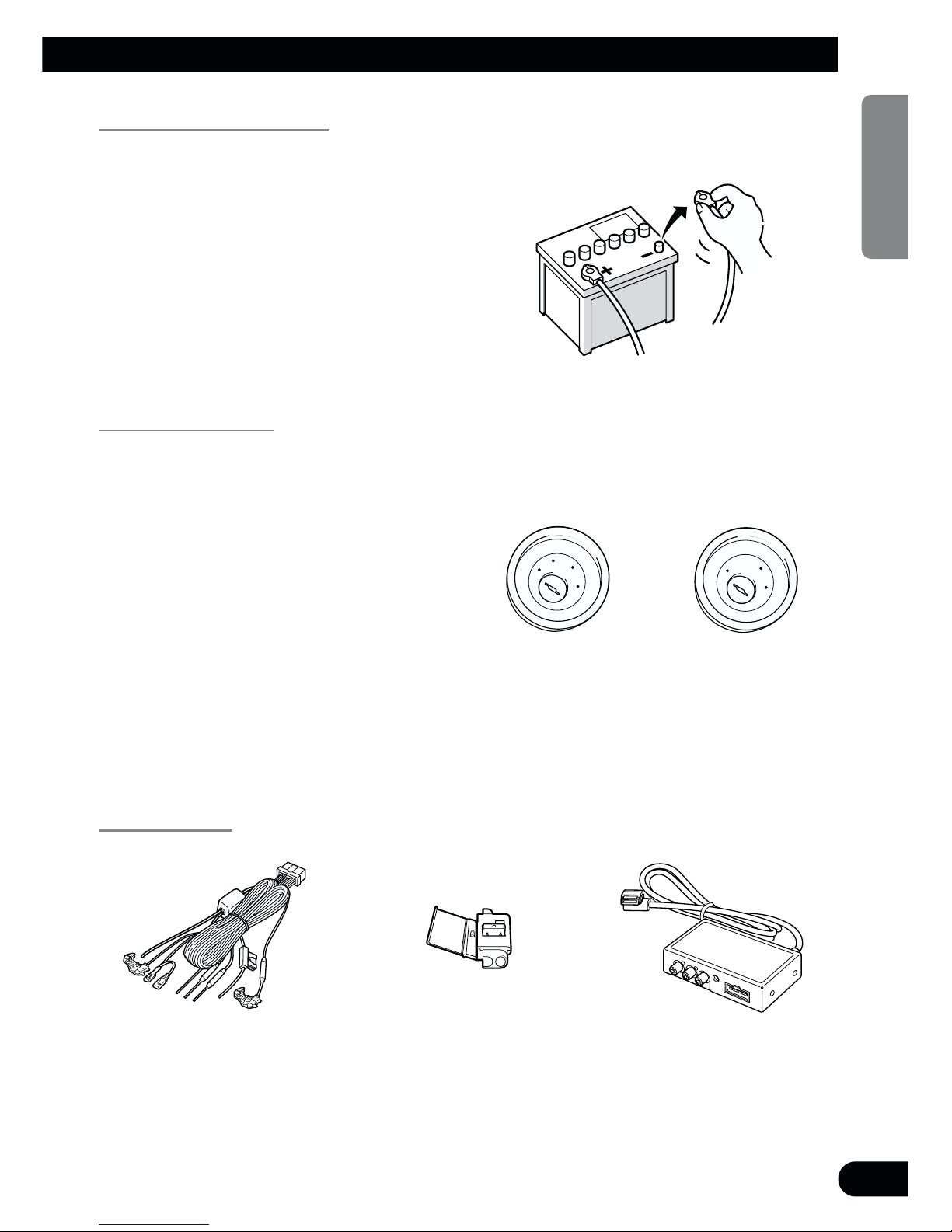

Before installing the unit

•This unit is for cars with a 12-volt battery and negative grounding. Before installing it in

a recreational car, truck, or bus, check the battery voltage.

To prevent damage

Parts supplied

Connection boxConnectorPower cord

No ACC positionACC position

•When disconnecting a connector, pull

the connector itself. Do not pull the

lead, as you may pull it out of the con-

nector.

•If this unit is installed in a car that does

not have an ACC (accessory) position

on the ignition switch, the red lead of

the unit should be connected to a termi-

nal coupled with ignition switch

ON/OFF operations. If this is not done,

the car battery may be drained when

you are away from the car for several

hours.

•To avoid short-circuiting, cover the

disconnected lead with insulating tape.

•To avoid shorts in the electrical sys-

tem, be sure to disconnect the (-) bat-

tery cable before beginning installa-

tion.

Connecting the System

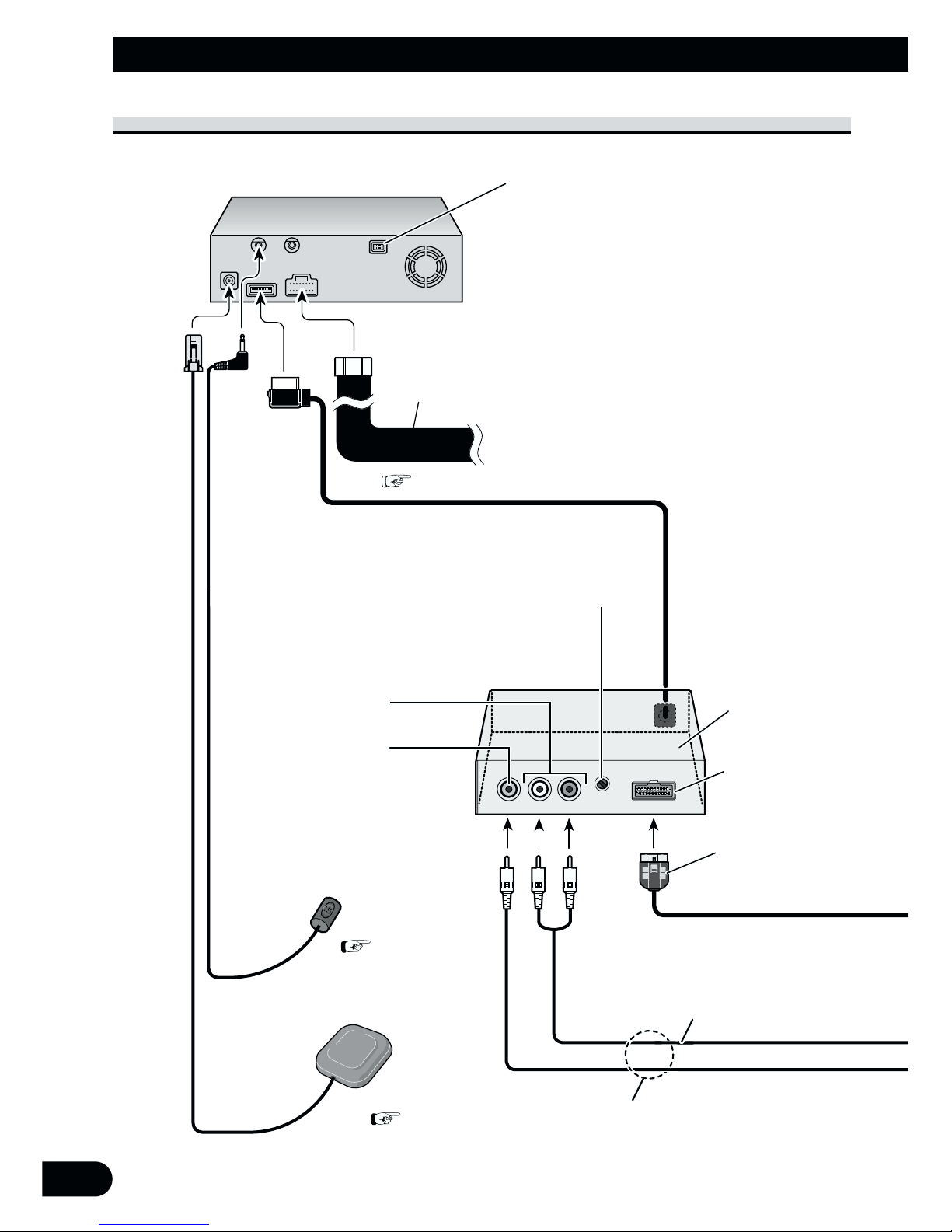

Connecting the system (To Pioneer Display)

Use this jack when connecting the CUE unit for

obtaining traffic information.

Please make sure to complete this con-

nection. Otherwise you cannot see the

image of the DVD-Video.

Audio output

Video output

Microphone

See page 27.

GPS aerial

See page 22. RCA cable (sold separarely)

Hide-away unit

(supplied)

RGB output (Green)

Use this jack when

connecting the

Pioneer display.

Green

Power cord

This product

Level Control

This is used for adjusting output from Audio Output. If you

turn it to the right, the volume increases, while turning it to the

left reduces the volume. (Normally, turn it fully to the right,

and instead use the external equipment outputting sound, such

as a display, for adjusting the volume.)

See pages 13.

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

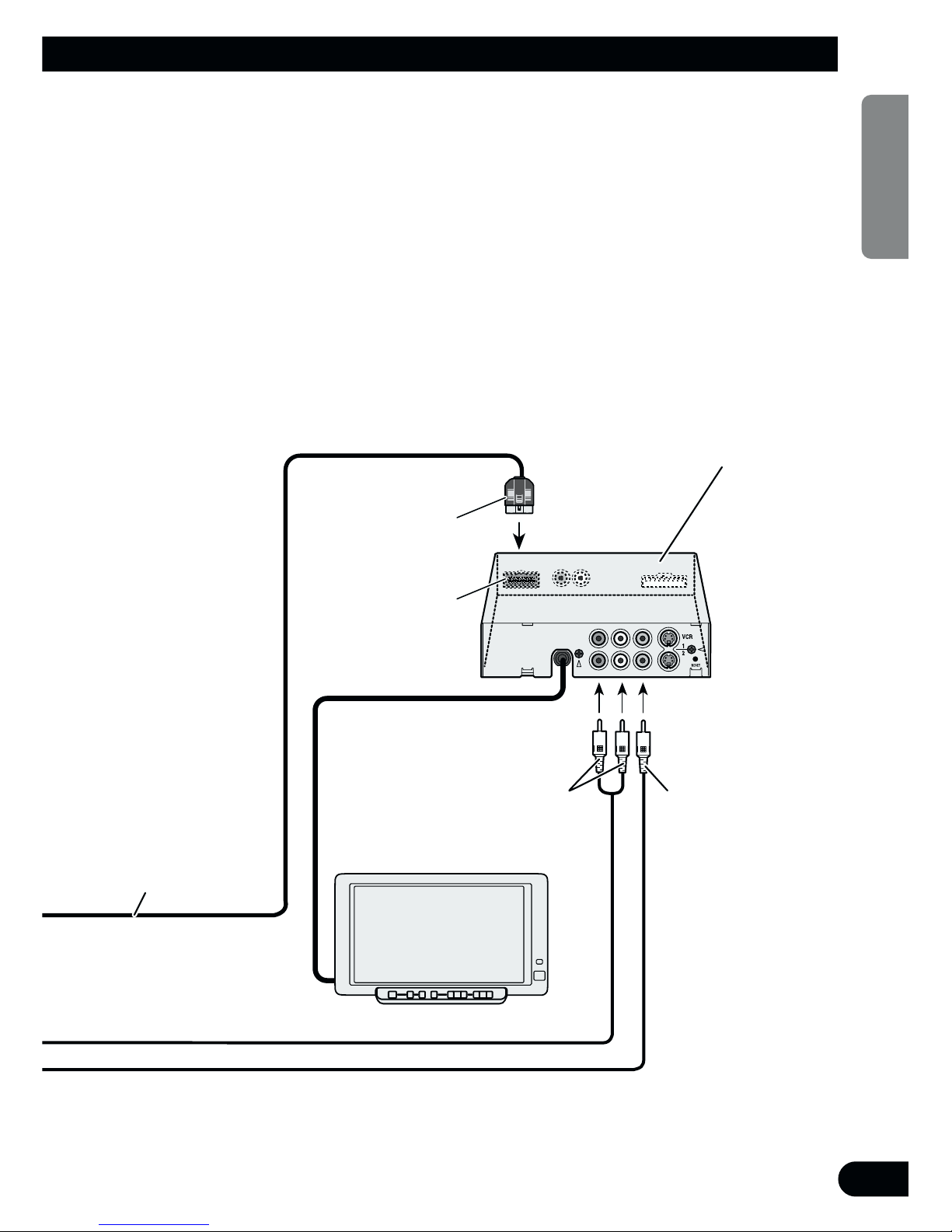

RGB cable

(supplied with the Display)

Purple

RGB input (Purple)

Hide-away unit

(supplied with the Display)

To video input

To audio inputs

Connecting the System

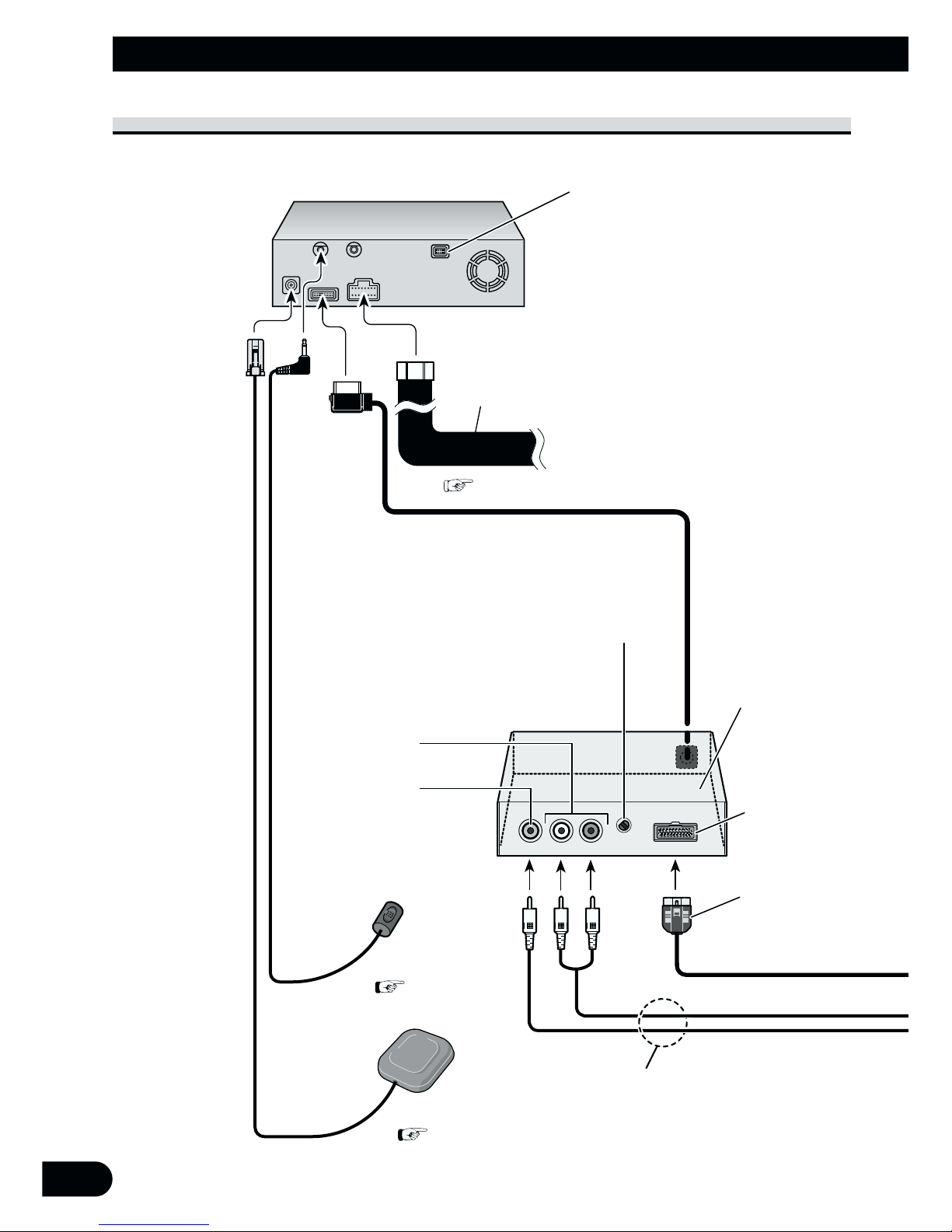

Connecting the System (In case of a display sold in the market)

Use this jack when connecting the

CUE unit for obtaining traffic informa-

tion.

Video output

Level Control

This is used for adjusting output from Audio Output. If

you turn it to the right, the volume increases, while turning

it to the left reduces the volume. (Normally, turn it fully to

the right, and instead use the external equipment out-

putting sound, such as a display, for adjusting the vol-

ume.)

Audio output

RCA cable (sold separately)

Hide-away unit

(supplied)

Microphone

See page 27.

GPS aerial

See page 22.

Green

Power cord

See pages 13.
