Pioneer CDX-P670UC Manuale utente

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER CORPORATION 2000 K-ZZY. NOV. 2000 Printed in Japan

ORDER NO.

CRT2587

MULTI-COMPACT DISC PLAYER

CDX-P670 X1N/UC,ES

Service

Manual

CDX-P676 X1N/UC

CDX-P670/X1N/UC

-This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks

CX-892 CRT2356 C7 CD Mech. Module:Circuit Description, Mech. Description, Disassembly

CONTENTS

1. SAFETY INFORMATION ............................................3

2. EXPLODED VIEWS AND PARTS LIST.......................4

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12

4. PCB CONNECTION DIAGRAM ................................22

5. ELECTRICAL PARTS LIST ........................................28

6. ADJUSTMENT..........................................................31

7. GENERAL INFORMATION .......................................38

7.1 DIAGNOSIS ........................................................38

7.1.1 TEST MODE..............................................38

7.1.2 DISASSEMBLY .........................................44

7.1.3 CONNECTOR FUNCTION DESCRIPTION46

7.2 IC .........................................................................47

7.3 OPERATIONAL FLOW CHART...........................49

8. OPERATIONS AND SPECIFICATIONS.....................50

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

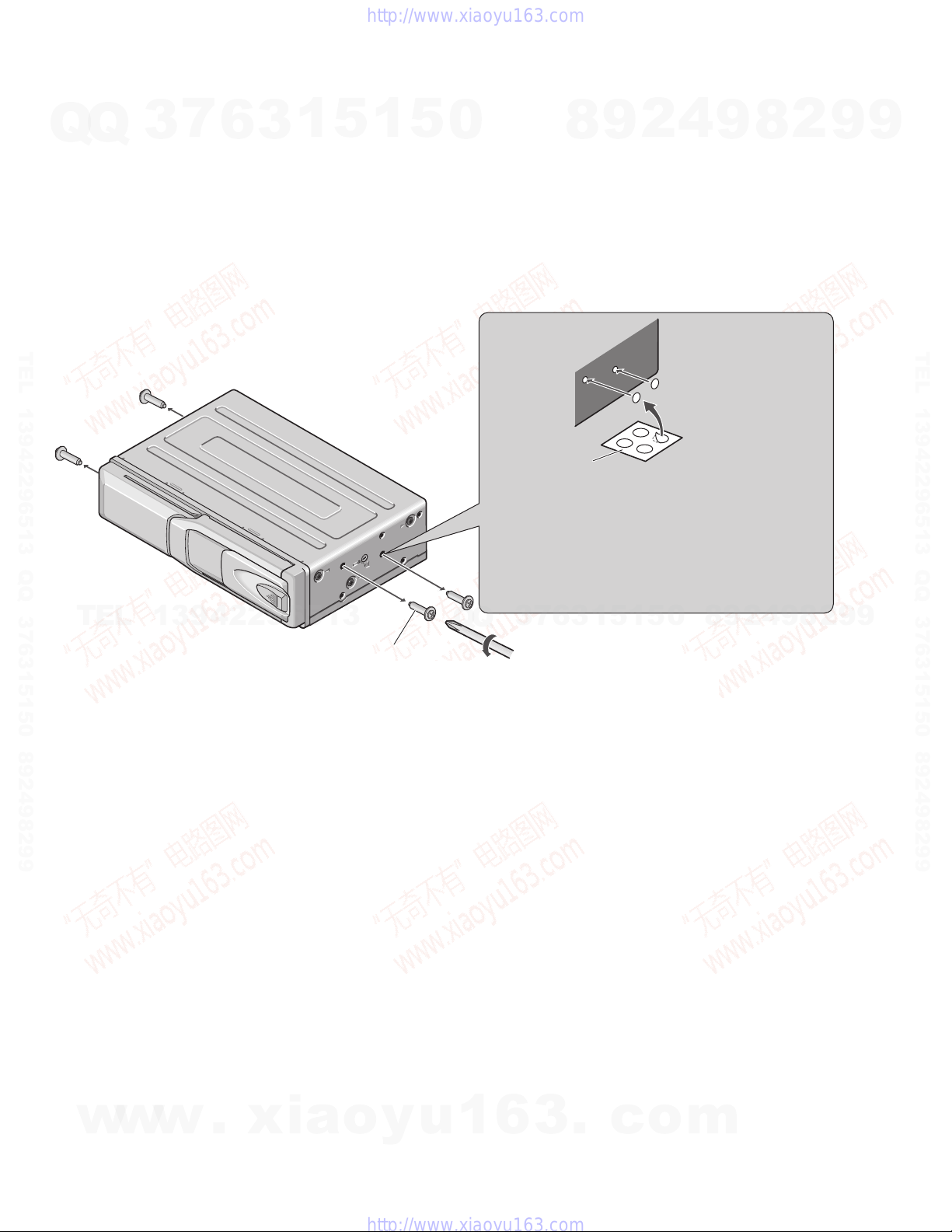

A transport screw has been attached to the set in order to protect

it during transportation. After removing the transport screw,

cover the hole with the supplied seal. Be sure to remove the

transport screw before mounting the set. The removed transport

screw should be retained in the accessory bag for use the next

time the set is transported.

Transport screw

Attach to the original position before transporting the set.

Seal

After removing the transport screw, cover the hole

with the supplied seal.

-CD Player Service Precautions

1. For pickup unit(CXX1285) handling, please refer

to"Disassembly"(see page 44).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 32).

4. Since these screws protects the mechanism during

transport, be sure to affix it when it is transported for

repair, etc.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

1. SAFETY INFORMATION

-CDX-P670/X1N/UC and CDX-P676/X1N/UC

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

Part No.

Mark No. Description CDX-P670/X1N/UC CDX-P676/X1N/UC CDX-P670/X1N/ES

1 Screw Assy CEA1962 CEA1962 CEA1962

2 Screw CBA1295 CBA1295 CBA1295

* 3 Polyethylene Sheet CNM5158 CNM5158 CNM5158

4 Screw HMB60P500FMC HMB60P500FMC HMB60P500FMC

5 Screw HMF40P080FZK HMF40P080FZK HMF40P080FZK

6 Nut NF60FMC NF60FMC NF60FMC

* 7 Polyethylene Bag CEG1099 CEG1099 CEG1099

8 Polyethylene Bag CEG1185 CEG1185 CEG1042

9 Carton CHG4279 CHG4280 CHG4277

10 Contain Box CHL4279 CHL4280 CHL4277

11 Protector CHP2133 CHP2133 CHP2133

12 Protector CHP2134 CHP2134 CHP2134

13 Seal CNM5741 CNM5741 CNM5741

14-1 Owner’s Manual CRD3316 CRD3317 CRD3320

14-2 Owner’s Manual Not used Not used CRB1628

* 14-3 Warranty Card Not used CRY1070 Not used

* 14-4 Card ARY1048 Not used Not used

15 Magazine Assy CXB4027 CXB4027 CXB4027

16 Angle Assy CXB6816 CXB6816 CXB6816

17 Cord CDE5831 CDE5831 CDE5831

* 18 Caution Card CRP1090 CRP1090 CRP1090

* 19 Caution Card CRP1232 CRP1232 CRP1232

- Owner’s Manual

Model Part No. Language

CDX-P670/X1N/UC CRD3316 English, French

CDX-P676/X1N/UC CRD3317 English, French

CDX-P670/X1N/ES CRD3320 English, Spanish, Portuguese(B), Arabic

CRB1628 Chinese

-PACKING SECTION PARTS LIST

NOTE:

-Parts marked by “*”are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

2.2 EXTERIOR

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

1 Screw BMZ26P040FMC

2 Screw BMZ30P040FZK

3 Button CAC6363

4 Screw CBA1460

5 Spring CBH1859

6 Connector CDE5525

7 Connector CDE6478

8 Upper Case CNB2612

9 Arm CNC8058

10 Insulator CNM6074

11 Panel CNS5216

12 Damper CNV5591

13 Power Unit CWX2512

14 Screw BMZ26P060FMC

15 Terminal(CN902) CKF1059

16 Plug(CN901) CKS-460

17 Connector(CN921) CKS3407

18 Connector(CN911) CKS3831

19 Holder CNC8055

20 Holder CNC8056

21 Grille Assy See Contrast table(2)

22 Door See Contrast table(2)

23 Door See Contrast table(2)

24 Lower Case Unit CXB7003

25 CD Mechanism Module (C7R2) CXK4850

26 Screw IMS20P030FZK

27 Screw IMS26P040FMC

28 Transistor(Q910) 2SD2396

* 29 Caution Card CRP1232

(1) EXTERIOR SECTION PARTS LIST

Mark No. Description Part No.

Part No.

Mark No. Symbol and Description CDX-P670/X1N/UC CDX-P676/X1N/UC CDX-P670/X1N/ES

21 Grille Assy CXB6824 CXB6825 CXB6824

22 Door CAT2196 CAT2196 CAT2198

23 Door CAT2197 CAT2207 CAT2199

(2) CONTRAST TABLE

CDX-P670/X1N/UC, CDX-P676/X1N/UC and CDX-P670/X1N/ES are constructed the same except for the

following:

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

2.3 CD MECHANISM MODULE

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

1 Connector CDE6069

2 CD Core Unit CWX2487

3 Connector(CN701) CKS1963

4 Connector(CN101) CKS2272

5 Screw BMZ20P025FMC

6 Screw(M2x2.5) CBA1037

7 Screw(M2x2.5) CBA1041

8 Screw(M2x2) CBA1176

9 Screw(M2x4) CBA1362

10 Screw(M2x1.4) CBA1387

11 Screw(M2x2.5) CBA1493

12 Screw(M2x1.6) CBA1476

13 Screw(M2x3) CBA1486

14 Washer CBF1038

15 Spring CBH2172

16 Spring CBH2173

17 Spring CBH2174

18 Spring CBH2175

19 Spring CBH2285

20 Spring CBH2177

21 Spring CBH2178

22 Spring CBL1390

23 Spring CBL1393

24 Short Pin CBL1239

25 Volume(VR801) CCW1023

26 Screw(M2x1.5) CBA1491

27 Shaft CLA3894

28 Arm CNC8482

29 Lever CNC7902

30 Lever CNC7904

31 Lever CNC7905

32 Lever CNC7906

33 Arm CNC7908

34 Arm CNC7909

35 Holder CNC7911

36 Holder CNC7912

37 Frame CNC7917

38 Frame CNC7918

39 Lever CNC7919

40 Stopper CNC7920

41 Frame CNC7921

42 Bracket CNC8354

43 Plate CNC8375

44 Cover CNC8434

45 Sheet CNM6009

46 Spacer CNM6428

47 Sheet CNM6296

48 PCB CNP5227

49 PCB CNP5228

50 Ball CNR1189

51 Gear CNR1531

52 Belt CNT1086

53 Gear CNV5472

54 Gear CNV5473

55 Rail CNV5920

56 Lever CNV6091

57 Gear CNV5477

58 Arm CNV5478

59 Holder CNV5480

60 Guide CNV5921

61 Guide CNV5922

62 Holder CNV5483

63 Holder CNV5484

64 Clamper CNV5485

65 Gear CNV5486

66 Gear CNV5562

67 Holder CNV5563

68 Lighting Conductor CNV5785

69 Mechanism PCB CWX2303

70 Connector(CN801) CKS1965

71 Connector(CN802) CKS3486

72 Damper Unit CXA7714

73 Chassis Unit CXB4463

74 •••••

75 Chassis Unit CXB4461

76 Magazine Holder Unit CXB4459

77 Frame Unit CXB4426

78 Arm Unit CXB2855

79 Screw Unit CXB4464

80 •••••

81 Motor Unit(M851)(SPINDLE) CXB3003

82 Motor Unit(M854)(CARRIAGE) CXB3004

83 Screw JFZ20P025FMC

84 Motor Unit(M853)(TRAY) CXB4421

85 Screw JFZ20P025FMC

86 Motor Unit(M852)(ELV) CXB3006

87 Screw JFZ20P025FMC

88 Lever Unit CXB3938

89 •••••

90 Gear Unit CXB5061

Mark No. Description Part No. Mark No. Description Part No.

-CD MECHANISM MODULE SECTION PARTS LIST

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

CDX-P670,P676

91 Screw JGZ17P025FZK

92 Pickup Unit(Service) CXX1285

93 •••••

94 •••••

95 Screw IMS26P040FMC

96 Screw JFZ20P025FNI

97 Photo-transistor(Q851) PT4800

98 Spring Switch(S851,S853) CSN1051

99 LED(D851) CN504-2

100 Spring Switch(S852) CSN1052

Mark No. Description Part No.
