Pioneer DEH-2130R Manuale utente
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000 K-ZZA. JAN. 2000 Printed in Japan
ORDER NO.
CRT2452
HIGH POWER CD PLAYER WITH RDS TUNER
DEH-2130R X1P/EW
Service
Manual
DEH-2100R X1P/EW
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
DEH-2130R/X1M/EW CRT2434
DEH-2100R/X1M/EW CRT2434
CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly
2
DEH-2130R,2100R

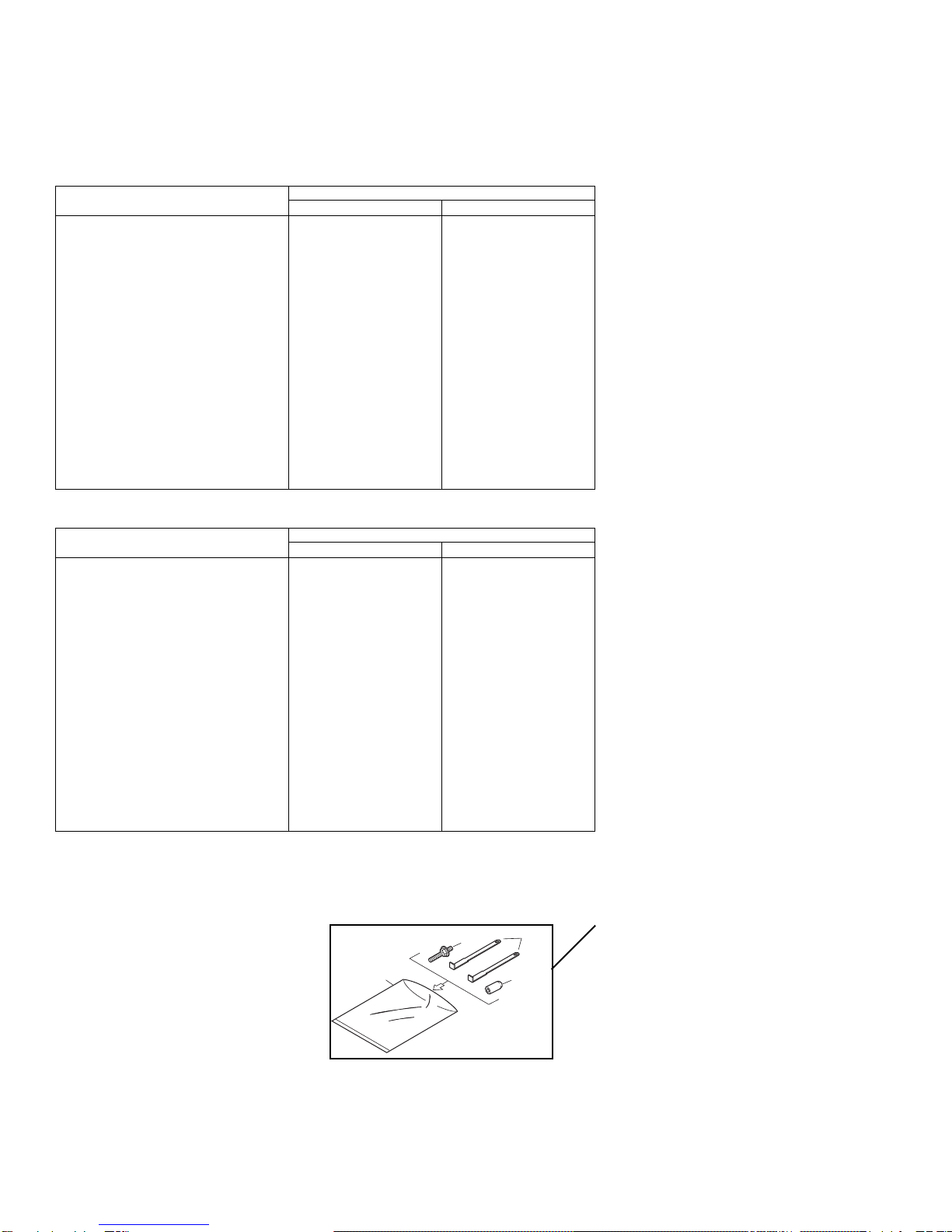

EXPLODED VIEWS AND PARTS LIST
PACKING(Page 3)
-PACKING SECTION PARTS LIST * : Non spare part
Part No.
Mark No. Symbol and Description DEH-2130R/X1M/EW DEH-2130R/X1P/EW
* 5 Polyethylene Bag E36-615 CEG-127
6 Polyethylene Bag CEG-162 UEG-012
7-1 Polyethylene Bag CEG1116 UEG1116
7-2 Owner's Manual CRD3137 URD-132
7-3 Owner's Manual CRD3138 URD-133
7-4 Installation Manual CRD3139 URD-134
* 7-5 Passport CRY1013 CRY1014
* 7-6 Warranty Card CRY1157 URY1087
8 Carton CHG3951 UHG-128
9 Contain Box CHL3951 UHL-070
10 Protector CHP2243 UHP2102
11 Protector CHP2244 UHP2101
12 Case Assy CXB3520 UXB3520
13 Accessory Assy * CEA2397 UEA2397
-PACKING SECTION PARTS LIST
Part No.
Mark No. Symbol and Description DEH-2100R/X1M/EW DEH-2100R/X1P/EW
* 5 Polyethylene Bag E36-615 CEG-127
6 Polyethylene Bag CEG-162 UEG-012
7-1 Polyethylene Bag CEG1116 UEG1116
7-2 Owner's Manual CRD3137 URD-132
7-3 Owner's Manual CRD3138 URD-133
7-4 Installation Manual CRD3139 URD-134
* 7-5 Passport CRY1013 CRY1014
* 7-6 Warranty Card CRY1157 URY1087
8 Carton CHG3950 UHG-129
9 Contain Box CHL3950 UHL-071
10 Protector CHP2243 UHP2102
11 Protector CHP2244 UHP2101
12 Case Assy CXB3520 UXB3520
13 Accessory Assy * CEA2397 UEA2397
4
3
5
2
13
3
DEH-2130R,2100R
EXTERIOR(Page 4)
-EXTERIOR SECTION PARTS LIST
Part No.
Mark No. Symbol and Description DEH-2130R/X1M/EW DEH-2130R/X1P/EW
15 Tuner Amp Assy CWM6764 UWM6764
19 FM/AM Tuner Unit CWE1500 UWE1500
29 Holder CNC8043 UNC8043
32 Heat Sink CNR1506 UNR1506
33 Holder Unit CXB2687 UNC6798(Holder)
34 Case Unit CXB4033 UXB4033
42 Panel CNS5340 UNS5340
47 Detach Grille Assy CXB4595 UXB4595
61 Keyboard Unit CWM6779 UWM6779
62 LCD(LCD1801) CAW1559 CAW1578
EXTERIOR(Page 4)
-EXTERIOR SECTION PARTS LIST
Part No.
Mark No. Symbol and Description DEH-2100R/X1M/EW DEH-2100R/X1P/EW
15 Tuner Amp Assy CWM6764 UWM6764
19 FM/AM Tuner Unit CWE1500 UWE1500
29 Holder CNC8043 UNC8043
32 Heat Sink CNR1506 UNR1506
33 Holder Unit CXB2687 UNC6798(Holder)
34 Case Unit CXB4033 UXB4033
42 Panel CNS5188 UNS5188
47 Detach Grille Assy CXB4592 UXB4592
61 Keyboard Unit CWM6778 UWM6778
62 LCD(LCD1801) CAW1559 CAW1578
DEH-2130R,2100R
ELECTRICAL PARTS LIST(Page 36)
-TUNER AMP ASSY
Part No.
DEH-2130R/X1M/EW DEH-2130R/X1P/EW
Symbol and Description DEH-2100R/X1M/EW DEH-2100R/X1P/EW
L 901 Choke Coil CTH1221(600µH) CTH1216(250µH)
C 311 CKSQYB104K16 CKSQYB104K50
C 314 CKSYB104K16 CKSYB104K50
C 325 CKSQYB104K16 CKSQYB104K50
C 326 CKSQYB104K16 CKSQYB104K50
C 327 CKSQYB104K16 CKSQYB104K50
C 328 CKSQYB104K16 CKSQYB104K50
C 332 CKSQYB473K16 CKSQYB473K25
C 333 CKSQYB104K16 CKSQYB104K50
C 334 CKSQYB104K16 CKSQYB104K50
C 390 CKSQYB104K16 CKSQYB104K50
C 415 CKSQYB473K16 CKSQYB473K25
C 462 CKSQYB123K25 CKSQYB123K50
C 463 CKSQYB123K25 CKSQYB123K50
C 613 CKSQYB473K16 CKSQYB473K25
C 630 CKSQYB473K16 CKSQYB473K25
C 650 CKSQYB104K16 CKSQYB104K50
C 712 CKSQYB104K16 CKSQYB104K50
C 715 CKSQYB104K16 CKSQYB104K50
C 720 CKSQYB104K16 CKSQYB104K50
C 902 CKSQYB473K16 CKSQYB473K25
C 904 CKSQYB473K16 CKSQYB473K25
C 941 CKSQYB473K16 CKSQYB473K25
C 983 CKSQYB473K16 CKSQYB473K25
-FM/AM TUNER UNIT
Part No.
DEH-2130R/X1M/EW DEH-2130R/X1P/EW
Symbol and Description DEH-2100R/X1M/EW DEH-2100R/X1P/EW
C 915 CKSQYB223K25 CKSQYB223K50
-KEYBOARD UNIT
Part No.
DEH-2130R/X1M/EW DEH-2130R/X1P/EW
Symbol and Description DEH-2100R/X1M/EW DEH-2100R/X1P/EW
LCD1801 LCD CAW1559 CAW1578
C 1801 CKSQYB103K25 CKSQYB103K50
