Pioneer DEH-3300R-2 Manuale utente

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER CORPORATION 2001 K-ZZU. APR. 2001 Printed in Japan

ORDER NO.

CRT2669

Service

Manual

HIGH POWER CD PLAYER WITH RDS TUNER

DEH-3300R-2 X1B/EW,X1P/EW

DEH-3330R-2 X1B/EW,X1P/EW

-This is the unit which has been replaced S8.1(CXK5201) CD mechanism module with S9(CXK5500).

-This service manual should be used together with the manual(s) listed below.

For the parts numbers, adjustments, etc. which are not shown in this manual,

refer to the following manual(s).

Model No. Order No. Mech. Module Remarks

CX-977 CRT2624 S9 CD Mech. Module:Circuit Description, Mech. Description, Disassembly

DEH-3300R/X1N/EW CRT2574

DEH-3300R-2,3330R-2

-CD Player Service Precautions

1. For pickup unit(CXX1480) handling, please refer

to"Disassembly"(see page 24).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a jumper-solder).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 18).

SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

1. Safety Precautions for those who Service this Unit.

• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable

results.

Caution:

1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.

2. During repair or tests, do not view laser beam for 10 seconds or longer.

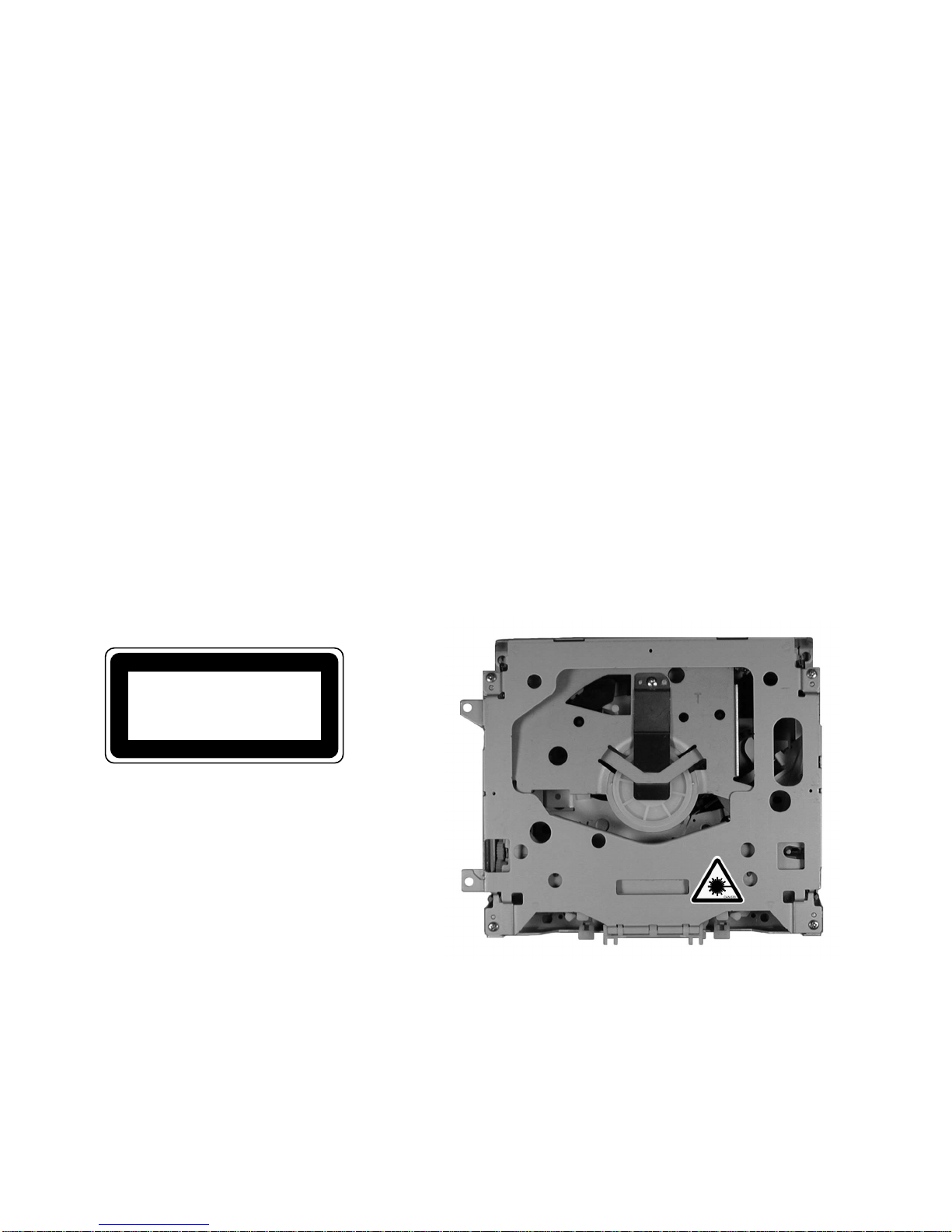

2. A “CLASS 1 LASER PRODUCT” label is affixed to the

bottom of the player.

3. The triangular label is attached to the mechanism

unit frame.

4. Specifications of Laser Diode

Specifications of laser radiation fields to which human access is possible during service.

Wavelength = 800 nanometers

CLASS 1

LASER PRODUCT

DEH-3300R-2,3330R-2

EXPLODED VIEWS AND PARTS LIST

PACKING (Page 3)

-PACKING SECTION PARTS LIST *: Non Spare Part

Part No.

Mark No. Description DEH-3300R/X1N/EW DEH-3300R-2/X1B/EW DEH-3300R-2/X1P/EW

1 Cord Assy CDE6435 UDE6435 UDE6435

2 Case Assy CXB3520 UXB-009 UXB3520

3 Accessory Assy *CEA2397 UEA2397 UEA2397

*7 Polyethylene Bag E36-615 CEG-127 CEG-127

8 Polyethylene Bag CEG-162 UEG-012 UEG-012

9 Carton CHG4270 UHG4376 UHG-154

10 Contain Box CHL4270 UHL4376 UHL-107

11 Protector CHP2251 UHP2101 UHP2101

12 Protector CHP2252 UHP2102 UHP2102

13-1 Polyethylene Bag CEG1116 UEG1116 UEG1116

13-2 Owner's Manual CRD3304 URD-173 URD-173

13-3 Owner's Manual CRD3305 URD-174 URD-174

13-4 Installation Manual CRD3313 URD-176 URD-176

* 13-5 Passport CRY1013 CRY1014 CRY1014

* 13-6 Warranty Card CRY1157 URY1087 URY1087

DEH-3300R-2,3330R-2

-PACKING SECTION PARTS LIST

Part No.

Mark No. Description DEH-3330R/X1N/EW DEH-3330R-2/X1B/EW DEH-3330R-2/X1P/EW

1 Cord Assy CDE6435 UDE6435 UDE6435

2 Case Assy CXB3520 UXB-009 UXB3520

3 Accessory Assy *CEA2397 UEA2397 UEA2397

Polyethylene Bag E36-615 CEG-127 CEG-127

8 Polyethylene Bag CEG-162 UEG-012 UEG-012

9 Carton CHG4271 UHG4375 UHG-153

10 Contain Box CHL4271 UHL4375 UHL-106

11 Protector CHP2251 UHP2101 UHP2101

12 Protector CHP2252 UHP2102 UHP2102

13-1 Polyethylene Bag CEG1116 UEG1116 UEG1116

13-2 Owner's Manual CRD3304 URD-173 URD-173

13-3 Owner's Manual CRD3305 URD-174 URD-174

13-4 Installation Manual CRD3313 URD-176 URD-176

* 13-5 Passport CRY1013 CRY1014 CRY1014

* 13-6 Warranty Card CRY1157 URY1087 URY1087

EXTERIOR (Page 5)

-EXTERIOR SECTION PARTS LIST

Part No.

DEH-3300R/X1B/EW

Mark No. Description DEH-3300R/X1N/EW DEH-3300R/X1P/EW

5 Cord Assy CDE6435 UDE6435

7 Cable CDE6444 CDE6610

12 Holder CNC8659 UNC8659

16 Tuner Amp Unit CWM7384 UWM7384

25 Connector(CN501) CKS4398 CKS3835

32 FM/AM Tuner Unit CWE1562 UWE1562

35 Detach Grille Assy CXB6296 UXB6296

51 Keyboard Unit CWM7406 UWM7406

58 Sub Grille Assy CXB7157 UXB7157

-EXTERIOR SECTION PARTS LIST

Part No.

DEH-3330R/X1B/EW

Mark No. Description DEH-3330R/X1N/EW DEH-3330R/X1P/EW

5 Cord Assy CDE6435 UDE6435

7 Cable CDE6444 CDE6610

12 Holder CNC8659 UNC8659

16 Tuner Amp Unit CWM7386 UWM7386

25 Connector(CN501) CKS4398 CKS3835

32 FM/AM Tuner Unit CWE1562 UWE1562

35 Detach Grille Assy CXB6298 UXB6298

51 Keyboard Unit CWM7408 UWM7408

58 Sub Grille Assy CXB7158 UXB7158

DEH-3300R-2,3330R-2

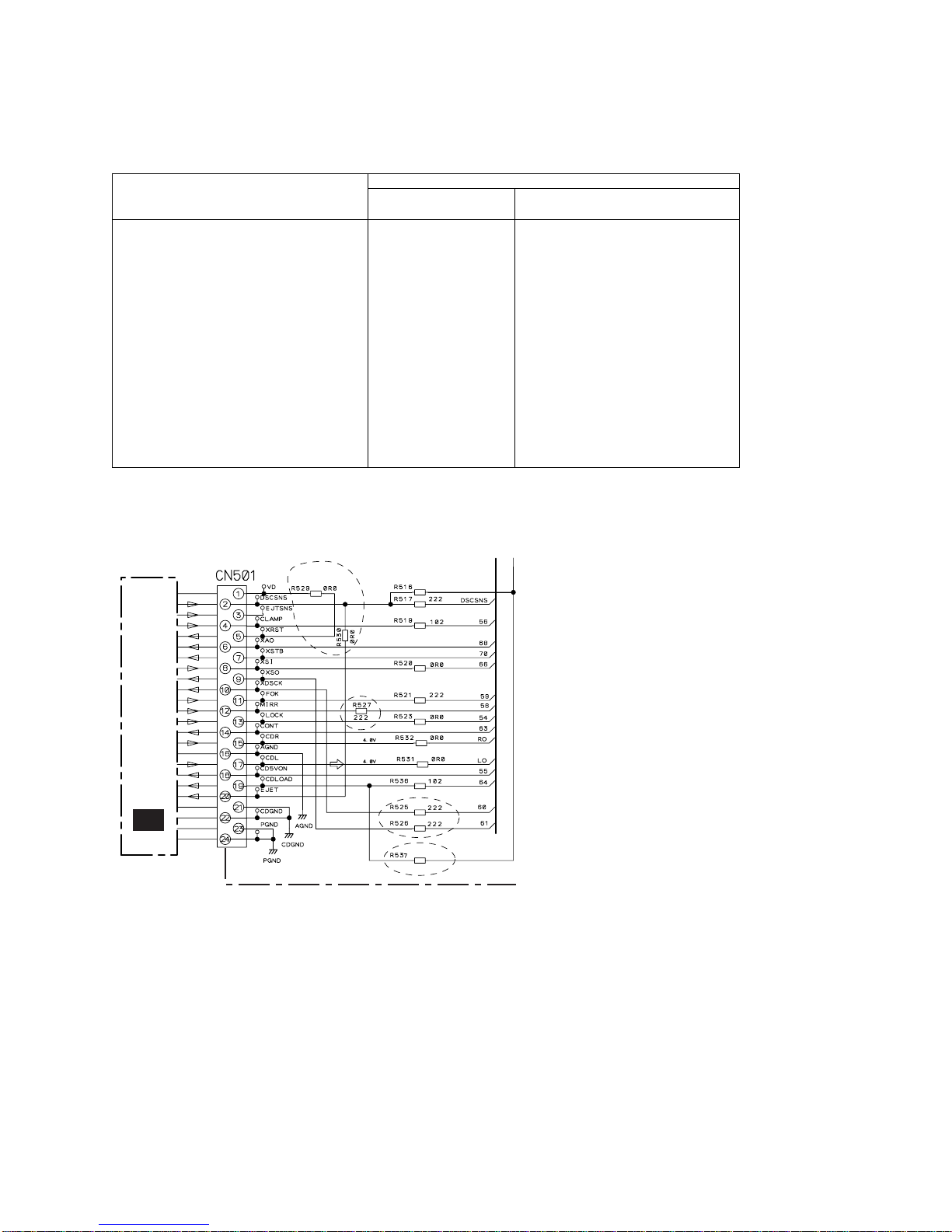

ELECTRICAL PARTS LIST(Page 34)

Tuner Amp Unit Part No.

DEH-3300R/X1N/EW DEH-3300R-2/X1N/EW,X1M/EW

Circuit Symbol and No. DEH-3330R/X1N/EW DEH-3330R-2/X1N/EW,X1M/EW

IC601 PE5202A PE5245A

R514,R515 RS1/16S473J Not used

R516 RS1/16S473J RS1/16S104J

R518 RS1/16S222J Not used

R519 RS1/16S222J RS1/16S102J

R520 RS1/16S681J RS1/16S0R0J

R521 RS1/16S102J RS1/16S222J

R522,R524,R534,R535 RS1/16S0R0J Not used

R523 RS1/16S102J RS1/16S0R0J

R525,R526,R527 Not used RS1/16S222J

R529 Not used RS1/4PU0R0J

R530 Not used RS1/16S0R0J

R536 RS1/16S0R0J RS1/16S102J

R537 Not used RS1/16S104J

CN701

CONTROL UNIT

104

(1/4W)

104

DEH-3300R-2,3330R-2

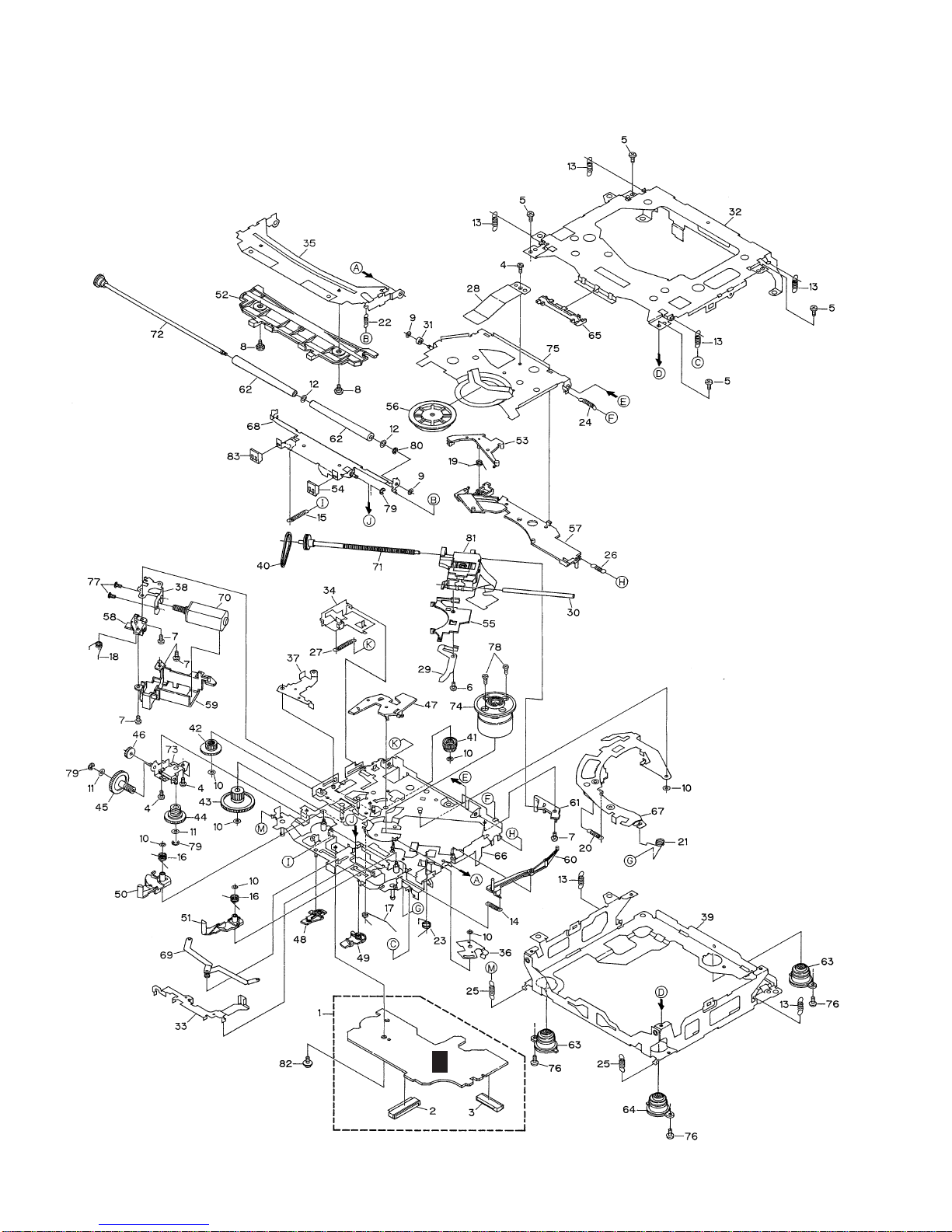

CD MECHANISM MODULE

DEH-3300R-2,3330R-2

Mark No. Description Part No. Mark No. Description Part No.

1 Control Unit CWX2481

2 Connector(CN701) CKS1959

3 Connector(CN101) CKS3486

4 Screw BMZ20P025FMC

5 Screw BSZ20P040FMC

6 Screw(M2x4) CBA1362

7 Screw(M2x3) CBA1527

8 Screw CBA1545

9 Washer CBF1037

10 Washer CBF1038

11 Washer CBF1039

12 Washer CBF1060

13 Spring CBH2378

14 Spring CBH2379

15 Spring CBH2380

16 Spring CBH2381

17 Spring CBH2382

18 Spring CBH2383

19 Spring CBH2384

20 Spring CBH2385

21 Spring CBH2386

22 Spring CBH2387

23 Spring CBH2390

24 Spring CBH2391

25 Spring CBH2392

26 Spring CBH2426

27 Spring CBH2444

28 Spring CBL1494

29 Spring CBL1495

30 Shaft CLA3845

31 Roller CLA3910

32 Frame CNC8946

33 Lever CNC8948

34 Lever CNC8949

35 Arm CNC8951

36 Arm CNC9016

37 Arm CNC9017

38 Bracket CNC9123

39 Frame CNC9263

40 Belt CNT1086

41 Gear CNV6315

42 Gear CNV6316

43 Gear CNV6317

44 Gear CNV6318

45 Gear CNV6319

46 Gear CNV6320

47 Arm CNV6322

48 Arm CNV6323

49 Arm CNV6324

50 Arm CNV6325

51 Arm CNV6326

52 Guide CNV6327

53 Arm CNV6328

54 Guide CNV6329

55 Rack CNV6330

56 Clamper CNV6331

57 Arm CNV6332

58 Guide CNV6333

59 Cover CNV6334

60 Arm CNV6335

61 Guide CNV6336

62 Roller CNV6338

63 Damper CNV6339

64 Damper CNV6340

65 Guide CNV6484

66 Chassis Unit CXB5898

67 Arm Unit CXB5899

68 Arm Unit CXB5900

69 Arm Unit CXB5901

70 Motor Unit(M2) CXB5903

71 Screw Unit CXB5904

72 Gear Unit CXB5905

73 Bracket Unit CXB6006

74 Motor Unit(M1) CXB6007

75 Arm Unit CXB6237

76 Screw(M2x5) EBA1028

77 Screw JFZ20P020FMC

78 Screw JGZ17P020FZK

79 Washer YE15FUC

80 Washer YE20FUC

81 Pickup Unit(Service)(P9) CXX1480

82 Screw IMS26P030FMC

83 Guide CNV6832

-CD MECHANISM MODULE SECTION PARTS LIST

DEH-3300R-2,3330R-2

1234

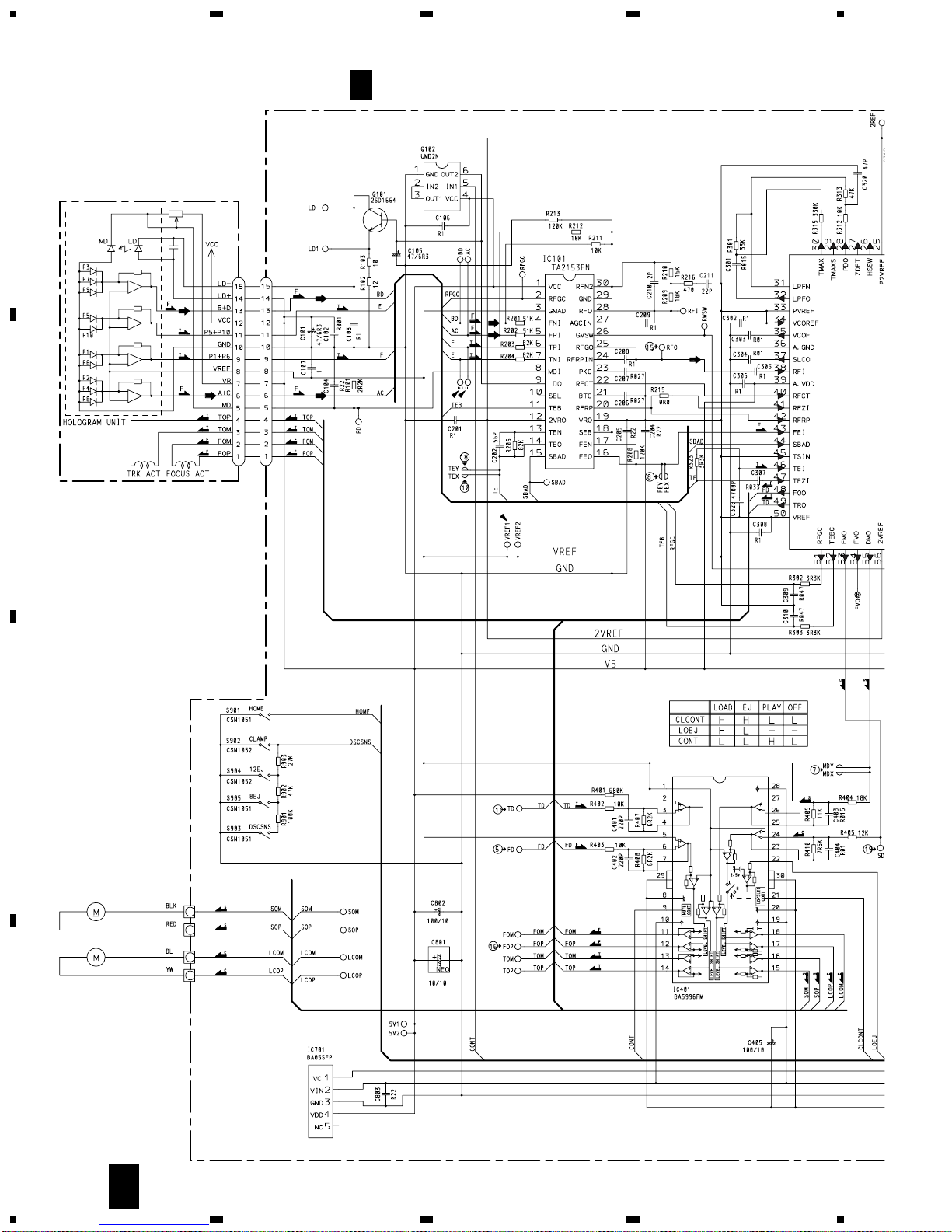

CD MECHANISM MODULE

M1 CXB6007

M2 CXB5903

LOADING/CARRIAGE

SPINDLE

RF AMP

ACT/MOTOR DRIVER

5V REGULATOR

CN101

CONTROL UNIT

PICKUP UNIT(SERVICE)(P9)

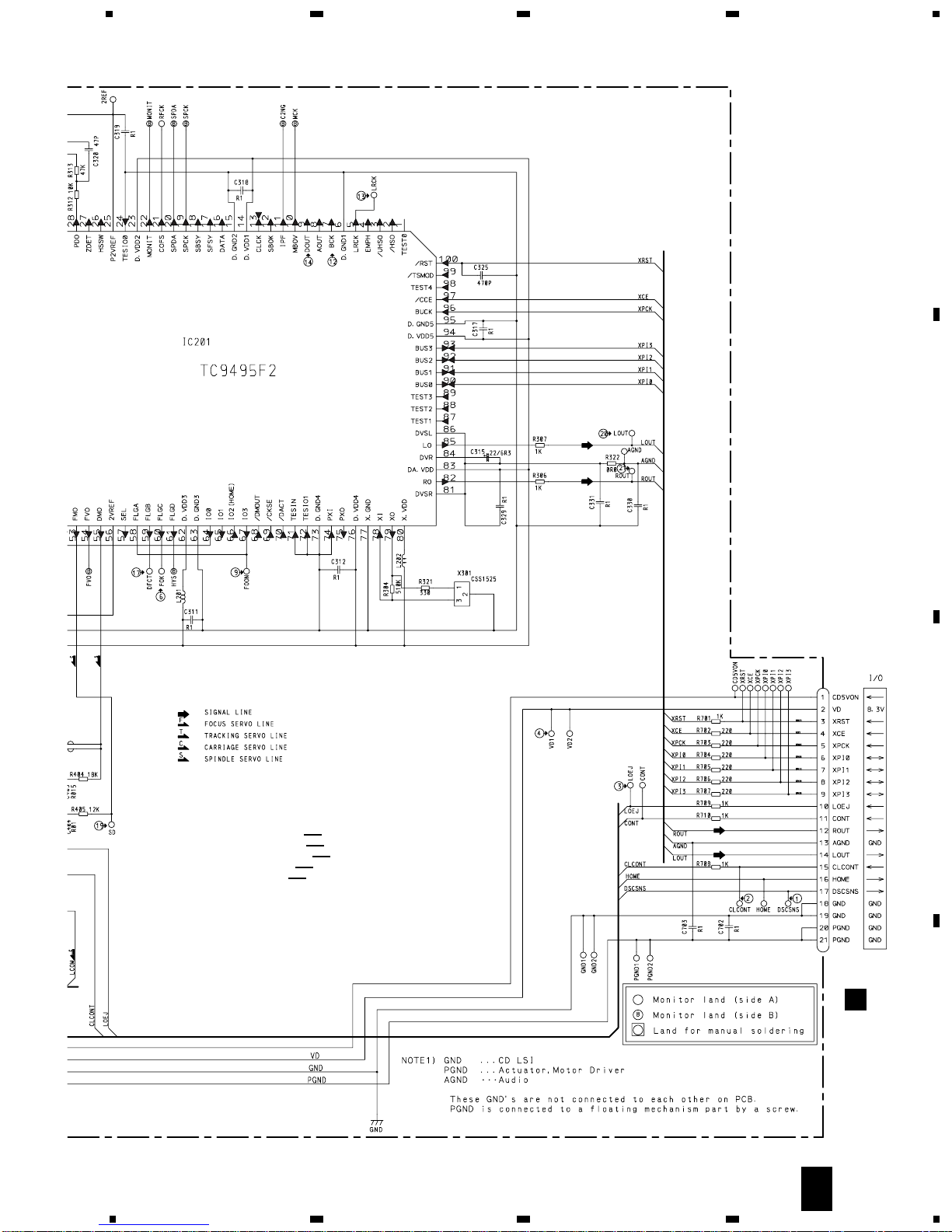

DEH-3300R-2,3330R-2

5678

16.934MHz

SERVO CONTROL/DSP/DAC/LPF

CN701

SWITCHES:

CONTROL UNIT

S901 : HOME SWITCH.....ON-OFF

S902 : CLAMP SWITCH....ON-OFF

S903 : DSCSNS SWITCH....ON-OFF

S904 : 12EJ SWITCH....ON-OFF

S905 : 8EJ SWITCH....ON-OFF

The underlined indicates the switch position.

CN501

DEH-3300R-2,3330R-2

@CH1:BCK 2V/div.

During "Play"

1CH1:DSCSNS 5V/div.

2CH2:CLCONT 5V/div.

3CH3:LOEJ 5V/div.

4CH4:VD 10V/div.

When loading (8 cm CD)

500ms/div.

5CH1:FD 500mV/div.

6CH2:FOK 5V/div.

7CH3:MD 5V/div.

When setting up "Source On"

500ms/div.

8CH1:FE 500mV/div.

9CH2:FOON 5V/div.

When setting up "Source On"

500ms/div.

5CH1:FD 500mV/div.

6CH2:FOK 5V/div.

7CH3:MD 5V/div.

Magnified drawing for "time"

100ms/div.

1CH1:DSCSNS 5V/div.

2CH2:CLCONT 5V/div.

3CH3:LOEJ 5V/div.

4CH4:VD 10V/div.

When loading (12 cm CD)

Ref. :

GND

Mode :

Normal

Ref. :

GND

Mode :

Normal

Ref. :

VREF

Mode :

Normal

Ref. :

VREF

Mode :

Normal

Ref. :

VREF

Mode :

Normal

Ref. :

VREF

Mode :

Normal

Ref. :

VREF

Mode :

Normal

Ref. :

VREF

Mode :

Normal

Ref. :

VREF

Mode :

Normal

Ref. :

VREF

Mode :

Test

Ref. :

VREF

Mode :

Normal

Ref. :

VREF

Mode :

Normal

500ms/div.

0CH1:TE 500mV/div.

8CH2:FE 500mV/div.

When setting up "Source On"

200ms/div.

1µs/div. #CH1:LRCK 2V/div.

$CH2:DOUT 2V/div.

During "Play"

10µs/div.

7CH1:MD 500mV/div.

During "Play"

10µs/div. %CH1:RFO 500mV/div.

During "Play"

0.5µs/div. %CH1:RFO 500mV/div.

0CH2:TE 500mV/div.

During "Tracking Open"

2ms/div.

8CH1:FE 500mV/div.

5CH2:FD 500mV/div.

0CH3:TE 500mV/div.

!CH4:TD 500mV/div.

During "Play"

1ms/div.

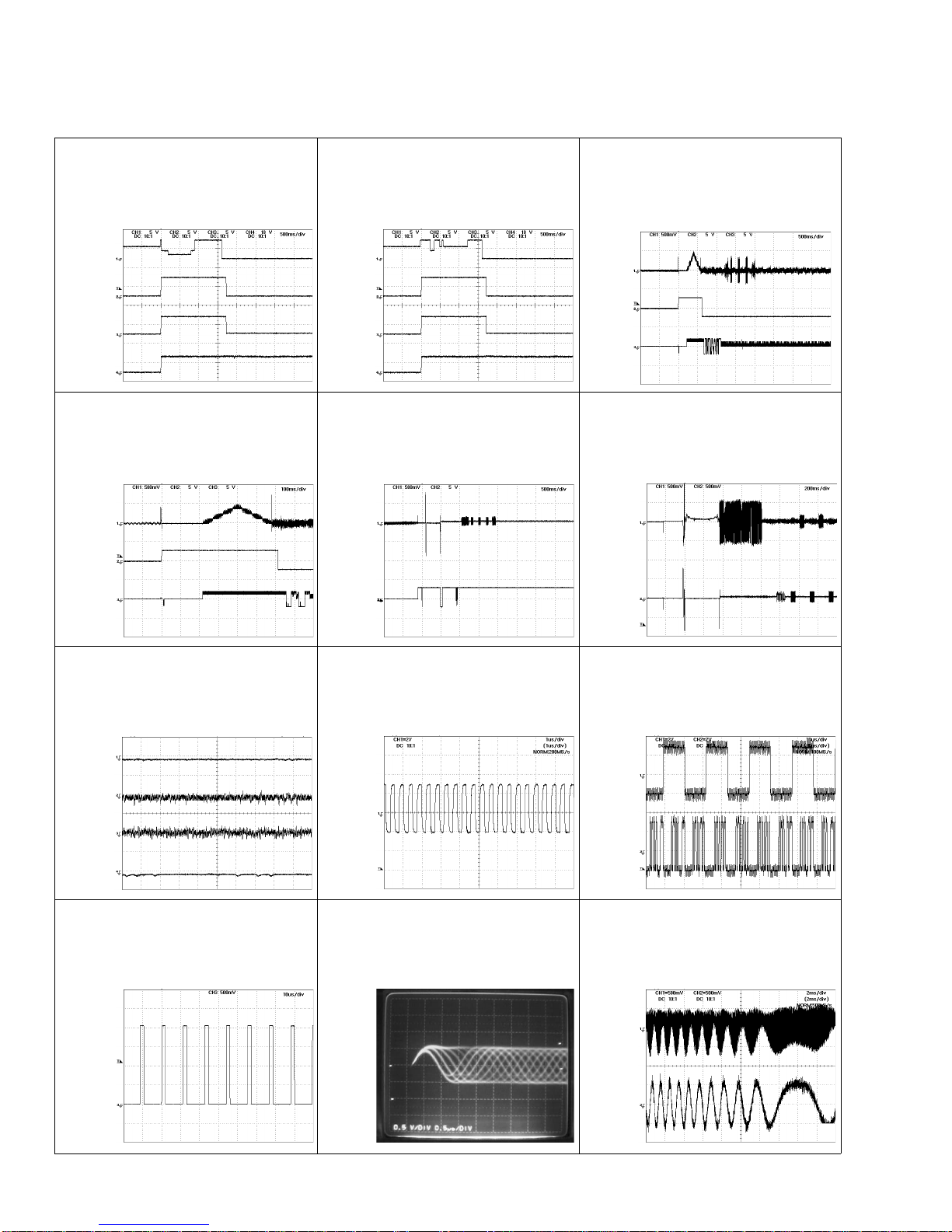

-Waveforms

Note:1. The encircled numbers denote measuring pointes in the circuit diagram.

2. Reference voltage

VREF:2.1V

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Pioneer Lettore CD

Pioneer

Pioneer PR-8210-A Manuale utente

Pioneer

Pioneer CLD-D925 Manuale utente

Pioneer

Pioneer CDX-FM657 Manuale utente

Pioneer

Pioneer PD-7500 Manuale utente

Pioneer

Pioneer CLD-1720K Manuale utente

Pioneer

Pioneer CLD-2090 Manuale utente

Pioneer

Pioneer PD-T303 Manuale utente

Pioneer

Pioneer DEH-6400BT Manuale utente

Pioneer

Pioneer PD-M406 Manuale utente

Pioneer

Pioneer CDJ-500II Manuale utente

Pioneer

Pioneer DEH-59DH Manuale utente

Pioneer

Pioneer SUPER AUDIO CD PLAYER PD-D9MK2-K Manuale utente

Pioneer

Pioneer CDX-FM1277 Manuale utente

Pioneer

Pioneer CDJ-700S Manuale utente

Pioneer

Pioneer DRM-604X Istruzioni per il montaggio

Pioneer

Pioneer XDV-M8137ZT/UC Manuale utente

Pioneer

Pioneer CLD-2710K Manuale utente

Pioneer

Pioneer CDJ-200 Manuale utente

Pioneer

Pioneer PD-7050 Manuale utente

Pioneer

Pioneer PD-F407 - CD Changer Manuale utente

Pioneer

Pioneer PD-F958 Manuale utente

Pioneer

Pioneer CDJ 1000MK3 - Professional CD/MP3 Turntable Manuale utente

Pioneer

Pioneer CDJ-500II Manuale utente

Pioneer

Pioneer CDJ-400 - Cd/Media Player Manuale utente

Manuali Lettore CD popolari di altre marche

RCA

RCA RP-7923 Manuale utente

Philips

Philips AZ1207 Manuale utente

Philips

Philips CD582 Manuale utente

Philips

Philips AZ 6821 Manuale utente

Lasonic

Lasonic MSU-2020 Manuale utente

THOMSON

THOMSON RCD150 Manuale utente

Denon

Denon DCD-1420 Manuale utente

Panasonic

Panasonic SJ-MR100 Manuale utente

Onkyo

Onkyo DX-7210 Manuale utente

Sony

Sony MZ-R3 Manuale utente

Denon

Denon DVM-4800 Manuale utente

JBL

JBL MR-32 Manuale utente

RCA

RCA RCD152 Manuale utente

Technics

Technics SL-PS770A Manuale utente

Clarion

Clarion compact disc Manuale utente

Sony

Sony MZ-M10 Manuale utente

Philips

Philips Expanium AZ 1538 Manuale utente

Rotel

Rotel RCD 975 Manuale utente
