PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER ELECTRONIC CORPORATION 1998 K-ZZD. DEC. 1998 Printed in Japan

ORDER NO.

CRT2309

MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER

DEH-P3000R X1N/EW

Service

Manual

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST.......................3

3. SCHEMATIC DIAGRAM .............................................8

4. PCB CONNECTION DIAGRAM ................................24

5. ELECTRICAL PARTS LIST ........................................34

6. ADJUSTMENT..........................................................39

7. GENERAL INFORMATION .......................................43

7.1 PARTS .................................................................43

7.1.1 IC................................................................43

7.1.2 DISPLAY....................................................50

7.2 DIAGNOSIS ........................................................51

7.2.1 DISASSEMBLY .........................................51

7.2.2 TEST MODE..............................................52

7.3 BLOCK DIAGRAM ..............................................56

8. OPERATIONS AND SPECIFICATIONS.....................57

-See the separate manual CX-916(CRT2300) for the CD mechanism description, disassembly and circuit

description.

-The CD mechanism employed in this model is one of S8 series.

DEH-P3000R

-CD Player Service Precautions

1. For pickup unit(CXX1285) handling, please refer

to"Disassembly"(CX-916 Service Manual CRT2300).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 41).

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

1. Safety Precautions for those who Service this Unit.

• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable

results.

Caution:

1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.

2. During repair or tests, do not view laser beam for 10 seconds or longer.

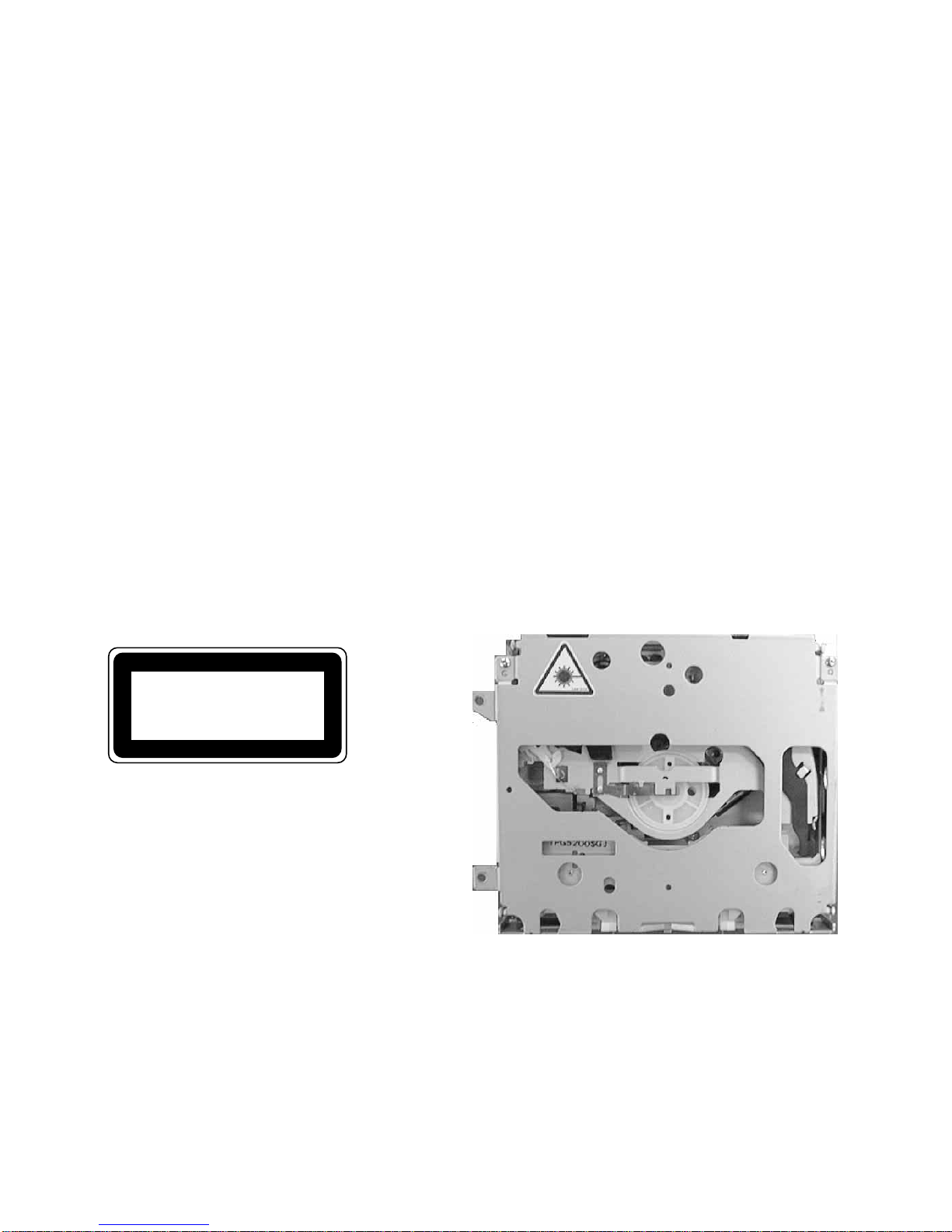

2. A “CLASS 1 LASER PRODUCT” label is affixed to the

bottom of the player.

3. The triangular label is attached to the mechanism

unit frame.

4. Specifications of Laser Diode

Specifications of laser radiation fields to which human access is possible during service.

Wavelength = 800 nanometers

CLASS 1

LASER PRODUCT

DEH-P3000R

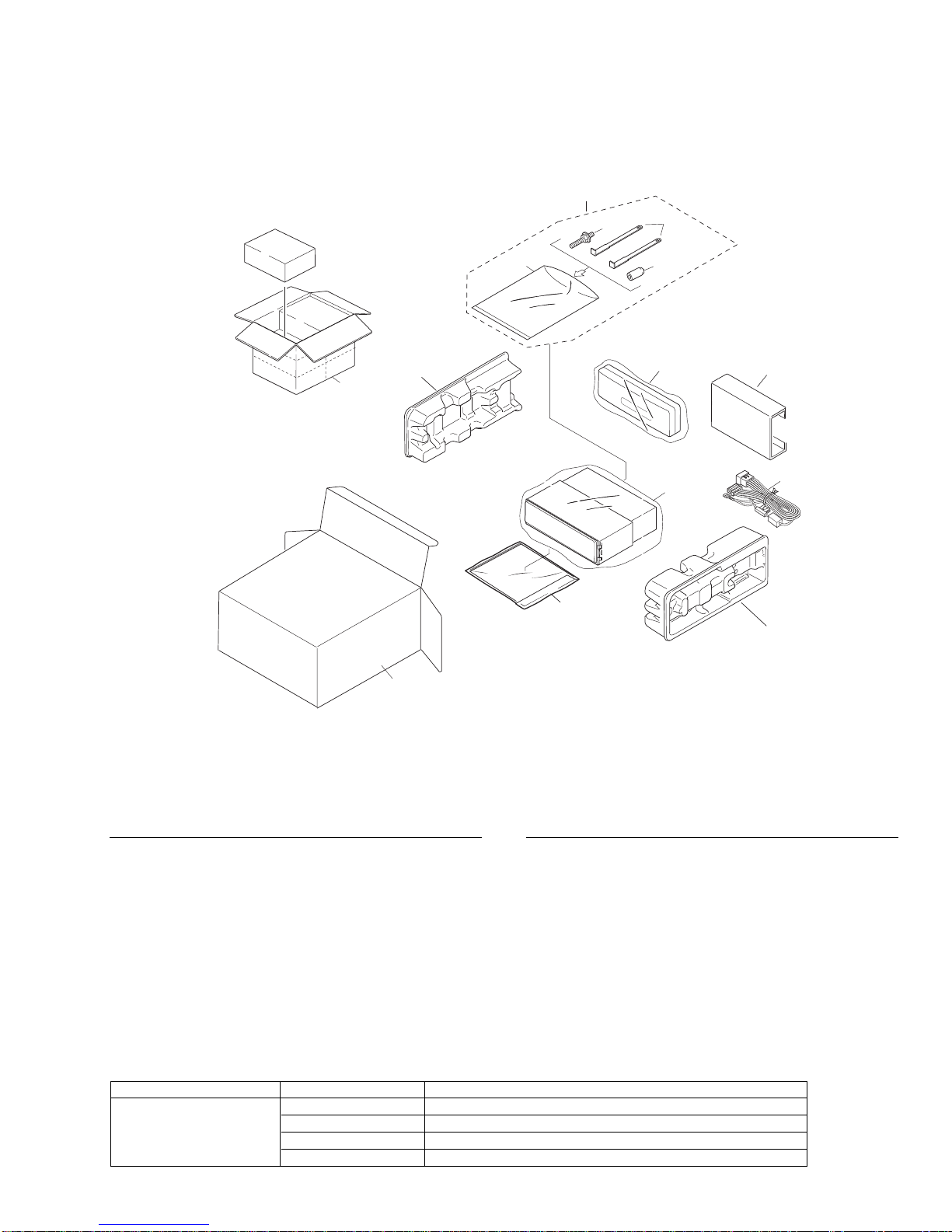

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

-Owner's Manual, Installation Manual

Model Part No. Language

DEH-P3000R/X1N/EW CRD2824 English, Spanish

CRD2825 German, French

CRD2826 Italian, Dutch

CRD2827 English, Spanish, German, French, Italian, Dutch

1 Cord Assy CDE5754

* 2 Accessory Assy CEA2397

3 Screw CBA1002

4 Handle CNC5395

5 Bush CNV3930

* 6 Polyethylene Bag E36-615

7 Polyethylene Bag CEG-162

8-1 Owner’s Manual CRD2824

8-2 Owner’s Manual CRD2825

8-3 Owner’s Manual CRD2826

8-4 Installation Manual CRD2827

* 8-5 Passport CRY1013

* 8-6 Warranty Card CRY1087

8-7 Polyethylene Bag CEG1116

9 Case Assy CXB3520

10 Carton CHG3646

11 Contain Box CHL3646

12 Protector CHP2101

13 Protector CHP2102

14 Inner Box CHW1754

Mark No. Description Part No. Mark No. Description Part No.

-PACKING SECTION PARTS LIST

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

DEH-P3000R

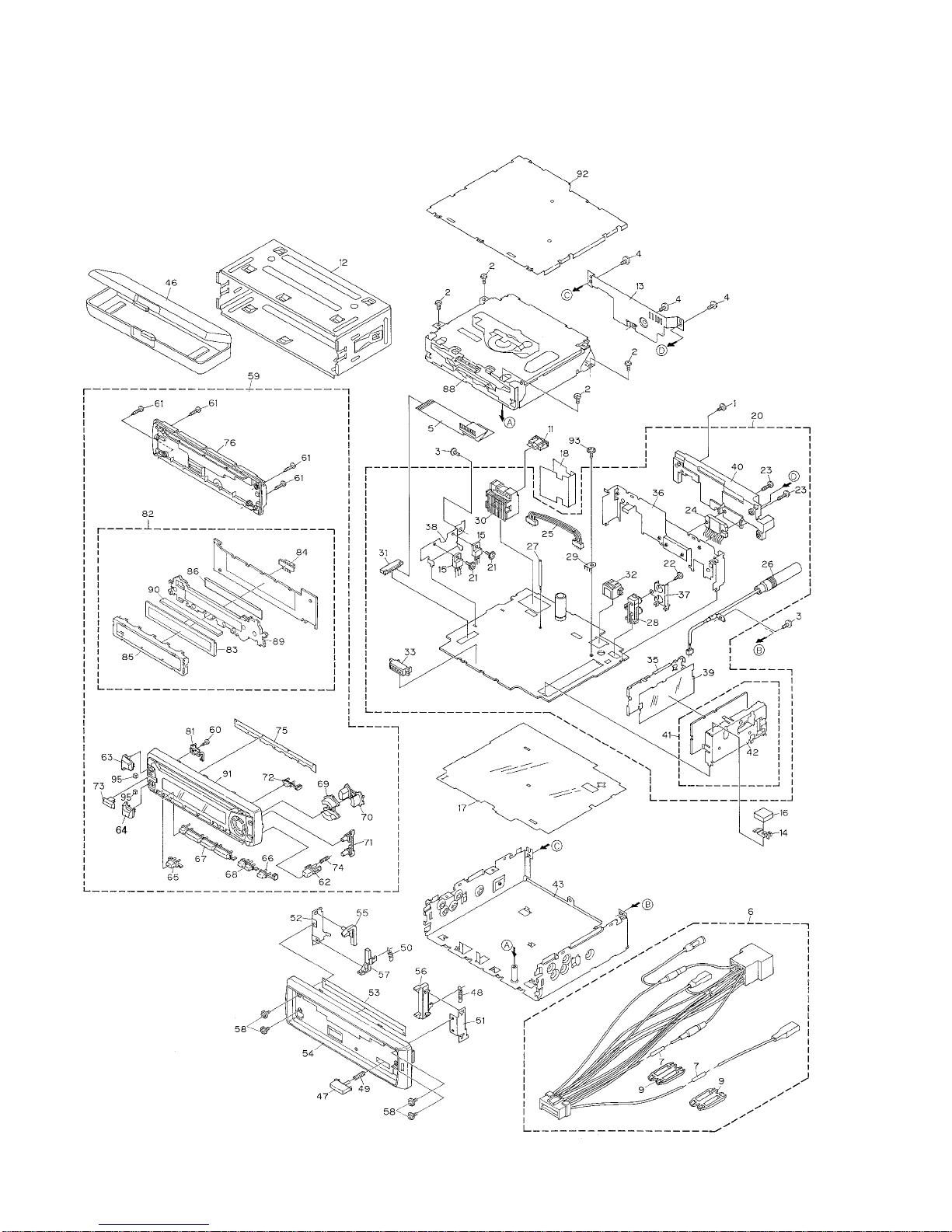

2.2 EXTERIOR

DEH-P3000R

1 Screw BMZ26P120FMC

2 Screw BSZ26P060FMC

3 Screw BSZ30P060FMC

4 Screw BSZ30P120FMC

5 Cable CDE6018

6 Cord Assy CDE5754

7 Resistor RS1/2PMF102J

8 •••••

9 Cap CNS1472

10 •••••

11 Fuse(10A) CEK1136

12 Holder CNC6798

13 Cover CNC8367

14 Earth Plate CNC8368

15 Transistor(Q981,991) 2SD2396

16 Spacer CNM4913

17 Insulator CNM6006

18 Insulator CNM6224

19 •••••

20 Tuner Amp Unit CWM6083

21 Screw ASZ26P080FMC

22 Screw BPZ26P080FMC

23 Screw BSZ26P160FMC

24 IC(IC551) PAL005A

25 Connector(CN551) CDE5996

26 Antenna Cable(CN502) CDH1254

27 Clamper CEF1006

28 Pin Jack(CN431) CKB1028

29 Terminal(CN501) CKF1059

30 Connector(CN951) CKM1299

* 31 Connector(CN681) CKS2227

32 Connector(CN411) CKS3408

33 Connector(CN651) CKS3581

34 •••••

35 Holder CNC7533

36 Holder CNC8039

37 Holder CNC8041

38 Holder CNC8043

39 Insulator CNM5967

40 Heat Sink CNR1506

41 FM/AM Tuner Unit CWE1500

42 Holder CNC7532

43 Chassis Unit CXB3521

44 •••••

45 •••••

46 Case Assy CXB3520

47 Button CAC4836

48 Spring CBH1835

49 Spring CBH1996

50 Spring CBH2208

51 Bracket CNC6791

52 Holder CNC8042

53 Cover CNM6276

54 Panel CNS5188

55 Arm CNV4692

56 Arm CNV4728

57 Arm CNV5576

58 Screw IMS20P030FZK

59 Detach Grille Assy CXB3605

60 Screw BPZ20P060FMC

61 Screw BPZ20P100FZK

62 Button(DETACH) CAC5789

63 Button(+) CAC5834

64 Button(-) CAC5837

65 Button(SOURCE) CAC5983

66 Button(BAND) CAC5984

67 Button(1-6) CAC5840

68 Button(TA,PT) CAC5843

69 Button(UP,DOWN) CAC5846

70 Button(<,>) CAC5849

71 Button(F,A) CAC5852

72 Button(EJECT) CAC5853

73 Button(EQ) CAC6132

74 Spring CBH2210

75 Cover CNM6290

76 Cover CNS5187

77 •••••

78 •••••

79 •••••

80 •••••

81 Housing CNV5575

82 Keyboard Unit CWM6097

83 LCD(LCD1801) CAW1499

84 Connector(CN1801) CKS3580

85 Holder CNC8036

86 Sheet CNM6026

87 •••••

88 CD Mechanism Module CXK5200

89 Lighting Conductor CNV5570

90 Connector CNV5571

91 Grille Unit CXB3494

92 Case Unit CXB4033

93 Screw ISS26P055FUC

94 •••••

95 Cushion CNM6373

-EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

DEH-P3000R

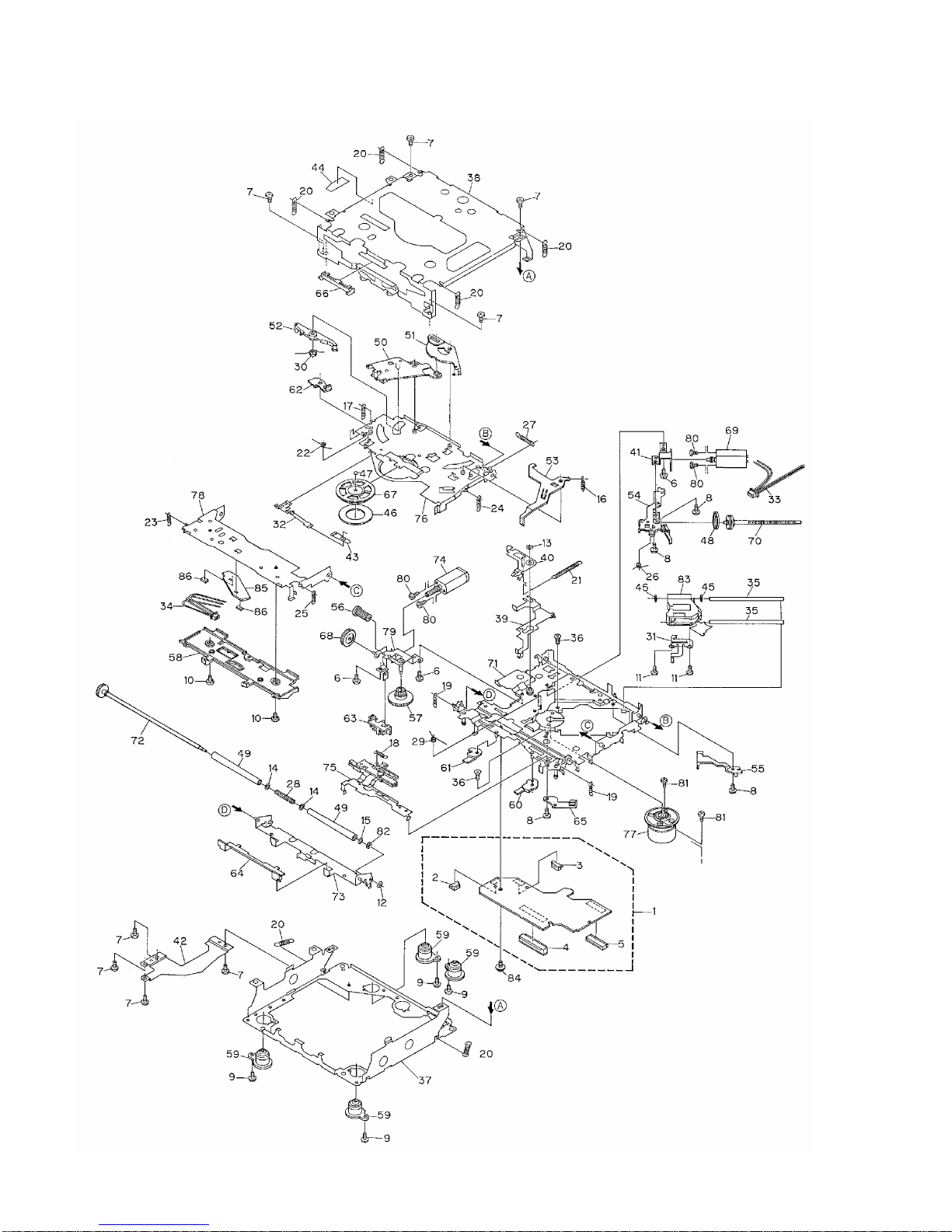

2.3 CD MECHANISM MODULE

DEH-P3000R

Mark No. Description Part No. Mark No. Description Part No.

1 Control Unit CWX2344

2 Connector(CN802) CKS2192

3 Connector(CN801) CKS2193

4 Connector(CN701) CKS2773

5 Connector(CN101) CKS3486

6 Screw BMZ20P030FZK

7 Screw BSZ20P040FZK

8 Screw(M2×3) CBA1077

9 Screw(M2×6) CBA1230

10 Screw CBA1243

11 Screw(M2×4) CBA1362

12 Washer CBF1037

13 Washer CBF1038

14 Washer CBF1060

* 15 Washer CBF1075

16 Spring CBH2079

17 Spring CBH2117

18 Spring CBH2082

19 Spring CBH2110

20 Spring CBH2111

21 Spring CBH2114

22 Spring CBH2115

23 Spring CBH2080

24 Spring CBH2118

25 Spring CBH2161

26 Spring CBH2163

27 Spring CBH2189

28 Spring CBH2249

29 Spring CBH2260

30 Spring CBH2262

31 Spring CBL1367

32 Spring CBL1369

33 Connector CDE5531

34 Connector CDE5532

35 Shaft CLA3304

36 Screw(M2.6×6) CBA1458

37 Frame CNC7544

38 Frame CNC7545

39 Lever CNC7546

40 Arm CNC7739

41 Bracket CNC7798

42 Plate CNC8090

43 Spacer CNM3315

44 Sheet CNM6170

45 Cushion CNM6204

46 Sheet CNM6215

47 Ball CNR1189

48 Belt CNT1086

49 Roller CNV4509

50 Arm CNV5246

51 Arm CNV5247

52 Arm CNV5248

53 Arm CNV5249

54 Guide CNV5254

55 Guide CNV5255

56 Gear CNV5257

57 Gear CNV5256

58 Guide CNV5259

59 Damper CNV5266

60 Arm CNV5359

61 Arm CNV5360

62 Arm CNV5361

63 Guide CNV5509

64 Guide CNV5510

65 Holder CNV5578

66 Guide CNV5751

67 Clamper CNV5758

68 Gear CNV5813

69 Motor Unit(M1) CXB2190

70 Screw Unit CXB2191

71 Chassis Unit CXB2192

72 Gear Unit CXB2193

73 Arm Unit CXB2194

74 Motor Unit(M2) CXB2195

75 Lever Unit CXB2553

76 Arm Unit CXB2554

77 Motor Unit(M3) CXB2562

78 Arm Unit CXB2795

79 Bracket Unit CXB4071

80 Screw JFZ20P025FMC

81 Screw JGZ17P025FZK

82 Washer YE15FUC

83 Pickup Unit(Service)(P8) CXX1285

84 Screw IMS26P030FMC

* 85 PCB CNX2982

86 Photo-transistor(Q1, 2) CPT230SX-TU

-CD MECHANISM MODULE SECTION PARTS LIST

DEH-P3000R

1234

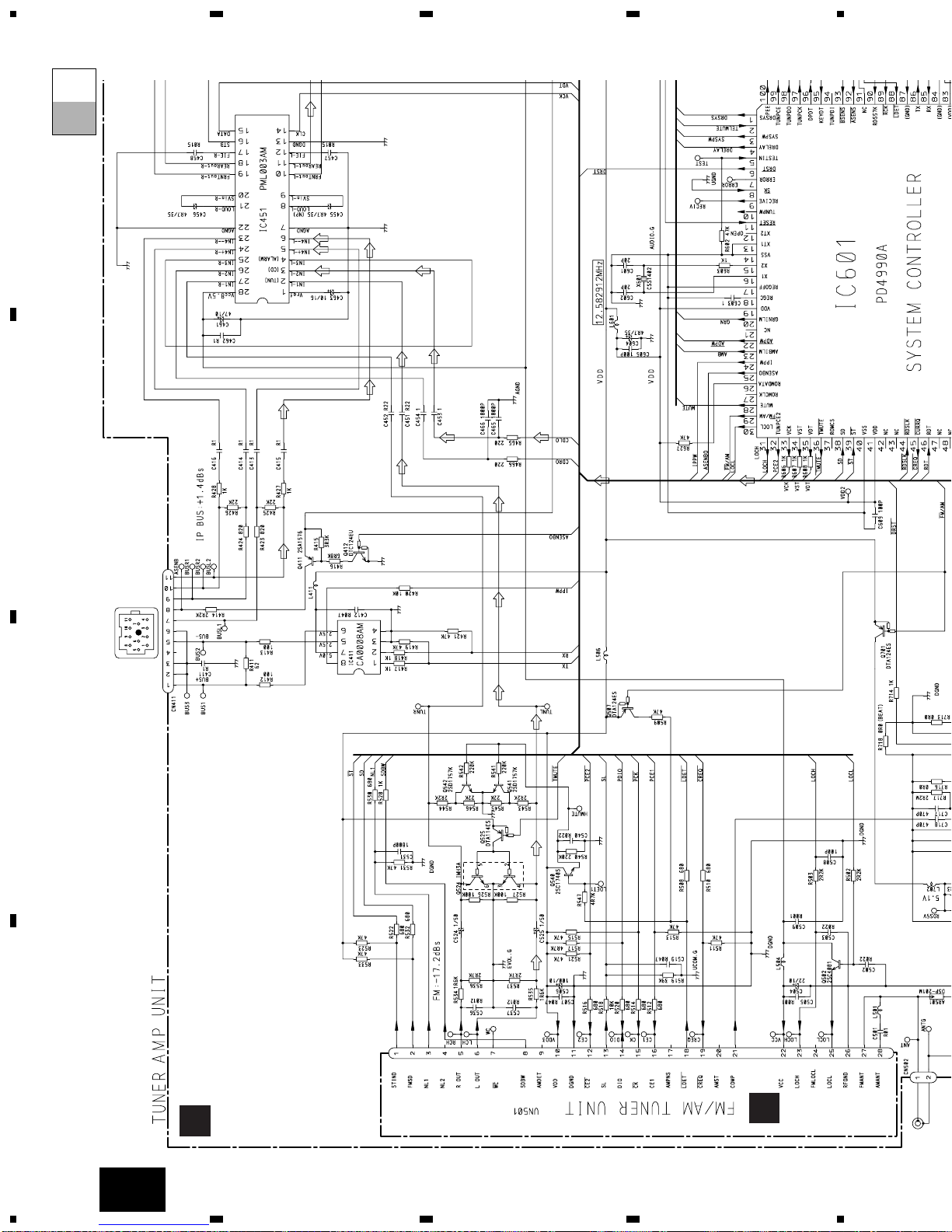

3. SCHEMATIC DIAGRAM

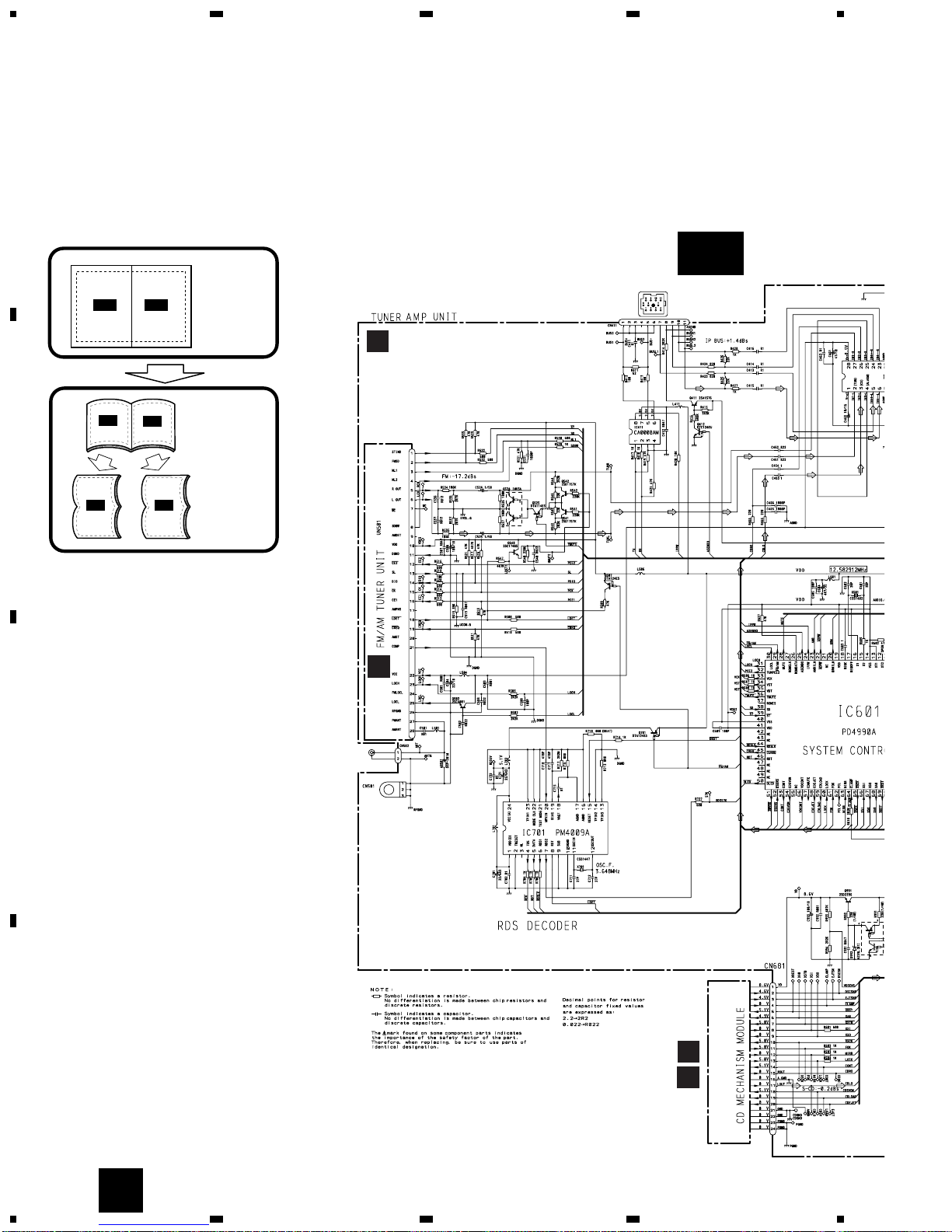

3.1 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)

Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS

LIST”.

A-a A-b

A-aA-a A-bA-b

A-bA-b

A-aA-a

Large size

SCH diagram

Guide page

Detailed page

A-a

ANTENNA

CABLE

IP BUS IN

SOU

ELEC

VD REGULATOR

IP BUS

DRIVER

4.3V

DEH-P3000R

5678

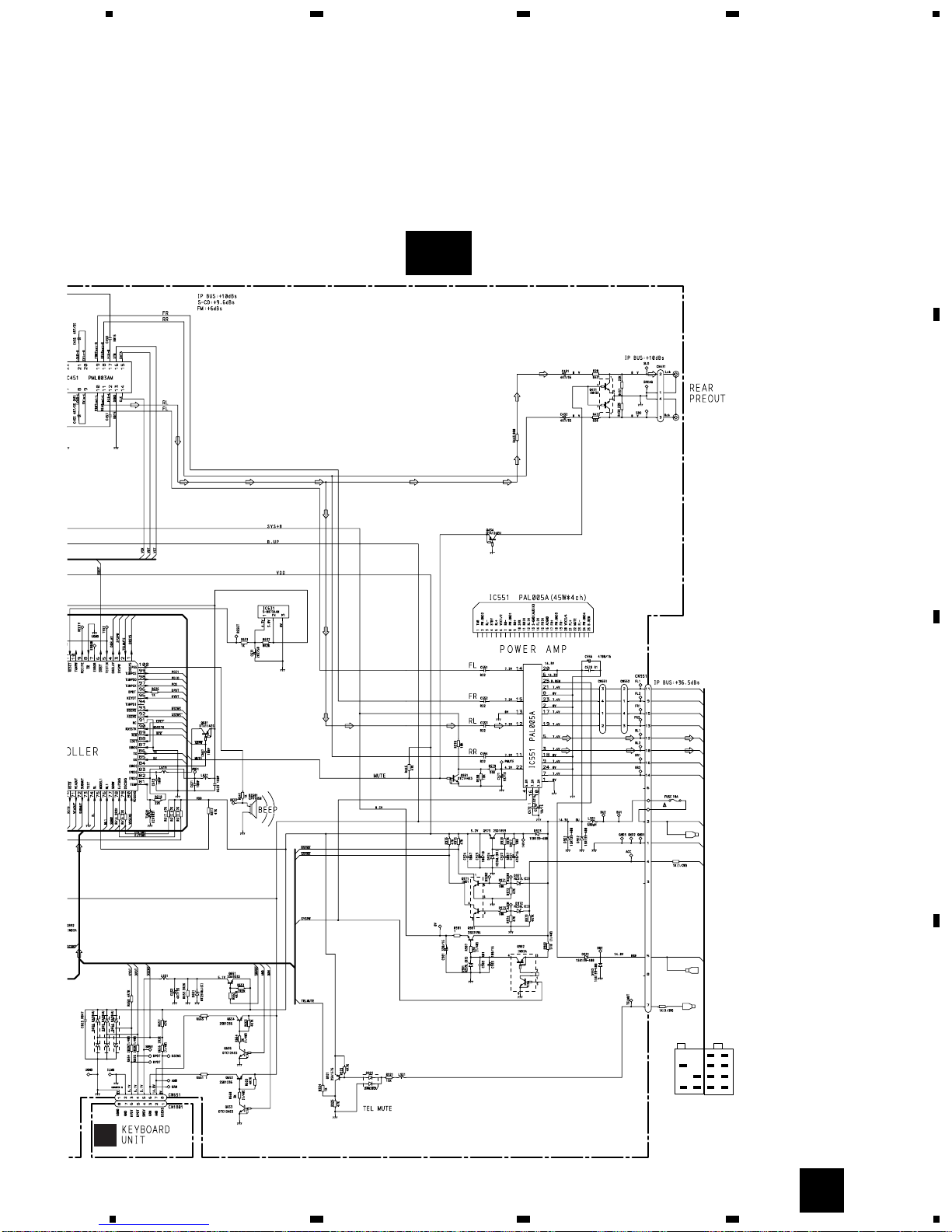

A-b

RCE SELECTOR,

CTRONIC VOLUME

RESET

CEK1136

RR+RR-

FR+

FL+

RL+

FR-

FL-

RL-

BACK UP

GND ACC

RR+

RR-

FR+

FL+

RL+

FR-

FL-

RL-

BACK UP

GND

ACC

B.REMOTE

TEL MUTE

4.3V

DEH-P3000R

1234

ANTENNA

CABLE

IP BUS IN

SOURCE SELECTOR,

ELECTRONIC VOLUME

IP BUS

DRIVER

4.3V

A-a

A-a A-b

Altri manuali per DEH-P3000R

Indice

Altri manuali Pioneer Lettore CD

Pioneer

Pioneer CDJ-100S Manuale utente

Pioneer

Pioneer CDJ800Mk1 Manuale utente

Pioneer

Pioneer CDX-FM677/X1N/UC Istruzioni per la costruzione

Pioneer

Pioneer CLD-99 Manuale utente

Pioneer

Pioneer Elite PD-F17 Manuale utente

Pioneer

Pioneer CDJ-1000 Manuale utente

Pioneer

Pioneer MEP-7000 Istruzioni per il montaggio

Pioneer

Pioneer DEH-P545R Manuale utente

Pioneer

Pioneer PD-M406A Manuale utente

Pioneer

Pioneer X-HM36D Manuale utente

Pioneer

Pioneer PD-50-S Manuale utente

Pioneer

Pioneer CDJ-400 - Cd/Media Player Manuale utente

Pioneer

Pioneer XC-LA21 Manuale utente

Pioneer

Pioneer PD-30-K Manuale utente

Pioneer

Pioneer CLD-2080 Manuale utente

Pioneer

Pioneer CDJ-800MK2 Manuale utente

Pioneer

Pioneer PD-M427 Manuale utente

Pioneer

Pioneer PD-F19 Manuale utente

Pioneer

Pioneer DRM-6324X Manuale utente

Pioneer

Pioneer PD-M406 Manuale utente

Pioneer

Pioneer CLD-D503 Manuale utente

Pioneer

Pioneer CDX-P1270 Guida all'installazione

Pioneer

Pioneer CDJ-400 - Cd/Media Player Guida rapida

Pioneer

Pioneer LD-S1 Manuale utente

Manuali Lettore CD popolari di altre marche

RCA

RCA RP-7923 Manuale utente

Philips

Philips AZ1207 Manuale utente

Philips

Philips CD582 Manuale utente

Philips

Philips AZ 6821 Manuale utente

Lasonic

Lasonic MSU-2020 Manuale utente

THOMSON

THOMSON RCD150 Manuale utente

Denon

Denon DCD-1420 Manuale utente

Panasonic

Panasonic SJ-MR100 Manuale utente

Onkyo

Onkyo DX-7210 Manuale utente

Sony

Sony MZ-R3 Manuale utente

Denon

Denon DVM-4800 Manuale utente

JBL

JBL MR-32 Manuale utente

RCA

RCA RCD152 Manuale utente

Technics

Technics SL-PS770A Manuale utente

Clarion

Clarion compact disc Manuale utente

Sony

Sony MZ-M10 Manuale utente

Philips

Philips Expanium AZ 1538 Manuale utente

Rotel

Rotel RCD 975 Manuale utente
