Pioneer DEH-S400DAB Manuale utente

English Français Italiano Español Deutsch Nederlands

CD RDS RECEIVER

AUTORADIO CD RDS

SINTOLETTORE CD RDS

REPRODUCTOR DE CD CON RECEPTOR RDS

CD RDS-EMPFÄNGER

CD RDS-ONTVANGER

DEH-S400DAB

Owner’s Manual

Mode d’emploi

Manuale d’istruzioni

Manual de instrucciones

Bedienungsanleitung

Handleiding

2En

Before You Start....................................................................................... 3

Getting Started........................................................................................ 4

Digital Audio Broadcasting (DAB)........................................................ 6

Radio.......................................................................................................... 6

CD/USB/iPod/AUX................................................................................... 7

App Mode................................................................................................. 8

Spotify® ..................................................................................................... 9

Using Pioneer ARC APP........................................................................ 10

Settings ................................................................................................... 10

FUNCTION settings .............................................................................. 11

AUDIO settings...................................................................................... 12

SYSTEM settings ................................................................................... 12

ILLUMINATION settings....................................................................... 13

Connections/Installation..................................................................... 14

Additional Information ........................................................................ 16

About this manual:

•In the following instructions, a USB memory or USB audio player are referred to as

“USB device”.

•In this manual, iPod and iPhone are referred to as “iPod”.

Table of Contents Declaration of Conformity with regard to the Radio Equipment Directive 2014/53/EU

[*] DEH-S400DAB

English:

Hereby, Pioneer declares that the radio equipment type

[*] is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is

available at the following internet address: http://

www.pioneer-car.eu/compliance

Suomi:

Pioneer vakuuttaa, että radiolaitetyyppi [*] on direktiivin

2014/53/EU mukainen.

EU-vaatimustenmukaisuusvakuutuksen täysimittainen

teksti on saatavilla seuraavassa internetosoitteessa:

http://www.pioneer-car.eu/compliance

Nederlands:

Hierbij verklaar ik, Pioneer, dat het type radioapparatuur

[*] conform is met Richtlijn 2014/53/EU.

De volledige tekst van de EU-conformiteitsverklaring

kan worden geraadpleegd op het volgende

internetadres: http://www.pioneer-car.eu/compliance

Français:

Le soussigné, Pioneer, déclare que l’équipement

radioélectrique du type [*] est conforme à la directive

2014/53/UE.

Le texte complet de la déclaration UE de conformité est

disponible à l’adresse internet suivante: http://

www.pioneer-car.eu/compliance

Svenska:

Härmed försäkrar Pioneer att denna typ av

radioutrustning [*] överensstämmer med direktiv 2014/

53/EU.

Den fullständiga texten till EU-försäkran om

överensstämmelse finns på följande webbadress: http://

www.pioneer-car.eu/compliance

Dansk:

Hermed erklærer Pioneer, at radioudstyrstypen [*] er i

overensstemmelse med direktiv 2014/53/EU.

EU-overensstemmelseserklæringens fulde tekst kan

findes på følgende internetadresse: http://

www.pioneer-car.eu/compliance

Deutsch:

Hiermit erklärt Pioneer, dass der Funkanlagentyp [*] der

Richtlinie 2014/53/EU entspricht.

Der vollständige Text der EU-Konformitätserklärung ist

unter der folgenden Internetadresse verfügbar: http://

www.pioneer-car.eu/compliance

Ελληνικά:

Με την παρούσα ο/η Pioneer, δηλώνει ότι ο

ραδιοεξοπλισμός [*] πληροί την οδηγία 2014/53/ΕΕ.

Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ

διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:

http://www.pioneer-car.eu/compliance

Italiano:

Il fabbricante, Pioneer, dichiara che il tipo di

apparecchiatura radio [*] è conforme alla direttiva 2014/

53/UE.

Il testo completo della dichiarazione di conformità UE è

disponibile al seguente indirizzo Internet: http://

www.pioneer-car.eu/compliance

Español:

Por la presente, Pioneer declara que el tipo de equipo

radioeléctrico [*] es conforme con la Directiva 2014/53/

UE.

El texto completo de la declaración UE de conformidad

está disponible en la dirección Internet siguiente: http://

www.pioneer-car.eu/compliance

Português:

O(a) abaixo assinado(a) Pioneer declara que o presente

tipo de equipamento de rádio [*] está em conformidade

com a Diretiva 2014/53/UE.

O texto integral da declaração de conformidade está

disponível no seguinte endereço de Internet: http://

www.pioneer-car.eu/compliance

Čeština:

Tímto Pioneer prohlašuje, že typ rádiového zařízení [*]je

v souladu se směrnicí 2014/53/EU.

Úplné znění EU prohlášení o shodě je k dispozici na této

internetové adrese: http://www.pioneer-car.eu/

compliance

Eesti:

Käesolevaga deklareerib Pioneer, et käesolev

raadioseadme tüüp [*] vastab direktiivi 2014/53/EL

nõuetele.

ELi vastavusdeklaratsiooni täielik tekst on kättesaadav

järgmisel internetiaadressil: http://www.pioneer-car.eu/

compliance

Magyar:

Pioneer igazolja, hogy a [*] típusú rádióberendezés

megfelel a 2014/53/EU irányelvnek.

Az EU-megfelelőségi nyilatkozat teljes szövege elérhető

a következő internetes címen: http://www.pioneer-

car.eu/compliance

Latviešu valoda:

Ar šo Pioneer deklarē, ka radioiekārta [*] atbilst

Direktīvai 2014/53/ES.

Pilns ES atbilstības deklarācijas teksts ir pieejams šādā

interneta vietnē: http://www.pioneer-car.eu/compliance

Lietuvių kalba:

Aš, Pioneer, patvirtinu, kad radijo įrenginių tipas [*]

atitinka Direktyvą 2014/53/ES.

Visas ES atitikties deklaracijos tekstas prieinamas šiuo

interneto adresu: http://www.pioneer-car.eu/

compliance

Manufacturer:

Pioneer Corporation

28-8, Honkomagome 2-chome, Bunkyo-ku,

Tokyo 113-0021, Japan

EU Representative’s & Importer:

Pioneer Europe NV

Haven 1087, Keetberglaan 1, 9120 Melsele,Belgium

http://www.pioneer-car.eu

3En

English

Malti:

B’dan, Pioneer, niddikjara li dan it-tip ta’ tagħmir tar-

radju [*] huwa konformi mad-Direttiva 2014/53/UE.

It-test kollu tad-dikjarazzjoni ta’ konformità tal-UE huwa

disponibbli f’dan l-indirizz tal-Internet li ġej: http://

www.pioneer-car.eu/compliance

Slovenčina:

Pioneer týmto vyhlasuje, že rádiové zariadenie typu [*]

je v súlade so smernicou 2014/53/EÚ.

Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto

internetovej adrese: http://www.pioneer-car.eu/

compliance

Slovenščina:

Pioneer potrjuje, da je tip radijske opreme [*] skladen z

Direktivo 2014/53/EU.

Celotno besedilo izjave EU o skladnosti je na voljo na

naslednjem spletnem naslovu: http://www.pioneer-

car.eu/compliance

Română:

Prin prezenta, Pioneer declară că tipul de echipamente

radio [*] este în conformitate cu Directiva 2014/53/UE.

Textul integral al declarației UE de conformitate este

disponibil la următoarea adresă internet: http://

www.pioneer-car.eu/compliance

български:

С настоящото Pioneer декларира, че този тип

радиосъоръжение [*] е в съответствие с Директива

2014/53/ЕС.

Цялостният текст на ЕС декларацията за

съответствие може да се намери на следния

интернет адрес: http://www.pioneer-car.eu/

compliance

Polski:

Pioneer niniejszym oświadcza, że typ urządzenia

radiowego [*] jest zgodny z dyrektywą 2014/53/UE.

Pełny tekst deklaracji zgodności UE jest dostępny pod

następującym adresem internetowym: http://

www.pioneer-car.eu/compliance

Norsk:

Herved Pioneer erklærer at radioutstyr type [*] er i

samsvar med direktiv 2014/53/EU.

Den fullstendige teksten i EU-samsvarserklæringen er

tilgjengelig på følgende internettadresse: http://

www.pioneer-car.eu/compliance

Íslenska:

Hér með Pioneer lýsir yfir að tegund þráðlausan búnað

[*] er í samræmi við tilskipun 2014/53/ESB.

The fullur texti af ESB-samræmisyfirlýsingu er í boði á

eftirfarandi veffangi: http://www.pioneer-car.eu/

compliance

Hrvatski:

Pioneer ovime izjavljuje da je radijska oprema tipa [*] u

skladu s Direktivom 2014/53/EU.

Cjeloviti tekst EU izjave o sukladnosti dostupan je na

sljedećoj internetskoj adresi: http://www.pioneer-

car.eu/compliance

Türk:

Burada. Pioneerradyo ekipmani turunun [*] 2014/53/EU

direktiflerine uyumlu oldugunu beyan eder.

Avrupa uyumluluk beyaninin tam metni belirtilen

internet sitesinde mevcuttur: http://www.pioneer-

car.eu/compliance Thank you for purchasing this PIONEER product

To ensure proper use, please read through this manual before using this product. It is especially

important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the

manual in a safe and accessible place for future reference.

Private households in the member states of the EU, in Switzerland and Norway may return their used

electronic products free of charge to designated collection facilities or to a retailer (if you purchase a

similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of

disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery

and recycling and thus prevent potential negative effects on the environment and human health.

WARNING

•Do not attempt to install or service this product by yourself. Installation or servicing of this

product by persons without training and experience in electronic equipment and automotive

accessories may be dangerous and could expose you to the risk of electric shock, injury or other

hazards.

•Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle

in a safe location before attempting to use the controls on the device.

CAUTION

•Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result.

Also, damage to this unit, smoke, and overheating could result from contact with liquids.

•Always keep the volume low enough to hear outside sounds.

•The Pioneer CarStereo-Pass is for use only in Germany.

•This product is evaluated in moderate and tropical climate condition under the Audio, video and

similar electronic apparatus - Safety requirements, IEC 60065.

Before You Start

If you want to dispose this product, do not mix it with general household waste. There is a separate

collection system for used electronic products in accordance with legislation that requires proper

treatment, recovery and recycling.

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

4En

If you experience problems

Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service

Station.

DEH-S400DAB

Frequently used operations

Getting Started

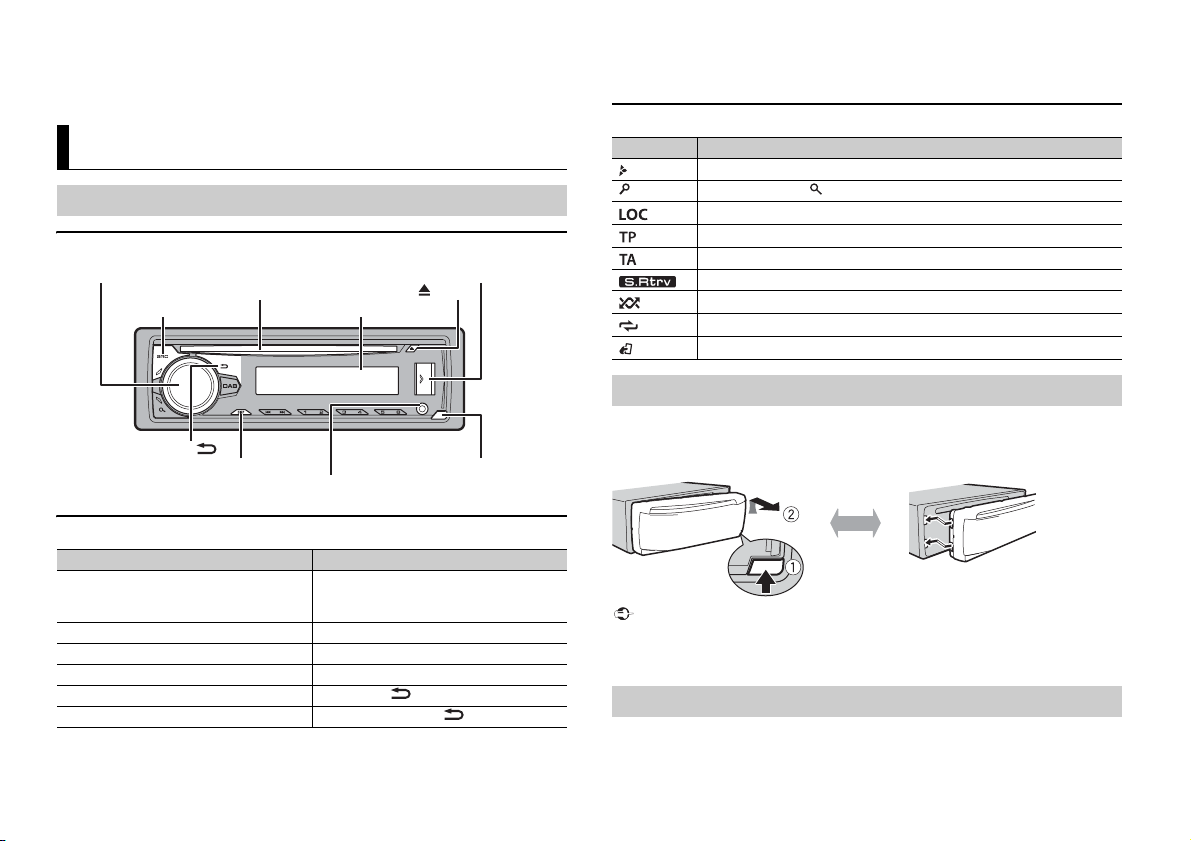

Basic operation

Purpose Operation

Turn on the power* Press SRC/OFF to turn on the power.

Press and hold SRC/OFF to turn off the

power.

Adjust the volume Turn the M.C. dial.

Select a source Press SRC/OFF repeatedly.

Change the display information Press DISPrepeatedly.

Return to the previous display/list Press BAND/ .

Return to the normal display from the menu Press and hold BAND/ .

Detach button

Display window

M.C. (multi-control) dial

BAND/

DISP (display)

SRC (source)/OFF

USB port

(eject)

AUX input jack (3.5 mm stereo jack)

Disc loading slot

* When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal,

the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the

source off.

Display indication

Detach the front panel to prevent theft. Remove any cables and devices attached to the

front panel and turn off the unit before detaching it.

Important

•Avoid subjecting the front panel to excessive shock.

•Keep the front panel out of direct sunlight and high temperatures.

•Always store the detached front panel in a protective case or bag.

When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the

display.

Indication Description

Appears when a lower tier of the menu or folder exists.

Appears when the button is pressed.

Appears when the local seek tuning function is set (page 11).

Appears when a traffic program is received.

Appears when the TA (traffic announcements) function is set (page 11).

Appears when the sound retriever function is set (page 11).

Appears when random/shuffle play is set.

Appears when repeat play is set.

Appears when the iPod control function is set (page 8).

Detaching the front panel

Setup menu

Detach Attach

5En

English

1Press the M.C. dial.

The setup menu disappears after 30 seconds of no operation. If you prefer not to set

at this time, turn the M.C. dial to select [NO], then press to confirm.

2Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

3[QUIT :YES] appears when all the settings have been made.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO],

then press to confirm.

4Press the M.C. dial to confirm the settings.

When [DAB ANT PW] is set to [ON], [UPDATING LIST] appears in the display and the

service list will be updated.

NOTES

•You can cancel the menu setting by pressing SRC/OFF.

•These settings can be made at any time from the SYSTEM settings (page 12) and INITIAL settings

(page 5).

1Press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [SYSTEM], then press to confirm.

3Turn the M.C. dial to select [DEMO OFF], then press to confirm.

4Turn the M.C. dial to select [YES], then press to confirm.

Menu Item Description

LANGUAGE Select the language to display the text information from a

compressed audio file.

[ENG](English),

[РУС](Russian),

[TUR](Turkish)

CLOCK SET Set the clock.

FM STEP Select the FM tuning step from 100 kHz or 50 kHz.

[100], [50]

DAB ANT PW Supply power to a DAB antenna. Select this when using the

optional DAB antenna (AN-DAB1, sold separately) with the unit.

[ON]

[OFF] No power is supplied to a DAB antenna. Select this when using a

passive antenna with no booster.

Canceling the demonstration display (DEMO OFF)

1Press and hold SRC/OFF until the unit turns off.

2Press and hold SRC/OFF to display the main menu.

3Turn the M.C. dial to select [INITIAL], then press to confirm.

4Turn the M.C. dial to select an option, then press to confirm.

INITIAL settings

Menu Item Description

FM STEP Select the FM tuning step from 100 kHz or 50 kHz.

[100], [50]

SP-P/O MODE Select when there is a full-range speaker connected to the rear

speaker output leads and there is a subwoofer connected to the

RCA output.

[REAR/SUB.W]

[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to

the rear speaker output leads and there is a subwoofer

connected to the RCA output.

[REAR/REAR] Select when there are full-range speakers connected to the rear

speaker output leads and RCA output. If there is a full-range

speaker connected to the rear speaker output leads, and the

RCA output is not used, you may select either [REAR/SUB.W] or

[REAR/REAR].

S/W UPDATE Select to confirm the latest system information on the unit.

[SYSTEM INFO]

[SYSTEM UPDATE] Select to update the unit to the latest software and initialize the

unit settings. For details on the latest software and updating,

visit our website.

DAB ANT PW Supply power to a DAB antenna. Select this when using the

optional DAB antenna (AN-DAB1, sold separately) with the unit.

[ON]

[OFF] No power is supplied to a DAB antenna. Select this when using a

passive antenna with no booster.

SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be

restarted automatically.

(Some of the settings may be retained even after resetting the

unit.)

[YES], [NO]

6En

To receive DAB signals, connect a DAB antenna (AN-DAB1) (sold separately) to the unit.

1Press SRC/OFF to select [DIGITAL RADIO].

2Press BAND/to select the band from [D1], [D2] or [D3].

3Press /to select a service component/station.

NOTE

Press and hold /then release to seek an available service. Scanning stops when the unit

receives a service.

To select service component/station from service lists

1During DAB reception, press .

Displays the list of all service components/stations. Press again to search for a

service component/station alphabetically.

2Select a service component/station from the list you selected, then press the M.C.

dial to confirm.

NOTE

You can update the service list by pressing and holding . To cancel updating, press and hold

again.

To store service components/stations

1While receiving the service component/station you want to store, press and hold

one of the number buttons (1/to 6/) until it stops flashing.

To retrieve stored service components/stations

1Select the band, then press a number button (1/to 6/).

Digital Audio Broadcasting (DAB)

Seeking a service component/station

Presetting service components/stations

The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the

Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS

(radio data system) function only works in areas that broadcast RDS signals for FM

stations.

1Press SRC/OFF to select [RADIO].

2Press BAND/to select the band from [FM1], [FM2], [FM3], [MW] or [LW].

3Press a number button (1/to 6/).

TIP

The /buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the

FUNCTION settings (page 11).

The six strongest stations are stored on the number buttons (1/to 6/).

1After selecting the band, press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [FUNCTION], then press to confirm.

3Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1After selecting the band, press /to select a station.

Press and hold /then release to seek an available station. Scanning stops

when the unit receives a station. To cancel seek tuning, press / .

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 11).

To store stations manually

1While receiving the station you want to store, press and hold one of the number

buttons (1/to 6/) until it stops flashing.

Radio

Receiving preset stations

Best stations memory (BSM)

7En

English

The unit searches for a station by PTY (program type) information.

1Press during FM reception.

2Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR],

[CLASSICS] or [OTHERS].

3Press the M.C. dial.

The unit begins to search for a station. When it is found, its program service name is

displayed.

NOTES

•To cancel the search, press the M.C. dial.

•The program of some stations may differ from that indicated by the transmitted PTY.

•If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for

about two seconds and then the tuner returns to the original station.

Disconnect headphones from the device before connecting it to the unit.

1Insert a disc into the disc loading slot with the label side up.

To eject a disc, stop playback first then press .

USB devices (including Android™)/iPod

1Open the USB port cover.

2Plug in the USB device/iPod using an appropriate cable.

NOTE

To automatically switch to [USB] source when a USB device/iPod is connected to the unit, set [USB

AUTO] to [ON] in the SYSTEM settings (page 13).

CAUTION

Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected

directly to the unit will protrude out from the unit, which could be dangerous.

Using PTY functions

CD/USB/iPod/AUX

Playing back

Before removing the device, stop playback.

AOA connections

For details on AOA connection, see page 10.

MTP connection

A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable

supplied with the device. However, depending on the connected device and the numbers of the files in

the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is

not compatible with WAV file formats.

NOTE

If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings

(page 13).

AUX

1Insert the stereo mini plug into the AUX input jack.

2Press SRC/OFF to select [AUX] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 12).

You can make various adjustments in the FUNCTION settings (page 11).

Note that the following operations do not work for an AUX device. To operate an AUX

device, use the device itself.

Operations

Purpose Operation

Select a folder/album*1 Press 1/or 2/ .

Select a track/song (chapter) Press or .

Fast forward or reverse*2 Press and hold or .

Search for a file from a list 1Press to display the list.

2Turn the M.C. dial to select the desired

file (folder) name or category, then press

to confirm.

3Turn the M.C. dial to select the desired

file, then press to confirm.

Playback starts.

View a list of the files in the selected folder/

category*1

Press the M.C. dial when a folder/category

is selected.

Play a song in the selected folder/

category*1

Press and hold the M.C. dial when a folder/

category is selected.

8En

*1 Compressed audio files only

*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may

be not correct.

Link play mode

You can access songs based on the artist, album, or genre currently playing.

1While listening to a song, press and hold to enter the link play mode.

2Turn the M.C. dial to select the mode ([ARTIST], [ALBUM], [GENRE]), then press to

confirm.

The selected song/album will be played after the currently playing song.

NOTE

The selected song/album may be canceled if you use functions other than those from the link play

mode (e.g. fast forward and reverse).

Alphabetical search (iPod only) 1Press to display the list.

2Turn the M.C. dial to select the desired

category list, then press to enter the

alphabetical search mode.

(Turning the M.C. dial twice also enters

the alphabetical search mode.)

3Turn the M.C. dial to select a letter, then

press to display the alphabetical list.

To cancel alphabetical search, press BAND/

Repeat play Press 6/ .

Random/shuffle play Press 5/ .

Shuffle all play (iPod only) Press and hold 5/ .

Pause/resume playback Press 4/PAUSE.

Sound retriever*1 Press 3/S.Rtrv.

[1]: Effective for low compression rates

[2]: Effective for high compression rates

Return to root folder (CD/USB only)*1 Press and hold .

Switch between compressed audio and CD-

DA (CD only)

Press BAND/ .

Change drives in USB device

(Devices that support the USB mass storage

device class protocol only)

Press BAND/ .

Useful functions for iPod

Purpose Operation iPod control

You can control the unit via a connected iPod.

The following iPod models are not compatible with this function.

–iPodnano 1st generation, iPod with video

1Press BAND/during playback, then select the control mode.

[CONTROL iPod]: The unit’s iPod function can be operated from the connected iPod.

[CONTROL AUDIO]: The unit’s iPod function can only be operated by the buttons on

the unit. In this mode, the connected iPod cannot be turned on or off.

NOTES

•Switching the control mode to [CONTROL iPod] pauses song playback. Use the connected iPod to

resume playback.

•The following operations are still accessible from the unit, even if the control mode is set to

[CONTROL iPod].

– Pause, fast forward/reverse, song/chapter selection

•The volume can only be adjusted from the unit.

You can enjoy listening to an application on an iPhone via the unit. In some cases, you

can control an application by using the unit.

For details on compatible devices, visit our website.

Important

Use of third party apps may involve or require the provision of personally identifiable information,

whether through the creation of a user account or otherwise, and for certain applications, the provision

of geolocation data.

ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT

LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING

THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE

PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT

CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY

APP.

For iPhone users

This function is compatible with iPhones and iPod touches installed with iOS 5.0 or later.

NOTE

PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION

THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE

SOLE RESPONSIBILITY OF THE APP PROVIDER.

App Mode

9En

English

1Connect this unit with the mobile device.

•iPhone via USB (page 7)

2Press SRC/OFF to select [APP].

3Operate the mobile device to start up the application.

Basic operations

You can make various adjustments in the FUNCTION settings (page 11).

(DEH-S400DAB is only compatible with Spotify installed on iPhone.)

Spotify is a music streaming distribution service not affiliated with Pioneer. More

information is available at http://www.spotify.com.

The Spotify application is available for compatible smartphones, please visit https://

support.spotify.com/ for the latest compatibility information.

To enjoy Spotify as you drive, first download the Spotify app to your iPhone. You can

download it on the iTunes App Store. Choose a free account or a paid Premium account,

either in the app or at spotify.com. A Premium account gives you more features, like

offline listening.

Important

•This product incorporates Spotify software which is subject to 3rd party licenses found here:

www.spotify.com/connect/third-party-licenses.

•For information on the countries and regions where Spotify can be used, take a look at https://

www.spotify.com/us/select-your-country/.

Update the firmware of the Spotify application to the latest version before use.

1Connect this unit with the mobile device.

•iPhone via USB (page 7)

Playback of an application via the unit

Purpose Operation

Select a track Press or .

Fast forward or reverse Press and hold or .

Pause/resume playback Press BAND/ .

Spotify®

Listening to Spotify

2Press SRC/OFF to select [SPOTIFY].

3Launch the Spotify application on the mobile device and start playback.

Basic operations

You can make various adjustments in the FUNCTION settings (page 11).

NOTE

The available operations may vary according to the type of contents (track/album/artist/playlist/radio)

you want to play.

NOTE

Some functions of Spotify may not be operated from the unit.

Purpose Operation

Skip a track Press or .

Search for a track from a list 1Press (list) to display the list.

2Turn the M.C. dial to select the desired

category, then press to confirm.

3Turn the M.C. dial to select the desired

file, then press to confirm.

Playback starts.

Pause/resume playback Press 4/PAUSE.

Thumbs Up (Only for radio) Press 1/ .

Thumbs Down (Only for radio) Press 2/ .

Random play (Only for track/album/artist/

playlist)

Press 5/ .

Repeat play (Only for track/album/artist/

playlist)

Press 6/ .

Start a radio channel based on the song

currently being played.

1Press and hold (list) to start a radio.

2Press the M.C. dial.

•This function may not be available

depending on the selected song.

Store the information about the song

currently being played.

Remove the song information stored.

1Press and hold 3/S.Rtrv.

[SAVE]/[UNSAVE] appears.

2Press the M.C. dial.

10En

You can operate the unit from Pioneer ARC APP installed on an iPhone/Android device.

In some cases, you can control aspects of the application, such as source selection,

pause, etc., by using the unit.

For details on what operations are available on the application, see the application’s help

section.

WARNING

Do not attempt to operate the application while driving. Make sure to pull off the road and park your

vehicle in a safe location before attempting to use the controls on the application.

For iPhone users

This function is compatible with iPhones (iPhone 5 or later) and iPod touches installed

with iOS 8.0 or later.

You can download Pioneer ARC APP on iTunes App Store.

For Android device users

This function is compatible with devices that have Android OS 4.1 or later installed and

also support AOA (Android Open Accessory) 2.0.

You can download Pioneer ARC APP on Google Play™.

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own

software design, regardless of the OS version.

1Connect this unit with the mobile device.

•iPhone/Android device via USB (page 7)

Proceed to step 6 if you select the USB connection for iPhone.

2Press the M.C. dial to display the main menu.

3Turn the M.C. dial to select [SYSTEM], then press to confirm.

4Turn the M.C. dial to select [ANDROID WIRED], then press to confirm.

5Turn the M.C. dial to select [APP CONTROL] for an Android device connected via

USB.

If [ON] is selected in [P.APP AUTO ON] (page 13), Pioneer ARC APP on the Android

device starts automatically, and all the steps are finished.

Using Pioneer ARC APP

Making a connection with Pioneer ARC APP

NOTE

If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you

to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to

clear the message (page 13).

6Press SRC/OFF to select any source.

7Launch Pioneer ARC APP on the mobile device.

NOTE

You can also launch the application by pressing and holding the M.C. dial for iPhone.

1Press SRC/OFF to select [ANDROID].

Basic operations

You can adjust various settings in the main menu.

1Press the M.C. dial to display the main menu.

2Turn the M.C. dial to select one of the categories below, then press to confirm.

•FUNCTION settings (page 11)

•AUDIO settings (page 12)

•SYSTEM settings (page 12)

•ILLUMINATION settings (page 13)

3Turn the M.C. dial to select the options, then press to confirm.

Listening to music on Android

Purpose Operation

Select a track Press or .

Fast forward or reverse Press and hold or .

Pause/resume playback Press 4/PAUSE.

Sound retriever Press 3/S.Rtrv.

[1]: Effective for low compression rates

[2]: Effective for high compression rates

Settings

Indice

Lingue:

Altri manuali Pioneer Ricevitore CD

Pioneer

Pioneer DEH-X5700HD Manuale utente

Manuali Ricevitore CD popolari di altre marche

JVC

JVC KD-S283 Manuale utente

JVC

JVC KD-S595 Manuale utente

JVC

JVC KD-LH917 Manuale utente

Kenwood

Kenwood KDC-BT620U Manuale utente

Axxera

Axxera XDMA7800 Istruzioni per l'installazione

Axxera

Axxera AXD430 Istruzioni per l'installazione

JVC

JVC KD-G541E Manuale utente

JVC

JVC KD-S575 Manuale utente

Kenwood

Kenwood KDC-BT510U Manuale utente

JVC

JVC KD-SV3305S Manuale utente

VDO

VDO CD726UB-BU Manuale utente

Axxera

Axxera XDMA7600 Istruzioni per l'installazione

JVC

JVC KD-A95BT Manuale utente

LG LH-T3039X Manuale utente
