DVD Player

DV-48AV

Operating Instructions

DV48AV_EN.book 1 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

WARNING – TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

D1-4-2-1_En

IMPORTANT NOTICE – THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR.

PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND

KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY.

D1-4-2-6-1_En

CAUTION : USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION : THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

D6-8-2-1_En

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_En

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate

the equipment.

D8-10-2_En

WARNING: Handling the cord on this product or

cords associated with accessories sold with the

product will expose you to lead, a chemical known to

the State of California and other governmental

entities to cause cancer and birth defects or other

reproductive harm.

D36-P4_En

Wash hands after handling

his product contains mercury. Disposal of this

material may be regulated due to environmental

considerations. For disposal or recycling information,

please contact your local authorities or the Electronics

Industries Alliance : www.eiae.org.

K057_En

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead, within

an equilateral triangle, is intended to alert

the user to the presence of uninsulated

"dangerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

D1-4-2-3_En

IMPORTANT

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly.

After you have finished reading the instructions, put them away in a safe place for future reference.

DV48AV_EN.book 2 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

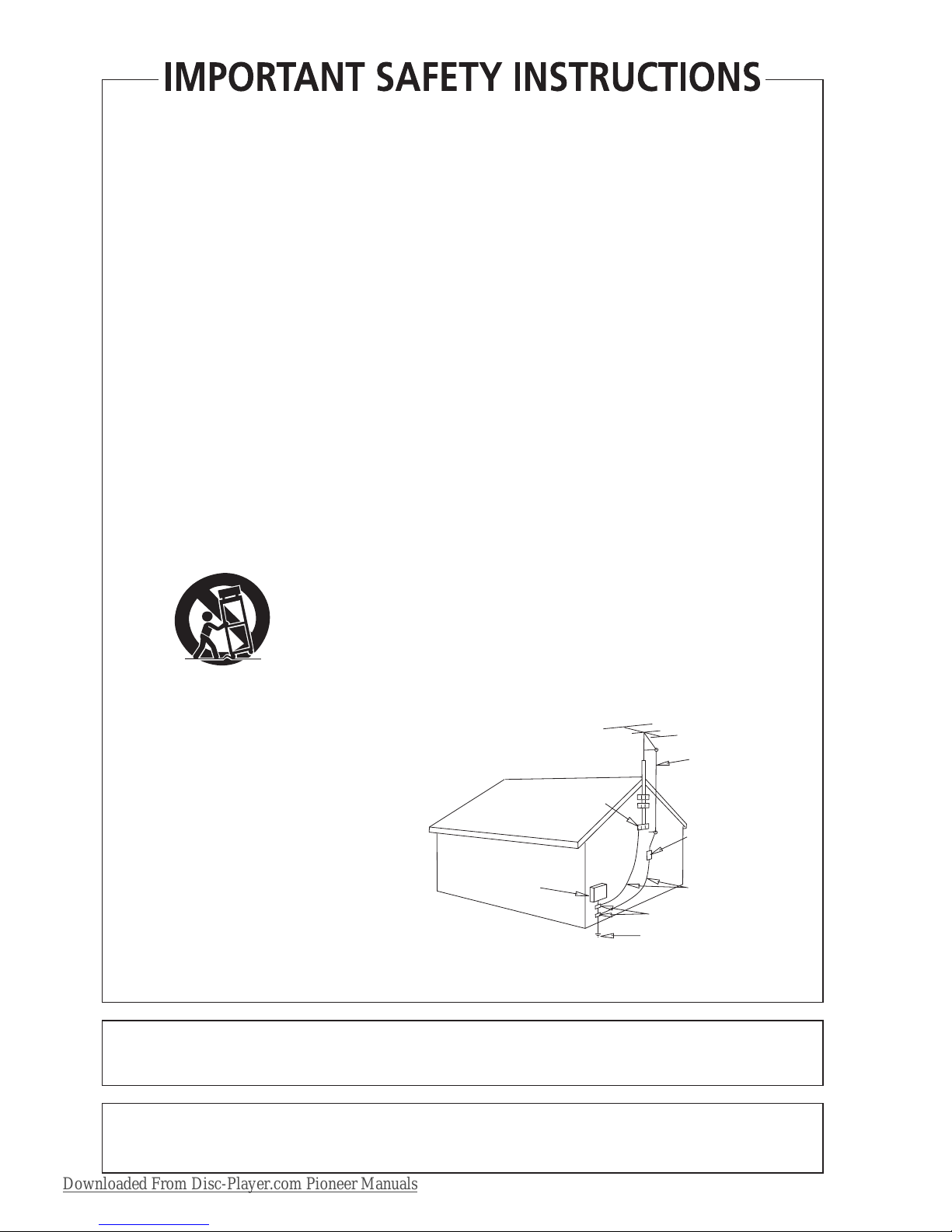

READ INSTRUCTIONS — All the safety and

operating instructions should be read before the

product is operated.

RETAIN INSTRUCTIONS — The safety and

operating instructions should be retained for

future reference.

HEED WARNINGS — All warnings on the product

and in the operating instructions should be

adhered to.

FOLLOW INSTRUCTIONS — All operating and use

instructions should be followed.

CLEANING — The product should be cleaned only

with a polishing cloth or a soft dry cloth. Never

clean with furniture wax, benzine, insecticides

or other volatile liquids since they may corrode

the cabinet.

ATTACHMENTS — Do not use attachments not

recommended by the product manufacturer as

they may cause hazards.

WATER AND MOISTURE — Do not use this

product near water — for example, near a

bathtub, wash bowl, kitchen sink, or laundry

tub; in a wet basement; or near a swimming

pool; and the like.

ACCESSORIES — Do not place this product on an

unstable cart, stand, tripod, bracket, or table.

The product may fall, causing serious injury to a

child or adult, and serious damage to the

product. Use only with a cart, stand, tripod,

bracket, or table recommended by the

manufacturer, or sold with the product. Any

mounting of the product should follow the

manufacturer’s instructions, and should use a

mounting accessory recommended by the

manufacturer.

CART — A product and cart combination should be

moved with care. Quick stops, excessive force,

and uneven surfaces may cause the product

and cart combination to overturn.

VENTILATION — Slots and openings in the cabinet

are provided for ventilation and to ensure

reliable operation of the product and to protect

it from overheating, and these openings must

not be blocked or covered. The openings should

never be blocked by placing the product on a

bed, sofa, rug, or other similar surface. This

product should not be placed in a built-in

installation such as a bookcase or rack unless

proper ventilation is provided or the

manufacturer’s instructions have been adhered

to.

POWER SOURCES — This product should be

operated only from the type of power source

indicated on the marking label. If you are not

sure of the type of power supply to your home,

consult your product dealer or local power

company.

LOCATION – The appliance should be installed in a

stable location.

NONUSE PERIODS – The power cord of the

appliance should be unplugged from the outlet

when left un-used for a long period of time.

GROUNDING OR POLARIZATION

• If this product is equipped with a polarized

alternating current line plug (a plug having one

blade wider than the other), it will fit into the

outlet only one way. This is a safety feature. If

you are unable to insert the plug fully into the

outlet, try reversing the plug. If the plug should

still fail to fit, contact your electrician to replace

your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

• If this product is equipped with a three-wire

grounding type plug, a plug having a third

(grounding) pin, it will only fit into a grounding

type power outlet. This is a safety feature. If you

are unable to insert the plug into the outlet,

contact your electrician to replace your obsolete

outlet. Do not defeat the safety purpose of the

grounding type plug.

POWER-CORD PROTECTION — Power-supply

cords should be routed so that they are not likely

to be walked on or pinched by items placed

upon or against them, paying particular

attention to cords at plugs, convenience

receptacles, and the point where they exit from

the product.

OUTDOOR ANTENNA GROUNDING — If an

outside antenna or cable system is connected to

the product, be sure the antenna or cable

system is grounded so as to provide some

protection against voltage surges and built-up

static charges. Article 810 of the National

Electrical Code, ANSI/NFPA 70, provides

information with regard to proper grounding of

the mast and supporting structure, grounding of

the lead-in wire to an antenna discharge unit,

size of grounding conductors, location of

antenna-discharge unit, connection to

grounding electrodes, and requirements for the

grounding electrode. See Figure A.

LIGHTNING — For added protection for this

product during a lightning storm, or when it is

left unattended and unused for long periods of

time, unplug it from the wall outlet and

disconnect the antenna or cable system. This

will prevent damage to the product due to

lightning and power-line surges.

POWER LINES — An outside antenna system

should not be located in the vicinity of overhead

power lines or other electric light or power

circuits, or where it can fall into such power

lines or circuits. When installing an outside

antenna system, extreme care should be taken

to keep from touching such power lines or

circuits as contact with them might be fatal.

OVERLOADING — Do not overload wall outlets,

extension cords, or integral convenience

receptacles as this can result in a risk of fire or

electric shock.

OBJECT AND LIQUID ENTRY — Never push

objects of any kind into this product through

openings as they may touch dangerous voltage

points or short-out parts that could result in a

fire or electric shock. Never spill liquid of any

kind on the product.

SERVICING — Do not attempt to service this

product yourself as opening or removing covers

may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service

personnel.

DAMAGE REQUIRING SERVICE — Unplug this

product from the wall outlet and refer servicing

to qualified service personnel under the

following conditions:

• When the power-supply cord or plug is

damaged.

• If liquid has been spilled, or objects have fallen

into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation.

• If the product has been dropped or damaged in

any way.

• When the product exhibits a distinct change in

performance — this indicates a need for service.

REPLACEMENT PARTS — When replacement parts

are required, be sure the service technician has

used replacement parts specified by the

manufacturer or have the same characteristics

as the original part. Unauthorized substitutions

may result in fire, electric shock, or other

hazards.

SAFETY CHECK — Upon completion of any service

or repairs to this product, ask the service

technician to perform safety checks to

determine that the product is in proper

operating condition.

WALL OR CEILING MOUNTING — The product

should not be mounted to a wall or ceiling.

HEAT — The product should be situated away from

heat sources such as radiators, heat registers,

stoves, or other products (including amplifiers)

that produce heat.

GROUND

CLAMP

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

LEAD IN

WIRE

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC — NATIONAL ELECTRICAL CODE

Fig. A

D1-4-2-2_En

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

D8-10-1-3_EF

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the

unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and

televisions, use shielded cables and connectors for connections.

D8-10-3a_En

DV48AV_EN.book 3 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

C67-7-3_En

S001_En

Selecting fine audio equipment such as the unit

you’ve just purchased is only the start of your

musical enjoyment. Now it’s time to consider how

you can maximize the fun and excitement your

equipment offers. This manufacturer and the

Electronic Industries Association’s Consumer

Electronics Group want you to get the most out of

your equipment by playing it at a safe level. One that

lets the sound come through loud and clear without

annoying blaring or distortion-and, most importantly,

without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing

“comfort level” adapts to higher volumes of sound.

So what sounds “normal” can actually be loud and

harmful to your hearing. Guard against this by

setting your equipment at a safe level BEFORE your

hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it

comfortably and clearly, and without distortion.

Once you have established a comfortable sound

level:

• Set the dial and leave it there.

Taking a minute to do this now will help to prevent

hearing damage or loss in the future. After all, we

want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will

provide a lifetime of fun and enjoyment. Since

hearing damage from loud noise is often

undetectable until it is too late, this manufacturer

and the Electronic Industries Association’s

Consumer Electronics Group recommend you avoid

prolonged exposure to excessive noise. This list of

sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic

50 Light traffic, normal conversation, quiet office

60 Air conditioner at 20 feet, sewing machine

70 Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock

at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS

UNDER CONSTANT EXPOSURE

Subway, motorcycle, truck traffic, lawn mower

100 Garbage truck, chain saw, pneumatic drill

120 Rock band concert in front of speakers,

thunderclap

140 Gunshot blast, jet plane

180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the

plug by tugging the cord and never touch the power

cord when your hands are wet as this could cause a

short circuit or electric shock. Do not place the unit, a

piece of furniture, etc., on the power cord, or pinch the

cord. Never make a knot in the cord or tie it with other

cords. The power cords should be routed such that they

are not likely to be stepped on. A damaged power cord

can cause a fire or give you an electrical shock. Check

the power cord once in a while. When you find it

damaged, ask your nearest PIONEER authorized

service center or your dealer for a replacement.

S002_En

This product includes FontAvenue®dmlrqjgaclacb

`wLCAampnmp_rgml,Dmlr?tclscgq_pcegqrcpcb

rp_bck_pimdLCAAmpnmp_rgml,

This product incorporates copyright protection

technology that is protected by method claims of

certain U.S. patents and other intellectual property

rights owned by Macrovision Corporation and other

rights owners. Use of this copyright protection

technology must be authorized by Macrovision

Corporation, and is intended for home and other

limited viewing uses only unless otherwise authorized

by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

This product is for general household purposes. Any

failure due to use for other than household purposes

(such as long-term use for business purposes in a

restaurant or use in a car or ship) and which

requires repair will be charged for even during the

warranty period.

K041_En

DV48AV_EN.book 4 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Contents

01 Before you start

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . .6

What’s in the box. . . . . . . . . . . . . . . . . . . . .7

Hints on installation . . . . . . . . . . . . . . . . . .8

Disc/content format playback

compatibility . . . . . . . . . . . . . . . . . . . . . . . .8

02 Connections

Easy connections. . . . . . . . . . . . . . . . . . . .11

Connecting using the S-video output . . . . .12

Connecting using the component video

output . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Connecting to an AV receiver. . . . . . . . . . .13

Connecting using HDMI . . . . . . . . . . . . . .15

About HDMI . . . . . . . . . . . . . . . . . . . . . . .16

03 Controls and displays

Front panel . . . . . . . . . . . . . . . . . . . . . . . .17

Remote control . . . . . . . . . . . . . . . . . . . . .18

Setting up the remote to control your

TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

04 Getting started

Switching on . . . . . . . . . . . . . . . . . . . . . . .20

Using the on-screen displays. . . . . . . . . . .20

Setting up the player for your TV . . . . . . . .21

Setting the language of this player’s on-screen

displays . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Playing discs . . . . . . . . . . . . . . . . . . . . . . .22

05 Playing discs

Scanning discs . . . . . . . . . . . . . . . . . . . . .27

Playing in slow motion. . . . . . . . . . . . . . . .27

Frame advance/frame reverse . . . . . . . . . .27

Viewing a JPEG slideshow . . . . . . . . . . . . .28

Browsing DVD or Video CD disc with the Disc

Navigator . . . . . . . . . . . . . . . . . . . . . . . . . .28

Browsing WMA, MP3, MPEG-4 AAC, DivX

video, WMV and JPEG files with the Disc

Navigator . . . . . . . . . . . . . . . . . . . . . . . . . .29

Looping a section of a disc . . . . . . . . . . . .30

Using repeat play. . . . . . . . . . . . . . . . . . . .30

Using random play . . . . . . . . . . . . . . . . . .31

Creating a program list . . . . . . . . . . . . . . .32

Searching a disc . . . . . . . . . . . . . . . . . . . . 33

Switching subtitles . . . . . . . . . . . . . . . . . . 33

Switching audio language/channels. . . . . 34

Zooming the screen . . . . . . . . . . . . . . . . . 34

Switching camera angles . . . . . . . . . . . . . 34

Displaying disc information . . . . . . . . . . . 34

06 USB playback

Using the USB interface . . . . . . . . . . . . . . 35

07 Audio Settings and Video Adjust

menus

Audio Settings menu . . . . . . . . . . . . . . . . 36

Video Adjust menu . . . . . . . . . . . . . . . . . . 37

08 Initial Settings menu

Using the Initial Settings menu. . . . . . . . . 38

Digital Audio Out settings. . . . . . . . . . . . . 39

Video Output settings . . . . . . . . . . . . . . . . 40

Language settings . . . . . . . . . . . . . . . . . . 41

Display settings . . . . . . . . . . . . . . . . . . . . 41

Options settings . . . . . . . . . . . . . . . . . . . . 42

Parental Lock . . . . . . . . . . . . . . . . . . . . . . 42

Speakers settings . . . . . . . . . . . . . . . . . . . 45

About the HDMI audio output

settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 47

HDMI output with DVD-Audio and SACD

sources. . . . . . . . . . . . . . . . . . . . . . . . . . . 48

09 Additional information

Taking care of your player and discs . . . . . 51

Screen sizes and disc formats . . . . . . . . . 52

Resetting the player . . . . . . . . . . . . . . . . . 53

DVD-Video regions . . . . . . . . . . . . . . . . . . 53

Selecting languages using the language code

list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Troubleshooting . . . . . . . . . . . . . . . . . . . . 54

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Language code list . . . . . . . . . . . . . . . . . . 61

Country/Area code list . . . . . . . . . . . . . . . 61

Specifications . . . . . . . . . . . . . . . . . . . . . . 62

DV48AV_EN.book 5 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Before you start 01

• Built-in Dolby1Digital and DTS2

decoding with multichannel outputs

This player features multichannel analog

outputs for connection to an AV amplifier to

give you stunning surround sound from Dolby

Digital, DTS and multichannel DVD-Audio

discs.

What’s in the box

Please confirm that the following accessories

are in the box when you open it.

• Remote control

• AA/R6P dry cell batteries x 2

• Audio/video cable (red/white/yellow plugs)

• Operating instructions

Putting the batteries in the remote

• Open the battery compartment cover

and insert the batteries as shown.

Use two AA/R6P batteries and follow the

indications ( , ) inside the compartment.

Close the cover when you’re finished.

Important

Incorrect use of batteries can result in hazards

such as leakage and bursting. Please observe

the following:

• Don’t mix new and old batteries together.

• Don’t use different kinds of battery

together — although they may look

similar, different batteries may have

different voltages.

• Make sure that the plus and minus ends of

each battery match the indications in the

battery compartment.

• Remove batteries from equipment that

isn’t going to be used for a month or more.

• When disposing of used batteries, please

comply with governmental regulations or

environmental public instruction’s rules

that apply in your country/area.

• Do not use or store batteries in direct

sunlight or other excessively hot place,

such as inside a car or near a heater. This

can cause batteries to leak, overheat,

explode or catch fire. It can also reduce the

life or performance of batteries.

DV48AV_EN.book 7 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

• Multi-session playback: No

• Unfinalized disc playback: No

• File structure (may differ): Up to 299

folders on a disc; up to 648 folders and files

(combined) within each folder

DVD+R/DVD+RW compatibility

Only DVD+R/DVD+RW discs recorded in

‘Video Mode (DVD Video Mode)’ which have

been finalized, can be played back. However,

some editing made during the recording may

not be played back accurately.

DVD-R/-RW compatibility

• Compatible formats: DVD-Video, Video

Recording (VR)*

• Unfinalized playback: No

• MP3/WMA/MPEG-4 AAC/JPEG or DivX

video/WMV file playback on DVD-R/-RW:

Compressed audio compatibility

• Compatible formats: MPEG-1 Audio Layer

3 (MP3), Windows Media Audio (WMA),

MPEG-4 AAC

• Sampling rates: 32 kHz, 44.1 kHz or 48 kHz

• Bit-rates: Any (128 kbps or higher

recommended)

• VBR (variable bit rate) MP3/WMA/MPEG-4

AAC playback: No

• WMA lossless encoding compatible: No

• DRM (Digital Rights Management)

compatible: No (DRM-protected audio files

will play in this player—see also

in the on page 59)

• File extensions: .mp3, .wma, .m4a (these

must be used for the player to recognize

MP3, WMA and MPEG-4 AAC files – do not

use for other file types)

About MPEG-4 AAC

Advanced Audio Coding (AAC) is at the core of

the MPEG-4 AAC standard, which

incorporates MPEG-2 AAC, forming the basis

of the MPEG-4 audio compression technology.

The file format and extension used depend on

the application used to encode the AAC file.

This unit plays back AAC files encoded by

iTunes®bearing the extension ‘.m4a’. DRM-

protected files will not play, and files encoded

with some versions of iTunes®may not play, or

filenames may display incorrectly.

WMA (Windows Media™ Audio)

compatibility

This player can playback Windows Media

Audio content.

WMA is an acronym for Windows Media Audio

and refers to an audio compression

technology developed by Microsoft

Corporation. WMA content can be encoded by

using Windows Media Player for Windows XP,

Windows Media Player 9 or Windows Media

Player 10 series.

About DivX video

DivX is a media technology created by DivX,

Inc. DivX media files contain not only video but

also include advanced media features like

menus, subtitles, and alternate audiotracks.

This player can play DivX videos burned on

CD-R/-RW/-ROM discs. Keeping the same

terminology as DVD-Video, individual DivX

video files are called “Titles”. When naming

files/titles on a CD-R/-RW disc prior to burning,

keep in mind that by default they will be played

in alphabetical order.

DV48AV_EN.book 9 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

Chapter 2

Connections

Easy connections

Important

• Before making or changing any connections, switch off the power and disconnect the power

cable from the AC outlet.

• The setup described here is a basic setup that allows you to play discs using just the cables

supplied with the player. In this setup, stereo audio is played through the speakers in your TV.

• This player is equipped with copy protection technology. Do not connect this player to your

TV via a VCR using audio/video or S-video cables, as the picture from this player will not

appear properly on your TV. (This player may also not be compatible with some combination

TV/VCRs for the same reason; refer to the manufacturer for more information.)

1 Connect the VIDEO OUT and AUDIO

OUT (5.1ch)/AUDIO OUT L/R jacks to a set

of A/V inputs on your TV.

Use the supplied audio/video cable,

connecting the red and white plugs to the

audio outputs and the yellow plug to the video

output. Make sure you match up the left and

right audio outputs with their corresponding

inputs for correct stereo sound.

See below if you want to use a component or

S-video cable for the video connection.

2 Plug into a power outlet.

Note

• Before unplugging the player from the

power outlet, make sure you first switch it

into standby using either the front panel

STANDBY/ON button, or the remote

control, and wait of the -OFF- message to

disappear from the player’s display.

• For the above reasons, do not plug this

player into a switched power supply found

on some amplifiers and AV receivers.

Yellow

White

Red

DV48AV_EN.book 11 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Watching progressive scan video

from the component video outputs

This player can output progressive scan video

from the component video output. Compared

to interlace video, progressive scan video

effectively doubles the scanning rate of the

picture, resulting in a very stable, flicker-free

image.

To set up the player for use with a progressive

scan TV, see on page 40.

When the player is set to output progressive

scan video, the PRGSVE indicator lights in the

front panel display.

Important

• If you connect a TV that is not compatible

with a progressive scan signal and switch

the player to progressive, you will not be

able to see any picture at all. In this case,

switch everything off and reconnect using

the supplied video cable (see

on page 11), then switch back

to Interlace (see below).

Switching the video output to interlace

using the front panel controls

Switch the player to standby then, using the

front panel controls, press STANDBY/ON

while pressing to switch the player back to

Interlace.

• If the player is connected using HDMI,

disconnect the HDMI cable before

resetting the player to interlace output. (If

left connected, the HDMI output

resolution will be reset to its default — see

page 16.)

Connecting to an AV receiver

You can connect this player to your AV receiver

using the multichannel analog outputs or one

of the digital outputs.

In addition to these connections, you should

also connect the 2 channel analog outputs for

compatibility with all discs.

You’ll probably also want to connect a video

output to your AV receiver. You can use any of

the video outputs available on this player (the

illustration shows a standard (composite)

connection).

1 Connect the analog AUDIO OUT

(5.1ch)/AUDIO OUT L/R and VIDEO OUT

jacks on this player to a set of analog audio

and video inputs on your AV receiver.

2 Connect the AV receiver’s video output

to a video input on your TV.

You can also use the S-video or component

video jacks to connect to the AV receiver if you

prefer.

Tip

• You usually have to connect the same kind

of video cable between your DVD player

and AV receiver, and between your AV

receiver and TV.

AV eceive

DV48AV_EN.book 13 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connecting using HDMI

If you have a HDMI equipped monitor or

display, you can connect it to this player using

a commercially available HDMI cable.

The HDMI connector outputs uncompressed

digital video, as well as almost every kind of

digital audio that the player is compatible with,

including DVD-Video, DVD-Audio (see below

for limitations), SACD, Video CD, CD, WMA,

MP3, MPEG-4 AAC, DivX video and WMV.

• Use an HDMI cable to connect the

HDMI OUT interconnect on this player to

an HDMI interconnect on a HDMI-

compatible display.

The arrow on the cable connector body should

be face up for correct alignment with the

connector on the player.

Note

• This unit has been designed to be

compliant with HDMI (High-Definition

Multimedia Interface). Depending on the

component you have connected, using a

DVI connection may result in unreliable

signal transfers.

• When you change the component

connected to the HDMI output, you will

also need to change the HDMI settings to

match the new component (see

on page 39, and

on page 40 to do this). However, the

settings for each component are then

stored in memory (for up to 2

components).

• The HDMI connection is compatible with 2

channel linear PCM signals (44.1 kHz to

192 kHz, 16 bit/20 bit/24 bit), and Dolby

Digital, DTS, MPEG audio bitstream, multi

channel DSD, and multi channel linear

PCM signals, (5.1 channel signals up to 96

kHz, 16 bit/20 bit/24 bit).

DV48AV_EN.book 15 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Controls and displays

Chapter 3

Controls and displays

Front panel

1STANDBY/ON (page 20)

2 Disc tray

3TOPMENU(page 24)

4 ENTER & cursor buttons (page 20)

5MENU(page 24)

6 RETURN (page 24)

7HOMEMENU(page 20)

8Display

9OPEN/CLOSE (page 22)

10 (page 23)

11 (page 23)

12 (page 23)

13 and (page 23)

14 HDMI indicator

Lights when this player is recognized by

another HDMl or DVI/HDCP compatible

component.

15 DVD/USB (page 35)

16 USB port (Type A) (page 35)

17 RW Compatible (page 9)

DV48AV_EN.book 17 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Using the remote control

Keep in mind the following when using the

remote control:

• Make sure that there are no obstacles

between the remote and the remote

sensor on the unit.

• The remote has a range of about 23 feet.

• Remote operation may become unreliable

if strong sunlight or fluorescent light is

shining on the unit’s remote sensor.

• Remote controllers for different devices

can interfere with each other. Avoid using

remotes for other equipment located close

to this unit.

• Replace the batteries when you notice a

fall off in the operating range of the

remote.

Setting up the remote to

control your TV

You can use the supplied remote to control

your TV. To be able to use this feature you first

have to program the remote with a maker code

from the table below.

1 Press and hold down the CLEAR button,

then enter the maker code for your TV.

See the table below for the list of maker codes.

If there is more than one code given for your

make, input the first one in the list.

• If the maker’s name of your TV doesn’t

appear in the table below, you will not be

able to use this remote to control your TV.

2Press TV to check that the remote

works with your TV.

If the remote is set up correctly, the TV should

switch on/off. If it doesn’t and there is another

code given for your maker, repeat step 1with a

new code.

Using the TV remote control buttons

The table below shows how to use this remote

control with your TV.

Button What it does

TV Press to switch the TV on/off

(standby)

INPUT SELECT Press to change the TV’s video

input

VOLUME +/– Use to adjust the TV volume

CHANNEL +/– Use to change TV channels

Maker Code

Aiwa 38

Funai 36

GE 11, 28

General 34

Goldstar 10, 23

Grandiente 30

Hitachi 06, 24, 25, 32

Magnavox 12, 29

Mitsubishi 09

NEC 37

Panasonic 08, 22, 41

Philips 07

Pioneer 00, 35, 40, 44

RCA 01, 15, 16, 17, 18

Samsung 73, 75

Sanyo 14, 21

Sharp 02, 19, 27

Sony 04

Toshiba 05, 26, 31, 43

JVC 13, 33, 42

Zenith 03, 20

DV48AV_EN.book 19 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

Setting up the player for your

If you have a widescreen (16:9) TV, you should

setup the player so that the picture will be

presented correctly. If you have a conventional

(4:3) TV, you can leave the player on the default

setting and move on to the next section.

1 Press HOME MENU and select ‘Initial

Settings’.

2 Select ‘TV Screen’ from the ‘Video

Output’ settings.

3 If you have a widescreen (16:9) TV,

select ‘16:9 (Wide)’ or ‘16:9 (Compressed)’.

If you have a conventional (4:3) TV, you can

change the setting from 4:3 (Letter Box) to

4:3 (Pan & Scan) if you prefer. See

on page 40 for more details.

4 Press HOME MENU to exit the menu

screen.

Setting the language of this

player’s on-screen displays

This sets the language of the player’s on-

screen displays.

1 Press HOME MENU and select ‘Initial

Settings’.

2 Select ‘OSD Language’ from the

‘Display’ settings.

3 Select a language.

The on-screen language will change according

to your selection.

4 Press HOME MENU to exit the menu

screen.

DV48AV_EN.book 21 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Basic playback controls

The table below shows the basic controls on

the remote for playing discs. The following

chapter covers other playback features in

more detail.

Resume and Last Memory

With the exception of DVD-Audio and SACD

discs, when you stop playback of a DVD, CD, or

Video CD or DivX video/WMV discs, RESUME

is shown in the display indicating that you can

resume playback again from that point.

If the disc tray is not opened, the next time you

start playback the display shows RESUME and

playback resumes from the resume point. (If

you want to clear the resume point, press

(stop) while RESUME is displayed.)

With DVDs and Video CDs, if you take the disc

out of the player after stopping playback, the

last play position is stored in memory. If the

next disc you load is the same one, the display

shows LAST MEM and playback will resume.

For DVD-Video discs, the player stores the play

position of the last five discs. When one of

these discs is next loaded, you can resume

playback.

Note

• The Last Memory function doesn’t work

with VR format DVD-R/-RW, DVD-Audio or

SACD discs.

• If you don’t need the Last Memory function

when you stop a disc, you can press

OPEN/CLOSE to stop playback and

open the disc tray.

Button What it does

Starts playback.

If the display shows RESUME or

LAST MEM playback starts from the

resume or last memory point (see

also

below.)

Pauses a disc that’s playing, or

restarts a paused disc.

Stops playback.

more on disc compatibility.

Some movie formats are such that even

when played on a widescreen TV, black

bars are necessary at the top and bottom

of the screen. This is not a malfunction.

Some discs override the display

preferences of the player, so even if you

have 4:3 (Pan & Scan) selected, those

discs will still be shown in letter box

format. This is not a malfunction.

Button What it does

RETURN Displays the PBC menu.

Numbers

(remote

only)

Use to enter a numbered menu

option. Press ENTER to select.

Displays the previous menu page (if

there is one).

Displays the next menu page (if

there is one).

DV48AV_EN.book 25 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Chapter 5

Playing discs

Note

• Many of the functions covered in this

chapter apply to DVD and SACD discs,

Video CDs, CDs, DivX

video/WMV and MP3/WMA/MPEG-4 AAC/

JPEG discs, although the exact operation

of some varies slightly with the kind of disc

loaded.

• Some DVDs restrict the use of some

functions (random or repeat, for example)

in some or all parts of the disc. This is not

a malfunction.

• When playing Video CDs, some of the

functions are not available during PBC

playback. If you want to use them, start the

disc playing using a number button to

select a track.

Scanning discs

You can fast-scan discs forward or backward

at four different speeds (only one speed for

DivX video/WMV).

1 During playback, press or to

start scanning.

• There is no sound while scanning DVDs

(including DVD-Audio), DivX video/WMV

and Video CDs.

2 Press repeatedly to increase the

scanning speed.

• The scanning speed is shown on-screen.

3 To resume normal playback, press

(play).

• When scanning a Video CD playing in PBC

mode or a MP3/WMA/MPEG-4 AAC track,

playback automatically resumes at the end

or beginning of the track.

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached on a DVD disc.

Playing in slow motion

You can play DVD-Videos and DVD-R/-RW at

four different slow motion speeds, forwards

and backwards. Video CDs and DivX video/

WMV can be played at four different forward

slow motion speeds.

1 During playback, press (pause).

2 Press and hold or until

slow motion playback starts.

• The slow motion speed is shown on-

screen.

• There is no sound during slow motion

playback.

3 Press repeatedly to change the slow

motion speed.

4 To resume normal playback, press

(play).

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached.

Frame advance/frame reverse

You can advance or back up DVD-Video and

DVD-R/-RW discs frame-by-frame. With Video

CDs and DivX video/WMV file you can only use

frame advance.

1 During playback, press (pause).

2 Press or to reverse or

advance a frame at a time.

3 To resume normal playback, press

(play).

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached.

DV48AV_EN.book 27 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

The screen shows up to six moving thumbnail

images displayed one after another. To display

the previous/next six thumbnails, press /

(you don’t have to wait for all the

thumbnails to finish playing to display the

previous/next page).

3 Select the thumbnail image for what

you want to play.

You can use either the cursor buttons (

) and ENTER to select a thumbnail, or

the number buttons.

To select using the number buttons, enter a

two-digit number then press ENTER.

Tip

• Another way to find a particular place on a

disc is to use one of the search modes. See

on page 33.

Browsing WMA, MP3, MPEG-4

AAC, DivX video, WMV and

JPEG files with the Disc

Navigator

Use the Disc Navigator to find a particular file

or folder by filename. Note that if there are

other types of files on the same disc, these will

not be displayed in the Disc Navigator.

1 Press HOME MENU and select ‘Disc

Navigator’ from the on-screen menu.

2 Use the cursor buttons ( )

and ENTER to navigate.

Use the cursor up/down buttons ( ) to

move up and down the folder/file list.

Use the cursor left button ( ) to return to the

parent folder.

Use ENTER or cursor right ( ) to open a

highlighted folder.

• You can also return to the parent folder by

going to the top of the list to the ‘..’ folder,

then pressing ENTER.

• When a JPEG file is highlighted, a

thumbnail image is displayed on the right.

3 To play the highlighted track or DivX

video/WMV file or display the highlighted

JPEG file, press ENTER.

• When a MP3/WMA/MPEG-4 AAC or DivX

video/WMV file is selected, playback

begins, starting with the selected file, and

continues until the end of the folder.

• When a JPEG file is selected, a slideshow

begins, starting with that file, and

continues to the end of the folder.

DV48AV_EN.book 29 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

• For DivX video/WMV discs, select Title

Repeat, and for some DivX media files,

select Chapter Repeat (or Repeat Off).

Using random play

Use the random play function to play titles or

chapters (DVD-Video), Groups (DVD-Audio), or

tracks (DVD-Audio, SACD, CD, Video CD) at

random. (Note that the same track/title/

chapter may play more than once.)

You can set the random play option when a

disc is playing or stopped.

Important

• Random play remains in effect until you

select Random Off from the random play

menu options.

• You can’t use random play with VR format

DVD-R/-RW discs, Video CDs playing in

PBC mode, MP3/WMA/

MPEG-4 AAC discs, DivX video/WMV

discs, or while a DVD disc menu is being

displayed.

• You can’t use random play together with

program or repeat play.

1 Press PLAY MODE and select ‘Random’

from the list of functions on the left.

2 Select a random play option.

The random play options available depend on

the kind of disc loaded. For example, for DVD-

Video discs, you can select Random Title or

Random Chapter (or Random Off).

• For DVD-Audio discs, select Random

Group or Random Track, (or Random

Off).

• For CDs, SACDs and Video CDs, select On

or Off to switch random play on or off.

Tip

• Use the following controls during random

play:

Button What it does

Selects a new track/title/chapter

at random.

Returns to the beginning of the

current track/title/chapter;

further presses select another

random track/title/chapter.

DV48AV_EN.book 31 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Searching a disc

You can search DVD-Video discs by title or

chapter number, or by time; DVD-Audio discs

can be searched by group or track number;

SACDs by track number, CDs and Video CDs

by track number or time; DivX video /WMV

discs by time, and some DivX media files by

chapter number.

Important

• Search functions are not available with

Video CDs in PBC mode, or with MP3/

WMA/MPEG-4 AAC discs.

1 Press PLAY MODE and select ‘Search

Mode’ from the list of functions on the left.

2 Select a search mode.

The search options available depend on the

kind of disc loaded.

• The disc must be playing in order to use

time search.

3 Use the number buttons to enter a title,

chapter or track number, or a time.

• For a time search, enter the number of

minutes and seconds into the currently

playing title (DVD/ DivX video/WMV) or

track (CD/Video CD) you want playback to

resume from. For example, press 4, 5, 0, 0

to have playback start from 45 minutes into

the disc. For 1 hour, 20 minutes and 30

seconds, press 8, 0, 3, 0.

• Some DVD-Audio discs feature pages of

browsable pictures. Enter the page

number you want.

4 Press ENTER to start playback.

Switching subtitles

Some DVD-Video and DivX video discs have

subtitles in one or more languages; the disc

box will usually tell you which subtitle

languages are available. You can switch

subtitle language during playback.

1 Press SUBTITLE repeatedly to select a

subtitle option.

Note

• Some discs only allow you to change

subtitle language from the disc menu.

Press TOP MENU or MENU to access.

• To set subtitle preferences, see Subtitle

Language on page 41.

• See on

page 10 for more on DivX subtitles.

DV48AV_EN.book 33 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

USB playback

Chapter 6

USB playback

Using the USB interface

It is possible to listen to two-channel audio and

watch JPEG files using the USB interface on

the front of this unit. Connect a USB mass

storage device as shown below.

Note

• This includes playback of MP3/WMA/

MPEG-4 AAC/JPEG files (except files with

copy-protection or restricted playback).

• Compatible USB devices include portable

flash memory (particularly keydrives) and

digital audio players (MP3 players) of

format FAT16/32. It is not possible to

connect this unit to a personal computer

for USB playback.

• Pioneer cannot guarantee compatibility

(operation and/or bus power) with all USB

mass storage devices and assumes no

responsibility for any loss of data that may

occur when connected to this unit.

• With large amounts of data, it may take

longer for the system to read the contents

of a USB device.

• The Home Menu cannot be displayed

while using the USB mode.

1 With the player switched on, press

DVD/USB.

Make sure your TV is on and set to the correct

video input, and that USB MODE is showing

on the front panel display.

2 Connect your USB device.

The USB terminal is located on the front panel.

• Disc Navigator is automatically displayed.

3 Press ENTER to start playback.

• The method of playback for files saved on a

USB device is the same as for other discs.

For more information, see

on page 23 and on

page 27.

4 Turn off this player and remove the

USB device.

• The next time you turn this player on it will

start up in USB mode. To return to DVD

mode, either press DVD/USB or press

OPEN/CLOSE to open the disc tray.

Important

If a USB ERR message lights in the display, it

may mean that the power requirements of the

USB device are too high for this player, or that

the device is incompatible. Try the following:

• Switch the player off, then on again.

• Reconnecting the USB device with the

player switched off.

• Change the player back to DVD mode

(LOADING will appear in the front panel

display whether a disc is inserted or not) by

pressing DVD/USB, then once again

select USB mode (USB MODE will appear

in the front panel display).

• Using a dedicated AC adapter (supplied

with the device) for USB power.

If this doesn’t remedy the problem, it is likely

your USB device is incompatible.

USB mass

sto age device

DV48AV_EN.book 35 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Audio Settings and Video Adjust menus

• How good the surround effect is varies

with the disc.

Note

• 96 kHz linear PCM audio is automatically

downsampled to 48 kHz if the Equalizer is

switched on.

Dialog

•Settings:High, Medium, Low, Off

The Dialog feature is designed to make the

dialog stand out from other background

sounds in the soundtracks.

Video Adjust menu

From the Video Adjust screen you can adjust

various settings that affect how the picture is

presented.

1 Press HOME MENU and select ‘Video

Adjust’ from the on-screen display.

2 Make settings using the

(cursor) buttons, and ENTER.

You can adjust the following picture quality

settings:

•Sharpness – Adjusts the sharpness of

edges in the picture (Fine, Standard

, Soft).

•Brightness – Adjusts the overall

brightness (–20 to +20).

•Contrast – Adjusts the contrast between

light and dark (–16 to +16).

•Gamma – Adjusts the ‘warmth’ of the

picture (High, Medium, Low, Off

•Hue – Adjusts the red/green balance

(green 9 to red 9).

•Chroma Level – Adjusts how saturated

colors appear (–9 to +9).

•BNR – Switches on/off block noise

reduction (On, Off ).

Adjust the Brightness, Contrast, Hue and

Chroma Level settings using the (cursor

left/right) buttons.

3 Press ENTER to return to the Video

Adjust screen, or HOME MENU to exit.

DV48AV_EN.book 37 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Digital Audio Out settings

Setting Option What it means

Digital Out On Digital audio is output from the digital outputs.

No digital audio output.

Dolby Digital Out Dolby Digital Dolby Digital encoded digital audio is output when playing a

Dolby Digital DVD disc.

Dolby Digital audio is converted to PCM audio before being

output.

DTS Out DTS DTS encoded digital audio is output when playing a DTS disc.

(Noise will be output if your amplifier/receiver is not

compatible with DTS audio.)

No digital audio is output when playing a DTS disc.DTS audio

is converted to PCM audio before being output.

Linear PCM Out Down Sample On 96 kHz digital audio is converted to 48 kHz for digital output.

96 kHz digital audio is output as is at 96 kHz.

MPEG Out MPEG > PCM MPEG encoded digital audio is converted to PCM audio for

digital output.

MPEG encoded digital audio is output as is.

HDMI Out LPCM (2CH) Set if your monitor or device only accepts stereo input. On

this setting multichannel audio is downmixed to 2 channels

for stereo linear PCM output.

Set if the monitor or device you have connected using HDMI

is compatible with Liner PCM multi-channel formats. All

audio signals are output as linear PCM 5.1 format. (Use this

setting if you want to decode all streams by a player)

Dolby Digital, DTS and MPEG sources are processed

according to how they were encoded, and linear PCM

sources are heard as is. SACD sources are output as linear

PCM.

Set if you want to output DSD audio from an SACD source.

No digital audio output. Choose this option when you want to

change the Digital Audio Out, SACD Playback and

Speakers settings.

DV48AV_EN.book 39 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Language settings

Display settings

Setting Option What it means

Audio Language English If there is an English soundtrack on the disc then it will be

played.

If there is the language selected on the disc, then it will be

played.

Select to choose a language other than the ones displayed

(see page 53).

Subtitle Language

(See also

page 10.)

English If there are English subtitles on the disc then they will be

displayed.

If there is the subtitle language selected on the disc, then it

will be displayed.

Select to choose a language other than the ones displayed

(see page 53).

DVD Menu

Lang.

w/Subtitle Lang. DVD disc menus will be displayed in the same language as

your selected subtitle language, if possible.

DVD disc menus will be displayed in the selected language,

if possible.

Select to choose a language other than the ones displayed

(see page 53).

Subtitle Display On Subtitles are displayed according to your selected subtitle

language (see above).

Subtitles are always off by default when you play a DVD disc

(note that some discs override this setting).

Setting Option What it means

OSD Language English On-screen displays of the player are in English.

On-screen displays are shown in the language selected.

Angle Indicator On A camera icon is displayed on-screen during multi-angle

scenes on a DVD disc.

No multi-angle indication is shown.

DV48AV_EN.book 41 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Changing your password

To change your password, confirm your

existing password then enter a new one.

1 Select ‘Password Change’.

2 Use the number buttons to enter your

existing password, then press ENTER.

3 Enter a new password and press ENTER.

This registers the new password and you will

return to the Options menu screen.

Setting/changing the Parental Lock

1 Select ‘Level Change’.

2 Use number buttons to enter your

password, then press ENTER.

3 Select a new level and press ENTER.

• Press (cursor left) repeatedly to lock

more levels (more discs will require the

password); press (cursor right) to

unlock levels. You can’t lock level 1.

This sets the new level and you will return to

the Options menu screen.

Setting/changing the Country/Area

code

You can find the on

page 61.

1 Select ‘Country Code’.

2 Use number buttons to enter your

password, then press ENTER.

3 Select a Country/Area code and press

ENTER.

There are two ways you can do this:

• Select by code letter: Use (cursor up/

down) to change the Country/Area code.

• Select by code number: Press (cursor

right) then use the number buttons to

enter the 4-digit Country/Area code.

The new Country/Area code is set and you will

return to the Options menu screen. Note that

the new Country/Area code doesn’t take effect

until the next disc is loaded (or the current disc

is reloaded).

DTS Downmix

• Default setting: STEREO

If you’ve selected DTS > PCM in on

page 39 or 2 Channel in on

page 45, you can choose the way the signal is

downmixed to PCM audio. STEREO will

downmix the DTS signal to 2-channel stereo,

whereas Lt/Rt will downmix to a 2-channel

signal compatible with Dolby surround matrix

decoders. (This allows you to hear surround

sound if your AV receiver or amplifier has

Dolby Pro Logic capability.)

DV48AV_EN.book 43 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Speakers settings

Audio Output Mode

• Default setting: 2 Channel

If you connected this player to your amplifier

using the 5.1 channel analog outputs (front,

surround, center and subwoofer outs), set this

to 5.1 Channel; if you connected only the

stereo outs, set to 2 Channel.

Note

• Even if you set Audio Output Mode to

5.1 Channel, you’ll only get sound from all

speakers when playing a 5.1 channel

multi-channel disc.

• When set to 5.1 Channel, only the front left/

right channels are output from the AUDIO

OUT (2ch) jacks. Change to 2 Channel if

you want to listen to downmixed stereo

audio (for example, because you are

listening through the TV’s built-in

speakers).

• When set to 5.1 Channel there is no digital

output when playing DVD-Audio.

•Ifyousetto2 Channel, Dolby Digital, DTS

and MPEG audio is mixed down to two

channels so you still hear all the audio

recorded on the disc. With DTS encoded

audio, you can choose how the signal is

downmixed to PCM audio. See

on page 43 to change the

downmix setting.

• Some DVD-Audio discs don’t allow down-

mixing of audio. These discs always output

multi-channel audio regardless of the

setting made here.

Setting Option What it means

Audio Output

Mode

2 Channel The player outputs analog audio in stereo only. See also

below.

The player outputs 5.1 channel analog audio. See also

below.

Speaker Distance – Specify the distance of your speakers from your listening

position. See also on page 49.

Speaker

Installation

–Specify the number and size of speakers in your system. See

also on page 50.

DV48AV_EN.book 45 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

About the HDMI audio output settings

The table below shows how the audio settings you make in the HDMI Out (see on

page 39) and Audio Output Mode screens ( on page 45) affect the HDMI

output with various types of disc.

*1These formats include DVD-RW discs.

*2If the connected component is not DVD-Audio (CPPM) compatible, it is not possible to output

CPPM copy-controlled DVD-Audio sources from the HDMI connection (see

on page 48 for more on this).

*3If the discs prohibit downmixing, output Front L/R.

*4If the HDMI device you are using is not compatible with Multi-ch formats, the output signal is

the same as LPCM (2CH) setting.

*5If the HDMI device you are using is not compatible with these compressed formats, the signal

is output as linear PCM.

*6If the connected HDMI device is not compatible with protected audio contents (such as

DVD-Audio or SACD), SACD audio is not output from the HDMI terminal.

*7 Analog SACD audio is not output when you have set to Auto (DSD).

DV48AV_EN.book 47 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Speaker Distance

• Default settings: all speakers 10.0ft

To get the best surround sound from your

system, you should set up the speaker

distances from your listening position.

1Usethe (cursor up/down) to select

a speaker.

•The

Land Rspeakers are paired; you can’t

set them differently.

2Press (cursor right) to change the

speaker distance for the highlighted

speaker.

3Usethe (cursor up/down) to

change the distance.

• When you change the distance settings of

the front left (L) or front right (R) speakers,

all the other speaker distances change

relative to it.

• Front left/right (L/R) speaker distances can

be set from 1.0 ft to 30.0 ft in 1.0 ft

increments.

• The center speaker (C) can be set from

–7.0 ft to 0.0 ft relative to the front left/right

speakers.

• Surround left/right (SL/SR) speakers can

be set from –20.0 ft to 0.0 ft relative to the

front left/right speakers.

• You can’t set the subwoofer (SW) distance.

4 Press (cursor left) to go back to the

speaker list if you want to modify another

speaker, or press ENTER to exit the Speaker

Distance screen.

Note

During playback of SACD and MPEG-audio

DVD-Video discs, the effective C, SL and SR

speaker distance settings are –3.0 ft to 0.0 ft

relative to the front left/right speakers.

DV48AV_EN.book 49 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Chapter 9

Additional information

Taking care of your player and

discs

General

Hold discs by the edge or by the center hole

and edge.

When you’re not using a disc, return it to its

case and store upright. Avoid leaving discs in

excessively cold, humid, or hot environments

(including under direct sunlight).

Don’t glue paper or put stickers on to discs. Do

not use a pencil, ball-point pen or other sharp-

tipped writing instrument to write on the disc.

Don’t use self-adhesive disc labels on discs as

these can cause the disc to warp slightly

during playback causing distortion in the

picture and/or sound.

Damaged and shaped discs

Do not use cracked, chipped, warped, or

otherwise damaged discs as they may damage

the player.

This player is designed to be used only with

conventional, fully circular discs. Do not use

shaped discs. Pioneer disclaims all liability

arising in connection with the use of shaped

discs.

Cleaning discs

Fingerprints and dust on discs can affect

playback performance. Clean using a soft, dry

cloth, wiping the disc lightly from the center to

the outside edge as shown below.

If necessary, use a cloth soaked in alcohol, or

a commercially available CD/DVD cleaning kit

to clean a disc more thoroughly. Never use

benzine, thinner or other cleaning agents,

including products designed for cleaning vinyl

records.

Cleaning the unit’s exterior

Unplug the unit before cleaning.

Use a dry cloth to wipe off dust and dirt. If the

surfaces are very dirty, wipe with a soft cloth

dipped in some neutral cleanser diluted five or

six times with water and wrung out well, then

wipe again with a dry cloth.

Do not use furniture wax or cleaners. Never

use thinners, benzine or insecticide sprays or

other chemicals on or near this unit.

If you use a chemical-impregnated cleaning

cloth, read the instructions carefully before

use. These cloths may leave smear marks on

half-mirror finish surfaces; if this happens,

finish with a dry cloth.

Cleaning the pickup lens

The DVD player’s lens should not become dirty

in normal use, but if for some reason it should

malfunction due to dust or dirt, consult your

nearest Pioneer-authorized service center. We

do not recommend using commercially

available lens cleaners for CD players.

DV48AV_EN.book 51 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Resetting the player

Use this procedure to reset all the player’s

settings to the factory default.

1 Switch the player into standby.

2 Using the front panel buttons, hold

down the (stop) button and press

STANDBY/ON to switch the player back

on.

All the player’s settings are now reset.

DVD-Video regions

All DVD-Video discs carry a region mark on the

case somewhere that indicates which

region(s) of the world the disc is compatible

with. Your DVD player also has a region mark,

which you can find on the rear panel. Discs

from incompatible regions will not play in this

player. In this case the attention sentence

Incompatible disc region number Can’t

play disc is displayed on screen. Discs

marked ALL will play in any player. The

diagram below shows the various DVD regions

of the world.

Selecting languages using the

language code list

Some of the language options (such as ‘DVD

Menu Lang.’ in the Initial Settings) allow you to

set your preferred language from any of the

136 languages listed in the language code list

on page 61.

1 Select ‘Other Language’.

2Usethe (cursor left/right)

buttons to select either a code letter or a

code number.

3Usethe (cursor up/down) buttons

to select a code letter or a code number.

See on page 61 for a

complete list of languages and codes.

DV48AV_EN.book 53 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

No picture/No color. • Incorrect video connections: Check that connections are correct and

that plugs are inserted fully. Also check the video cable for damage.

• TV/monitor or AV amplifier settings are incorrect: Check the

instruction manual of the connected equipment.

• The video output is set to progressive but your TV/monitor is not

compatible with progressive scan: See page 13 for how to set to

Interlace.

Screen is stretched or

aspect does not change.

• The TV Screen setting in the Initial Settings menu is incorrect. See

page 52 for how to set it correctly for your TV/monitor.

Picture disturbance

during playback or the

picture is dark.

• This player is compatible with Macro-Vision System copy guard.

Some discs include a copy prevention signal, and when this type of

disc is played back, stripes etc., may appear on some sections of the

picture depending on the TV. This is not a malfunction.

• Due to the player’s copy protection circuits, connection of this device

through a VCR or an AV selector may prevent recording or cause

picture problems. This is not a malfunction.

No audio, or audio is

distorted.

• No audio is output during slow motion playback or when scanning

discs other than audio CDs and SACDs.

• Some DVD discs do not output digital audio: Switch your amplifier to

the player’s analog outputs.

• Check that the disc is free from dust and dirt, and that it is not

damaged (page 51).

• Check that all interconnects are firmly inserted.

• Check that the plugs and terminals are free of dirt, oxide, etc. and

clean if necessary. Also check the cable for damage.

• Make sure the player’s output is not connected to the amplifier’s

phono (turntable) inputs.

• Check your amplifier/receiver’s settings (volume, input function,

speaker settings, etc.).

The analog audio is OK,

but there appears to be

no digital audio signal.

• Make sure that the Digital Out setting is set to On (page 39).

• Check that the Dolby Digital, DTS and MPEG out settings (page 39)

are suitable for your amplifier/receiver — check the instruction manual

that came with your amplifier/receiver.

• SACDs and some DVD-Audio discs do not output digital audio.

Listen through the player’s analog audio outputs.

Noticeable difference in

DVD and CD volume.

• This is due to differences in the audio format and is not a

malfunction.

Problem Remedy

DV48AV_EN.book 55 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

HDMI troubleshooting

Problem Remedy

No HDMI audio output. • Check whether or not HDMI Out is set to Off. (See on

page 39.)

• This unit has been designed to be compliant with HDMI (High-

Definition Multimedia Interface). Depending on the component you

have connected, unreliable signal transfers may result.

• If the front panel HDMI indicator is lit:

– You won’t hear any sound from the HDMI output if the source

component is only DVI/HDCP-compatible.

• If the front panel

HDMI

indicator is unlit then:

– Make sure that you’ve selected this player as the HDMI input in the

settings for the component you’re using. You may need to refer to the

instruction manual of the component to do this.

– Check that the HDMI cable is connected properly and that the cable

isn’t damaged.

– Check that components connected using the HDMI interface are

switched on and HDMI compatible.

No HDMI video output. • Make sure that you’ve selected this player as the HDMI input in the

settings for the component you’re using. You may need to refer to the

instruction manual of the component to do this.

• Check that the HDMI cable is connected properly and that the cable

isn’t damaged.

• Check that components connected using the HDMI interface are

switched on and HDMI compatible.

• This unit has been designed to be compliant with HDMI (High

Definition Multimedia Interface). Depending on the component you

have connected, using a DVI connection may result in unreliable signal

transfers.

• Make sure the resolution on this player matches that of the

component you have connected using HDMI. See on

page 40 to change the HDMI resolution. See

on page 16 if you

want to reset the output resolution.

No multichannel HDMI

audio.

• Make sure the HDMI Out setting is set to Auto, Auto (DSD) or

LPCM (5.1CH) (see on page 39 to do this). See also

on page 47 and

on page 48.

No sound is output from

the AUDIO OUT (5.1ch)

jack when connected via

HDMI.

• Check whether or not HDMI Out is set to Off. (See on

page 39.)

Component Out cannot

be set to Interlace.

• You can use the Interlace setting if the HDMI Resolution is set to

720 x 480i.

DV48AV_EN.book 57 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Glossary

Analog audio Direct representation of sound by an

electrical signal. See also .

Aspect ratio The width of a TV screen relative to its

height. Conventional TVs are 4:3;

widescreen models are 16:9.

Bonus Group

(DVD-Audio

only)

An ‘extra’ group on some DVD-Audio

discs that requires a key number to

access.

Browsable

pictures

(DVD-Audio

only)

A feature of some DVD-Audio discs in

which the user can browse still

pictures recorded on the disc as the

audio is played.

Digital audio Indirect representation of sound using

numbers. See also

and .

DivX DivX is a media technology created by

DivX, Inc. DivX media files contain not

only video but also include advanced

media features like menus, subtitles,

and alternate audiotracks.

Dolby Digital A multi-channel audio encoding

system developed by Dolby

Laboratories that enables far more

audio to be stored on a disc than PCM

encoding. See also

DRM DRM (digital rights management) copy

protection is a technology designed to

prevent unauthorized copying by

restricting playback, etc. of

compressed audio files on devices

other than the PC (or other recording

equipment) used to record it. For

detailed information, please see the

instruction manuals or help files that

came with your PC and/or software.

DTS A multi-channel audio encoding

system developed by Digital Theater

Systems that enables far more audio to

be stored on a disc than PCM

encoding. See also

DSD

(Direct

Stream

Digital)

The Digital Audio encoding system

found on SACDs, that expresses the

audio signals by the pulse density of

one bit data.

EXIF

(Exchangeable

Image File)

A file format developed by FUJIFILM for

digital still cameras. Digital cameras

from various manufacturers use this

compressed file format which carries

date, time and thumbnail information,

as well as the picture data.

File

extension

A tag added to the end of a filename to

indicate the type of file. For example,

“.mp3” indicates an MP3 file.

HDMI HDMI (High-Definition Multimedia

Interface) is a high-speed digital

interface which has the capability to

support standard, enhanced, or high-

definition video plus standard to multi-

channel surround-sound audio on a

single digital connection. HDMI

features include uncompressed digital

video, a bandwidth of up to 5 gigabytes

per second and communication

between the AV source and AV devices

such as DTVs.

ISO 9660

format

International standard for the volume

and file structure of CD-ROM discs.

JPEG A standard file format used for still

images. JPEG files are identified by the

file extension “.jpg”.

MP3 MP3 (MPEG1 audio layer 3) is a

compressed stereo audio file format.

Files are recognized by their file

extension “.mp3”.

MPEG-4 AAC MPEG-4 AAC is a compressed stereo

audio file format. Files are recognized

by the extention ‘.m4a’.

Note that some files purchased with

the iTunes store) may not playback.

MPEG audio An audio format used on Video CDs

and some DVD discs.

Packed PCM

(DVD-Audio

only)

A lossless compression system that

enables more PCM audio to be stored

on a DVD-Audio disc than would

otherwise be possible.

PBC

(PlayBack

Control)

A system of navigating a Video CD

through on-screen menus recorded

onto the disc.

PCM

(Pulse Code

Modulation)

Digital audio encoding system found

on CDs. Good quality, but requires a lot

of data compared to Dolby Digital, DTS

and MPEG encoded audio. See also

DV48AV_EN.book 59 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Language code list

Language (Language code letter), Language code

Country/Area code list

Country/Area, Country/Area code, Country/Area code letter

Japanese (ja), 1001

English (en), 0514

French (fr), 0618

German (de), 0405

Italian (it), 0920

Spanish (es), 0519

Chinese (zh), 2608

Dutch (nl), 1412

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Afrikaans (af), 0106

Amharic (am), 0113

Arabic (ar), 0118

Assamese (as), 0119

Aymara (ay), 0125

Azerbaijani (az), 0126

Bashkir (ba), 0201

Byelorussian (be), 0205

Bulgarian (bg), 0207

Bihari (bh), 0208

Bislama (bi), 0209

Bengali (bn), 0214

Tibetan (bo), 0215

Breton (br), 0218

Catalan (ca), 0301

Corsican (co), 0315

Czech (cs), 0319

Welsh (cy), 0325

Danish (da), 0401

Bhutani (dz), 0426

Esperanto (eo), 0515

Estonian (et), 0520

Basque (eu), 0521

Persian (fa), 0601

Finnish (fi), 0609

Fiji (fj), 0610

Faroese (fo), 0615

Frisian (fy), 0625

Irish (ga), 0701

Scots-Gaelic (gd), 0704

Galician (gl), 0712

Guarani (gn), 0714

Gujarati (gu), 0721

Hausa (ha), 0801

Hindi (hi), 0809

Croatian (hr), 0818

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (ln), 1214

Laothian (lo), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto, Pushto (ps), 1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Sundanese (su), 1921

Swahili (sw), 1923

Tamil (ta), 2001

Telugu (te), 2005

Tajik (tg), 2007

Thai (th), 2008

Tigrinya (ti), 2009

Turkmen (tk), 2011

Tagalog (tl), 2012

Setswana (tn), 2014

Tonga (to), 2015

Turkish (tr), 2018

Tsonga (ts), 2019

Tatar (tt), 2020

Twi (tw), 2023

Ukrainian (uk), 2111

Urdu (ur), 2118

Uzbek (uz), 2126

Vietnamese (vi), 2209

Volapük (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Argentina, 0118, ar

Australia, 0121, au

Austria, 0120, at

Belgium, 0205, be

Brazil, 0218, br

Canada, 0301, ca

Chile, 0312, cl

China, 0314, cn

Denmark, 0411, dk

Finland, 0609, fi

France, 0618, fr

Germany, 0405, de

Hong Kong, 0811, hk

India, 0914, in

Indonesia, 0904, id

Italy, 0920, it

Japan, 1016, jp

Korea, Republic of, 1118, kr

Malaysia, 1325, my

Mexico, 1324, mx

Netherlands, 1412, nl

New Zealand, 1426, nz

Norway, 1415, no

Pakistan, 1611, pk

Philippines, 1608, ph

Portugal, 1620, pt

Russian Federation,

1821

Singapore, 1907, sg

Spain, 0519, es

Sweden, 1905, se

Switzerland, 0308, ch

Taiwan, 2023, tw

Thailand, 2008, th

United Kingdom, 0702, gb

USA, 2119, us

DV48AV_EN.book 61 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Before you start

Chapter 1

Before you start

Features

• HDMI1digital interface

The HDMI (High-Definition Multimedia

Interface) interconnect provides high quality

digital audio and video, all from a single user-

friendly connector. HDMI is the first consumer

electronics interface to support

uncompressed standard, enhanced, or high-

definition video plus standard to multi-channel

surround sound audio, all using one interface.

You can easily connect to a HDMI-equipped

AV receiver or audiovisual device for high

quality audio and video, and communication

between the video source and (DTV) players,

set-top boxes, and other audiovisual devices is

also supported.

• PureCinema Progressive Scan video

When connected to a progressive scan-

compatible TV or monitor using the

component video outputs, you can enjoy

extremely stable, flicker free images, with the

same frame refresh rate as the original movie.

• New Disc Navigator with moving

pictures

The new Disc Navigator enables you play the

first few seconds of each title or chapter in a

thumbnail image on screen.

• DSP effects for enhanced playback

See Audio Settings and Video Adjust menus on

page 36.

• Picture zoom

See Zooming the screen on page 34.

• MP3, WMA and MPEG-4 AAC

compatibility

See Compressed audio compatibility on page 9.

• JPEG compatibility

See JPEG file compatibility on page 10.

•DivX

®2 video compatibility

See DivX video compatibility on page 10.

• WMV compatibility

See CD-R/-RW compatibility on page 8 or About

WMV on page 10.

• Energy saving design

An auto power-off function switches the player

into standby if not used for about 30 minutes.

• DVD-Audio and SACD compatible

Experience the super high-quality audio

performance of DVD-Audio and Super Audio

CD (SACD).

• 24-bit/192 kHz compatible DAC

The on-board 24-bit/192 kHz DAC means that

this player is fully compatible with high

sampling-rate discs, capable of delivering

exceptional sound quality in terms of dynamic

range, low-level resolution and high-frequency

detail.

1. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

licensing LLC.

2. DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

DV48AV_EN.book 6 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Hints on installation

We want you to enjoy using this product for

years to come, so please use the following

guidelines when choosing a suitable location:

Do...

• Use in a well-ventilated room.

• Place on a solid, flat, level surface, such as

a table, shelf or stereo rack.

Don’t...

• Use in a place exposed to high

temperatures or humidity, including near

radiators and other heat-generating

appliances.

• Place on a window sill or a place where the

player will be exposed to direct sunlight.

• Use in an excessively dusty or damp

environment.

• Place directly on top of an amplifier, or

other component in your stereo system

that becomes hot in use.

• Use near a television or monitor as you

may experience interference — especially

if the television uses an indoor antenna.

• Use in a kitchen or other room where the

player may be exposed to smoke or steam.

• Use on a thick rug or carpet, or cover with

cloth — this may prevent proper cooling of

the unit.

• Place on an unstable surface, or one that

is not large enough to support all four of

the unit’s feet.

Disc/content format playback

compatibility

This player is compatible with a wide range of

disc types (media) and formats. Playable discs

will generally feature one of the following logos

on the disc and/or disc packaging. Note

however that some disc types, such as

recordable CD and DVD, may be in an

unplayable format — see below for further

compatibility information.

Please also note that recordable discs cannot be

recorded using this player.

•This unit will play DVD+R/+RW discs.

• is a trademark of DVD Format/Logo

Licensing Corporation.

• is a trademark of FUJIFILM Corporation.

• Also compatible with KODAK Picture CD

About DualDisc playback

A DualDisc is a new two -sided disc, one side

of which contains DVD content video, audio,

etc. while the other side contains non-DVD

content such as digital audio material.

The non-DVD, audio side of the disc is not

compliant with the CD Audio specification and

therefore may not play.

The DVD side of a DualDisc plays in this

product. DVD-Audio content will not play.

For more detailed information on the DualDisc

specification, please refer to the disc

manufacturer or disc retailer.

CD-R/-RW compatibility

• Compatible formats: CD-Audio, Video CD,

ISO 9660 CD-ROM* containing MP3,

WMA, MPEG-4 AAC, JPEG or DivX video/

WMV files

* ISO 9660 Level 1 or 2 compliant. CD

physical format: Mode1, Mode2 XA Form1.

Romeo and Joliet file systems are both

compatible with this player.

DVD-Video DVD-R DVD-RW

Video CDAudio CD CD-R CD-RW

DVD-Audio

Super Audio CD

Fujicolor CD

DV48AV_EN.book 8 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Displaying external subtitle files

The font sets listed below are available for

external subtitle files. You can see the proper

font set on-screen by setting the Subtitle

Language (in Language settings on page 41)

to match the subtitle file.

This player supports the following language

groups:

• Some external subtitle files may be

displayed incorrectly or not at all.

• For external subtitle files the following

subtitle format filename extensions are

supported (please note that these files are

not shown within the disc navigation

menu): .srt, .sub, .ssa, .smi

• The filename of the movie file has to be

repeated at the beginning of the filename

for the external subtitle file.

• The number of external subtitle files which

can be switched for the same movie file is

limited to a maximum of 10.

DivX video compatibility

• Official DivX®Ultra Certified product.

• Plays all versions of DivX®video (including

DivX®6) with enhanced playback of DivX®

media files and the DivX®Media Format.

• File extensions: .avi and .divx (these must

be used for the player to recognize DivX

video files). Note that all files with the .avi

extension are recognized as MPEG4, but not

all of these are necessarily DivX video files　

and therefore may not be playable on this

player.

About WMV

WMV is an acronym for Windows Media Video

and refers to a video compression technology

developed by Microsoft Corporation. WMV

content can be encoded by using Windows

Media®Encoder.

• This player is compatible with WMV9 files

that are encoded by using the Windows

Media®Encoder 9 Series, with .wmv as an

extension.

• Compatible with size under 720 x 480

pixels.

• Advanced Profile is not supported.

• DRM-protected video files will not play in

this player.

JPEG file compatibility

• Compatible formats: Baseline JPEG and

EXIF 2.2* still image files up to a resolution

of 3072 x 2048.

*File format used by digital still cameras.

• Progressive JPEG compatible: No

• File extensions: .jpg (must be used for the

player to recognize JPEG files – do not use

for other file types)

PC-created disc compatibility

Discs recorded using a personal computer

may not be playable in this unit due to the

setting of the application software used to

create the disc. In these particular instances,

check with the software publisher for more

detailed information.

Discs recorded in packet write mode (UDF

format) are not compatible with this player.

Check the DVD-R/-RW or CD-R/-RW software

disc boxes for additional compatibility

information.

Group 1 Albanian (sq), Basque (eu), Catalan (ca),

Danish (da), Dutch (nl), English (en),

Faroese (fo), Finnish (fi), French (fr),

German (de), Icelandic (is), Irish (ga), Italian

(it), Norwegian (no), Portuguese (pt),

Rhaeto-Romanic (rm), Scottish (gd),

Spanish (es), Swedish (sv)

Group 2 Albanian (sq), Croatian (hr), Czech (cs),

Hungarian (hu), Polish (pl), Romanian (ro),

Slovak (sk), Slovenian (sl)

Group 3 Bulgarian (bg), Byelorussian (be),

Macedonian (mk), Russian (ru), Serbian (sr),

Ukrainian (uk)

Group 4 Hebrew (iw), Yiddish (ji)

Group 5 Turkish (tr)

DV48AV_EN.book 10 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

Connecting using the S-video

output

If your TV (or other equipment) has an S-video

(S1) input, you can use the S-video output on

this player instead of the standard (composite)

output for a better quality picture.

• Use an S-video cable (not supplied) to

connect the S-VIDEO OUT to an S-video

input on your TV (or monitor or AV

receiver).

Line up the small triangle above the jack with

the same mark on the plug before plugging in.

Connecting using the

component video output

You can use the component video output

instead of the standard video out jack to

connect this player to your TV (or other

equipment). This should give you the best

quality picture from the three types of video

output available.

• Use a component video cable (not

supplied) to connect the COMPONENT

VIDEO OUT jacks to a component video

input on your TV, monitor or AV receiver.

DV48AV_EN.book 12 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

Connecting the multichannel analog

outputs

If your AV receiver has 5.1 channel analog

inputs, we recommend connecting this player

to it using the multichannel analog outputs.

Doing this will ensure that you can enjoy all

kinds of disc, including Dolby Digital and DTS

DVD-Video discs, as well as high sampling rate

and multichannel DVD-Audio and SACD

discs.

• Connect the multi-channel audio

outputs on this player to the multi-channel

audio inputs on your AV receiver.

It’s convenient to use three stereo audio

cables; one for the FRONT, one for the

SURROUND and one for the CENTER and

SUBWOOFER channels.

You can also use the S-video or component

video jacks to connect to the AV receiver if you

prefer.

Tip

• After connecting up and switching on, you

should change the Audio Output Mode

setting in the Initial Setup menu from the

default 2 Channel to 5.1 Channel. See

also Audio Output Mode on page 45.

Connecting the digital output

This player has both optical and coaxial-type

digital audio outputs for connection to an AV

receiver. Connect whichever is convenient.

Depending on the capabilities of your AV

receiver, you might have to set up this player to

output only digital audio in a compatible

format. See Digital Audio Out settings on

page 39 and refer to the operating instructions

that came with your AV receiver.

Note that SACD audio is not output through

these jacks, so this connection should be in

addition to, rather than instead of, a 5.1

channel analog connection.

• Connect one of the DIGITAL AUDIO

OUT jacks on this player to a digital input

on your AV receiver.

For an optical connection, use an optical cable

(not supplied) to connect the OPTICAL

DIGITAL AUDIO OUT jack to an optical input

on your AV receiver.

For a coaxial connection, use a coaxial cable

(similar to the supplied video cable) to connect

the COAXIAL DIGITAL AUDIO OUT jack to a

coaxial input on your AV receiver.

AV eceive

DV48AV_EN.book 14 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

About HDMI

HDMI (High-Definition Multimedia Interface)

supports both video and audio on a single

digital connection for use with DVD players,

DTV, set-top boxes, and other AV devices.

HDMI was developed to provide the

technologies of High-bandwidth Digital

Content Protection (HDCP) as well as Digital

Visual Interface (DVI) in one specification.

HDCP is used to protect digital content

transmitted and received by DVI-compliant

displays.

HDMI has the capability to support standard,

enhanced, or high-definition video plus

standard to multi-channel surround-sound

audio. HDMI features include uncompressed

digital video, a bandwidth of up to five

gigabytes per second (with HDTV signals), one

connector (instead of several cables and

connectors), and communication between the

AV source and AV devices such as DTVs.

Resetting the output resolution to the

default setting with HDMI connection

Switch the player to standby then, using the

front panel controls, press STANDBY/ON

while pressing to switch the player back to

480P.

You can also use the HDMI RESOLUTION

button on the remote control to switch the

player back to 480P.

DV48AV_EN.book 16 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Controls and displays

Remote control

Tip

• All buttons glow slightly in the dark for

ease of use.

1STANDBY/ON (page 20)

2 FL DIMMER

Press to change the display brightness.

3 Number buttons (page 23)

4CLEAR(page 32)

5 AUDIO (page 34)

6SUBTITLE (page 33)

7TOPMENU(page 24)

8 ENTER & cursor buttons (page 20)

9HOMEMENU(page 20)

10 SURROUND (page 36)

11 PLAY MODE (page 30)

12 and (page 23, 27)

13 PLAY (page 23)

14 PREV (page 23)

15 PAUSE (page 23)

16 OPEN/CLOSE (page 22)

17 HDMI COLOR (page 40)

18 HDMI RESOLUTION +/– (page 16, 40)

19 ENTER (page 20)

20 DVD/USB (page 35)

21 ANGLE (page 34)

22 MENU (page 24)

23 RETURN (page 20)

24 ZOOM (page 34)

25 DISPLAY (page 34)

26 and (page 23, 27)

27 NEXT (page 23)

28 STOP (page 23)

29 TV CONTROL (page 19)

DV48AV_EN.book 18 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

Chapter 4

Getting started

Switching on

After making sure that everything is connected

properly and that the player is plugged in,

press STANDBY/ON on the front panel or

remote control to switch the player on.

Also, switch on your TV and make sure that it

is set to the input you connected the DVD

player to.

FAQ

• My DVD player switches on but there is

nothing displayed on my TV.

Make sure that the TV is set to the correct

video input (not a TV channel). For

example, if you connected this player to

the VIDEO 1 inputs on your TV, switch your

TV to VIDEO 1.

Note

• This player features a screen saver and an

auto power off function. If the player is

stopped and no button is pressed for

around five minutes, the screen saver

starts. If the disc tray is closed but no disc

is playing and no control is pressed for

about 30 minutes, the player automatically

goes into standby.

Using the on-screen displays

For ease of use, this player makes extensive

use of graphical on-screen displays (OSDs).

All the screens are navigated in basically the

same way, using the cursor buttons (

) to change the highlighted item and

pressing ENTER to select it.

Note

• From here on in this manual, the word

‘select’ generally means use the cursor

buttons to highlight an item on-screen,

then press ENTER.

Button What it does

HOME

Display/exit the on-screen display.

Changes the highlighted menu

item.

ENTER Selects the highlighted menu

item (both ENTER buttons on the

remote work in exactly the same

way).

RETURN Returns to the main menu without

saving changes.

DV48AV_EN.book 20 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

Playing discs

The basic playback controls for playing DVD,

CD, SACD, Video CD, DivX video/WMV and

MP3/WMA/MPEG-4 AAC discs are covered

here. Further functions are detailed in the next

chapter.

For details on playing JPEG picture discs, see

Viewing a JPEG slideshow on page 28.

Important

• Throughout this manual, the term ‘DVD’

means DVD-Video, DVD-Audio and

DVD-R/-RW. If a function is specific to a

particular kind of DVD disc, it is specified.

1 If the player isn’t already on, press

STANDBY/ON to switch it on.

If you’re playing a DVD, disc containing DivX

video/WMV files or Video CD, also turn on your

TV and make sure that it is set to the correct

video input.

2Press OPEN/CLOSE to open the disc

tray.

3 Load a disc.

Load a disc with the label side facing up, using

the disc tray guide to align the disc (if you’re

loading a double-sided DVD disc, load it with

the side you want to play face down).

4 Press (play) to start playback.

If you’re playing a DVD or Video CD, an on-

screen menu may appear. See DVD-Video and

DivX disc menus on page 24 and Video CD PBC

menus on page 25 for more on how to navigate

these.

• If you’re playing a containing DivX video/

WMV files or MP3/WMA/MPEG-4 AAC

audio files, it may take a few seconds

before playback starts, etc. This is normal.

• Please see Disc/content format playback

compatibility on page 8 if you want to play

a DualDisc (DVD/CD hybrid disc).

Note

• You may find with some DVD discs that

some playback controls don’t work in

certain parts of the disc. This is not a

malfunction.

• If a disc contains a mixture of movie (DivX

video/WMV) and other media file types

(MP3, for example), first select whether to

play the movie files (DivX/WMV)or the

other media file types (MP3/WMA/MPEG-

4 AAC/JPEG) from the on-screen display.

DV48AV_EN.book 22 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

DVD-Video and DivX disc menus

Some DivX media files and many DVD-Video

and DVD-Audio discs feature menus from

which you can select what you want to watch.

They may also give access to additional

features, such as subtitle and audio language

selection, or special features such as

slideshows. See the disc packaging for details.

Sometimes DivX and DVD-Video menus are

displayed automatically when you start

playback; others only appear when you press

MENU or TOP MENU.

Important

• Some DVD-Audio discs feature a ‘bonus

group’. To play this group you first have to

input a password, which you can find on

the disc’s packaging. Use the number

buttons to input the password.

Button What it does

TOP MENU Displays the ‘top menu’ of a DVD

disc — this varies with the disc.

MENU Displays a DVD disc (or DivX

media files) menu — this varies

with the disc and may be the

same as the ‘top menu’.

Moves the cursor around the

screen.

ENTER Selects the current menu option.

RETURN Returns to the previously dis-

played menu screen. On some

DVD-Audio discs featuring brows-

able pictures, press to display the

browser screen.

Numbers

(remote

only)

Highlights a numbered menu

option (some discs only). Press

ENTER to select.

DV48AV_EN.book 24 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

• I’ve connected to a HDMI compatible

component but I can’t get any signal and

the front panel HDMI indicator won’t light!

Make sure that you’ve selected this player

as the HDMI input in the settings for the

component you’re using. You may need to

refer to the instruction manual of the

component to do this. See Connecting

using HDMI on page 15 for more on HDMI

compatibility.

• There’s no picture from the HDMI output!

This player cannot display pictures from

DVI compatible sources. See Connecting

using HDMI on page 15 for more on HDMI

compatibility.

Make sure the resolution on this player

matches that of the component you have

connected using HDMI. See HDMI

Resolution on page 40 to change the HDMI

resolution.

• My AV receiver is definitely compatible with

96 kHz/88.2 kHz Linear PCM audio, but it

doesn’t seem to work with this player.

What’s wrong?

For digital copy-protection purposes, some

96 kHz/88.2 kHz DVD discs only output

digital audio downsampled to 48 kHz/

44.1 kHz. This is not a malfunction.

To fully take advantage of the high

sampling rate audio, connect the analog

audio outputs to your amplifier/receiver.

• Why can’t I hear SACD audio through the

digital outputs?

SACD digital audio is only available

through the HDMI outputs when

connected to an HDMI-compatible amp

that can handle protected audio contents.

Some DVD-Audio discs too only output

audio through the analog outputs.

• Is it better to listen to DVD-Audio discs

through the analog outputs?

Some DVD-Audio discs do not output

anything through the digital outputs, and

multichannel discs are downmixed to

stereo for the digital output. In addition,

high sampling rate DVD-Audio discs

(higher than 96 kHz) automatically

downsample audio output from the digital

outputs.

Using the multichannel analog audio

outputs for DVD-Audio have none of these

limitations.

• My DVD-Audio disc starts playing, but then

suddenly stops!

The disc may have been illegally copied.

DV48AV_EN.book 26 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Viewing a JPEG slideshow

After loading a CD/CD-R/-RW containing JPEG

picture files, press (play) to start a slideshow

from the first folder/picture on the disc. The

player displays the pictures in each folder in

alphabetical order.

• If the folder contains MP3/WMA/

MPEG-4 AAC files, playback of the

slideshow and MP3/WMA/

MPEG-4 AAC file repeats. During the audio

playback, you can still use the skip (

), scan ( ) and pause ( )

functions.

Pictures are automatically adjusted so that

they fill as much of the screen as possible (if

the aspect ratio of the picture is different to

your TV screen you may notice black bars at

the sides, or at the top and bottom of the

screen).

While the slideshow is running:

Note

• The time it takes for the player to load a file

increases with large file sizes.

Browsing DVD or Video CD

disc with the Disc Navigator

Use the Disc Navigator to browse through the

contents of a DVD-Video, VR mode DVD-R/-RW

or Video CD disc to find the part you want to

play.

Important

• You can’t use the Disc Navigator with

Video CDs in PBC mode.

1 During playback, press HOME MENU

and select ‘Disc Navigator’ from the on-

screen menu.

2 Select a view option.

The options available depend on the kind of

disc loaded and whether the disc is playing or

not, but include:

•Title – Titles from a DVD-Video disc.

•Chapter – Chapters from the current title

of a DVD-Video disc.

•Track – Tracks from a Video CD disc.

•Time – Thumbnails from a Video CD disc

at 10 minute intervals.

•Original: Title – Original titles from a VR

mode DVD-R/-RW disc.

•Play List: Title – Play List titles from a VR

mode DVD-R/-RW disc.

•Original: Time – Thumbnails from the

Original content at 10 minute intervals.

•Play List: Time – Thumbnails from the

Play List at 10 minute intervals.

Button What it does

Pauses the slideshow; press again to

restart.

Displays the previous picture.

Displays the next picture.

Pauses the slideshow and rotates the

displayed picture 90º (counter)

clockwise. (Press (play) to restart

slideshow.)

Pauses the slideshow and flips the

displayed picture horizontally or

vertically. (Press (play) to restart

slideshow.)

ZOOM Pauses the slideshow and zooms the

picture. Press again to toggle

between 1x, 2x and 4x zoom. (Press

(play) to restart slideshow.)

MENU Displays the Disc Navigator screen

(see below).

DV48AV_EN.book 28 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Tip

• You can also play a JPEG slideshow while

listening to MP3/WMA/MPEG-4 AAC

playback. Simply select the audio file you

want to listen to followed by the JPEG from

which you want the slideshow to start.

Playback of both the slideshow and the

audio files repeats. Playback controls are

effective for the JPEG slideshow only.

• To play the contents of the whole disc

rather than just the current folder, exit the

Disc Navigator and start playback using

the (play) button.

Looping a section of a disc

The A-B Repeat function allows you to specify

two points (A and B) within a track (CD, Video

CD) or title (DVD-Video and DVD-RW) that

form a loop which is played over and over.

• You can’t use A-B Repeat with DVD-Audio,

SACD, Video CDs in PBC mode, or MP3/

WMA/MPEG-4 AAC/DivX video/WMV files.

1 During playback, press PLAY MODE

and select ‘A-B Repeat’ from the list of

functions on the left.

2 Press ENTER on ‘A(Start Point)’ to set

the loop start point.

3 Press ENTER on ‘B(End Point)’ to set the

loop end point.

After pressing ENTER, playback jumps back to

the start point and plays the loop.

4 To resume normal playback, select ‘Off’

from the menu.

Using repeat play

There are various repeat play options,

depending on the kind of disc loaded. It’s also

possible to use repeat play together with

program play to repeat the tracks/chapters in

the program list (see Creating a program list on

page 32).

Important

• You can’t use Repeat play with Video CDs

in PBC mode, or with MP3/WMA/MPEG-4

AAC discs.

• You can’t use repeat and random play at

the same time.

1 During playback, press PLAY MODE

and select ‘Repeat’ from the list of

functions on the left.

2 Select a repeat play option.

If program play is active, select Program

Repeat to repeat the program list, or Repeat

Off to cancel.

The repeat options available depend on the

kind of disc loaded. For example, for DVD-

Video and DVD-RW discs, you can select Title

Repeat or Chapter Repeat (or Repeat Off).

• For DVD-Audio discs, select Group

Repeat or Track Repeat (or Repeat Off).

• For SACDs,CDs and Video CDs, select

Disc Repeat or Track Repeat (or Repeat

Off).

DV48AV_EN.book 30 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Creating a program list

This feature lets you program the play order of

titles/chapters/groups/tracks on a disc.

Important

• You can’t use Program play with VR format

DVD-R/-RW discs, Video CDs playing in

PBC mode, MP3/WMA/

MPEG-4 AAC discs, DivX video/WMV

discs, or while a DVD disc menu is being

displayed.

1 Press PLAY MODE and select ‘Program’

from the list of functions on the left.

2 Select ‘Create/Edit’ from the list of

program options.

3 Use the cursor buttons and ENTER to

select a title, chapter or track for the

current step in the program list.

For a DVD-Video disc, you can add a title or a

chapter to the program list.

• For a DVD-Audio disc, you can add a whole

group, or a track within a group to the

program list.

• For a CD, SACD or Video CD, select a track

to add to the program list.

After pressing ENTER to select the title/

chapter/group/track, the step number

automatically moves down one.

4 Repeat step 3 to build up a program

list.

A program list can contain up to 24 titles/

chapters/tracks.

• You can insert steps into the middle of a

program list by just highlighting the

position where you want the new step to

appear and entering a title/chapter/group/

track number.

• To delete a step, highlight it and press

CLEAR.

5 To play the program list, press (play).

Program play remains active until you turn off

program play (see below), erase the program

list (see below), eject the disc or switch off the

player.

Tip

• Use the following controls during program

play:

Other functions available from the

program menu

There are a number of other options in the

program menu in addition to Create/Edit.

•Playback Start – Starts playback of a

saved program list

•Playback Stop – Turns off program play,

but does not erase the program list

•Program Delete – Erases the program list

and turns off program play

Button What it does

PLAY MODE Save the program list and exit

the program edit screen

without starting playback

(HOME MENU does the

same).

Skip to the next step in the

program list.

DV48AV_EN.book 32 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Switching audio language/

channels

When playing a DVD-Video and DivX video disc

recorded with dialog in two or more

languages, you can switch audio language

during playback.

When playing a VR format DVD-R/-RW disc

recorded with dual-mono audio, you can

switch between the main, sub, and mixed

channels during playback.

When playing a DVD-Audio disc, you may be

able to switch channels—see the disc box for

details. (When you change the audio channel,

playback restarts from the beginning of the

current track.)

When playing a Video CD, you can switch

between stereo, just the left channel or just the

right channel.

1 Press AUDIO repeatedly to select an

audio language/channel option.

The language/channel information is shown

on-screen.

Note

• Some DVD discs only allow you to change

audio language from the disc menu. Press

TOP MENU or MENU to access.

• To set DVD audio language preferences,

see Language settings on page 41.

Zooming the screen

Using the zoom feature you can magnify a part

of the screen by a factor of 2 or 4, while

watching a DVD, DivX video/WMV title or Video

CD or playing a JPEG disc.

1 During playback, use the ZOOM button

to select the zoom factor (Normal, 2x or

4x).

• Since DVD, Video CD, DivX video/WMV

title and JPEG pictures have a fixed

resolution, picture quality will deteriorate,

especially at 4x zoom. This is not a

malfunction.

2 Use the cursor buttons to change the

zoomed area.

You can change the zoom factor and the

zoomed area freely during playback.

• If the navigation square at the top of the

screen disappears, press ZOOM again to

display it.

Switching camera angles

Some DVD discs feature scenes shot from two

or more angles — check the disc box for

details.

When a multi-angle scene is playing, a

icon appears on screen to let you know that

other angles are available (this can be

switched off if you prefer — see Display

settings on page 41).

• During playback, press ANGLE to

switch angle.

Displaying disc information

Various track, chapter and title information,

such as the elapsed and remaining playing

time can be displayed on-screen while a disc is

playing.

• To show/switch/hide the information

displayed, press DISPLAY repeatedly.

• When a disc is playing, the information

appears at the top of the screen. Keep

pressing DISPLAY to change the displayed

information.

DV48AV_EN.book 34 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Audio Settings and Video Adjust menus

Chapter 7

Audio Settings and Video

Adjust menus

Audio Settings menu

The Audio Settings menu offers features for

adjusting the way discs sound.

1 Press HOME MENU and select ‘Audio

Settings’ from the on-screen display.

2 Select and change settings using the

(cursor) buttons, and ENTER.

Audio DRC

•Settings:High, Medium, Low,

Off (default)

When watching Dolby Digital DVDs at low

volume, it’s easy to lose the quieter sounds

completely — including some of the dialog.

Switching Audio DRC (Dynamic Range

Control) to on can help by bringing up the

quieter sounds, while controlling loud peaks.

How much of a difference you hear depends

on the material you’re listening to. If the

material doesn’t have wide variations in

volume, you may not notice much change.

Note

• Audio DRC is only effective with Dolby

Digital audio sources.

• Audio DRC is only effective through the

digital output when Digital Out is set to

On, and Dolby Digital Out is set to Dolby

Digital > PCM (see Digital Audio Out

settings on page 39).

• The effect of Audio DRC also depends on

your speakers and AV receiver settings.

Virtual Surround

• Settings: On, Off (default)

Switch on Virtual Surround to enjoy realistic

surround sound effects from just two

speakers.

Tip

• You can also use the SURROUND button

on the remote control to switch Virtual

Surround on.

Note

• 96 kHz linear PCM audio is automatically

downsampled to 48 kHz if Virtual Surround

is switched on.

•TheAudio Output Mode (see page 45)

must be set to 2 Channel in order to be

able to use Virtual Surround.

• If the player is outputting Dolby Digital,

DTS or MPEG bitstream audio (in other

words, no conversion to PCM), Virtual

Surround has no effect on the audio from

the digital output. See Digital Audio Out

settings on page 39 for how to set up the

digital output formats.

DV48AV_EN.book 36 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Chapter 8

Initial Settings menu

Using the Initial Settings menu

The Initial Settings menu provides audio and

video output settings, parental lock settings,

and display settings, among others.

If an option is grayed out it means that it

cannot be changed at the current time. This is

usually because a disc is playing. Stop the

disc, then change the setting.

1Press

HOME MENU and select ‘Initial

Settings’.

2 Use the cursor buttons and ENTER to

select the setting and option you want to

set.

All the settings and options are explained on

the following pages.

Note

• In the table below, the default setting is

shown in bold: other settings are shown in

italics.

•The

Digital Audio Out settings only need

to be set if you have connected the digital

output of this player to an AV receiver, or

other equipment.

• Check the operating instructions supplied

with your other equipment to see which

digital audio formats it’s compatible with.

• Some settings, such as TV Screen, Audio

Language and Subtitle Language may be

overridden by the DVD disc. Often these

settings can also be made from the DVD

disc menu.

•The

HDMI Out, HDMI Resolution and

HDMI Color settings only need to be set if

you connected this player to an HDMI-

compatible component using the HDMI

connector.

•The

Digital Audio Out, Component Out,

SACD Playback and Speakers settings

cannot be set if the player is connected to

an HDMI-compatible component using

the HDMI connector. Additionally, certain

settings such as HDMI Out, HDMI

Resolution, and HDMI Color may be

changed automatically.

DV48AV_EN.book 38 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Video Output settings

Setting Option What it means

TV Screen

(This setting effective

for analog and HDMI

video output. See

also Screen sizes and

disc formats on

page 52.)

4:3 (Letter Box) Set if you have a conventional 4:3 TV. Widescreen movies are

shown with black bars top and bottom.

4:3 (Pan & Scan) Set if you have a conventional 4:3 TV. Widescreen movies are

shown with the sides cropped so that the image fills the

screen.

16:9 (Wide) Set if you have a widescreen TV.

16:9 (Compressed) Can be selected when you are connected via HDMI, and have

the HDMI Resolution set to 1920 x 1080p, 1920 x　

1080i or 1280 x 720p. Video in 4:3 can be properly

displayed on a 16:9 high definition television (with black bars

shown on either side of the screen).

Component Out Progressive Set if your TV is compatible with progressive scan video (see

your TV’s instruction manual for details). The PRGSVE

indicator lights in the front panel display. See also Switching

the video output to interlace using the front panel controls on

page 13.

Note that progressive scan video is only output from the

component video jacks.

Interlace Set if your TV is not compatible with progressive scan video.

HDMI Resolution 1920x1080p Set if your TV supports 1

920 x 1080 pixel progressive-scan

video. 24 Hz frame rate is not supported.

1920x1080i Set if your TV supports 1920 x 1080 pixel interlace video.

1280x720p Set if your TV supports 1280 x 720 pixel progressive-scan

video.

720x480p Set if your TV supports 720 x 480 pixel progressive-scan video.

720x480i Set if your TV supports 720 x 480 pixel interlace video.

HDMI Color Full range RGB If colors are weak, this gives brighter colors and deeper

black.

RGB Use this setting if colors appear overly rich on the Full Range

RGB setting.

Component Outputs component video format (default setting for HDMI-

compatible devices).

DV48AV_EN.book 40 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Options settings

Parental Lock

• Default level: Off; Default password: none;

Default Country/Area code: us (2119)

To give you some control over what your

children watch on your DVD player, some

DVD-Video discs feature a Parental Lock level.

If your player is set to a lower level than the

disc, the disc won’t play.

Some discs also support the Country/Area

Code feature. The player does not play certain

scenes on these discs, depending on the

Country/Area Code you set.

Note

• Not all discs use Parental Lock, and will

play without requiring the password first.

• If you forget your password, you’ll need to

reset the player to register a new password

(see Resetting the player on page 53).

Registering a new password

You must register a password before you can

change the Parental Lock level or enter a

Country code.

1 Select ‘Options’, then ‘Password’.

2 Use the number buttons to enter a

4-digit password.

The numbers you enter show up as asterisks

(*) on-screen.

3 Press ENTER to register the password.

You will return to the Options menu screen.

Setting Option What it means

Parental Lock – See Parental Lock below.

DVD Playback

Mode

DVD-Audio All material on a DVD-Audio disc is playable.

DVD-Video Only the DVD-Video part of a DVD-Audio disc is playable.

SACD Playback 2ch Area Selects the 2 channel (strereo) SACD audio area of the disc

for playback.

Multi-ch Area Selects the multi-channel SACD audio area of the disc for

playback.

CD Area Selects the standard CD audio area of an SACD/CD hybrid

disc for playback.

DTS Downmix STEREO Downmixes DTS for 2 channel output to regular stereo. (See

also DTS Downmix on page 43.)

Lt/Rt Downmixes DTS for 2 channel output to be compatible with

Dolby Surround matrix decoders. (See also DTS Downmix on

page 43.)

DivX VOD Display See About DivX® VOD content on page 44.

DV48AV_EN.book 42 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

About DivX

VOD content

In order to play DivX VOD (video on demand)

content on this player, you first need to register

the player with your DivX VOD content

provider. You do this by generating a DivX VOD

registration code, which you submit to your

provider.

Important

• DivX VOD content is protected by a DRM

(Digital Rights Management) system. This

restricts playback of content to specific,

registered devices.

• If you load a disc that contains DivX VOD

content not authorized for your player, the

message Authorization Error is displayed

and the content will not play.

• Resetting the player (as described in

Resetting the player on page 53) will not

cause you to lose your registration code.

Displaying your DivX VOD

registration code

1PressHOME MENU and select ‘Initial

Settings’.

2 Select ‘Options’, then ‘DivX VOD’.

3 Select ‘Display’.

Your 8-digit registration code is displayed.

Make a note of the code as you will need it

when you register with a DivX VOD provider.

Playing DivX

VOD content

Some DivX VOD content may only be playable

a fixed number of times. When you load a disc

containing this type of DivX VOD content, the

remaining number of plays is shown on-

screen and you then have the option of playing

the disc (thereby using up one of the

remaining plays), or stopping. If you load a

disc that contains expired DivX VOD content

(for example, content that has zero remaining

plays), the message Rental Expired is

displayed.

If your DivX VOD content allows an unlimited

number of plays, then you may load the disc

into your player and play the content as often

as you like, and no message will be displayed.

DV48AV_EN.book 44 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

About the audio output settings

The table below shows how the audio settings you make in the Initial Settings menu (see

page 38) affect the output from the 2 channel and the 5.1 channel analog outputs, and from the

digital outputs with various types of disc.

*1When Audio Output Mode is set to 2 Channel, the AUDIO OUT (5.1ch) FRONT L / R jacks act as a second pair

of stereo audio outputs.

*2Dolby Digital > PCM, MPEG > PCM or DTS > PCM setting (page 39)

*3Dolby Digital, MPEG or DTS setting (page 39)

*4Discs that prohibit downmixing will be output as 5.1 channel even if 2 Channel is selected as the Audio Output

Mode setting (see page 45).

*5Discs that prohibit downmixing also mute the digital output.

*6When Audio Output Mode is set to 5.1 Channel, mono sources are heard from the center speaker only.

DV48AV_EN.book 46 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

HDMI output with DVD-Audio and SACD sources

The way audio sources are output from the HDMI terminal depends on the specification of the

connected component.

*1This unit checks the specification of the connected component (such sample rate/multi-

channel limitations and compatibility with protected audio contents) and outputs the signal

accordingly. Note that ‘DVD-Audio compatible’ indicates compatibility with protected audio

contents. ‘SACD compatible’ indicates compatibility with DSD signals.

*2If HDMI Out setting (page 39) is set to LPCM (2CH), DVD-Audio multichannel sources will be

downmixed to stereo. (In cases where the source is downmix-prohibited, only the front left/right

channels are output.) For SACD sources, the 2 channel (stereo) SACD audio area is selected.

If the video output resolution is 480i or 480p audio output may be limited to 2 channel (depending

to the connected component).

*3In cases where the source is downmix-prohibited, only the front left/right channels are output.

*4If CPPM shows in the front panel display, it means it is not possible to output CPPM copycon-

trolled DVD-Audio sources from the HDMI connection. Discs with no CPPM protection are

limited to 2 channel output.

DV48AV_EN.book 48 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Speaker Installation

•Defaultsettings:

L/R: Large

C: Large

SL/

SR: Large

SW: On

You only need to make this setting if you

connected thisplayerto your amplifier using the

5.1 channel analog outputs.

This setting does not affect digital audio output.

Use the Speaker Installation screen to tell the

player what kinds of speakers you have

connected.

1Usethe (cursor up/down) buttons

to select a speaker.

•The

Land R, and SR and SL speakers are

paired; you can’t set them differently.

2Press (cursor right) to modify the

selected speaker.

3Usethe (cursor up/down) buttons

to change the current setting.

• You can see the effect of your changes in

the room graphic on the right of the

screen.

• Except for the subwoofer, you can set

speaker size to Large or Small. If the main

speaker cone in the speaker is 12 cm or

more, set to Large, otherwise set to Small

(or Off if you don’t have that speaker).

• If you set the front Land Rspeakers to

Small, the center and surround speakers

are automatically set to Small and the

subwoofer to On.

• The subwoofer can only be set to On or Off.

4Press (cursor left) to go back to the

speaker list if you want to modify another

speaker, or press ENTER to exit the Speaker

Installation screen.

DV48AV_EN.book 50 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Condensation

Condensation may form inside the player if it is

brought into a warm room from outside, or if

the temperature of the room rises quickly.

Although the condensation won’t damage the

player, it may temporarily impair its

performance. Leave it to adjust to the warmer

temperature for about an hour before

switching on.

Moving the player

If you need to move the player, first press

STANDBY/ON on the front panel to turn the

player off. Wait for -OFF- to disappear from the

display, then unplug the power cable. Never lift

or move the unit during playback — discs

rotate at a high speed and may be damaged.

Screen sizes and disc formats

DVD-Video discs come in several different

screen aspect ratios, ranging from TV

programs, which are generally 4:3, to

CinemaScope widescreen movies, with an

aspect ratio of up to about 7:3.

Televisions, too, come in different aspect

ratios; ‘standard’ 4:3 and widescreen 16:9.

Widescreen TV users

If you have a widescreen TV, the TV Screen

setting (page 40) of this player should be set to

16:9 (Wide) or 16:9 (Compressed).

When you watch discs recorded in 4:3 format

with the 16:9 (Wide) setting, you can use the

TV controls to select how the picture is

presented. Your TV may offer various zoom and

stretch options; see the instructions that came

with your TV for details.

Please note that some movie aspect ratios are

wider than 16:9, so even though you have a

widescreen TV, these discs will still play in a

‘letter box’ style with black bars at the top and

bottom of the screen.

Standard TV users

If you have a standard TV, the TV Screen

setting (page 40) of this player should be set to

4:3 (Letter Box) or 4:3 (Pan&Scan),

depending on which you prefer.

Set to 4:3 (Letter Box), widescreen discs are

shown with black bars top and bottom.

Set to 4:3 (Pan&Scan), widescreen discs are

shown with the left and right sides cropped.

Although the picture looks larger, you don’t

actually see the whole picture.

Please note that many widescreen discs

override the player’s settings so that the disc is

shown in letter box format regardless of the

setting.

Note

•Usingthe16:9 (Wide) or 16: 9

(Compressed) setting with a standard 4:3

TV, or either of the 4:3 settings with a

widescreen TV, will result in a distorted

picture.

DV48AV_EN.book 52 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Troubleshooting

Incorrect operation is often mistaken for trouble or malfunction. If you think that there is

something wrong with this component, check the points below. Sometimes the trouble may lie

in another component. Inspect the other components and electrical appliances being used. If

the trouble cannot be rectified after checking the items below, ask your nearest Pioneer

authorized service center or your dealer to carry out repair work.

Problem Remedy

The disc won’t play or is

automatically ejected

after loading.

• Make sure the disc is free from dirt and dust and is not damaged

(page 51).

• Make sure the disc is loaded with the label side face-up and aligned

properly in the disc tray guide.

• Incompatible region number: If the region number on a DVD-Video

disc does not match the number on the player, the disc cannot be used

(page 53). In this case the attention sentence “Incompatible disc

region number Can’t play disc” is displayed on screen.

• Condensation inside the player: Allow time for condensation to

evaporate. Avoid using the player near an air-conditioning unit.

• Disc is loaded upside down: Reload the disc with the label side face

up.

DVD-Audio playback

stops.

• The disc may have been illegally copied.

Picture playback stops

and the operation

buttons cannot be used.

• Press , then start playback again ( ).

• Press and hold the front panel STANDBY/ON button for about

10 seconds to switch the unit off, then press again to switch back on.

• Switch the power off once, unplug from the wall socket, then plug

back in and switch on again using the front panel STANDBY/ON

button.

New settings made in the

Setup screen menus while

a disc is playing are

ineffective.

• Some settings can be changed while a disc is playing, but are not

effective until the disc is stopped then restarted: Press , then start

playback again ( ).

Settings are canceled. • When the power is cut due to power failure or by unplugging the

power cord, settings will be canceled: Press STANDBY/ON on the

front panel to turn the player off. Wait for -OFF- to disappear from the

display, then unplug the power cord.

The remote control

doesn’t seem to work.

• The remote control is too far from the player, or the angle with the

remote sensor is too wide: Use the remote within its operating range

(page 19).

• The batteries are exhausted: Put in new ones (page 7).

DV48AV_EN.book 54 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Cannot play multi-

channel audio.

• Make sure that Audio Output Mode is set to 5.1 Channel

(page 45).

• Check that the Dolby Digital, DTS and MPEG Out settings (page 39)

are suitable for your amplifier/receiver — check the instruction manual

that came with your amplifier/receiver.

• DVD-Audio and SACDs do not output multichannel digital audio.

Listen through the player’s analog outputs.

• Check that the settings in the Speaker Installation screen are correct

(page 50).

• Check the audio options available from the disc menu.

Cannot listen to high-

sampling rate audio

through the digital

output.

• Make sure that Linear PCM Out is set to Down Sample Off

(page 39).

• As a copy-protection measure, some DVDs do not output 96kHz

audio. In this case, even if set to Down Sample Off, the player

automatically outputs the audio at 48 kHz. This is not a malfunction.

Cannot output 192 kHz or

176.4 kHz digital audio. • The player does not output digital audio at these sampling rates. The

digital output is automatically downsampled.

Cannot output 96 kHz or

88.2 kHz digital audio.

• Check that Linear PCM Out is set to Down Sample Off (page 39).

• Some discs are digital copy protected and do not output high

sampling rate digital audio. In this case the output is automatically

downsampled.

No DTS audio output. • If this unit is connected to a non-DTS compatible amplifier or

decoder using a digital audio cable, set DTS Out to DTS >PCM

(page 39). If you do not do this, noise will be output when you play a

DTS disc.

• If this unit is connected to a DTS-compatible amplifier or decoder

using a digital audio cable, check the amplifier settings, and that the

cable is properly connected.

Audio mix does not

sound right or sounds

incomplete (for example,

inaudible dialog).

• Make sure that Audio Output Mode is set to 2 Channel if you’ve

connected to the stereo inputs on your amplifier or TV (page 45).

Can’t hear effect of

Virtual Surround.

• Virtual Surround does not work with SACD or DVD-Audio.

• The Virtual Surround effect is only output through the AUDIO OUT

(2ch) analog audio outputs.

• Make sure that Audio Output Mode is set to 2 Channel (page 45).

• The effectiveness of Virtual Surround varies with the disc.

Problem Remedy

DV48AV_EN.book 56 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

USB troubleshooting

Note

• Static electricity or other external influences may cause malfunctioning of this unit. In this

case, unplug the power cord and then plug back in. This will usually reset the unit for proper

operation. If this does not correct the problem, please consult your nearest Pioneer service

center.

A connected DVI

component (with HDCP)

doesn’t work with this

player.

• This unit has been designed to be compliant with HDMI (High-

Definition Multimedia Interface). Depending on the component you

have connected, using a DVI connection may result in unreliable signal

transfers.

Problem Remedy

USB mass storage device

is not recognized by the

system.

• Make sure you have completely inserted the USB connector to this unit.

• Check that the memory format is FAT16 or FAT32.

• USB devices with an internal USB hub are not supported.

Files don’t show up in the

Navigator/Photo Browser.

• The files must have the correct file extension: .mp3 for MP3 files; .wma for

WMA files; .m4a for MPEG-4 AAC files; .jpg for JPEG files (upper or lower-

case is OK).

• Make sure the file permission hasn’t been restricted (through a password,

etc.).

Can’t play WMA or MPEG-

4 AAC files.

• The files were recorded using DRM (digital rights management) or

FairPlay copy-protection. This is not a malfunction.

DV48AV_EN.book 58 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Progressive

scan video

All the lines that make up a video

picture are updated in one pass

(compared to interlace which takes two

passes to update the whole picture).

Regions

(DVD-Video

only)

These associate DVD-Video discs and

players with particular areas of the

world. See DVD-Video regions on

page 53 for more information.

Sampling

frequency

The rate at which sound is measured to

be turned into digital audio data. The

higher the rate, the better the sound

quality. CD is 44.1 kHz; DVD can be up

to 96 kHz. See also Digital audio.

Super Audio

CD (SACD)

Super Audio CD is a high quality audio

disc format that can accommodate

high sampling rate stereo and multi-

channel audio, as well as conventional

CD audio all on the same disc.

WMA WMA is short for Windows Media

Audio and refers to an audio

compression technology developed by

Microsoft Corporation. Files are

recognized by their file extension

“.wma”.

WMV WMV is an acronym for Windows

Media Video and refers to a video

compression technology developed by

Microsoft Corporation. Files are

recognized by the file extension “.wmv”.

DV48AV_EN.book 60 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Specifications

General

Power requirements

. . . . . . . . . . . . . . . . . . . . . . . . . . . AC 120 V, 60 Hz

Power consumption . . . . . . . . . . . . . . . . . . . 12 W

Power consumption (standby). . . . . . . . . . 0.7 W

Weight . . . . . . . . . . . . . . . . . . . 2.6 kg (5 lb 12 oz)

Dimensions

420 mm (W) x 51.5 mm (H) x 215.5 mm (D)

(16-9/16 in. (W) x 2-1/16 in. (H) x 8-1/2 in. (D))

Operating temperature . . . . . . .+5 °C to +35 °C

(+41 °F to +95 °F)

Operating humidity. . . . . . . . . . . . . . .5 % to 85 %

(no condensation)

Component video output

Y (luminance) - Output level. . . . . . 1 Vp-p (75 )

PB(color) - Output level . . . . . . . . 0.7 Vp-p (75 )

PR(color) - Output level . . . . . . . . 0.7 Vp-p (75 )

Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA

S-video output

Y (luminance) - Output level. . . . . . 1 Vp-p (75 )

C (color) - Output level . . . . . . .286 mVp-p (75 )

Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-video

Video output

Output level . . . . . . . . . . . . . . . . . . 1 Vp-p (75 )

Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA

Audio output (1 stereo pair)

Output level . . . . . . . . . . . . . During audio output

200 mVrms (1 kHz, –20 dB)

Number of channels . . . . . . . . . . . . . . . . . . . . . 2

Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA

HDMI output

HDMI output . . . . . . . . . . . . . . . . . . . . . . . . 19 pin

Audio output (multi-channel / L, R, C, SW,

SL, SR)

Output level . . . . . . . . . . . . .During audio output

200 mVrms (1 kHz, –20 dB)

Number of channels . . . . . . . . . . . . . . . . . . . . . . 6

Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA

Digital audio characteristics

Frequency response . . . . . . . . . . .4 Hz to 44 kHz

S/N ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 dB

Dynamic range. . . . . . . . . . . . . . . . . . . . . . 100 dB

Total harmonic distortion . . . . . . . . . . . 0.0023 %

Wow and flutter . . . . . . . . Limit of measurement

(±0.001 % W. PEAK) or lower

Digital output

Coaxial digital output. . . . . . . . . . . . . . . . . . . RCA

Optical digital output

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Optical

Accessories

Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . 1

AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . 2

Audio/video cable . . . . . . . . . . . . . . . . . . . . . . . . 1

Operating instructions

The specifications and design of this product are subject

to change without notice, due to improvement.

DV48AV_EN.book 62 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Contents

01 Before you start

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . .6

What’s in the box. . . . . . . . . . . . . . . . . . . . .7

Hints on installation . . . . . . . . . . . . . . . . . .8

Disc/content format playback

compatibility . . . . . . . . . . . . . . . . . . . . . . . .8

02 Connections

Easy connections. . . . . . . . . . . . . . . . . . . .11

Connecting using the S-video output . . . . .12

Connecting using the component video

output . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Connecting to an AV receiver. . . . . . . . . . .13

Connecting using HDMI . . . . . . . . . . . . . .15

About HDMI . . . . . . . . . . . . . . . . . . . . . . .16

03 Controls and displays

Front panel . . . . . . . . . . . . . . . . . . . . . . . .17

Remote control . . . . . . . . . . . . . . . . . . . . .18

Setting up the remote to control your

TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

04 Getting started

Switching on . . . . . . . . . . . . . . . . . . . . . . .20

Using the on-screen displays. . . . . . . . . . .20

Setting up the player for your TV . . . . . . . .21

Setting the language of this player’s on-screen

displays . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Playing discs . . . . . . . . . . . . . . . . . . . . . . .22

05 Playing discs

Scanning discs . . . . . . . . . . . . . . . . . . . . .27

Playing in slow motion. . . . . . . . . . . . . . . .27

Frame advance/frame reverse . . . . . . . . . .27

Viewing a JPEG slideshow . . . . . . . . . . . . .28

Browsing DVD or Video CD disc with the Disc

Navigator . . . . . . . . . . . . . . . . . . . . . . . . . .28

Browsing WMA, MP3, MPEG-4 AAC, DivX

video, WMV and JPEG files with the Disc

Navigator . . . . . . . . . . . . . . . . . . . . . . . . . .29

Looping a section of a disc . . . . . . . . . . . .30

Using repeat play. . . . . . . . . . . . . . . . . . . .30

Using random play . . . . . . . . . . . . . . . . . .31

Creating a program list . . . . . . . . . . . . . . .32

Searching a disc . . . . . . . . . . . . . . . . . . . . 33

Switching subtitles . . . . . . . . . . . . . . . . . . 33

Switching audio language/channels. . . . . 34

Zooming the screen . . . . . . . . . . . . . . . . . 34

Switching camera angles . . . . . . . . . . . . . 34

Displaying disc information . . . . . . . . . . . 34

06 USB playback

Using the USB interface . . . . . . . . . . . . . . 35

07 Audio Settings and Video Adjust

menus

Audio Settings menu . . . . . . . . . . . . . . . . 36

Video Adjust menu . . . . . . . . . . . . . . . . . . 37

08 Initial Settings menu

Using the Initial Settings menu. . . . . . . . . 38

Digital Audio Out settings. . . . . . . . . . . . . 39

Video Output settings . . . . . . . . . . . . . . . . 40

Language settings . . . . . . . . . . . . . . . . . . 41

Display settings . . . . . . . . . . . . . . . . . . . . 41

Options settings . . . . . . . . . . . . . . . . . . . . 42

Parental Lock . . . . . . . . . . . . . . . . . . . . . . 42

Speakers settings . . . . . . . . . . . . . . . . . . . 45

About the HDMI audio output

settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 47

HDMI output with DVD-Audio and SACD

sources. . . . . . . . . . . . . . . . . . . . . . . . . . . 48

09 Additional information

Taking care of your player and discs . . . . . 51

Screen sizes and disc formats . . . . . . . . . 52

Resetting the player . . . . . . . . . . . . . . . . . 53

DVD-Video regions . . . . . . . . . . . . . . . . . . 53

Selecting languages using the language code

list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Troubleshooting . . . . . . . . . . . . . . . . . . . . 54

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Language code list . . . . . . . . . . . . . . . . . . 61

Country/Area code list . . . . . . . . . . . . . . . 61

Specifications . . . . . . . . . . . . . . . . . . . . . . 62

DV48AV_EN.book 5 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Before you start 01

• Built-in Dolby1Digital and DTS2

decoding with multichannel outputs

This player features multichannel analog

outputs for connection to an AV amplifier to

give you stunning surround sound from Dolby

Digital, DTS and multichannel DVD-Audio

discs.

What’s in the box

Please confirm that the following accessories

are in the box when you open it.

• Remote control

• AA/R6P dry cell batteries x 2

• Audio/video cable (red/white/yellow plugs)

• Operating instructions

Putting the batteries in the remote

• Open the battery compartment cover

and insert the batteries as shown.

Use two AA/R6P batteries and follow the

indications (, ) inside the compartment.

Close the cover when you’re finished.

Important

Incorrect use of batteries can result in hazards

such as leakage and bursting. Please observe

the following:

• Don’t mix new and old batteries together.

• Don’t use different kinds of battery

together — although they may look

similar, different batteries may have

different voltages.

• Make sure that the plus and minus ends of

each battery match the indications in the

battery compartment.

• Remove batteries from equipment that

isn’t going to be used for a month or more.

• When disposing of used batteries, please

comply with governmental regulations or

environmental public instruction’s rules

that apply in your country/area.

• Do not use or store batteries in direct

sunlight or other excessively hot place,

such as inside a car or near a heater. This

can cause batteries to leak, overheat,

explode or catch fire. It can also reduce the

life or performance of batteries.

1. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks

of Dolby Laboratories.

2. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.

DV48AV_EN.book 7 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

• Multi-session playback: No

• Unfinalized disc playback: No

• File structure (may differ): Up to 299

folders on a disc; up to 648 folders and files

(combined) within each folder

DVD+R/DVD+RW compatibility

Only DVD+R/DVD+RW discs recorded in

‘Video Mode (DVD Video Mode)’ which have

been finalized, can be played back. However,

some editing made during the recording may

not be played back accurately.

DVD-R/-RW compatibility

• Compatible formats: DVD-Video, Video

Recording (VR)*

* Edit points may not play exactly as edited;

screen may go momentarily blank at edited

points.

• Unfinalized playback: No

• MP3/WMA/MPEG-4 AAC/JPEG or DivX

video/WMV file playback on DVD-R/-RW:

Compressed audio compatibility

• Compatible formats: MPEG-1 Audio Layer

3 (MP3), Windows Media Audio (WMA),

MPEG-4 AAC

• Sampling rates: 32 kHz, 44.1 kHz or 48 kHz

• Bit-rates: Any (128 kbps or higher

recommended)

• VBR (variable bit rate) MP3/WMA/MPEG-4

AAC playback: No

• WMA lossless encoding compatible: No

• DRM (Digital Rights Management)

compatible: No (DRM-protected audio files

will not play in this player—see also DRM

in the Glossary on page 59)

• File extensions: .mp3, .wma, .m4a (these

must be used for the player to recognize

MP3, WMA and MPEG-4 AAC files – do not

use for other file types)

About MPEG-4 AAC

Advanced Audio Coding (AAC) is at the core of

the MPEG-4 AAC standard, which

incorporates MPEG-2 AAC, forming the basis

of the MPEG-4 audio compression technology.

The file format and extension used depend on

the application used to encode the AAC file.

This unit plays back AAC files encoded by

iTunes®bearing the extension ‘.m4a’. DRM-

protected files will not play, and files encoded

with some versions of iTunes®may not play, or

filenames may display incorrectly.

Apple and iTunes are trademarks of Apple Inc., registered

in the U.S. and other countries.

WMA (Windows Media™ Audio)

compatibility

This player can playback Windows Media

Audio content.

WMA is an acronym for Windows Media Audio

and refers to an audio compression

technology developed by Microsoft

Corporation. WMA content can be encoded by

using Windows Media Player for Windows XP,

Windows Media Player 9 or Windows Media

Player 10 series.

Windows Media is a trademark of Microsoft

Corporation.

This product includes technology owned by

Microsoft Corporation and cannot be used or

distributed without a license from Microsoft

Licensing, Inc.

About DivX video

DivX is a media technology created by DivX,

Inc. DivX media files contain not only video but

also include advanced media features like

menus, subtitles, and alternate audiotracks.

This player can play DivX videos burned on

CD-R/-RW/-ROM discs. Keeping the same

terminology as DVD-Video, individual DivX

video files are called “Titles”. When naming

files/titles on a CD-R/-RW disc prior to burning,

keep in mind that by default they will be played

in alphabetical order.

DV48AV_EN.book 9 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

Chapter 2

Connections

Easy connections

Important

• Before making or changing any connections, switch off the power and disconnect the power

cable from the AC outlet.

• The setup described here is a basic setup that allows you to play discs using just the cables

supplied with the player. In this setup, stereo audio is played through the speakers in your TV.

• This player is equipped with copy protection technology. Do not connect this player to your

TV via a VCR using audio/video or S-video cables, as the picture from this player will not

appear properly on your TV. (This player may also not be compatible with some combination

TV/VCRs for the same reason; refer to the manufacturer for more information.)

1 Connect the VIDEO OUT and AUDIO

OUT (5.1ch)/AUDIO OUT L/R jacks to a set

of A/V inputs on your TV.

Use the supplied audio/video cable,

connecting the red and white plugs to the

audio outputs and the yellow plug to the video

output. Make sure you match up the left and

right audio outputs with their corresponding

inputs for correct stereo sound.

See below if you want to use a component or

S-video cable for the video connection.

2 Plug into a power outlet.

Note

• Before unplugging the player from the

power outlet, make sure you first switch it

into standby using either the front panel

STANDBY/ON button, or the remote

control, and wait of the -OFF- message to

disappear from the player’s display.

• For the above reasons, do not plug this

player into a switched power supply found

on some amplifiers and AV receivers.

Yellow

White

Red

DV48AV_EN.book 11 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Watching progressive scan video

from the component video outputs

This player can output progressive scan video

from the component video output. Compared

to interlace video, progressive scan video

effectively doubles the scanning rate of the

picture, resulting in a very stable, flicker-free

image.

To set up the player for use with a progressive

scan TV, see Video Output settings on page 40.

When the player is set to output progressive

scan video, the PRGSVE indicator lights in the

front panel display.

Important

• If you connect a TV that is not compatible

with a progressive scan signal and switch

the player to progressive, you will not be

able to see any picture at all. In this case,

switch everything off and reconnect using

the supplied video cable (see Easy

connections on page 11), then switch back

to Interlace (see below).

Switching the video output to interlace

using the front panel controls

Switch the player to standby then, using the

front panel controls, press STANDBY/ON

while pressing to switch the player back to

Interlace.

• If the player is connected using HDMI,

disconnect the HDMI cable before

resetting the player to interlace output. (If

left connected, the HDMI output

resolution will be reset to its default — see

Resetting the output resolution to the

default setting with HDMI connection on

page 16.)

Connecting to an AV receiver

You can connect this player to your AV receiver

using the multichannel analog outputs or one

of the digital outputs.

In addition to these connections, you should

also connect the 2 channel analog outputs for

compatibility with all discs.

You’ll probably also want to connect a video

output to your AV receiver. You can use any of

the video outputs available on this player (the

illustration shows a standard (composite)

connection).

1 Connect the analog AUDIO OUT

(5.1ch)/AUDIO OUT L/R and VIDEO OUT

jacks on this player to a set of analog audio

and video inputs on your AV receiver.

2 Connect the AV receiver’s video output

to a video input on your TV.

You can also use the S-video or component

video jacks to connect to the AV receiver if you

prefer.

Tip

• You usually have to connect the same kind

of video cable between your DVD player

and AV receiver, and between your AV

receiver and TV.

AV eceive

DV48AV_EN.book 13 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connecting using HDMI

If you have a HDMI equipped monitor or

display, you can connect it to this player using

a commercially available HDMI cable.

The HDMI connector outputs uncompressed

digital video, as well as almost every kind of

digital audio that the player is compatible with,

including DVD-Video, DVD-Audio (see below

for limitations), SACD, Video CD, CD, WMA,

MP3, MPEG-4 AAC, DivX video and WMV.

• Use an HDMI cable to connect the

HDMI OUT interconnect on this player to

an HDMI interconnect on a HDMI-

compatible display.

The arrow on the cable connector body should

be face up for correct alignment with the

connector on the player.

Note

• This unit has been designed to be

compliant with HDMI (High-Definition

Multimedia Interface). Depending on the

component you have connected, using a

DVI connection may result in unreliable

signal transfers.

• When you change the component

connected to the HDMI output, you will

also need to change the HDMI settings to

match the new component (see HDMI Out

on page 39, HDMI Resolution and HDMI

Color on page 40 to do this). However, the

settings for each component are then

stored in memory (for up to 2

components).

• The HDMI connection is compatible with 2

channel linear PCM signals (44.1 kHz to

192 kHz, 16 bit/20 bit/24 bit), and Dolby

Digital, DTS, MPEG audio bitstream, multi

channel DSD, and multi channel linear

PCM signals, (5.1 channel signals up to 96

kHz, 16 bit/20 bit/24 bit).

DV48AV_EN.book 15 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Controls and displays

Chapter 3

Controls and displays

Front panel

1STANDBY/ON (page 20)

2 Disc tray

3TOPMENU(page 24)

4 ENTER & cursor buttons (page 20)

5MENU(page 24)

6 RETURN (page 24)

7HOMEMENU(page 20)

8Display

9OPEN/CLOSE (page 22)

10 (page 23)

11 (page 23)

12 (page 23)

13 and (page 23)

14 HDMI indicator

Lights when this player is recognized by

another HDMl or DVI/HDCP compatible

component.

15 DVD/USB (page 35)

16 USB port (Type A) (page 35)

17 RW Compatible (page 9)

DV48AV_EN.book 17 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Using the remote control

Keep in mind the following when using the

remote control:

• Make sure that there are no obstacles

between the remote and the remote

sensor on the unit.

• The remote has a range of about 23 feet.

• Remote operation may become unreliable

if strong sunlight or fluorescent light is

shining on the unit’s remote sensor.

• Remote controllers for different devices

can interfere with each other. Avoid using

remotes for other equipment located close

to this unit.

• Replace the batteries when you notice a

fall off in the operating range of the

remote.

Setting up the remote to

control your TV

You can use the supplied remote to control

your TV. To be able to use this feature you first

have to program the remote with a maker code

from the table below.

1 Press and hold down the CLEAR button,

then enter the maker code for your TV.

See the table below for the list of maker codes.

If there is more than one code given for your

make, input the first one in the list.

• If the maker’s name of your TV doesn’t

appear in the table below, you will not be

able to use this remote to control your TV.

2PressTV to check that the remote

works with your TV.

If the remote is set up correctly, the TV should

switch on/off. If it doesn’t and there is another

code given for your maker, repeat step 1with a

new code.

Using the TV remote control buttons

The table below shows how to use this remote

control with your TV.

Button What it does

TV Press to switch the TV on/off

(standby)

INPUT SELECT Press to change the TV’s video

input

VOLUME +/– Use to adjust the TV volume

CHANNEL +/– Use to change TV channels

Maker Code

Aiwa 38

Funai 36

GE 11, 28

General 34

Goldstar 10, 23

Grandiente 30

Hitachi 06, 24, 25, 32

Magnavox 12, 29

Mitsubishi 09

NEC 37

Panasonic 08, 22, 41

Philips 07

Pioneer 00, 35, 40, 44

RCA 01, 15, 16, 17, 18

Samsung 73, 75

Sanyo 14, 21

Sharp 02, 19, 27

Sony 04

Toshiba 05, 26, 31, 43

JVC 13, 33, 42

Zenith 03, 20

DV48AV_EN.book 19 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

Setting up the player for your

If you have a widescreen (16:9) TV, you should

setup the player so that the picture will be

presented correctly. If you have a conventional

(4:3) TV, you can leave the player on the default

setting and move on to the next section.

1 Press HOME MENU and select ‘Initial

Settings’.

2 Select ‘TV Screen’ from the ‘Video

Output’ settings.

3 If you have a widescreen (16:9) TV,

select ‘16:9 (Wide)’ or ‘16:9 (Compressed)’.

If you have a conventional (4:3) TV, you can

change the setting from 4:3 (Letter Box) to

4:3 (Pan & Scan) if you prefer. See Video

Output settings on page 40 for more details.

4 Press HOME MENU to exit the menu

screen.

Setting the language of this

player’s on-screen displays

This sets the language of the player’s on-

screen displays.

1 Press HOME MENU and select ‘Initial

Settings’.

2 Select ‘OSD Language’ from the

‘Display’ settings.

3 Select a language.

The on-screen language will change according

to your selection.

4 Press HOME MENU to exit the menu

screen.

DV48AV_EN.book 21 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Basic playback controls

The table below shows the basic controls on

the remote for playing discs. The following

chapter covers other playback features in

more detail.

Resume and Last Memory

With the exception of DVD-Audio and SACD

discs, when you stop playback of a DVD, CD, or

Video CD or DivX video/WMV discs, RESUME

is shown in the display indicating that you can

resume playback again from that point.

If the disc tray is not opened, the next time you

start playback the display shows RESUME and

playback resumes from the resume point. (If

you want to clear the resume point, press

(stop) while RESUME is displayed.)

With DVDs and Video CDs, if you take the disc

out of the player after stopping playback, the

last play position is stored in memory. If the

next disc you load is the same one, the display

shows LAST MEM and playback will resume.

For DVD-Video discs, the player stores the play

position of the last five discs. When one of

these discs is next loaded, you can resume

playback.

Note

• The Last Memory function doesn’t work

with VR format DVD-R/-RW, DVD-Audio or

SACD discs.

• If you don’t need the Last Memory function

when you stop a disc, you can press

OPEN/CLOSE to stop playback and

open the disc tray.

Button What it does

Starts playback.

If the display shows RESUME or

LAST MEM playback starts from the

resume or last memory point (see

also Resume and Last Memory

below.)

Pauses a disc that’s playing, or

restarts a paused disc.

Stops playback.

more on disc compatibility.

• I have a widescreen TV so why are there

black bars at the top and bottom of the

screen when I play some discs?

Some movie formats are such that even

when played on a widescreen TV, black

bars are necessary at the top and bottom

of the screen. This is not a malfunction.

• I have a standard (4:3) TV and set the player

to show widescreen DVDs in pan & scan

format, so why do I still get black bars top

and bottom with some discs?

Some discs override the display

preferences of the player, so even if you

have 4:3 (Pan & Scan) selected, those

discs will still be shown in letter box

format. This is not a malfunction.

Button What it does

RETURN Displays the PBC menu.

Numbers

(remote

only)

Use to enter a numbered menu

option. Press ENTER to select.

Displays the previous menu page (if

there is one).

Displays the next menu page (if

there is one).

DV48AV_EN.book 25 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Chapter 5

Playing discs

Note

• Many of the functions covered in this

chapter apply to DVD and SACD discs,

Video CDs, CDs, DivX

video/WMV and MP3/WMA/MPEG-4 AAC/

JPEG discs, although the exact operation

of some varies slightly with the kind of disc

loaded.

• Some DVDs restrict the use of some

functions (random or repeat, for example)

in some or all parts of the disc. This is not

a malfunction.

• When playing Video CDs, some of the

functions are not available during PBC

playback. If you want to use them, start the

disc playing using a number button to

select a track.

Scanning discs

You can fast-scan discs forward or backward

at four different speeds (only one speed for

DivX video/WMV).

1 During playback, press or to

start scanning.

• There is no sound while scanning DVDs

(including DVD-Audio), DivX video/WMV

and Video CDs.

2 Press repeatedly to increase the

scanning speed.

• The scanning speed is shown on-screen.

3 To resume normal playback, press

(play).

• When scanning a Video CD playing in PBC

mode or a MP3/WMA/MPEG-4 AAC track,

playback automatically resumes at the end

or beginning of the track.

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached on a DVD disc.

Playing in slow motion

You can play DVD-Videos and DVD-R/-RW at

four different slow motion speeds, forwards

and backwards. Video CDs and DivX video/

WMV can be played at four different forward

slow motion speeds.

1 During playback, press (pause).

2 Press and hold / or / until

slow motion playback starts.

• The slow motion speed is shown on-

screen.

• There is no sound during slow motion

playback.

3 Press repeatedly to change the slow

motion speed.

4 To resume normal playback, press

(play).

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached.

Frame advance/frame reverse

You can advance or back up DVD-Video and

DVD-R/-RW discs frame-by-frame. With Video

CDs and DivX video/WMV file you can only use

frame advance.

1 During playback, press (pause).

2 Press / or / to reverse or

advance a frame at a time.

3 To resume normal playback, press

(play).

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached.

DV48AV_EN.book 27 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

The screen shows up to six moving thumbnail

images displayed one after another. To display

the previous/next six thumbnails, press /

(you don’t have to wait for all the

thumbnails to finish playing to display the

previous/next page).

3 Select the thumbnail image for what

you want to play.

You can use either the cursor buttons (

) and ENTER to select a thumbnail, or

the number buttons.

To select using the number buttons, enter a

two-digit number then press ENTER.

Tip

• Another way to find a particular place on a

disc is to use one of the search modes. See

Searching a disc on page 33.

Browsing WMA, MP3, MPEG-4

AAC, DivX video, WMV and

JPEG files with the Disc

Navigator

Use the Disc Navigator to find a particular file

or folder by filename. Note that if there are

other types of files on the same disc, these will

not be displayed in the Disc Navigator.

1 Press HOME MENU and select ‘Disc

Navigator’ from the on-screen menu.

2 Use the cursor buttons ( )

and ENTER to navigate.

Use the cursor up/down buttons ( ) to

move up and down the folder/file list.

Use the cursor left button ( ) to return to the

parent folder.

Use ENTER or cursor right ( ) to open a

highlighted folder.

• You can also return to the parent folder by

going to the top of the list to the ‘..’ folder,

then pressing ENTER.

• When a JPEG file is highlighted, a

thumbnail image is displayed on the right.

3 To play the highlighted track or DivX

video/WMV file or display the highlighted

JPEG file, press ENTER.

• When a MP3/WMA/MPEG-4 AAC or DivX

video/WMV file is selected, playback

begins, starting with the selected file, and

continues until the end of the folder.

• When a JPEG file is selected, a slideshow

begins, starting with that file, and

continues to the end of the folder.

DV48AV_EN.book 29 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

• For DivX video/WMV discs, select Title

Repeat, and for some DivX media files,

select Chapter Repeat (or Repeat Off).

Using random play

Use the random play function to play titles or

chapters (DVD-Video), Groups (DVD-Audio), or

tracks (DVD-Audio, SACD, CD, Video CD) at

random. (Note that the same track/title/

chapter may play more than once.)

You can set the random play option when a

disc is playing or stopped.

Important

• Random play remains in effect until you

select Random Off from the random play

menu options.

• You can’t use random play with VR format

DVD-R/-RW discs, Video CDs playing in

PBC mode, MP3/WMA/

MPEG-4 AAC discs, DivX video/WMV

discs, or while a DVD disc menu is being

displayed.

• You can’t use random play together with

program or repeat play.

1 Press PLAY MODE and select ‘Random’

from the list of functions on the left.

2 Select a random play option.

The random play options available depend on

the kind of disc loaded. For example, for DVD-

Video discs, you can select Random Title or

Random Chapter (or Random Off).

• For DVD-Audio discs, select Random

Group or Random Track, (or Random

Off).

• For CDs, SACDs and Video CDs, select On

or Off to switch random play on or off.

Tip

• Use the following controls during random

play:

Button What it does

Selects a new track/title/chapter

at random.

Returns to the beginning of the

current track/title/chapter;

further presses select another

random track/title/chapter.

DV48AV_EN.book 31 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Searching a disc

You can search DVD-Video discs by title or

chapter number, or by time; DVD-Audio discs

can be searched by group or track number;

SACDs by track number, CDs and Video CDs

by track number or time; DivX video /WMV

discs by time, and some DivX media files by

chapter number.

Important

• Search functions are not available with

Video CDs in PBC mode, or with MP3/

WMA/MPEG-4 AAC discs.

1 Press PLAY MODE and select ‘Search

Mode’ from the list of functions on the left.

2 Select a search mode.

The search options available depend on the

kind of disc loaded.

• The disc must be playing in order to use

time search.

3 Use the number buttons to enter a title,

chapter or track number, or a time.

• For a time search, enter the number of

minutes and seconds into the currently

playing title (DVD/ DivX video/WMV) or

track (CD/Video CD) you want playback to

resume from. For example, press 4, 5, 0, 0

to have playback start from 45 minutes into

the disc. For 1 hour, 20 minutes and 30

seconds, press 8, 0, 3, 0.

• Some DVD-Audio discs feature pages of

browsable pictures. Enter the page

number you want.

4 Press ENTER to start playback.

Switching subtitles

Some DVD-Video and DivX video discs have

subtitles in one or more languages; the disc

box will usually tell you which subtitle

languages are available. You can switch

subtitle language during playback.

1 Press SUBTITLE repeatedly to select a

subtitle option.

Note

• Some discs only allow you to change

subtitle language from the disc menu.

Press TOP MENU or MENU to access.

• To set subtitle preferences, see Subtitle

Language on page 41.

• See Displaying external subtitle files on

page 10 for more on DivX subtitles.

DV48AV_EN.book 33 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

USB playback

Chapter 6

USB playback

Using the USB interface

It is possible to listen to two-channel audio and

watch JPEG files using the USB interface on

the front of this unit. Connect a USB mass

storage device as shown below.

Note

• This includes playback of MP3/WMA/

MPEG-4 AAC/JPEG files (except files with

copy-protection or restricted playback).

• Compatible USB devices include portable

flash memory (particularly keydrives) and

digital audio players (MP3 players) of

format FAT16/32. It is not possible to

connect this unit to a personal computer

for USB playback.

• Pioneer cannot guarantee compatibility

(operation and/or bus power) with all USB

mass storage devices and assumes no

responsibility for any loss of data that may

occur when connected to this unit.

• With large amounts of data, it may take

longer for the system to read the contents

of a USB device.

• The Home Menu cannot be displayed

while using the USB mode.

1 With the player switched on, press

DVD/USB.

Make sure your TV is on and set to the correct

video input, and that USB MODE is showing

on the front panel display.

2 Connect your USB device.

The USB terminal is located on the front panel.

• Disc Navigator is automatically displayed.

3 Press ENTER to start playback.

• The method of playback for files saved on a

USB device is the same as for other discs.

For more information, see Basic playback

controls on page 23 and Playing discs on

page 27.

4 Turn off this player and remove the

USB device.

• The next time you turn this player on it will

start up in USB mode. To return to DVD

mode, either press DVD/USB or press

OPEN/CLOSE to open the disc tray.

Important

If a USB ERR message lights in the display, it

may mean that the power requirements of the

USB device are too high for this player, or that

the device is incompatible. Try the following:

• Switch the player off, then on again.

• Reconnecting the USB device with the

player switched off.

• Change the player back to DVD mode

(LOADING will appear in the front panel

display whether a disc is inserted or not) by

pressing DVD/USB, then once again

select USB mode (USB MODE will appear

in the front panel display).

• Using a dedicated AC adapter (supplied

with the device) for USB power.

If this doesn’t remedy the problem, it is likely

your USB device is incompatible.

USB mass

sto age device

DV48AV_EN.book 35 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Audio Settings and Video Adjust menus

• How good the surround effect is varies

with the disc.

Note

• 96 kHz linear PCM audio is automatically

downsampled to 48 kHz if the Equalizer is

switched on.

Dialog

•Settings:High, Medium, Low, Off

(default)

The Dialog feature is designed to make the

dialog stand out from other background

sounds in the soundtracks.

Video Adjust menu

From the Video Adjust screen you can adjust

various settings that affect how the picture is

presented.

1 Press HOME MENU and select ‘Video

Adjust’ from the on-screen display.

2 Make settings using the

(cursor) buttons, and ENTER.

You can adjust the following picture quality

settings:

•Sharpness – Adjusts the sharpness of

edges in the picture (Fine, Standard

(default), Soft).

•Brightness – Adjusts the overall

brightness (–20 to +20).

•Contrast – Adjusts the contrast between

light and dark (–16 to +16).

•Gamma – Adjusts the ‘warmth’ of the

picture (High, Medium, Low, Off

(default)).

•Hue – Adjusts the red/green balance

(green 9 to red 9).

•Chroma Level – Adjusts how saturated

colors appear (–9 to +9).

•BNR – Switches on/off block noise

reduction (On, Off (default)).

Adjust the Brightness, Contrast, Hue and

Chroma Level settings using the (cursor

left/right) buttons.

3 Press ENTER to return to the Video

Adjust screen, or HOME MENU to exit.

DV48AV_EN.book 37 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Digital Audio Out settings

Setting Option What it means

Digital Out On Digital audio is output from the digital outputs.

Note that there is no digital output when playing SACDs and

some DVD-Audio discs regardless of this setting.

Off No digital audio output.

Dolby Digital Out Dolby Digital Dolby Digital encoded digital audio is output when playing a

Dolby Digital DVD disc.

Dolby Digital > PCM Dolby Digital audio is converted to PCM audio before being

output.

DTS Out DTS DTS encoded digital audio is output when playing a DTS disc.

(Noise will be output if your amplifier/receiver is not

compatible with DTS audio.)

DTS > PCM No digital audio is output when playing a DTS disc.DTS audio

is converted to PCM audio before being output.

Linear PCM Out Down Sample On 96 kHz digital audio is converted to 48 kHz for digital output.

Note that High sampling rate DVD-Audio discs (192 kHz or

176.4 kHz) automatically output down-sampled audio through

the digital outputs.

Down Sample Off 96 kHz digital audio is output as is at 96 kHz.

MPEG Out MPEG > PCM MPEG encoded digital audio is converted to PCM audio for

digital output.

MPEG MPEG encoded digital audio is output as is.

HDMI Out LPCM (2CH) Set if your monitor or device only accepts stereo input. On

this setting multichannel audio is downmixed to 2 channels

for stereo linear PCM output.

LPCM (5.1CH) Set if the monitor or device you have connected using HDMI

is compatible with Liner PCM multi-channel formats. All

audio signals are output as linear PCM 5.1 format. (Use this

setting if you want to decode all streams by a player)

Auto Dolby Digital, DTS and MPEG sources are processed

according to how they were encoded, and linear PCM

sources are heard as is. SACD sources are output as linear

PCM.

Auto (DSD) Set if you want to output DSD audio from an SACD source.

Off No digital audio output. Choose this option when you want to

change the Digital Audio Out, SACD Playback and

Speakers settings.

DV48AV_EN.book 39 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Language settings

Display settings

Setting Option What it means

Audio Language English If there is an English soundtrack on the disc then it will be

played.

Languages as displayed If there is the language selected on the disc, then it will be

played.

Other Language Select to choose a language other than the ones displayed

(see page 53).

Subtitle Language

(See also Displaying

external subtitle files on

page 10.)

English If there are English subtitles on the disc then they will be

displayed.

Languages as displayed If there is the subtitle language selected on the disc, then it

will be displayed.

Other Language Select to choose a language other than the ones displayed

(see page 53).

DVD Menu

Lang.

w/Subtitle Lang. DVD disc menus will be displayed in the same language as

your selected subtitle language, if possible.

Languages as displayed DVD disc menus will be displayed in the selected language,

if possible.

Other Language Select to choose a language other than the ones displayed

(see page 53).

Subtitle Display On Subtitles are displayed according to your selected subtitle

language (see above).

Off Subtitles are always off by default when you play a DVD disc

(note that some discs override this setting).

Setting Option What it means

OSD Language English On-screen displays of the player are in English.

Languages as displayed On-screen displays are shown in the language selected.

Angle Indicator On A camera icon is displayed on-screen during multi-angle

scenes on a DVD disc.

Off No multi-angle indication is shown.

DV48AV_EN.book 41 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Changing your password

To change your password, confirm your

existing password then enter a new one.

1 Select ‘Password Change’.

2 Use the number buttons to enter your

existing password, then press ENTER.

3 Enter a new password and press ENTER.

This registers the new password and you will

return to the Options menu screen.

Setting/changing the Parental Lock

1 Select ‘Level Change’.

2 Use number buttons to enter your

password, then press ENTER.

3 Select a new level and press ENTER.

• Press (cursor left) repeatedly to lock

more levels (more discs will require the

password); press (cursor right) to

unlock levels. You can’t lock level 1.

This sets the new level and you will return to

the Options menu screen.

Setting/changing the Country/Area

code

You can find the Country/Area code list on

page 61.

1 Select ‘Country Code’.

2 Use number buttons to enter your

password, then press ENTER.

3 Select a Country/Area code and press

ENTER.

There are two ways you can do this:

• Select by code letter: Use (cursor up/

down) to change the Country/Area code.

• Select by code number: Press (cursor

right) then use the number buttons to

enter the 4-digit Country/Area code.

The new Country/Area code is set and you will

return to the Options menu screen. Note that

the new Country/Area code doesn’t take effect

until the next disc is loaded (or the current disc

is reloaded).

DTS Downmix

• Default setting: STEREO

If you’ve selected DTS > PCM in DTS Out on

page 39 or 2 Channel in Audio Output Mode on

page 45, you can choose the way the signal is

downmixed to PCM audio. STEREO will

downmix the DTS signal to 2-channel stereo,

whereas Lt/Rt will downmix to a 2-channel

signal compatible with Dolby surround matrix

decoders. (This allows you to hear surround

sound if your AV receiver or amplifier has

Dolby Pro Logic capability.)

DV48AV_EN.book 43 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Speakers settings

Audio Output Mode

• Default setting: 2 Channel

If you connected this player to your amplifier

using the 5.1 channel analog outputs (front,

surround, center and subwoofer outs), set this

to 5.1 Channel; if you connected only the

stereo outs, set to 2 Channel.

Note

• Even if you set Audio Output Mode to

5.1 Channel, you’ll only get sound from all

speakers when playing a 5.1 channel

multi-channel disc.

• When set to 5.1 Channel, only the front left/

right channels are output from the AUDIO

OUT (2ch) jacks. Change to 2 Channel if

you want to listen to downmixed stereo

audio (for example, because you are

listening through the TV’s built-in

speakers).

• When set to 5.1 Channel there is no digital

output when playing DVD-Audio.

•Ifyousetto2 Channel, Dolby Digital, DTS

and MPEG audio is mixed down to two

channels so you still hear all the audio

recorded on the disc. With DTS encoded

audio, you can choose how the signal is

downmixed to PCM audio. See DTS

Downmix on page 43 to change the

downmix setting.

• Some DVD-Audio discs don’t allow down-

mixing of audio. These discs always output

multi-channel audio regardless of the

setting made here.

Setting Option What it means

Audio Output

Mode

2 Channel The player outputs analog audio in stereo only. See also

Audio Output Mode below.

5.1 Channel The player outputs 5.1 channel analog audio. See also Audio

Output Mode below.

Speaker Distance – Specify the distance of your speakers from your listening

position. See also Speaker Distance on page 49.

Speaker

Installation

–Specify the number and size of speakers in your system. See

also Speaker Installation on page 50.

DV48AV_EN.book 45 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

About the HDMI audio output settings

The table below shows how the audio settings you make in the HDMI Out (see HDMI Out on

page 39) and Audio Output Mode screens (Audio Output Mode on page 45) affect the HDMI

output with various types of disc.

*1These formats include DVD-RW discs.

*2If the connected component is not DVD-Audio (CPPM) compatible, it is not possible to output

CPPM copy-controlled DVD-Audio sources from the HDMI connection (see HDMI output with

DVD-Audio and SACD sources on page 48 for more on this).

*3If the discs prohibit downmixing, output Front L/R.

*4If the HDMI device you are using is not compatible with Multi-ch formats, the output signal is

the same as LPCM (2CH) setting.

*5If the HDMI device you are using is not compatible with these compressed formats, the signal

is output as linear PCM.

*6If the connected HDMI device is not compatible with protected audio contents (such as

DVD-Audio or SACD), SACD audio is not output from the HDMI terminal.

*7 Analog SACD audio is not output when you have HDMI Out set to Auto (DSD).

DV48AV_EN.book 47 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Speaker Distance

• Default settings: all speakers 10.0ft

You only need to make this setting if you

connected thisplayerto your amplifier using the

5.1 channel analog outputs.

These settings do not affect any digital audio

output.

To get the best surround sound from your

system, you should set up the speaker

distances from your listening position.

1Usethe (cursor up/down) to select

a speaker.

•The

Land Rspeakers are paired; you can’t

set them differently.

2Press (cursor right) to change the

speaker distance for the highlighted

speaker.

3Usethe (cursor up/down) to

change the distance.

• When you change the distance settings of

the front left (L) or front right (R) speakers,

all the other speaker distances change

relative to it.

• Front left/right (L/R) speaker distances can

be set from 1.0 ft to 30.0 ft in 1.0 ft

increments.

• The center speaker (C) can be set from

–7.0 ft to 0.0 ft relative to the front left/right

speakers.

• Surround left/right (SL/SR) speakers can

be set from –20.0 ft to 0.0 ft relative to the

front left/right speakers.

• You can’t set the subwoofer (SW) distance.

4 Press (cursor left) to go back to the

speaker list if you want to modify another

speaker, or press ENTER to exit the Speaker

Distance screen.

Note

During playback of SACD and MPEG-audio

DVD-Video discs, the effective C, SL and SR

speaker distance settings are –3.0 ft to 0.0 ft

relative to the front left/right speakers.

DV48AV_EN.book 49 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Chapter 9

Additional information

Taking care of your player and

discs

General

Hold discs by the edge or by the center hole

and edge.

When you’re not using a disc, return it to its

case and store upright. Avoid leaving discs in

excessively cold, humid, or hot environments

(including under direct sunlight).

Don’t glue paper or put stickers on to discs. Do

not use a pencil, ball-point pen or other sharp-

tipped writing instrument to write on the disc.

Don’t use self-adhesive disc labels on discs as

these can cause the disc to warp slightly

during playback causing distortion in the

picture and/or sound.

Damaged and shaped discs

Do not use cracked, chipped, warped, or

otherwise damaged discs as they may damage

the player.

This player is designed to be used only with

conventional, fully circular discs. Do not use

shaped discs. Pioneer disclaims all liability

arising in connection with the use of shaped

discs.

Cleaning discs

Fingerprints and dust on discs can affect

playback performance. Clean using a soft, dry

cloth, wiping the disc lightly from the center to

the outside edge as shown below.

If necessary, use a cloth soaked in alcohol, or

a commercially available CD/DVD cleaning kit

to clean a disc more thoroughly. Never use

benzine, thinner or other cleaning agents,

including products designed for cleaning vinyl

records.

Cleaning the unit’s exterior

Unplug the unit before cleaning.

Use a dry cloth to wipe off dust and dirt. If the

surfaces are very dirty, wipe with a soft cloth

dipped in some neutral cleanser diluted five or

six times with water and wrung out well, then

wipe again with a dry cloth.

Do not use furniture wax or cleaners. Never

use thinners, benzine or insecticide sprays or

other chemicals on or near this unit.

If you use a chemical-impregnated cleaning

cloth, read the instructions carefully before

use. These cloths may leave smear marks on

half-mirror finish surfaces; if this happens,

finish with a dry cloth.

Cleaning the pickup lens

The DVD player’s lens should not become dirty

in normal use, but if for some reason it should

malfunction due to dust or dirt, consult your

nearest Pioneer-authorized service center. We

do not recommend using commercially

available lens cleaners for CD players.

DV48AV_EN.book 51 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Resetting the player

Use this procedure to reset all the player’s

settings to the factory default.

1 Switch the player into standby.

2 Using the front panel buttons, hold

down the (stop) button and press

STANDBY/ON to switch the player back

on.

All the player’s settings are now reset.

DVD-Video regions

All DVD-Video discs carry a region mark on the

case somewhere that indicates which

region(s) of the world the disc is compatible

with. Your DVD player also has a region mark,

which you can find on the rear panel. Discs

from incompatible regions will not play in this

player. In this case the attention sentence

Incompatible disc region number Can’t

play disc is displayed on screen. Discs

marked ALL will play in any player. The

diagram below shows the various DVD regions

of the world.

Selecting languages using the

language code list

Some of the language options (such as ‘DVD

Menu Lang.’ in the Initial Settings) allow you to

set your preferred language from any of the

136 languages listed in the language code list

on page 61.

1 Select ‘Other Language’.

2Usethe (cursor left/right)

buttons to select either a code letter or a

code number.

3Usethe (cursor up/down) buttons

to select a code letter or a code number.

See Language code list on page 61 for a

complete list of languages and codes.

DV48AV_EN.book 53 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

No picture/No color. • Incorrect video connections: Check that connections are correct and

that plugs are inserted fully. Also check the video cable for damage.

• TV/monitor or AV amplifier settings are incorrect: Check the

instruction manual of the connected equipment.

• The video output is set to progressive but your TV/monitor is not

compatible with progressive scan: See page 13 for how to set to

Interlace.

Screen is stretched or

aspect does not change.

• The TV Screen setting in the Initial Settings menu is incorrect. See

page 52 for how to set it correctly for your TV/monitor.

Picture disturbance

during playback or the

picture is dark.

• This player is compatible with Macro-Vision System copy guard.

Some discs include a copy prevention signal, and when this type of

disc is played back, stripes etc., may appear on some sections of the

picture depending on the TV. This is not a malfunction.

• Due to the player’s copy protection circuits, connection of this device

through a VCR or an AV selector may prevent recording or cause

picture problems. This is not a malfunction.

No audio, or audio is

distorted.

• No audio is output during slow motion playback or when scanning

discs other than audio CDs and SACDs.

• Some DVD discs do not output digital audio: Switch your amplifier to

the player’s analog outputs.

• Check that the disc is free from dust and dirt, and that it is not

damaged (page 51).

• Check that all interconnects are firmly inserted.

• Check that the plugs and terminals are free of dirt, oxide, etc. and

clean if necessary. Also check the cable for damage.

• Make sure the player’s output is not connected to the amplifier’s

phono (turntable) inputs.

• Check your amplifier/receiver’s settings (volume, input function,

speaker settings, etc.).

The analog audio is OK,

but there appears to be

no digital audio signal.

• Make sure that the Digital Out setting is set to On (page 39).

• Check that the Dolby Digital, DTS and MPEG out settings (page 39)

are suitable for your amplifier/receiver — check the instruction manual

that came with your amplifier/receiver.

• SACDs and some DVD-Audio discs do not output digital audio.

Listen through the player’s analog audio outputs.

Noticeable difference in

DVD and CD volume.

• This is due to differences in the audio format and is not a

malfunction.

Problem Remedy

DV48AV_EN.book 55 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

HDMI troubleshooting

Problem Remedy

No HDMI audio output. • Check whether or not HDMI Out is set to Off. (See HDMI Out on

page 39.)

• This unit has been designed to be compliant with HDMI (High-

Definition Multimedia Interface). Depending on the component you

have connected, unreliable signal transfers may result.

• If the front panel HDMI indicator is lit:

– You won’t hear any sound from the HDMI output if the source

component is only DVI/HDCP-compatible.

• If the front panel

HDMI

indicator is unlit then:

– Make sure that you’ve selected this player as the HDMI input in the

settings for the component you’re using. You may need to refer to the

instruction manual of the component to do this.

– Check that the HDMI cable is connected properly and that the cable

isn’t damaged.

– Check that components connected using the HDMI interface are

switched on and HDMI compatible.

No HDMI video output. • Make sure that you’ve selected this player as the HDMI input in the

settings for the component you’re using. You may need to refer to the

instruction manual of the component to do this.

• Check that the HDMI cable is connected properly and that the cable

isn’t damaged.

• Check that components connected using the HDMI interface are

switched on and HDMI compatible.

• This unit has been designed to be compliant with HDMI (High

Definition Multimedia Interface). Depending on the component you

have connected, using a DVI connection may result in unreliable signal

transfers.

• Make sure the resolution on this player matches that of the

component you have connected using HDMI. See HDMI Resolution on

page 40 to change the HDMI resolution. See Resetting the output

resolution to the default setting with HDMI connection on page 16 if you

want to reset the output resolution.

No multichannel HDMI

audio.

• Make sure the HDMI Out setting is set to Auto, Auto (DSD) or

LPCM (5.1CH) (see HDMI Out on page 39 to do this). See also About

the HDMI audio output settings on page 47 and HDMI output with

DVD-Audio and SACD sources on page 48.

No sound is output from

the AUDIO OUT (5.1ch)

jack when connected via

HDMI.

• Check whether or not HDMI Out is set to Off. (See HDMI Out on

page 39.)

Component Out cannot

be set to Interlace.

• You can use the Interlace setting if the HDMI Resolution is set to

720 x 480i.

DV48AV_EN.book 57 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Glossary

Analog audio Direct representation of sound by an

electrical signal. See also Digital audio.

Aspect ratio The width of a TV screen relative to its

height. Conventional TVs are 4:3;

widescreen models are 16:9.

Bonus Group

(DVD-Audio

only)

An ‘extra’ group on some DVD-Audio

discs that requires a key number to

access.

Browsable

pictures

(DVD-Audio

only)

A feature of some DVD-Audio discs in

which the user can browse still

pictures recorded on the disc as the

audio is played.

Digital audio Indirect representation of sound using

numbers. See also Sampling frequency

and Analog audio.

DivX DivX is a media technology created by

DivX, Inc. DivX media files contain not

only video but also include advanced

media features like menus, subtitles,

and alternate audiotracks.

Dolby Digital A multi-channel audio encoding

system developed by Dolby

Laboratories that enables far more

audio to be stored on a disc than PCM

encoding. See also PCM (Pulse Code

Modulation).

DRM DRM (digital rights management) copy

protection is a technology designed to

prevent unauthorized copying by

restricting playback, etc. of

compressed audio files on devices

other than the PC (or other recording

equipment) used to record it. For

detailed information, please see the

instruction manuals or help files that

came with your PC and/or software.

DTS A multi-channel audio encoding

system developed by Digital Theater

Systems that enables far more audio to

be stored on a disc than PCM

encoding. See also PCM (Pulse Code

Modulation).

DSD

(Direct

Stream

Digital)

The Digital Audio encoding system

found on SACDs, that expresses the

audio signals by the pulse density of

one bit data.

EXIF

(Exchangeable

Image File)

A file format developed by FUJIFILM for

digital still cameras. Digital cameras

from various manufacturers use this

compressed file format which carries

date, time and thumbnail information,

as well as the picture data.

File

extension

A tag added to the end of a filename to

indicate the type of file. For example,

“.mp3” indicates an MP3 file.

HDMI HDMI (High-Definition Multimedia

Interface) is a high-speed digital

interface which has the capability to

support standard, enhanced, or high-

definition video plus standard to multi-

channel surround-sound audio on a

single digital connection. HDMI

features include uncompressed digital

video, a bandwidth of up to 5 gigabytes

per second and communication

between the AV source and AV devices

such as DTVs.

ISO 9660

format

International standard for the volume

and file structure of CD-ROM discs.

JPEG A standard file format used for still

images. JPEG files are identified by the

file extension “.jpg”.

MP3 MP3 (MPEG1 audio layer 3) is a

compressed stereo audio file format.

Files are recognized by their file

extension “.mp3”.

MPEG-4 AAC MPEG-4 AAC is a compressed stereo

audio file format. Files are recognized

by the extention ‘.m4a’.

Note that some files purchased with

the iTunes store) may not playback.

MPEG audio An audio format used on Video CDs

and some DVD discs.

Packed PCM

(DVD-Audio

only)

A lossless compression system that

enables more PCM audio to be stored

on a DVD-Audio disc than would

otherwise be possible.

PBC

(PlayBack

Control)

A system of navigating a Video CD

through on-screen menus recorded

onto the disc.

PCM

(Pulse Code

Modulation)

Digital audio encoding system found

on CDs. Good quality, but requires a lot

of data compared to Dolby Digital, DTS

and MPEG encoded audio. See also

Digital audio.

DV48AV_EN.book 59 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Language code list

Language (Language code letter), Language code

Country/Area code list

Country/Area, Country/Area code, Country/Area code letter

Japanese (ja), 1001

English (en), 0514

French (fr), 0618

German (de), 0405

Italian (it), 0920

Spanish (es), 0519

Chinese (zh), 2608

Dutch (nl), 1412

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Afrikaans (af), 0106

Amharic (am), 0113

Arabic (ar), 0118

Assamese (as), 0119

Aymara (ay), 0125

Azerbaijani (az), 0126

Bashkir (ba), 0201

Byelorussian (be), 0205

Bulgarian (bg), 0207

Bihari (bh), 0208

Bislama (bi), 0209

Bengali (bn), 0214

Tibetan (bo), 0215

Breton (br), 0218

Catalan (ca), 0301

Corsican (co), 0315

Czech (cs), 0319

Welsh (cy), 0325

Danish (da), 0401

Bhutani (dz), 0426

Esperanto (eo), 0515

Estonian (et), 0520

Basque (eu), 0521

Persian (fa), 0601

Finnish (fi), 0609

Fiji (fj), 0610

Faroese (fo), 0615

Frisian (fy), 0625

Irish (ga), 0701

Scots-Gaelic (gd), 0704

Galician (gl), 0712

Guarani (gn), 0714

Gujarati (gu), 0721

Hausa (ha), 0801

Hindi (hi), 0809

Croatian (hr), 0818

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (ln), 1214

Laothian (lo), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto, Pushto (ps), 1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Sundanese (su), 1921

Swahili (sw), 1923

Tamil (ta), 2001

Telugu (te), 2005

Tajik (tg), 2007

Thai (th), 2008

Tigrinya (ti), 2009

Turkmen (tk), 2011

Tagalog (tl), 2012

Setswana (tn), 2014

Tonga (to), 2015

Turkish (tr), 2018

Tsonga (ts), 2019

Tatar (tt), 2020

Twi (tw), 2023

Ukrainian (uk), 2111

Urdu (ur), 2118

Uzbek (uz), 2126

Vietnamese (vi), 2209

Volapük (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Argentina, 0118, ar

Australia, 0121, au

Austria, 0120, at

Belgium, 0205, be

Brazil, 0218, br

Canada, 0301, ca

Chile, 0312, cl

China, 0314, cn

Denmark, 0411, dk

Finland, 0609, fi

France, 0618, fr

Germany, 0405, de

Hong Kong, 0811, hk

India, 0914, in

Indonesia, 0904, id

Italy, 0920, it

Japan, 1016, jp

Korea, Republic of, 1118, kr

Malaysia, 1325, my

Mexico, 1324, mx

Netherlands, 1412, nl

New Zealand, 1426, nz

Norway, 1415, no

Pakistan, 1611, pk

Philippines, 1608, ph

Portugal, 1620, pt

Russian Federation,

1821

Singapore, 1907, sg

Spain, 0519, es

Sweden, 1905, se

Switzerland, 0308, ch

Taiwan, 2023, tw

Thailand, 2008, th

United Kingdom, 0702, gb

USA, 2119, us

DV48AV_EN.book 61 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Before you start

Chapter 1

Before you start

Features

The HDMI (High-Definition Multimedia

Interface) interconnect provides high quality

digital audio and video, all from a single user-

friendly connector. HDMI is the first consumer

electronics interface to support

uncompressed standard, enhanced, or high-

definition video plus standard to multi-channel

surround sound audio, all using one interface.

You can easily connect to a HDMI-equipped

AV receiver or audiovisual device for high

quality audio and video, and communication

between the video source and (DTV) players,

set-top boxes, and other audiovisual devices is

also supported.

When connected to a progressive scan-

compatible TV or monitor using the

component video outputs, you can enjoy

extremely stable, flicker free images, with the

same frame refresh rate as the original movie.

The new Disc Navigator enables you play the

first few seconds of each title or chapter in a

thumbnail image on screen.

See Audio Settings and Video Adjust menus on

page 36.

See Zooming the screen on page 34.

See Compressed audio compatibility on page 9.

See JPEG file compatibility on page 10.

See DivX video compatibility on page 10.

See CD-R/-RW compatibility on page 8 or About

WMV on page 10.

An auto power-off function switches the player

into standby if not used for about 30 minutes.

Experience the super high-quality audio

performance of DVD-Audio and Super Audio

CD (SACD).

The on-board 24-bit/192 kHz DAC means that

this player is fully compatible with high

sampling-rate discs, capable of delivering

exceptional sound quality in terms of dynamic

range, low-level resolution and high-frequency

detail.

1. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

licensing LLC.

2. DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

DV48AV_EN.book 6 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Hints on installation

We want you to enjoy using this product for

years to come, so please use the following

guidelines when choosing a suitable location:

Do...

• Use in a well-ventilated room.

• Place on a solid, flat, level surface, such as

a table, shelf or stereo rack.

Don’t...

• Use in a place exposed to high

temperatures or humidity, including near

radiators and other heat-generating

appliances.

• Place on a window sill or a place where the

player will be exposed to direct sunlight.

• Use in an excessively dusty or damp

environment.

• Place directly on top of an amplifier, or

other component in your stereo system

that becomes hot in use.

• Use near a television or monitor as you

may experience interference — especially

if the television uses an indoor antenna.

• Use in a kitchen or other room where the

player may be exposed to smoke or steam.

• Use on a thick rug or carpet, or cover with

cloth — this may prevent proper cooling of

the unit.

• Place on an unstable surface, or one that

is not large enough to support all four of

the unit’s feet.

Disc/content format playback

compatibility

This player is compatible with a wide range of

disc types (media) and formats. Playable discs

will generally feature one of the following logos

on the disc and/or disc packaging. Note

however that some disc types, such as

recordable CD and DVD, may be in an

unplayable format — see below for further

compatibility information.

Please also note that recordable discs cannot be

recorded using this player.

•This unit will play DVD+R/+RW discs.

• is a trademark of DVD Format/Logo

Licensing Corporation.

• is a trademark of FUJIFILM Corporation.

• Also compatible with KODAK Picture CD

About DualDisc playback

A DualDisc is a new two -sided disc, one side

of which contains DVD content video, audio,

etc. while the other side contains non-DVD

content such as digital audio material.

The non-DVD, audio side of the disc is not

compliant with the CD Audio specification and

therefore may not play.

The DVD side of a DualDisc plays in this

product. DVD-Audio content will not play.

For more detailed information on the DualDisc

specification, please refer to the disc

manufacturer or disc retailer.

CD-R/-RW compatibility

• Compatible formats: CD-Audio, Video CD,

ISO 9660 CD-ROM* containing MP3,

WMA, MPEG-4 AAC, JPEG or DivX video/

WMV files

* ISO 9660 Level 1 or 2 compliant. CD

physical format: Mode1, Mode2 XA Form1.

Romeo and Joliet file systems are both

compatible with this player.

DVD-Video DVD-R DVD-RW

Video CDAudio CD CD-R CD-RW

DVD-Audio

Super Audio CD

Fujicolor CD

DV48AV_EN.book 8 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Displaying external subtitle files

The font sets listed below are available for

external subtitle files. You can see the proper

font set on-screen by setting the

(in Language settings on page 41)

to match the subtitle file.

This player supports the following language

groups:

• Some external subtitle files may be

displayed incorrectly or not at all.

• For external subtitle files the following

subtitle format filename extensions are

supported (please note that these files are

not shown within the disc navigation

menu): .srt, .sub, .ssa, .smi

• The filename of the movie file has to be

repeated at the beginning of the filename

for the external subtitle file.

• The number of external subtitle files which

can be switched for the same movie file is

limited to a maximum of 10.

DivX video compatibility

• Official DivX®Ultra Certified product.

• Plays all versions of DivX®video (including

DivX®6) with enhanced playback of DivX®

media files and the DivX®Media Format.

• File extensions: .avi and .divx (these must

be used for the player to recognize DivX

video files). Note that all files with the .avi

extension are recognized as MPEG4, but not

all of these are necessarily DivX video files　

and therefore may not be playable on this

player.

About WMV

WMV is an acronym for Windows Media Video

and refers to a video compression technology

developed by Microsoft Corporation. WMV

content can be encoded by using Windows

Media®Encoder.

• This player is compatible with WMV9 files

that are encoded by using the Windows

Media®Encoder 9 Series, with .wmv as an

extension.

• Compatible with size under 720 x 480

pixels.

• Advanced Profile is not supported.

• DRM-protected video files will not play in

this player.

JPEG file compatibility

• Compatible formats: Baseline JPEG and

EXIF 2.2* still image files up to a resolution

of 3072 x 2048.

*File format used by digital still cameras.

• Progressive JPEG compatible: No

• File extensions: .jpg (must be used for the

player to recognize JPEG files – do not use

for other file types)

PC-created disc compatibility

Discs recorded using a personal computer

may not be playable in this unit due to the

setting of the application software used to

create the disc. In these particular instances,

check with the software publisher for more

detailed information.

Discs recorded in packet write mode (UDF

format) are not compatible with this player.

Check the DVD-R/-RW or CD-R/-RW software

disc boxes for additional compatibility

information.

Albanian (sq), Basque (eu), Catalan (ca),

Danish (da), Dutch (nl), English (en),

Faroese (fo), Finnish (fi), French (fr),

German (de), Icelandic (is), Irish (ga), Italian

(it), Norwegian (no), Portuguese (pt),

Rhaeto-Romanic (rm), Scottish (gd),

Spanish (es), Swedish (sv)

Albanian (sq), Croatian (hr), Czech (cs),

Hungarian (hu), Polish (pl), Romanian (ro),

Slovak (sk), Slovenian (sl)

Bulgarian (bg), Byelorussian (be),

Macedonian (mk), Russian (ru), Serbian (sr),

Ukrainian (uk)

Hebrew (iw), Yiddish (ji)

Turkish (tr)

DV48AV_EN.book 10 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

Connecting using the S-video

output

If your TV (or other equipment) has an S-video

(S1) input, you can use the S-video output on

this player instead of the standard (composite)

output for a better quality picture.

Line up the small triangle above the jack with

the same mark on the plug before plugging in.

Connecting using the

component video output

You can use the component video output

instead of the standard video out jack to

connect this player to your TV (or other

equipment). This should give you the best

quality picture from the three types of video

output available.

DV48AV_EN.book 12 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

Connecting the multichannel analog

outputs

If your AV receiver has 5.1 channel analog

inputs, we recommend connecting this player

to it using the multichannel analog outputs.

Doing this will ensure that you can enjoy all

kinds of disc, including Dolby Digital and DTS

DVD-Video discs, as well as high sampling rate

and multichannel DVD-Audio and SACD

discs.

It’s convenient to use three stereo audio

cables; one for the , one for the

and one for the and

channels.

You can also use the S-video or component

video jacks to connect to the AV receiver if you

prefer.

Tip

• After connecting up and switching on, you

should change the

setting in the Initial Setup menu from the

default to . See

also Audio Output Mode on page 45.

Connecting the digital output

This player has both optical and coaxial-type

digital audio outputs for connection to an AV

receiver. Connect whichever is convenient.

Depending on the capabilities of your AV

receiver, you might have to set up this player to

output only digital audio in a compatible

format. See Digital Audio Out settings on

page 39 and refer to the operating instructions

that came with your AV receiver.

Note that SACD audio is not output through

these jacks, so this connection should be in

addition to, rather than instead of, a 5.1

channel analog connection.

For an optical connection, use an optical cable

(not supplied) to connect the

jack to an optical input

on your AV receiver.

For a coaxial connection, use a coaxial cable

(similar to the supplied video cable) to connect

the jack to a

coaxial input on your AV receiver.

AV eceive

DV48AV_EN.book 14 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

About HDMI

HDMI (High-Definition Multimedia Interface)

supports both video and audio on a single

digital connection for use with DVD players,

DTV, set-top boxes, and other AV devices.

HDMI was developed to provide the

technologies of High-bandwidth Digital

Content Protection (HDCP) as well as Digital

Visual Interface (DVI) in one specification.

HDCP is used to protect digital content

transmitted and received by DVI-compliant

displays.

HDMI has the capability to support standard,

enhanced, or high-definition video plus

standard to multi-channel surround-sound

audio. HDMI features include uncompressed

digital video, a bandwidth of up to five

gigabytes per second (with HDTV signals), one

connector (instead of several cables and

connectors), and communication between the

AV source and AV devices such as DTVs.

Resetting the output resolution to the

default setting with HDMI connection

Switch the player to standby then, using the

front panel controls, press

while pressing to switch the player back to

You can also use the

button on the remote control to switch the

player back to .

DV48AV_EN.book 16 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Controls and displays

Remote control

Tip

• All buttons glow slightly in the dark for

ease of use.

(page 20)

Press to change the display brightness.

(page 23)

(page 32)

(page 34)

(page 33)

(page 24)

(page 20)

(page 36)

(page 30)

(page 23, 27)

(page 23)

(page 22)

(page 40)

(page 16, 40)

(page 20)

(page 35)

(page 34)

(page 24)

(page 20)

(page 34)

(page 23, 27)

(page 23)

(page 19)

DV48AV_EN.book 18 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

Chapter 4

Getting started

Switching on

After making sure that everything is connected

properly and that the player is plugged in,

press on the front panel or

remote control to switch the player on.

Also, switch on your TV and make sure that it

is set to the input you connected the DVD

player to.

FAQ

• My DVD player switches on but there is

nothing displayed on my TV.

Make sure that the TV is set to the correct

video input (not a TV channel). For

example, if you connected this player to

the inputs on your TV, switch your

TV to .

Note

• This player features a screen saver and an

auto power off function. If the player is

stopped and no button is pressed for

around five minutes, the screen saver

starts. If the disc tray is closed but no disc

is playing and no control is pressed for

about 30 minutes, the player automatically

goes into standby.

Using the on-screen displays

For ease of use, this player makes extensive

use of graphical on-screen displays (OSDs).

All the screens are navigated in basically the

same way, using the cursor buttons (

) to change the highlighted item and

pressing to select it.

Note

• From here on in this manual, the word

‘select’ generally means use the cursor

buttons to highlight an item on-screen,

then press .

Display/exit the on-screen display.

Changes the highlighted menu

item.

Selects the highlighted menu

item (both buttons on the

remote work in exactly the same

way).

Returns to the main menu without

saving changes.

DV48AV_EN.book 20 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

Playing discs

The basic playback controls for playing DVD,

CD, SACD, Video CD, DivX video/WMV and

MP3/WMA/MPEG-4 AAC discs are covered

here. Further functions are detailed in the next

chapter.

For details on playing JPEG picture discs, see

Viewing a JPEG slideshow on page 28.

Important

• Throughout this manual, the term ‘DVD’

means DVD-Video, DVD-Audio and

DVD-R/-RW. If a function is specific to a

particular kind of DVD disc, it is specified.

If you’re playing a DVD, disc containing DivX

video/WMV files or Video CD, also turn on your

TV and make sure that it is set to the correct

video input.

Load a disc with the label side facing up, using

the disc tray guide to align the disc (if you’re

loading a double-sided DVD disc, load it with

the side you want to play face down).

If you’re playing a DVD or Video CD, an on-

screen menu may appear. See DVD-Video and

DivX disc menus on page 24 and Video CD PBC

menus on page 25 for more on how to navigate

these.

• If you’re playing a containing DivX video/

WMV files or MP3/WMA/MPEG-4 AAC

audio files, it may take a few seconds

before playback starts, etc. This is normal.

• Please see Disc/content format playback

compatibility on page 8 if you want to play

a DualDisc (DVD/CD hybrid disc).

Note

• You may find with some DVD discs that

some playback controls don’t work in

certain parts of the disc. This is not a

malfunction.

• If a disc contains a mixture of movie (DivX

video/WMV) and other media file types

(MP3, for example), first select whether to

play the movie files ( )or the

other media file types (

) from the on-screen display.

DV48AV_EN.book 22 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

DVD-Video and DivX disc menus

Some DivX media files and many DVD-Video

and DVD-Audio discs feature menus from

which you can select what you want to watch.

They may also give access to additional

features, such as subtitle and audio language

selection, or special features such as

slideshows. See the disc packaging for details.

Sometimes DivX and DVD-Video menus are

displayed automatically when you start

playback; others only appear when you press

or .

Important

• Some DVD-Audio discs feature a ‘bonus

group’. To play this group you first have to

input a password, which you can find on

the disc’s packaging. Use the number

buttons to input the password.

Displays the ‘top menu’ of a DVD

disc — this varies with the disc.

Displays a DVD disc (or DivX

media files) menu — this varies

with the disc and may be the

same as the ‘top menu’.

Moves the cursor around the

screen.

Selects the current menu option.

Returns to the previously dis-

played menu screen. On some

DVD-Audio discs featuring brows-

able pictures, press to display the

browser screen.

(remote

only)

Highlights a numbered menu

option (some discs only). Press

to select.

DV48AV_EN.book 24 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

• I’ve connected to a HDMI compatible

component but I can’t get any signal and

the front panel HDMI indicator won’t light!

Make sure that you’ve selected this player

as the HDMI input in the settings for the

component you’re using. You may need to

refer to the instruction manual of the

component to do this. See Connecting

using HDMI on page 15 for more on HDMI

compatibility.

• There’s no picture from the HDMI output!

This player cannot display pictures from

DVI compatible sources. See Connecting

using HDMI on page 15 for more on HDMI

compatibility.

Make sure the resolution on this player

matches that of the component you have

connected using HDMI. See HDMI

Resolution on page 40 to change the HDMI

resolution.

• My AV receiver is definitely compatible with

96 kHz/88.2 kHz Linear PCM audio, but it

doesn’t seem to work with this player.

What’s wrong?

For digital copy-protection purposes, some

96 kHz/88.2 kHz DVD discs only output

digital audio downsampled to 48 kHz/

44.1 kHz. This is not a malfunction.

To fully take advantage of the high

sampling rate audio, connect the analog

audio outputs to your amplifier/receiver.

• Why can’t I hear SACD audio through the

digital outputs?

SACD digital audio is only available

through the HDMI outputs when

connected to an HDMI-compatible amp

that can handle protected audio contents.

Some DVD-Audio discs too only output

audio through the analog outputs.

• Is it better to listen to DVD-Audio discs

through the analog outputs?

Some DVD-Audio discs do not output

anything through the digital outputs, and

multichannel discs are downmixed to

stereo for the digital output. In addition,

high sampling rate DVD-Audio discs

(higher than 96 kHz) automatically

downsample audio output from the digital

outputs.

Using the multichannel analog audio

outputs for DVD-Audio have none of these

limitations.

• My DVD-Audio disc starts playing, but then

suddenly stops!

The disc may have been illegally copied.

DV48AV_EN.book 26 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Viewing a JPEG slideshow

After loading a CD/CD-R/-RW containing JPEG

picture files, press (play) to start a slideshow

from the first folder/picture on the disc. The

player displays the pictures in each folder in

alphabetical order.

• If the folder contains MP3/WMA/

MPEG-4 AAC files, playback of the

slideshow and MP3/WMA/

MPEG-4 AAC file repeats. During the audio

playback, you can still use the skip (

), scan ( ) and pause ( )

functions.

Pictures are automatically adjusted so that

they fill as much of the screen as possible (if

the aspect ratio of the picture is different to

your TV screen you may notice black bars at

the sides, or at the top and bottom of the

screen).

While the slideshow is running:

Note

• The time it takes for the player to load a file

increases with large file sizes.

Browsing DVD or Video CD

disc with the Disc Navigator

Use the Disc Navigator to browse through the

contents of a DVD-Video, VR mode DVD-R/-RW

or Video CD disc to find the part you want to

play.

Important

• You can’t use the Disc Navigator with

Video CDs in PBC mode.

The options available depend on the kind of

disc loaded and whether the disc is playing or

not, but include:

•– Titles from a DVD-Video disc.

•– Chapters from the current title

of a DVD-Video disc.

•– Tracks from a Video CD disc.

•– Thumbnails from a Video CD disc

at 10 minute intervals.

•– Original titles from a VR

mode DVD-R/-RW disc.

•– Play List titles from a VR

mode DVD-R/-RW disc.

•– Thumbnails from the

Original content at 10 minute intervals.

•– Thumbnails from the

Play List at 10 minute intervals.

Pauses the slideshow; press again to

restart.

Displays the previous picture.

Displays the next picture.

Pauses the slideshow and rotates the

displayed picture 90º (counter)

clockwise. (Press (play) to restart

slideshow.)

Pauses the slideshow and flips the

displayed picture horizontally or

vertically. (Press (play) to restart

slideshow.)

Pauses the slideshow and zooms the

picture. Press again to toggle

between 1x, 2x and 4x zoom. (Press

(play) to restart slideshow.)

Displays the Disc Navigator screen

(see below).

DV48AV_EN.book 28 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Tip

• You can also play a JPEG slideshow while

listening to MP3/WMA/MPEG-4 AAC

playback. Simply select the audio file you

want to listen to followed by the JPEG from

which you want the slideshow to start.

Playback of both the slideshow and the

audio files repeats. Playback controls are

effective for the JPEG slideshow only.

• To play the contents of the whole disc

rather than just the current folder, exit the

Disc Navigator and start playback using

the (play) button.

Looping a section of a disc

The A-B Repeat function allows you to specify

two points (A and B) within a track (CD, Video

CD) or title (DVD-Video and DVD-RW) that

form a loop which is played over and over.

• You can’t use A-B Repeat with DVD-Audio,

SACD, Video CDs in PBC mode, or MP3/

WMA/MPEG-4 AAC/DivX video/WMV files.

After pressing , playback jumps back to

the start point and plays the loop.

Using repeat play

There are various repeat play options,

depending on the kind of disc loaded. It’s also

possible to use repeat play together with

program play to repeat the tracks/chapters in

the program list (see Creating a program list on

page 32).

Important

• You can’t use Repeat play with Video CDs

in PBC mode, or with MP3/WMA/MPEG-4

AAC discs.

• You can’t use repeat and random play at

the same time.

If program play is active, select

to repeat the program list, or

to cancel.

The repeat options available depend on the

kind of disc loaded. For example, for DVD-

Video and DVD-RW discs, you can select

or (or ).

• For DVD-Audio discs, select

or (or ).

• For SACDs,CDs and Video CDs, select

or (or

DV48AV_EN.book 30 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Creating a program list

This feature lets you program the play order of

titles/chapters/groups/tracks on a disc.

Important

• You can’t use Program play with VR format

DVD-R/-RW discs, Video CDs playing in

PBC mode, MP3/WMA/

MPEG-4 AAC discs, DivX video/WMV

discs, or while a DVD disc menu is being

displayed.

For a DVD-Video disc, you can add a title or a

chapter to the program list.

• For a DVD-Audio disc, you can add a whole

group, or a track within a group to the

program list.

• For a CD, SACD or Video CD, select a track

to add to the program list.

After pressing to select the title/

chapter/group/track, the step number

automatically moves down one.

A program list can contain up to 24 titles/

chapters/tracks.

• You can insert steps into the middle of a

program list by just highlighting the

position where you want the new step to

appear and entering a title/chapter/group/

track number.

• To delete a step, highlight it and press

Program play remains active until you turn off

program play (see below), erase the program

list (see below), eject the disc or switch off the

player.

Tip

• Use the following controls during program

play:

Other functions available from the

program menu

There are a number of other options in the

program menu in addition to Create/Edit.

•– Starts playback of a

saved program list

•– Turns off program play,

but does not erase the program list

•– Erases the program list

and turns off program play

Save the program list and exit

the program edit screen

without starting playback

(does the

same).

Skip to the next step in the

program list.

DV48AV_EN.book 32 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Switching audio language/

channels

When playing a DVD-Video and DivX video disc

recorded with dialog in two or more

languages, you can switch audio language

during playback.

When playing a VR format DVD-R/-RW disc

recorded with dual-mono audio, you can

switch between the main, sub, and mixed

channels during playback.

When playing a DVD-Audio disc, you may be

able to switch channels—see the disc box for

details. (When you change the audio channel,

playback restarts from the beginning of the

current track.)

When playing a Video CD, you can switch

between stereo, just the left channel or just the

right channel.

The language/channel information is shown

on-screen.

Note

• Some DVD discs only allow you to change

audio language from the disc menu. Press

or to access.

• To set DVD audio language preferences,

see Language settings on page 41.

Zooming the screen

Using the zoom feature you can magnify a part

of the screen by a factor of 2 or 4, while

watching a DVD, DivX video/WMV title or Video

CD or playing a JPEG disc.

• Since DVD, Video CD, DivX video/WMV

title and JPEG pictures have a fixed

resolution, picture quality will deteriorate,

especially at 4x zoom. This is not a

malfunction.

You can change the zoom factor and the

zoomed area freely during playback.

• If the navigation square at the top of the

screen disappears, press again to

display it.

Switching camera angles

Some DVD discs feature scenes shot from two

or more angles — check the disc box for

details.

When a multi-angle scene is playing, a

icon appears on screen to let you know that

other angles are available (this can be

switched off if you prefer — see Display

settings on page 41).

Displaying disc information

Various track, chapter and title information,

such as the elapsed and remaining playing

time can be displayed on-screen while a disc is

playing.

• When a disc is playing, the information

appears at the top of the screen. Keep

pressing to change the displayed

information.

DV48AV_EN.book 34 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Audio Settings and Video Adjust menus

Chapter 7

Audio Settings and Video

Adjust menus

Audio Settings menu

The Audio Settings menu offers features for

adjusting the way discs sound.

Audio DRC

•Settings: , , ,

(default)

When watching Dolby Digital DVDs at low

volume, it’s easy to lose the quieter sounds

completely — including some of the dialog.

Switching Audio DRC (Dynamic Range

Control) to on can help by bringing up the

quieter sounds, while controlling loud peaks.

How much of a difference you hear depends

on the material you’re listening to. If the

material doesn’t have wide variations in

volume, you may not notice much change.

Note

• Audio DRC is only effective with Dolby

Digital audio sources.

• Audio DRC is only effective through the

digital output when is set to

, and is set to

(see Digital Audio Out

settings on page 39).

• The effect of Audio DRC also depends on

your speakers and AV receiver settings.

Virtual Surround

• Settings: , (default)

Switch on Virtual Surround to enjoy realistic

surround sound effects from just two

speakers.

Tip

• You can also use the button

on the remote control to switch Virtual

Surround on.

Note

• 96 kHz linear PCM audio is automatically

downsampled to 48 kHz if Virtual Surround

is switched on.

•The (see page 45)

must be set to in order to be

able to use Virtual Surround.

• If the player is outputting Dolby Digital,

DTS or MPEG bitstream audio (in other

words, no conversion to PCM), Virtual

Surround has no effect on the audio from

the digital output. See Digital Audio Out

settings on page 39 for how to set up the

digital output formats.

DV48AV_EN.book 36 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Chapter 8

Initial Settings menu

Using the Initial Settings menu

The Initial Settings menu provides audio and

video output settings, parental lock settings,

and display settings, among others.

If an option is grayed out it means that it

cannot be changed at the current time. This is

usually because a disc is playing. Stop the

disc, then change the setting.

All the settings and options are explained on

the following pages.

Note

• In the table below, the default setting is

shown in : other settings are shown in

italics.

•The settings only need

to be set if you have connected the digital

output of this player to an AV receiver, or

other equipment.

• Check the operating instructions supplied

with your other equipment to see which

digital audio formats it’s compatible with.

• Some settings, such as ,

and may be

overridden by the DVD disc. Often these

settings can also be made from the DVD

disc menu.

•The , and

settings only need to be set if

you connected this player to an HDMI-

compatible component using the HDMI

connector.

•The , ,

and settings

cannot be set if the player is connected to

an HDMI-compatible component using

the HDMI connector. Additionally, certain

settings such as ,

, and may be

changed automatically.

DV48AV_EN.book 38 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Video Output settings

(This setting effective

for analog and HDMI

video output. See

also Screen sizes and

disc formats on

page 52.)

Set if you have a conventional 4:3 TV. Widescreen movies are

shown with black bars top and bottom.

4:3 (Pan & Scan) Set if you have a conventional 4:3 TV. Widescreen movies are

shown with the sides cropped so that the image fills the

screen.

16:9 (Wide) Set if you have a widescreen TV.

16:9 (Compressed) Can be selected when you are connected via HDMI, and have

the set to , 　

or . Video in 4:3 can be properly

displayed on a 16:9 high definition television (with black bars

shown on either side of the screen).

Progressive Set if your TV is compatible with progressive scan video (see

your TV’s instruction manual for details). The

indicator lights in the front panel display. See also Switching

the video output to interlace using the front panel controls on

page 13.

Note that progressive scan video is only output from the

component video jacks.

Set if your TV is not compatible with progressive scan video.

1920x1080p Set if your TV supports 1

920 x 1080 pixel progressive-scan

video. 24 Hz frame rate is not supported.

1920x1080i Set if your TV supports 1920 x 1080 pixel interlace video.

1280x720p Set if your TV supports 1280 x 720 pixel progressive-scan

video.

Set if your TV supports 720 x 480 pixel progressive-scan video.

720x480i Set if your TV supports 720 x 480 pixel interlace video.

Full range RGB If colors are weak, this gives brighter colors and deeper

black.

RGB Use this setting if colors appear overly rich on the Full Range

RGB setting.

Outputs component video format (default setting for HDMI-

compatible devices).

DV48AV_EN.book 40 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Options settings

Parental Lock

• Default level: ; Default password: none;

Default Country/Area code:

To give you some control over what your

children watch on your DVD player, some

DVD-Video discs feature a Parental Lock level.

If your player is set to a lower level than the

disc, the disc won’t play.

Some discs also support the Country/Area

Code feature. The player does not play certain

scenes on these discs, depending on the

Country/Area Code you set.

Note

• Not all discs use Parental Lock, and will

play without requiring the password first.

• If you forget your password, you’ll need to

reset the player to register a new password

(see Resetting the player on page 53).

Registering a new password

You must register a password before you can

change the Parental Lock level or enter a

Country code.

The numbers you enter show up as asterisks

(*) on-screen.

You will return to the Options menu screen.

See Parental Lock below.

All material on a DVD-Audio disc is playable.

DVD-Video Only the DVD-Video part of a DVD-Audio disc is playable.

Selects the 2 channel (strereo) SACD audio area of the disc

for playback.

Multi-ch Area Selects the multi-channel SACD audio area of the disc for

playback.

CD Area Selects the standard CD audio area of an SACD/CD hybrid

disc for playback.

Downmixes DTS for 2 channel output to regular stereo. (See

also DTS Downmix on page 43.)

Lt/Rt Downmixes DTS for 2 channel output to be compatible with

Dolby Surround matrix decoders. (See also DTS Downmix on

page 43.)

See About DivX® VOD content on page 44.

DV48AV_EN.book 42 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

About DivX

VOD content

In order to play DivX VOD (video on demand)

content on this player, you first need to register

the player with your DivX VOD content

provider. You do this by generating a DivX VOD

registration code, which you submit to your

provider.

Important

• DivX VOD content is protected by a DRM

(Digital Rights Management) system. This

restricts playback of content to specific,

registered devices.

• If you load a disc that contains DivX VOD

content not authorized for your player, the

message is displayed

and the content will not play.

• Resetting the player (as described in

Resetting the player on page 53) will not

cause you to lose your registration code.

Displaying your DivX VOD

registration code

Your 8-digit registration code is displayed.

Make a note of the code as you will need it

when you register with a DivX VOD provider.

Playing DivX

VOD content

Some DivX VOD content may only be playable

a fixed number of times. When you load a disc

containing this type of DivX VOD content, the

remaining number of plays is shown on-

screen and you then have the option of playing

the disc (thereby using up one of the

remaining plays), or stopping. If you load a

disc that contains expired DivX VOD content

(for example, content that has zero remaining

plays), the message is

displayed.

If your DivX VOD content allows an unlimited

number of plays, then you may load the disc

into your player and play the content as often

as you like, and no message will be displayed.

DV48AV_EN.book 44 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

About the audio output settings

The table below shows how the audio settings you make in the Initial Settings menu (see

page 38) affect the output from the 2 channel and the 5.1 channel analog outputs, and from the

digital outputs with various types of disc.

When is set to , the jacks act as a second pair

of stereo audio outputs.

, or setting (page 39)

Discs that prohibit downmixing will be output as 5.1 channel even if is selected as the

setting (see page 45).

When is set to , mono sources are heard from the center speaker only.

DV48AV_EN.book 46 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

HDMI output with DVD-Audio and SACD sources

The way audio sources are output from the HDMI terminal depends on the specification of the

connected component.

This unit checks the specification of the connected component (such sample rate/multi-

channel limitations and compatibility with protected audio contents) and outputs the signal

accordingly. Note that ‘DVD-Audio compatible’ indicates compatibility with protected audio

contents. ‘SACD compatible’ indicates compatibility with DSD signals.

If setting (page 39) is set to , DVD-Audio multichannel sources will be

downmixed to stereo. (In cases where the source is downmix-prohibited, only the front left/right

channels are output.) For SACD sources, the 2 channel (stereo) SACD audio area is selected.

If the video output resolution is 480i or 480p audio output may be limited to 2 channel (depending

to the connected component).

In cases where the source is downmix-prohibited, only the front left/right channels are output.

If shows in the front panel display, it means it is not possible to output CPPM copycon-

trolled DVD-Audio sources from the HDMI connection. Discs with no CPPM protection are

limited to 2 channel output.

DV48AV_EN.book 48 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Speaker Installation

•Defaultsettings:

| |

You only need to make this setting if you

connected thisplayerto your amplifier using the

5.1 channel analog outputs.

This setting does not affect digital audio output.

Use the Speaker Installation screen to tell the

player what kinds of speakers you have

connected.

•The and , and and speakers are

paired; you can’t set them differently.

• You can see the effect of your changes in

the room graphic on the right of the

screen.

• Except for the subwoofer, you can set

speaker size to or . If the main

speaker cone in the speaker is 12 cm or

more, set to , otherwise set to

(or if you don’t have that speaker).

• If you set the front and speakers to

, the center and surround speakers

are automatically set to and the

subwoofer to .

• The subwoofer can only be set to or .

DV48AV_EN.book 50 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Condensation

Condensation may form inside the player if it is

brought into a warm room from outside, or if

the temperature of the room rises quickly.

Although the condensation won’t damage the

player, it may temporarily impair its

performance. Leave it to adjust to the warmer

temperature for about an hour before

switching on.

Moving the player

If you need to move the player, first press

on the front panel to turn the

player off. Wait for to disappear from the

display, then unplug the power cable. Never lift

or move the unit during playback — discs

rotate at a high speed and may be damaged.

Screen sizes and disc formats

DVD-Video discs come in several different

screen aspect ratios, ranging from TV

programs, which are generally 4:3, to

CinemaScope widescreen movies, with an

aspect ratio of up to about 7:3.

Televisions, too, come in different aspect

ratios; ‘standard’ 4:3 and widescreen 16:9.

Widescreen TV users

If you have a widescreen TV, the

setting (page 40) of this player should be set to

or .

When you watch discs recorded in 4:3 format

with the setting, you can use the

TV controls to select how the picture is

presented. Your TV may offer various zoom and

stretch options; see the instructions that came

with your TV for details.

Please note that some movie aspect ratios are

wider than 16:9, so even though you have a

widescreen TV, these discs will still play in a

‘letter box’ style with black bars at the top and

bottom of the screen.

Standard TV users

If you have a standard TV, the

setting (page 40) of this player should be set to

or ,

depending on which you prefer.

Set to , widescreen discs are

shown with black bars top and bottom.

Set to , widescreen discs are

shown with the left and right sides cropped.

Although the picture looks larger, you don’t

actually see the whole picture.

Please note that many widescreen discs

override the player’s settings so that the disc is

shown in letter box format regardless of the

setting.

Note

•Usingthe or

setting with a standard 4:3

TV, or either of the 4:3 settings with a

widescreen TV, will result in a distorted

picture.

DV48AV_EN.book 52 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Troubleshooting

Incorrect operation is often mistaken for trouble or malfunction. If you think that there is

something wrong with this component, check the points below. Sometimes the trouble may lie

in another component. Inspect the other components and electrical appliances being used. If

the trouble cannot be rectified after checking the items below, ask your nearest Pioneer

authorized service center or your dealer to carry out repair work.

• Make sure the disc is free from dirt and dust and is not damaged

(page 51).

• Make sure the disc is loaded with the label side face-up and aligned

properly in the disc tray guide.

• Incompatible region number: If the region number on a DVD-Video

disc does not match the number on the player, the disc cannot be used

(page 53). In this case the attention sentence “Incompatible disc

region number Can’t play disc” is displayed on screen.

• Condensation inside the player: Allow time for condensation to

evaporate. Avoid using the player near an air-conditioning unit.

• Disc is loaded upside down: Reload the disc with the label side face

up.

• The disc may have been illegally copied.

• Press , then start playback again ( ).

• Press and hold the front panel button for about

10 seconds to switch the unit off, then press again to switch back on.

• Switch the power off once, unplug from the wall socket, then plug

back in and switch on again using the front panel

button.

• Some settings can be changed while a disc is playing, but are not

effective until the disc is stopped then restarted: Press , then start

playback again ( ).

• When the power is cut due to power failure or by unplugging the

power cord, settings will be canceled: Press on the

front panel to turn the player off. Wait for to disappear from the

display, then unplug the power cord.

• The remote control is too far from the player, or the angle with the

remote sensor is too wide: Use the remote within its operating range

(page 19).

• The batteries are exhausted: Put in new ones (page 7).

DV48AV_EN.book 54 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

• Make sure that is set to

(page 45).

• Check that the Dolby Digital, DTS and MPEG Out settings (page 39)

are suitable for your amplifier/receiver — check the instruction manual

that came with your amplifier/receiver.

• DVD-Audio and SACDs do not output multichannel digital audio.

Listen through the player’s analog outputs.

• Check that the settings in the Speaker Installation screen are correct

(page 50).

• Check the audio options available from the disc menu.

• Make sure that is set to

(page 39).

• As a copy-protection measure, some DVDs do not output 96kHz

audio. In this case, even if set to , the player

automatically outputs the audio at 48 kHz. This is not a malfunction.

• The player does not output digital audio at these sampling rates. The

digital output is automatically downsampled.

• Check that is set to (page 39).

• Some discs are digital copy protected and do not output high

sampling rate digital audio. In this case the output is automatically

downsampled.

• If this unit is connected to a non-DTS compatible amplifier or

decoder using a digital audio cable, set to

(page 39). If you do not do this, noise will be output when you play a

DTS disc.

• If this unit is connected to a DTS-compatible amplifier or decoder

using a digital audio cable, check the amplifier settings, and that the

cable is properly connected.

• Make sure that is set to if you’ve

connected to the stereo inputs on your amplifier or TV (page 45).

• Virtual Surround does not work with SACD or DVD-Audio.

• The Virtual Surround effect is only output through the

analog audio outputs.

• Make sure that is set to (page 45).

• The effectiveness of Virtual Surround varies with the disc.

DV48AV_EN.book 56 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

USB troubleshooting

Note

• Static electricity or other external influences may cause malfunctioning of this unit. In this

case, unplug the power cord and then plug back in. This will usually reset the unit for proper

operation. If this does not correct the problem, please consult your nearest Pioneer service

center.

• This unit has been designed to be compliant with HDMI (High-

Definition Multimedia Interface). Depending on the component you

have connected, using a DVI connection may result in unreliable signal

transfers.

• Make sure you have completely inserted the USB connector to this unit.

• Check that the memory format is FAT16 or FAT32.

• USB devices with an internal USB hub are not supported.

• The files must have the correct file extension: .mp3 for MP3 files; .wma for

WMA files; .m4a for MPEG-4 AAC files; .jpg for JPEG files (upper or lower-

case is OK).

• Make sure the file permission hasn’t been restricted (through a password,

etc.).

• The files were recorded using DRM (digital rights management) or

FairPlay copy-protection. This is not a malfunction.

DV48AV_EN.book 58 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

All the lines that make up a video

picture are updated in one pass

(compared to interlace which takes two

passes to update the whole picture).

These associate DVD-Video discs and

players with particular areas of the

world. See DVD-Video regions on

page 53 for more information.

The rate at which sound is measured to

be turned into digital audio data. The

higher the rate, the better the sound

quality. CD is 44.1 kHz; DVD can be up

to 96 kHz. See also Digital audio.

Super Audio CD is a high quality audio

disc format that can accommodate

high sampling rate stereo and multi-

channel audio, as well as conventional

CD audio all on the same disc.

WMA is short for Windows Media

Audio and refers to an audio

compression technology developed by

Microsoft Corporation. Files are

recognized by their file extension

“.wma”.

WMV is an acronym for Windows

Media Video and refers to a video

compression technology developed by

Microsoft Corporation. Files are

recognized by the file extension “.wmv”.

DV48AV_EN.book 60 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Specifications

General

Power requirements

. . . . . . . . . . . . . . . . . . . . . . . . . . . AC 120 V, 60 Hz

Power consumption . . . . . . . . . . . . . . . . . . . 12 W

Power consumption (standby). . . . . . . . . . 0.7 W

Weight . . . . . . . . . . . . . . . . . . . 2.6 kg (5 lb 12 oz)

Dimensions

420 mm (W) x 51.5 mm (H) x 215.5 mm (D)

(16-9/16 in. (W) x 2-1/16 in. (H) x 8-1/2 in. (D))

Operating temperature . . . . . . .+5 °C to +35 °C

(+41 °F to +95 °F)

Operating humidity. . . . . . . . . . . . . . .5 % to 85 %

(no condensation)

Component video output

Y (luminance) - Output level. . . . . . 1 Vp-p (75 )

PB(color) - Output level . . . . . . . . 0.7 Vp-p (75 )

PR(color) - Output level . . . . . . . . 0.7 Vp-p (75 )

Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA

S-video output

Y (luminance) - Output level. . . . . . 1 Vp-p (75 )

C (color) - Output level . . . . . . .286 mVp-p (75 )

Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-video

Video output

Output level . . . . . . . . . . . . . . . . . . 1 Vp-p (75 )

Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA

Audio output (1 stereo pair)

Output level . . . . . . . . . . . . . During audio output

200 mVrms (1 kHz, –20 dB)

Number of channels . . . . . . . . . . . . . . . . . . . . . 2

Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .RCA

HDMI output

HDMI output . . . . . . . . . . . . . . . . . . . . . . . . 19 pin

Audio output (multi-channel / L, R, C, SW,

SL, SR)

Output level . . . . . . . . . . . . .During audio output

200 mVrms (1 kHz, –20 dB)

Number of channels . . . . . . . . . . . . . . . . . . . . . . 6

Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA

Digital audio characteristics

Frequency response . . . . . . . . . . .4 Hz to 44 kHz

S/N ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 dB

Dynamic range. . . . . . . . . . . . . . . . . . . . . . 100 dB

Total harmonic distortion . . . . . . . . . . . 0.0023 %

Wow and flutter . . . . . . . . Limit of measurement

(±0.001 % W. PEAK) or lower

Digital output

Coaxial digital output. . . . . . . . . . . . . . . . . . . RCA

Optical digital output

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Optical

Accessories

Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . 1

AA/R6P dry cell batteries . . . . . . . . . . . . . . . . . 2

Audio/video cable . . . . . . . . . . . . . . . . . . . . . . . . 1

Operating instructions

The specifications and design of this product are subject

to change without notice, due to improvement.

DV48AV_EN.book 62 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Contents

01 Before you start

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . .6

What’s in the box. . . . . . . . . . . . . . . . . . . . .7

Hints on installation . . . . . . . . . . . . . . . . . .8

Disc/content format playback

compatibility . . . . . . . . . . . . . . . . . . . . . . . .8

02 Connections

Easy connections. . . . . . . . . . . . . . . . . . . .11

Connecting using the S-video output . . . . .12

Connecting using the component video

output . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Connecting to an AV receiver. . . . . . . . . . .13

Connecting using HDMI . . . . . . . . . . . . . .15

About HDMI . . . . . . . . . . . . . . . . . . . . . . .16

03 Controls and displays

Front panel . . . . . . . . . . . . . . . . . . . . . . . .17

Remote control . . . . . . . . . . . . . . . . . . . . .18

Setting up the remote to control your

TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

04 Getting started

Switching on . . . . . . . . . . . . . . . . . . . . . . .20

Using the on-screen displays. . . . . . . . . . .20

Setting up the player for your TV . . . . . . . .21

Setting the language of this player’s on-screen

displays . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Playing discs . . . . . . . . . . . . . . . . . . . . . . .22

05 Playing discs

Scanning discs . . . . . . . . . . . . . . . . . . . . .27

Playing in slow motion. . . . . . . . . . . . . . . .27

Frame advance/frame reverse . . . . . . . . . .27

Viewing a JPEG slideshow . . . . . . . . . . . . .28

Browsing DVD or Video CD disc with the Disc

Navigator . . . . . . . . . . . . . . . . . . . . . . . . . .28

Browsing WMA, MP3, MPEG-4 AAC, DivX

video, WMV and JPEG files with the Disc

Navigator . . . . . . . . . . . . . . . . . . . . . . . . . .29

Looping a section of a disc . . . . . . . . . . . .30

Using repeat play. . . . . . . . . . . . . . . . . . . .30

Using random play . . . . . . . . . . . . . . . . . .31

Creating a program list . . . . . . . . . . . . . . .32

Searching a disc . . . . . . . . . . . . . . . . . . . . 33

Switching subtitles . . . . . . . . . . . . . . . . . . 33

Switching audio language/channels. . . . . 34

Zooming the screen . . . . . . . . . . . . . . . . . 34

Switching camera angles . . . . . . . . . . . . . 34

Displaying disc information . . . . . . . . . . . 34

06 USB playback

Using the USB interface . . . . . . . . . . . . . . 35

07 Audio Settings and Video Adjust

menus

Audio Settings menu . . . . . . . . . . . . . . . . 36

Video Adjust menu . . . . . . . . . . . . . . . . . . 37

08 Initial Settings menu

Using the Initial Settings menu. . . . . . . . . 38

Digital Audio Out settings. . . . . . . . . . . . . 39

Video Output settings . . . . . . . . . . . . . . . . 40

Language settings . . . . . . . . . . . . . . . . . . 41

Display settings . . . . . . . . . . . . . . . . . . . . 41

Options settings . . . . . . . . . . . . . . . . . . . . 42

Parental Lock . . . . . . . . . . . . . . . . . . . . . . 42

Speakers settings . . . . . . . . . . . . . . . . . . . 45

About the HDMI audio output

settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 47

HDMI output with DVD-Audio and SACD

sources. . . . . . . . . . . . . . . . . . . . . . . . . . . 48

09 Additional information

Taking care of your player and discs . . . . . 51

Screen sizes and disc formats . . . . . . . . . 52

Resetting the player . . . . . . . . . . . . . . . . . 53

DVD-Video regions . . . . . . . . . . . . . . . . . . 53

Selecting languages using the language code

list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Troubleshooting . . . . . . . . . . . . . . . . . . . . 54

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Language code list . . . . . . . . . . . . . . . . . . 61

Country/Area code list . . . . . . . . . . . . . . . 61

Specifications . . . . . . . . . . . . . . . . . . . . . . 62

DV48AV_EN.book 5 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Before you start 01

• Built-in Dolby1Digital and DTS2

decoding with multichannel outputs

This player features multichannel analog

outputs for connection to an AV amplifier to

give you stunning surround sound from Dolby

Digital, DTS and multichannel DVD-Audio

discs.

What’s in the box

Please confirm that the following accessories

are in the box when you open it.

• Remote control

• AA/R6P dry cell batteries x 2

• Audio/video cable (red/white/yellow plugs)

• Operating instructions

Putting the batteries in the remote

• Open the battery compartment cover

and insert the batteries as shown.

Use two AA/R6P batteries and follow the

indications ( , ) inside the compartment.

Close the cover when you’re finished.

Important

Incorrect use of batteries can result in hazards

such as leakage and bursting. Please observe

the following:

• Don’t mix new and old batteries together.

• Don’t use different kinds of battery

together — although they may look

similar, different batteries may have

different voltages.

• Make sure that the plus and minus ends of

each battery match the indications in the

battery compartment.

• Remove batteries from equipment that

isn’t going to be used for a month or more.

• When disposing of used batteries, please

comply with governmental regulations or

environmental public instruction’s rules

that apply in your country/area.

• Do not use or store batteries in direct

sunlight or other excessively hot place,

such as inside a car or near a heater. This

can cause batteries to leak, overheat,

explode or catch fire. It can also reduce the

life or performance of batteries.

1. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks

of Dolby Laboratories.

2. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.

DV48AV_EN.book 7 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

• Multi-session playback: No

• Unfinalized disc playback: No

• File structure (may differ): Up to 299

folders on a disc; up to 648 folders and files

(combined) within each folder

DVD+R/DVD+RW compatibility

Only DVD+R/DVD+RW discs recorded in

‘Video Mode (DVD Video Mode)’ which have

been finalized, can be played back. However,

some editing made during the recording may

not be played back accurately.

DVD-R/-RW compatibility

• Compatible formats: DVD-Video, Video

Recording (VR)*

* Edit points may not play exactly as edited;

screen may go momentarily blank at edited

points.

• Unfinalized playback: No

• MP3/WMA/MPEG-4 AAC/JPEG or DivX

video/WMV file playback on DVD-R/-RW:

Compressed audio compatibility

• Compatible formats: MPEG-1 Audio Layer

3 (MP3), Windows Media Audio (WMA),

MPEG-4 AAC

• Sampling rates: 32 kHz, 44.1 kHz or 48 kHz

• Bit-rates: Any (128 kbps or higher

recommended)

• VBR (variable bit rate) MP3/WMA/MPEG-4

AAC playback: No

• WMA lossless encoding compatible: No

• DRM (Digital Rights Management)

compatible: No (DRM-protected audio files

will not play in this player—see also DRM

in the Glossary on page 59)

• File extensions: .mp3, .wma, .m4a (these

must be used for the player to recognize

MP3, WMA and MPEG-4 AAC files – do not

use for other file types)

About MPEG-4 AAC

Advanced Audio Coding (AAC) is at the core of

the MPEG-4 AAC standard, which

incorporates MPEG-2 AAC, forming the basis

of the MPEG-4 audio compression technology.

The file format and extension used depend on

the application used to encode the AAC file.

This unit plays back AAC files encoded by

iTunes®bearing the extension ‘.m4a’. DRM-

protected files will not play, and files encoded

with some versions of iTunes®may not play, or

filenames may display incorrectly.

Apple and iTunes are trademarks of Apple Inc., registered

in the U.S. and other countries.

WMA (Windows Media™ Audio)

compatibility

This player can playback Windows Media

Audio content.

WMA is an acronym for Windows Media Audio

and refers to an audio compression

technology developed by Microsoft

Corporation. WMA content can be encoded by

using Windows Media Player for Windows XP,

Windows Media Player 9 or Windows Media

Player 10 series.

Windows Media is a trademark of Microsoft

Corporation.

This product includes technology owned by

Microsoft Corporation and cannot be used or

distributed without a license from Microsoft

Licensing, Inc.

About DivX video

DivX is a media technology created by DivX,

Inc. DivX media files contain not only video but

also include advanced media features like

menus, subtitles, and alternate audiotracks.

This player can play DivX videos burned on

CD-R/-RW/-ROM discs. Keeping the same

terminology as DVD-Video, individual DivX

video files are called “Titles”. When naming

files/titles on a CD-R/-RW disc prior to burning,

keep in mind that by default they will be played

in alphabetical order.

DV48AV_EN.book 9 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connections

Chapter 2

Connections

Easy connections

Important

• Before making or changing any connections, switch off the power and disconnect the power

cable from the AC outlet.

• The setup described here is a basic setup that allows you to play discs using just the cables

supplied with the player. In this setup, stereo audio is played through the speakers in your TV.

• This player is equipped with copy protection technology. Do not connect this player to your

TV via a VCR using audio/video or S-video cables, as the picture from this player will not

appear properly on your TV. (This player may also not be compatible with some combination

TV/VCRs for the same reason; refer to the manufacturer for more information.)

1 Connect the VIDEO OUT and AUDIO

OUT (5.1ch)/AUDIO OUT L/R jacks to a set

of A/V inputs on your TV.

Use the supplied audio/video cable,

connecting the red and white plugs to the

audio outputs and the yellow plug to the video

output. Make sure you match up the left and

right audio outputs with their corresponding

inputs for correct stereo sound.

See below if you want to use a component or

S-video cable for the video connection.

2 Plug into a power outlet.

Note

• Before unplugging the player from the

power outlet, make sure you first switch it

into standby using either the front panel

STANDBY/ON button, or the remote

control, and wait of the -OFF- message to

disappear from the player’s display.

• For the above reasons, do not plug this

player into a switched power supply found

on some amplifiers and AV receivers.

Yellow

White

Red

DV48AV_EN.book 11 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Watching progressive scan video

from the component video outputs

This player can output progressive scan video

from the component video output. Compared

to interlace video, progressive scan video

effectively doubles the scanning rate of the

picture, resulting in a very stable, flicker-free

image.

To set up the player for use with a progressive

scan TV, see Video Output settings on page 40.

When the player is set to output progressive

scan video, the PRGSVE indicator lights in the

front panel display.

Important

• If you connect a TV that is not compatible

with a progressive scan signal and switch

the player to progressive, you will not be

able to see any picture at all. In this case,

switch everything off and reconnect using

the supplied video cable (see Easy

connections on page 11), then switch back

to Interlace (see below).

Switching the video output to interlace

using the front panel controls

Switch the player to standby then, using the

front panel controls, press STANDBY/ON

while pressing to switch the player back to

Interlace.

• If the player is connected using HDMI,

disconnect the HDMI cable before

resetting the player to interlace output. (If

left connected, the HDMI output

resolution will be reset to its default — see

Resetting the output resolution to the

default setting with HDMI connection on

page 16.)

Connecting to an AV receiver

You can connect this player to your AV receiver

using the multichannel analog outputs or one

of the digital outputs.

In addition to these connections, you should

also connect the 2 channel analog outputs for

compatibility with all discs.

You’ll probably also want to connect a video

output to your AV receiver. You can use any of

the video outputs available on this player (the

illustration shows a standard (composite)

connection).

1 Connect the analog AUDIO OUT

(5.1ch)/AUDIO OUT L/R and VIDEO OUT

jacks on this player to a set of analog audio

and video inputs on your AV receiver.

2 Connect the AV receiver’s video output

to a video input on your TV.

You can also use the S-video or component

video jacks to connect to the AV receiver if you

prefer.

Tip

• You usually have to connect the same kind

of video cable between your DVD player

and AV receiver, and between your AV

receiver and TV.

AV eceive

DV48AV_EN.book 13 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Connecting using HDMI

If you have a HDMI equipped monitor or

display, you can connect it to this player using

a commercially available HDMI cable.

The HDMI connector outputs uncompressed

digital video, as well as almost every kind of

digital audio that the player is compatible with,

including DVD-Video, DVD-Audio (see below

for limitations), SACD, Video CD, CD, WMA,

MP3, MPEG-4 AAC, DivX video and WMV.

• Use an HDMI cable to connect the

HDMI OUT interconnect on this player to

an HDMI interconnect on a HDMI-

compatible display.

The arrow on the cable connector body should

be face up for correct alignment with the

connector on the player.

Note

• This unit has been designed to be

compliant with HDMI (High-Definition

Multimedia Interface). Depending on the

component you have connected, using a

DVI connection may result in unreliable

signal transfers.

• When you change the component

connected to the HDMI output, you will

also need to change the HDMI settings to

match the new component (see HDMI Out

on page 39, HDMI Resolution and HDMI

Color on page 40 to do this). However, the

settings for each component are then

stored in memory (for up to 2

components).

• The HDMI connection is compatible with 2

channel linear PCM signals (44.1 kHz to

192 kHz, 16 bit/20 bit/24 bit), and Dolby

Digital, DTS, MPEG audio bitstream, multi

channel DSD, and multi channel linear

PCM signals, (5.1 channel signals up to 96

kHz, 16 bit/20 bit/24 bit).

DV48AV_EN.book 15 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Controls and displays

Chapter 3

Controls and displays

Front panel

1STANDBY/ON (page 20)

2 Disc tray

3TOPMENU(page 24)

4 ENTER & cursor buttons (page 20)

5MENU(page 24)

6 RETURN (page 24)

7HOMEMENU(page 20)

8Display

9OPEN/CLOSE (page 22)

10 (page 23)

11 (page 23)

12 (page 23)

13 and (page 23)

14 HDMI indicator

Lights when this player is recognized by

another HDMl or DVI/HDCP compatible

component.

15 DVD/USB (page 35)

16 USB port (Type A) (page 35)

17 RW Compatible (page 9)

DV48AV_EN.book 17 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Using the remote control

Keep in mind the following when using the

remote control:

• Make sure that there are no obstacles

between the remote and the remote

sensor on the unit.

• The remote has a range of about 23 feet.

• Remote operation may become unreliable

if strong sunlight or fluorescent light is

shining on the unit’s remote sensor.

• Remote controllers for different devices

can interfere with each other. Avoid using

remotes for other equipment located close

to this unit.

• Replace the batteries when you notice a

fall off in the operating range of the

remote.

Setting up the remote to

control your TV

You can use the supplied remote to control

your TV. To be able to use this feature you first

have to program the remote with a maker code

from the table below.

1 Press and hold down the CLEAR button,

then enter the maker code for your TV.

See the table below for the list of maker codes.

If there is more than one code given for your

make, input the first one in the list.

• If the maker’s name of your TV doesn’t

appear in the table below, you will not be

able to use this remote to control your TV.

2Press TV to check that the remote

works with your TV.

If the remote is set up correctly, the TV should

switch on/off. If it doesn’t and there is another

code given for your maker, repeat step 1with a

new code.

Using the TV remote control buttons

The table below shows how to use this remote

control with your TV.

Button What it does

TV Press to switch the TV on/off

(standby)

INPUT SELECT Press to change the TV’s video

input

VOLUME +/– Use to adjust the TV volume

CHANNEL +/– Use to change TV channels

Maker Code

Aiwa 38

Funai 36

GE 11, 28

General 34

Goldstar 10, 23

Grandiente 30

Hitachi 06, 24, 25, 32

Magnavox 12, 29

Mitsubishi 09

NEC 37

Panasonic 08, 22, 41

Philips 07

Pioneer 00, 35, 40, 44

RCA 01, 15, 16, 17, 18

Samsung 73, 75

Sanyo 14, 21

Sharp 02, 19, 27

Sony 04

Toshiba 05, 26, 31, 43

JVC 13, 33, 42

Zenith 03, 20

DV48AV_EN.book 19 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Getting started

Setting up the player for your

If you have a widescreen (16:9) TV, you should

setup the player so that the picture will be

presented correctly. If you have a conventional

(4:3) TV, you can leave the player on the default

setting and move on to the next section.

1 Press HOME MENU and select ‘Initial

Settings’.

2 Select ‘TV Screen’ from the ‘Video

Output’ settings.

3 If you have a widescreen (16:9) TV,

select ‘16:9 (Wide)’ or ‘16:9 (Compressed)’.

If you have a conventional (4:3) TV, you can

change the setting from 4:3 (Letter Box) to

4:3 (Pan & Scan) if you prefer. See Video

Output settings on page 40 for more details.

4 Press HOME MENU to exit the menu

screen.

Setting the language of this

player’s on-screen displays

This sets the language of the player’s on-

screen displays.

1 Press HOME MENU and select ‘Initial

Settings’.

2 Select ‘OSD Language’ from the

‘Display’ settings.

3 Select a language.

The on-screen language will change according

to your selection.

4 Press HOME MENU to exit the menu

screen.

DV48AV_EN.book 21 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Basic playback controls

The table below shows the basic controls on

the remote for playing discs. The following

chapter covers other playback features in

more detail.

Resume and Last Memory

With the exception of DVD-Audio and SACD

discs, when you stop playback of a DVD, CD, or

Video CD or DivX video/WMV discs, RESUME

is shown in the display indicating that you can

resume playback again from that point.

If the disc tray is not opened, the next time you

start playback the display shows RESUME and

playback resumes from the resume point. (If

you want to clear the resume point, press

(stop) while RESUME is displayed.)

With DVDs and Video CDs, if you take the disc

out of the player after stopping playback, the

last play position is stored in memory. If the

next disc you load is the same one, the display

shows LAST MEM and playback will resume.

For DVD-Video discs, the player stores the play

position of the last five discs. When one of

these discs is next loaded, you can resume

playback.

Note

• The Last Memory function doesn’t work

with VR format DVD-R/-RW, DVD-Audio or

SACD discs.

• If you don’t need the Last Memory function

when you stop a disc, you can press

OPEN/CLOSE to stop playback and

open the disc tray.

Button What it does

Starts playback.

If the display shows RESUME or

LAST MEM playback starts from the

resume or last memory point (see

also Resume and Last Memory

below.)

Pauses a disc that’s playing, or

restarts a paused disc.

Stops playback.

more on disc compatibility.

• I have a widescreen TV so why are there

black bars at the top and bottom of the

screen when I play some discs?

Some movie formats are such that even

when played on a widescreen TV, black

bars are necessary at the top and bottom

of the screen. This is not a malfunction.

• I have a standard (4:3) TV and set the player

to show widescreen DVDs in pan & scan

format, so why do I still get black bars top

and bottom with some discs?

Some discs override the display

preferences of the player, so even if you

have 4:3 (Pan & Scan) selected, those

discs will still be shown in letter box

format. This is not a malfunction.

Button What it does

RETURN Displays the PBC menu.

Numbers

(remote

only)

Use to enter a numbered menu

option. Press ENTER to select.

Displays the previous menu page (if

there is one).

Displays the next menu page (if

there is one).

DV48AV_EN.book 25 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Playing discs

Chapter 5

Playing discs

Note

• Many of the functions covered in this

chapter apply to DVD and SACD discs,

Video CDs, CDs, DivX

video/WMV and MP3/WMA/MPEG-4 AAC/

JPEG discs, although the exact operation

of some varies slightly with the kind of disc

loaded.

• Some DVDs restrict the use of some

functions (random or repeat, for example)

in some or all parts of the disc. This is not

a malfunction.

• When playing Video CDs, some of the

functions are not available during PBC

playback. If you want to use them, start the

disc playing using a number button to

select a track.

Scanning discs

You can fast-scan discs forward or backward

at four different speeds (only one speed for

DivX video/WMV).

1 During playback, press or to

start scanning.

• There is no sound while scanning DVDs

(including DVD-Audio), DivX video/WMV

and Video CDs.

2 Press repeatedly to increase the

scanning speed.

• The scanning speed is shown on-screen.

3 To resume normal playback, press

(play).

• When scanning a Video CD playing in PBC

mode or a MP3/WMA/MPEG-4 AAC track,

playback automatically resumes at the end

or beginning of the track.

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached on a DVD disc.

Playing in slow motion

You can play DVD-Videos and DVD-R/-RW at

four different slow motion speeds, forwards

and backwards. Video CDs and DivX video/

WMV can be played at four different forward

slow motion speeds.

1 During playback, press (pause).

2 Press and hold or until

slow motion playback starts.

• The slow motion speed is shown on-

screen.

• There is no sound during slow motion

playback.

3 Press repeatedly to change the slow

motion speed.

4 To resume normal playback, press

(play).

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached.

Frame advance/frame reverse

You can advance or back up DVD-Video and

DVD-R/-RW discs frame-by-frame. With Video

CDs and DivX video/WMV file you can only use

frame advance.

1 During playback, press (pause).

2 Press or to reverse or

advance a frame at a time.

3 To resume normal playback, press

(play).

• Depending on the disc, normal playback

may automatically resume when a new

chapter is reached.

DV48AV_EN.book 27 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

The screen shows up to six moving thumbnail

images displayed one after another. To display

the previous/next six thumbnails, press /

(you don’t have to wait for all the

thumbnails to finish playing to display the

previous/next page).

3 Select the thumbnail image for what

you want to play.

You can use either the cursor buttons (

) and ENTER to select a thumbnail, or

the number buttons.

To select using the number buttons, enter a

two-digit number then press ENTER.

Tip

• Another way to find a particular place on a

disc is to use one of the search modes. See

Searching a disc on page 33.

Browsing WMA, MP3, MPEG-4

AAC, DivX video, WMV and

JPEG files with the Disc

Navigator

Use the Disc Navigator to find a particular file

or folder by filename. Note that if there are

other types of files on the same disc, these will

not be displayed in the Disc Navigator.

1 Press HOME MENU and select ‘Disc

Navigator’ from the on-screen menu.

2 Use the cursor buttons ( )

and ENTER to navigate.

Use the cursor up/down buttons ( ) to

move up and down the folder/file list.

Use the cursor left button ( ) to return to the

parent folder.

Use ENTER or cursor right ( ) to open a

highlighted folder.

• You can also return to the parent folder by

going to the top of the list to the ‘..’ folder,

then pressing ENTER.

• When a JPEG file is highlighted, a

thumbnail image is displayed on the right.

3 To play the highlighted track or DivX

video/WMV file or display the highlighted

JPEG file, press ENTER.

• When a MP3/WMA/MPEG-4 AAC or DivX

video/WMV file is selected, playback

begins, starting with the selected file, and

continues until the end of the folder.

• When a JPEG file is selected, a slideshow

begins, starting with that file, and

continues to the end of the folder.

DV48AV_EN.book 29 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

• For DivX video/WMV discs, select Title

Repeat, and for some DivX media files,

select Chapter Repeat (or Repeat Off).

Using random play

Use the random play function to play titles or

chapters (DVD-Video), Groups (DVD-Audio), or

tracks (DVD-Audio, SACD, CD, Video CD) at

random. (Note that the same track/title/

chapter may play more than once.)

You can set the random play option when a

disc is playing or stopped.

Important

• Random play remains in effect until you

select Random Off from the random play

menu options.

• You can’t use random play with VR format

DVD-R/-RW discs, Video CDs playing in

PBC mode, MP3/WMA/

MPEG-4 AAC discs, DivX video/WMV

discs, or while a DVD disc menu is being

displayed.

• You can’t use random play together with

program or repeat play.

1 Press PLAY MODE and select ‘Random’

from the list of functions on the left.

2 Select a random play option.

The random play options available depend on

the kind of disc loaded. For example, for DVD-

Video discs, you can select Random Title or

Random Chapter (or Random Off).

• For DVD-Audio discs, select Random

Group or Random Track, (or Random

Off).

• For CDs, SACDs and Video CDs, select On

or Off to switch random play on or off.

Tip

• Use the following controls during random

play:

Button What it does

Selects a new track/title/chapter

at random.

Returns to the beginning of the

current track/title/chapter;

further presses select another

random track/title/chapter.

DV48AV_EN.book 31 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Searching a disc

You can search DVD-Video discs by title or

chapter number, or by time; DVD-Audio discs

can be searched by group or track number;

SACDs by track number, CDs and Video CDs

by track number or time; DivX video /WMV

discs by time, and some DivX media files by

chapter number.

Important

• Search functions are not available with

Video CDs in PBC mode, or with MP3/

WMA/MPEG-4 AAC discs.

1 Press PLAY MODE and select ‘Search

Mode’ from the list of functions on the left.

2 Select a search mode.

The search options available depend on the

kind of disc loaded.

• The disc must be playing in order to use

time search.

3 Use the number buttons to enter a title,

chapter or track number, or a time.

• For a time search, enter the number of

minutes and seconds into the currently

playing title (DVD/ DivX video/WMV) or

track (CD/Video CD) you want playback to

resume from. For example, press 4, 5, 0, 0

to have playback start from 45 minutes into

the disc. For 1 hour, 20 minutes and 30

seconds, press 8, 0, 3, 0.

• Some DVD-Audio discs feature pages of

browsable pictures. Enter the page

number you want.

4 Press ENTER to start playback.

Switching subtitles

Some DVD-Video and DivX video discs have

subtitles in one or more languages; the disc

box will usually tell you which subtitle

languages are available. You can switch

subtitle language during playback.

1 Press SUBTITLE repeatedly to select a

subtitle option.

Note

• Some discs only allow you to change

subtitle language from the disc menu.

Press TOP MENU or MENU to access.

• To set subtitle preferences, see Subtitle

Language on page 41.

• See Displaying external subtitle files on

page 10 for more on DivX subtitles.

DV48AV_EN.book 33 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

USB playback

Chapter 6

USB playback

Using the USB interface

It is possible to listen to two-channel audio and

watch JPEG files using the USB interface on

the front of this unit. Connect a USB mass

storage device as shown below.

Note

• This includes playback of MP3/WMA/

MPEG-4 AAC/JPEG files (except files with

copy-protection or restricted playback).

• Compatible USB devices include portable

flash memory (particularly keydrives) and

digital audio players (MP3 players) of

format FAT16/32. It is not possible to

connect this unit to a personal computer

for USB playback.

• Pioneer cannot guarantee compatibility

(operation and/or bus power) with all USB

mass storage devices and assumes no

responsibility for any loss of data that may

occur when connected to this unit.

• With large amounts of data, it may take

longer for the system to read the contents

of a USB device.

• The Home Menu cannot be displayed

while using the USB mode.

1 With the player switched on, press

DVD/USB.

Make sure your TV is on and set to the correct

video input, and that USB MODE is showing

on the front panel display.

2 Connect your USB device.

The USB terminal is located on the front panel.

• Disc Navigator is automatically displayed.

3 Press ENTER to start playback.

• The method of playback for files saved on a

USB device is the same as for other discs.

For more information, see Basic playback

controls on page 23 and Playing discs on

page 27.

4 Turn off this player and remove the

USB device.

• The next time you turn this player on it will

start up in USB mode. To return to DVD

mode, either press DVD/USB or press

OPEN/CLOSE to open the disc tray.

Important

If a USB ERR message lights in the display, it

may mean that the power requirements of the

USB device are too high for this player, or that

the device is incompatible. Try the following:

• Switch the player off, then on again.

• Reconnecting the USB device with the

player switched off.

• Change the player back to DVD mode

(LOADING will appear in the front panel

display whether a disc is inserted or not) by

pressing DVD/USB, then once again

select USB mode (USB MODE will appear

in the front panel display).

• Using a dedicated AC adapter (supplied

with the device) for USB power.

If this doesn’t remedy the problem, it is likely

your USB device is incompatible.

USB mass

sto age device

DV48AV_EN.book 35 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Audio Settings and Video Adjust menus

• How good the surround effect is varies

with the disc.

Note

• 96 kHz linear PCM audio is automatically

downsampled to 48 kHz if the Equalizer is

switched on.

Dialog

•Settings:High, Medium, Low, Off

(default)

The Dialog feature is designed to make the

dialog stand out from other background

sounds in the soundtracks.

Video Adjust menu

From the Video Adjust screen you can adjust

various settings that affect how the picture is

presented.

1 Press HOME MENU and select ‘Video

Adjust’ from the on-screen display.

2 Make settings using the

(cursor) buttons, and ENTER.

You can adjust the following picture quality

settings:

•Sharpness – Adjusts the sharpness of

edges in the picture (Fine, Standard

(default), Soft).

•Brightness – Adjusts the overall

brightness (–20 to +20).

•Contrast – Adjusts the contrast between

light and dark (–16 to +16).

•Gamma – Adjusts the ‘warmth’ of the

picture (High, Medium, Low, Off

(default)).

•Hue – Adjusts the red/green balance

(green 9 to red 9).

•Chroma Level – Adjusts how saturated

colors appear (–9 to +9).

•BNR – Switches on/off block noise

reduction (On, Off (default)).

Adjust the Brightness, Contrast, Hue and

Chroma Level settings using the (cursor

left/right) buttons.

3 Press ENTER to return to the Video

Adjust screen, or HOME MENU to exit.

DV48AV_EN.book 37 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Initial Settings menu

Digital Audio Out settings

Setting Option What it means

Digital Out On Digital audio is output from the digital outputs.

Note that there is no digital output when playing SACDs and

some DVD-Audio discs regardless of this setting.

Off No digital audio output.

Dolby Digital Out Dolby Digital Dolby Digital encoded digital audio is output when playing a

Dolby Digital DVD disc.

Dolby Digital > PCM Dolby Digital audio is converted to PCM audio before being

output.

DTS Out DTS DTS encoded digital audio is output when playing a DTS disc.

(Noise will be output if your amplifier/receiver is not

compatible with DTS audio.)

DTS > PCM No digital audio is output when playing a DTS disc.DTS audio

is converted to PCM audio before being output.

Linear PCM Out Down Sample On 96 kHz digital audio is converted to 48 kHz for digital output.

Note that High sampling rate DVD-Audio discs (192 kHz or

176.4 kHz) automatically output down-sampled audio through

the digital outputs.

Down Sample Off 96 kHz digital audio is output as is at 96 kHz.

MPEG Out MPEG > PCM MPEG encoded digital audio is converted to PCM audio for

digital output.

MPEG MPEG encoded digital audio is output as is.

HDMI Out LPCM (2CH) Set if your monitor or device only accepts stereo input. On

this setting multichannel audio is downmixed to 2 channels

for stereo linear PCM output.

LPCM (5.1CH) Set if the monitor or device you have connected using HDMI

is compatible with Liner PCM multi-channel formats. All

audio signals are output as linear PCM 5.1 format. (Use this

setting if you want to decode all streams by a player)

Auto Dolby Digital, DTS and MPEG sources are processed

according to how they were encoded, and linear PCM

sources are heard as is. SACD sources are output as linear

PCM.

Auto (DSD) Set if you want to output DSD audio from an SACD source.

Off No digital audio output. Choose this option when you want to

change the Digital Audio Out, SACD Playback and

Speakers settings.

DV48AV_EN.book 39 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Language settings

Display settings

Setting Option What it means

Audio Language English If there is an English soundtrack on the disc then it will be

played.

Languages as displayed If there is the language selected on the disc, then it will be

played.

Other Language Select to choose a language other than the ones displayed

(see page 53).

Subtitle Language

(See also Displaying

external subtitle files on

page 10.)

English If there are English subtitles on the disc then they will be

displayed.

Languages as displayed If there is the subtitle language selected on the disc, then it

will be displayed.

Other Language Select to choose a language other than the ones displayed

(see page 53).

DVD Menu

Lang.

w/Subtitle Lang. DVD disc menus will be displayed in the same language as

your selected subtitle language, if possible.

Languages as displayed DVD disc menus will be displayed in the selected language,

if possible.

Other Language Select to choose a language other than the ones displayed

(see page 53).

Subtitle Display On Subtitles are displayed according to your selected subtitle

language (see above).

Off Subtitles are always off by default when you play a DVD disc

(note that some discs override this setting).

Setting Option What it means

OSD Language English On-screen displays of the player are in English.

Languages as displayed On-screen displays are shown in the language selected.

Angle Indicator On A camera icon is displayed on-screen during multi-angle

scenes on a DVD disc.

Off No multi-angle indication is shown.

DV48AV_EN.book 41 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Changing your password

To change your password, confirm your

existing password then enter a new one.

1 Select ‘Password Change’.

2 Use the number buttons to enter your

existing password, then press ENTER.

3 Enter a new password and press ENTER.

This registers the new password and you will

return to the Options menu screen.

Setting/changing the Parental Lock

1 Select ‘Level Change’.

2 Use number buttons to enter your

password, then press ENTER.

3 Select a new level and press ENTER.

• Press (cursor left) repeatedly to lock

more levels (more discs will require the

password); press (cursor right) to

unlock levels. You can’t lock level 1.

This sets the new level and you will return to

the Options menu screen.

Setting/changing the Country/Area

code

You can find the Country/Area code list on

page 61.

1 Select ‘Country Code’.

2 Use number buttons to enter your

password, then press ENTER.

3 Select a Country/Area code and press

ENTER.

There are two ways you can do this:

• Select by code letter: Use (cursor up/

down) to change the Country/Area code.

• Select by code number: Press (cursor

right) then use the number buttons to

enter the 4-digit Country/Area code.

The new Country/Area code is set and you will

return to the Options menu screen. Note that

the new Country/Area code doesn’t take effect

until the next disc is loaded (or the current disc

is reloaded).

DTS Downmix

• Default setting: STEREO

If you’ve selected DTS > PCM in DTS Out on

page 39 or 2 Channel in Audio Output Mode on

page 45, you can choose the way the signal is

downmixed to PCM audio. STEREO will

downmix the DTS signal to 2-channel stereo,

whereas Lt/Rt will downmix to a 2-channel

signal compatible with Dolby surround matrix

decoders. (This allows you to hear surround

sound if your AV receiver or amplifier has

Dolby Pro Logic capability.)

DV48AV_EN.book 43 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Speakers settings

Audio Output Mode

• Default setting: 2 Channel

If you connected this player to your amplifier

using the 5.1 channel analog outputs (front,

surround, center and subwoofer outs), set this

to 5.1 Channel; if you connected only the

stereo outs, set to 2 Channel.

Note

• Even if you set Audio Output Mode to

5.1 Channel, you’ll only get sound from all

speakers when playing a 5.1 channel

multi-channel disc.

• When set to 5.1 Channel, only the front left/

right channels are output from the AUDIO

OUT (2ch) jacks. Change to 2 Channel if

you want to listen to downmixed stereo

audio (for example, because you are

listening through the TV’s built-in

speakers).

• When set to 5.1 Channel there is no digital

output when playing DVD-Audio.

•Ifyousetto2 Channel, Dolby Digital, DTS

and MPEG audio is mixed down to two

channels so you still hear all the audio

recorded on the disc. With DTS encoded

audio, you can choose how the signal is

downmixed to PCM audio. See DTS

Downmix on page 43 to change the

downmix setting.

• Some DVD-Audio discs don’t allow down-

mixing of audio. These discs always output

multi-channel audio regardless of the

setting made here.

Setting Option What it means

Audio Output

Mode

2 Channel The player outputs analog audio in stereo only. See also

Audio Output Mode below.

5.1 Channel The player outputs 5.1 channel analog audio. See also Audio

Output Mode below.

Speaker Distance – Specify the distance of your speakers from your listening

position. See also Speaker Distance on page 49.

Speaker

Installation

–Specify the number and size of speakers in your system. See

also Speaker Installation on page 50.

DV48AV_EN.book 45 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

About the HDMI audio output settings

The table below shows how the audio settings you make in the HDMI Out (see HDMI Out on

page 39) and Audio Output Mode screens (Audio Output Mode on page 45) affect the HDMI

output with various types of disc.

*1These formats include DVD-RW discs.

*2If the connected component is not DVD-Audio (CPPM) compatible, it is not possible to output

CPPM copy-controlled DVD-Audio sources from the HDMI connection (see HDMI output with

DVD-Audio and SACD sources on page 48 for more on this).

*3If the discs prohibit downmixing, output Front L/R.

*4If the HDMI device you are using is not compatible with Multi-ch formats, the output signal is

the same as LPCM (2CH) setting.

*5If the HDMI device you are using is not compatible with these compressed formats, the signal

is output as linear PCM.

*6If the connected HDMI device is not compatible with protected audio contents (such as

DVD-Audio or SACD), SACD audio is not output from the HDMI terminal.

*7 Analog SACD audio is not output when you have HDMI Out set to Auto (DSD).

DV48AV_EN.book 47 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Speaker Distance

• Default settings: all speakers 10.0ft

You only need to make this setting if you

connected thisplayerto your amplifier using the

5.1 channel analog outputs.

These settings do not affect any digital audio

output.

To get the best surround sound from your

system, you should set up the speaker

distances from your listening position.

1Usethe (cursor up/down) to select

a speaker.

•The

Land Rspeakers are paired; you can’t

set them differently.

2Press (cursor right) to change the

speaker distance for the highlighted

speaker.

3Usethe (cursor up/down) to

change the distance.

• When you change the distance settings of

the front left (L) or front right (R) speakers,

all the other speaker distances change

relative to it.

• Front left/right (L/R) speaker distances can

be set from 1.0 ft to 30.0 ft in 1.0 ft

increments.

• The center speaker (C) can be set from

–7.0 ft to 0.0 ft relative to the front left/right

speakers.

• Surround left/right (SL/SR) speakers can

be set from –20.0 ft to 0.0 ft relative to the

front left/right speakers.

• You can’t set the subwoofer (SW) distance.

4 Press (cursor left) to go back to the

speaker list if you want to modify another

speaker, or press ENTER to exit the Speaker

Distance screen.

Note

During playback of SACD and MPEG-audio

DVD-Video discs, the effective C, SL and SR

speaker distance settings are –3.0 ft to 0.0 ft

relative to the front left/right speakers.

DV48AV_EN.book 49 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Additional information

Chapter 9

Additional information

Taking care of your player and

discs

General

Hold discs by the edge or by the center hole

and edge.

When you’re not using a disc, return it to its

case and store upright. Avoid leaving discs in

excessively cold, humid, or hot environments

(including under direct sunlight).

Don’t glue paper or put stickers on to discs. Do

not use a pencil, ball-point pen or other sharp-

tipped writing instrument to write on the disc.

Don’t use self-adhesive disc labels on discs as

these can cause the disc to warp slightly

during playback causing distortion in the

picture and/or sound.

Damaged and shaped discs

Do not use cracked, chipped, warped, or

otherwise damaged discs as they may damage

the player.

This player is designed to be used only with

conventional, fully circular discs. Do not use

shaped discs. Pioneer disclaims all liability

arising in connection with the use of shaped

discs.

Cleaning discs

Fingerprints and dust on discs can affect

playback performance. Clean using a soft, dry

cloth, wiping the disc lightly from the center to

the outside edge as shown below.

If necessary, use a cloth soaked in alcohol, or

a commercially available CD/DVD cleaning kit

to clean a disc more thoroughly. Never use

benzine, thinner or other cleaning agents,

including products designed for cleaning vinyl

records.

Cleaning the unit’s exterior

Unplug the unit before cleaning.

Use a dry cloth to wipe off dust and dirt. If the

surfaces are very dirty, wipe with a soft cloth

dipped in some neutral cleanser diluted five or

six times with water and wrung out well, then

wipe again with a dry cloth.

Do not use furniture wax or cleaners. Never

use thinners, benzine or insecticide sprays or

other chemicals on or near this unit.

If you use a chemical-impregnated cleaning

cloth, read the instructions carefully before

use. These cloths may leave smear marks on

half-mirror finish surfaces; if this happens,

finish with a dry cloth.

Cleaning the pickup lens

The DVD player’s lens should not become dirty

in normal use, but if for some reason it should

malfunction due to dust or dirt, consult your

nearest Pioneer-authorized service center. We

do not recommend using commercially

available lens cleaners for CD players.

DV48AV_EN.book 51 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Resetting the player

Use this procedure to reset all the player’s

settings to the factory default.

1 Switch the player into standby.

2 Using the front panel buttons, hold

down the (stop) button and press

STANDBY/ON to switch the player back

on.

All the player’s settings are now reset.

DVD-Video regions

All DVD-Video discs carry a region mark on the

case somewhere that indicates which

region(s) of the world the disc is compatible

with. Your DVD player also has a region mark,

which you can find on the rear panel. Discs

from incompatible regions will not play in this

player. In this case the attention sentence

Incompatible disc region number Can’t

play disc is displayed on screen. Discs

marked ALL will play in any player. The

diagram below shows the various DVD regions

of the world.

Selecting languages using the

language code list

Some of the language options (such as ‘DVD

Menu Lang.’ in the Initial Settings) allow you to

set your preferred language from any of the

136 languages listed in the language code list

on page 61.

1 Select ‘Other Language’.

2Usethe (cursor left/right)

buttons to select either a code letter or a

code number.

3Usethe (cursor up/down) buttons

to select a code letter or a code number.

See Language code list on page 61 for a

complete list of languages and codes.

DV48AV_EN.book 53 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

No picture/No color. • Incorrect video connections: Check that connections are correct and

that plugs are inserted fully. Also check the video cable for damage.

• TV/monitor or AV amplifier settings are incorrect: Check the

instruction manual of the connected equipment.

• The video output is set to progressive but your TV/monitor is not

compatible with progressive scan: See page 13 for how to set to

Interlace.

Screen is stretched or

aspect does not change.

• The TV Screen setting in the Initial Settings menu is incorrect. See

page 52 for how to set it correctly for your TV/monitor.

Picture disturbance

during playback or the

picture is dark.

• This player is compatible with Macro-Vision System copy guard.

Some discs include a copy prevention signal, and when this type of

disc is played back, stripes etc., may appear on some sections of the

picture depending on the TV. This is not a malfunction.

• Due to the player’s copy protection circuits, connection of this device

through a VCR or an AV selector may prevent recording or cause

picture problems. This is not a malfunction.

No audio, or audio is

distorted.

• No audio is output during slow motion playback or when scanning

discs other than audio CDs and SACDs.

• Some DVD discs do not output digital audio: Switch your amplifier to

the player’s analog outputs.

• Check that the disc is free from dust and dirt, and that it is not

damaged (page 51).

• Check that all interconnects are firmly inserted.

• Check that the plugs and terminals are free of dirt, oxide, etc. and

clean if necessary. Also check the cable for damage.

• Make sure the player’s output is not connected to the amplifier’s

phono (turntable) inputs.

• Check your amplifier/receiver’s settings (volume, input function,

speaker settings, etc.).

The analog audio is OK,

but there appears to be

no digital audio signal.

• Make sure that the Digital Out setting is set to On (page 39).

• Check that the Dolby Digital, DTS and MPEG out settings (page 39)

are suitable for your amplifier/receiver — check the instruction manual

that came with your amplifier/receiver.

• SACDs and some DVD-Audio discs do not output digital audio.

Listen through the player’s analog audio outputs.

Noticeable difference in

DVD and CD volume.

• This is due to differences in the audio format and is not a

malfunction.

Problem Remedy

DV48AV_EN.book 55 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

HDMI troubleshooting

Problem Remedy

No HDMI audio output. • Check whether or not HDMI Out is set to Off. (See HDMI Out on

page 39.)

• This unit has been designed to be compliant with HDMI (High-

Definition Multimedia Interface). Depending on the component you

have connected, unreliable signal transfers may result.

• If the front panel HDMI indicator is lit:

– You won’t hear any sound from the HDMI output if the source

component is only DVI/HDCP-compatible.

• If the front panel

HDMI

indicator is unlit then:

– Make sure that you’ve selected this player as the HDMI input in the

settings for the component you’re using. You may need to refer to the

instruction manual of the component to do this.

– Check that the HDMI cable is connected properly and that the cable

isn’t damaged.

– Check that components connected using the HDMI interface are

switched on and HDMI compatible.

No HDMI video output. • Make sure that you’ve selected this player as the HDMI input in the

settings for the component you’re using. You may need to refer to the

instruction manual of the component to do this.

• Check that the HDMI cable is connected properly and that the cable

isn’t damaged.

• Check that components connected using the HDMI interface are

switched on and HDMI compatible.

• This unit has been designed to be compliant with HDMI (High

Definition Multimedia Interface). Depending on the component you

have connected, using a DVI connection may result in unreliable signal

transfers.

• Make sure the resolution on this player matches that of the

component you have connected using HDMI. See HDMI Resolution on

page 40 to change the HDMI resolution. See Resetting the output

resolution to the default setting with HDMI connection on page 16 if you

want to reset the output resolution.

No multichannel HDMI

audio.

• Make sure the HDMI Out setting is set to Auto, Auto (DSD) or

LPCM (5.1CH) (see HDMI Out on page 39 to do this). See also About

the HDMI audio output settings on page 47 and HDMI output with

DVD-Audio and SACD sources on page 48.

No sound is output from

the AUDIO OUT (5.1ch)

jack when connected via

HDMI.

• Check whether or not HDMI Out is set to Off. (See HDMI Out on

page 39.)

Component Out cannot

be set to Interlace.

• You can use the Interlace setting if the HDMI Resolution is set to

720 x 480i.

DV48AV_EN.book 57 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Glossary

Analog audio Direct representation of sound by an

electrical signal. See also Digital audio.

Aspect ratio The width of a TV screen relative to its

height. Conventional TVs are 4:3;

widescreen models are 16:9.

Bonus Group

(DVD-Audio

only)

An ‘extra’ group on some DVD-Audio

discs that requires a key number to

access.

Browsable

pictures

(DVD-Audio

only)

A feature of some DVD-Audio discs in

which the user can browse still

pictures recorded on the disc as the

audio is played.

Digital audio Indirect representation of sound using

numbers. See also Sampling frequency

and Analog audio.

DivX DivX is a media technology created by

DivX, Inc. DivX media files contain not

only video but also include advanced

media features like menus, subtitles,

and alternate audiotracks.

Dolby Digital A multi-channel audio encoding

system developed by Dolby

Laboratories that enables far more

audio to be stored on a disc than PCM

encoding. See also PCM (Pulse Code

Modulation).

DRM DRM (digital rights management) copy

protection is a technology designed to

prevent unauthorized copying by

restricting playback, etc. of

compressed audio files on devices

other than the PC (or other recording

equipment) used to record it. For

detailed information, please see the

instruction manuals or help files that

came with your PC and/or software.

DTS A multi-channel audio encoding

system developed by Digital Theater

Systems that enables far more audio to

be stored on a disc than PCM

encoding. See also PCM (Pulse Code

Modulation).

DSD

(Direct

Stream

Digital)

The Digital Audio encoding system

found on SACDs, that expresses the

audio signals by the pulse density of

one bit data.

EXIF

(Exchangeable

Image File)

A file format developed by FUJIFILM for

digital still cameras. Digital cameras

from various manufacturers use this

compressed file format which carries

date, time and thumbnail information,

as well as the picture data.

File

extension

A tag added to the end of a filename to

indicate the type of file. For example,

“.mp3” indicates an MP3 file.

HDMI HDMI (High-Definition Multimedia

Interface) is a high-speed digital

interface which has the capability to

support standard, enhanced, or high-

definition video plus standard to multi-

channel surround-sound audio on a

single digital connection. HDMI

features include uncompressed digital

video, a bandwidth of up to 5 gigabytes

per second and communication

between the AV source and AV devices

such as DTVs.

ISO 9660

format

International standard for the volume

and file structure of CD-ROM discs.

JPEG A standard file format used for still

images. JPEG files are identified by the

file extension “.jpg”.

MP3 MP3 (MPEG1 audio layer 3) is a

compressed stereo audio file format.

Files are recognized by their file

extension “.mp3”.

MPEG-4 AAC MPEG-4 AAC is a compressed stereo

audio file format. Files are recognized

by the extention ‘.m4a’.

Note that some files purchased with

the iTunes store) may not playback.

MPEG audio An audio format used on Video CDs

and some DVD discs.

Packed PCM

(DVD-Audio

only)

A lossless compression system that

enables more PCM audio to be stored

on a DVD-Audio disc than would

otherwise be possible.

PBC

(PlayBack

Control)

A system of navigating a Video CD

through on-screen menus recorded

onto the disc.

PCM

(Pulse Code

Modulation)

Digital audio encoding system found

on CDs. Good quality, but requires a lot

of data compared to Dolby Digital, DTS

and MPEG encoded audio. See also

Digital audio.

DV48AV_EN.book 59 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals

Language code list

Language (Language code letter), Language code

Country/Area code list

Country/Area, Country/Area code, Country/Area code letter

Japanese (ja), 1001

English (en), 0514

French (fr), 0618

German (de), 0405

Italian (it), 0920

Spanish (es), 0519

Chinese (zh), 2608

Dutch (nl), 1412

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Afrikaans (af), 0106

Amharic (am), 0113

Arabic (ar), 0118

Assamese (as), 0119

Aymara (ay), 0125

Azerbaijani (az), 0126

Bashkir (ba), 0201

Byelorussian (be), 0205

Bulgarian (bg), 0207

Bihari (bh), 0208

Bislama (bi), 0209

Bengali (bn), 0214

Tibetan (bo), 0215

Breton (br), 0218

Catalan (ca), 0301

Corsican (co), 0315

Czech (cs), 0319

Welsh (cy), 0325

Danish (da), 0401

Bhutani (dz), 0426

Esperanto (eo), 0515

Estonian (et), 0520

Basque (eu), 0521

Persian (fa), 0601

Finnish (fi), 0609

Fiji (fj), 0610

Faroese (fo), 0615

Frisian (fy), 0625

Irish (ga), 0701

Scots-Gaelic (gd), 0704

Galician (gl), 0712

Guarani (gn), 0714

Gujarati (gu), 0721

Hausa (ha), 0801

Hindi (hi), 0809

Croatian (hr), 0818

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (ln), 1214

Laothian (lo), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto, Pushto (ps), 1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Sundanese (su), 1921

Swahili (sw), 1923

Tamil (ta), 2001

Telugu (te), 2005

Tajik (tg), 2007

Thai (th), 2008

Tigrinya (ti), 2009

Turkmen (tk), 2011

Tagalog (tl), 2012

Setswana (tn), 2014

Tonga (to), 2015

Turkish (tr), 2018

Tsonga (ts), 2019

Tatar (tt), 2020

Twi (tw), 2023

Ukrainian (uk), 2111

Urdu (ur), 2118

Uzbek (uz), 2126

Vietnamese (vi), 2209

Volapük (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Argentina, 0118, ar

Australia, 0121, au

Austria, 0120, at

Belgium, 0205, be

Brazil, 0218, br

Canada, 0301, ca

Chile, 0312, cl

China, 0314, cn

Denmark, 0411, dk

Finland, 0609, fi

France, 0618, fr

Germany, 0405, de

Hong Kong, 0811, hk

India, 0914, in

Indonesia, 0904, id

Italy, 0920, it

Japan, 1016, jp

Korea, Republic of, 1118, kr

Malaysia, 1325, my

Mexico, 1324, mx

Netherlands, 1412, nl

New Zealand, 1426, nz

Norway, 1415, no

Pakistan, 1611, pk

Philippines, 1608, ph

Portugal, 1620, pt

Russian Federation,

1821

Singapore, 1907, sg

Spain, 0519, es

Sweden, 1905, se

Switzerland, 0308, ch

Taiwan, 2023, tw

Thailand, 2008, th

United Kingdom, 0702, gb

USA, 2119, us

DV48AV_EN.book 61 ページ２００７年６月６日　水曜日　午前１０時２分

Downloaded From Disc-Player.com Pioneer Manuals
