RF DEMODULATOR
RFD-1
CONTENTS
1. SAFETY INFORMATION.....................................2
2. EXPLODED VIEWS AND PARTS LIST ...............3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 6
4. PCB CONNECTION DIAGRAM......................... 10
5. PCB PARTS LIST..............................................13
6. ADJUSTMENT...................................................14
7. PANEL FACILITIES AND SPECIFICATIONS.....14
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model
RFD-1 Power Requirement
MY O AC220 - 230V
Remarks
2
RFD-1
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which may
cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).
When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fumes produced.
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A POTENTIAL
SHOCK HAZARD AND MUST BE CORRECTED BEFORE
RETURNING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this Service Manual.
Electrical components having such features are identified
by marking with a on the schematics and on the parts list
in this Service Manual.
The use of a substitute replacement component which does
not have the same safety characteristics as the PIONEER
recommended replacement one, shown in the parts list in
this Service Manual, may create shock, fire, or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
such as Simpson Model 229-2 or equivalent between the
earth ground and all exposed metal parts of the appliance
(input/output terminals, screwheads, metal overlays, control
shaft, etc.). Plug the AC line cord of the appliance directly
into a 120V AC 60Hz outlet and turn the AC power switch
on. Any current measured must not exceed 0.5mA.
(FOR USA MODEL ONLY)
Leakage
current
tester
Reading should
not be above
0.5mA
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
Earth
ground
AC Leakage Test
3
RFD-1

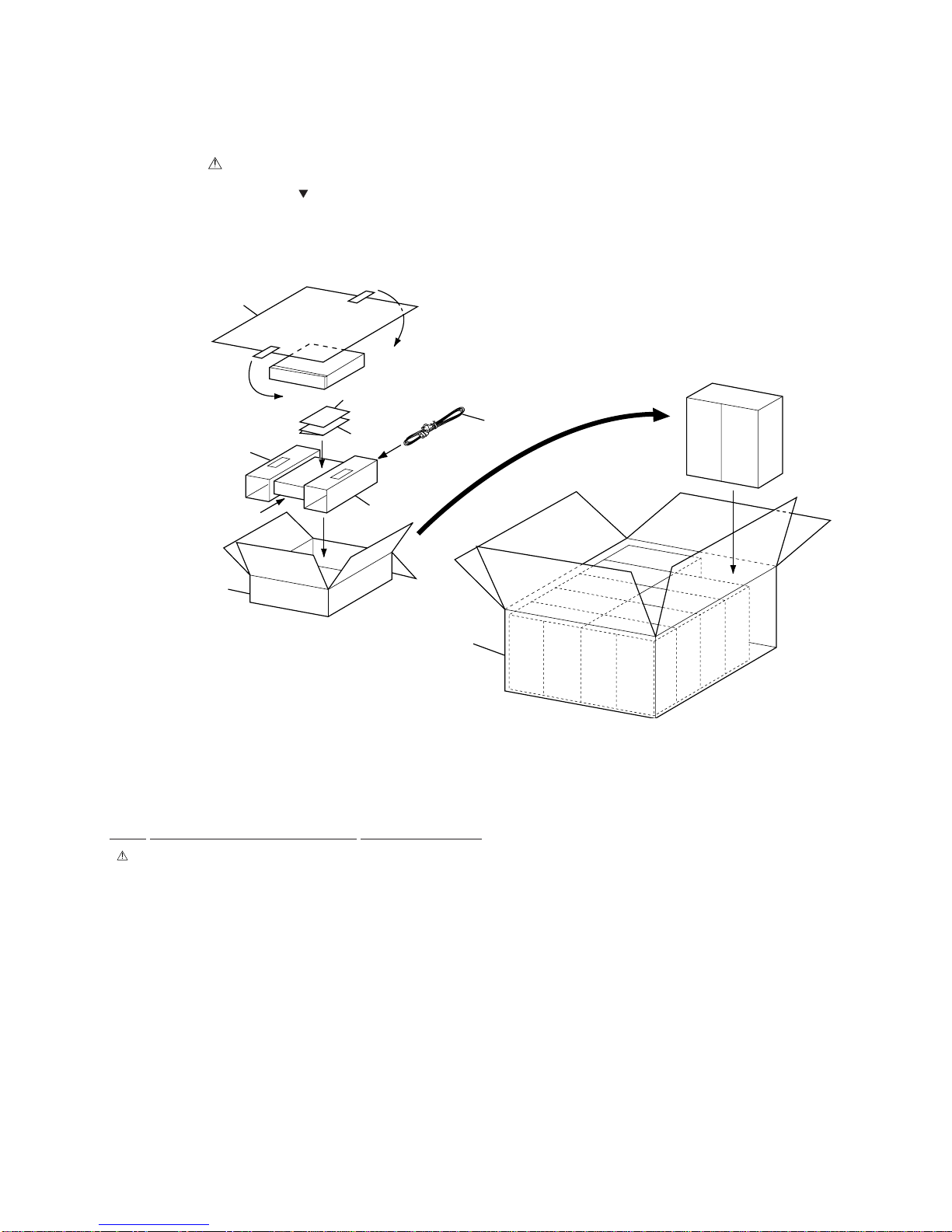

2.1 PACKING
1 Power Cord ADG1127
NSP 2 Warranty Card ARY7022
3 Operating Instructions ARE7212
(English/French/German/Italian
/Dutch/Swedish/Spanish/Portuguese)
4 Protector DHA1235
5 Packing Sheet RHC1050
6 Packing Case AHG7058
7 Master Carton AHG7060
PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS and PARTS LIST
NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•Screws adjacent to mark on the product are used for disassembly.
FRONT
FRONT
PIONEER
PIONEER
PIONEER
PIONEER
PIONEER
5
2
31
4
6
7
4
4
RFD-1
2.2 EXTERIOR 23
26
17
26
32
5
4
8
27
2
16
7
27
18
15
11
12
15
14
14
36
26
26
26
33
26
26
20
13
26 28
19
1
22
21
10
26
29
29
9
5
RFD-1
(1) EXTERIOR PARTS LIST
Mark No. Description Part No.
1 SW Assy VWR1303
2 DEM Assy VWV1601
NSP 3 LED Assy VWY1048
4 Fuse (FU1: T250mA) AEK1048
5 Housing Assy (3P) VKP2178
6 Housing Assy (4P) VKP2179
7 AC Inlet Assy VKP2183
8 Housing Assy (7P) AKP7037
9 Power Transformer VTT1153
(AC220-230V)
NSP 10 Front Stay DND1140
11 Locking Card Spacer ONK1035
12 Disc Guard PNM1245
13 Guide Ring VEC-151
14 Washer VEC1254
15 Poron Leg VEC1987
16 Sheet B (PVC) VEC1990
17 Bonnet Case VNA1952
NSP 18 Main Chassis ANA7084
19 SW Stay VNE2148
20 Power Knob VAC1030
21 Cushion AEC7225
22 Front Panel Assy AXA7072
23 Caution Label ARW7036
24 ••••••••
25 ••••••••
26 Screw BBZ30P060FZK
27 Screw BBZ30P080FCC
28 Screw PMA30P060FMC
NSP 29 Cord Stopper ZCB-069Z
30 ••••••••
31 ••••••••
32 Fuse Label VRW1727
33 LED Lens DNK2331
Mark No. Description Part No.
RFD-1
6
A
B
C
D
1234
1234
V+5V
V-5V
V+5V
V+5V
V+5V
V+5V
V+5V
GND
7
4
70mVp-p
• AC MODE
-
+
-
+
4
-
+
-
+
B.P.F
X1
V+5V
GND
GND GND GND GND GND GND
GND
GND
GND GND GND
GND
GND
GND
123
AC-3
RF IN
ALC
IC7 (1/4,2/4) :
TC74HC08AF
IC3 (1/2) :
MC14577CF
Q1
2SC2412K
Q5
2SC2412K
Q4
2SC2412K
Q2
2SC2412K Q3
2SA1037K Q6
2SA1037K
IC3 (2/2) :
MC14577CF
IC4 (1/2) :
BA4560F
IC4 (2/2) :
BA4560F
CN1
JA3
COAXIAL IN
JA2
OPTICAL IN
D203-D206
POWER
TRANSFORMER
S1 FU1
VTT1153
LM2940CT-5.0
IC200
IC201
NJM79L05
V+5V
V-5V
VCXO
18.432MHz
6
4
5
1
2
3
1
2
IC5 (1/6,2/6) :
TC74HCU04AF
1234
14
2
31
8
6
5
7
2
3
18
6
57
1
2
1
2
AC220 - 230V
A
DEM ASSY
C
SW ASSY
CN2 CN3 CN4
: RF Signal Route
3. BLOCK DIAGRAM and SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
RFD-1
7
A
B
C
D
5678
5678
OPTICAL
COAXIAL
GND
GND
V+5V
+
V+5V
GND
7
V+5V
GND
7
GND
IC2 : HM62256BLFP-8T
IC9 :
TC74HC123AF IC7(3/4) :
TC74HC08AF
IC8 (2/2) :
TC74HC32AF
SRAM
32K × 8
IC1 : PM4007A
JA5
COAXIAL
OUT
JA4
OPTICAL
OUT
S2
CPIN
CMIN
DOUT
PDO
MUTE
VI
VO
RESET OSC ON
OEB
WEB
MUTO
DAOUT
C9M
+
–
Demodulation SYNC
Detection
Protection
46.08MHz
Oscillator
Phase
Comparator
1/2048
Divider
1/2
46.08MHz
9.216MHz
SW
S/P
9kHz
Timing
Generator
Error
Correction
Address
Generator
DAI
Controller
Serial Data
AC-3
Synchronism
D4
Q
A1
DOUTB
Q
82
86
83
88
89
63
55
56
79
34
A0 - A14
D1 - D7
42
36
66 1
2
1
3
4
2
1
3
4
13
10
IC7 (4/4) :
TC74HC08AF
11
12
13
IC8 (1/2) :
TC74HC32AF
3
2
1
98
46
5
4
70
90
IC6(1/6 -6/6) :
TC74HCU04AF
34
12
13 12
110
56
98
CN11CN6
14
14
B
LED ASSY
V+5V
123
RFD-1
8
A
B
C
D
1234
1234
AC POWER CORD
: AC220 - 230V, 50/60Hz
ADG1127
70mVp-p
• AC MODE
2.5V
p-p
BA4560F
BA4560F
HM62256BLFP-8T
A
3.2 DEM, LED and SW ASSYS
RFD-1
9
A
B
C
D
5678
5678
B C
A
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
A
DEM ASSY
(VWV1601)
C
SW ASSY
(VWR1303)
B
LED ASSY
(VWY1048)
POWER
TRANS-
FORMER
VTT1153
C208
220/10
AKP7037
FU1
T250mA 250V (AEK1048)
5Vp-p
160nS
200mV
p-p : RF Signal Route
• SWITCHES
SW ASSY
S1 : POWER ON – OFF
LEDB ASSY
S2 :DIGITAL IN
OPTICAL – COAXIAL
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
CAUTION -
CAPACITOR
COVER
(VEC-063)
RFD-1
10
A
B
C
D
1234
1234
A
SIDE A
4.1 DEM ASSY
4. PCB CONNECTION DIAGRAM
DEM ASSY
A
CN3
C
CN11
B
POWER
TRANSFORMER
HOUSING ASSY(AKP7037)
(VNP1649-C)
Q5 Q4 Q1 IC5 IC7 IC6
Q2 IC3 Q6Q3 IC8
IC4
IC2
IC1IC9IC201
IC200
NOTE FOR PCB DIAGRAMS:
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts
for several destination.
For further information for respective destinations, be sure
to check with the schematic diagram.
4. Viewpoint of PCB diagrams
Symbol in PCB
Diagrams Symbol in Schematic
Diagrams Part Name
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
BCE
BCE
BCE
DGS
BCE
BCEBCE
DGSDGS
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
