XM SATELLITE DIGITAL TUNER
GEX-P910XMXN/UC1
Service
Manual
-This service manual should be used together with the manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following
manual(s).
Model No. Order No. Mech. Module Remarks
GEX-P900XM/UC CRT2744
-GEX-P910XM/XN/UC1 is identical to GEX-P910XM/XN/UC in appearance and they share the same
model number.

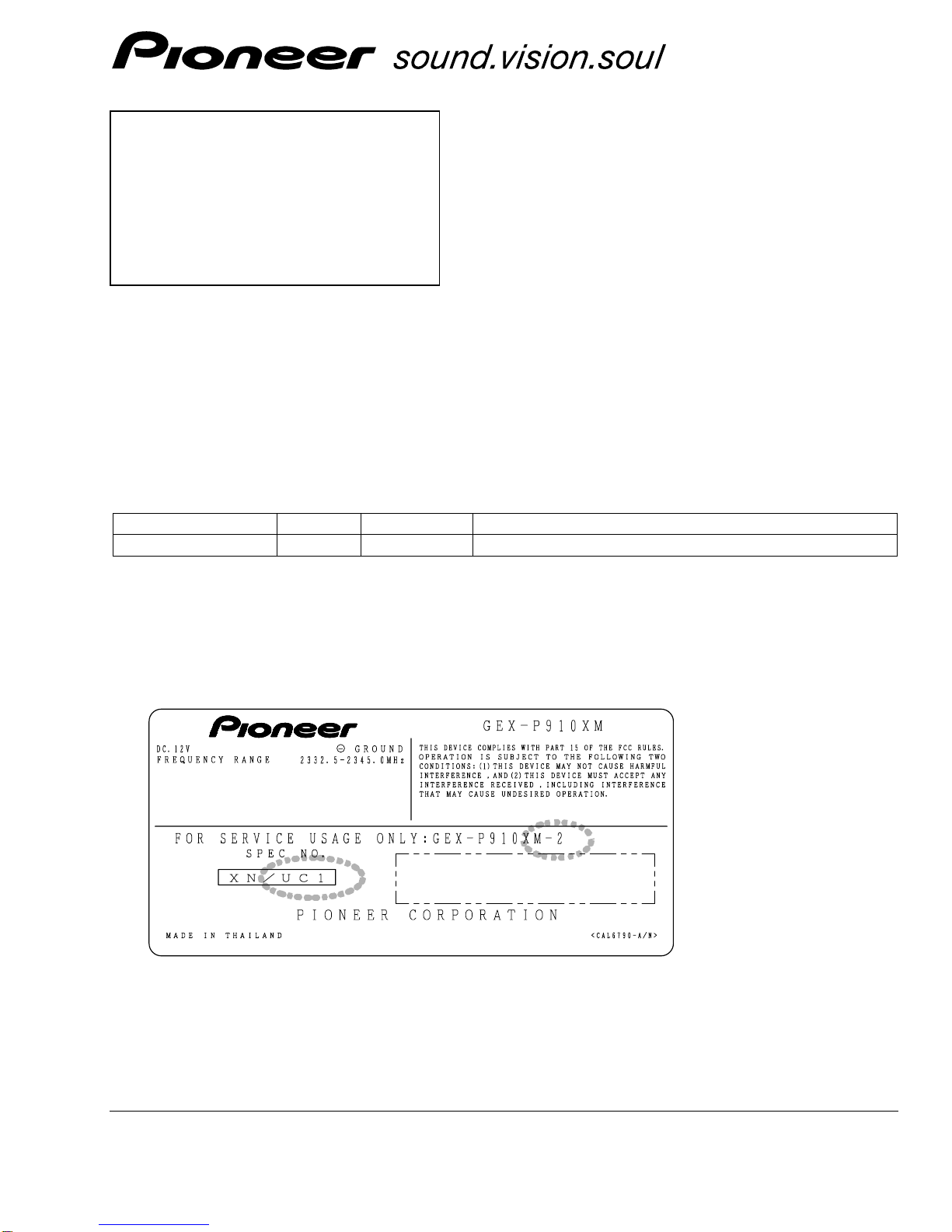

GEX-P910XM/XN/UC1 name plate is shown below. Check this against the name plate on the unit to
identify the model.
If the name plate differs, please refer to the CRT2964 GEX-P910XM/XN/UC service manual.
2
1234
1234
F
E
D
C
B
A
GEX-P910XM/XN/UC1

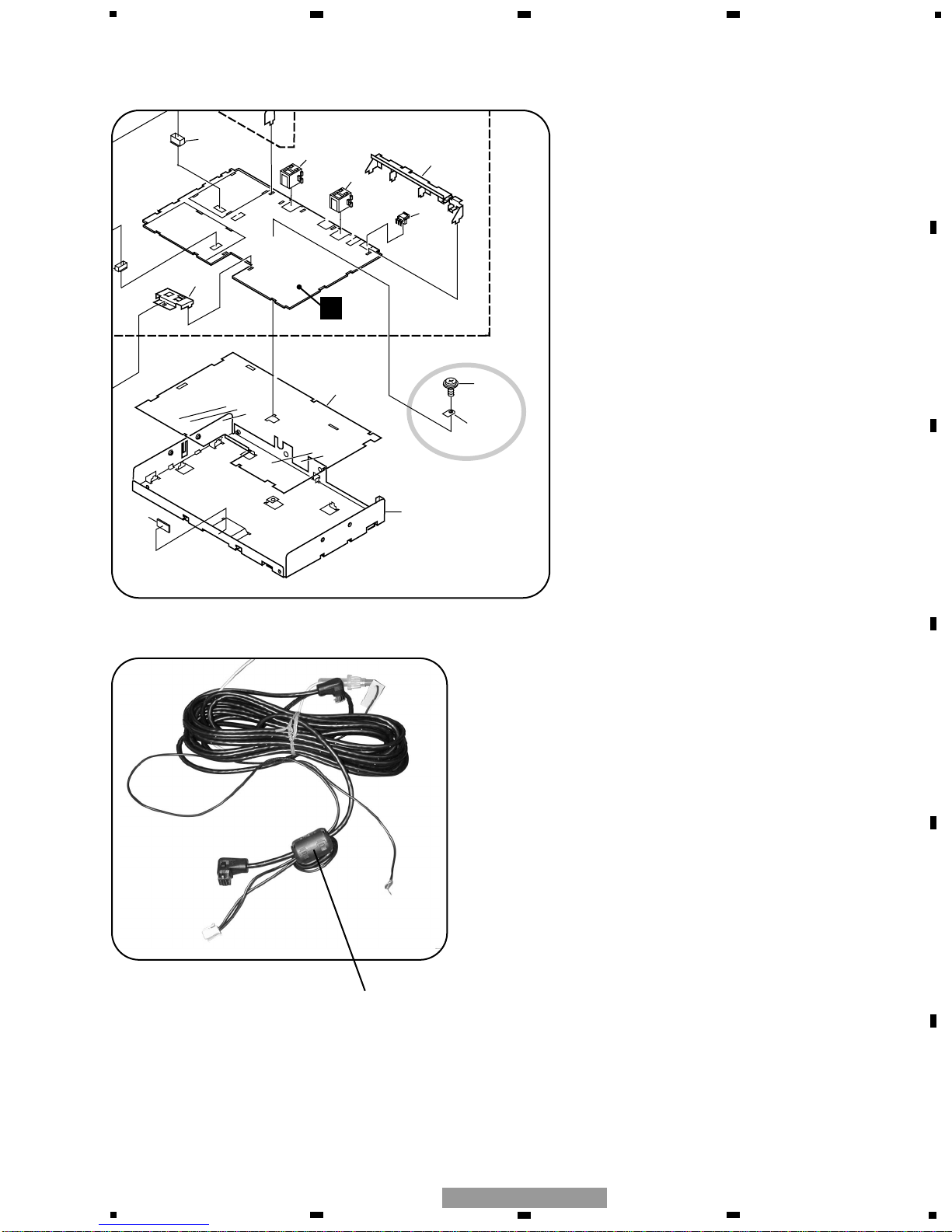

EXPLODED VIEWS AND PARTS LIST
PACKING(Page 2)
-PACKING SECTION PARTS LIST Part No.
Mark No. Description GEX-P900XM/UC GEX-P910XM/XN/UC1
1-3 Owner's Manual CRB1732 CRB1801
1-4 Installation Manual CRB1733 CRB1802
10 Carton CHG4466 CHG4632
11 Sub Carton CHG4469 CHG5216(Carton)
12 Contain Box CHL4466 CHL5216
13 Protector CHP2443 CHP2527
14 Inner Box CHW1920 Not used
EXTERIOR(Page 4)
-EXTERIOR SECTION PARTS LIST Part No.
Mark No. Description GEX-P900XM/UC GEX-P910XM/XN/UC1
3 Case CNB2659 CNB2820
6 Main Unit CWM7660 CWM9523
28 DSP Module CWX2555 CWX2972
40 Holder CNC9332 CND2275
43 Screw ISS26P055FUC ISS26P055FTC
45 Terminal(CN601) Not used VNF1084
46 Filter(Service) Not used CXX1678
3
5678
F
E
D
C
B
A
5678
GEX-P910XM/XN/UC1
A
44
12 11
10 14
8
15
43
5
2
45
46
4
1234
1234
F
E
D
C
B
A
GEX-P910XM/XN/UC1
ELECTRICAL PARTS LIST(Page 30)
RF Module Part No.
Symbol and Description GEX-P900XM/UC GEX-P910XM/XN/UC1
Q2 Transistor 2SA1774 Not used
Q3 Transistor UMX2N Not used
L15 Inductor LCYB1N8S1005 LCYB1N2S1005
L20 Inductor LCYB3N9S1005 LCYB2N2S1005
L53 Inductor LCYB2N7S1005 LCYB82NJ1005
R3,6 RS1/16SS101J RS1/16SS431J
R4 RS1/16SS680J RS1/16SS120J
R5,7 RS1/16SS751J RS1/16SS122J
R9,11 RS1/16SS431J Not used
R10 RS1/16SS120J RS1/16SS0R0J
R13 RS1/16SS562J RS1/16SS0R0J
R14 RS1/16SS362J RS1/16SS9100F
R15 RS1/16SS362J RS1/16SS2400F
R30 RS1/16SS473J Not used
R32 RS1/16SS332J Not used
R33 RS1/16SS222J Not used
R36 RS1/16SS472J Not used
R39 RS1/16SS471J Not used
R41 RS1/16SS151J RS1/16SS221J
R48 RS1/16SS472J RS1/16SS0R0J
R57,58 RS1/16SS471J RS1/16SS121J
R71,72 RS1/16SS221J Not used
R73 RS1/16SS220J RS1/16SS0R0J
R74 RS1/16SS220J RS1/16SS180J
R75,76 RS1/16SS221J RS1/16SS301J
C9,10,15,16 CCSSCH101J50 CCSSCH220J50
C30 CSZS3R3M16 Not used
C37,85,155 CKSSYB103K16 Not used
C138 CCSSCJ3R0C50 CCSSCH120J50
DSP Module Part No.
Symbol and Description GEX-P900XM/UC GEX-P910XM/XN/UC1
IC202 IC STA-400 STA-400A
IC203 IC K4S640832E-TL1H K4S280832E-TL1H
IC205 IC K4S640832E-TL1H Not used
IC208 IC STA-450 STA-450A
R337 RS1/16SS103J Not used
R349 Not used RS1/16SS103J
C283,307,313 CCSSCH101J50 Not used
C284,285,290,297,302,308,314 CKSSYB104K10 Not used
C387 Not used CKSSYB102K50

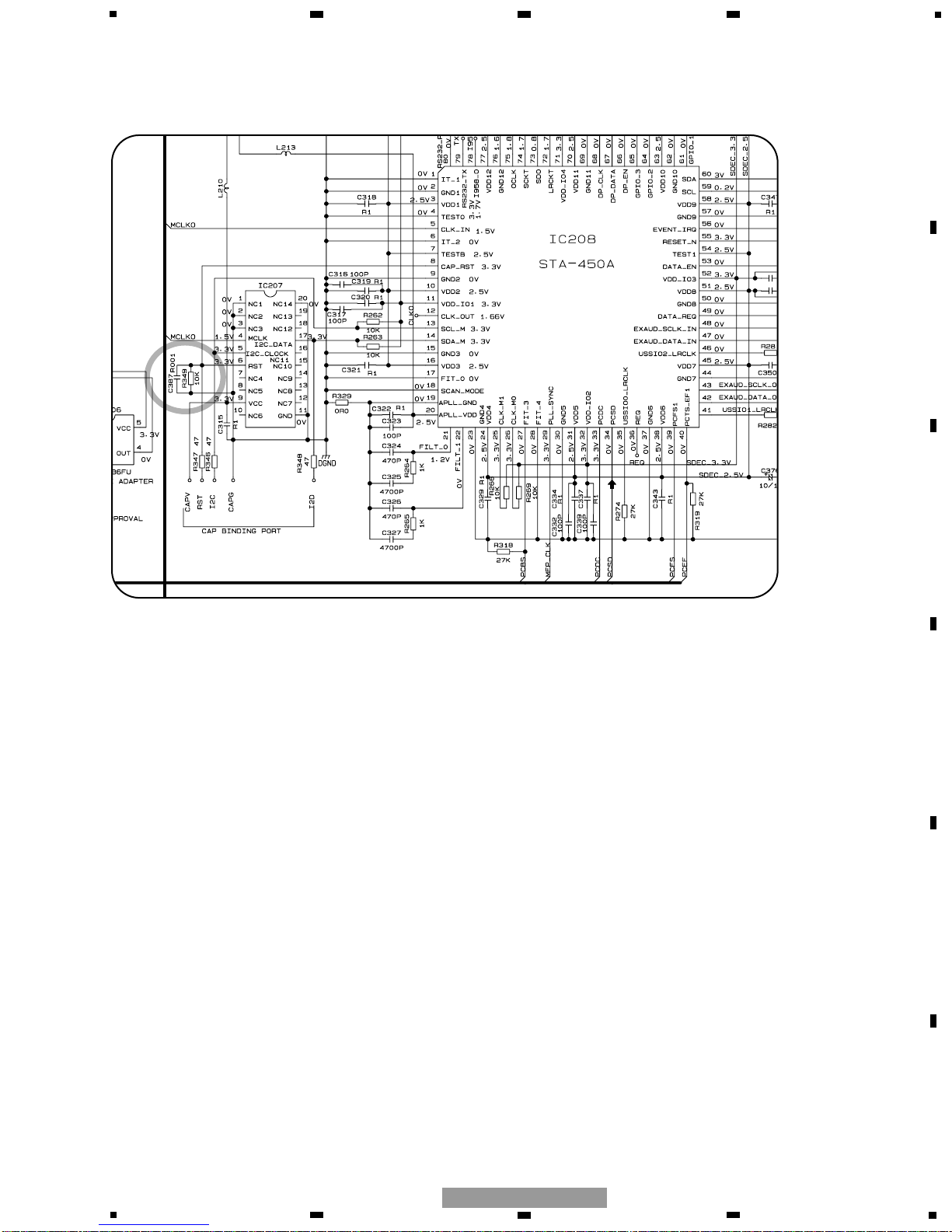

5
5678
F
E
D
C
B
A
5678
GEX-P910XM/XN/UC1
SSDEC
CAP
ST19AF08BR20QMAA
DSP Module Page 17 C-6

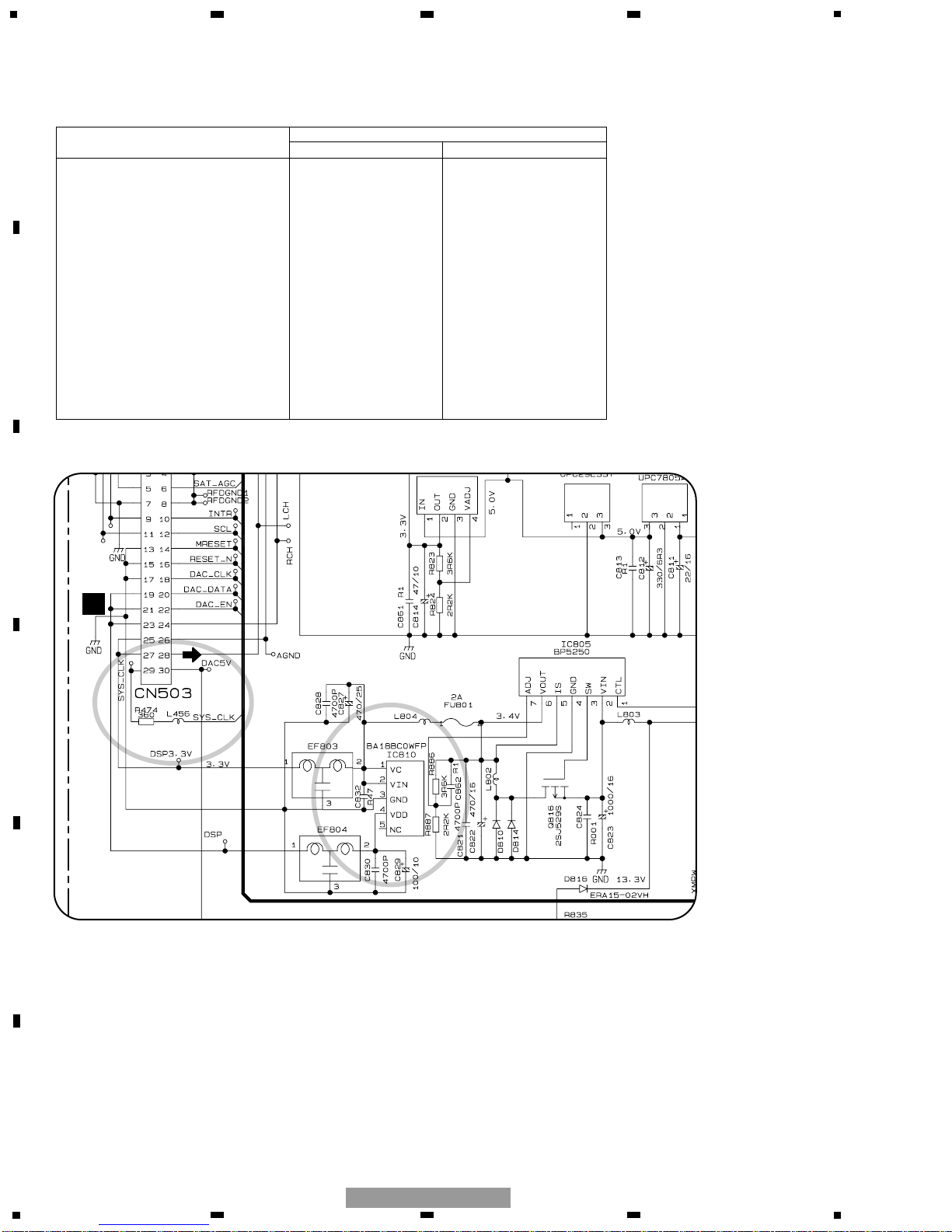

6
1234
1234
F
E
D
C
B
A
GEX-P910XM/XN/UC1
Main Unit Part No.
Symbol and Description GEX-P900XM/UC GEX-P910XM/XN/UC1
IC601 IC PD5680C PD5845A
IC806 IC S-80827ANUP-EDQ S-80827CNUA-B8M
IC810 IC Not used BA18BC0WFP
D810,814 Diode F2J4S RB060L-40
D812,813 Diode ERA15-02VH Not used
L456 Inductor Not used CTF1346
FU801 Fuse(2A) CEK1190 CEK1257
R457,465 RS1/16SS563J RS1/16SS473J
R469 RS1/16SS102J RS1/16SS152J
R474 Not used RS1/16SS361J
R607 RS1/16SS473J RS1/16SS104J
C829 CCH1337-A-P35 CEAT101M10
(470µF/25V)
C832 Not used CKSRYB474K10
RB060L-40
RB060L-40
CEK1257
1.8V
1.8V
>
CCN201
Main Unit Page 8 C-2
