Pitco PE14D Manuale utente

L80-045 Rev 0 (11/07)

IMPORTANT FOR FUTURE REFERENCE

Please complete this information and retain these

instructions for the life of the equipment:

Model #: __________________________

Serial #: __________________________

Date Upgraded: ____________________

Technician: ________________________

Installation Instructions for the

PE14D/PG14D

Manual Fill Option

L80-045 Rev0 (11/07) 2

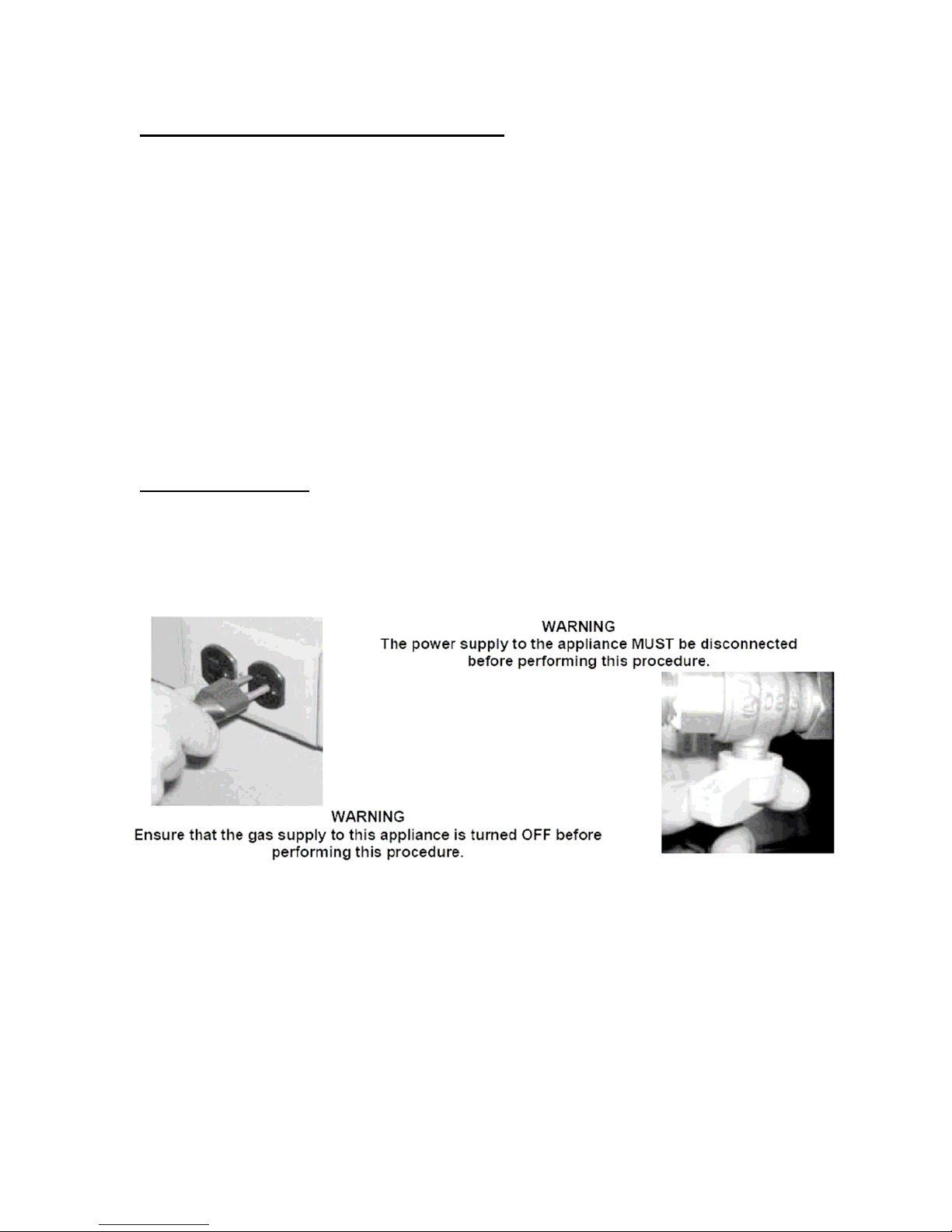

Tool required to perform this upgrade:

5/32” Allen Key 5/16” Socket, Nut Driver, or Wrench

3/8” Wrench 1/2” Wrench

3/4” Wrench 7/8” Wrench

13/16” Wrench 1 1/4” Wrench

1/2” Punch Hammer

Teflon Tape #2 Phillips

Channel Locks

Before you begin :

Verify that you have all the parts for the model that you are upgrading

by checking the kit number and contents against the kit picture.

L80-045 Rev0 (11/07) 3

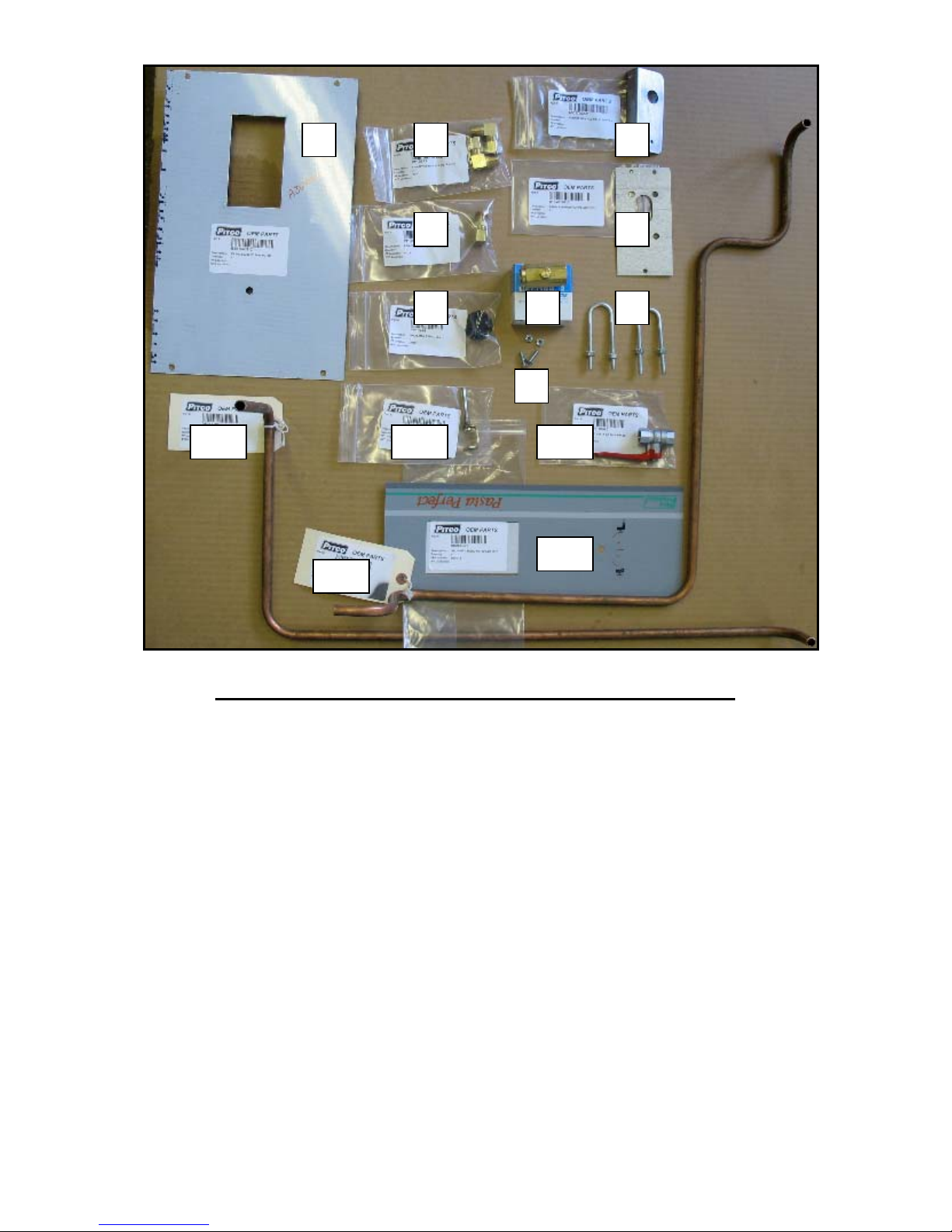

Ensure kit is complete. Part number B8702901-CL.

1. Qty.1 B3615401-C Bezel

2. Qty.3 PP10911 Fitting

3. Qty.1 A8017902-C Bracket

4. Qty.1 PP10830 Fitting

5. Qty.1 A1826101-C Bracket

6. Qty.1 PP10944 Knob

7. Qty.1 PP10726 Check Valve

8. Qty.2 PP10270 U-Bolt

9. Qty.2 PP10694 Screw

9. Qty.4 P0092300 Nut

10. Qty.1 A8017501 Piping

11. Qty.1 B8029301 Handle Extension

12. Qty.1 PP10945 Valve

13. Qty.1 A8017401 Piping

14. Qty.1 A6066901 Overlay

1 2 3

5

4

7

6

10 11 12

8

9

13

14

L80-045 Rev0 (11/07) 4

15. Qty.1 L80045 Instruction Manual

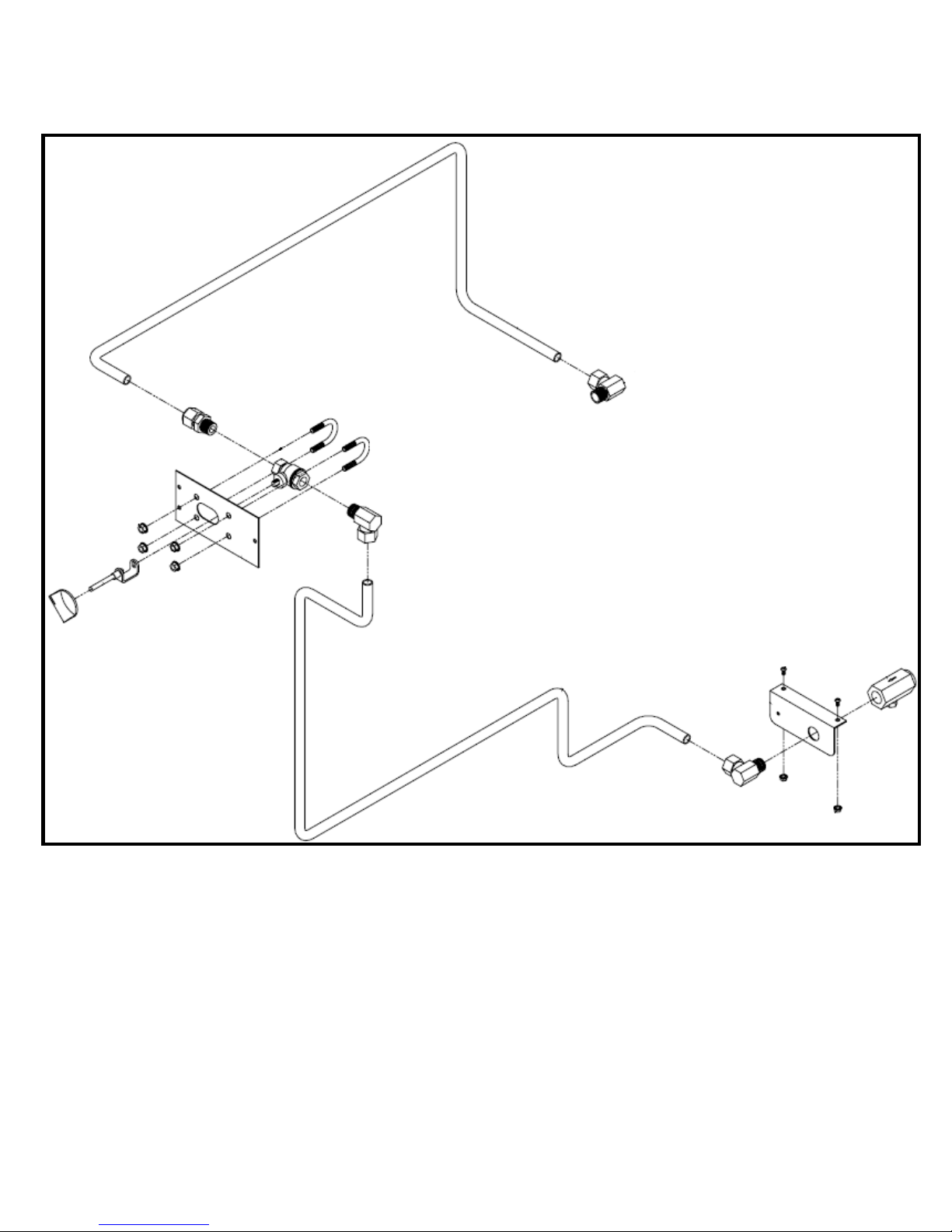

Exploded Part view

L80-045 Rev0 (11/07) 5

1. From the back, remove the eight 5/16” screws that hold the rear cover on.

2. With the rear of the tank exposed, remove the fill port plug with a 1/2” in

wrench. Then remove the reducer with a 7/8” wrench. Save the reducer,

as it will be reused.

3. With the nylon plug exposed it can now be removed. The hole in the tank

is smaller than the coupling. The nylon plug needs to be removed out the

rear. It can be punched out from the front inside of the tank, or pulled

from the rear. The plug will not be reused. Be sure not to damage the

threads of the coupling. Clean any debris from the reducer and the

coupling. Apply Teflon tape to the reducer and reinstall.

L80-045 Rev0 (11/07) 6

4. Apply Teflon tape to the 90° compression fitting (PP10911) and install.

Make sure the fitting is at the 3 o’clock position when fully tightened.

5. Apply the compression fitting (PP10830) to the front end of the fill

piping (A8017501) before install. Apply the remaining two 90°

compression fitting (PP10911) to each end of the supply piping

(A8017401). After each end is compressed remove the body of the fitting

6. Install the fill piping from the rear of the unit. The piping should sit on

top of the left tank support. Insert the rear end of the piping in to the rear

compression fitting and tighten the fitting.

L80-045 Rev0 (11/07) 7

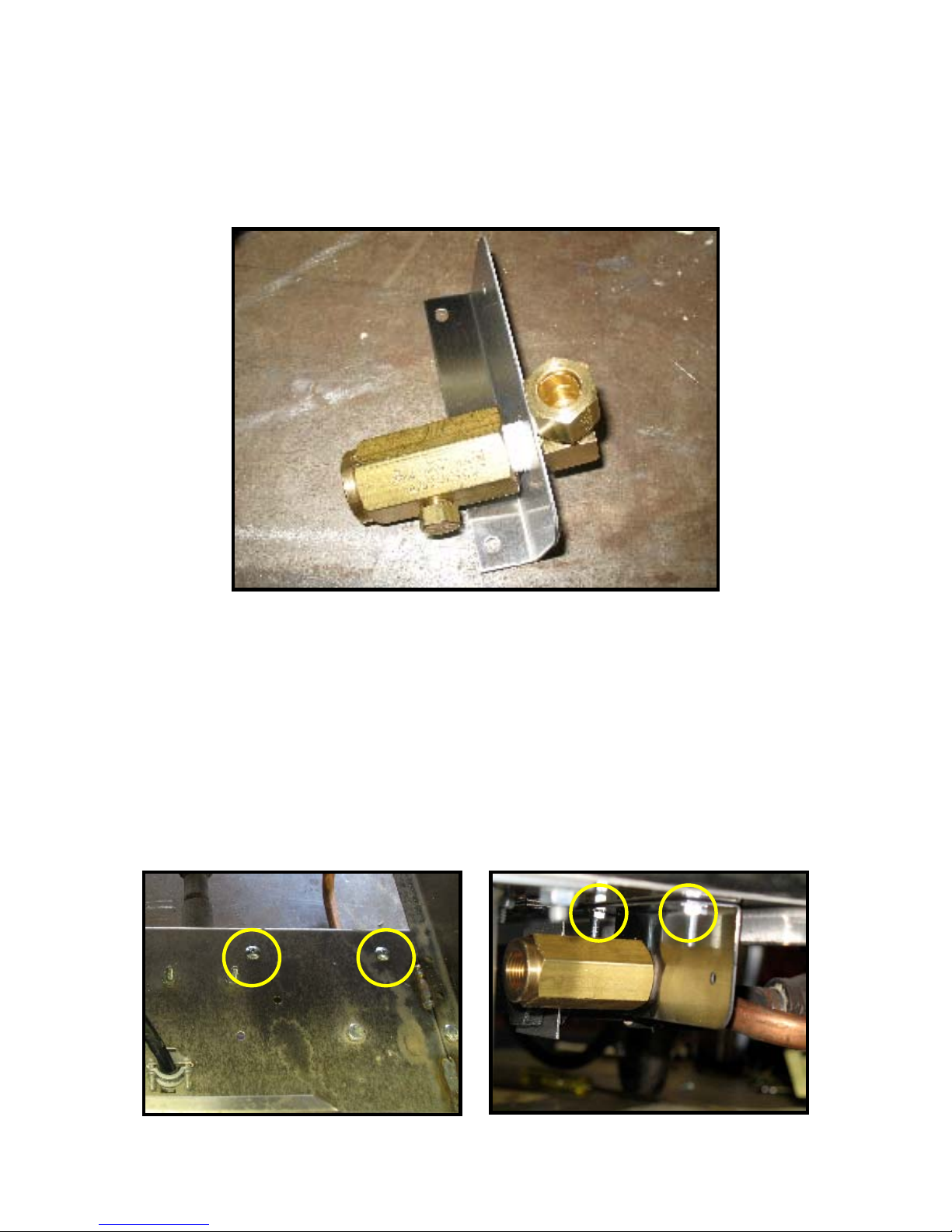

7. Apply Teflon tape to the rear fitting of the supply piping. Install the

check valve (PP10726) onto the rear fitting of the supply piping with the

support bracket (A1826101-C) between the valve and fitting.

8. Install the supply piping assembly from the front. The assembly should

contain the piping, two fittings, check valve, and mounting bracket.

Mount the bracket to the bottom rear cabinet brace using the two Phillips

head screws (PP10694) and two of the six kep nuts (P0092300). When

mounted, reinstall the rear cabinet cover using the original screws.

L80-045 Rev0 (11/07) 8

9. From the front of the unit, remove the four Allen head screws with a

5/32” Allen Key. Unplug the computer and set front panel assembly

aside. Remove the heat shield via three 5/16” screws.

10.With the heat shield removed remove the no fill option cover plate. The

plate is held in place with three 5/16” screws with 3/8” kep nuts.

11. With the cover removed you should see your supply and fill piping.

L80-045 Rev0 (11/07) 9

11. Apply Teflon tape the NPT ends of the fitting bodies removed earlier.

Assemble the fittings with fill valve (PP10945). Add the knob extension

to the assembly and install. Make sure the flat side of the “D” shaft faces

the 90° fitting.

12.Install the manual fill option cover plate (A1826101-C) using the original

hardware. Install two the u-bolts (PP10270) and four kep nuts

(P0092300) and tighten.

13.Using a pair of channel locks brake off the extra studs of the U-bolts.

Reinstall the heat shield using the original hardware.

L80-045 Rev0 (11/07) 10

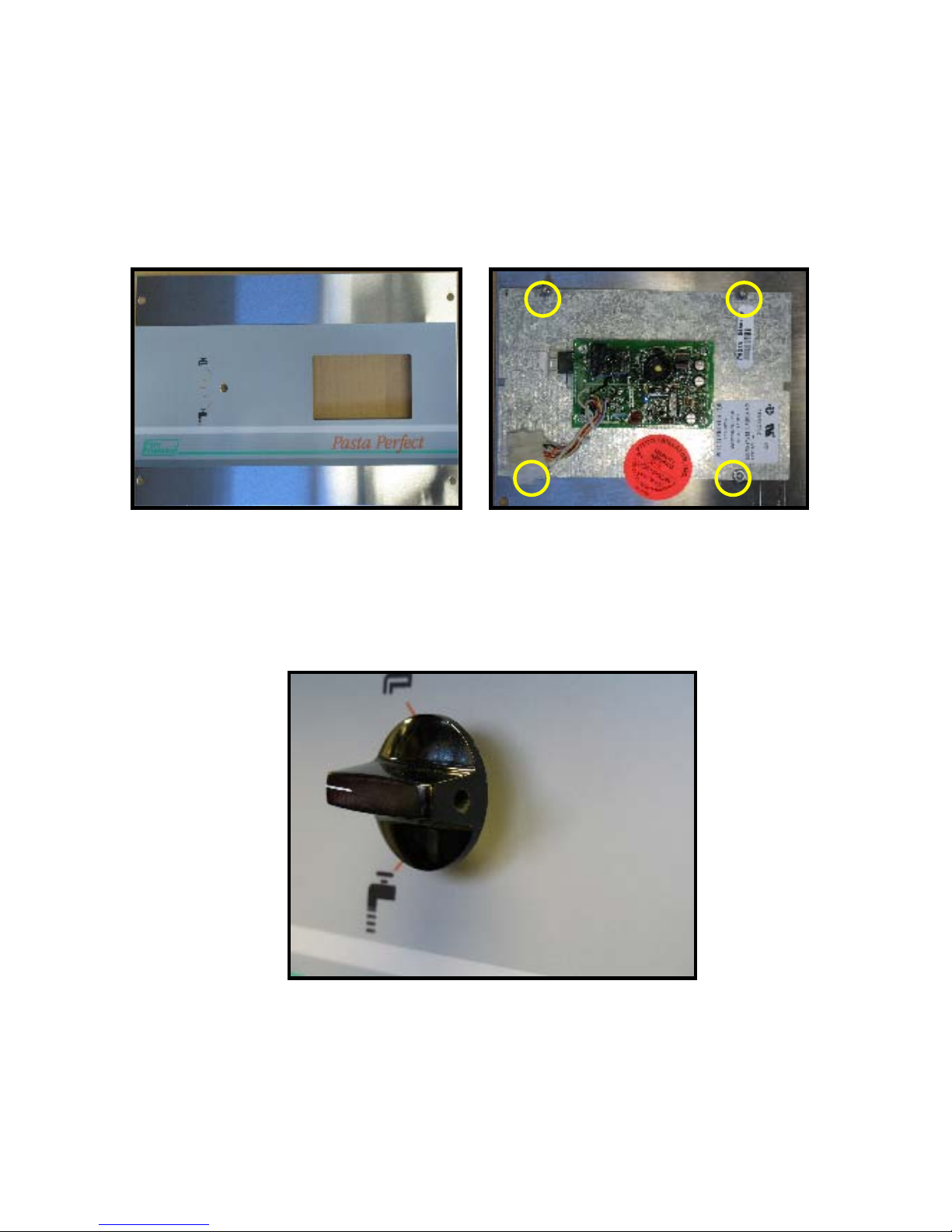

14.Apply the new manual fill option overlay (A6066901) to the new manual

fill option bezel (B3615401-C). With a 3/8” wrench, remove the four kep

nuts that hold the controller to the original bezel and install it onto the

new bezel using the original hardware.

15.Reconnect the controller plug and mount the bezel using the original

hardware. Install the fill knob and tighten the set screw. Make sure the

knob only travels within the markings of the overlay.

16.If a water source is available, hook it up and inspect all connection points

for leaks. If a water source is not available fill the tank with water and

inspect all connection points below the water line.
