Pittsburgh Pro 239 Manuale utente
Click Stop Torque Wrench
Item 00239
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please call 1-800-444-3353 as soon as possible.
Visit our website at: http://www.harborfreight.com
Copyright© 2009 by Harbor Freight Tools®. All rights reserved. No portion of this manual or
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn
proportionally. Due to continuing improvements, actual product may differ slightly from the
product described herein. Tools required for assembly and service may not be included.
Manual Revised 11g
Page 2 For technical questions, please call 1-800-444-3353. SKU 00239
Specications
Torque Range 20-150 ft-lb
Drive 1/2"
Length 18"
Accuracy ±4%
Save This Manual
Keep this manual for the safety warnings and
precautions, assembly, operating, inspection,
maintenance and cleaning procedures. Write
the product’s serial number in the back of the
manual near the assembly diagram (or month
and year of purchase if product has no
number). Keep this manual and the receipt
in a safe and dry place for future reference.
Important Safety Information
In this manual, on the labeling, and all other
information provided with this product:
This is the safety alert symbol.
It is used to alert you to potential
personal injury hazards. Obey
all safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates a hazardous
situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION, used with the safety alert
symbol, indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
NOTICE is used to address practices
not related to personal injury.
CAUTION, without the safety alert
symbol, is used to address practices
not related to personal injury.
Safety Warnings
WARNING Read all safety warnings
and instructions. Failure to follow the
warnings and instructions may result in
serious injury.
Save all warnings and instructions
for future reference.
1. The warnings, cautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution
are factors which cannot be built into this
product, but must be supplied by the operator.
2. Wear ANSI-approved safety goggles and
heavy-duty work gloves during use.
3. Use only within rated torque range.
Do not use for loosening.
4. Use as intended only. Do not use as
hammer or pry bar. Do not use handle
extension to increase force. Do not drop.
5. Inspect before every use; do not use
if damaged or if parts are loose.
6. Keep away from children.
7. For your safety, service, calibration,
and maintenance should be performed
regularly by a qualied technician.
8. Use only sockets with the correct
drive and rated to at least the
torque that will be applied to it.
Page 3For technical questions, please call 1-800-444-3353.SKU 00239
Operating Instructions
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.

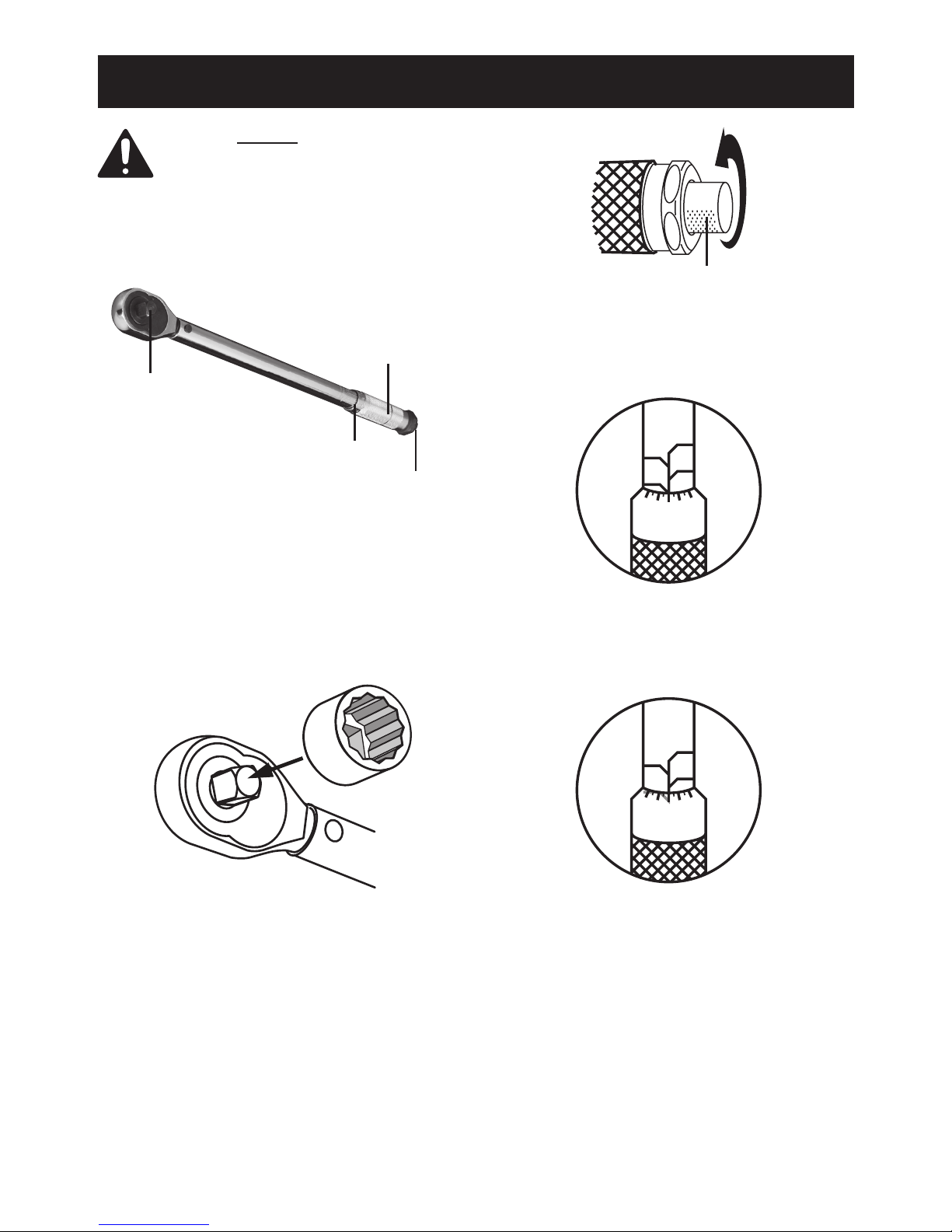

Controls
1.
Drive Anvil
Torque Settings
Knurled Handle
Lock Knob
Wear ANSI-approved safety goggles
and heavy-duty work gloves.
2. Clean and/or repair the threads that will be
tightened. Damaged or dirty threads will
result in a misleading torque reading.
3. Select the desired socket and verify it ts
properly on the nut or bolt being tightened.
4. Press the socket rmly onto the drive anvil.
5.
Lock Knob
Turn the Lock Knob at bottom of the
Handle counterclockwise until it stops.
6. Turn the handle to set the torque.
To set to 55, for example:
a.
50
20
18
9
(A)
70 60
80
Turn the knurled handle (CW or CCW) until
the “0” graduation on the bevel edge lines
up with 50. See illustration (A), above.
b.
50
75
63
4
(B)
The 50 line is shown in grey because
it will likely be hidden at this point.
70 60
80
Continue turning the knurled handle about
a half turn clockwise until the “5” graduation
mark lines up with the centerline. It is now
set for 55. See illustration (B), above.
Maintenance and Servicing
Proceduresnotspecicallyexplained
in this manual must be performed
onlybyaqualiedtechnician.
TO PREVENT INJURY
FROM TOOL FAILURE:
Do not use damaged equipment.
If abnormal noise or vibration occurs, have
the problem corrected before further use.
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for loose
hardware, misalignment or binding of moving
parts, cracked or broken parts, and any other
condition that may affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. If the Torque Wrench has not been used
for some time, turn the knurled handle
(clockwise and counterclockwise) several
times to re-lubricate the internal workings.
Then, operate at a low torque setting
several times. This ensures proper
operation. Do not turn knurled handle
below the lowest torque setting.
4. Wipe Torque Wrench with a cloth to clean.
Do not immerse in any cleaning solution.
This would damage the internal lubrication.
5. Periodically have the Wrench calibrated
and serviced by a qualied technician.
6. Store inside case in a clean and dry location.
Note: Replacement parts are not
available for this item.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
3491MissionOaksBlvd.•POBox6009•Camarillo,CA93011•(800)444-3353

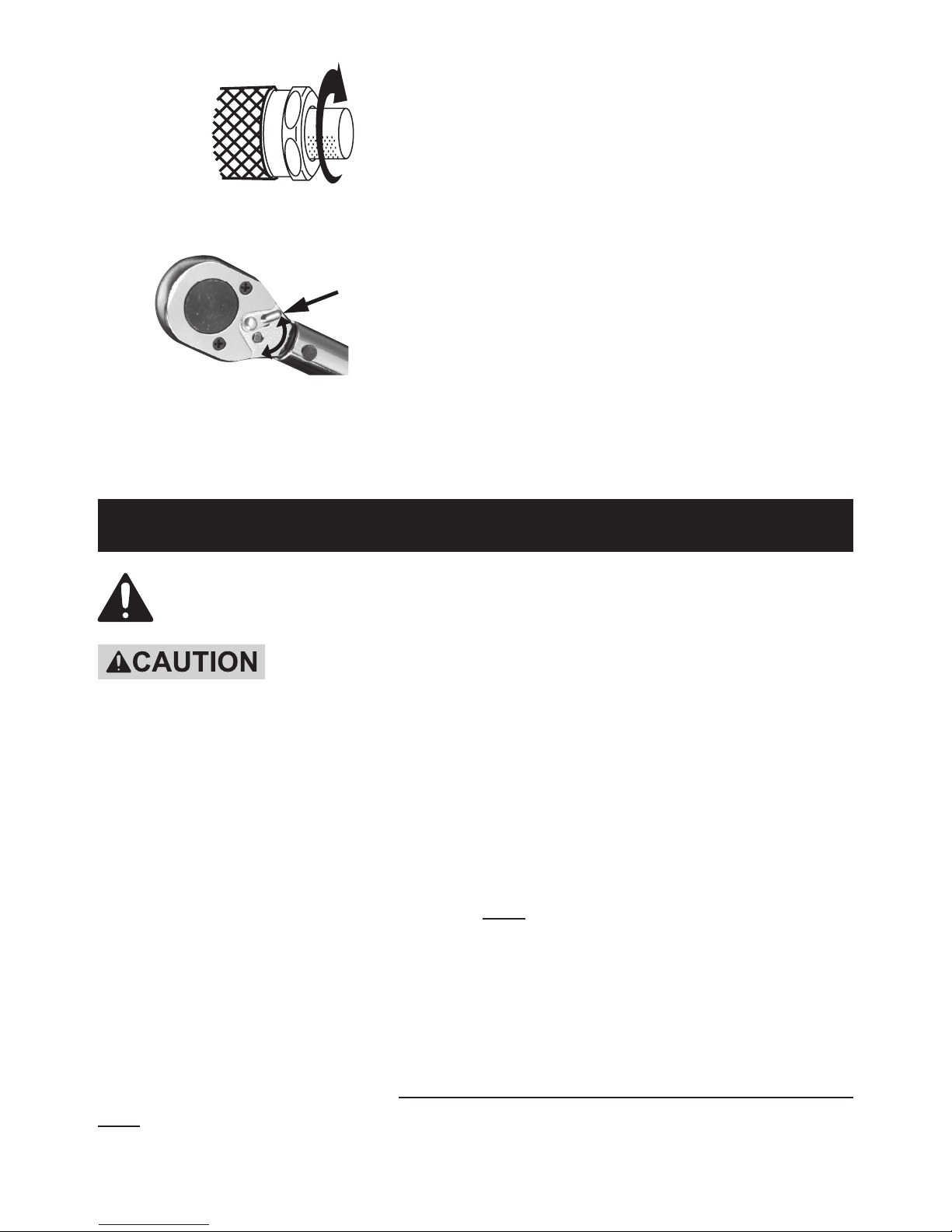

7. Retighten the Lock Knob by turning
it all the way clockwise.
8.
Direction
Switch
Set the Direction Switch for clockwise
or counterclockwise operation.
The Switch shown above is in
position for clockwise operation.
9. Place socket onto the nut or bolt and pull
the handle gradually in the desired direction
until a click is heard or felt. Do not pull
beyond that point; the click indicates that
the torque setting has been reached.
10. Stop pulling and the Torque Wrench
will automatically reset.
11. When nished, loosen the lock knob and
set the Torque to the lowest torque setting
(not lower than the lowest setting) before
storing indoors out of reach of children.
