the NIB - 96

Network Interface Board

for the System 500, System 5000, AFP-200, AFP-400

and AM2020/AFP1010 Fire Alarm Control Panels

with NIB software P/N 73454 or higher

12 Clintonville Road

Northford, CT 06472

Phone: 203-484-7161

Fax: 203-484-7118

Document# 15666

10/15/97 Revision D

P/N 15666:D1 ECN 97-407

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96 3

Table of Contents

Section One:

Introduction ------------------------------------------------------------------ 4

Section Two:

The NIB-96 ------------------------------------------------------------------- 6

Section Three

Network Interface Board Description -------------------------------- 13

Section Four

System 5000 Slave Installation --------------------------------------- 14

Section Five:

System 500 Slave Installation ----------------------------------------- 17

Section Six:

AM2020/AFP1010 Slave Installation -------------------------------- 20

Section Seven:

Slave AM2020/AFP1010 Programming----------------------------- 23

Section Eight:

Master AM2020/AFP1010 Programming --------------------------- 24

Section Nine:

Master System 5000 Programming ---------------------------------- 25

Section Ten:

AFP-200 Slaves ---------------------------------------------------------- 26

Appendix A:

Master System 5000 Considerations-------------------------------- 30

Appendix B:

Master AM2020/AFP1010 Considerations ------------------------- 32

Appendix C:

Network Requirements for ULC-listed Panels--------------------- 33

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96

Related Documentation

This document references installation and programming manuals for the various

firealarm controlpanelsthatcan beusedwith the NIB-96NetworkInterface Board.

Toobtain acompleteunderstandingof specificfeaturesof the NIB-96orto become

familiar with functions in general, make use of the documentation listed inTable 1-

1below.

Section One:

General Information

Circuit Ratings

Unless otherwise stated in this manual, the wiring requirements and specifications

contained in Table 1-2 apply to all references to the LIB SLC Loop and EIA-485

circuit.

Title Document

The System 5000 Installation Manual 15583

The System 5000 Programming Manual 15584

The System 5000 Operating Manual 15581

The Voice Alarm System 5000 15890

The System 500 Manual 15019

The AFP-200 Manual 15511

The AFP-400 Installation Manual 50253

The AFP-400 Programming Manual 50259

The AFP-400 Operating Manual 50260

The AM2020/AFP1010 Manual 15088

The AM2020/AFP1010 Voice Alarm Multiplex Manual 15889

The AIM-200 Addressable Intelligent Module Manual 15949

The RPT-485 Repeater Manual 15640

Table 1-1 Related Documentation

Circuit Notes

LIB SLC Loop

Supervised and power limited

Maximum wiring distance: 10,00 feet @12 AWG for LIB-200

12,500 feet @ 12 AWG for LIB-200A/LIB400

Maximum loop current: 200mA (short circuit) or 100 mA (normal)

Maximum loop resistance: 40 ohms for LIB-200

50 ohms for LIB-200A/LIB400

EIA-485

Supervised and power limited

+/- 5 volts peak-to-peak

Maximum wiring distance: 4000 feet @ 14 AWG

Characteristic impedance of wiring: 40 ohms

Transmission rate: 2400 baud

Table 1-2 Wiring Specifications

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96 5

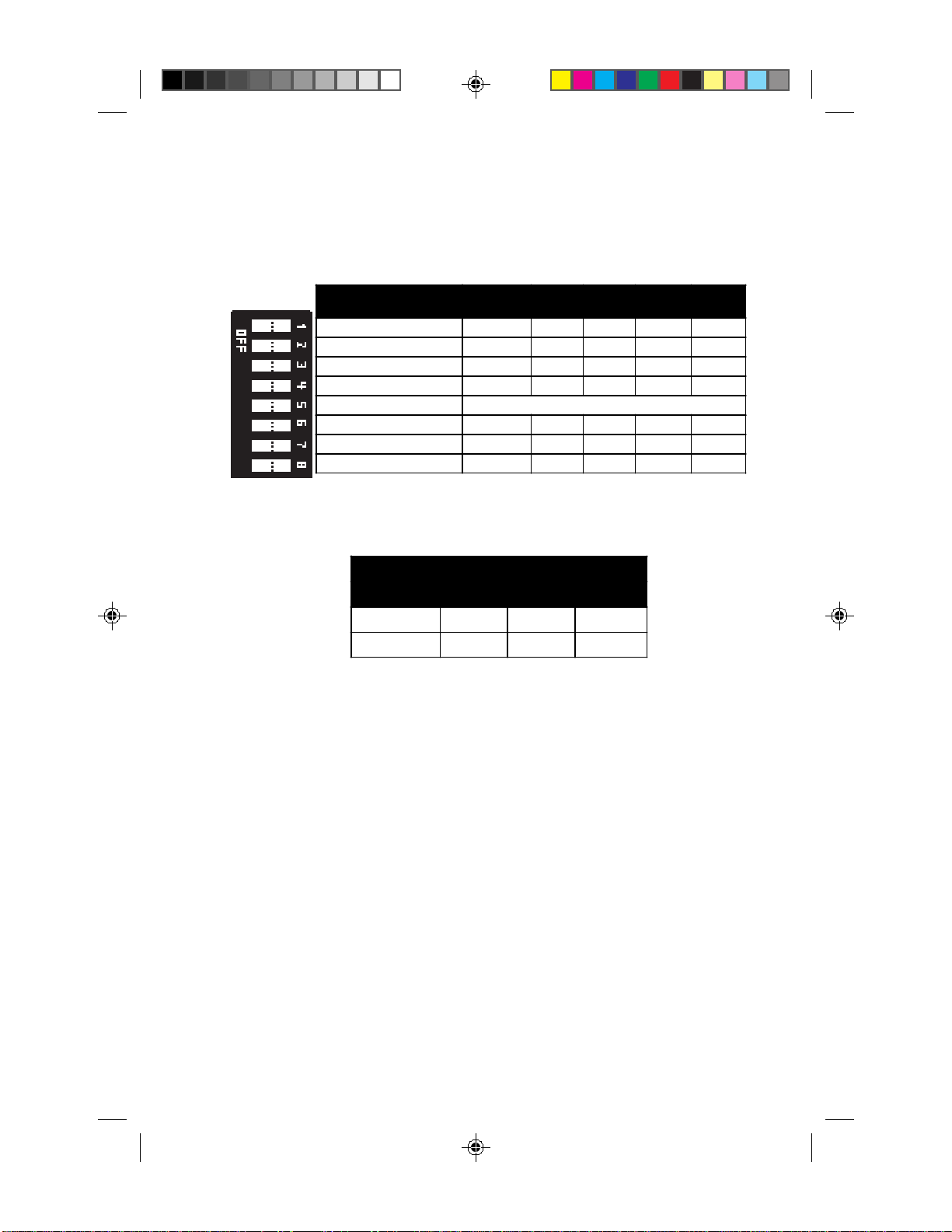

Table 1-3 NIB-96 DIP Switch Settings

Table 1-4 Setting DIP Switches 7 and 8 in a Slave

AM2020/AFP1010 NIB-96

DIP Switch Settings and Descriptions

The NIB-96 DIP Switch recommended settings contained in Table 1-3 and 1-4

apply to the installation procedures for the slave System 5000, System 500,

AM2020/AFP1010, AFP-200, and AFP-400.

DIP Switch AM2020/

AFP1010 S5000 S500 AFP-200 AFP-400

1. AUTO ACK ON ON ON ON ON

2. TIMED ACK ON OFF ON OFF OFF

3. AM2020/AFP1010 SLAVE ON OFF OFF OFF OFF

4. NOT USED OFF OFF OFF OFF OFF

5. AM2020/AFP1010 MASTER ON in systems where master panel is AM2020/AFP1010

6. RECEIVE ONLY OFF OFF OFF OFF OFF

7. AM2020/AFP1010 ADDRESS See Table 1-4 OFF OFF OFF OFF

8. AM2020/AFP1010 ADDRESS See Table 1-4 OFF OFF OFF OFF

Slave AM2020/AFP1010 EIA-485 Address

6 & 7 8 & 9 10 &11 12 &13

OFF OFF ON ON

OFF ON OFF ON

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96

Section Two: The NIB-96

The heart of the NIB Network is the Network Interface Board (NIB). It is a micropro-

cessor-controlled module that connects “slave” fire alarm control panels (FACP) to

a “master” control panel. The master control panel is an AM2020/AFP1010, AFP-

400, or System 5000 with one or more AIM-200 modules. The slave panels can be

a mix of AFP-200, AM2020/AFP1010, System 5000, or System 500 panels. The

NIB-96 module is physically located in each slave FACP. Each slave FACP may

contain as many as 96 input/output points or as few as 8 points. Several slave pan-

els can be monitored and controlled by a single master.

Note: Each NIB network

can contain only one master FACP.

Slave System 500

Master AM2020/AFP1010

SLC Loop

Slave AM2020/AFP1010

SLC Loop

Notes:

1. Up to 10 LIB SLC loops can be installed in a

master AM2020.

2. Up to four LIB SLC loops can be installed in a

master AFP1010.

3. Each LIB SLC loop can support a maximum of 12

NIB-96 boards (@ 8 points each) or a maximum of

96 NIB points.

4. Each NIB may be set to report as few as 8 points

or as many as 96 points.

5. See the AM2020/AFP1010 Installation Manual,

Document 15088 for a detailed configuration and

for connections for transmission to central station.

6. Each slave uses four points for CPU functions.

7. Each S5000/S500 slave uses four points for CPU

functions plus four points for CPU output points.

8. Wiring from the NIB-96 that goes outside the

building:

• cannot exceed 1000 m.

• must be in conduit.

• cannot cross any power lines.

• most not be in the vicinity of any high voltage.

To Remote Station,

Municipal Box or Central

Station Receiving System

(see Note 4)

Slave System 5000

Figure 2-1 Network Configuration with Master AM2020/AFP1010

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96 7

Notes:

1. Up to 10 LIB SLC loops can be installed in a master

AM2020 or up to 4 LIB SLC loops in a master AFP1010.

2. Each LIB SLC loop can support a maximum of 12 NIB-

96 boards (@ 8 points each) or a maximum of 96 NIB

points.

3. Each NIB may be set to report as few as 8 points or as

many as 96 points.

4. See Document 15511 for a detailed configuration and

for connections for transmission to central station.

5. Each AFP-200 slave uses eight points for AFP-200

system functions. The remaining 88 NIB points can be

used in multiples of eight to display the status of AFP

zones 1 to 88.

6. The Master can not activate AFP zones.

7. The Master can perform the following functions:

Signal Silence via point #2, System Reset via point #3

and 'Drill' via point #4 (Drill requires NIB software 73454

or higher).

8. The Ground Fault circuit in the AFP-200 must be

disabled by cutting jumper JP9 unless an RPT-485

series repeater is used to isolate the AFP-200 from the

AM2020/AFP1010 (refer to Document #15640).

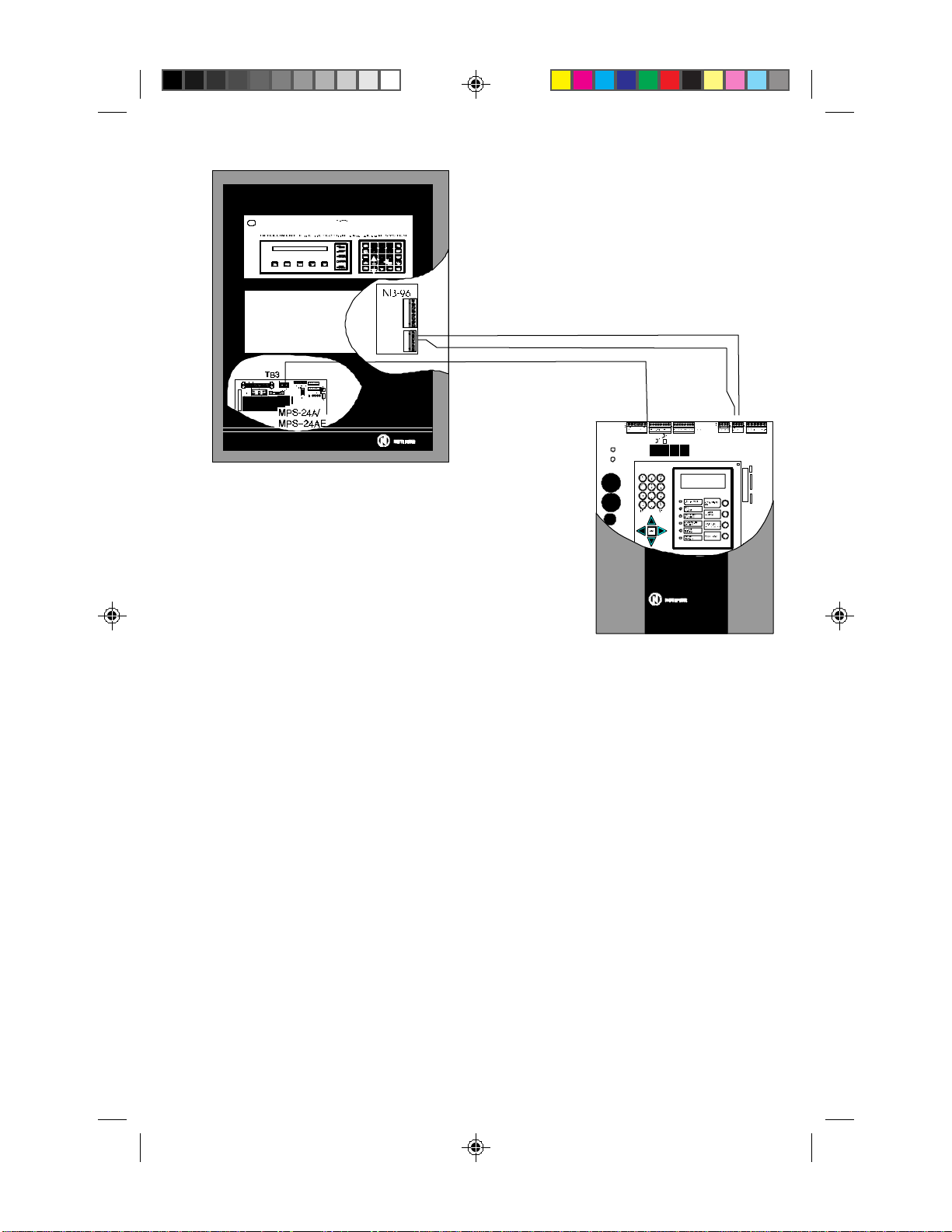

Master AM2020/AFP1010

System Common

EIA-485

AFP-200 Slave

öö

Figure 2-2 Master AM2020/AFP1010-Slave AFP-200 Configuration

(Refer to Table 1-2 for circuit ratings)

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96

Figure 2-3 Network Configuration with Master System 5000

(

Refer to Table 1-2 for circuit ratings)

The NIB-96 has two serial interfaces. It communicates with the master panel over

the SLC interface loop, emulating up to 96 MMX and/or CMX modules. It commu-

nicates with the slave panel over an EIA-485 annunciator interface, emulating one

or two ACS annunciators (up to 128 LED points, of which only 96 may be used).

With the NIB at its maximum, 96 point configuration, each master SLC loop can

only support one slave FACP. With the NIB at its minimum, 8 point configuration,

asmany as12slave FACPs canbesupported inoneSLC loop. Note thatthemas-

ter panel can control additional slaves by creating additional SLC loops with the in-

stallation of more LIBs or AIM-200s. The capacity of a 10-loop master panel is 960

total slave points, less four CPU points for each slave.

To Remote Station or

Municipal Box (see Note 3)

System 5000 (with internal

EIA-485 connection between

CPU and NIB-96)

SLC Loop

Notes:

1. Up to 10 AIM-200s can be installed in a master System 5000.

2. Each AIM-200 can support a maximum of 12 NIB-96 boards

(@ 8 points each) or a maximum of 96 NIB points.

3. Each NIB may be set to report as few as 8 points or as many

as 96 points.

4. Remote Station, Municipal Box or Central Station receiving unit

connects to the Master System 5000 (refer to Document 15583

for details).

5. Manual control of slave output relays and notification circuits

is not possible from the master System 5000.

6. Each slave uses four points for CPU functions.

Master System 5000

SLC Loop

1234

XPP-1 XPR-8

SLC Loop

Transponder Cabinet

System 500

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96 9

The System 5000 is a module-based system with eight points reserved for each

module position (whether the position is used or not). If a module in a slave Sys-

tem 5000 or System 500 employs only four points instead of eight, the remaining

four points are unusable.

For example, Figure 2-4 illustrates the use of three modules with eight initiating

device circuits, four notification appliance circuits, and four control relays.

CPU IZM-8 ICM-4 CRE-4

Slave System 5000 (or System 500) Cabinet

Figure 2-4 Point Utilization in Slave Panel

8 points 8 points 4 points 4 points 4 points 4 points

used used used unused used unused

Requires 32 addresses (switch size=4)

Networked systems may concentrate large systems by grouping many points to-

gether in a “software zone” and only reporting alarm or trouble for the software

zone. This technique allows very large system point capacity. However, a user at

the master FACP may not be able to determine the exact location of a given event.

Exact location information is available at the remote FACP.

Since the NIB Network reports slave status as module points and not as detectors,

analoginformation is notavailableatthe masterFACP. Analoginformationis avail-

able only at the slave panels. Maintenance Alert and Auto Test error will still report

to the master as a trouble.

The NIB Networks have full control-by-event capability. An alarm at any point on

anyremote FACP mayactivateany point(s) onanyother slave FACP(s). Themas-

ter FACP program contains all instructions to accomplish this. Full Signal Silence

and System Reset capabilities from the master FACP keypad to all slave FACPs

are also provided.

Technical Manuals Online! - http://www.tech-man.com

Document 15666 Rev. D 9/19/96

NFPA Standards - AM2020/AFP1010 Master Systems

Wheninstalled in accordancewiththeAM2020/AFP1010 Manual,Document15088,

the AM2020/AFP1010 master control panel meets the requirements of the following

NFPA standards:

NFPA 72-1993 Local Protective Signaling Systems

NFPA 72-1993 Auxiliary Protective Signaling System

NFPA 72-1993 Remote Station Protective Signaling System

NFPA 72-1993 Proprietary Signaling System Receiving Unit

NFPA 72-1993 Proprietary Signaling System Protected Premises Unit

NFPA 72-1993 Central Station Service - Protected Premises Unit

NFPA 72-1993 Central Station Receiving Unit

Selection of software and minimum default system configuration is done in accor-

dance with the AM2020/AFP1010 Manual. The slave panels (which may be an

AM2020, AFP1010, a System 5000, or a System 500) act as data-gathering panels

for the master AM2020/AFP1010. The alarm/trouble/normal status of each addres-

sable device or zone of devices is reported by the slave panel to the master panel

for action. In addition, the slave panels may have notification appliance circuits and

controlrelays whicharecommandedon oroffby the masterAM2020/AFP1010.The

slave panels are located within the protected premises. The master panel may be

located remotely.

Wiring Requirements - AM2020/AFP1010 Master Panel

Slave panels connect to one or more LIB modules in the AM2020/AFP1010 Master.

The wiring requirements to connect to the LIB SLC loop are defined in Document

15088.

NFPA Standards - System 5000 Master Systems

Wheninstalled inaccordancewith theSystem5000 Installation Manual,theSystem

5000/AIM-200 master control panel meets the requirements of the following NFPA

standards:

NFPA 72-1993 Local Protective Signaling Systems

NFPA 71-1993 Central Station Service - Protected Premises unit

NFPA 72-1993 Remote Station Protective Signaling System

NFPA 72-1993 Proprietary Signaling System Protected Premises Unit

Software minimum default programs are done automatically when the System 5000

isprogrammed asdescribedin theSystem5000 Programming Manual. Themaster

System 5000 must have at least one AIM-200 module which must be installed and

programmed as described in the AIM-200 Manual.

Slave panels (which may be System 5000, or System 500) act as data-gathering

panels for the master System 5000. The alarm/trouble/normal status of each zone

of devices is reported by the slave panel to the master panel for action. In addition,

the slave panels may have notification appliance circuits and control relays which

are commanded on or off by the master System 5000. Both the master and all slave

panels must be located within the protected premises of the building complex.

Wiring Requirements - System 5000 Master Panel

Slave panels connect to one or more AIM-200 modules in the System 5000 Master.

Technical Manuals Online! - http://www.tech-man.com

Indice

Altri manuali Pittway Hardware di rete

Pittway

Pittway NOTIFIER NET MET-1 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
