Planar Dome E2c Manuale utente
Dome E2c Display
Quick Reference
Windows XP
Windows 2000
020-0458-00A_3.indd 1020-0458-00A_3.indd 1 4/12/06 5:36:29 PM4/12/06 5:36:29 PM
2
System Requirements
•Intel Pentium 4/Xeon;
AMD Athlon 64/K7/XP or
compatible
•PCI Express x16 lane slot
•50 MB hard disk space
•256 MB RAM
•CD-ROM drive
•Power supply, 350 watts
or greater
•Windows XP or Windows 2000
with Service Pack 4 or higher
Read all instructions before setting up the Dome E2c display. Improper use of
the display can result in electric shock, re, or damage to display components.
For more product information, go to www.planar.com/support.
Warning
Avertissement
Avvertenza
Advertencia
Warnung
Wear an antistatic heel or wrist strap when
installing the controller and display to
avoid damage to computer components.
020-0458-00A_3.indd 2020-0458-00A_3.indd 2 4/12/06 5:36:35 PM4/12/06 5:36:35 PM
3
Check the contents of your Dome E2c display package for all the items shown
here. Save the original packaging materials for storage and shipping.
Unpacking the Display
Power adapter
Video card
Power cord Software CDs
DVI cable
Also included: Composite Video, S-Video, and VGA cables.
Dome E2c display
020-0458-00A_3.indd 3020-0458-00A_3.indd 3 4/12/06 5:36:35 PM4/12/06 5:36:35 PM
4
Display Components
The high-bright UXGA 1200x1600
AMLCD panel is sized to a 541 mm
(21.3 in.) display screen. The reset
button, LED indicator, and input
power and video ports are located
on the back of the display. No
other user-accessible controls
are available.
You can change the brightness of
the Dome E2c display in the Display
Properties dialog of the Windows
operating system. However, when
DICOM auto-calibration is running,
you must control display bright-
ness via the Dome CXtra software.
NOTE: Diagnosis requiring
calibration with the Dome CXtra
software can only be supported
on the DVI-D interface.
Front view
2-megapixel AMLCD screen
020-0458-00A_3.indd 4020-0458-00A_3.indd 4 4/12/06 5:36:38 PM4/12/06 5:36:38 PM
5
2
8 9
1 3 4 5 6 7

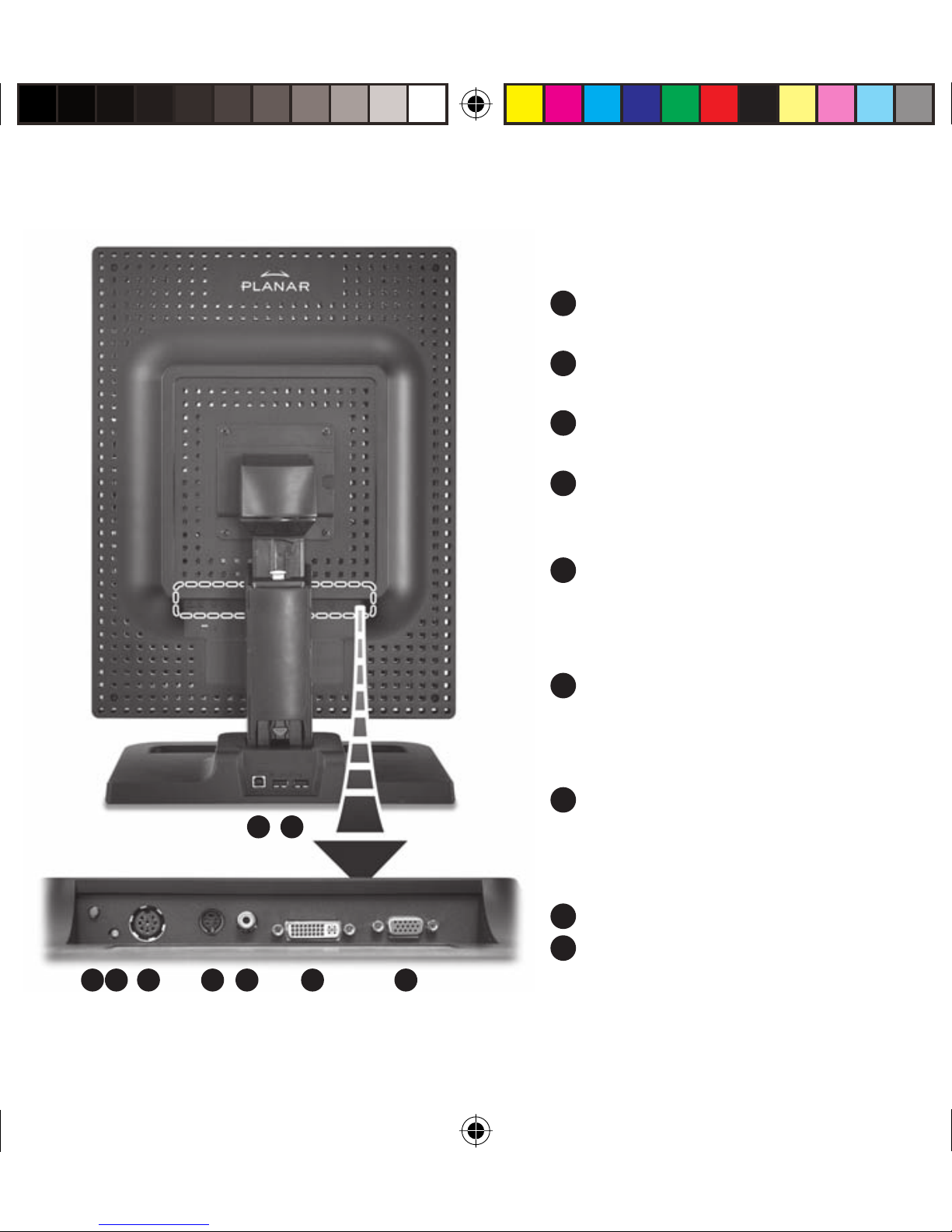

Legend
1Reset. Restores default
display setting.
2LED indicator. Shows
display status.
3DIN 8-pin port. Drives
power to the display.
4S-Video, separate video
analog input port. Requires
a 4-pin mini-DIN connector.
5C-Video, composite
video analog input port.
Requires an RCA or phono
connector.
6DVI, DVI-I video input port.
Supports DVI-D digital
or DVI-A analog video.
Requires DVI connector.
7VGA. VGA video analog
input port. Requires an
HD15 D-Sub or VGA
connector.
8USB-B port
9USB-A port (2)
Back view
020-0458-00A_3.indd 5020-0458-00A_3.indd 5 4/12/06 5:36:39 PM4/12/06 5:36:39 PM
6
Installing the Display Controller
To install the controller
1 Turn o your computer and all
peripherals. Disconnect all cables
from your computer. Leave the
power cord plugged into the
grounded outlet.
2 Remove the computer cover.
3 Remove any existing graphics card
and video signal cable, if necessary.
4 Remove the blank bracket from the
available PCI Express slot.
5 Insert the controller into the
slot, align the connector pins,
and press the board down until
it is rmly seated.
6 Secure the mounting bracket.
7 Reattach the computer cover
and the peripherals.
Remove any existing graphics card and its driver from your computer
system before you install the controller and driver. Also disable any onboard
graphics capability on the motherboard. See safety precautions on page 2.

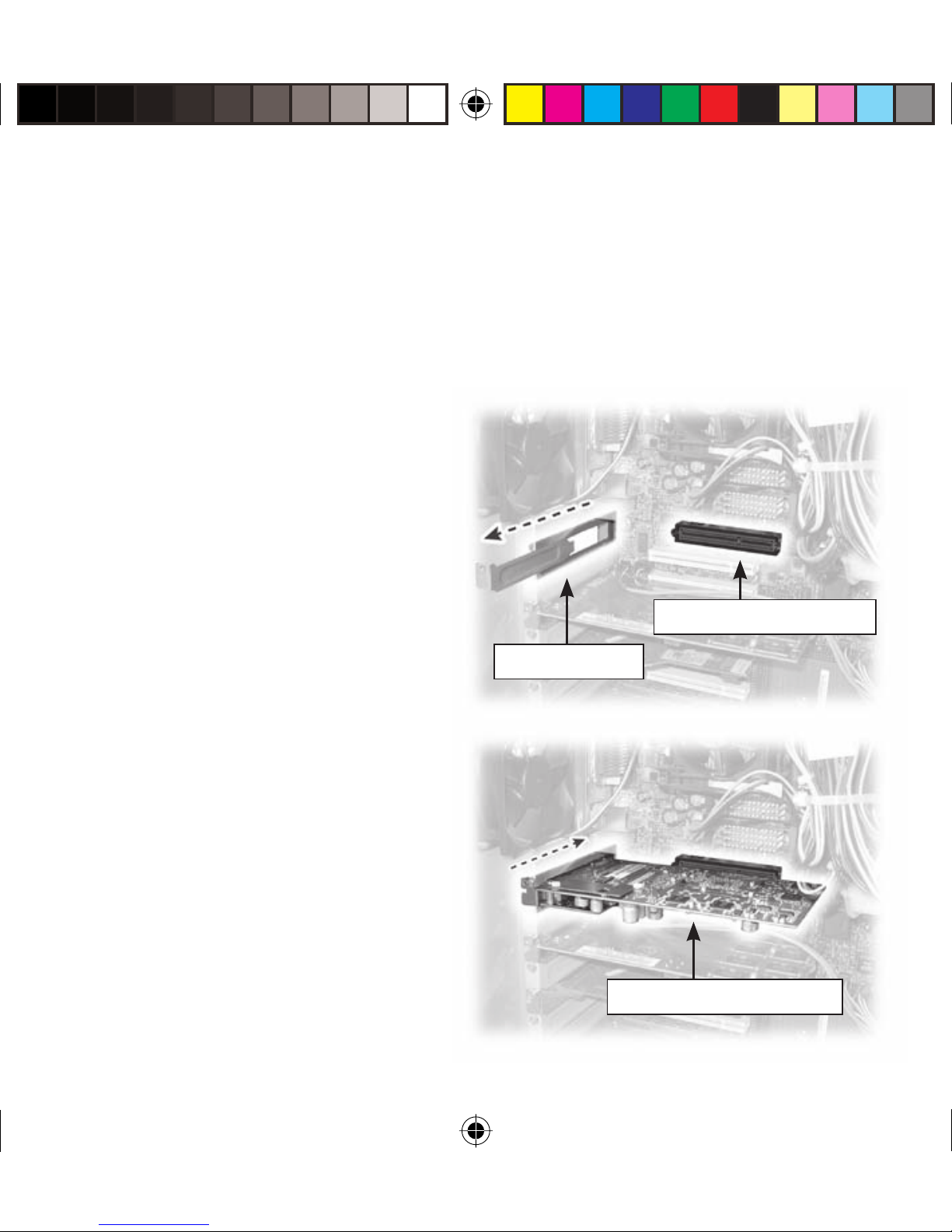

Open PCI Express slot
Blank bracket
Controller installed
020-0458-00A_3.indd 6020-0458-00A_3.indd 6 4/12/06 5:36:40 PM4/12/06 5:36:40 PM
7
Connecting the Display
To connect the display
1 Plug one end of the DVI signal cable to
the DVI port on the display. Tighten the
thumbscrews to secure the connection.
2 Plug the power cord into the power
connector on the connector plate.
3 Plug the other end of the DVI cable
into the video port on the installed
controller. (Use DVI port #1 for
the rst display if you are installing
only one display.)
4 Plug the other end of the power
cord into a grounded outlet.
5 Repeat steps 1 to 4 to
connect a second display
to the controller.
6 Power on your
display rst,
then the
computer.
Use only the cables and power cord
supplied with your display.
Power cord DVI cable
DVI
port 2
DVI
port 1
Connection
for a single
display or
the rst
display of a
dual setup
Controller
installed
DVI cable
020-0458-00A_3.indd 7020-0458-00A_3.indd 7 4/12/06 5:36:40 PM4/12/06 5:36:40 PM
8
Upon restarting your computer system, you must log on with administrator
privileges. On Windows 2000 systems, Service Pack 4 or higher must be
installed.
To install the display driver
1 Start the system. Click Cancel on the Found New Hardware Wizard dialog box.
2 Insert the Planar Installation CD and run the SETUP.EXE utility.
3 Click Next on the Welcome dialog.
4 Click Yes to the license agreement. The installation starts.
5 Follow the onscreen instructions to complete the installation.
Planar recommends that you select the Express installation option.
6 When the Setup complete message appears, select Yes, I want to restart
my computer now and click Finish.
To congure the display
1 Right-click the desktop and select Properties > Settings.
2 Use the native resolution of your display.
3 Click OK until you return to the desktop.
Installing the Display Driver
020-0458-00A_3.indd 8020-0458-00A_3.indd 8 4/12/06 5:36:41 PM4/12/06 5:36:41 PM
9
Use the Display Properties dialog to make changes to the video settings or
to set up dual-display conguration.
To set the display orientation
1 Right-click the desktop and select Properties > Settings.
2 Select the monitor that you want to change. Then click Advanced.
3 Click the Monitor tab. Make sure the check box for Hide modes that this
monitor cannot display is empty (unchecked).
4 Click the Rotation tab.
• Check Standard Landscape for landscape mode.
• Check Rotate 90 Left or Right for portrait mode.
5 Click Yes to save the setting. Then click OK until to return to the desktop.
To use a dual-display conguration
1 Right-click the desktop and select Properties > Settings.
2 Click the monitor icon 2. Then select Extend my Windows desktop
onto this monitor.
3 Set the resolution and color quality for the second display.
4 Click Apply or OK.
Adjusting the Display Properties
020-0458-00A_3.indd 9020-0458-00A_3.indd 9 4/12/06 5:36:42 PM4/12/06 5:36:42 PM
10
Handling the Display
•Set up your display on a stable,
level surface away from any direct
light or heat source, but near a
grounded AC outlet.
•Choose a well-ventilated location
with an adequate amount of space.
Do not block the vents on the back
of the display.
•Never lift the display by the desk
stand. Use both hands to lift or
move the display. Avoid touching
the screen.
•Never apply pressure to the screen
or touch the screen with bare ngers
or with any objects.
•Allow the display unit to reach room
temperature before powering on.
•Avoid sudden temperature changes
in the environment, as this may
cause condensation, which damages
the display.
•Never remove the back cover or
disassemble the display. There are
no user-serviceable parts inside.
•In locations where 240V outlets
are used, connect the Dome E2c
display only to a center-tapped,
240V, single-phase supply.
•When troubleshooting, check that
all cables are properly connected
and that your computer is turned
on and not in power-saving mode.
•Follow your local governing
ordinance for proper disposal or
recycling of electronic components.
020-0458-00A_3.indd 10020-0458-00A_3.indd 10 4/12/06 5:36:42 PM4/12/06 5:36:42 PM
