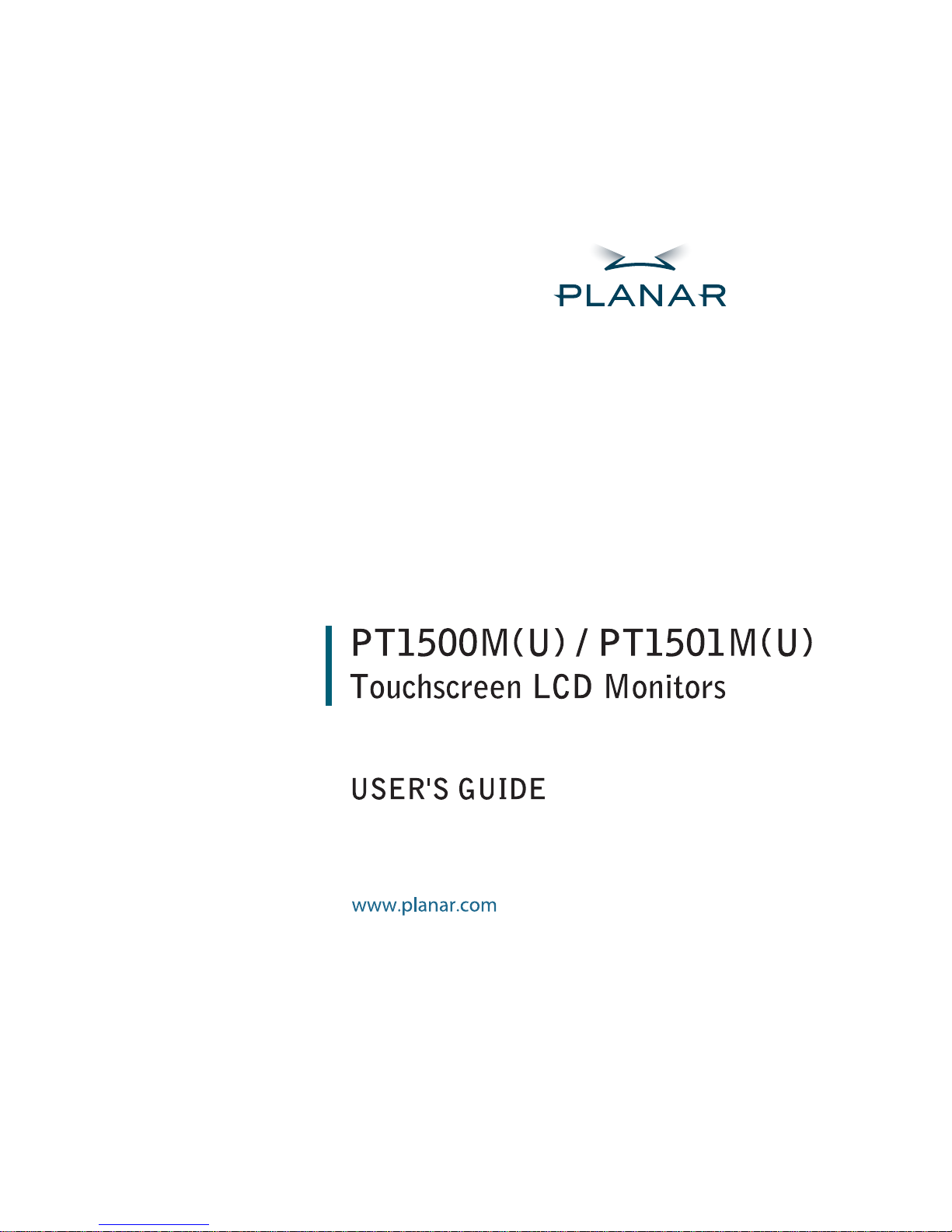

Planar PT1501M Manuale utente

The information contained in this document is subject to change without notice.

This document contains proprietary information that is protected by copyright. All rights

are reserved. No part of this document may be reproduced, translated to another

language or stored in a retrieval system, or transmitted by any means, electronic,

mechanical, photocopying, recording, or otherwise, without prior written permission.

Windows is a registered trademark of Microsoft, Inc.

Other brand or product names are trademarks of their respective holders.

Table of Contents

Usage Notice

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Introduction

About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Package Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 5

Installation

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

User Controls

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

How to Use the OSD Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

On-Screen Display Menus . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . 16

Appendix

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Warning Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 20

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Video Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Touch Screen Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Usage Notice

Safety and Use Precautions

Follow all warnings, precautions and maintenance as recommended in this User’s

Guide to maximize the life of your unit.

Do:

Turn off the product before cleaning.

Use only a dry soft cloth or clean room wiper when cleaning the LCD panel

surface.

Use only high quality and safety approved AC/DC power adapter.

Disconnect the power plug from AC outlet if the product is not used for a long

period of time.

Don’t:

Do not touch the LCD panel surface with sharp or hard objects.

Do not use abrasive cleaners, waxes or solvents for cleaning.

Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

WARNING - To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

WARNING - Please do not open or disassemble the product as this

may cause electric shock.

About Planar’s PT1500M(U), PT1501M(U)

The PT15” products all have a 15” flat panel screen with an active matrix, thin-flim

transistor (TFT), liquid crystal display (LCD).

Features include:

Direct analog signal input

Active matrix TFT LCD technology

1024 x 768 XGA resolution

15” viewable display area

31.5 ~ 60 kHz horizontal scan

56 ~ 75 Hz refresh rate

Auto-adjustment function

Multilingual OSD user controls

VESA DPMS power saving

Kensingston security lock slot

75 mm VESA mount

Durable touchscreen

Introduction

Touch Screen for PT1500M(U)

Resistive for finger and pen interface

Surface : Anti-glare treatment

Interface : Serial (PT1500M), USB (PT1500MU)

Durability : 1,000,000 activations at a single point

Hardness of surface : 4H per ASTM D3363-92

Operating force : Stylus - <25 g (average)

Finger - <50 g (average)

Transmissivity : 85% + / - 2% (typical)

Haze : 5%

Clarity : 80%

Driver : Windows 95/98/Me/NT/2000/XP,

Linux

Touch Screen for PT1501M(U)

Capacitive for finger interface

Surface : Anti-glare treatment

Interface : Serial (PT1501M), USB (PT1501MU)

Durability : 225,000,000 touches in a single location

Hardness : Cannot be scratched using any stylus with Mohs' rating of less

than 6.5

Transmissivity : up to 88% at 550 nm

Driver : Windows 95/98/Me/NT/2000/XP,

Linux

MS HID compatible pointing device

Package Overview

LCD Display

VGA Signal Cable

Power Adapter Power Cord

Audio-In Cable

USB Cable

(for PT1500MU, PT1501MU)

User’s Guide Landing Strip

Touchscreen Driver

Installation CD-ROM

RS-232 Serial Cable

(for PT1500M, PT1501M)

Product Overview

Front View

LCD

Display

Stand

Panel

Controls

Speakers

Rear View

Connector Ports “A”

(Inside the back cover)

Connector

Ports “B”

Installation

USB

(For PT1500MU, PT1501MU)

RS-232

(For PT1500M, PT1501M)

Connector Ports “A”

Connector Ports “B”

Touch Function

VGA

input

Power-In

Audio

input
