Table of Contents

Usage Notice

Warning- To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

Warning- Please do not open or disassemble the product as this

may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recom-

mended in this users manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse only a dry soft cloth or clean room wiper when cleaning the

LCD panel surface.

qUse a soft cloth moistened with mild detergent to clean the

display housing.

qUse only high quality and safety approved AC/DC power

adapter.

qDisconnect the power plug from AC outlet if the product is not

used for a long period of time.

Dont:

qDo not touch the LCD panel surface with sharp or hard ob ects.

qDo not use abrasive cleaners, waxes or solvents for your

cleaning.

qDo not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Introduction

About the Product

Having a 17 flat panel screen with an active matrix, thin-film transistor

(TFT) liquid crystal display (LCD) , this product also demonstrates

following outstanding features.

qAnalog signal input

qActive matrix TFT LCD technology

q1280 x 1024 addressable pixels

q17 diagonal screen size

q31.5 ~ 80 kHz horizontal scan

q56 ~ 75 Hz refresh rate

qVESA wall mountable

qAuto-ad ustment

qMultilingual OSD user controls

qVESA DPMS power saving

qBuilt-in speakers for multimedia application

qResistive type touch screen

qKensington lock capability

RS-232 Series Cable

(for Touch screen )

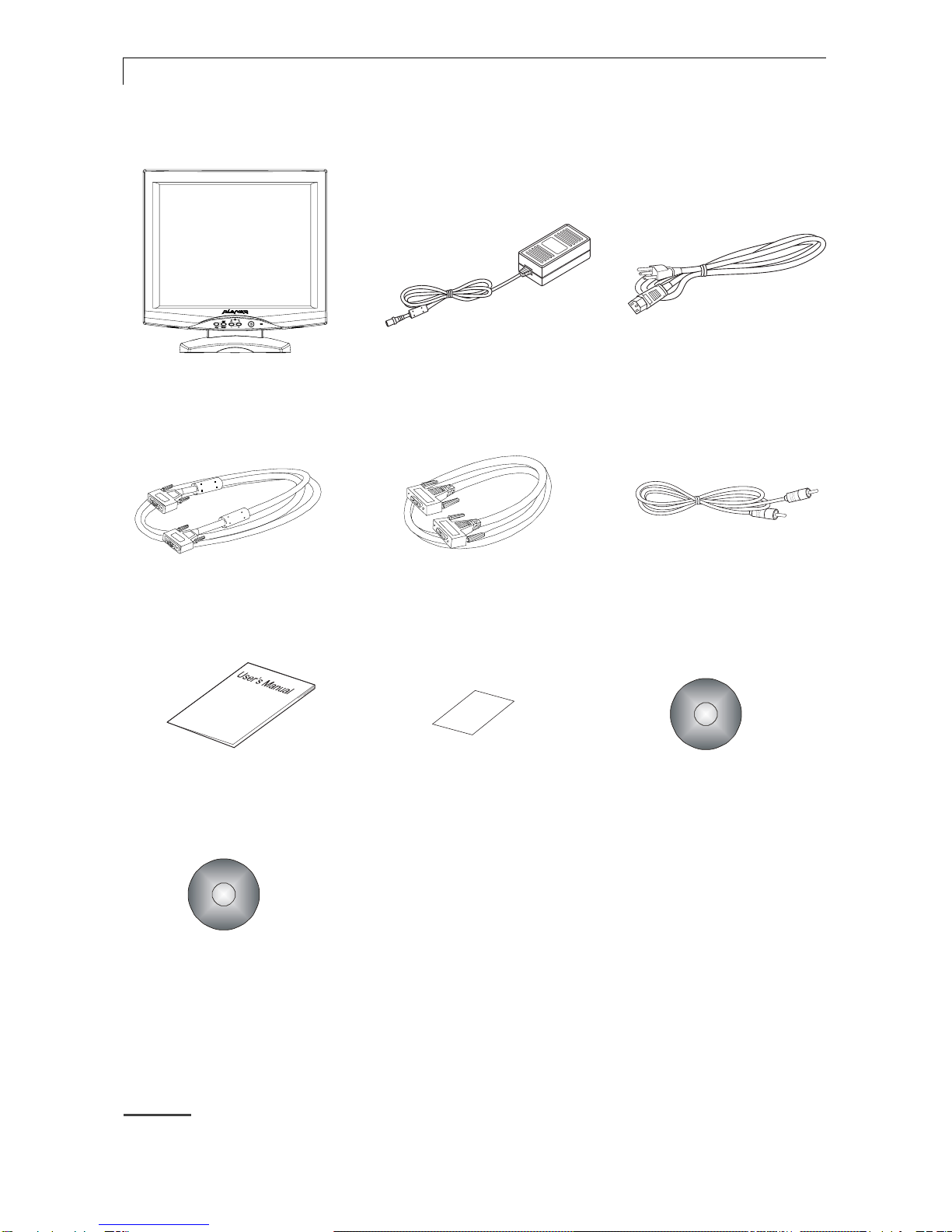

Package Overview

LCD Display

VGA Signal Cable

Power Adapter Power Cord

Users Manual Quick Start Guide

Audio-In Cable

Notice: One end of the VGA Signal cable already connected to the LCD display.

Family Product CD

CD-ROM

(for Touch screen)

Installation

Product Overview

uFront View

LCD Display

Stand

Panel

Controls

Speakers

uRear View

Connector

Ports A

Connector

Ports C

Connector

Ports B

( Inside

the back

cover)

uConnector Port A

VGA

input

Power-In

Audio-In

uConnector Ports B

uConnector Ports C

RS-232

(For Touch Screen)

Touch Function

uRemove the Back Cover

Please follow the instruction to remove the cover on the back panel of the

LCD so that you can connect the cables in Connector Ports B.

1. To remove the back cover, follow the arrows in Figure A and press with

both your thumbs. The cover should be easily removed by pressing firmly.

2. Follow the instruction on P.9 (Figure 9.1) to connect the cables in

Connector Ports B.

3. Fix the cover back to the LCD. You may also keep the cables in order

with the cable organizer.

Cable

Organizer

Note: You can place the L D horizontally to make it easier to connect

the cables. Please make sure that you place it on an even surface lest

the L D should be damaged by scratches or collision.

Back Cover

uConnecting the Displa (Figure 9.1)

To setup this display, please refer to the following figure and procedures.

1. Be sure all equipment are off.

2. Connect the DC power cord to the power connector( The arrow sign é

must face down) ; plug one end of the AC power cord into the power

adapter, and then the other end into an electrical outlet().

3. For the PC with Analog output: Connect the VGA signal cable from

display VGA input connector to the 15-pin connector of your host

computer and tighten the screws().

4. Connect the Audio-In cable from audio input port of your display to the

Audio-out port of your computer().

5. Connect the RS-232 cable from RS-232 port of your display to the

RS-232 port of your computer().

6. Turn on your computer, display and video source.

Start Your Installation

Notice: To ensure the LCD display can work well with your computer,

please configure the display mode of your graphic card to make

it less than or equal to 1280 x 1024 resolution and make sure

timing of the display mode is compatible with the LCD display.

We have listed the Compatibility Modes of this LCD display in

appendices for your reference.

Figure 9.1

 



VGA

Cable



Power

Adapter

& Power

Cord



Audio-In

Cable



RS232 cable
