Planar PT191MU Manuale utente

PT191MU

Touchscreen Monitor

USER’S GUIDE

www.planar.com

2PT191MU User’s Guide (020-0418-00 A)

Table of Contents

Usage Noticsage Notic

sage Noticsage Notic

sage Noticee

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Inn

ntrtr

trtr

troducoduc

oducoduc

oductiontion

tiontion

tion

About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Package Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installanstalla

nstallanstalla

nstallationtion

tiontion

tion

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

StartYour Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

User ControlsUser Controls

User Controls

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

How to Use the OSD Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

On-Screen Display Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

ApAp

Appendixpendix

pendixpendix

pendix

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Warning Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Compatibility Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Touchscreen Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

PT191MU User’s Guide (020-0418-00 A) 3

Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user’s manual to maximize the life of your unit.

Do:o:

o:o:

Turn off the product before cleaning.

Use only a dry soft cloth or clean room wiper when cleaning

the LCD panel surface.

Use a soft cloth moistened with mild detergent to clean the

display housing.

Use only high quality and safety approved AC/DC power adapter.

Disconnect the power plug from AC outlet if the product is not

used for a long period of time.

Donon

onon

on’’’’’t:t:

t:t:

Do not touch the LCD panel surface with sharp or hard objects.

Do not use abrasive cleaners, waxes or solvents for cleaning.

Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

WARNING – To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

WARNING – Please do not open or disassemble the product as this

may cause electric shock.

4PT191MU User’s Guide (020-0418-00 A)

Introduction

About Planar’s PT191MU

The PT191MU is a 19" flat panel screen with an active matrix, thin-film transistor

(TFT), liquid crystal display (LCD).

Features include:Features include:

Features include:

Analog and Digital dual signal input

19” diagonal screen size

1280 x 1024 high resolution

16.7 million displayable colors

31.5~80 kHz horizontal scan

56~75 Hz high refresh rate

0.294 mm x 0.294 mm pixel pitch

250 cd/m2(typ.) brightness

4 CCFT backlight lamps w/ 50,000 hrs life

1000:1(typ.) contrast ratio

L/R=85°/85°, U/D =85°/85°viewing angle, CR=10:1

Tr + Tf:8 ms (typ.) response time

Auto-adjustment function

Integrated multimedia audio function

Multilingual OSD user controls

VESA DPMS power saving

USB hub with 1 upstream and 2 downstream ports on the stand base

Stand with tilt and swivel functions

3M® ClearTek™ Capacitive touchscreen

PT191MU User’s Guide (020-0418-00 A) 5

Touchscreen for PT191MU

Surface: Anti-glare treatment

Interface: USB

Durability:

Capacitive: 225 million activations

Hardness of surface =

Capacitive: 6.5 Mohs

Transmittance: Up to 88% typical

S/W Driver Compatibility: Windows® 95/98/Me/NT/2000/XP, Linux

6PT191MU User’s Guide (020-0418-00 A)

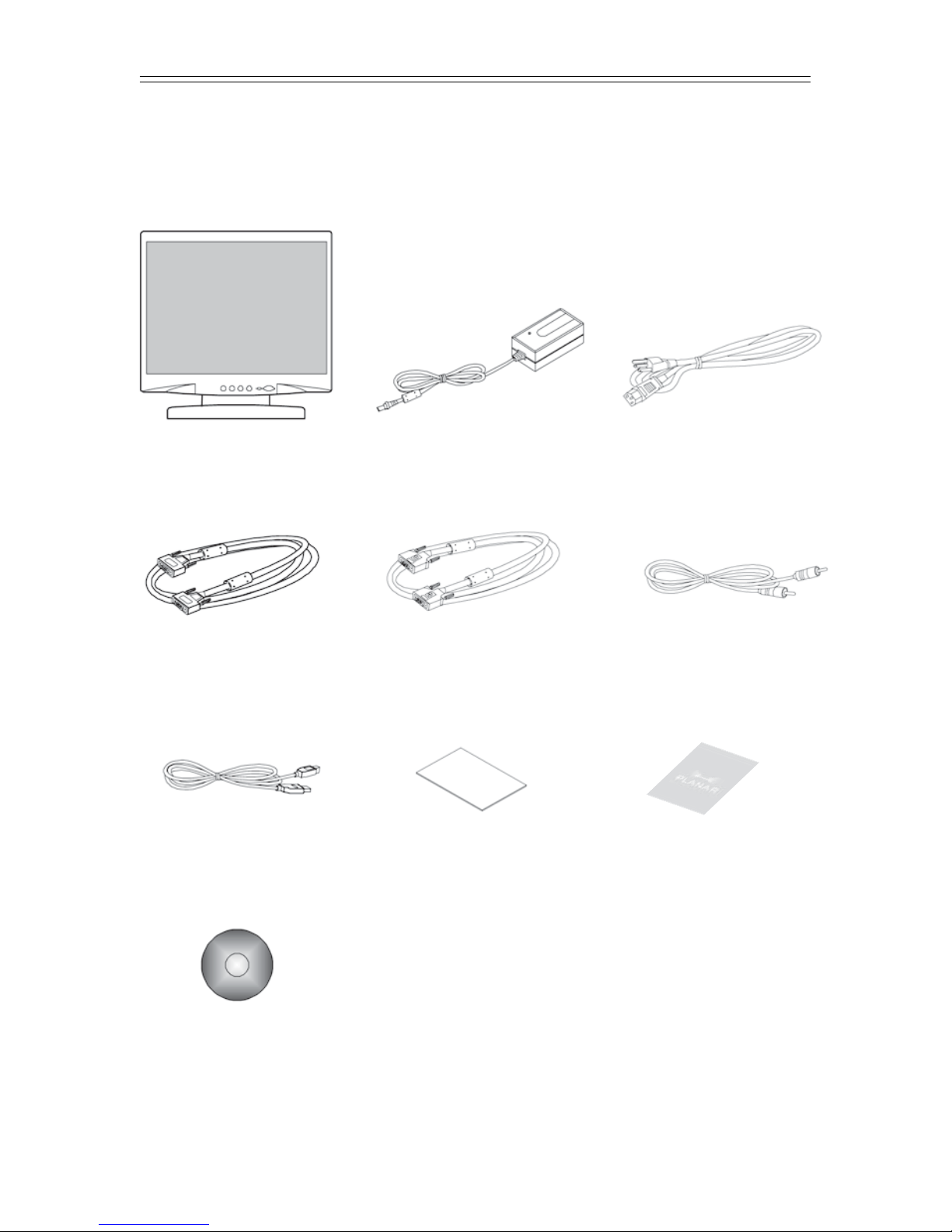

Package Overview

LCD Display

VGA Signal Cable

USB Upstream Cable

Power Adapter

DVI-D Cable

Power Cord

Audio-In Cable

User’s Guide Landing Strip

Touchscreen Driver

Installation CD-ROM

PT191MU User’s Guide (020-0418-00 A) 7

Installation

Product Overview

• F• F

• Frr

ronon

onon

ontt

t VV

Viewiew

iewiew

iew

• R• R

• Rearear

earear

ear VV

Viewiew

iewiew

iew

LCD Display

Front Panel

Controls

Stand

8PT191MU User’s Guide (020-0418-00 A)

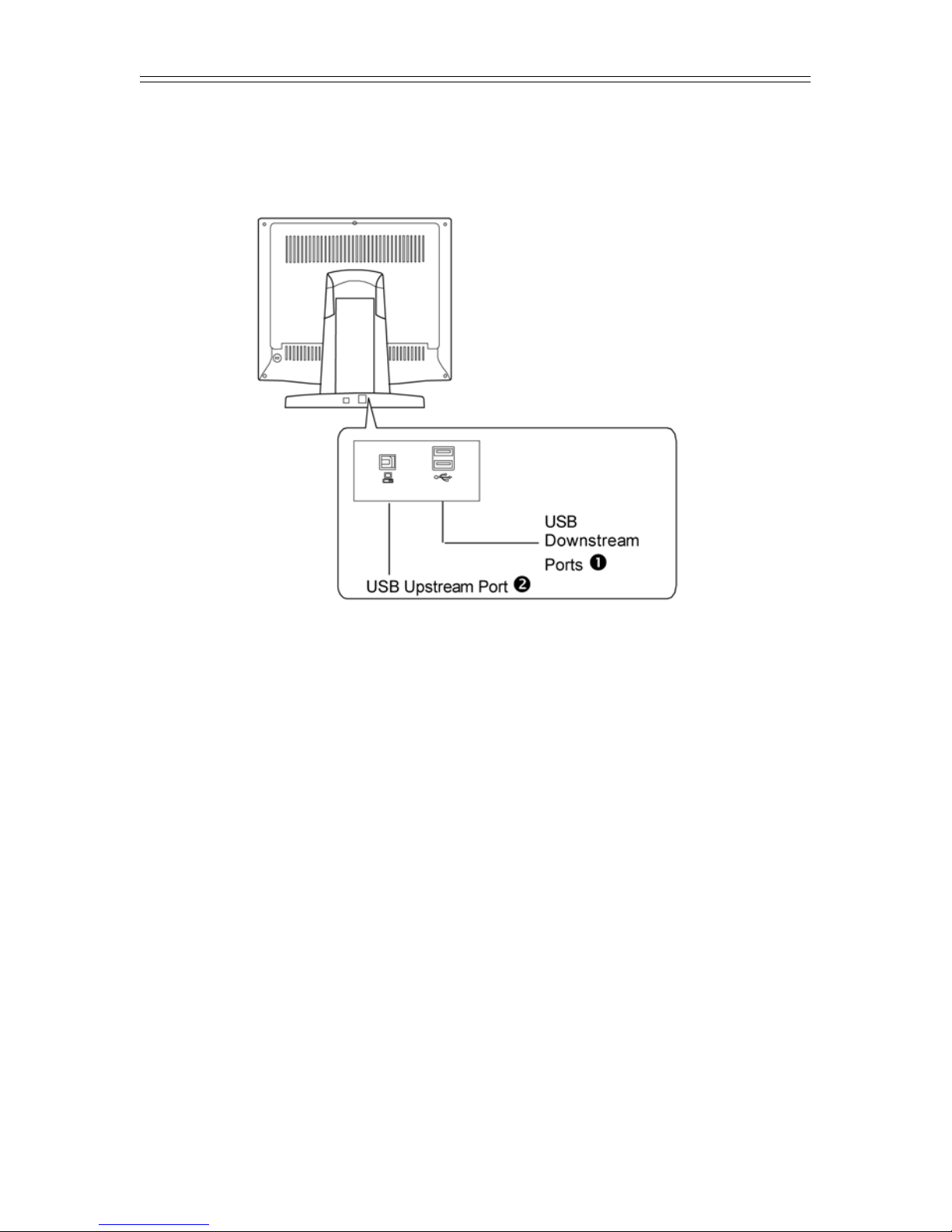

• USB Hub Ports• USB Hub Ports

• USB Hub Ports

1. USB Downstream Ports1. USB Downstream Ports

1. USB Downstream Ports

These two USB ports are available for connecting USB type peripheral

devices such as keyboard, mouse, printer and so on.

2. USB Upstream Port2. USB Upstream Port

2. USB Upstream Port

This Port is for connecting the USB Upstream cable to computer’s or other

hub’s USB port.

PT191MU User’s Guide (020-0418-00 A) 9

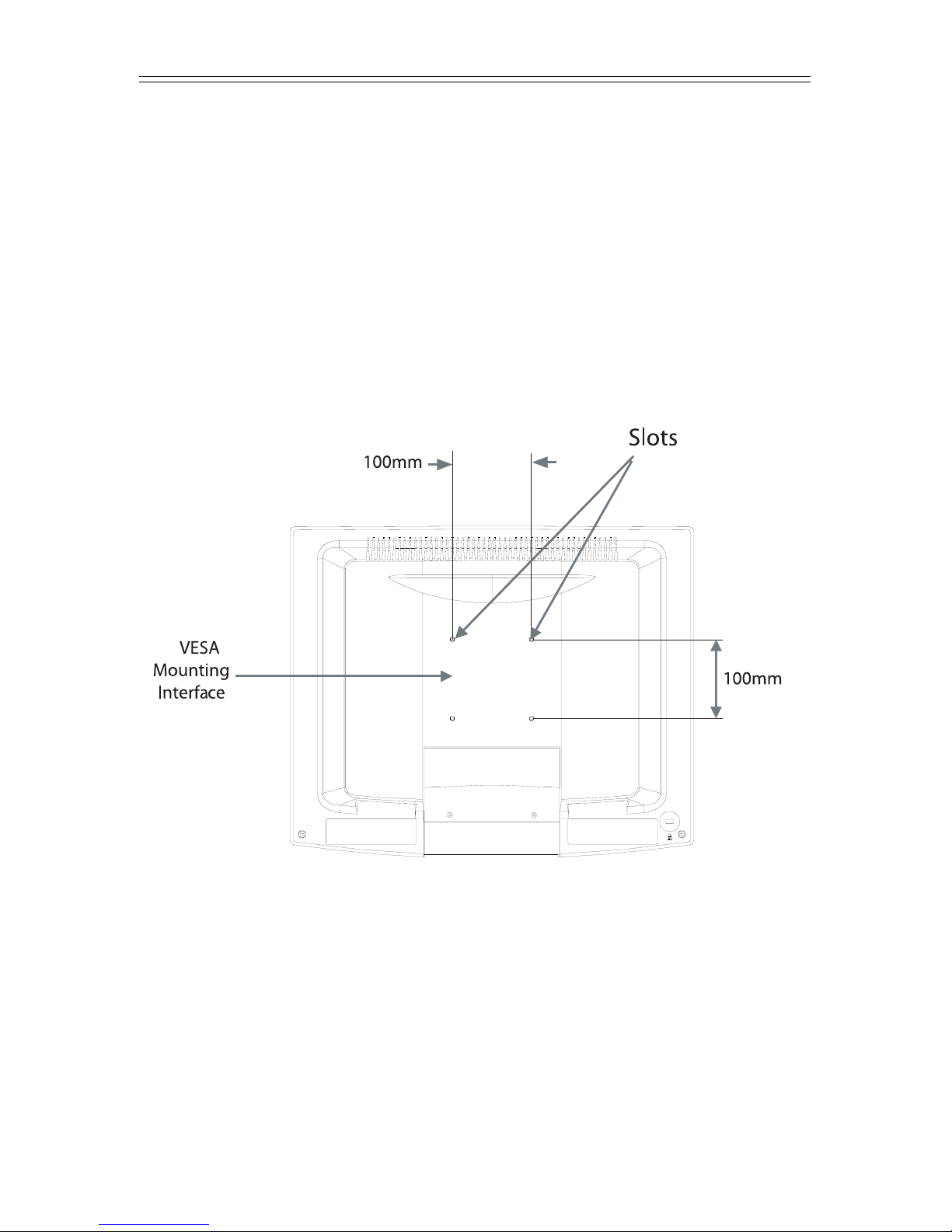

• VESA Mount your monitor• VESA Mount your monitor

• VESA Mount your monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting

Interface Standard which defines a physical mounting interface for flat panel

monitors, and corresponding standards for flat panel monitor mounting devices,

such as wall and table arms.The VESA mounting interface is located on the back

of your monitor. To mount the monitor on a swing arm or other mounting

fixture, follow the instruction included with the mounting fixture to be used.

Note!Note!

Note!

Please select the proper screws!

The distance between the back cover surface and the bottom of the screw

hole is 8mm. Please use a M4 screw.

10 PT191MU User’s Guide (020-0418-00 A)

Start Your Installation

• Connecting the display (Figure 1.1)• Connecting the display (Figure 1.1)

• Connecting the display (Figure 1.1)

To setup this display, please refer to the following figure and procedures.

1. Be sure all equipment is off.

2. Connect the DC power cord to the power connector. Plug one end of the

AC power cord into the power adapter, and the other end into an electrical

outlet(1).

3. For the PC with Analog output: connect the VGA signal cable from display

VGA input connector to the 15-pin connector of your host computer and

tighten the screws(2).

4. For the PC with DVI digital output: Connect the DVI signal cable to the

connector of the display card in your computer; connect the other side to the

DVI-D input port of your display. Tighten the screws(3).

5. Connect the Audio-In cable from audio input port of your display to the

Audio-out port of your computer(4).

6. Connect the USB cable from USB port of your display to the USB port of

your computer(5).

7. Turn on your computer, display and video source.

Notice:Notice:

Notice: To ensure the LCD display can work well with your computer, please

configure the display mode of your graphic card to make it less than or

equal to 1280 x 1024 resolution and make sure timing of the display

mode is compatible with the LCD display. We have listed the“Compat-

ibility Modes”of this LCD display in appendices for your reference.
