Planar PX212M Manuale utente

Planar Systems, Inc.

1195 NW Compton Drive

Beaverton, OR 97006-1992

www.planar.com

Customer Service

Planar provides the following technical support services:

Internet Support

For support available 24/7 visit Planar's Online Technical Support at

www.planar.com/support. Our Online Technical Support is where you'll find solutions to many

common problems, download documentation, view answers to frequently asked questions

(FAQs) and get troubleshooting advice, or email Planar your support question.

Talk to a Customer Service Representative

To contact Planar's Customer First(TM) Technical Support Service call 1.866.PLANAR.1

(866.752.6271). This service is available 5am - 5pm Pacific Time, 8am - 8pm Eastern Time,

Monday through Friday.

24x7 Online Technical Support: http://www.planar.com/support

Email: PlanarSupport@planar.com

Tel: 1-866-PLANAR1 (866) 752-6271

Hours: M-F, 5am - 5pm Pacific Time, 8am - 8pm Eastern

The information contained in this document is subject to change without notice.

This document contains proprietary information that is protected by copyright. All rights

are reserved. No part of this document may be reproduced, translated to another lan-

guage or stored in a retrieval system, or transmitted by any means, electronic,

mechanical, photocopying, recording, or otherwise, without prior written permission.

Windows is a registered trademark of Microsoft, Inc.

Other brand or product names are trademarks of their respective holders.

Important Recycle Instruction:

LCD Lamp(s) inside this product contain mercury. This product may contain

other electronic waste that can be hazardous if not disposed of properly. Recycle or

dispose in accordance with local, state, or federal Laws. For more information,

contact the Electronic Industries Alliance at WWW.EIAE.ORG

.For lamp specific

disposal information check WWW.LAMPRECYCLE.ORG

Usage Notice

Precautions ................................................................................. 2

Introduction

About the Product ....................................................................... 3

Package Overview...................................................................... 4

Installation

Product Overview........................................................................ 5

User Controls

Front Panel Controls ................................................................... 11

How to Use the OSD Menus....................................................... 12

On-Screen Display Menus.......................................................... 13

Appendices

Product Dimensions.................................................................... 17

Compatibility Modes ................................................................... 18

Table of Contents

Pivot Software Installation...........................................................

Troubleshooting........................................................................... 14

Warning Signal............................................................................ 15

Start Your Installation .................................................................. 8

Usage Notice

Warning- To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

Warning- Please do not open or disassemble the product as this

may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recommended

in this users manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse only a dry soft cloth or clean room wiper when cleaning the

LCD Display screen surface.

qUse a soft cloth moistened with mild detergent to clean the display

housing.

qUse only a high quality and safety approved AC/DC power adapter.

qDisconnect the power plug from the AC outlet if the product is not

going to be used for an extended period of time.

Don’t:

qDo not touch the LCD Display screen surface with sharp or hard

objects.

qDo not use abrasive cleaners, waxes or solvents for your cleaning.

qDo not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Introduction

About the Product

Having a 21.  LCD dsiplay with an active matrix, thin-film transistor (TFT)

liquid crystal display (LCD), this product also demonstrate the following

outstanding features.

qDual Analog and Digital signal input

q21.3” diagonal screen size

q1600 x 1200 high resolution

qWide Viewing Angle Technology

q31.5 ~ 91.1 kHz horizontal scan

q56 ~ 85 Hz refresh rate

qAuto Adjustment and Re-scaling function

qHigh quality full screen re-scaling capability

qMultilingual OSD user controls

qVESA DPMS power saving

qVideo capability

qAudio capability

qKensington lock capability

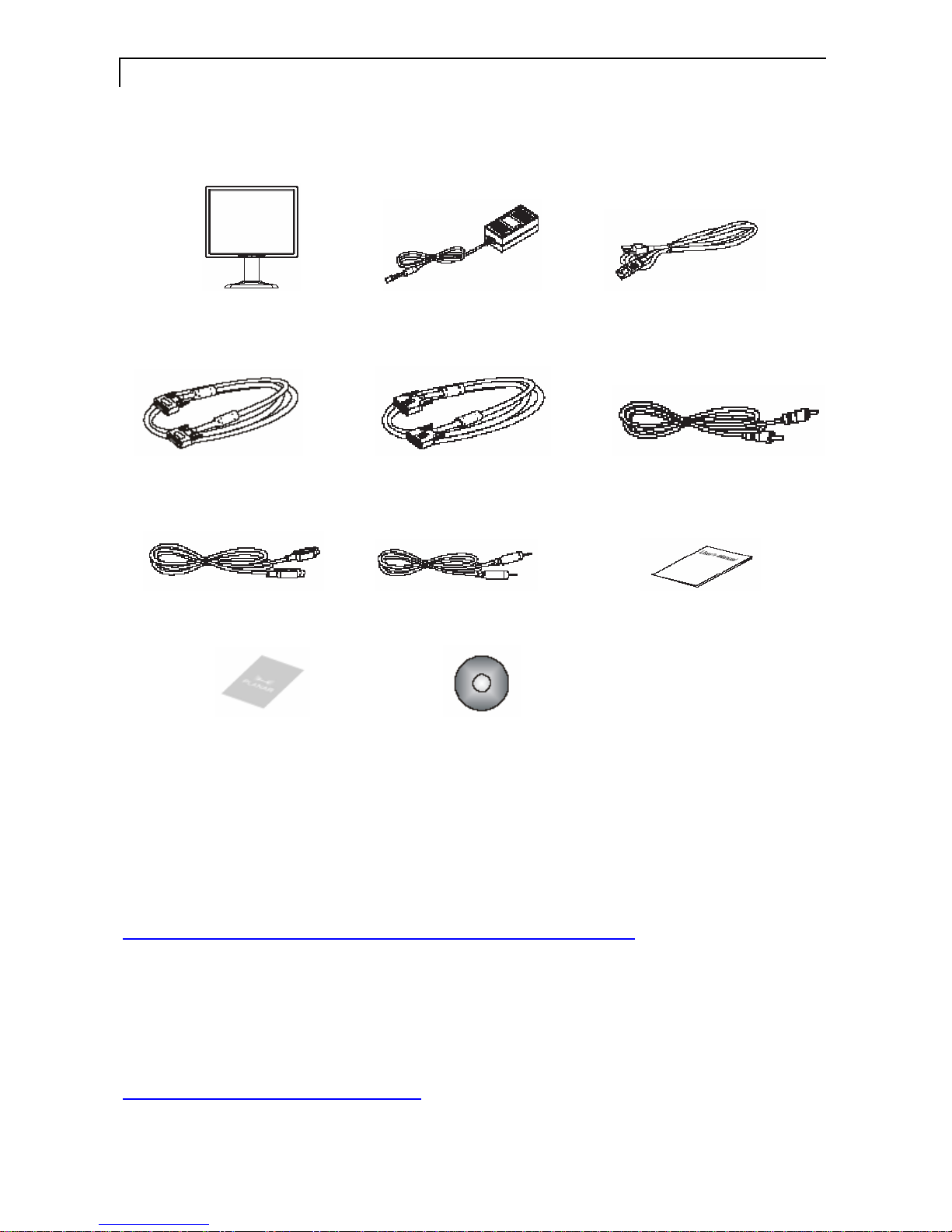

Package Overview

LCD Display Power Adapter Power Cord

VGA Signal Cable DVI-D Cable Audio-In Cable

S-Video Cable Video Cable User’s Guide

Landing Strip CD-ROM for

Pivot software

Thank you for choosing Planar. To assure you receive all the benefits of

your Planar product and services, register your Planar product today. Visit

our website to register your product at

http://www.planar.com/support/product_registration.html

Cables, Replacement Lamps and Accessories

To find cables, replacement lamps and accessories for your Planar projector,

LCD monitor, touchscreen or other Planar products visit our online store at

www.PlanarOnline.com or find other stores who carry Planar products at

http://www.planar.com/howtobuy

Installation

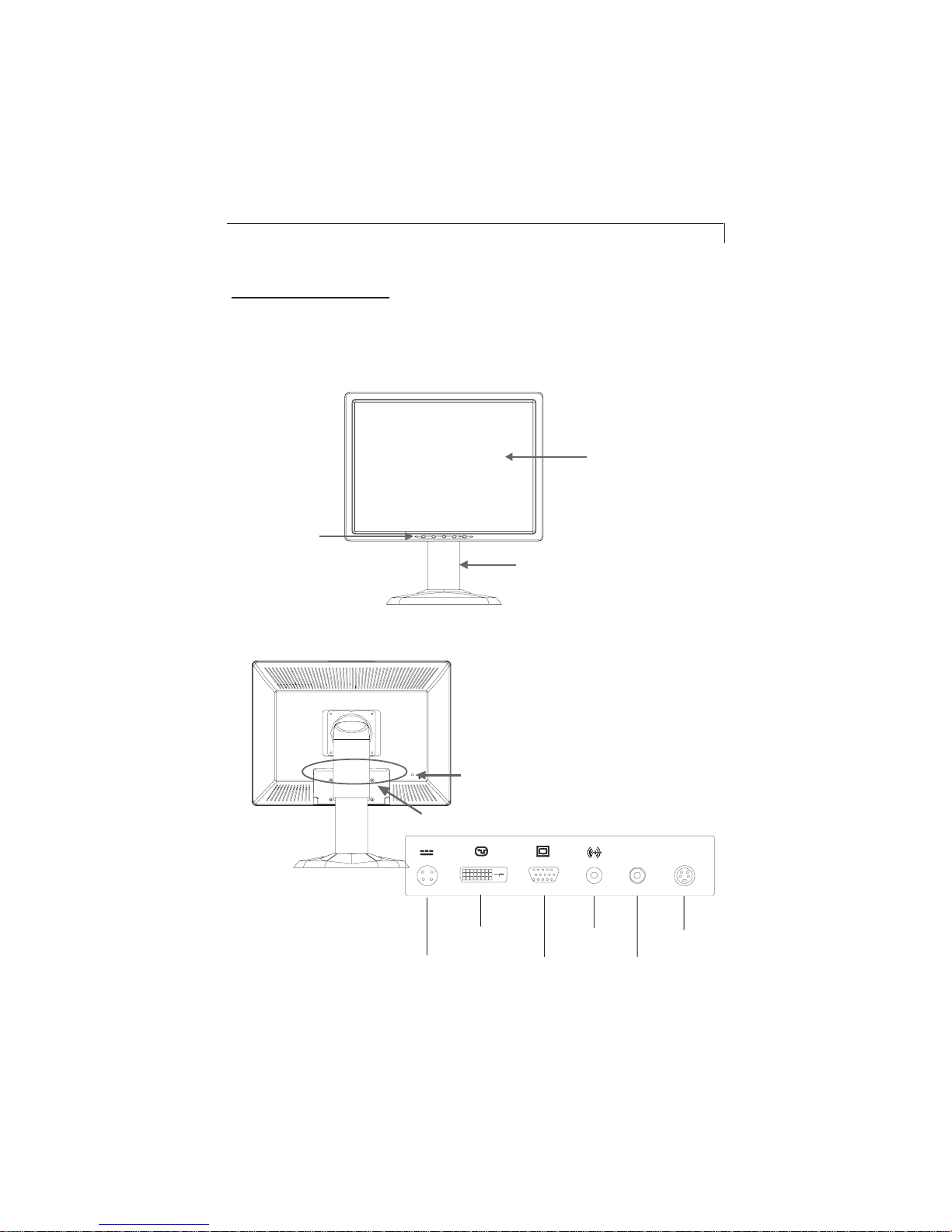

Product Overview

uFront View

Stand

Panel

Controls

uBack View

Connector Ports (Inside the back cover)

Kensington Security

Lock Slot

S-VIDEO

VIDEO

DC-In

DVIInput

Port Analog

Input Port

Composite

Video

S-Video

Liquid Crystal Display

(LCDDisplay)

Audio

u Kensington Security Slot

The monitor can be secured to your desk or any other fixed object with

Kensington lock security products. Kensington lock is not included.

Kensington Security Slot

Tilt Angle:-5° ~ 35°

uTilt

Grasp the LCD Display with both hands and adjust the tilt as desired.
