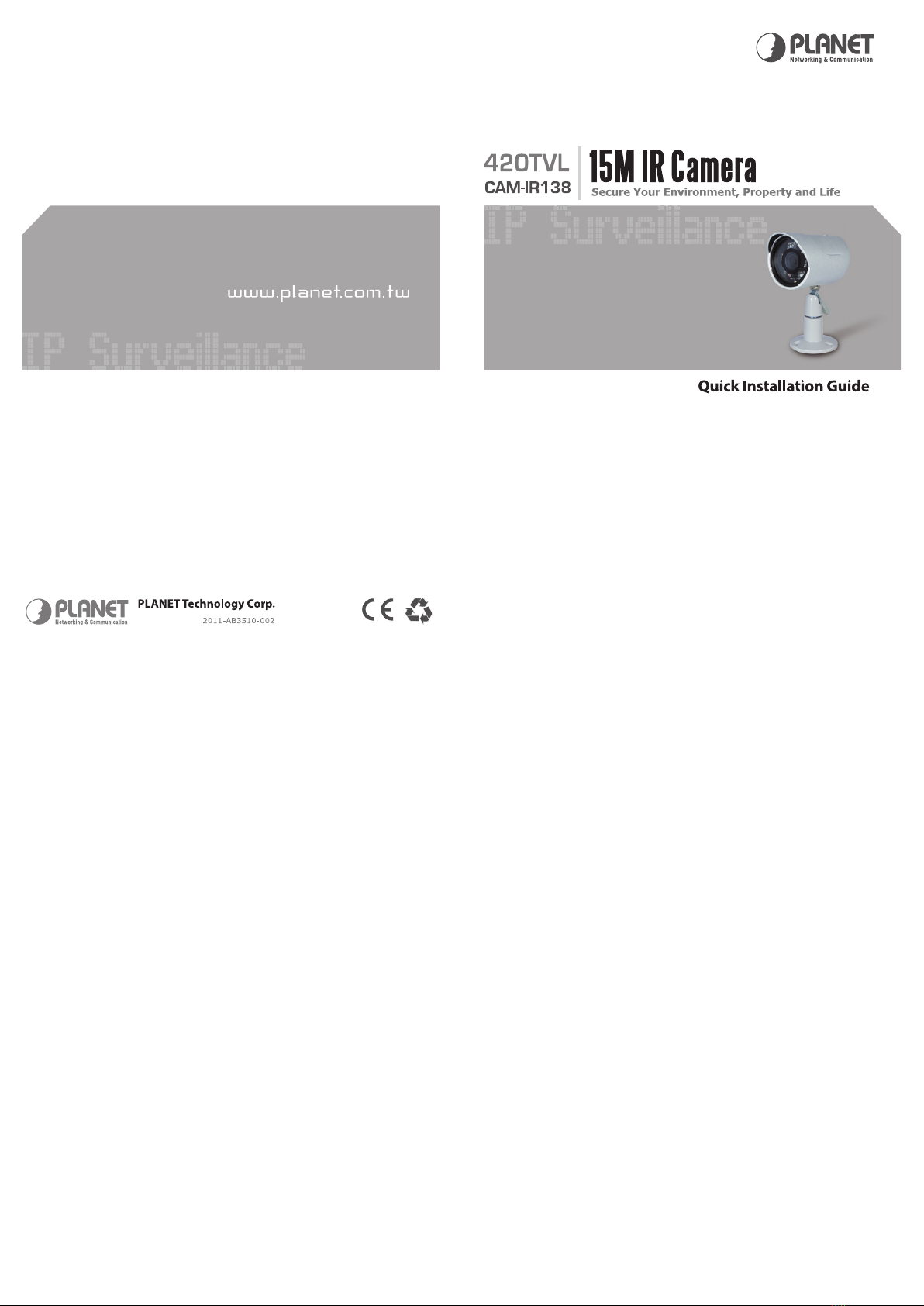

15 meter Infra-Red Camera – CAM-IR138

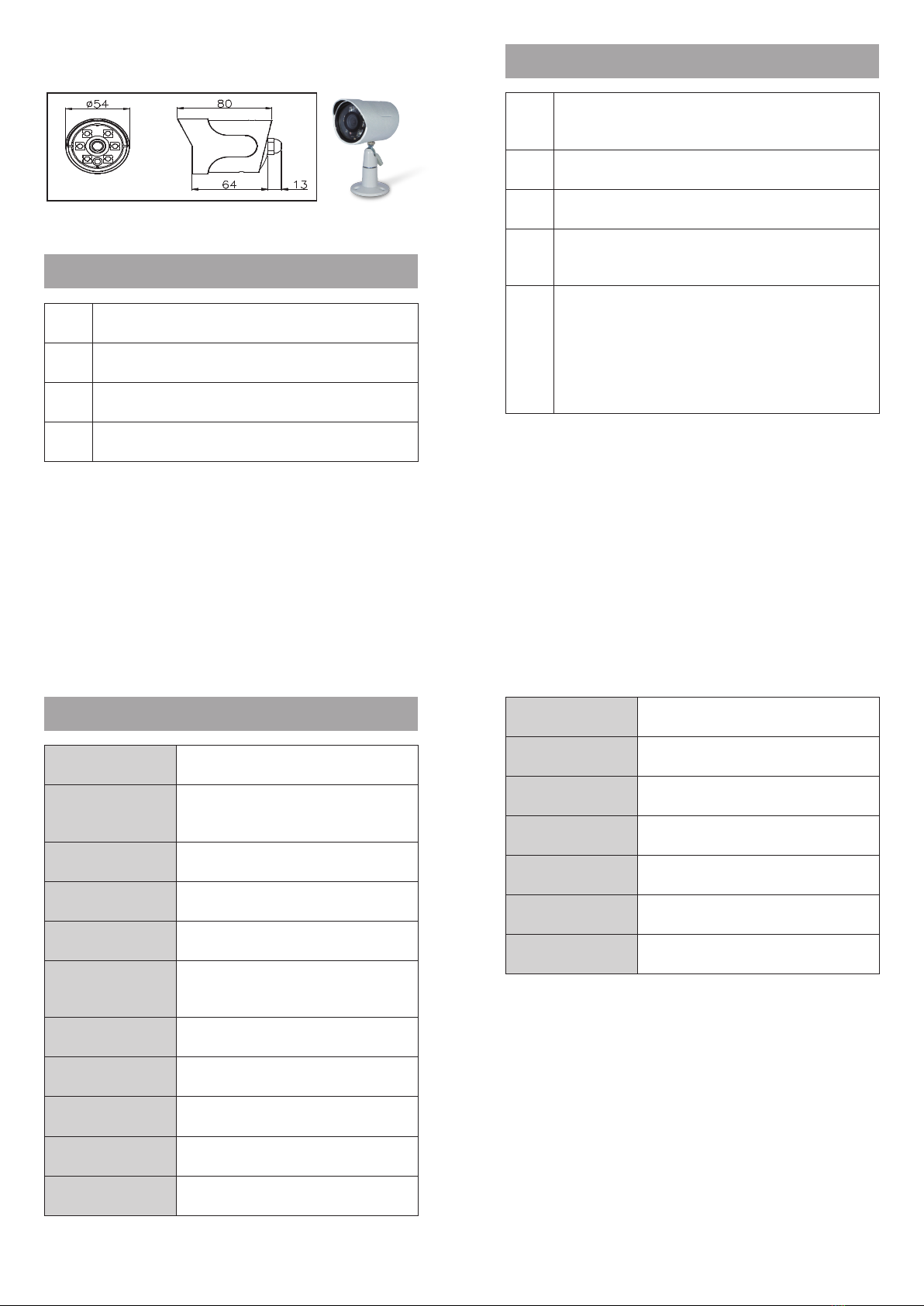

1. Packet Content
1. CAM-IR138
2. Screw kit x 1
3. Rack x 1
4. Quick Installation Guide x 1
2. Installation
1. Please x the CAM-IR138 to a suitable location
with the Rack and Screws.
2. Adjust the camera to the correct direction.
3. Connect Video Output connector to your DVR.
4. Connect a DC 12V power adapter to the Power
Input connector.
Note
Before connect power adapter to camera, please
make sure the power output voltage is DC 12V
(max. ±10%). If you can not sure this part, we
will suggest to use a DC 12V Switching power
adapter. It can provide stable power output.
3. Specication
Image Pick-up Device SHARP1/3” CCD Normal Resolution
Effective Picture
Elements
NTSC: 510 x 492,
PAL: 500 x 582 (H x V)
Horizontal Resolution 420 horizontal TV lines
Minimum Illumination 0 LUX with built-in IR-LED
S/N Ratio More than 48 dB
Auto Electronic
Shutter
NTSC: 1/60s~1/100,000s,
PAL: 1/50s~1/110,000s
Gain Control Automatically
White Balance Automatically (2500K~9500K)
Gamma Characteristic 0.45
Lens Furnished Board Lens 3.6 mm / F2.0
Synchronous System Internal, Negative Sync.
Video Output 1 Vp-p Composite Video / 75 Ohms.
Power Supply 12V DC / 220 mA
Operating Temp. -10°C to 50°C (14°F to 122°F)
Water Resistance IP66
IR LED 6 Units of 850nm High Efciency IR LED.
IR Project Distance 15 Meters
Dimensions 54 mm (φ) x 80 mm (L)
