Planet Networking & Communication DVR-460 Manuale utente

2008 JUL. Ver 1.0

4CH STANDALONE DVR

MANUAL

XGA LAN Remote

4ch

USB

MOTIONMOTION

Maxtor HITACHI WD Seagate

250GB

320GB

250G

320GB

500GB

750GB

250GB

320GB

500GB

750GB

HITACHI

750GB

HDS721075KLA330

STM3250310AS ST3250824AS HDT725025VLA380

STM3320820AS ST3320620SV HDT725032VLA360

STM3500630AS ST3500320SV HDT725050GLA360 WD5000AAKS

ST3750330AS WD7500AAKS

WD10EACS HDS721010KLA330

HDD SUPPORT LIST

Warning：

Should you wish to install a new hard drive in this unit,

a list of tested hard drives shown to be compatible can

be found below.

Warning：

The hard drive below is not recommended

for this unit

SATA

Brand

Capacity/

Model Number

SATA

Brand

Capacity/

Model Number

250GB

320GB

WD2500AAJS

WD3200AAKS

1、FEATURES

2、SPECIFICATIONS

3、INSTALLATION

4、FRONT PANEL

5、OPERATING MANUAL

6、BACKUP

7、

8、

9、DVR VIEWER USER GUIDE

10、CONTROL

RECORDING PROCEDURE

4-CH CONTINOUS RECORDING

HOURS ON SATA 400GB HDD

REMOTE GUIDE

CONTENTS

t1u

1、FEATURE

1 Triplex (Recording, Playback, Network simultaneously)

2、Up to 60fps Recording Speed。

3、USB flash disk backup。

4、Adjust Up/Down/Left/Right screen position。

5、Record in quad mode or single channel。

6、Video Input Signal: NTSC / PAL。

7、Video Compression: Modified MJPEG

8、Manual, Motion, & Programmed。

9、Motion Detection with Adjustable Time Duration。

10、Search Data by Date and Time。

11、Power Recover Auto Restore Record Mode。

12、Hard Disk LED Indicator When Recording。

13、Motion Detection。

14、Audio Recording。

15、SATA Hard Disk。

16、Remote Control (Optional)。

17、XGA Output (Optional)。

18、LAN (Optional)

、

t2u

2、SPECIFICATIONS

Video Format NTSC/PAL

Operating System Embedded RTOS

VGA Output D-SUB 15Pin VGA

Video Input BNC x 4 (1Vp-p 75Ω)

Audio Input RCA x 1, Line-In

Video Output BNC x 1(Main Monitor)

Audio Output RCA x 1, Line-Out

Display GUI, Multi-Language

NTSC 120 fps (4 × 30 fps)

Display Frame PAL 100 fps (4 × 25 fps)

NTSC Max. 60 fps

Recording Frame

(EACH) PAL Max. 50 fps

Video Operation Triplex (Record, Playback, Internet Access)

NTSC 640 x 448

Display PAL 640 x 544

NTSC 640x224

Resolution

Recording PAL 640x272

Normal 12K Bytes / Frame

High 15K Bytes / Frame

Compression

Format

Modified

MJPEG Highest 20K Bytes / Frame

HDD SATA HDD x 1

Backup USB

Mode Time/Date, Event

Search Full Screen Yes

Motion Detect Yes

Loss Detect Yes

Auto Switching Yes

Buzzer Output Yes

Brightness Adjust Yes

Contrast Adjust Yes

VGA Output 640*480/800*600/1024*768/1280*1024

System Monitor Power Recover Auto Restore Record Mode

Web Transmission

Format MPEG4

Power Supply DC 12V / 4A(AC100V~240V 50/60HZ)

Dimension 220mm x 228mm x 48mm (WxDxH)

Weight 1.5KG

t3u

3、INSTALLATION

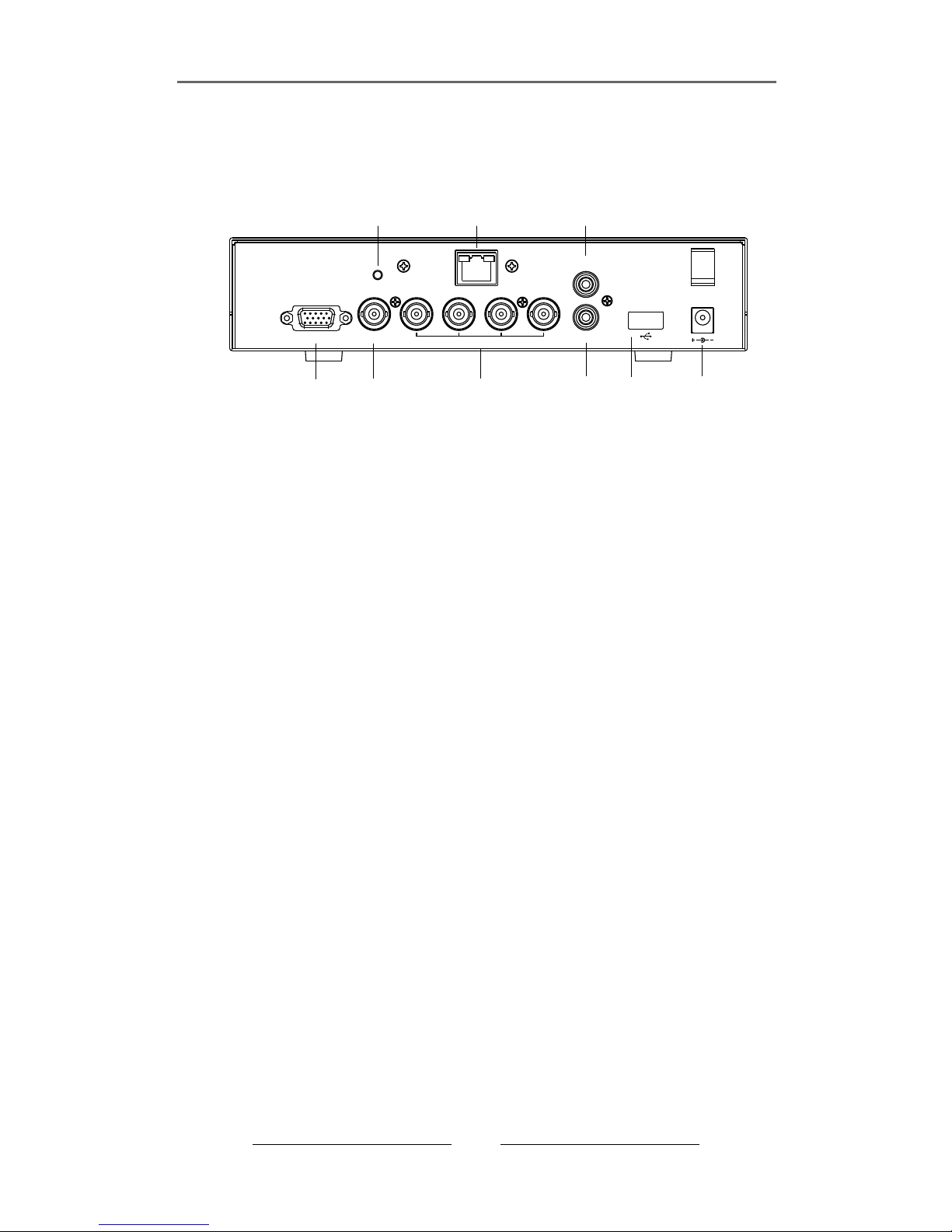

REAR PANEL

(1)(2)(3)

(4)

(7)(5)

DC12V

VIDEO IN

VIDEO OUT

DEFAULT

XGA

AUDIO IN

234

LAN

(8)

( )6

(9)

AUDIO OUT

(1) XGA Output (Optional)

(2) Video Output: BNC x 1

(3) Video IN: BNC x 4

(4) Audio Input: RCA x 1, Line-In

(5) Audio Output: RCA x 1, Line-Out

(6) Host USB

(7)Power Input: For safety reasons, always use

the original factory power adaptor attached.

Adaptor：DC-12V / 4A。

(8) LAN Output: (Optional)

(9) DEFAULT：Reset to factory setting.

(1) (2) (3) (4) (5) (6) (7) (8) (9)

t4u

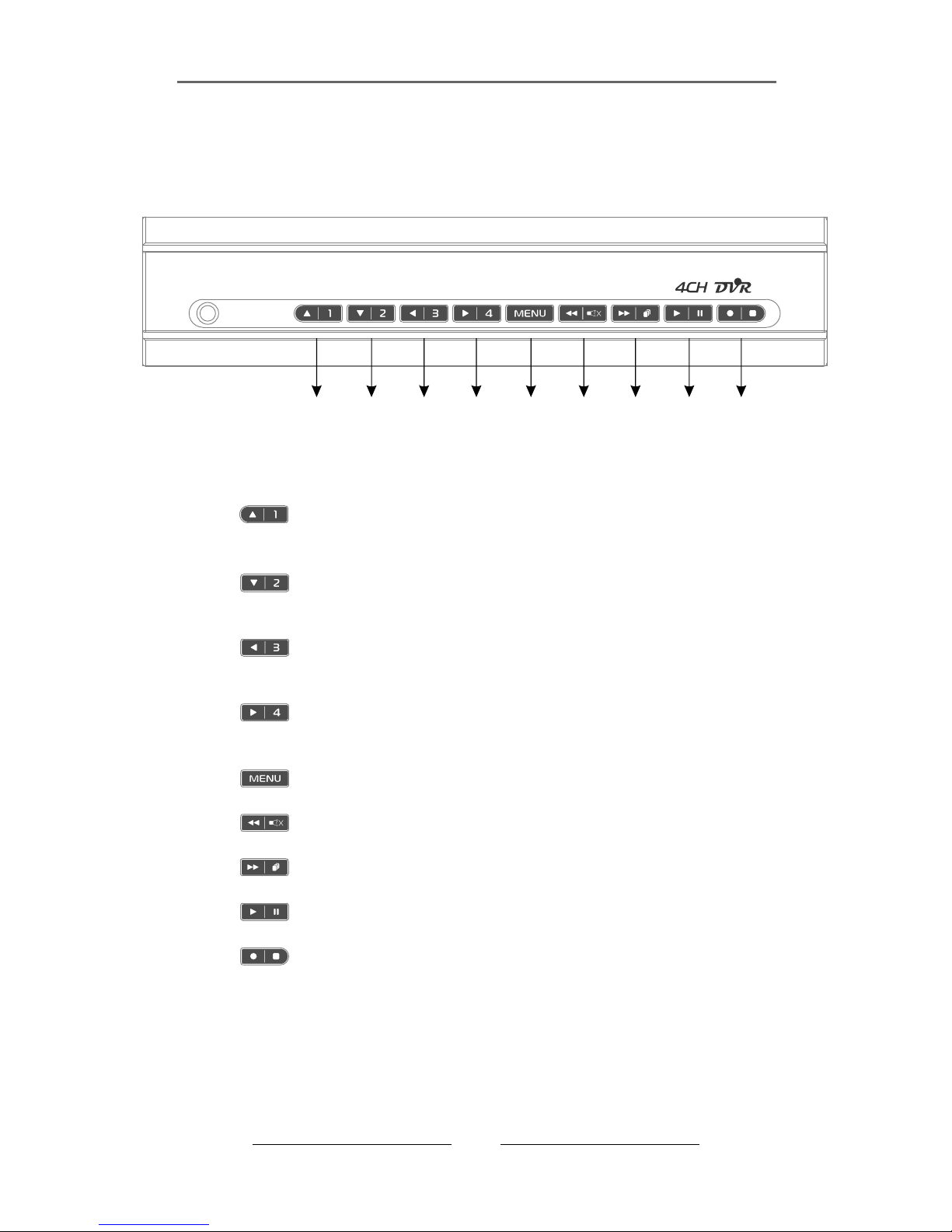

4、FRONT PANEL

(1) Up Arrow/CH1: Navigate up through menu options/

Camera 1 full screen display

(2) Down Arrow/CH2: Navigate down through menu options/

Camera 2 full screen display

(3) Left Arrow/CH3: Navigate left through menu options/

Camera 3 full screen display

(4) Right Arrow/CH4: Navigate right through menu options/

Camera 4 full screen display

(5) Menu: Main menu/ Show percentage of the hard drive used.

(6) Fast Reverse/Mute/Set

(7) Fast Forward/Sequence Switch

(8) Play/Pause

(9) Record/Stop

t5u

5、OPERATING MANUAL (MAIN MENU)

Press to select items

Use to enter

Press MENU to exit

Setup

Camera

Record

motion Detection

Screen

Audio

System

Language English

Exit

2008/07/01 13:21:14

Press to select items

Use to enter

Press MENU to exit

Camera

Channel 1

Display on

Brightness

Contrast

Hue

Saturation

2008/07/01 13:21:20

t u

(1)Channel：The diagram above shows Channel 1.

(2)Display：Turn On/Off the camera signal

(3)Brightness/Contrast/Hue/Saturation: Adjust brightness, contrast,

hue, and saturation of channel display. The center point is factory

default.

Camera Setup

Setup

t6u

Record Setup

Press to select items

Use to enter

Press MENU to exit

Record

Record Speed

Record Quality High

Event Rec Duration 10

Record Schedule

2008/07/01 13:21:24

(1)Record Speed： Set the number of frame per second (fps).

NTSC：default: 15 fps，maximum total frame: 60 fps.

PAL ：default: 12 fps，maximum total frame:50 fps.

(2)Record Quality：Choose video record quality: Highest, High, or Normal.

(3)Event Rec Duration：5、10、15、20、25、30 seconds，

default: 10 seconds.

(4)Record Schedule：

2008/07/01 13:21:28

0 3 6 9 12 15 18 21 23

Record Schedule

No Record

Time Record

Motion Record

(1)Press to change record method.

(2)Range: 0-24 hours.

(3)Set “red”for continuous recording.

(4)Set “blue” for motion recording.

(5)Set “grey”to disable the recording.

t7u

Motion Detection Setup

Press to select items

Use to enter

Press MENU to exit

Channel 1

Sensitivity off

Alarm Duration off

Motion Area

2008/07/01 13:21:36

Motion Detection Setup

(1)Channel：The diagram above shows Channel 1.

(2)Sensitivity：To set Off, or 1 to 4， default: Off.

(3)Alarm Duration：To set alarm duration when alarm is triggered by a

moving object: Off, 5, 10, 15, 20, 25, 30 seconds, or continuous.

(4)Motion Area：To s

★ If you want to enable motion recording, please finish the setup

procedure a and b.

a：Set SENSITIVITY level from 1 to 4 in the menu option, Motion Detection Setup

b：Set MOTION RECORDING to GREEN at the time you wish to enable motion

recording in the menu option, Record Schedule

elect motion detect area.

Screen

Press to select items

Use to enter

Press MENU to exit

Border off

Video Adjustment

AUTO SWITCHING 05

Resolution 1024 x 768

2008/07/01 13:21:48

Screen

(1)Border Turn On/Off，or show divided lines in quad mode.

(2)

(3)

(4)

Video Adjustment: Adjust the position of screen display shown.

Auto Switching: Set the duration of each channel: Off, 1 to 10 seconds.

Resolution: XGA

640 x 480 / 800 x 600 / 1024 x 768 (default) / 1280 x 1024
