Planet WNL-U553 Manuale utente

Wireless USB Adapter

WNL-U553

Quick Installation Guide

Table of Contents

Package Content................................................................... 4

Software Installation ............................................................. 5

Hardware Installation ............................................................ 8

Congure WNL-U553 wireless settings .................................. 10

Further Conguration .......................................................... 12

Thank you for purchasing PLANET Wireless USB Adapter, WNL-

U553. In this installation guide, the illustrations included driver

and utility installing steps for Windows 2000/XP and Vista. For

more information, please also refer to the User’s manual.

4

Package Content

1 x WL-U553 Wireless USB Adapter

1 x USB Cable

1 x Quick Installation Guide

1 x CD-ROM (Including User’s Manual and Driver)

5

Software Installation

Note

Please do NOT insert WNL-U553 to PC’s USB port

before installing utility.

1. Insert Drivers and User’s manual CD to your CD drive, then a

welcome web will appear.

2. Please click the utility hyper link to start install driver and

utility. If the web screen doesn’t appear, please click the

“Start” and choose “Run”. When dialog box appears, enter

“E:\Utility\setup.exe”.

3. When this screen appears, please press “Next” to continue.

6

4. Installation will start copy driver and utility to your OS.

5. When this dialog box appear, please click “Continue Anyway”.

7

6. Please click “Finish” to complete the installation.

8

Hardware Installation

1. Please connect WNL-U553 to your PC’s USB port. If your PC’s

USB interface is not USB 2.0, Windows will prompt you there

is a “High-Speed USB Device Plugged into non-High-Speed

USB hub”. Please don’t worry about this and keep installing.

2. After properly connect the WNL-U553 to your PC, Windows

will detect WNL-U553 and show you this dialog box. You can

see the device name in this dialog box. If the device name is

correct, please press ”Next” to the driver installation.

9

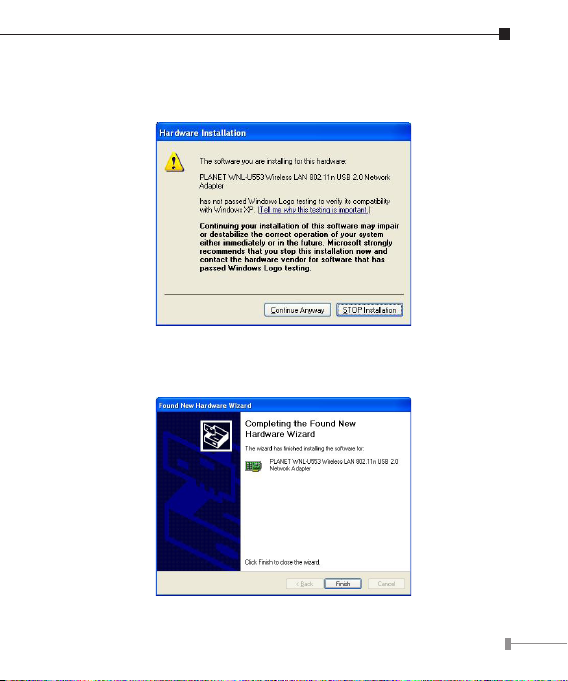

3. Windows may show you this driver is not passed Windows

Logo test, please select “Continue Anyway” to continue.

4. After the driver installation complete appears. Please click

“Finish”.

10

Congure WNL-U553 wireless settings

In Windows XP / 2000, when wireless card installed, the built-

in wireless utility will take control your wireless card. You may

need to disable this utility when you would like to use WNL-

U553 utility.

1. Please double click the wireless utility icon on the bottom-

right of desktop. Then you will see the Windows Zero Cong

Service dialog box, please click “Advanced” button. When

the below screen appear, please disable “Use Windows to

congure my wireless network settings” and press “OK”.
