Planet VIP-1120PT Manuale utente

– 5 – – 6–

Step 5. Login Prompt

Use web browser (Internet Explorer 6.0 or above) to

connect to 172.16.0.1 (type this address in the address bar

of web browser).

You’ll be prompted to input user name and password:

admin and 123

Further Conguration

For detailed conguration, please check user’s manual

which can be downloaded from the website.

If you have any other question, please contact the dealer

where you purchased this product or you can contact

PLANET directly at the following email address: support@

planet.com.tw

– 1 – – 2 –

– 3 – – 4 –

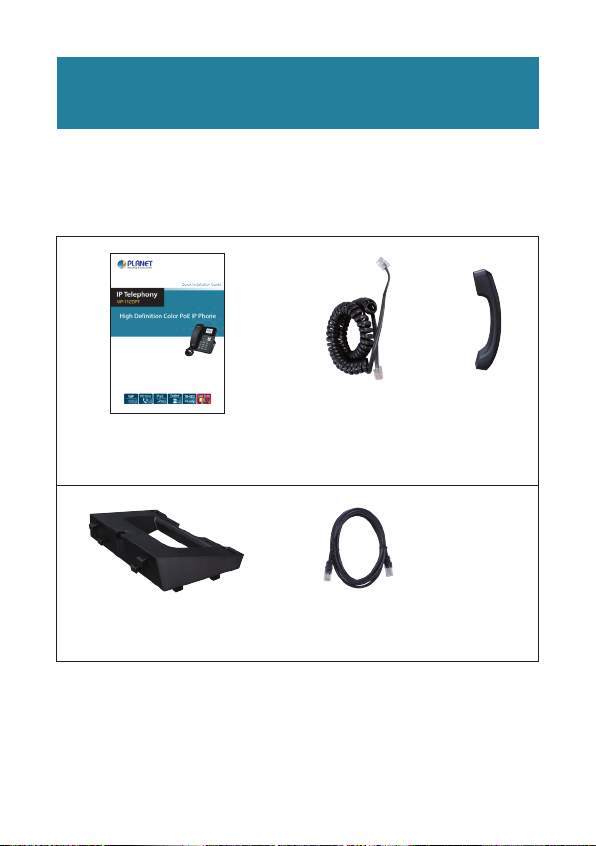

VERIFY THE CONTENTS INSIDE

THE PACKAGE BOX

The package should contain the following items plus

VIP-1120PT. If any item is missing or damaged, please

contact the seller immediately.

Quick Installation Guide Handset Cord Handset

Stand RJ45 Cable

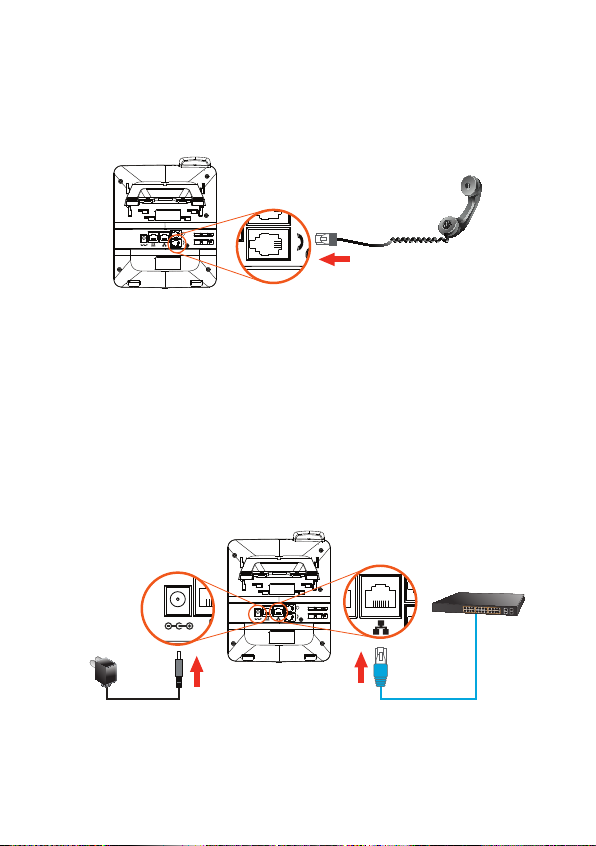

Step 1. Handset Connection

Plug one end of the handset cord into the handset and the

other end into the handset jack

Step 2. Connecting Power System

The VIP-1120PT can be powered either by external AC/DC

adapter or by connecting to an IEEE 802.3af/at PSE device

such as 802.3af injector/hub or 802.3af/at PoE switch.

Once the VIP-1120PT is powered, the LCD screen will

prompt for POST.

PoE Switch

Power Adapter

(Optional)

Note

1. This unit does not include the 5V/600mA

power adapter.

2. Only WAN supports PoE.

Step 3. Connecting Network

Internet

PoE Switch

IP PBX

Step 4. Computer Network Setup

Set your computer’s IP address to 172.16.0.x, where x is

a number between 2 to 254 (except 1 which is being used

for the phone by default). If you don’t know how to do this,

please ask your network administrator. Connect your PC to

VIP-1120PT PC port.

– 1 – – 2 –

– 3 – – 4 –

VERIFY THE CONTENTS INSIDE

THE PACKAGE BOX

The package should contain the following items plus

VIP-1120PT. If any item is missing or damaged, please

contact the seller immediately.

Quick Installation Guide Handset Cord Handset

Stand RJ45 Cable

Step 1. Handset Connection

Plug one end of the handset cord into the handset and the

other end into the handset jack

Step 2. Connecting Power System

The VIP-1120PT can be powered either by external AC/DC

adapter or by connecting to an IEEE 802.3af/at PSE device

such as 802.3af injector/hub or 802.3af/at PoE switch.

Once the VIP-1120PT is powered, the LCD screen will

prompt for POST.

PoE Switch

Power Adapter

(Optional)

Note

1. This unit does not include the 5V/600mA

power adapter.

2. Only WAN supports PoE.

Step 3. Connecting Network

Internet

PoE Switch

IP PBX

Step 4. Computer Network Setup

Set your computer’s IP address to 172.16.0.x, where x is

a number between 2 to 254 (except 1 which is being used

for the phone by default). If you don’t know how to do this,

please ask your network administrator. Connect your PC to

VIP-1120PT PC port.

– 1 – – 2 –

– 3 – – 4 –

VERIFY THE CONTENTS INSIDE

THE PACKAGE BOX

The package should contain the following items plus

VIP-1120PT. If any item is missing or damaged, please

contact the seller immediately.

Quick Installation Guide Handset Cord Handset

Stand RJ45 Cable

Step 1. Handset Connection

Plug one end of the handset cord into the handset and the

other end into the handset jack

Step 2. Connecting Power System

The VIP-1120PT can be powered either by external AC/DC

adapter or by connecting to an IEEE 802.3af/at PSE device

such as 802.3af injector/hub or 802.3af/at PoE switch.

Once the VIP-1120PT is powered, the LCD screen will

prompt for POST.

PoE Switch

Power Adapter

(Optional)

Note

1. This unit does not include the 5V/600mA

power adapter.

2. Only WAN supports PoE.

Step 3. Connecting Network

Internet

PoE Switch

IP PBX

Step 4. Computer Network Setup

Set your computer’s IP address to 172.16.0.x, where x is

a number between 2 to 254 (except 1 which is being used

for the phone by default). If you don’t know how to do this,

please ask your network administrator. Connect your PC to

VIP-1120PT PC port.

– 1 – – 2 –

– 3 – – 4 –

VERIFY THE CONTENTS INSIDE

THE PACKAGE BOX

The package should contain the following items plus

VIP-1120PT. If any item is missing or damaged, please

contact the seller immediately.

Quick Installation Guide Handset Cord Handset

Stand RJ45 Cable

Step 1. Handset Connection

Plug one end of the handset cord into the handset and the

other end into the handset jack

Step 2. Connecting Power System

The VIP-1120PT can be powered either by external AC/DC

adapter or by connecting to an IEEE 802.3af/at PSE device

such as 802.3af injector/hub or 802.3af/at PoE switch.

Once the VIP-1120PT is powered, the LCD screen will

prompt for POST.

PoE Switch

Power Adapter

(Optional)

Note

1. This unit does not include the 5V/600mA

power adapter.

2. Only WAN supports PoE.

Step 3. Connecting Network

Internet

PoE Switch

IP PBX

Step 4. Computer Network Setup

Set your computer’s IP address to 172.16.0.x, where x is

a number between 2 to 254 (except 1 which is being used

for the phone by default). If you don’t know how to do this,

please ask your network administrator. Connect your PC to

VIP-1120PT PC port.

– 5 – – 6–

Step 5. Login Prompt

Use web browser (Internet Explorer 6.0 or above) to

connect to 172.16.0.1 (type this address in the address bar

of web browser).

You’ll be prompted to input user name and password:

admin and 123

Further Conguration

For detailed conguration, please check user’s manual

which can be downloaded from the website.

If you have any other question, please contact the dealer

where you purchased this product or you can contact

PLANET directly at the following email address: support@

planet.com.tw

– 5 – – 6–

Step 5. Login Prompt

Use web browser (Internet Explorer 6.0 or above) to

connect to 172.16.0.1 (type this address in the address bar

of web browser).

You’ll be prompted to input user name and password:

admin and 123

Further Conguration

For detailed conguration, please check user’s manual

which can be downloaded from the website.

If you have any other question, please contact the dealer

where you purchased this product or you can contact

PLANET directly at the following email address: support@

planet.com.tw

– 5 – – 6–

Step 5. Login Prompt

Use web browser (Internet Explorer 6.0 or above) to

connect to 172.16.0.1 (type this address in the address bar

of web browser).

You’ll be prompted to input user name and password:

admin and 123

Further Conguration

For detailed conguration, please check user’s manual

which can be downloaded from the website.

If you have any other question, please contact the dealer

where you purchased this product or you can contact

PLANET directly at the following email address: support@

planet.com.tw
